Project - Speed Control of a Direct Current (DC) motor

Aim:- To desin a simulink model for a Direct Current (DC) motor. Use the PID contoller to control the speed of the motor.

First I will write all the parameters of required for DC motor.

The parameter for DC Motor

j=0.01;% moment of inertia

B1=0.1; % motor viscus constant

km=0.01; %back emf constant

kt=0.01;% motor torque constant

Ra=1; % resistance of armature circuit

La=0.5; %inductance of armature circuit

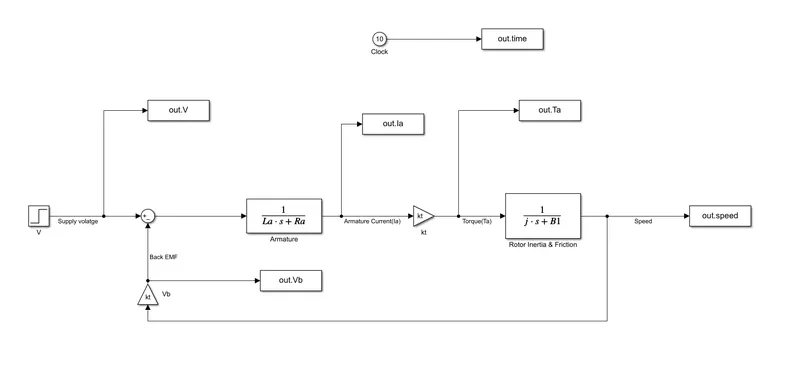

Simulink Model of DC Motor

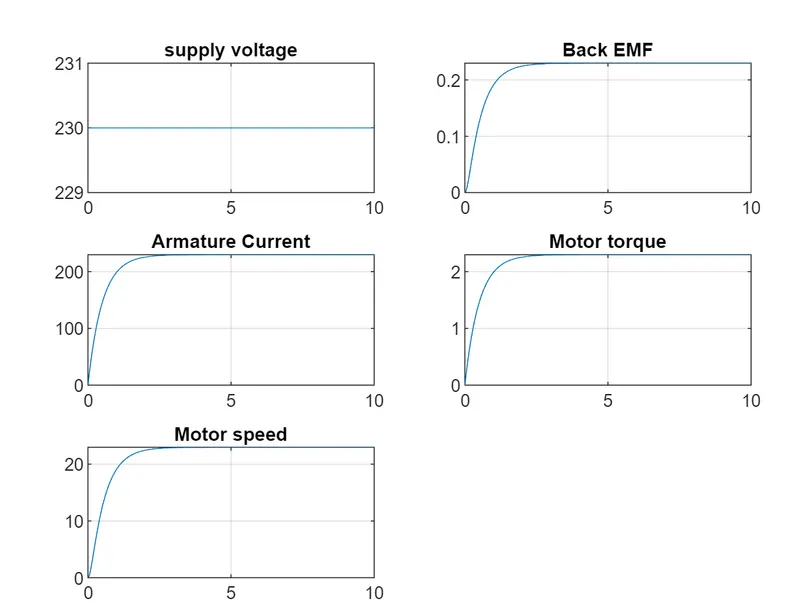

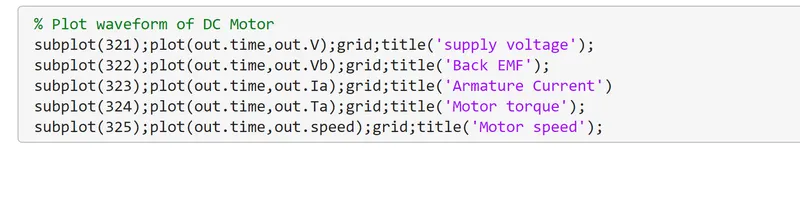

The result we got when we applied a Voltage of 230 V

Now, I will design a PID contoller to control the speed of the motor and get the desire speed

The parameter of PID contoller

A=[-B1/j kt/j; -km/La -Ra/La];

B=[0; 1/La];

% Placement of Poles

fn=1; % natural Frequency

wn=2*pi*fn; % frequency in radian/sec

zeta=0.5; % under damped

p1=-zeta*wn+wn*sqrt(zeta^2-1); %pole 1

p2=-zeta*wn-wn*sqrt(zeta^2-1); % pole 2

P=[p1;p2]

K=place(A,B,P) % for getting proportional(kp) and derivative gain(kd)

kp=K(1);

kd=K(2);

ki=10; % integral gain value given by us manually

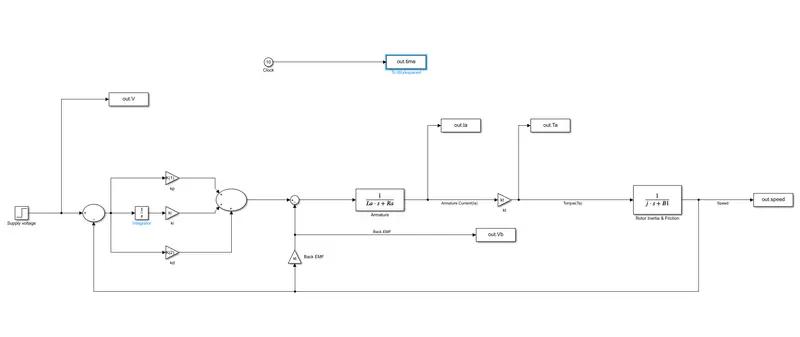

Simulink Model of DC Motor using PID controller

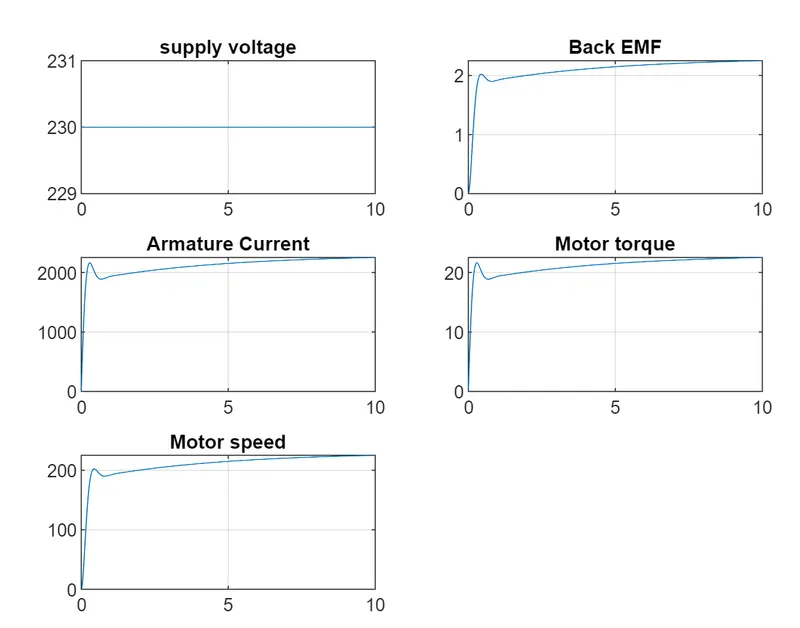

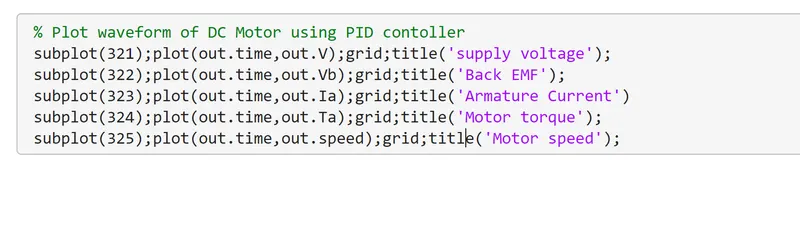

Case 1:- The result we got when we applied a Voltage of 230 V, kp=38.31 , kd=-2.85 , ki=10.

We can see by using the PID contoller we are getting the speed of motor close to supplied voltage.

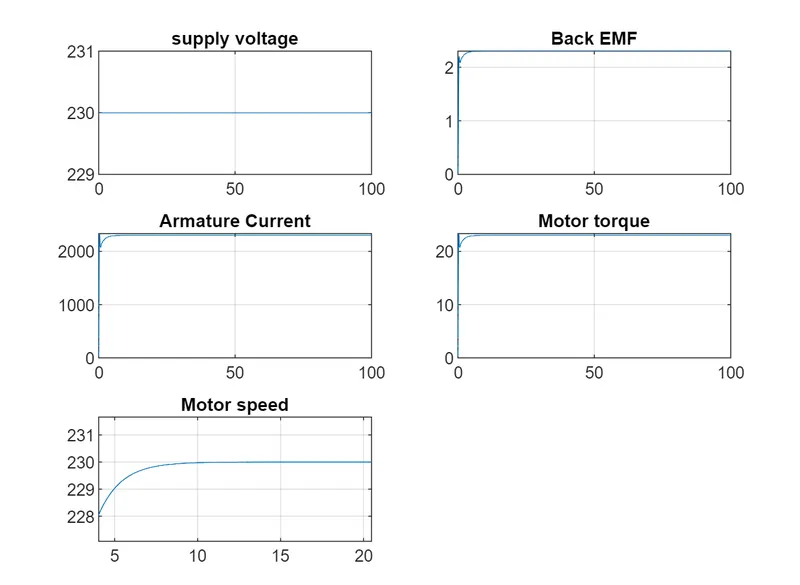

Case 2:- The result we got when we applied a Voltage of 230 V, kp=38.31 , kd=-2.85 , ki=20.

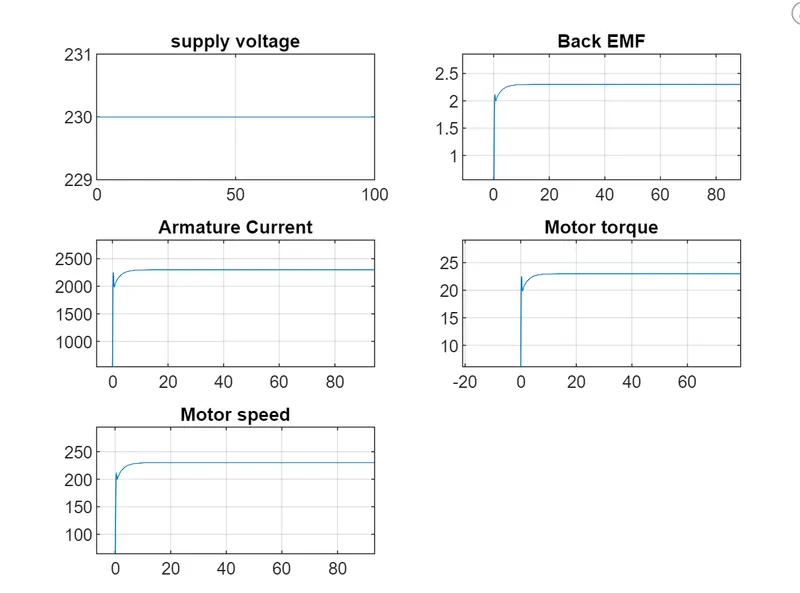

Case 3:- The result we got when we applied a Voltage of 230 V, kp=38.31 , kd=-2.85 , ki=30

At Ki=20 & 30 we are getting the same speed. This mean we have maintain the desire speed of the motor
