Project - Speed Control of a Direct Current (DC) motor

% speed control of DC motor by using PID controller:

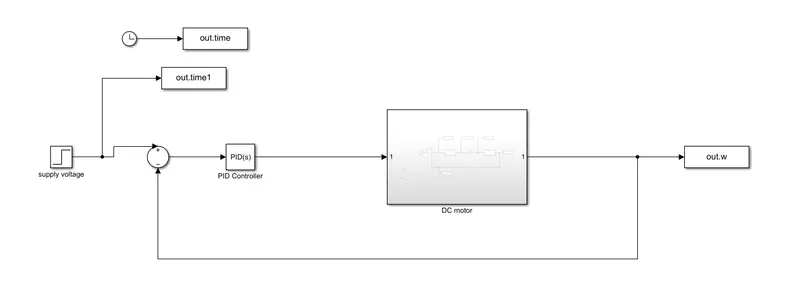

simulink model:

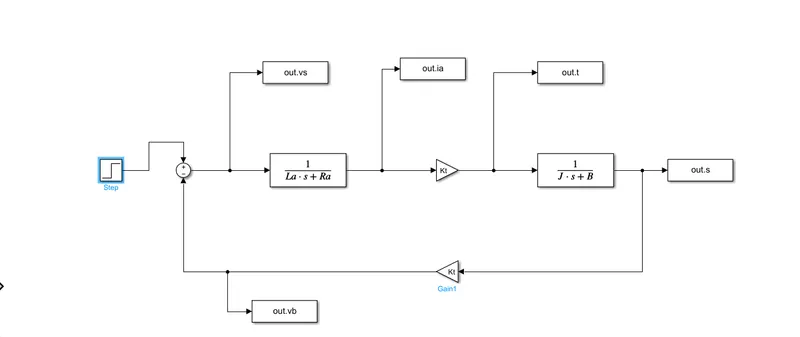

DC motor Subsystem:

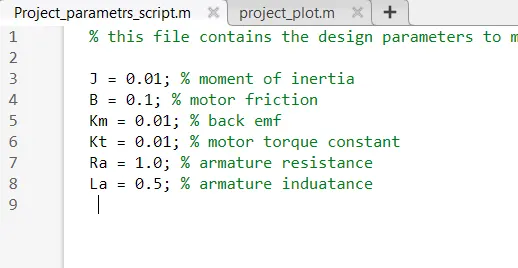

text file of parameters:

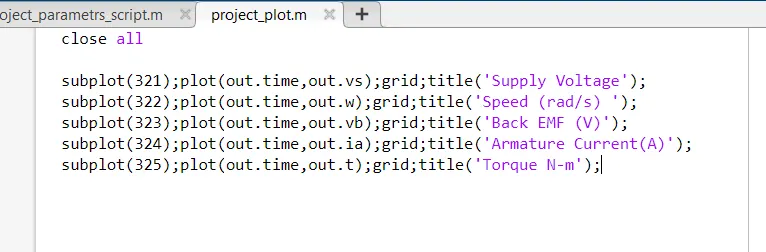

plot file for model output:

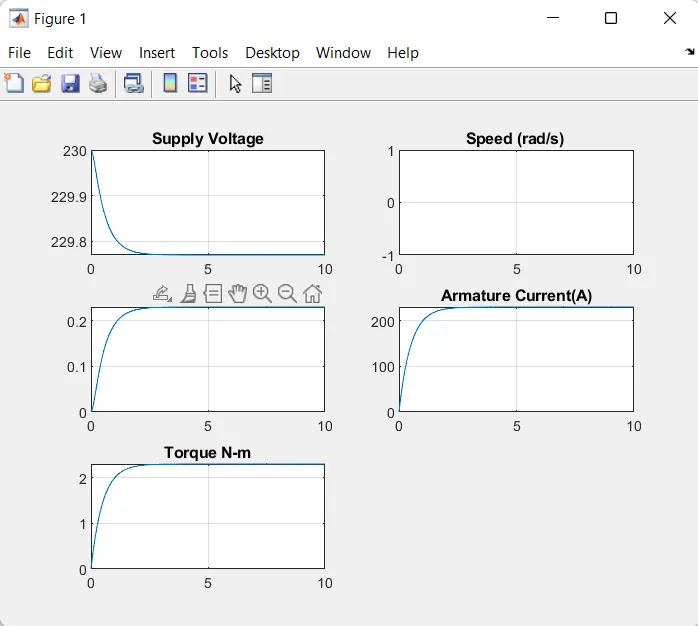

output when

Kp = 0.01;

Ki = 0.01;

Kd = 0;
