Project - Data Handling and Interpolation
Project - Data Handling and Interpolation
Answer:
f = xlsread('VI.xlsx');%Reading the xlsx file
V = f(:,1);%storing first column value of 'f' in 'V'
I = f(:,2);%storing second column value of 'f' in 'A'
Vinp = -17.3:0.1:0.9;% Creating Given Range of Voltage Data mentioned in problem
Iinp = interp1(V,I,Vinp,"spline");% Using 'interp1' function for calculating Current value for given %Voltage Range 'Vinp'
figure(1);
subplot(121)
plot(V,I,'-o');grid;% Ploting trig_function with time
title('Experiment Data');%giving title for the figure
ylabel('I(mAmp)');xlabel('V(Volt)');%giving lables to both the axis
axis([-20 5 -30 5]);%Defining axis limits
subplot(122)
plot(Vinp,Iinp);grid;% Ploting trig_function with time
title('Calculated By Interpolation Data');%giving title for the figure
ylabel('I(mAmp)');xlabel('V(Volt)');%giving lables to both the axis
axis([-20 5 -30 5]);%Defining axis limits
figure(2);
plot(V,I,'o',Vinp,Iinp);grid;%ploting the values
title('Volteg(V) vs Current(I) Validation plot');%giving title for the figure
xlabel('V(Volt)');ylabel('I(mAmp)');%labeling X and Y axis
legend('Experiment Data','Calculated by Interpolation','Location','best');% Showing legends
fid = fopen('Volt_and_Current.txt','w');% opening output file
fprintf(fid,'V(Volt) I(mAmp)\n');% storing value of variable x in file
fclose(fid);% closing output file
Result:

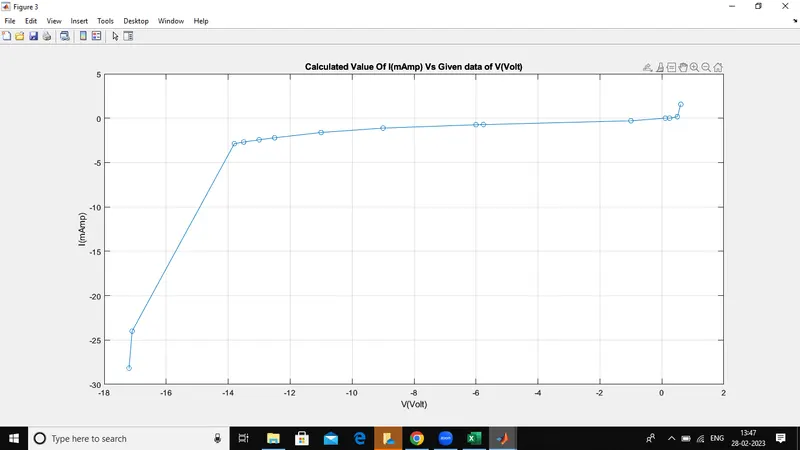

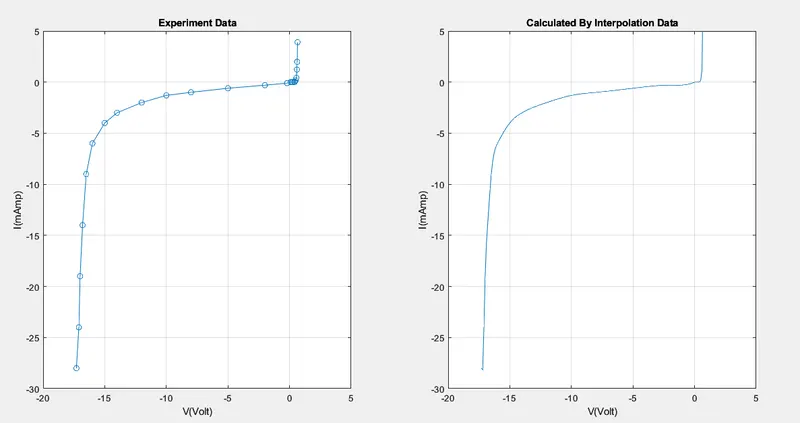

figure(1)

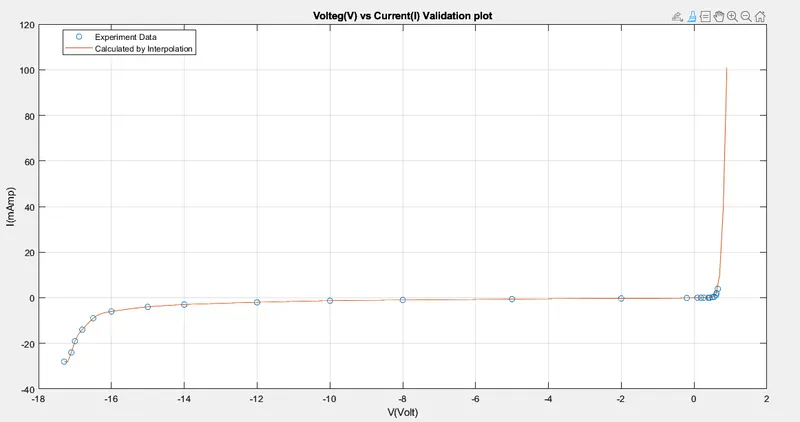

figure(2)
