Project

AIM: To study the system level simulation of an all terrain vehicle.

KEYWORDS: CVT, lookup table, Dashboard, baja ATV

SOFTWARE: Matlab, Simulink

OBJECTIVE:

1. Study the baja ATV model without dashboard.
2. Study the baja ATV model with dashboard.
3. Study the baja ATV model using lookup table without dashboard.
4. Study the baja ATV model using lookup table with dashboard.

INTRODUCTION: Transmission, which transmits the power from engine to the wheels through the shafts. It consists of 4 types mainly,

• Manual transmission
• Continous variable transmission
• Semiautomatic transmission
• Automatic transmission

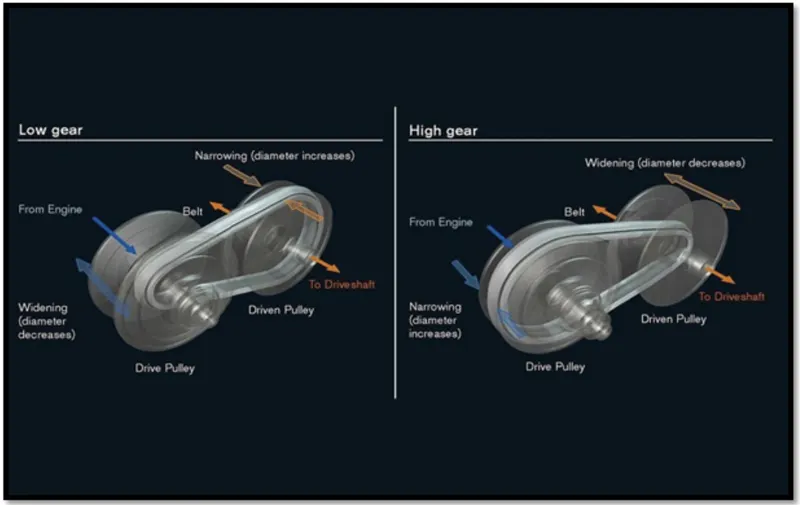

A continuously variable transmission, or CVT, is a type of automatic transmission that provides more useable power, better fuel economy and a smoother driving experience than a traditional automatic transmission. The CVT is a system that makes it possible to vary stepless the transmission ratio without interruption of the torque flow. Therefore an infinite number of ratios (between a minimum and maximum value) are possible. It is an automatic, single speed, and gearless transmission that can shift through an infinite number of gear ratios. This ability to seamlessly shift through these different gears provides a number of benefits including extremely smooth shifts and exceptional fuel economy. A CVT draws top engine power from a small engine, which gives drivers quicker acceleration than standard automatic transmissions. Because of their greater ability to control the engine speed range, CVs produce fewer emissions. CVTs are also lighter weight than traditional automatic transmissions.

STUDY 1:-

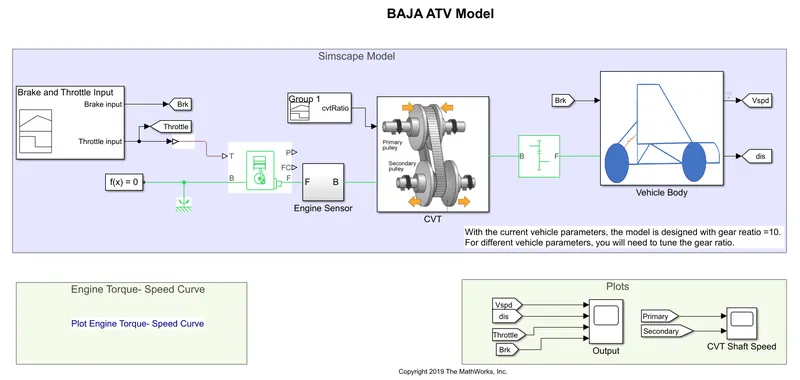

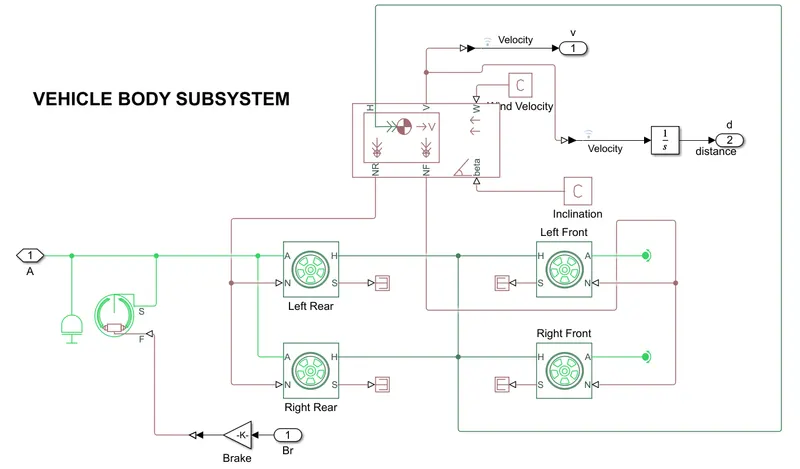

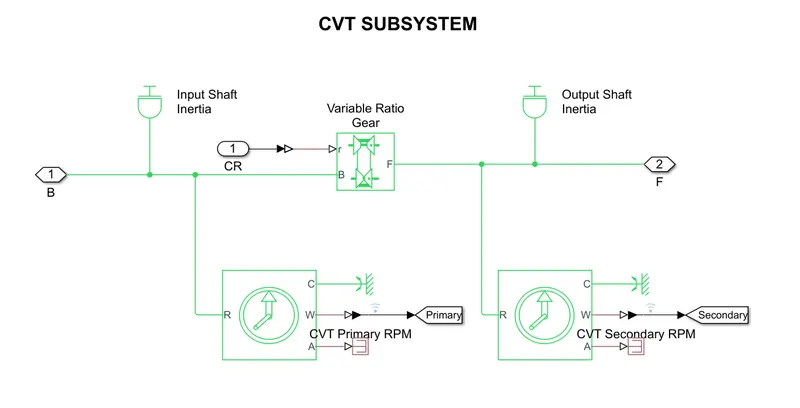

By using simulink model of CVT consists of Signal builder, generic engine, motion sensors, vehicle transmission, vehicle body,tyres and solver configuration blocks etc., as shown in figure-1. The CVT subsystem includes Transmission block, input and output shaft inertia and motion sensors as shown in figure-2. The vehicle body subsystem includes vehicle body block, double drum brake and tyres as shown in figure-3. The initial engine speed is given as 2100 rpm, mechanical rotation for driven pulley and driver pulley as 0.8 & 0.7 respectively. The mass of the vehicle as 250kg and 2 axles which connects 4 wheel accordingly.

Figure 1

Figure 2

Figure 3

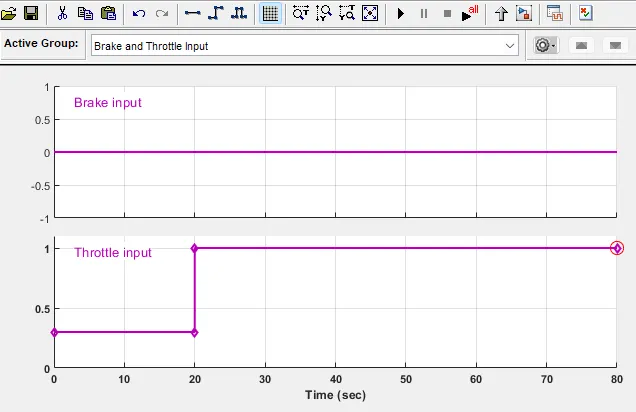

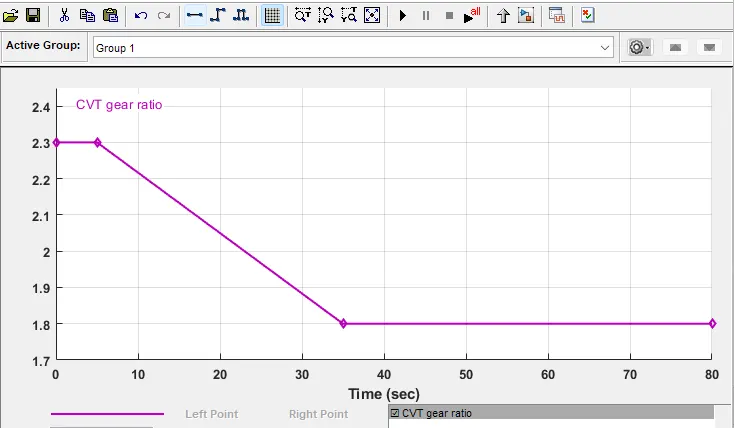

The signal builder is used as input for brake, throttle and gear ratio. Brake input is maintained as 0 for overall simulation. The throttle input is given as 0.3 for20 secs and increases to 1 for overall simulation. The throttle valve is mainly to control the flow or amount of fuel into the engine, if the throttle value increases the flow of fuel increases to the IC engine which inturn increases the power of the engine. The gear ratio is maintained as 2.3 for 5 secs and linearly decreases to 1.8 and maintained constant for overall simulation as shown in figure (4 - 5).

Figure 4

Figure 5

STUDY 2:-

Figure 6

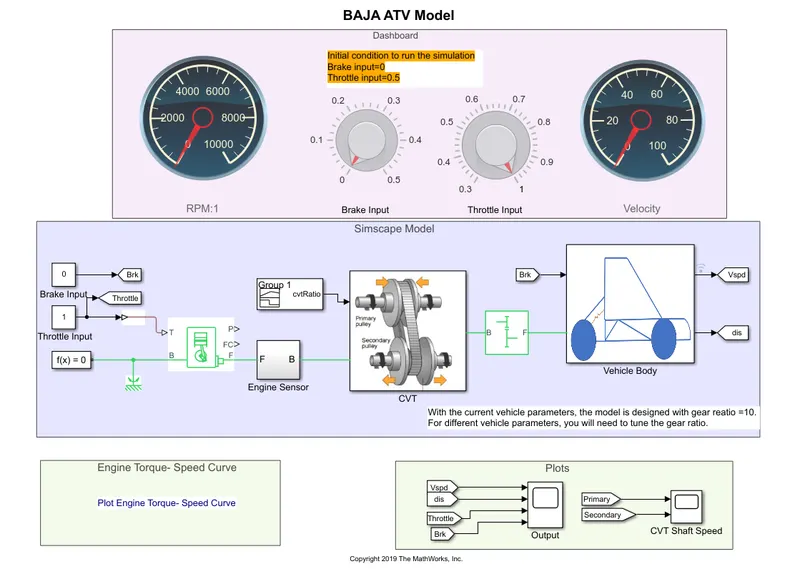

The above figure shows 'Baja ATV with dashboard' model which consists throttle meter and brake input in the dashboard instead of giving input through signal builder. Rest of the blocks and subsystems are common in the above baja ATV model without dash board as shown in figure 2 & figure 3. The main concept of using dash board is study the result by varying the input of brake and throttle, which shows that the velocity and speed of the engine. The gear ratio is maintained as 2.3 for 5 secs and linearly decreases to 1.8 and maintained constant for overall simulation as shown in figure 5. As the brake input varies from 0 - 0.5, the velocity and speed decreases accordingly. By increasing the throttle, the velocity and speed of the engine & shaft increases.

STUDY 3:-

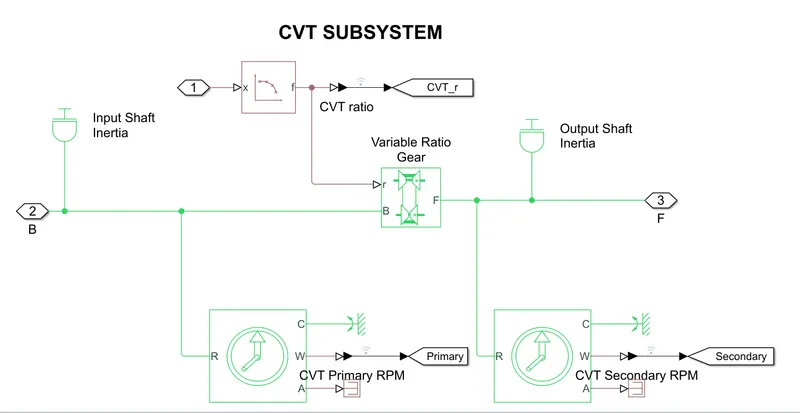

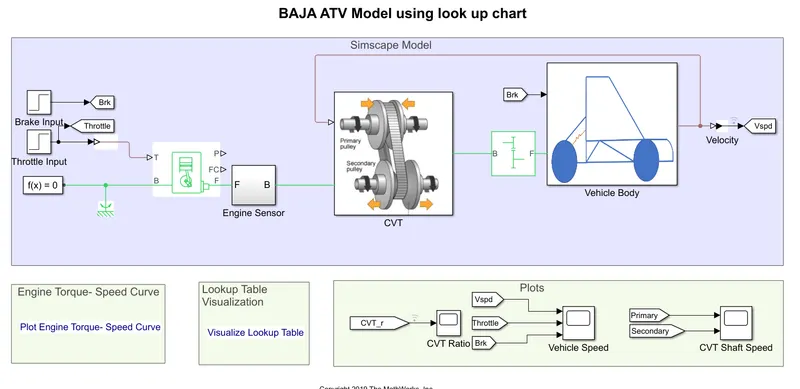

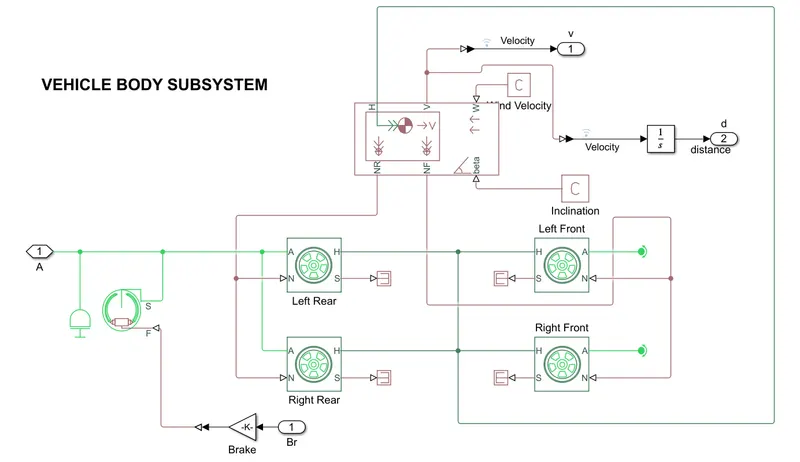

By using simulink model of CVT consists of step time, generic engine, motion sensors, vehicle transmission, vehicle body,tyres and solver configuration blocks etc., as shown in figure-7. The CVT subsystem includes look up table, Transmission block, input and output shaft inertia and motion sensors as shown in figure-8. The vehicle body subsystem includes vehicle body block, double drum brake and tyres as shown in figure-9. The initial engine speed is given as 2100 rpm, mechanical rotation for driven pulley and driver pulley as 0.8 & 0.7 respectively. The mass of the vehicle as 250kg and 2 axles which connects 4 wheel accordingly.

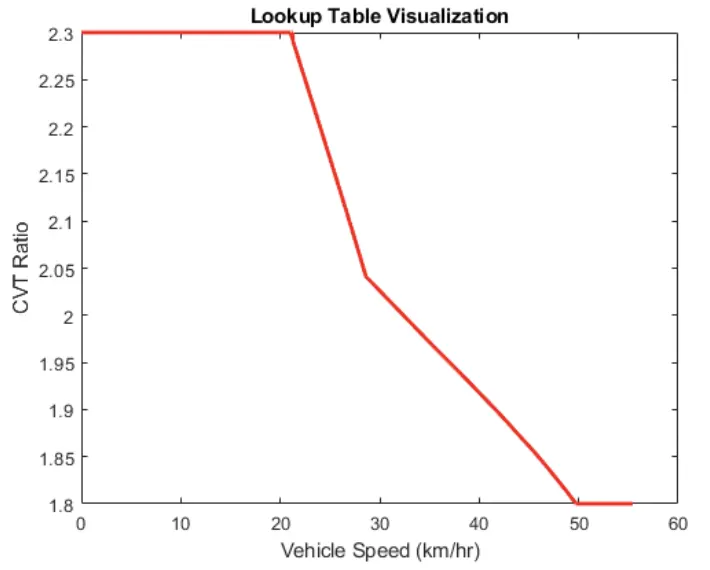

A lookup table is an array of data that maps input values to output values, thereby approximating a mathematical function. Given a set of input values, a lookup operation retrieves the corresponding output values from the table. If the lookup table does not explicitly define the input values, simulink can estimate an output value using interpolation, extrapolation, or rounding, where:

• An interpolation is a process for estimating values that lie between known data points.
• An extrapolation is a process for estimating values that lie beyond the range of known data points.
• A rounding is a process for approximating a value by altering its digits according to a known rule.

Figure 7

Figure 8

Figure 9

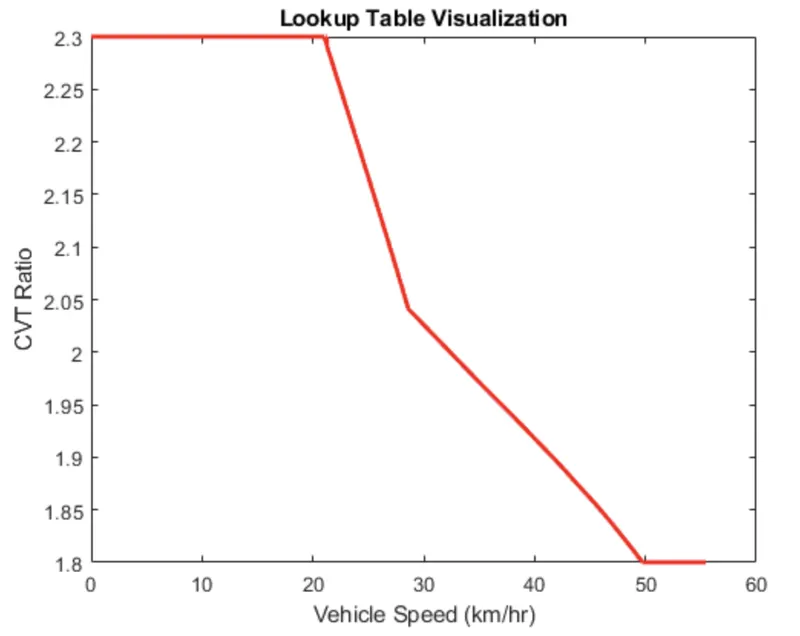

The brake input and throttle input is given by step time, which depends on the run time and varies accordingly. By using Lookup table for gear ratio which takes as input to the CVT and works according to the input gear ratio and obtained the output. This method is very effective which can avoid the unusual torque at the certain speed and very easy to achieve greater velocity & engine speed. It works as closed loop when the input is given by lookup table. The simulink get the input value from lookup table and obtain the result according to the input values of gear ratio. The gear ratio varies from 2.3 to 1.8 as taken as input and output interms of velocity. The maximum velocity reached as 57 kmph approximately.

Figure 10

STUDY 4:-

Figure 11

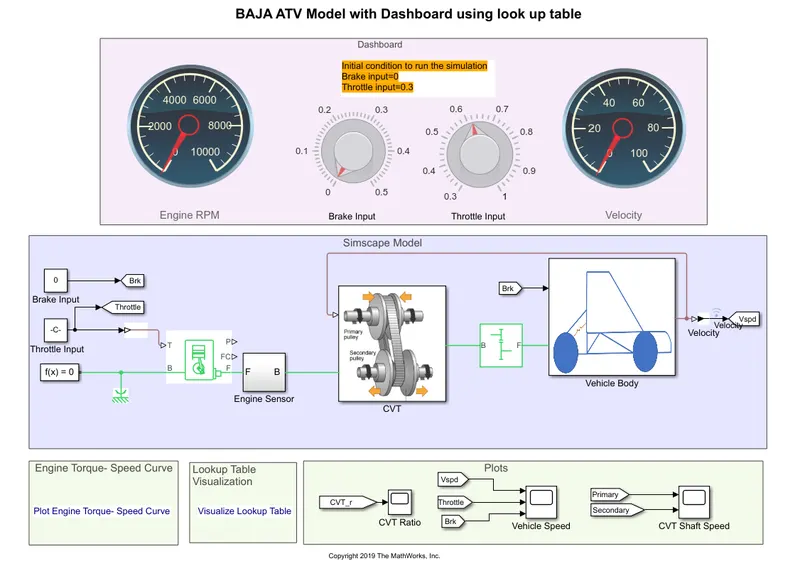

The above figure shows 'Baja ATV with dashboard' model using lookup table which consists throttle meter and brake input in the dash board and indicated as constant block. Rest of the blocks and subsystems are common in the above baja ATV model without dash board as shown in figure 8 & figure 9. The main concept of using dash board is study the result by varying the input of brake and throttle, which shows that the variation of velocity and speed of the engine. The gear ratio is given by lookup table, simulink get the input value from the lookup table and obtain the result according to the lookup table. As the brake input varies from 0 - 0.5, the velocity and speed decreases accordingly which inturn the gear ratio also decreasing. By increasing the throttle, the velocity and speed of the engine & shaft increases. The transmission as primary pulley and secondary pulley, in which the radius of primary pulley increses by compacting and the radius of secondary pulley decreases. As the gear ratio varies, the torque also varies. Gear ratio is directly proportional to the torque, which increases by increasing the gear ratio. At the max torque, the speed and velocity is decreases.

OUTPUT:

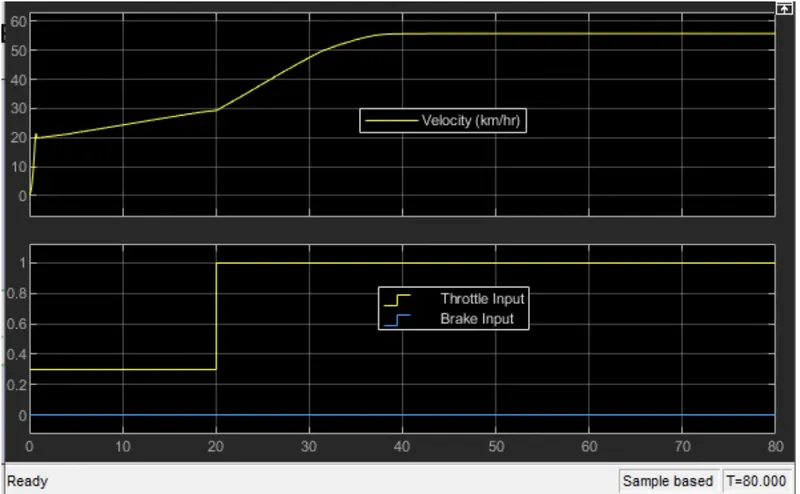

Study 1:- Variation of velocity & Shaft speed

Figure 12

In the above figure, the brake is maintained as constant and increase in throttle which shows increase in velocity. The flow of fuel is increses when the throttle increases from 0.3 to 1, thus the power in the engine increases. The torque reaches approximately 7N-m at 1.8 gear ratio, which defines that gear ratio is directly proportional to the torque. By this gear ratio, the speed & velocity can achieve maximum.

Figure 13

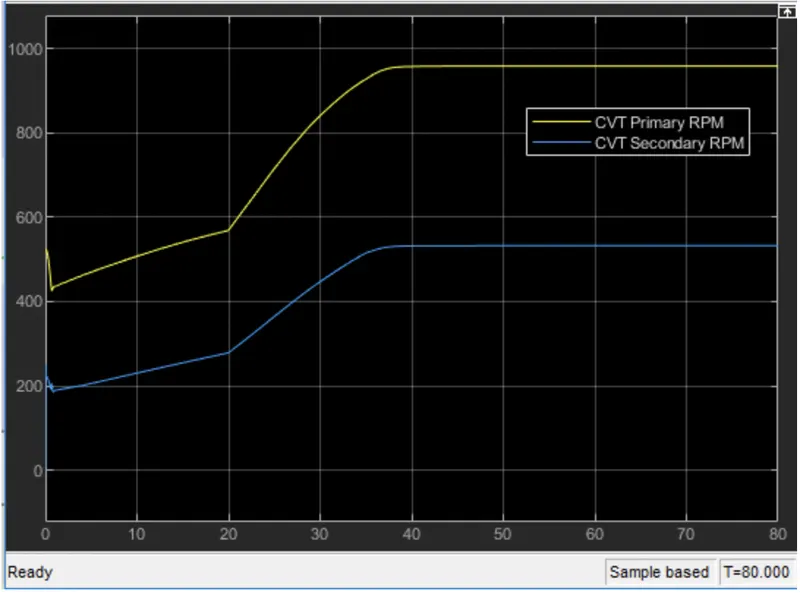

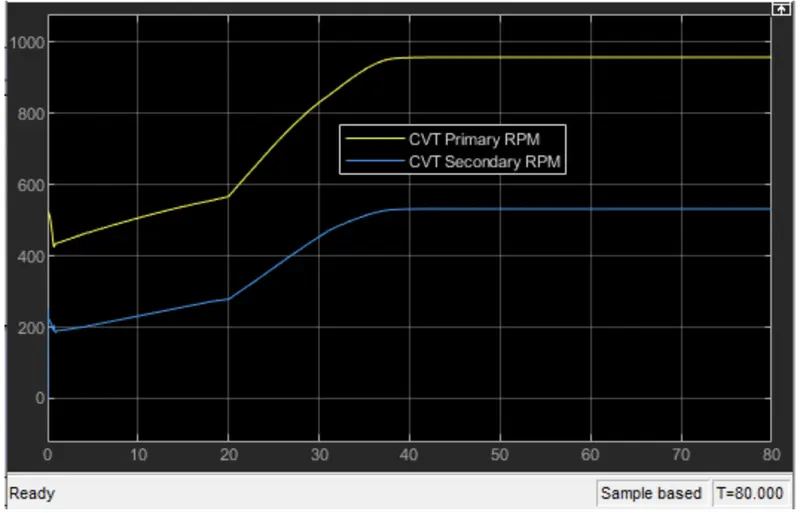

In the above figure, the primary shaft reaches high speed and secondary shaft as low rotational speed because the radius of the primary shaft as more than the secondary shaft, the speed is directly proportional to the radius of the shaft. As the radius increases the speed of the shaft also increases.

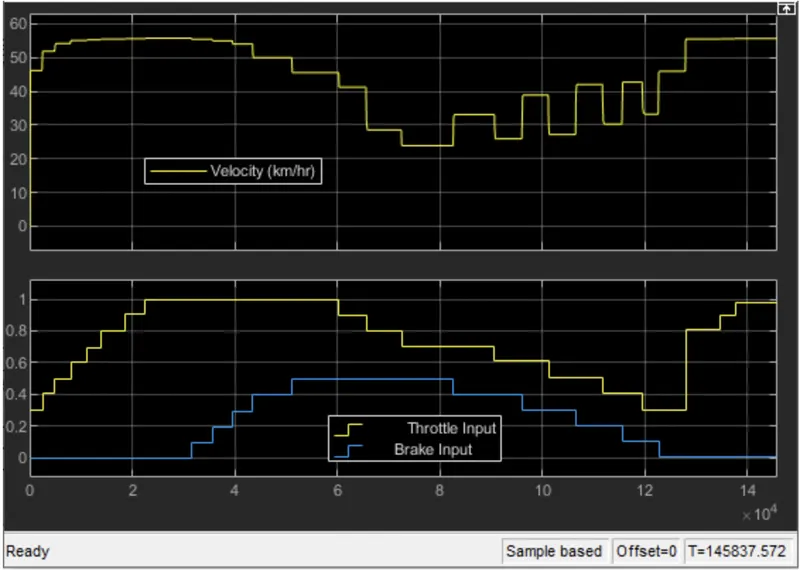

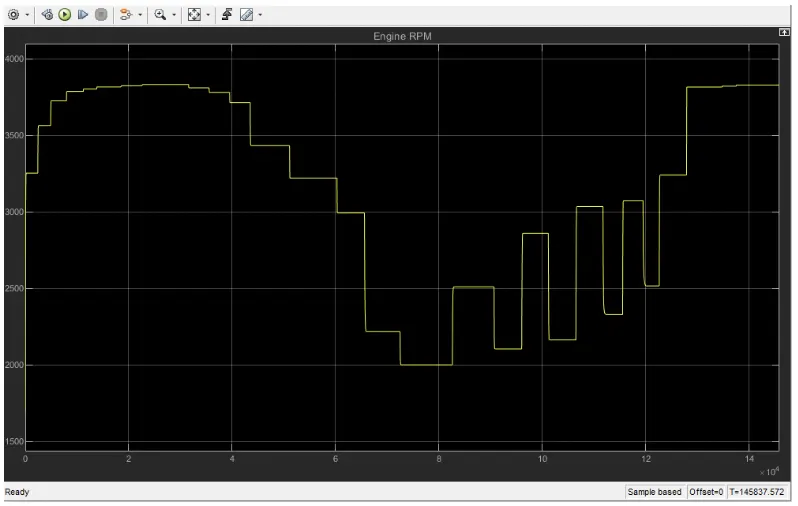

Study 2:- Variation of velocity & Shaft speed

Figure 14

In the above figure, the velocity of the vehicle is maintained as constant for constant throttle value as 0.3 and varying by increasing the value of throttle which increases the velocity of vehicle. By increasing the brake input, the velocity of the vehicle decreasing accordingly which shown in figure 14.

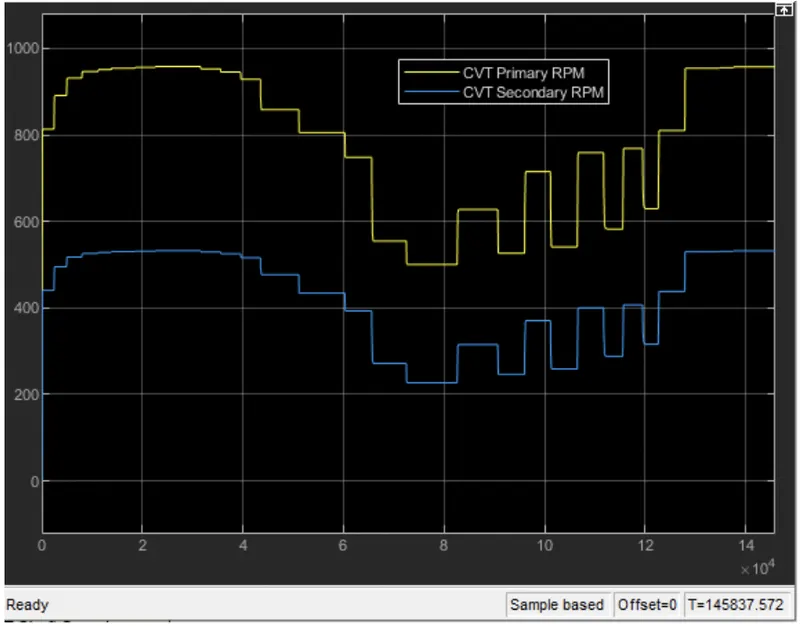

Figure 15

In the above figure, the primary shaft speed increases by increasing throttle and decreasing by increasing brake input value, which defines that the throttle can flow more amount of fuel which increases the power of the engine and similar to the secondary shaft. The radius of the primary shaft as more than the secondary shaft, the speed is directly proportional to the radius of the shaft. As the radius increases the speed of the shaft also increases.

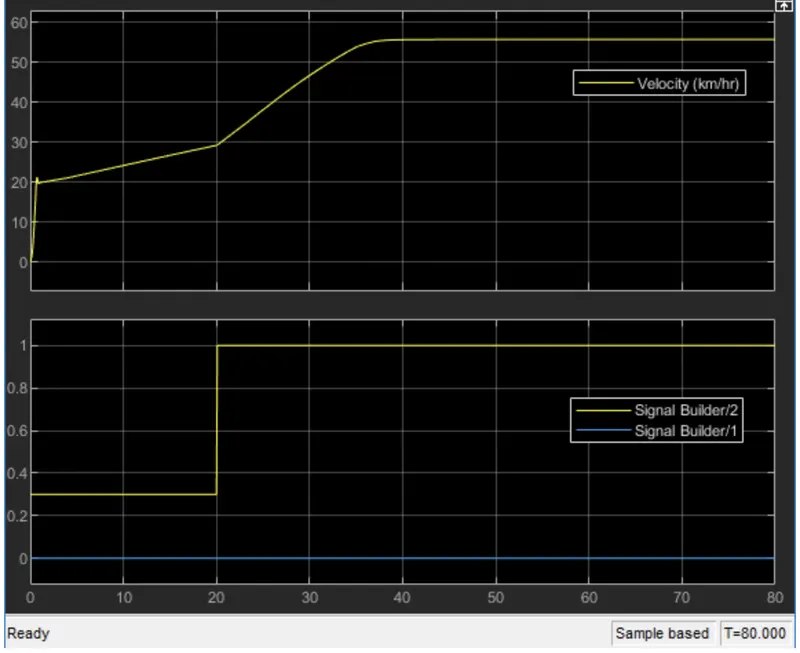

Study 3:- Variation of velocity & Shaft speed

Figure 16

In the above figure, the brake is maintained as constant and increase in throttle which shows increase in velocity. The flow of fuel is increses when the throttle increases from 0.3 to I, thus the power in the engine increases. The torque reaches approximately 7N-m at 1.8 gear ratio, which defines that gear ratio is directly proportional to the torque. By this gear ratio, the speed & velocity can achieve maximum. The gear ratio is assigned in lookup table and given as input to the simulink which reads every input value and obtain the result according to the input.

Figure 17

In the above figure, the primary shaft speed increases by increasing throttle and decreasing by increasing brake input value, which defines that the throttle can flow more amount of fuel which increases the power of the engine and similar to the secondary shaft. The radius of the primary shaft as more than the secondary shaft, the speed is directly proportional to the radius of the shaft. As the radius increases the speed of the shaft also increases.

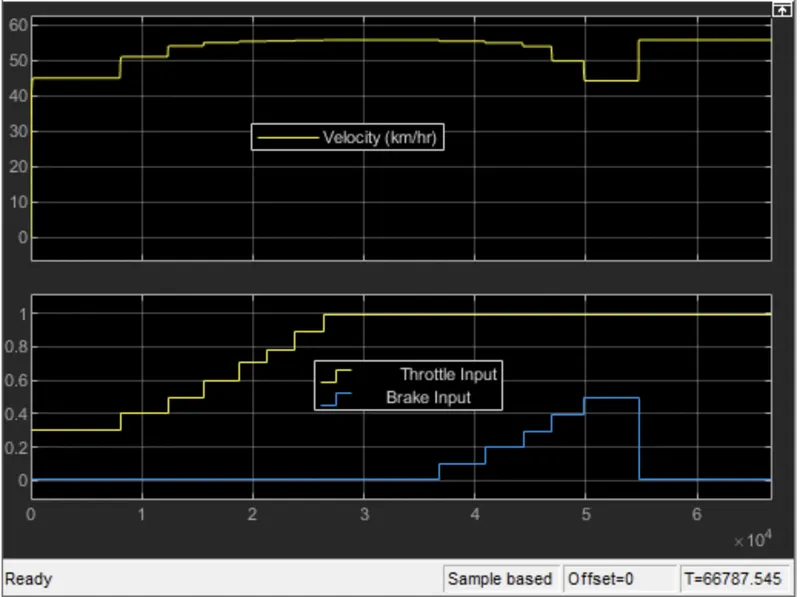

Study 4:- Variation of velocity & Shaft speed

Figure 18

In the above figure, the velocity of the vehicle is maintained as constant for constant throttle value as 0.3 and varying by increasing the value of throttle which increases the velocity of vehicle. By increasing the brake input, the velocity of the vehicle decreasing accordingly which shown in figure18. By using lookup table, it works as closed loop by recording the velocity value and we can get at any particular value of gear ratio which is beyond the range or any random value within the range by using extrapolation and interpolation by lookup table.

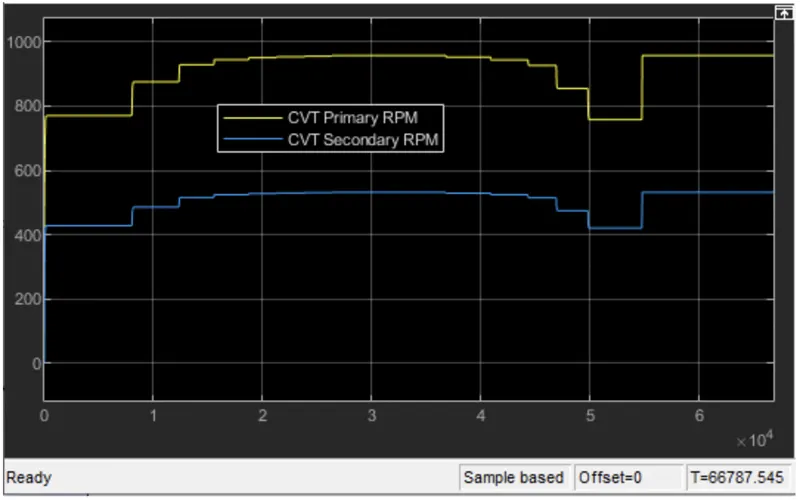

Figure 19

In the above figure, the primary shaft speed increases by increasing throttle and decreasing by increasing brake input value, which defines that the throttle can flow more amount of fuel which increases the power of the engine and similar to the secondary shaft. The radius of the primary shaft as more than the secondary shaft, the speed is directly proportional to the radius of the shaft. As the radius increases the speed of the shaft also increases. The throttle value and brake input value can be varying in dashboard, so we can get any particular value for input.

CONCLUSION:

1. As the throttle increases, the velocity also increases which inturn the power in the engine also increases.

Figure 20

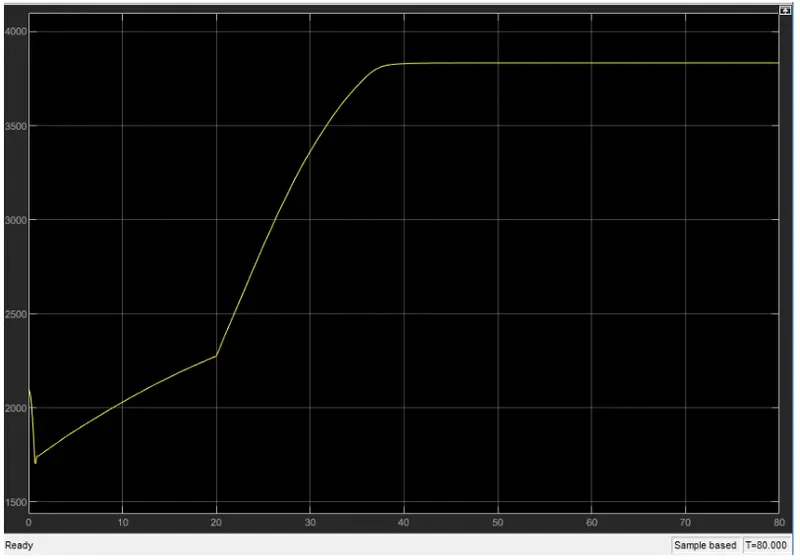

In the above figure, at the begining the speed reducing because of gear ratio and torque output. When the gear ratio
increases, the torque increases.

2. As the brake input increases, the velocity decreases and engine power also decreases. At a certain brake input
value the engine may shut down and there is no power output. The engine power is inversly proportional to the brake
input.

Figure 21

3. As the gear ratio increases, torque increases which inturn the velocity decreases.

Figure 22

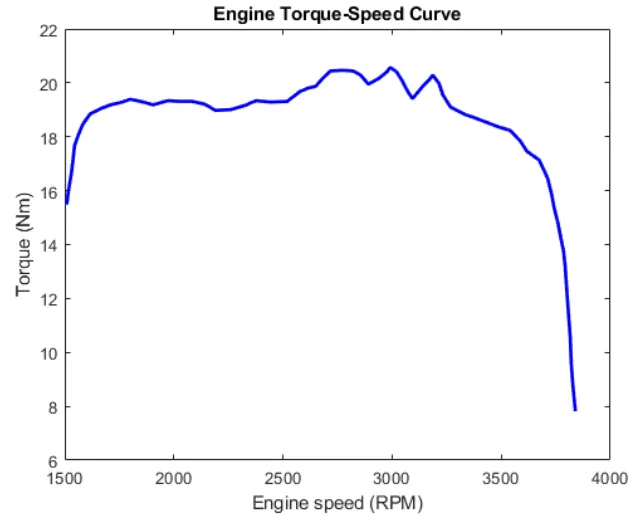

In the above figure, the torque is increasing by increase in engine speed. At a particular point the the torque is
decreasing when the gear ratio increases inorder to achieve maximum velocity.

Figure 23

In the above figure, the velocity is varying wrt the gear ratio. For the high gear ratio, the torque is more which
decrease the velocity. By changing to high gear, the gear ratio become less paralelly the torque also less which can
get high velocity.

4. With help of lookup table, we can vary any input value and also get the output value by using interpolation and
extrapolation method which the simulink can solve.
