AIM: To study the system level simulation of an all terrain vehicle.
KEYWPEDS: CVT, lookup table, Dashboard, bajaj ATV.
SOFTWARE: Matlab, Simulink
OBJECTIVE:
1. Study the bajaj ATV model withought dashboard.
2. Study the bajaj ATV model with dashboard.
3. Study the bajaj ATV model using lookup table withought dashboard.
INTRODUCTION:
Transmission, which transmits the power from engine to the wheels through the shafts. it consists of 4 types mainly,
- Manual transmission.
- Continous variable transmission.
- Semi-automatic transmission.
- Automatic transmission.
A continuously variable transmission, or CVT, is a type of automatic transmission that provides more useable power, better fuel economy and a smoother driving experience that a traditional automatic tranamission.The CVT is a system that makes it possible to vary stepless the transmission ratio without interruption of the torque flow. Therefore an infinite number of ratios (between a minimum and maximum value) are possible. It is an automatic, single speed, and gearless transmission that can shift through an infinite number of gear ratios. This ability to seamlessly shift through these different gears provides a number of benefits including extremely smooth shifts and exceptional fuel economy. A CVT draws top engine power from a small engine, which gives drivers quicker acceleration than standard automatic transmissions. Because of their greater ability to control the engine speed range, CVTs produce fewer emissions. CVTs are also lighter weight than traditional automatic transmissions.
STUDY 1:

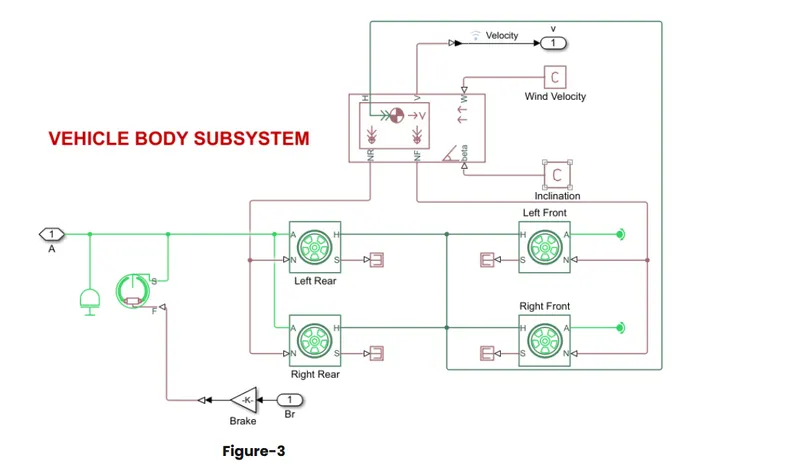

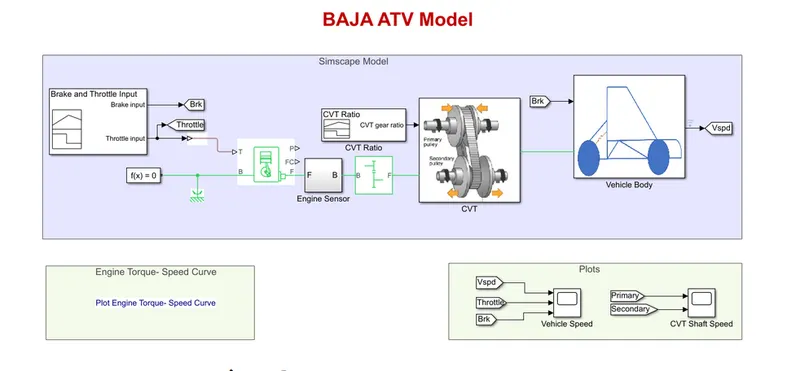

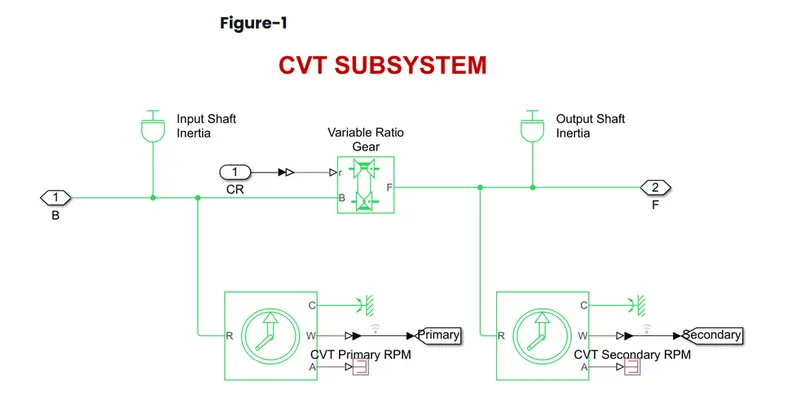

By using simulink model of CVT consists of Signal builder, generic engine, motion sensors, vehicle transmission, vehicle bodytyres and solver configuration blocks etc., as shown in figure-1. The CVT subsystem includes Transmission block, input and output shaft inertia and motion sensors as shown in figure-2. The vehicle body subsystem includes vehicle body block, double drum brake and tyres as shown in figure-3. The initial engine speed is given as 2100 rpm, mechanical rotation for driven pulley and driver pulley as 0.8 & 0.7 respectively. The mass of the vehicle as 250kg and 2 axles which connects 4 wheel accordingly.

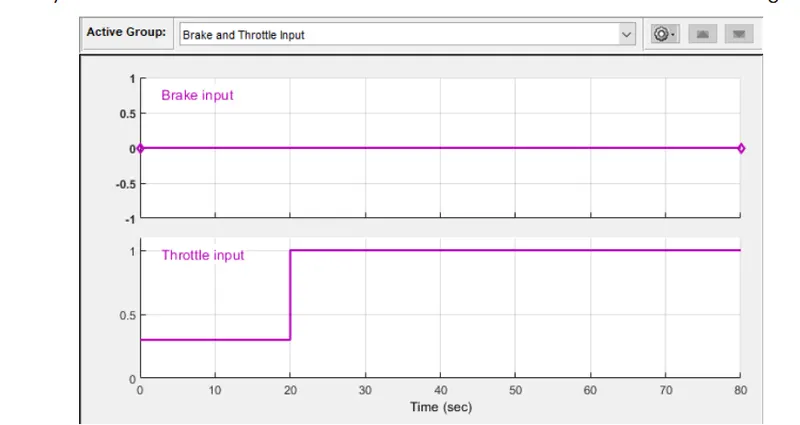

The signal builder is used as input for brake, throttle and gear ratio. . Brake input is maintained as O for overall simulation. The throttle input is given as 0.3 for20 secs and increases to l for overall simulatuion. The throttle valve is mainly to control the flow or amount of fuel into the engine, if the throttle value increases the flow of fuel increases to the ic engine which inturn increases the power of the engine. The gear ratio is maintained as 2.3 for 5 secs and linearly decreases to 1.8 and maintained constant for overall simulation as shown in figure.

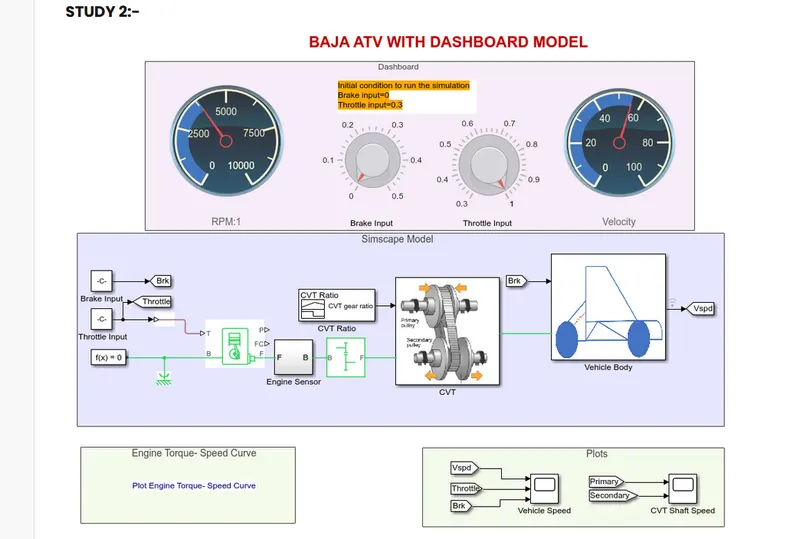

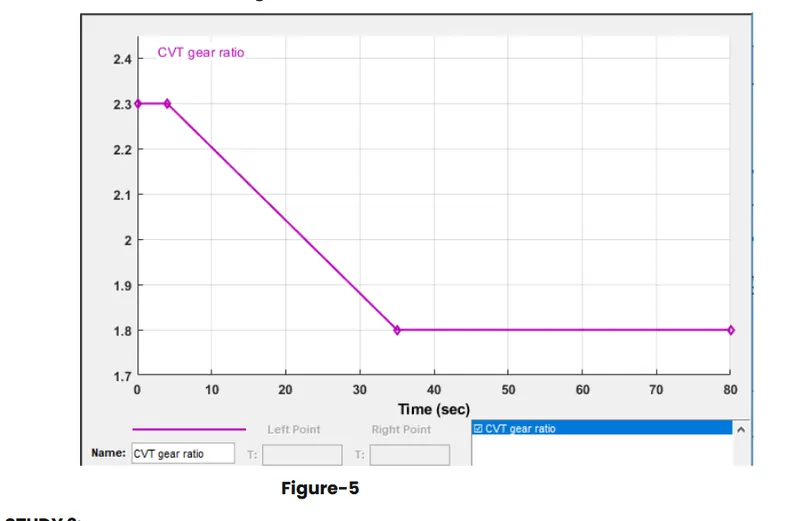

The above figure shows 'Baja ATV with dashboard' model which consists throttle meter and brake input in the dash board instead of giving input through signal builder. Rest of the blocks and subsystems are common in the above baja ATV model without dash board as shown in figure 2 & figure 3. The main concept of using dash board is study the result by varying the input of brake and throttle, which shows that the velocity and speed of the engine. The gear ratio is maintained as 2.3 for 5 secs and linearly decreases to 1.8 and maintained constant for overall simulation as shown in figure 5. As the brake input varies from 0-0.5, the velocity and speed decreases accordingly. By increasing the throttle, the velocity and speed of the engine & shaft increases.
STUDY 3:

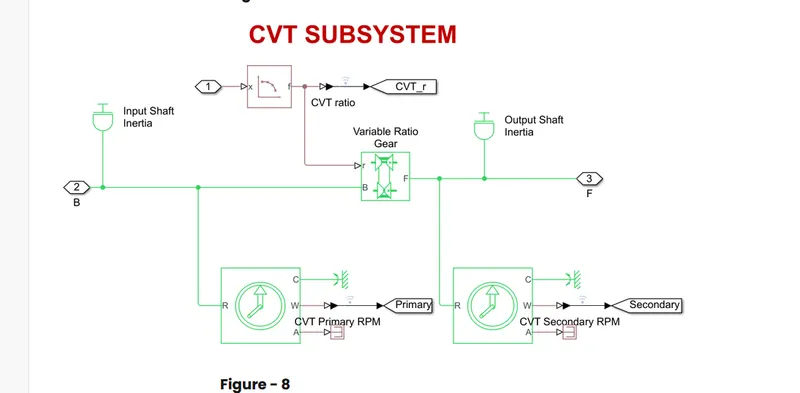

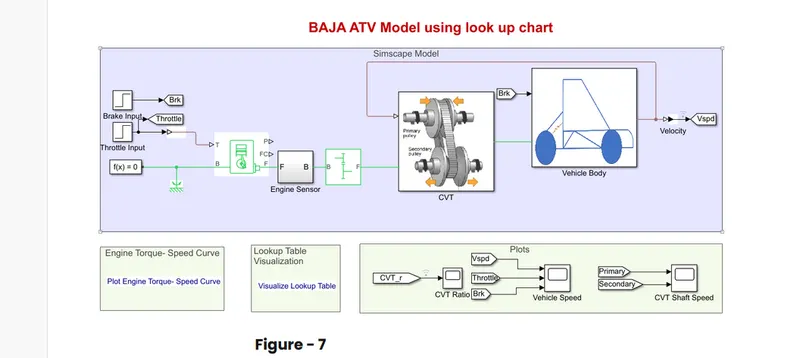

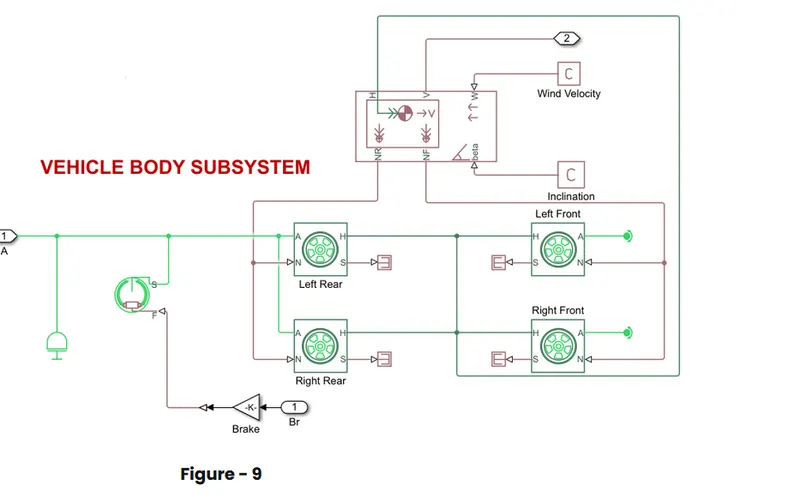

By using simulink model of CVI consists of step time, generic engine, motion sensors, vehicle transmission, vehicle body,tyres and solver configuration blocks etc., as shown in figure-7. The CVT subsystem includes look up table, Transmission block, input and output shaft inertia and motion sensors as shown in figure-8. The vehicle body subsystem includes vehicle body block, double drum brake and tyres as shown in figure-9. The initial engine speed is given as 2100 rpm, mechanical rotation for driven pulley and driver pulley as 0.8 & 0.7 respectively. The mass of the vehicle as 250kg and 2 axles which connects 4 wheel accordingly.

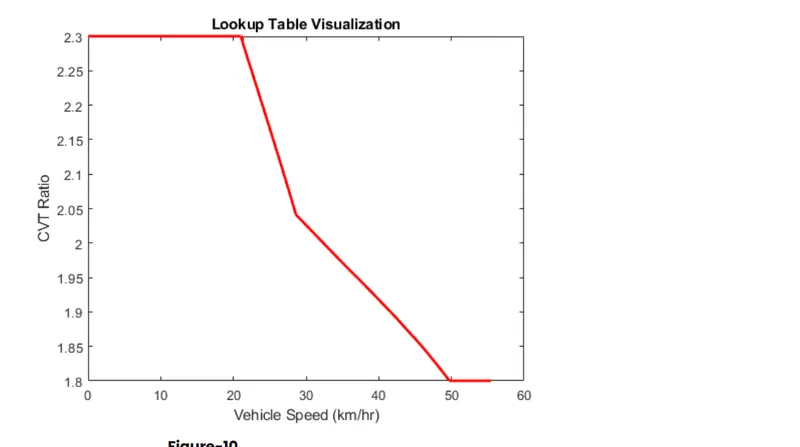

A lookup table is an array of data that maps input values to output values, thereby approximating a mathematical function. Given a set of input values, a lookup operation retrieves the corresponding output values, a lookup table does not explicitly define the input values, simulink can estimate an output value using interpolation, extrapolation, where:
- An interpolation is a process for estimating values that lie batween known data
points.
- An extrapolation is a process for estimating values that lie between known data
points.
- A rounding is a process of approximating a value by altering its digits according to
known rule.
The brake input and throttle input is given by step time, which depends on the run time and varies accordingly. By using Lookup table for gear ratio which takes as input to the CVT and works according to the input gear ratio and obtained the output. This method is very effective which can avoid the unusual torque at the certain speed and very easy to achieve greater velocity & engine speed. It works as closed loop when the input is given by lookup table. The simulink get the input value from lookup table and obtain the result according to the input values of gear ratio. The gear ratio varies from 2.3 to 1.8 as taken as input and output interms of velocity. The maximum velocity reached as 57 kmph approximately.
