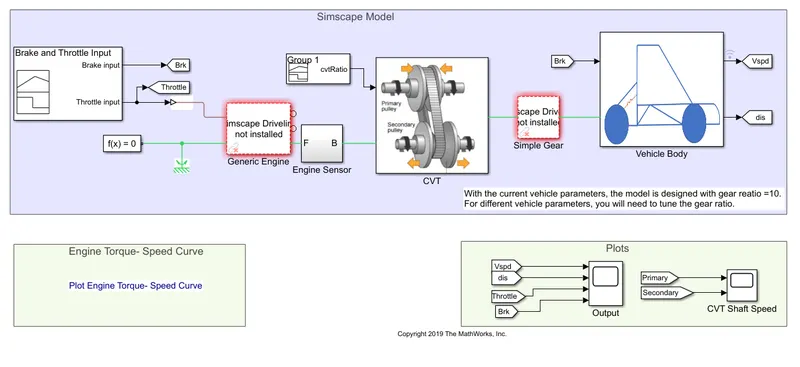

ans- hear is the simulink model for baja avt with cvt-

hear are some parts which are shown for baja cvt transmission system

continuously variable transmissions (CVTs) in Baja Racing. A properly tuned rubber belt CVT is just as effective at letting the engine operate in an rpm spectrum where it is most effective as multiple forward drive gears are.A continuously variable transmission (CVT) is an automatic transmission that can change seamlessly through a continuous range of gear ratios. This contrasts with other transmissions that provide a limited number of gear ratios in fixed steps.

Below shown is a CVT model .

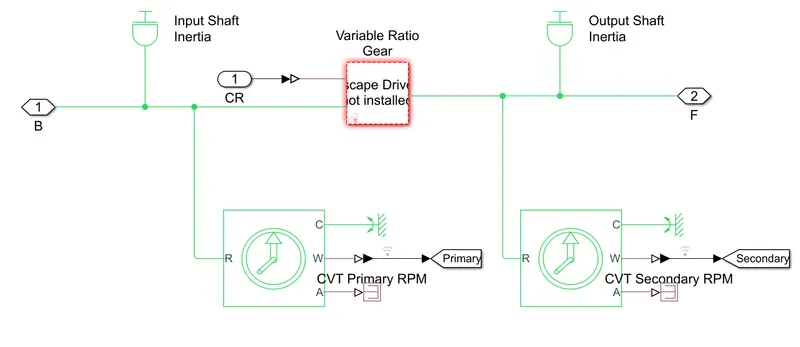

here is the cvt model from dashboard

• The Variable Ratio Transmission block dynamically transfers motion and torque between the base shaft and the follower shaft. If the relative compliance ϕ between the axes is absent, the block is equivalent to a gear with a variable ratio gFB (t).

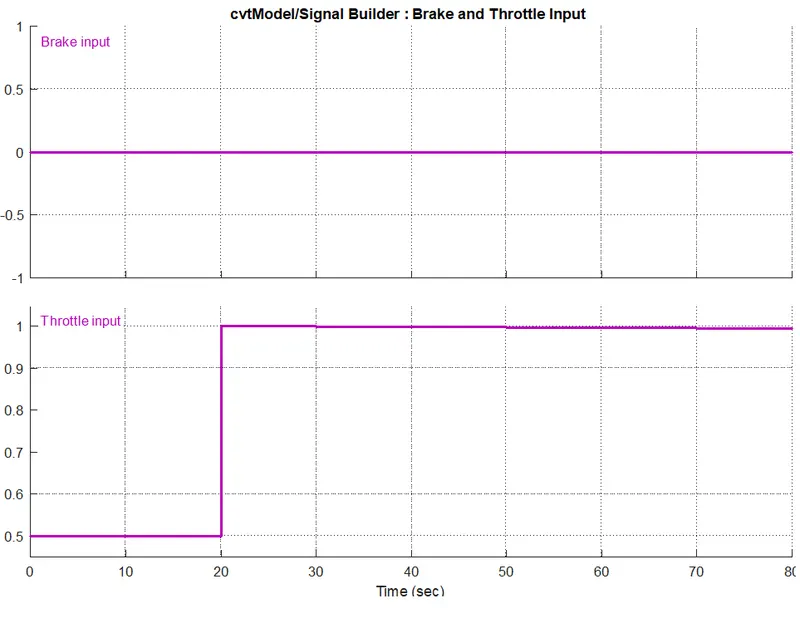

Next is the graph showing inputs i.e break input and throttle input.

Next is cvt model signal builder input

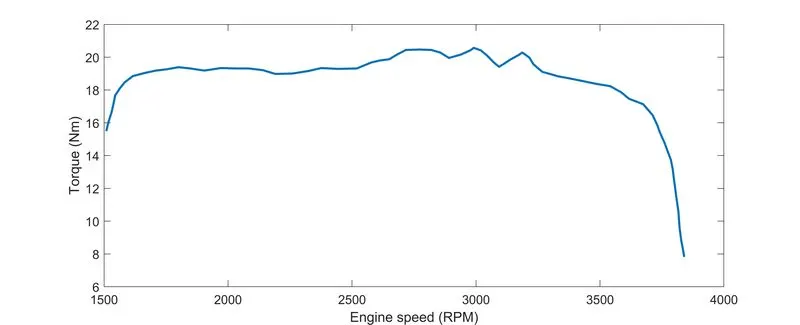

the curve shown is engine speen (rpm) vs tourque

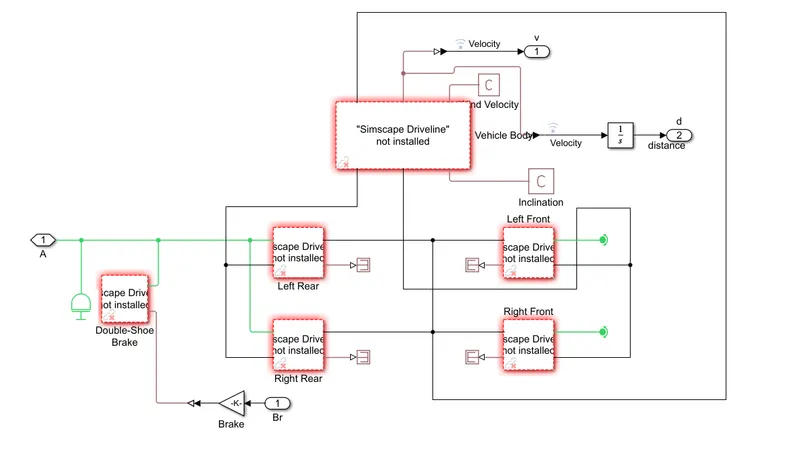

vehicle body-
