Week -2

DISCRIPTION :-

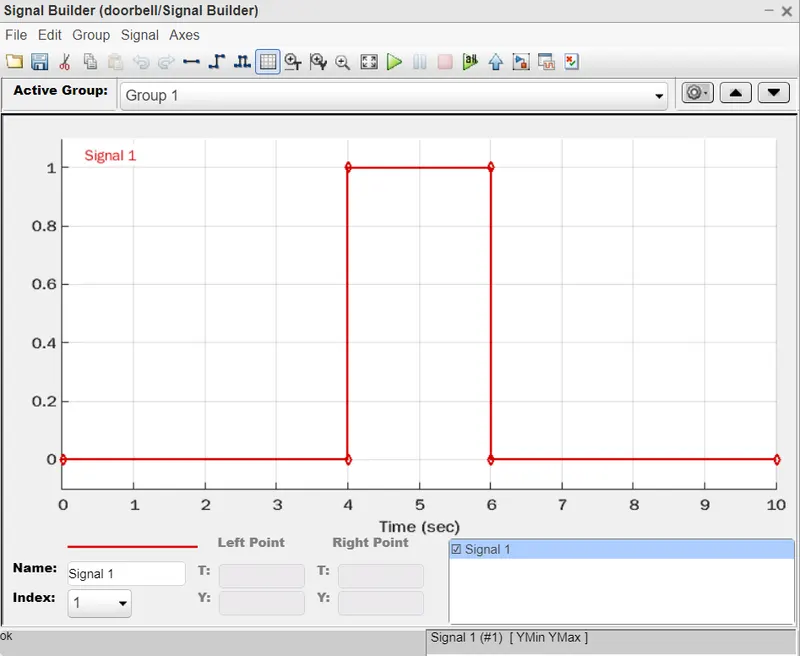

I have used signal builder to provide signals to thermister.Here is the signal provided by signal builder.

Next is simulink to ps converter to get physical signal. Here we have also used a switch to control signal.

Next switch is connected with a battery of 12v and 2ohm internal resistance.Next is solver configuration f(x)=0 which is completed by a solenoid having dampness value increased to 16 n/m/s.Both electrical circuit and solenoid aare connected with electrical and mechanical references to keep them grounded respectively.

Next is ideal translational motion sensor to get value of velocity and position.

Next is ps to simulink converter connected with a scope.

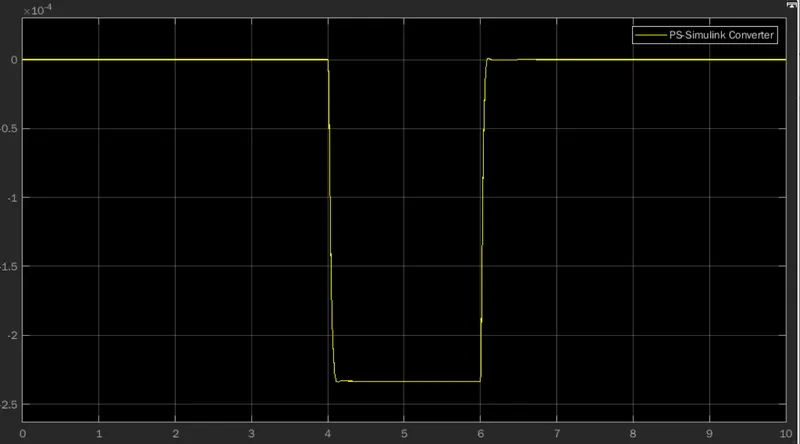

following graph will be shown in scope
