Project 2 - V&V SW Analysis II

Question 1:

1. Perform Static Code Review Analysis for “C:\**\LDRA_workarea\Examples\C_Testbed_examples\Testrain\Testrain.c” Generate Code review report and upload them

Load a .c file :

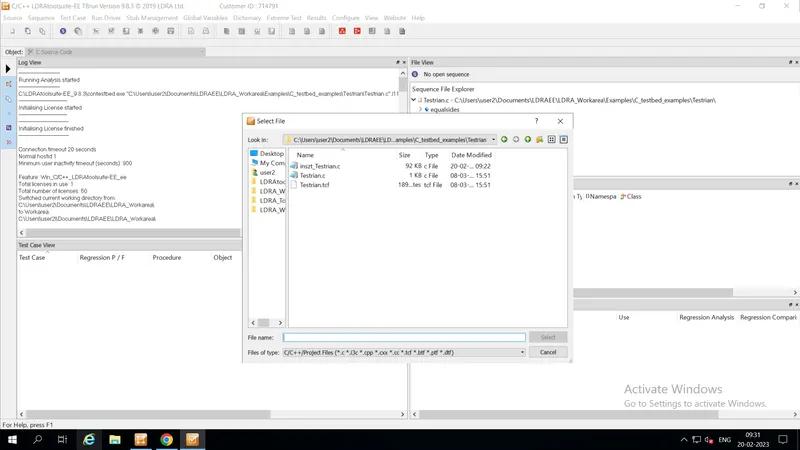

click on source >> single file >>>select the file from the given location

select the file Testrain.c and run the static analysis:

click on source >> click on Run static analysis

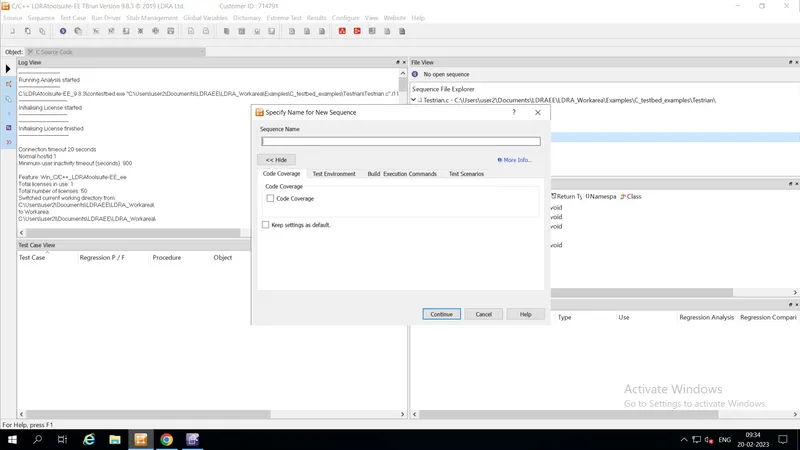

click on sequence :

sequence >> create new sequence >>> name that sequence

a sequence is a workspace where we can perform one or more test cases

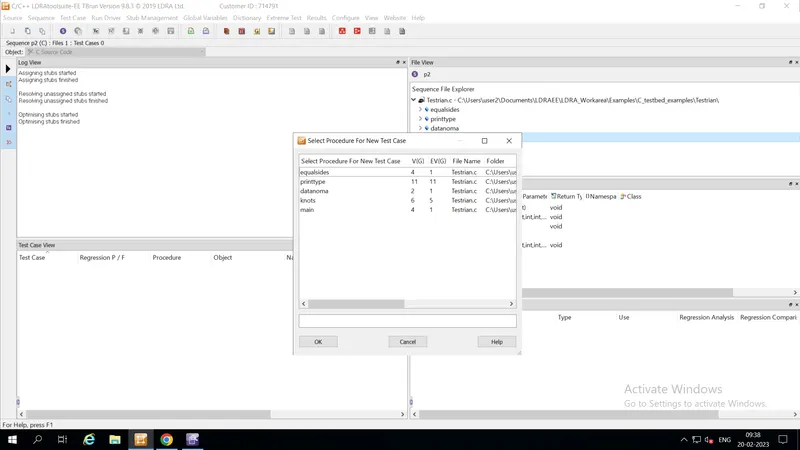

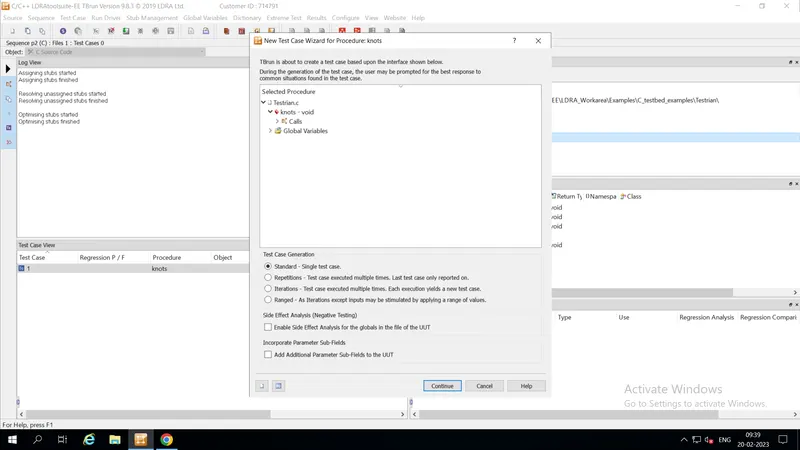

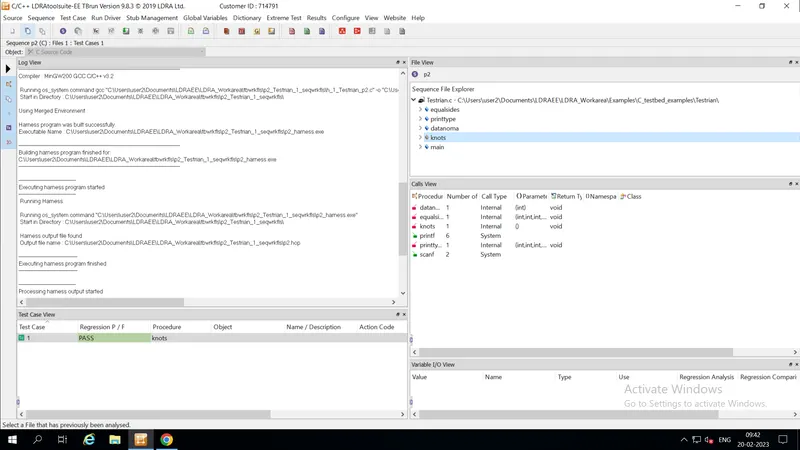

goto test case select test case for function:

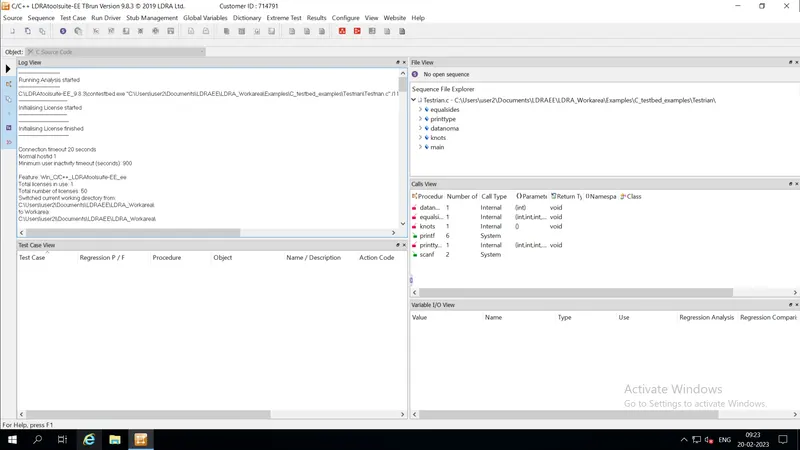

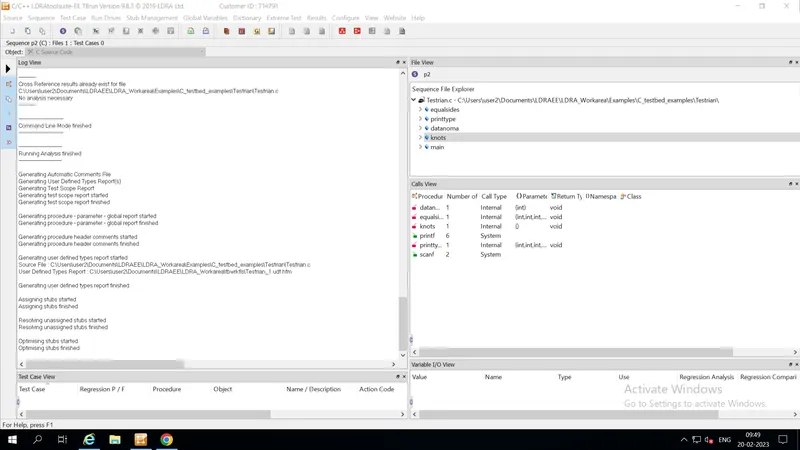

static analysis is completed

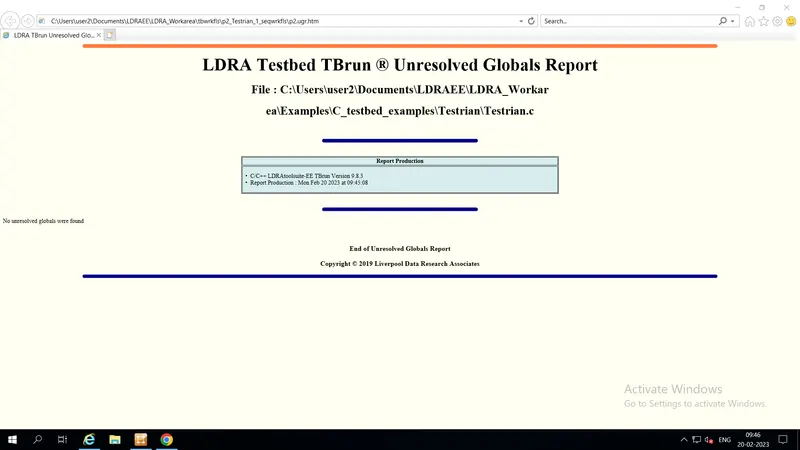

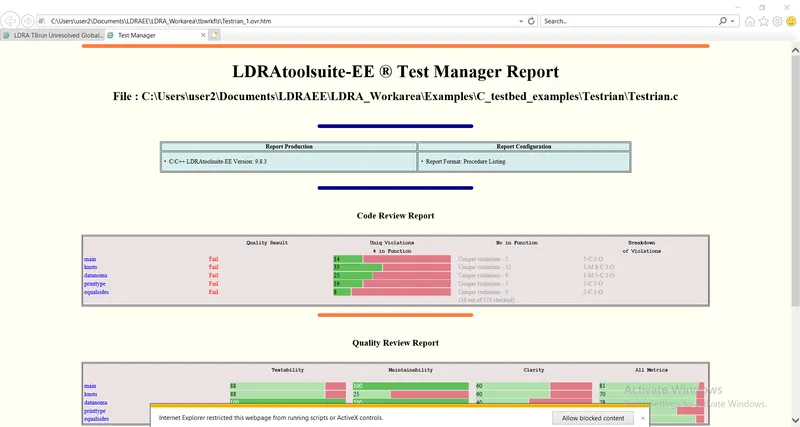

now goto result and generate test manager report:

________________________________________________________________________________________________________________________________________________________________________________________________

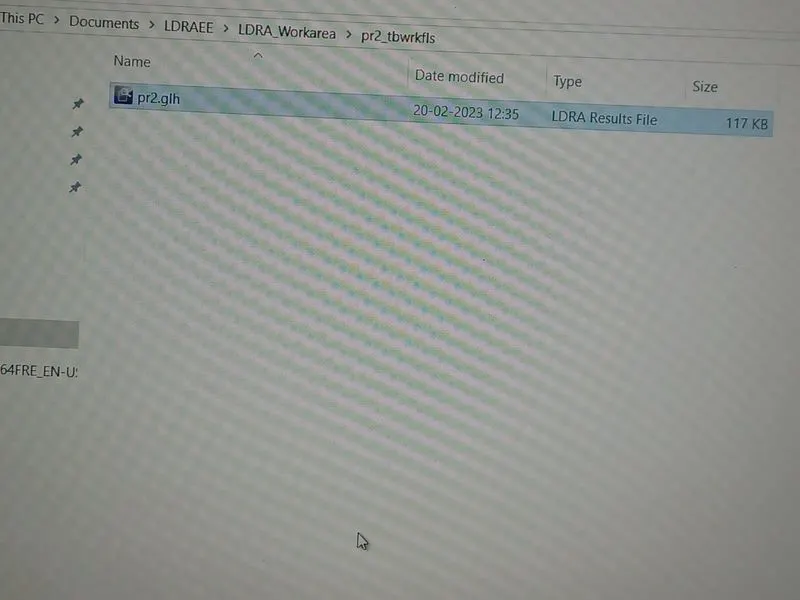

2. Perform Integration testing by including all the .C files available in the folder location C:\**\LDRA_workarea\Examples\Toolsuite\Cashregister_6.0\ ** A)Create the test cases manually as well as automatically using TBExtreme and upload the reports. B)store the test cases as .tcf file. Upload the location image where the .tcf file is stored.

2. Perform Integration testing by including all the .C files available in the folder location C:\**\LDRA_workarea\Examples\Toolsuite\Cashregister_6.0\ ** A)Create the test cases manually as well as automatically using TBExtreme and upload the reports.

OPEN LDRA tool:

step 1: start LDRA TBrun.

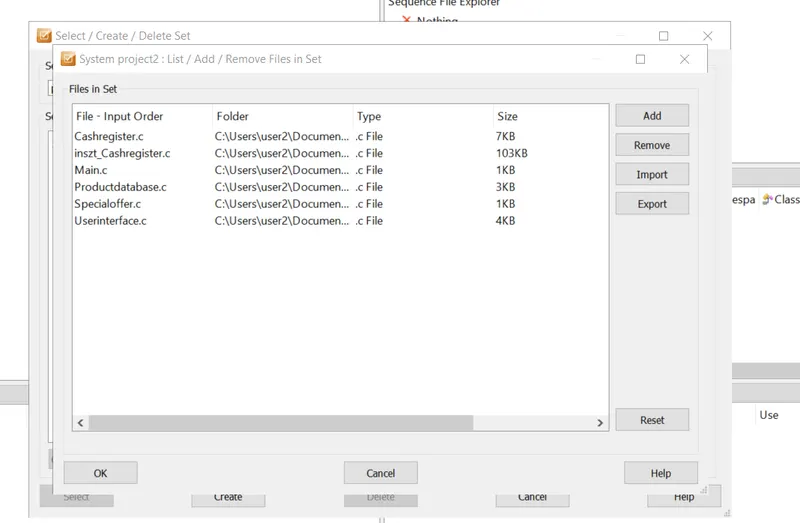

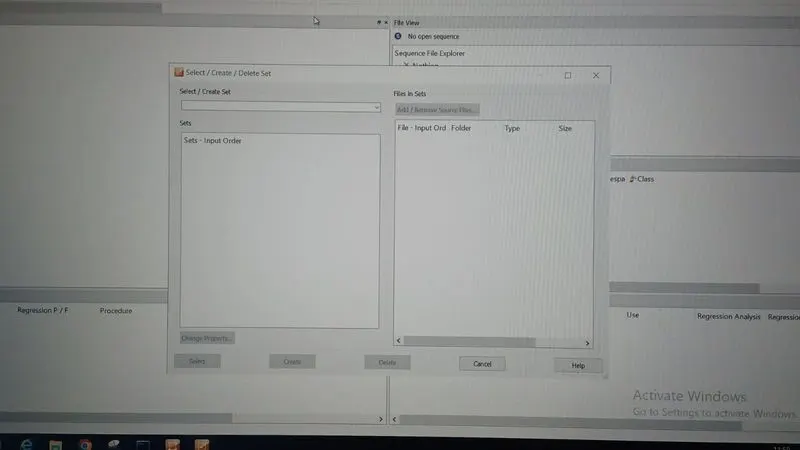

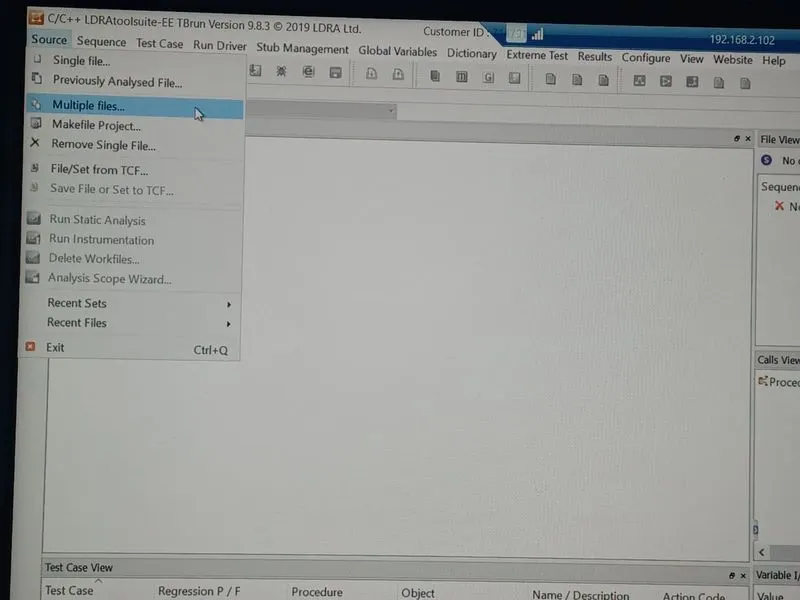

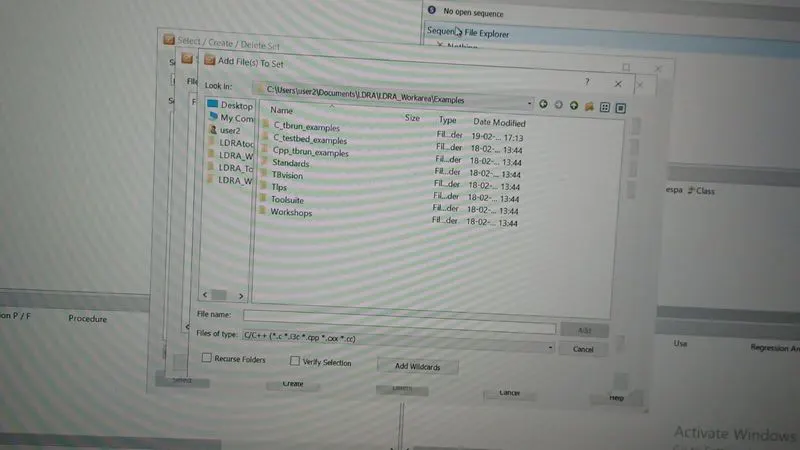

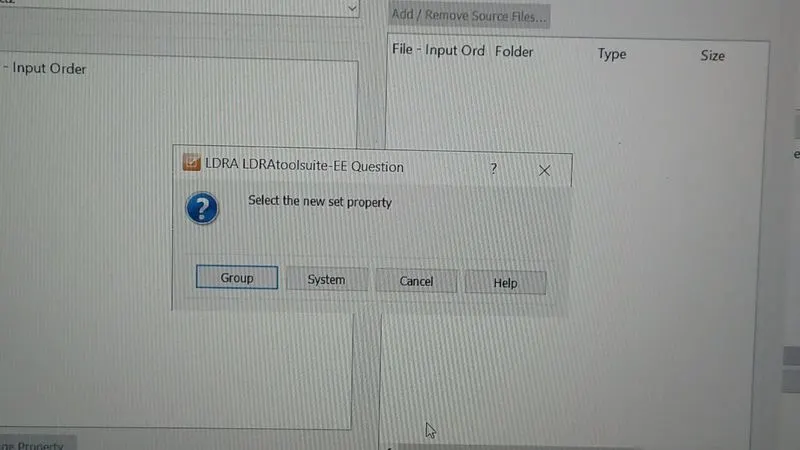

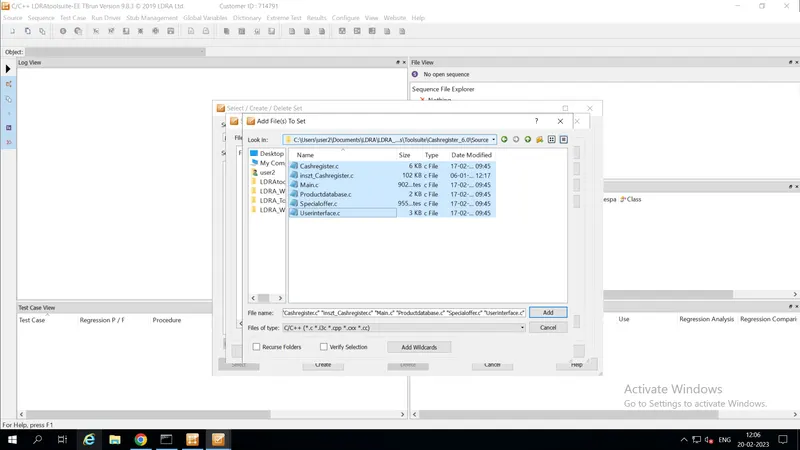

step 2: From the LDRA page select source->multiple file->select/create set (create a name)->create->system->add the .c files->click ok it ask run LDRA tested analysis (No)

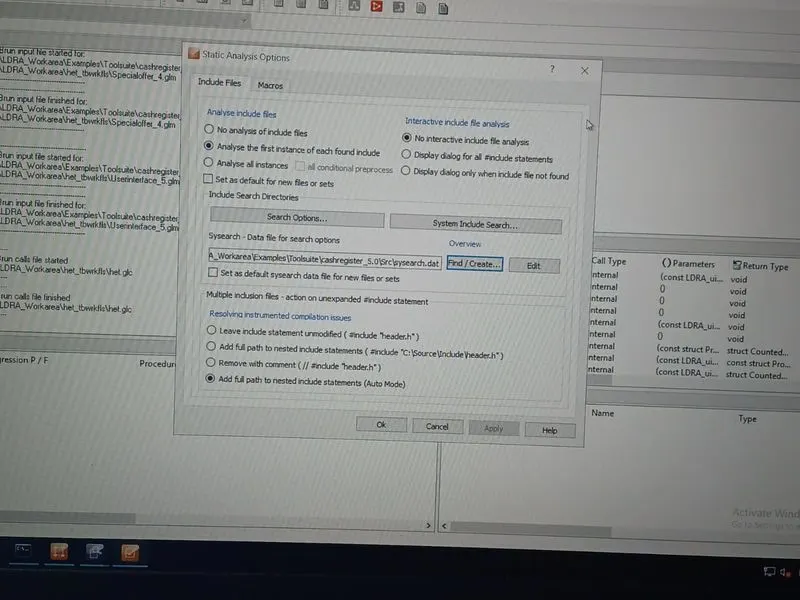

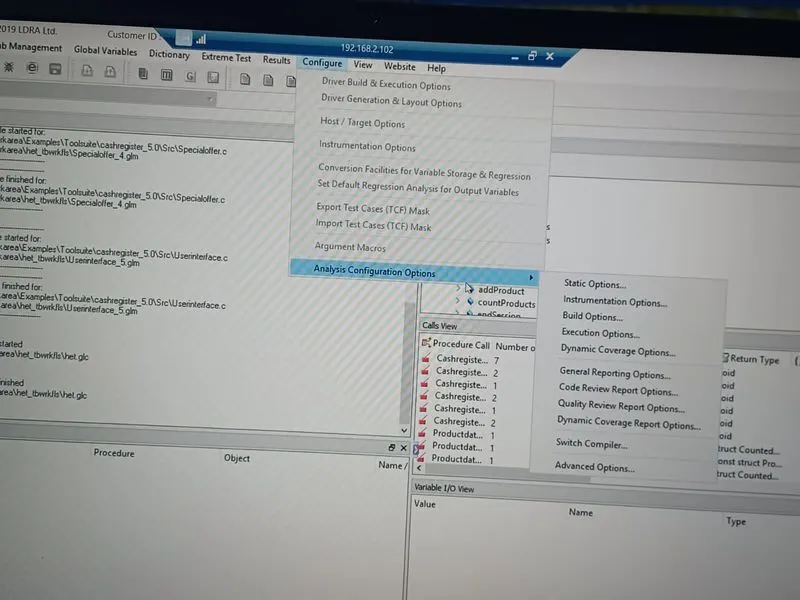

step 3: configure->analysis configuration options->static options->find/create->example->c_tbrun-examples->again examples->.c files->select

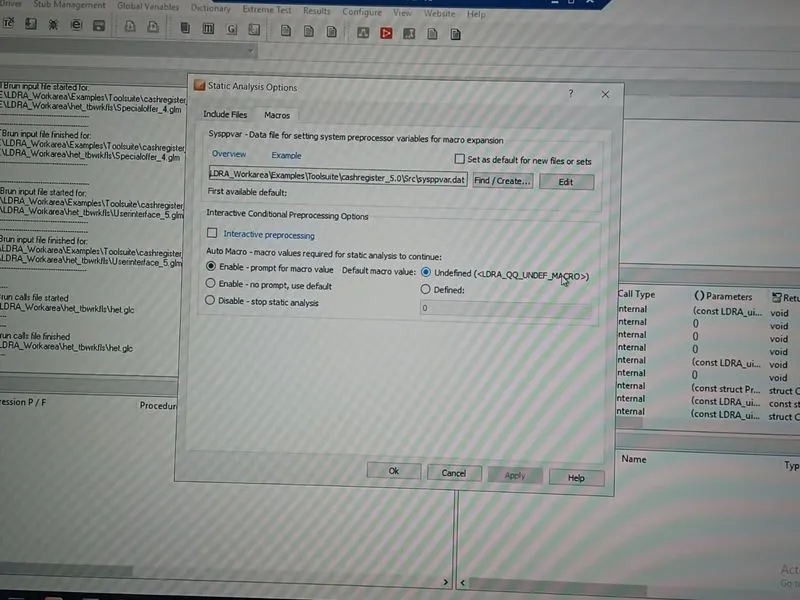

step 4: macros->find/create->Examples->c_tbrun_examples-examples-> select.(finally give apply and OK)

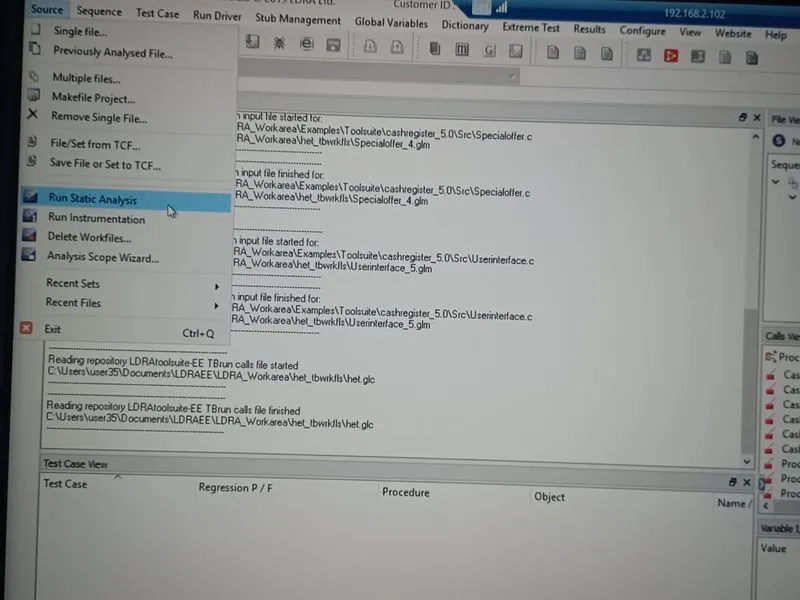

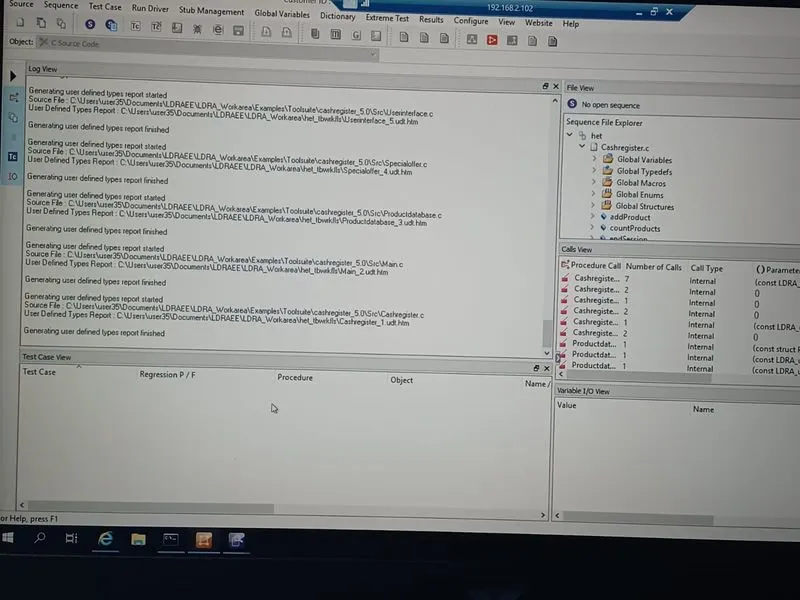

step 5: source-> run static Analysis

step 6: result->test manager report(report will be opened in Internet like a pdf)(there we can see our sequence name and what type of test we did)
