Project 2 Thermal modeling of battery pack

For a 10 cell series lithium ion battery model, simulate the thermal effects and compare life cycle performance at various temperatures, charge & discharge rates using MATLAB

Component Requirement:

1. Battery (Table-Based)

to activate the SoC and Thermal Property Click on the battery block then this SIMSCAPE BLOCK will appear then go to simscape block >> Block Choice>> instrumented | Show thermal port

Thermal Reference Temperature Sensor Convective Heat Transfer Temperatur source Electrical Reference

PS-Simulink Converter: to convert some physical quantity to Simulink data Solver Configuration

Goto block From Block Scope for output waveform

Controlled Current Source for Discharge the battery with some constant discharge current

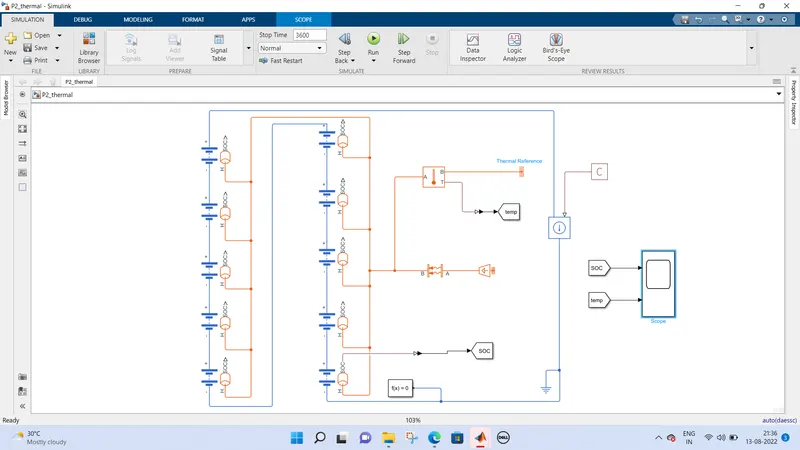

10 cell series lithium-ion battery schematic diagram

Results

Delta temperature is 298K & SOC is reduced to zero

Now testing the temperature with 400k,500k,750k,1000K various temperature

For400K

Results

Delta temperature is299k & SOC is reduced to zero

For 750K

Results

Delta temperatur is 300k & SOC is reduced is to zero

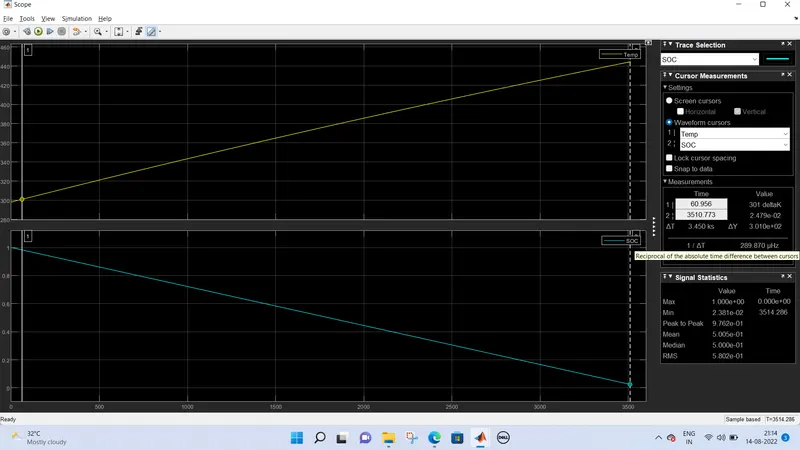

For 1000K

Results

Delta temperature is 301K & SOC is reduced to Zero

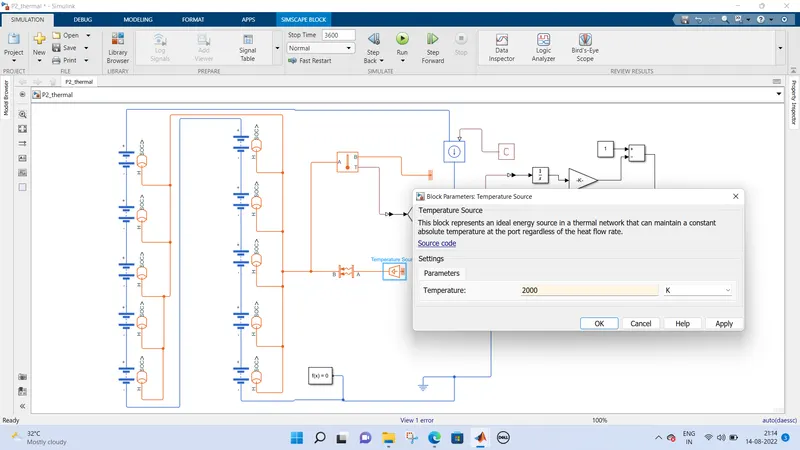

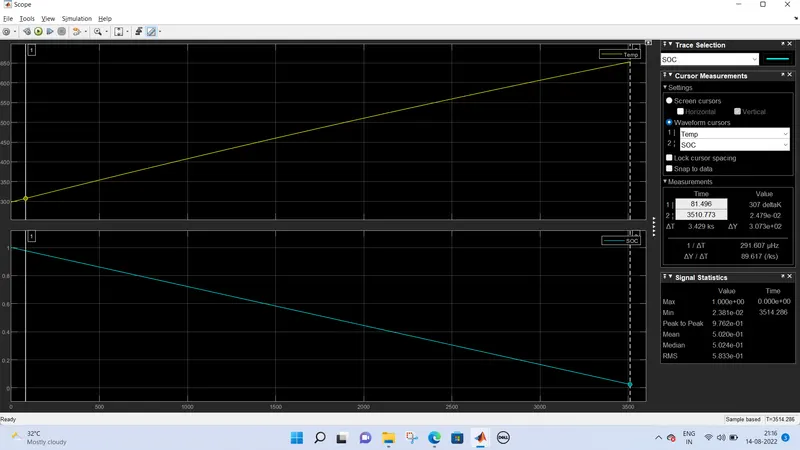

For 2000K

Results

Delta temperature is 307K & SOC is reduced to zero
