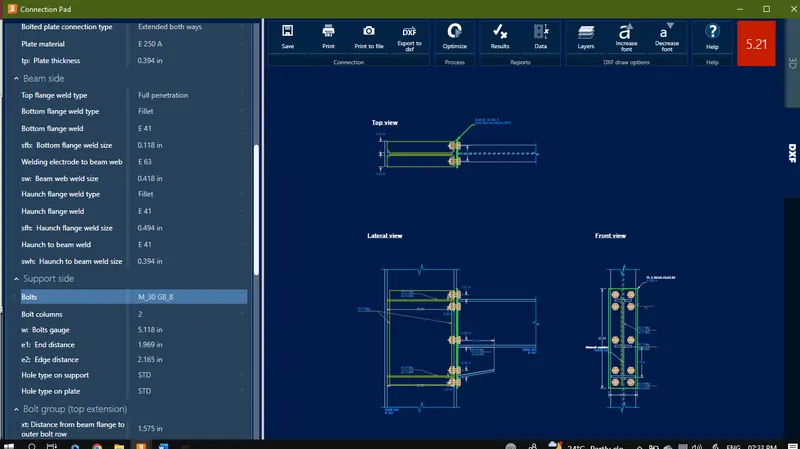

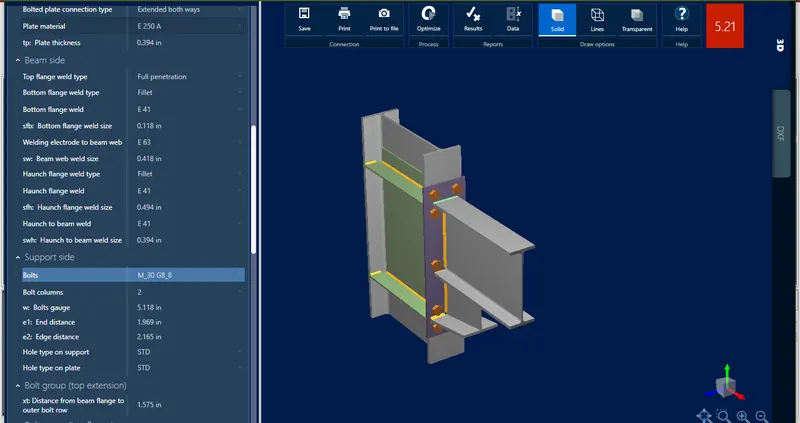

Project 2 - Review of Shear, Moment & Splice connections in StaadPro Connection Module
1
Connection name : BCP_IS_Flange_Splice_BS All bolted
Connection ID : 2M
Family: Beam splice (BS)
Type: Flange-plated
Design code: IS 800 : 2007
DEMANDS
Description Pu Muin Muout
[kN] [kN*m] [kN*m]
DL 0.00 55.00 0.00
GEOMETRIC CONSIDERATIONS
Dimensions Unit Value Min. value Max. value Sta. References
Flange cover plate
Bolt diameter [mm] 20.00 0.00 -- SCI P358 p.185
d = 0.75*tpk
= 0.75*0[mm]
= 0[mm] SCI P358 p.185
Top plate
Thickness [mm] 10.00 10.00 -- Cl. F-2.2,
SCI P358 p.185
tfp = Max(tfuc, 10.0 [mm])
= Max(9[mm], 10.0 [mm])
= 10[mm] Cl. F-2.2,
SCI P358 p.185
Length [mm] 445.00 400.00 -- SCI P358 p.185
Lp = 2.0*buc
= 2.0*200[mm]
= 400[mm] SCI P358 p.185
Width [mm] 210.00 200.00 -- Cl. F-2.2
b = buc
= 200[mm] Cl. F-2.2
Longitudinal center-to-center spacing (pitch) [mm] 90.00 50.00 160.00 Cl. 10.2.3.2
pmin = 2.5*d
= 2.5*20[mm]
= 50[mm]
pmax = min(16*t, 200 [mm])
= min(16*10[mm], 200 [mm])
= 160[mm] Cl. 10.2.3.2
Transverse center-to-center spacing (gage) [mm] 90.00 50.00 140.00 Cl. 10.2.3.3
pmin = 2.5*d
= 2.5*20[mm]
= 50[mm]
pmax = min(100 [mm] + 4*t, 300 [mm])
= min(100 [mm] + 4*10[mm], 300 [mm])
= 140[mm] Cl. 10.2.3.3
Longitudinal edge distance [mm] 70.00 33.00 120.00 Cl. 10.2.4.2,
Cl. 10.2.4.3
ShearedEdges ® False
emin = 1.5*dh
= 1.5*22[mm]
= 33[mm] Cl. 10.2.4.2
CorrosionExposed ® False
emax = 12.0*t*((250.0 [MPa])/fy)0.5
= 12.0*10[mm]*((250.0 [MPa])/250[N/mm2])0.5
= 120[mm] Cl. 10.2.4.3
Transverse edge distance [mm] 60.00 33.00 120.00 Cl. 10.2.4.2,
Cl. 10.2.4.3
ShearedEdges ® False
emin = 1.5*dh
= 1.5*22[mm]
= 33[mm] Cl. 10.2.4.2
CorrosionExposed ® False
emax = 12.0*t*((250.0 [MPa])/fy)0.5
= 12.0*10[mm]*((250.0 [MPa])/250[N/mm2])0.5
= 120[mm] Cl. 10.2.4.3
Bottom plate
Thickness [mm] 10.00 10.00 -- Cl. F-2.2,
SCI P358 p.185
tfp = Max(tfuc, 10.0 [mm])
= Max(9[mm], 10.0 [mm])
= 10[mm] Cl. F-2.2,
SCI P358 p.185
Length [mm] 425.00 400.00 -- SCI P358 p.185
Lp = 2.0*buc
= 2.0*200[mm]
= 400[mm] SCI P358 p.185
Width [mm] 210.00 200.00 -- Cl. F-2.2
b = buc
= 200[mm] Cl. F-2.2
Longitudinal center-to-center spacing (pitch) [mm] 90.00 50.00 160.00 Cl. 10.2.3.2
pmin = 2.5*d
= 2.5*20[mm]
= 50[mm]
pmax = min(16*t, 200 [mm])
= min(16*10[mm], 200 [mm])
= 160[mm] Cl. 10.2.3.2
Transverse center-to-center spacing (gage) [mm] 90.00 50.00 140.00 Cl. 10.2.3.3
pmin = 2.5*d
= 2.5*20[mm]
