Project 2 - Rankine cycle Simulator

MMd Rahmanuddin16 Apr 2023

Rankine cycle

Required Inputs:

Turbine Inlet temperature = 400° C

Turbine Inlet Pressure = 30 bars

Turbine Outlet Pressure = 0.05 bars = Condenser Inlet Pressure

Calculate the followings,

Net work output
Back work ratio

Hints:

1.Code the basic program that calculates the state points alone

2.Then add the thermodynamic relation to get the points inbetween the state variables.

Sample output of a Basic Rankine cycle simulator:

The Rankine cycle is a thermodynamic cycle used to generate electricity in many power plants around the world. It is a cycle that describes the operation of a steam power plant and is named after William John Macquorn Rankine, a Scottish engineer and physicist who developed the theory of the thermodynamic cycle.

The Rankine cycle consists of four main components:

A boiler where water is heated and converted into steam
A steam turbine where the high-pressure steam expands, generating mechanical energy
A condenser where the steam is condensed back into liquid form
A pump that pumps the liquid back into the boiler to repeat the cycle.

The cycle operates by taking in high-pressure and high-temperature steam from the boiler and directing it to the steam turbine. The steam expands as it passes through the turbine, generating mechanical energy that can be used to turn a generator, which produces electricity. After the steam leaves the turbine, it is condensed back into water in the condenser and pumped back to the boiler to repeat the cycle.

The Rankine cycle is commonly used in coal, natural gas, and nuclear power plants, as well as in some solar thermal power plants. It is a reliable and efficient way to generate electricity, but it does have some drawbacks, such as the need for large amounts of water and the release of greenhouse gases during the combustion of fossil fuels.

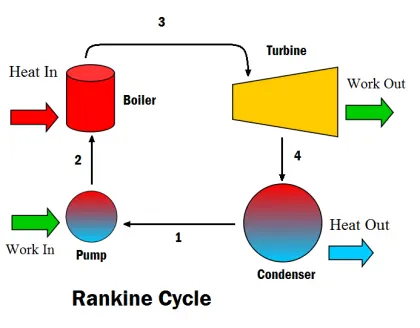

A simple schematic with components for the Rankine Cycle

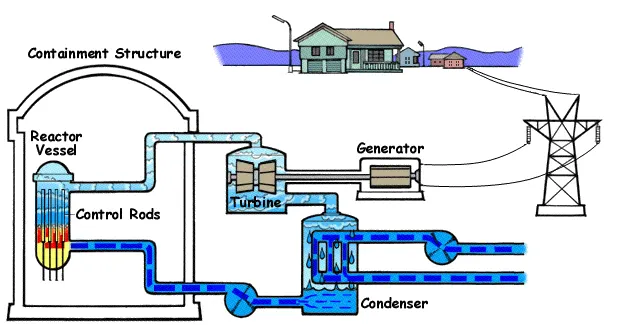

Figure 3. Rankine cycle in a nuclear power plant.^[4]

Basic Cycle

The Rankine cycle is the fundamental operating cycle of all power plants where an operating fluid is continuously evaporated and condensed. The selection of operating fluid depends mainly on the available temperature range. Figure 1 shows the idealized Rankine cycle.

The pressure-enthalpy (p-h) and temperature-entropy (T-s) diagrams of this cycle are given in Figure 2. The Rankine cycle operates in the following steps:

1-2-3 Isobaric Heat Transfer. High pressure liquid enters the boiler from the feed pump (1) and is heated to the saturation temperature (2). Further addition of energy causes evaporation of the liquid until it is fully converted to saturated steam (3).
3-4 Isentropic Expansion. The vapor is expanded in the turbine, thus producing work which may be converted to electricity. In practice, the expansion is limited by the temperature of the cooling medium and by the erosion of the turbine blades by liquid entrainment in the vapor stream as the process moves further into the two-phase region. Exit vapor qualities should be greater than 90%.
4-5 Isobaric Heat Rejection. The vapor-liquid mixture leaving the turbine (4) is condensed at low pressure, usually in a surface condenser using cooling water. In well designed and maintained condensers, the pressure of the vapor is well below atmospheric pressure, approaching the saturation pressure of the operating fluid at the cooling water temperature.
5-1 Isentropic Compression. The pressure of the condensate is raised in the feed pump. Because of the low specific volume of liquids, the pump work is relatively small and often neglected in thermodynamic calculations.
Figure 1. Rankine cycle.

Figure 2. T-s and p-h diagrams.

The efficiency of power cycles is defined as

(1)

Values of heat and work can be determined by applying the First Law of Thermodynamics to each step. The steam quality x at the turbine outlet is determined from the assumption of isentropic expansion, i.e.,

(2)

where is the entropy of vapor and Si* the entropy of liquid.
Inefficiencies of Real Rankine Cycles

The efficiency of the ideal Rankine cycle as described in the previous section is close to the Carnot efficiency (see Carnot Cycle). In real plants, each stage of the Rankine cycle is associated with irreversible processes, reducing the overall efficiency. Turbine and pump irreversibilities can be included in the calculation of the overall cycle efficiency by defining a turbine efficiency according to Figure 3

(3)

where subscript act indicates actual values and subscript is indicates isentropic values and a pump efficiency

(4)

Figure 3. Turbine efficiency.

If η_t and η_p are known, the actual enthalpy after the compression and expansion steps can be determined from the values for the isentropic processes. The turbine efficiency directly reduces the work produced in the turbine and, therefore the overall efficiency. The inefficiency of the pump increases the enthalpy of the liquid leaving the pump and, therefore, reduces the amount of energy required to evaporate the liquid. However, the energy to drive the pump is usually more expensive than the energy to feed the boiler.

Figure 4. Rankine cycle with vapor superheating.

Even the most sophisticated boilers transform only 40% of the fuel energy into useable steam energy. There are two main reasons for this wastage:
- The combustion gas temperatures are between 1000°C and 2000°C, which is considerably higher than the highest vapor temperatures. The transfer of heat across a large temperature difference increases the entropy.
- Combustion (oxidation) at technically feasible temperatures is highly irreversible.
Since the heat transfer surface in the condenser has a finite value, the condensation will occur at a temperature higher than the temperature of the cooling medium. Again, heat transfer occurs across a temperature difference, causing the generation of entropy. The deposition of dirt in condensers during operation with cooling water reduces the efficiency.
Increasing the Efficiency of Rankine Cycles

Pressure difference

The net work produced in the Rankine cycle is represented by the area of the cycle process in Figure 2. Obviously, this area can be increased by increasing the pressure in the boiler and reducing the pressure in the condenser.

Figure 5. Regenerative feed liquid heating.

Superheating and reheating

The irreversibility of any process is reduced if it is performed as close as possible to the temperatures of the high temperature and low temperature reservoirs. This is achieved by operating the condenser at subatmospheric pressure. The temperature in the boiler is limited by the saturation pressure. Further increase in temperature is possible by superheating the saturated vapor, see Figure 4.

This has the additional advantage that the vapor quality after the turbine is increased and, therefore the erosion of the turbine blades is reduced. It is quite common to reheat the vapor after expansion in the high pressure turbine and expand the reheated vapor in a second, low pressure turbine.

Feed water preheating

The cold liquid leaving the feed pump is mixed with the saturated liquid in the boiler and/or re-heated to the boiling temperature. The resulting irreversibility reduces the efficiency of the boiler. According to the Carnot process, the highest efficiency is reached if heat transfer occurs isothermally. To preheat the feed liquid to its saturation temperature, bleed vapor from various positions of the turbine is passed through external heat exchangers (regenerators), as shown in Figure 5.

Ideally, the temperature of the bleed steam should be as close as possible to the temperature of the feed liquid.

Combined cycles

The high combustion temperature of the fuel is better utilized if a gas turbine or Brayton engine is used as "topping cycle" in conjunction with a Rankine cycle. In this case, the hot gas leaving the turbine is used to provide the energy input to the boiler. In co-generation systems, the energy rejected by the Rankine cycle is used for space heating, process steam or other low temperature applications.

Code :

clear all

close all

clc

fprintf('%75s ','RANKINE CYCLE SIMULATOR')

fprintf('\n1-2 is Isentropic Expansion in turbine')

fprintf('\n2-3 is constant pressure heat rejection in condensor')

fprintf('\n3-4 is Isentropic compression in pump')

fprintf('\n4-1 is constant pressure heat addition in boiler\n')

fprintf('\n')

%taking inputs

P1 = input('Enter the Pressure at the Turbine Inlet (in bar): ');

T1 = input('Enter the Temperature at the Turbine Inlet (in Degree Celsius): ');

P2 = input('Enter the Pressure at the Condenser (in bar): ');

%conditions at the turbine inlet

T1_sat = XSteam('Tsat_p',P1);

if T1 > T1_sat

h1 = XSteam('h_pt',P1,T1);

s1 = XSteam('s_pt',P1,T1);

elseif T1 == T1_sat

h1 = XSteam('hV_p',P1);

s1 = XSteam('sV_p',P1);

else

disp('enter higher value of temperature')

end

%conditions at turbine outlet

s2 = s1;

s2_sat = XSteam('sV_p',P2);

if s2 < s2_sat

s2_f = XSteam('sL_p',P2);

s2_g = XSteam('sV_p',P2);

%s2 = s_f + x(s_g - s_f)

%x = vapour fraction

x2 = (s2 - s2_f)/(s2_g - s2_f);

h2_f = XSteam('hL_p',P2);

h2_g = XSteam('hV_p',P2);

h2 = h2_f + x2*(h2_g - h2_f);

T2 = XSteam('Tsat_p',P2);

else

x2 = 1;

h2 = XSteam('hV_p',P2);

T2 = XSteam('Tsat_p',P2);

end

%conditions at condensor outlet/ pump inlet

P3 = P2;

T3 = XSteam('Tsat_p',P3);

h3 = XSteam('hL_p',P3);

s3 = XSteam('sL_p',P3);

v3 = XSteam('vL_p',P3);

%conditions at pump outlet

s4 = s3;

P4 = P1;

v4 = XSteam('v_ps',P4,s4);

Cp = XSteam('Cp_ps',P4,s4);

Cv = XSteam('Cv_ps',P4,s4);

g = Cp/Cv; %gamma

T4 = T3*((P3/P4)^((1-g)/g));

W_p = v3*(P4 - P3)*100; %work done by pump

h4 = h3 + W_p;

%considering point 5 and 6 to complete the curve

T5 = XSteam('Tsat_p',P4);

s5 = XSteam('sL_p',P4);

T6 = T5;

s6 = XSteam('sV_T',T6);

% Work done, heat and efficiency

%assuming mass flow rate = 1

W_t = h1 - h2; % work done by turbine

W_net = W_t - W_p; % net work done

Q_in = h1 - h4; % heat added

Q_out = h2 - h3; %heat rejected

eta = W_net/Q_in; %efficiency

%specific steam consumption (SSC)

SSC = 3600/W_net;

BWR = W_p/W_t;

%plotting

t = linspace(0,600,1000);

%for plotting saturation curves

for i = 1:length(t)

s_l(i) = XSteam('sL_T',t(i));

s_v(i) = XSteam('sV_T',t(i));

h_l(i) = XSteam('hL_T',t(i));

h_v(i) = XSteam('hV_T',t(i));

end

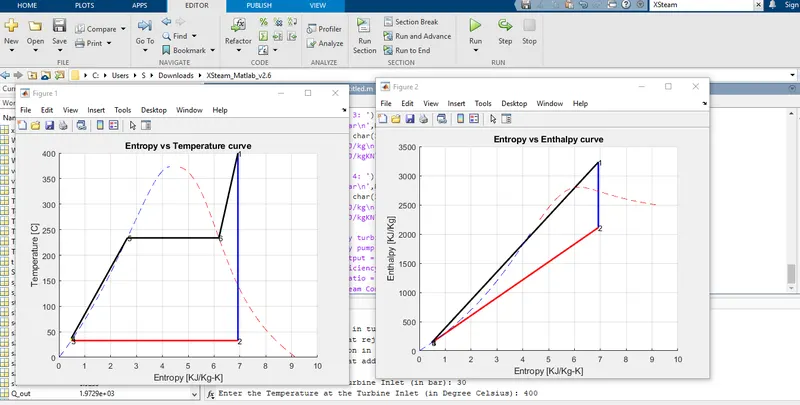

%plotting T-S curve

figure(1)

hold on

plot(s_l,t,'--','color','b')

plot(s_v,t,'--','color','r')

plot([s1,s2],[T1,T2],'linewidth',2,'color','b')

plot([s2,s3],[T2,T3],'linewidth',2,'color','r')

plot([s3,s4],[T3,T4],'linewidth',2,'color','y')

plot([s4,s5],[T4,T5],'linewidth',2,'color','k')

plot([s5,s6],[T5,T6],'linewidth',2,'color','k')

plot([s6,s1],[T6,T1],'linewidth',2,'color','k')

text(s1,T1,'1')

text(s2,T2,'2')

text(s3,T3,'3')

text(s4,T4,'4')

text(s5,T5,'5')

text(s6,T6,'6')

xlabel('Entropy [KJ/Kg-K]')

ylabel('Temperature [C]')

title('Entropy vs Temperature curve')

grid on

hold off

%plotting h-s curve

figure(2)

hold on

plot([s1,s2],[h1,h2],'linewidth',2,'color','b')

plot([s2,s3],[h2,h3],'linewidth',2,'color','r')

plot([s3,s4],[h3,h4],'linewidth',2,'color','y')

plot([s4,s1],[h4,h1],'linewidth',2,'color','k')

plot(s_l,h_l,'--','color','b')

plot(s_v,h_v,'--','color','r')

text(s1,h1,'1')

text(s2,h2,'2')

text(s3,h3,'3')

text(s4,h4,'4')

xlabel('Entropy [KJ/Kg-K]')

ylabel('Enthalpy [KJ/Kg]')

title('Entropy vs Enthalpy curve')

grid on

hold off

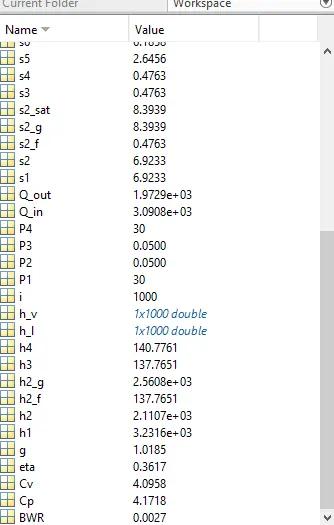

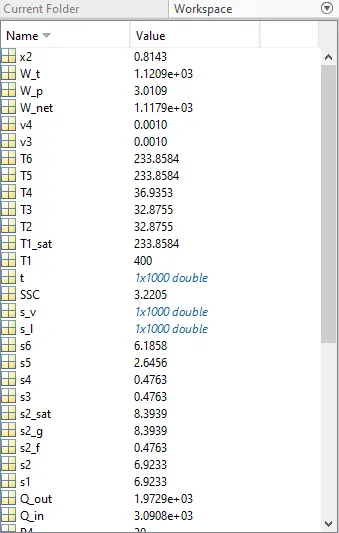

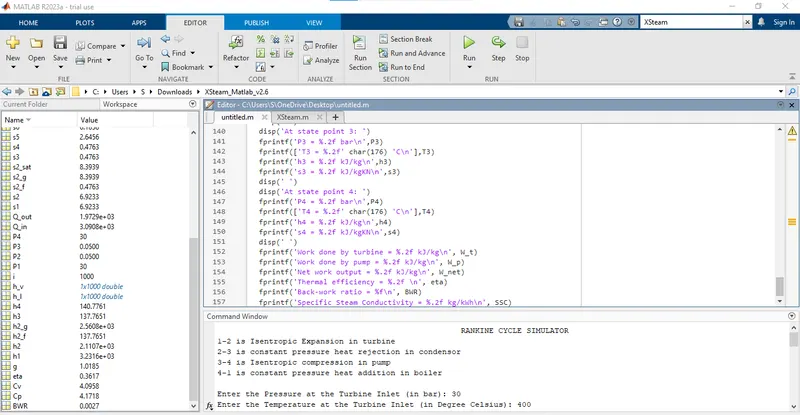

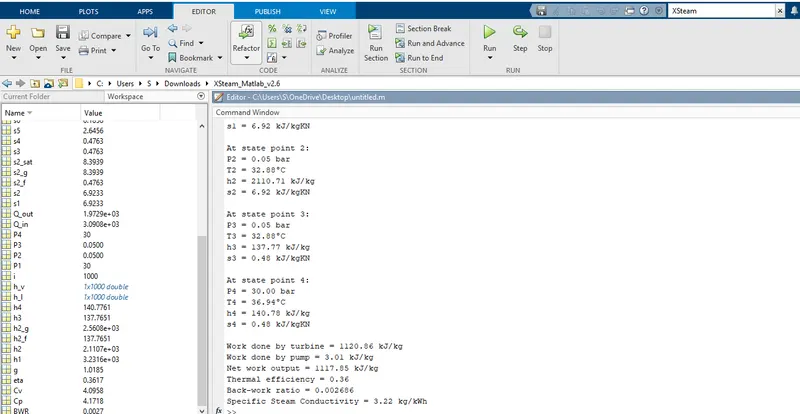

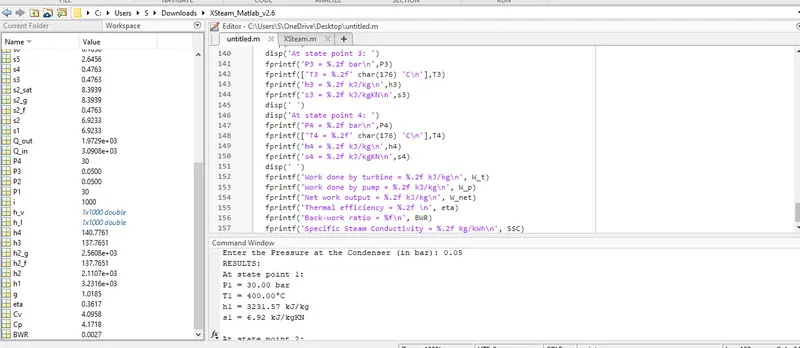

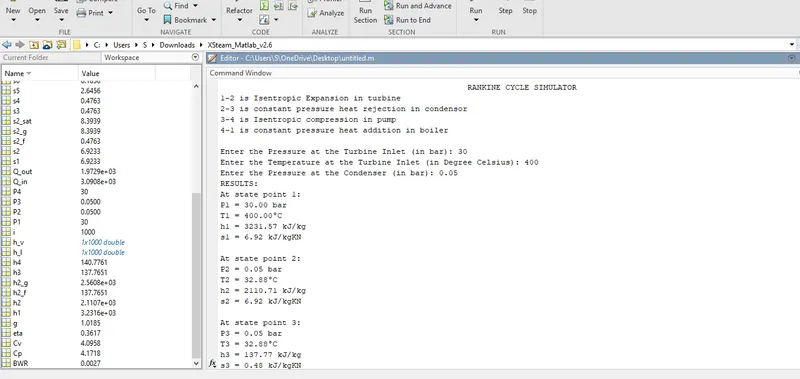

%getting the output screen

disp('RESULTS:')

disp('At state point 1: ')

fprintf('P1 = %.2f bar\n',P1)

fprintf(['T1 = %.2f' char(176) 'C\n'],T1)

fprintf('h1 = %.2f kJ/kg\n',h1)

fprintf('s1 = %.2f kJ/kgKN\n',s1)

disp(' ')

disp('At state point 2: ')

fprintf('P2 = %.2f bar\n',P2)

fprintf(['T2 = %.2f' char(176) 'C\n'],T2)

fprintf('h2 = %.2f kJ/kg\n',h2)

fprintf('s2 = %.2f kJ/kgKN\n',s2)

disp(' ')

disp('At state point 3: ')

fprintf('P3 = %.2f bar\n',P3)

fprintf(['T3 = %.2f' char(176) 'C\n'],T3)

fprintf('h3 = %.2f kJ/kg\n',h3)

fprintf('s3 = %.2f kJ/kgKN\n',s3)

disp(' ')

disp('At state point 4: ')

fprintf('P4 = %.2f bar\n',P4)

fprintf(['T4 = %.2f' char(176) 'C\n'],T4)

fprintf('h4 = %.2f kJ/kg\n',h4)

fprintf('s4 = %.2f kJ/kgKN\n',s4)

disp(' ')

fprintf('Work done by turbine = %.2f kJ/kg\n', W_t)

fprintf('Work done by pump = %.2f kJ/kg\n', W_p)

fprintf('Net work output = %.2f kJ/kg\n', W_net)

fprintf('Thermal efficiency = %.2f \n', eta)

fprintf('Back-work ratio = %f\n', BWR)

fprintf('Specific Steam Conductivity = %.2f kg/kWh\n', SSC)

The link for the standard Xsteam library to get the steam table data for water, is given below. It must be used to calculate the points in between the state variables.

Click here to download the Xsteam Library.

%h_prho behöver T_prho för samtliga regioner!!!!

%***********************************************************************************************************

%* Water and steam properties according to IAPWS IF-97 *

%* By Magnus Holmgren, www.x-eng.com *

%* The steam tables are free and provided as is. *

%* We take no responsibilities for any errors in the code or damage thereby. *

%* You are free to use, modify and distribute the code as long as authorship is properly acknowledged. *

%* Please notify me at [email protected] if the code is used in commercial applications *

%***********************************************************************************************************

% XSteam provides accurate steam and water properties from 0 - 1000 bar and from 0 - 2000 deg C according to

% the standard IAPWS IF-97. For accuracy of the functions in different regions see IF-97 (www.iapws.org)

% *** Using XSteam *****************************************************************************************

%XSteam take 2 or 3 arguments. The first argument must always be the steam table function you want to use.

%The other arguments are the inputs to that function.

%Example: XSteam('h_pt',1,20) Returns the enthalpy of water at 1 bar and 20 degC

%Example: XSteam('TSat_p',1) Returns the saturation temperature of water at 1 bar.

%For a list of valid Steam Table functions se bellow or the XSteam macros for MS Excel.

%*** Nomenclature ******************************************************************************************

% First the wanted property then a _ then the wanted input properties.

% Example. T_ph is temperature as a function of pressure and enthalpy.

% For a list of valid functions se bellow or XSteam for MS Excel.

% T Temperature (deg C)

% p Pressure (bar)

% h Enthalpy (kJ/kg)

% v Specific volume (m3/kg)

% rho Density

% s Specific entropy

% u Specific internal energy

% Cp Specific isobaric heat capacity

% Cv Specific isochoric heat capacity

% w Speed of sound

% my Viscosity

% tc Thermal Conductivity

% st Surface Tension

% x Vapour fraction

% vx Vapour Volume Fraction

%*** Valid Steam table functions. ****************************************************************************

%Temperature

%Tsat_p Saturation temperature

%T_ph Temperture as a function of pressure and enthalpy

%T_ps Temperture as a function of pressure and entropy

%T_hs Temperture as a function of enthalpy and entropy

%Pressure

%psat_T Saturation pressure

%p_hs Pressure as a function of h and s.

%p_hrho Pressure as a function of h and rho. Very unaccurate for solid water region since it's almost incompressible!

%Enthalpy

%hV_p Saturated vapour enthalpy

%hL_p Saturated liquid enthalpy

%hV_T Saturated vapour enthalpy

%hL_T Saturated liquid enthalpy

%h_pT Entalpy as a function of pressure and temperature.

%h_ps Entalpy as a function of pressure and entropy.

%h_px Entalpy as a function of pressure and vapour fraction

%h_prho Entalpy as a function of pressure and density. Observe for low temperatures (liquid) this equation has 2 solutions.

%h_Tx Entalpy as a function of temperature and vapour fraction

%Specific volume

%vV_p Saturated vapour volume

%vL_p Saturated liquid volume

%vV_T Saturated vapour volume

%vL_T Saturated liquid volume

%v_pT Specific volume as a function of pressure and temperature.

%v_ph Specific volume as a function of pressure and enthalpy

%v_ps Specific volume as a function of pressure and entropy.

%Density

%rhoV_p Saturated vapour density

%rhoL_p Saturated liquid density

%rhoV_T Saturated vapour density

%rhoL_T Saturated liquid density

%rho_pT Density as a function of pressure and temperature.

%rho_ph Density as a function of pressure and enthalpy

%rho_ps Density as a function of pressure and entropy.

%Specific entropy

%sV_p Saturated vapour entropy

%sL_p Saturated liquid entropy

%sV_T Saturated vapour entropy

%sL_T Saturated liquid entropy

%s_pT Specific entropy as a function of pressure and temperature (Returns saturated vapour entalpy if mixture.)

%s_ph Specific entropy as a function of pressure and enthalpy

%Specific internal energy

%uV_p Saturated vapour internal energy

%uL_p Saturated liquid internal energy

%uV_T Saturated vapour internal energy

%uL_T Saturated liquid internal energy

%u_pT Specific internal energy as a function of pressure and temperature.

%u_ph Specific internal energy as a function of pressure and enthalpy

%u_ps Specific internal energy as a function of pressure and entropy.

%Specific isobaric heat capacity

%CpV_p Saturated vapour heat capacity

%CpL_p Saturated liquid heat capacity

%CpV_T Saturated vapour heat capacity

%CpL_T Saturated liquid heat capacity

%Cp_pT Specific isobaric heat capacity as a function of pressure and temperature.

%Cp_ph Specific isobaric heat capacity as a function of pressure and enthalpy

%Cp_ps Specific isobaric heat capacity as a function of pressure and entropy.

%Specific isochoric heat capacity

%CvV_p Saturated vapour isochoric heat capacity

%CvL_p Saturated liquid isochoric heat capacity

%CvV_T Saturated vapour isochoric heat capacity

%CvL_T Saturated liquid isochoric heat capacity

%Cv_pT Specific isochoric heat capacity as a function of pressure and temperature.

%Cv_ph Specific isochoric heat capacity as a function of pressure and enthalpy

%Cv_ps Specific isochoric heat capacity as a function of pressure and entropy.

%Speed of sound

%wV_p Saturated vapour speed of sound

%wL_p Saturated liquid speed of sound

%wV_T Saturated vapour speed of sound

%wL_T Saturated liquid speed of sound

%w_pT Speed of sound as a function of pressure and temperature.

%w_ph Speed of sound as a function of pressure and enthalpy

%w_ps Speed of sound as a function of pressure and entropy.

%Viscosity

%Viscosity is not part of IAPWS Steam IF97. Equations from

%"Revised Release on the IAPWS Formulation 1985 for the Viscosity of Ordinary Water Substance", 2003 are used.

%Viscosity in the mixed region (4) is interpolated according to the density. This is not true since it will be two fases.

%my_pT Viscosity as a function of pressure and temperature.

%my_ph Viscosity as a function of pressure and enthalpy

%my_ps Viscosity as a function of pressure and entropy.

%Thermal Conductivity

%Revised release on the IAPS Formulation 1985 for the Thermal Conductivity of ordinary water substance (IAPWS 1998)

%tcL_p Saturated vapour thermal conductivity

%tcV_p Saturated liquid thermal conductivity

%tcL_T Saturated vapour thermal conductivity

%tcV_T Saturated liquid thermal conductivity

%tc_pT Thermal conductivity as a function of pressure and temperature.

%tc_ph Thermal conductivity as a function of pressure and enthalpy

%tc_hs Thermal conductivity as a function of enthalpy and entropy

%Surface tension

%st_T Surface tension for two phase water/steam as a function of T

%st_p Surface tension for two phase water/steam as a function of T

%Vapour fraction

%x_ph Vapour fraction as a function of pressure and enthalpy

%x_ps Vapour fraction as a function of pressure and entropy.

%Vapour volume fraction

%vx_ph Vapour volume fraction as a function of pressure and enthalpy

%vx_ps Vapour volume fraction as a function of pressure and entropy.

function Out=XSteam(fun,In1,In2)

%*Contents.

%*1 Calling functions

%*1.1

%*1.2 Temperature (T)

%*1.3 Pressure (p)

%*1.4 Enthalpy (h)

%*1.5 Specific Volume (v)

%*1.6 Density (rho)

%*1.7 Specific entropy (s)

%*1.8 Specific internal energy (u)

%*1.9 Specific isobaric heat capacity (Cp)

%*1.10 Specific isochoric heat capacity (Cv)

%*1.11 Speed of sound

%*1.12 Viscosity

%*1.13 Prandtl

%*1.14 Kappa

%*1.15 Surface tension

%*1.16 Heat conductivity

%*1.17 Vapour fraction

%*1.18 Vapour Volume Fraction

%*2 IAPWS IF 97 Calling functions

%*2.1 Functions for region 1

%*2.2 Functions for region 2

%*2.3 Functions for region 3

%*2.4 Functions for region 4

%*2.5 Functions for region 5

%*3 Region Selection

%*3.1 Regions as a function of pT

%*3.2 Regions as a function of ph

%*3.3 Regions as a function of ps

%*3.4 Regions as a function of hs

%4 Region Borders

%4.1 Boundary between region 1 and 3.

%4.2 Region 3. pSat_h and pSat_s

%4.3 Region boundary 1to3 and 3to2 as a functions of s

%5 Transport properties

%5.1 Viscosity (IAPWS formulation 1985)

%5.2 Thermal Conductivity (IAPWS formulation 1985)

%5.3 Surface Tension

%6 Units

%7 Verification

%7.1 Verifiy region 1

%7.2 Verifiy region 2

%7.3 Verifiy region 3

%7.4 Verifiy region 4

%7.5 Verifiy region 5

%***********************************************************************************************************

%*1 Calling functions *

%***********************************************************************************************************

%*1.1

fun=lower(fun);

switch fun

%***********************************************************************************************************

%*1.2 Temperature

case 'tsat_p'

p = toSIunit_p(In1);

if p > 0.000611657 && p < 22.06395

Out = fromSIunit_T(T4_p(p));

else

Out = NaN;

end

case 'tsat_s'

s = toSIunit_s(In1);

if s > -0.0001545495919 && s < 9.155759395

ps = p4_s(s);

Out = fromSIunit_T(T4_p(ps));

else

Out = NaN;

end

case 't_ph'

p = toSIunit_p(In1);

h = toSIunit_h(In2);

Region = region_ph(p, h);

switch Region

case 1

Out = fromSIunit_T(T1_ph(p, h));

case 2

Out = fromSIunit_T(T2_ph(p, h));

case 3

Out = fromSIunit_T(T3_ph(p, h));

case 4

Out = fromSIunit_T(T4_p(p));

case 5

Out = fromSIunit_T(T5_ph(p, h));

otherwise

Out = NaN;

end

case 't_ps'

p = toSIunit_p(In1);

s = toSIunit_s(In2);

Region = region_ps(p, s);

switch Region

case 1

Out = fromSIunit_T(T1_ps(p, s));

case 2

Out = fromSIunit_T(T2_ps(p, s));

case 3

Out = fromSIunit_T(T3_ps(p, s));

case 4

Out = fromSIunit_T(T4_p(p));

case 5

Out = fromSIunit_T(T5_ps(p, s));

otherwise

Out = NaN;

end

case 't_hs'

h = toSIunit_h(In1);

s = toSIunit_s(In2);

Region = region_hs(h, s);

switch Region

case 1

p1 = p1_hs(h, s);

Out = fromSIunit_T(T1_ph(p1, h));

case 2

p2 = p2_hs(h, s);

Out = fromSIunit_T(T2_ph(p2, h));

case 3

p3 = p3_hs(h, s);

Out = fromSIunit_T(T3_ph(p3, h));

case 4

Out = fromSIunit_T(T4_hs(h, s));

case 5

error('functions of hs is not avlaible in region 5');

otherwise

Out = NaN;

end

%***********************************************************************************************************

%*1.3 Pressure (p)

case 'psat_t'

T = toSIunit_T(In1);

if T < 647.096 && T > 273.15

Out = fromSIunit_p(p4_T(T));

else

Out = NaN;

end

case 'psat_s'

s = toSIunit_s(In1);

if s > -0.0001545495919 && s < 9.155759395

Out = fromSIunit_p(p4_s(s));

else

Out = NaN;

end

case 'p_hs'

h = toSIunit_h(In1);

s = toSIunit_s(In2);

Region = region_hs(h, s);

switch Region

case 1

Out = fromSIunit_p(p1_hs(h, s));

case 2

Out = fromSIunit_p(p2_hs(h, s));

case 3

Out = fromSIunit_p(p3_hs(h, s));

case 4

tSat = T4_hs(h, s);

Out = fromSIunit_p(p4_T(tSat));

case 5

error('functions of hs is not avlaible in region 5');

otherwise

Out = NaN;

end

case 'p_hrho'

h=In1;

rho=In2;

%Not valid for water or sumpercritical since water rho does not change very much with p.

%Uses iteration to find p.

High_Bound = fromSIunit_p(100);

Low_Bound = fromSIunit_p(0.000611657);

ps = fromSIunit_p(10);

rhos = 1 / XSteam('v_ph',ps, h);

while abs(rho - rhos) > 0.0000001

rhos = 1 / XSteam('v_ph',ps, h);

if rhos >= rho

High_Bound = ps;

else

Low_Bound = ps;

end

ps = (Low_Bound + High_Bound) / 2;

end

Out = ps;

%***********************************************************************************************************

%*1.4 Enthalpy (h)

case 'hv_p'

p = toSIunit_p(In1);

if p > 0.000611657 && p < 22.06395

Out = fromSIunit_h(h4V_p(p));

else

Out = NaN;

end

case 'hl_p'

p = toSIunit_p(In1);

if p > 0.000611657 && p < 22.06395

Out = fromSIunit_h(h4L_p(p));

else

Out = NaN;

end

case 'hv_t'

T = toSIunit_T(In1);

if T > 273.15 && T < 647.096

p = p4_T(T);

Out = fromSIunit_h(h4V_p(p));

else

Out = NaN;

end

case 'hl_t'

T = toSIunit_T(In1);

if T > 273.15 && T < 647.096

p = p4_T(T);

Out = fromSIunit_h(h4L_p(p));

else

Out = NaN;

end

case 'h_pt'

p = toSIunit_p(In1);

T = toSIunit_T(In2);

Region = region_pT(p, T);

switch Region

case 1

Out = fromSIunit_h(h1_pT(p, T));

case 2

Out = fromSIunit_h(h2_pT(p, T));

case 3

Out = fromSIunit_h(h3_pT(p, T));

case 4

Out = NaN;

case 5

Out = fromSIunit_h(h5_pT(p, T));

otherwise

Out = NaN;

end

case 'h_ps'

p = toSIunit_p(In1);

s = toSIunit_s(In2);

Region = region_ps(p, s);

switch Region

case 1

Out = fromSIunit_h(h1_pT(p, T1_ps(p, s)));

case 2

Out = fromSIunit_h(h2_pT(p, T2_ps(p, s)));

case 3

Out = fromSIunit_h(h3_rhoT(1 / v3_ps(p, s), T3_ps(p, s)));

case 4

xs = x4_ps(p, s);

Out = fromSIunit_h(xs * h4V_p(p) + (1 - xs) * h4L_p(p));

case 5

Out = fromSIunit_h(h5_pT(p, T5_ps(p, s)));

otherwise

Out = NaN;

end

case 'h_px'

p = toSIunit_p(In1);

x = toSIunit_x(In2);

if x > 1 || x < 0 || p >= 22.064

Out = NaN;

return

end

hL = h4L_p(p);

hV = h4V_p(p);

Out = hL + x * (hV - hL);

case 'h_prho'

p = toSIunit_p(In1);

rho = 1 / toSIunit_v(1 / In2);

Region = Region_prho(p, rho);

switch Region

case 1

Out = fromSIunit_h(h1_pT(p, T1_prho(p, rho)));

case 2

Out = fromSIunit_h(h2_pT(p, T2_prho(p, rho)));

case 3

Out = fromSIunit_h(h3_rhoT(rho, T3_prho(p, rho)));

case 4

if p < 16.529

vV = v2_pT(p, T4_p(p));

vL = v1_pT(p, T4_p(p));

else

vV = v3_ph(p, h4V_p(p));

vL = v3_ph(p, h4L_p(p));

end

hV = h4V_p(p);

hL = h4L_p(p);

x = (1 / rho - vL) / (vV - vL);

Out = fromSIunit_h((1 - x) * hL + x * hV);

case 5

Out = fromSIunit_h(h5_pT(p, T5_prho(p, rho)));

otherwise

Out = NaN;

end

case 'h_tx'

T = toSIunit_T(In1);

x = toSIunit_x(In2);

if x > 1 || x < 0 || T >= 647.096

Out = NaN;

return

end

p = p4_T(T);

hL = h4L_p(p);

hV = h4V_p(p);

Out = hL + x * (hV - hL);

%***********************************************************************************************************

%*1.5 Specific Volume (v)

case {'vv_p','rhov_p'}

p = toSIunit_p(In1);

if p > 0.000611657 && p < 22.06395

if p < 16.529

Out = fromSIunit_v(v2_pT(p, T4_p(p)));

else

Out = fromSIunit_v(v3_ph(p, h4V_p(p)));

end

else

Out = NaN;

end

if fun(1)=='r'

Out=1/Out;

end

case {'vl_p','rhol_p'}

p = toSIunit_p(In1);

if p > 0.000611657 && p < 22.06395

if p < 16.529

Out = fromSIunit_v(v1_pT(p, T4_p(p)));

else

Out = fromSIunit_v(v3_ph(p, h4L_p(p)));

end

else

Out = NaN;

end

if fun(1)=='r'

Out=1/Out;

end

case {'vv_t','rhov_t'}

T = toSIunit_T(In1);

if T > 273.15 && T < 647.096

if T <= 623.15

Out = fromSIunit_v(v2_pT(p4_T(T), T));

else

Out = fromSIunit_v(v3_ph(p4_T(T), h4V_p(p4_T(T))));

end

else

Out = NaN;

end

if fun(1)=='r'

Out=1/Out;

end

case {'vl_t','rhol_t'}

T = toSIunit_T(In1);

if T > 273.15 && T < 647.096

if T <= 623.15

Out = fromSIunit_v(v1_pT(p4_T(T), T));

else

Out = fromSIunit_v(v3_ph(p4_T(T), h4L_p(p4_T(T))));

end

else

Out = NaN;

end

if fun(1)=='r'

Out=1/Out;

end

case {'v_pt','rho_pt'}

p = toSIunit_p(In1);

T = toSIunit_T(In2);

Region = region_pT(p, T);

switch Region

case 1

Out = fromSIunit_v(v1_pT(p, T));

case 2

Out = fromSIunit_v(v2_pT(p, T));

case 3

Out = fromSIunit_v(v3_ph(p, h3_pT(p, T)));

case 4

Out = NaN;

case 5

Out = fromSIunit_v(v5_pT(p, T));

otherwise

Out = NaN;

end

if fun(1)=='r'

Out=1/Out;

end

case {'v_ph','rho_ph'}

p = toSIunit_p(In1);

h = toSIunit_h(In2);

Region = region_ph(p, h);

switch Region

case 1

Out = fromSIunit_v(v1_pT(p, T1_ph(p, h)));

case 2

Out = fromSIunit_v(v2_pT(p, T2_ph(p, h)));

case 3

Out = fromSIunit_v(v3_ph(p, h));

case 4

xs = x4_ph(p, h);

if p < 16.529

v4v = v2_pT(p, T4_p(p));

v4L = v1_pT(p, T4_p(p));

else

v4v = v3_ph(p, h4V_p(p));

v4L = v3_ph(p, h4L_p(p));

end

Out = fromSIunit_v((xs * v4v + (1 - xs) * v4L));

case 5

Ts = T5_ph(p, h);

Out = fromSIunit_v(v5_pT(p, Ts));

otherwise

Out = NaN;

end

if fun(1)=='r'

Out=1/Out;

end

case {'v_ps','rho_ps'}

p = toSIunit_p(In1);

s = toSIunit_s(In2);

Region = region_ps(p, s);

switch Region

case 1

Out = fromSIunit_v(v1_pT(p, T1_ps(p, s)));

case 2

Out = fromSIunit_v(v2_pT(p, T2_ps(p, s)));

case 3

Out = fromSIunit_v(v3_ps(p, s));

case 4

xs = x4_ps(p, s);

if p < 16.529

v4v = v2_pT(p, T4_p(p));

v4L = v1_pT(p, T4_p(p));

else

v4v = v3_ph(p, h4V_p(p));

v4L = v3_ph(p, h4L_p(p));

end

Out = fromSIunit_v((xs * v4v + (1 - xs) * v4L));

case 5

Ts = T5_ps(p, s);

Out = fromSIunit_v(v5_pT(p, Ts));

otherwise

Out = NaN;

end

if fun(1)=='r'

Out=1/Out;

end

%***********************************************************************************************************

%*1.6 Density (rho)

% Density is calculated as 1/v. Se section 1.5 Volume

%***********************************************************************************************************

%*1.7 Specific entropy (s)

case 'sv_p'

p = toSIunit_p(In1);

if p > 0.000611657 && p < 22.06395

if p < 16.529

Out = fromSIunit_s(s2_pT(p, T4_p(p)));

else

Out = fromSIunit_s(s3_rhoT(1 / (v3_ph(p, h4V_p(p))), T4_p(p)));

end

else

Out = NaN;

end

case 'sl_p'

p = toSIunit_p(In1);

if p > 0.000611657 && p < 22.06395

if p < 16.529

Out = fromSIunit_s(s1_pT(p, T4_p(p)));

else

Out = fromSIunit_s(s3_rhoT(1 / (v3_ph(p, h4L_p(p))), T4_p(p)));

end

else

Out = NaN;

end

case 'sv_t'

T = toSIunit_T(In1);

if T > 273.15 && T < 647.096

if T <= 623.15

Out = fromSIunit_s(s2_pT(p4_T(T), T));

else

Out = fromSIunit_s(s3_rhoT(1 / (v3_ph(p4_T(T), h4V_p(p4_T(T)))), T));

end

else

Out = NaN;

end

case 'sl_t'

T = toSIunit_T(In1);

if T > 273.15 && T < 647.096

if T <= 623.15

Out = fromSIunit_s(s1_pT(p4_T(T), T));

else

Out = fromSIunit_s(s3_rhoT(1 / (v3_ph(p4_T(T), h4L_p(p4_T(T)))), T));

end

else

Out = NaN;

end

case 's_pt'

p = toSIunit_p(In1);

T = toSIunit_T(In2);

Region = region_pT(p, T);

switch Region

case 1

Out = fromSIunit_s(s1_pT(p, T));

case 2

Out = fromSIunit_s(s2_pT(p, T));

case 3

hs = h3_pT(p, T);

rhos = 1 / v3_ph(p, hs);

Out = fromSIunit_s(s3_rhoT(rhos, T));

case 4

Out = NaN;

case 5

Out = fromSIunit_s(s5_pT(p, T));

otherwise

Out = NaN;

end

case 's_ph'

p = toSIunit_p(In1);

h = toSIunit_h(In2);

Region = region_ph(p, h);

switch Region

case 1

T = T1_ph(p, h);

Out = fromSIunit_s(s1_pT(p, T));

case 2

T = T2_ph(p, h);

Out = fromSIunit_s(s2_pT(p, T));

case 3

rhos = 1 / v3_ph(p, h);

Ts = T3_ph(p, h);

Out = fromSIunit_s(s3_rhoT(rhos, Ts));

case 4

Ts = T4_p(p);

xs = x4_ph(p, h);

if p < 16.529

s4v = s2_pT(p, Ts);

s4L = s1_pT(p, Ts);

else

v4v = v3_ph(p, h4V_p(p));

s4v = s3_rhoT(1 / v4v, Ts);

v4L = v3_ph(p, h4L_p(p));

s4L = s3_rhoT(1 / v4L, Ts);

end

Out = fromSIunit_s((xs * s4v + (1 - xs) * s4L));

case 5

T = T5_ph(p, h);

Out = fromSIunit_s(s5_pT(p, T));

otherwise

Out = NaN;

end

%***********************************************************************************************************

%*1.8 Specific internal energy (u)

case 'uv_p'

p = toSIunit_p(In1);

if p > 0.000611657 && p < 22.06395

if p < 16.529

Out = fromSIunit_u(u2_pT(p, T4_p(p)));

else

Out = fromSIunit_u(u3_rhoT(1 / (v3_ph(p, h4V_p(p))), T4_p(p)));

end

else

Out = NaN;

end

case 'ul_p'

p = toSIunit_p(In1);

if p > 0.000611657 && p < 22.06395

if p < 16.529

Out = fromSIunit_u(u1_pT(p, T4_p(p)));

else

Out = fromSIunit_u(u3_rhoT(1 / (v3_ph(p, h4L_p(p))), T4_p(p)));

end

else

Out = NaN;

end

case 'uv_t'

T = toSIunit_T(In1);

if T > 273.15 && T < 647.096

if T <= 623.15

Out = fromSIunit_u(u2_pT(p4_T(T), T));

else

Out = fromSIunit_u(u3_rhoT(1 / (v3_ph(p4_T(T), h4V_p(p4_T(T)))), T));

end

else

Out = NaN;

end

case 'ul_t'

T = toSIunit_T(In1);

if T > 273.15 && T < 647.096

if T <= 623.15

Out = fromSIunit_u(u1_pT(p4_T(T), T));

else

Out = fromSIunit_u(u3_rhoT(1 / (v3_ph(p4_T(T), h4L_p(p4_T(T)))), T));

end

else

Out = NaN;

end

case 'u_pt'

p = toSIunit_p(In1);

T = toSIunit_T(In2);

Region = region_pT(p, T);

switch Region

case 1

Out = fromSIunit_u(u1_pT(p, T));

case 2

Out = fromSIunit_u(u2_pT(p, T));

case 3

hs = h3_pT(p, T);

rhos = 1 / v3_ph(p, hs);

Out = fromSIunit_u(u3_rhoT(rhos, T));

case 4

Out = NaN;

case 5

Out = fromSIunit_u(u5_pT(p, T));

otherwise

Out = NaN;

end

case 'u_ph'

p = toSIunit_p(In1);

h = toSIunit_h(In2);

Region = region_ph(p, h);

switch Region

case 1

Ts = T1_ph(p, h);

Out = fromSIunit_u(u1_pT(p, Ts));

case 2

Ts = T2_ph(p, h);

Out = fromSIunit_u(u2_pT(p, Ts));

case 3

rhos = 1 / v3_ph(p, h);

Ts = T3_ph(p, h);

Out = fromSIunit_u(u3_rhoT(rhos, Ts));

case 4

Ts = T4_p(p);

xs = x4_ph(p, h);

if p < 16.529

u4v = u2_pT(p, Ts);

u4L = u1_pT(p, Ts);

else

v4v = v3_ph(p, h4V_p(p));

u4v = u3_rhoT(1 / v4v, Ts);

v4L = v3_ph(p, h4L_p(p));

u4L = u3_rhoT(1 / v4L, Ts);

end

Out = fromSIunit_u((xs * u4v + (1 - xs) * u4L));

case 5

Ts = T5_ph(p, h);

Out = fromSIunit_u(u5_pT(p, Ts));

otherwise

Out = NaN;

end

case 'u_ps'

p = toSIunit_p(In1);

s = toSIunit_s(In2);

Region = region_ps(p, s);

switch Region

case 1

Ts = T1_ps(p, s);

Out = fromSIunit_u(u1_pT(p, Ts));

case 2

Ts = T2_ps(p, s);

Out = fromSIunit_u(u2_pT(p, Ts));

case 3

rhos = 1 / v3_ps(p, s);

Ts = T3_ps(p, s);

Out = fromSIunit_u(u3_rhoT(rhos, Ts));

case 4

if p < 16.529

uLp = u1_pT(p, T4_p(p));

uVp = u2_pT(p, T4_p(p));

else

uLp = u3_rhoT(1 / (v3_ph(p, h4L_p(p))), T4_p(p));

uVp = u3_rhoT(1 / (v3_ph(p, h4V_p(p))), T4_p(p));

end

xs = x4_ps(p, s);

Out = fromSIunit_u((xs * uVp + (1 - xs) * uLp));

case 5

Ts = T5_ps(p, s);

Out = fromSIunit_u(u5_pT(p, Ts));

otherwise

Out = NaN;

end

%***********************************************************************************************************

%*1.9 Specific isobaric heat capacity (Cp)

case 'cpv_p'

p = toSIunit_p(In1);

if p > 0.000611657 && p < 22.06395

if p < 16.529

Out = fromSIunit_Cp(Cp2_pT(p, T4_p(p)));

else

Out = fromSIunit_Cp(Cp3_rhoT(1 / (v3_ph(p, h4V_p(p))), T4_p(p)));

end

else

Out = NaN;

end

case 'cpl_p'

p = toSIunit_p(In1);

if p > 0.000611657 && p < 22.06395

if p < 16.529

Out = fromSIunit_Cp(Cp1_pT(p, T4_p(p)));

else

Out = fromSIunit_Cp(Cp3_rhoT(1 / (v3_ph(p, h4L_p(p))), T4_p(p)));

end

else

Out = NaN;

end

case 'cpv_t'

T = toSIunit_T(In1);

if T > 273.15 && T < 647.096

if T <= 623.15

Out = fromSIunit_Cp(Cp2_pT(p4_T(T), T));

else

Out = fromSIunit_Cp(Cp3_rhoT(1 / (v3_ph(p4_T(T), h4V_p(p4_T(T)))), T));

end

else

Out = NaN;

end

case 'cpl_t'

T = toSIunit_T(In1);

if T > 273.15 && T < 647.096

if T <= 623.15

Out = fromSIunit_Cp(Cp1_pT(p4_T(T), T));

else

Out = fromSIunit_Cp(Cp3_rhoT(1 / (v3_ph(p4_T(T), h4L_p(p4_T(T)))), T));

end

else

Out = NaN;

end

case 'cp_pt'

p = toSIunit_p(In1);

T = toSIunit_T(In2);

Region = region_pT(p, T);

switch Region

case 1

Out = fromSIunit_Cp(Cp1_pT(p, T));

case 2

Out = fromSIunit_Cp(Cp2_pT(p, T));

case 3

hs = h3_pT(p, T);

rhos = 1 / v3_ph(p, hs);

Out = fromSIunit_Cp(Cp3_rhoT(rhos, T));

case 4

Out = NaN;

case 5

Out = fromSIunit_Cp(Cp5_pT(p, T));

otherwise

Out = NaN;

end

case 'cp_ph'

p = toSIunit_p(In1);

h = toSIunit_h(In2);

Region = region_ph(p, h);

switch Region

case 1

Ts = T1_ph(p, h);

Out = fromSIunit_Cp(Cp1_pT(p, Ts));

case 2

Ts = T2_ph(p, h);

Out = fromSIunit_Cp(Cp2_pT(p, Ts));

case 3

rhos = 1 / v3_ph(p, h);

Ts = T3_ph(p, h);

Out = fromSIunit_Cp(Cp3_rhoT(rhos, Ts));

case 4

Out = NaN;

case 5

Ts = T5_ph(p, h);

Out = fromSIunit_Cp(Cp5_pT(p, Ts));

otherwise

Out = NaN;

end

case 'cp_ps'

p = toSIunit_p(In1);

s = toSIunit_s(In2);

Region = region_ps(p, s);

switch Region

case 1

Ts = T1_ps(p, s);

Out = fromSIunit_Cp(Cp1_pT(p, Ts));

case 2

Ts = T2_ps(p, s);

Out = fromSIunit_Cp(Cp2_pT(p, Ts));

case 3

rhos = 1 / v3_ps(p, s);

Ts = T3_ps(p, s);

Out = fromSIunit_Cp(Cp3_rhoT(rhos, Ts));

case 4

Out = NaN;

case 5

Ts = T5_ps(p, s);

Out = fromSIunit_Cp(Cp5_pT(p, Ts));

otherwise

Out = NaN;

end

%***********************************************************************************************************

%*1.10 Specific isochoric heat capacity (Cv)

case 'cvv_p'

p = toSIunit_p(In1);

if p > 0.000611657 && p < 22.06395

if p < 16.529

Out = fromSIunit_Cv(Cv2_pT(p, T4_p(p)));

else

Out = fromSIunit_Cv(Cv3_rhoT(1 / (v3_ph(p, h4V_p(p))), T4_p(p)));

end

else

Out = NaN;

end

case 'cvl_p'

p = toSIunit_p(In1);

if p > 0.000611657 && p < 22.06395

if p < 16.529

Out = fromSIunit_Cv(Cv1_pT(p, T4_p(p)));

else

Out = fromSIunit_Cv(Cv3_rhoT(1 / (v3_ph(p, h4L_p(p))), T4_p(p)));

end

else

Out = NaN;

end

case 'cvv_t'

T = toSIunit_T(In1);

if T > 273.15 && T < 647.096

if T <= 623.15

Out = fromSIunit_Cv(Cv2_pT(p4_T(T), T));

else

Out = fromSIunit_Cv(Cv3_rhoT(1 / (v3_ph(p4_T(T), h4V_p(p4_T(T)))), T));

end

else

Out = NaN;

end

case 'cvl_t'

T = toSIunit_T(In1);

if T > 273.15 && T < 647.096

if T <= 623.15

Out = fromSIunit_Cv(Cv1_pT(p4_T(T), T));

else

Out = fromSIunit_Cv(Cv3_rhoT(1 / (v3_ph(p4_T(T), h4L_p(p4_T(T)))), T));

end

else

Out = NaN;

end

case 'cv_pt'

p = toSIunit_p(In1);

T = toSIunit_T(In2);

Region = region_pT(p, T);

switch Region

case 1

Out = fromSIunit_Cv(Cv1_pT(p, T));

case 2

Out = fromSIunit_Cv(Cv2_pT(p, T));

case 3

hs = h3_pT(p, T);

rhos = 1 / v3_ph(p, hs);

Out = fromSIunit_Cv(Cv3_rhoT(rhos, T));

case 4

Out = NaN;

case 5

Out = fromSIunit_Cv(Cv5_pT(p, T));

otherwise

Out = NaN;

end

case 'cv_ph'

p = toSIunit_p(In1);

h = toSIunit_h(In2);

Region = region_ph(p, h);

switch Region

case 1

Ts = T1_ph(p, h);

Out = fromSIunit_Cv(Cv1_pT(p, Ts));

case 2

Ts = T2_ph(p, h);

Out = fromSIunit_Cv(Cv2_pT(p, Ts));

case 3

rhos = 1 / v3_ph(p, h);

Ts = T3_ph(p, h);

Out = fromSIunit_Cv(Cv3_rhoT(rhos, Ts));

case 4

Out = NaN;

case 5

Ts = T5_ph(p, h);

Out = fromSIunit_Cv(Cv5_pT(p, Ts));

otherwise

Out = NaN;

end

case 'cv_ps'

p = toSIunit_p(In1);

s = toSIunit_s(In2);

Region = region_ps(p, s);

switch Region

case 1

Ts = T1_ps(p, s);

Out = fromSIunit_Cv(Cv1_pT(p, Ts));

case 2

Ts = T2_ps(p, s);

Out = fromSIunit_Cv(Cv2_pT(p, Ts));

case 3

rhos = 1 / v3_ps(p, s);

Ts = T3_ps(p, s);

Out = fromSIunit_Cv(Cv3_rhoT(rhos, Ts));

case 4

Out = NaN; %(xs * CvVp + (1 - xs) * CvLp) / Cv_scale - Cv_offset

case 5

Ts = T5_ps(p, s);

Out = fromSIunit_Cv(Cv5_pT(p, Ts));

otherwise

Out = CVErr(xlErrValue);

end

%***********************************************************************************************************

%*1.11 Speed of sound

case 'wv_p'

p = toSIunit_p(In1);

if p > 0.000611657 && p < 22.06395

if p < 16.529

Out = fromSIunit_w(w2_pT(p, T4_p(p)));

else

Out = fromSIunit_w(w3_rhoT(1 / (v3_ph(p, h4V_p(p))), T4_p(p)));

end

else

Out = NaN;

end

case 'wl_p'

p = toSIunit_p(In1);

if p > 0.000611657 && p < 22.06395

if p < 16.529

Out = fromSIunit_w(w1_pT(p, T4_p(p)));

else

Out = fromSIunit_w(w3_rhoT(1 / (v3_ph(p, h4L_p(p))), T4_p(p)));

end

else

Out = NaN;

end

case 'wv_t'

T = toSIunit_T(In1);

if T > 273.15 && T < 647.096

if T <= 623.15

Out = fromSIunit_w(w2_pT(p4_T(T), T));

else

Out = fromSIunit_w(w3_rhoT(1 / (v3_ph(p4_T(T), h4V_p(p4_T(T)))), T));

end

else

Out = NaN;

end

case 'wl_t'

T = toSIunit_T(In1);

if T > 273.15 && T < 647.096

if T <= 623.15

Out = fromSIunit_w(w1_pT(p4_T(T), T));

else

Out = fromSIunit_w(w3_rhoT(1 / (v3_ph(p4_T(T), h4L_p(p4_T(T)))), T));

end

else

Out = NaN;

end

case 'w_pt'

p = toSIunit_p(In1);

T = toSIunit_T(In2);

Region = region_pT(p, T);

switch Region

case 1

Out = fromSIunit_w(w1_pT(p, T));

case 2

Out = fromSIunit_w(w2_pT(p, T));

case 3

hs = h3_pT(p, T);

rhos = 1 / v3_ph(p, hs);

Out = fromSIunit_w(w3_rhoT(rhos, T));

case 4

Out = NaN;

case 5

Out = fromSIunit_w(w5_pT(p, T));

otherwise

Out = NaN;

end

case 'w_ph'

p = toSIunit_p(In1);

h = toSIunit_h(In2);

Region = region_ph(p, h);

switch Region

case 1

Ts = T1_ph(p, h);

Out = fromSIunit_w(w1_pT(p, Ts));

case 2

Ts = T2_ph(p, h);

Out = fromSIunit_w(w2_pT(p, Ts));

case 3

rhos = 1 / v3_ph(p, h);

Ts = T3_ph(p, h);

Out = fromSIunit_w(w3_rhoT(rhos, Ts));

case 4

Out = NaN;

case 5

Ts = T5_ph(p, h);

Out = fromSIunit_w(w5_pT(p, Ts));

otherwise

Out = NaN;

end

case 'w_ps'

p = toSIunit_p(In1);

s = toSIunit_s(In2);

Region = region_ps(p, s);

switch Region

case 1

Ts = T1_ps(p, s);

Out = fromSIunit_w(w1_pT(p, Ts));

case 2

Ts = T2_ps(p, s);

Out = fromSIunit_w(w2_pT(p, Ts));

case 3

rhos = 1 / v3_ps(p, s);

Ts = T3_ps(p, s);

Out = fromSIunit_w(w3_rhoT(rhos, Ts));

case 4

Out = NaN; %(xs * wVp + (1 - xs) * wLp) / w_scale - w_offset

case 5

Ts = T5_ps(p, s);

Out = fromSIunit_w(w5_pT(p, Ts));

otherwise

Out = NaN;

end

%***********************************************************************************************************

%*1.12 Viscosity

case 'my_pt'

p = toSIunit_p(In1);

T = toSIunit_T(In2);

Region = region_pT(p, T);

switch Region

case 4

Out = NaN;

case {1, 2, 3, 5}

Out = fromSIunit_my(my_AllRegions_pT(p, T));

otherwise

Out = NaN;

end

case {'my_ph'}

p = toSIunit_p(In1);

h = toSIunit_h(In2);

Region = region_ph(p, h);

switch Region

case {1, 2, 3, 5}

Out = fromSIunit_my(my_AllRegions_ph(p, h));

case {4}

Out = NaN;

otherwise

Out = NaN;

end

case 'my_ps'

h = XSteam('h_ps',In1, In2);

Out = XSteam('my_ph',In1, h);

%***********************************************************************************************************

%*1.13 Prandtl

case 'pr_pt'

Cp = toSIunit_Cp(XSteam('Cp_pT',In1, In2));

my = toSIunit_my(XSteam('my_pT',In1,In2));

tc = toSIunit_tc(XSteam('tc_pT',In1,In2));

Out = Cp * 1000 * my / tc;

case 'pr_ph'

Cp = toSIunit_Cp(XSteam('Cp_ph',In1, In2));

my = toSIunit_my(XSteam('my_ph',In1,In2));

tc = toSIunit_tc(XSteam('tc_ph',In1,In2));

Out = Cp * 1000 * my / tc;

%***********************************************************************************************************

%*1.14 Kappa

%***********************************************************************************************************

%*1.15 Surface tension

case 'st_t'

T = toSIunit_T(In1);

Out = fromSIunit_st(Surface_Tension_T(T));

case 'st_p'

T = XSteam('Tsat_p',In1);

T = toSIunit_T(T);

Out = fromSIunit_st(Surface_Tension_T(T));

%***********************************************************************************************************

%*1.16 Thermal conductivity

case 'tcl_p'

T = XSteam('Tsat_p',In1);

v = XSteam('vL_p',In1);

p = toSIunit_p(In1);

T = toSIunit_T(T);

v = toSIunit_v(v);

rho = 1 / v;

Out = fromSIunit_tc(tc_ptrho(p, T, rho));

case 'tcv_p'

ps = In1;

T = XSteam('Tsat_p',ps);

v = XSteam('vV_p',ps);

p = toSIunit_p(In1);

T = toSIunit_T(T);

v = toSIunit_v(v);

rho = 1 / v;

Out = fromSIunit_tc(tc_ptrho(p, T, rho));

case 'tcl_t'

Ts = In1;

p = XSteam('psat_T',Ts);

v = XSteam('vL_T',Ts);

p = toSIunit_p(p);

T = toSIunit_T(Ts);

v = toSIunit_v(v);

rho = 1 / v;

Out = fromSIunit_tc(tc_ptrho(p, T, rho));

case 'tcv_t'

Ts = In1;

p = XSteam('psat_T',Ts);

v = XSteam('vV_T',Ts);

p = toSIunit_p(p);

T = toSIunit_T(Ts);

v = toSIunit_v(v);

rho = 1 / v;

Out = fromSIunit_tc(tc_ptrho(p, T, rho));

case 'tc_pt'

Ts = In2;

ps = In1;

v = XSteam('v_pT',ps, Ts);

p = toSIunit_p(ps);

T = toSIunit_T(Ts);

v = toSIunit_v(v);

rho = 1 / v;

Out = fromSIunit_tc(tc_ptrho(p, T, rho));

case 'tc_ph'

hs = In2;

ps = In1;

v = XSteam('v_ph',ps, hs);

T = XSteam('T_ph',ps, hs);

p = toSIunit_p(ps);

T = toSIunit_T(T);

v = toSIunit_v(v);

rho = 1 / v;

Out = fromSIunit_tc(tc_ptrho(p, T, rho));

case 'tc_hs'

hs = In1;

p = XSteam('p_hs',hs, In2);

ps = p;

v = XSteam('v_ph',ps, hs);

T = XSteam('T_ph',ps, hs);

p = toSIunit_p(p);

T = toSIunit_T(T);

v = toSIunit_v(v);

rho = 1 / v;

Out = fromSIunit_tc(tc_ptrho(p, T, rho));

%***********************************************************************************************************

%*1.17 Vapour fraction

case 'x_ph'

p = toSIunit_p(In1);

h = toSIunit_h(In2);

if p > 0.000611657 && p < 22.06395

Out = fromSIunit_x(x4_ph(p, h));

else

Out = NaN;

end

case 'x_ps'

p = toSIunit_p(In1);

s = toSIunit_s(In2);

if p > 0.000611657 && p < 22.06395

Out = fromSIunit_x(x4_ps(p, s));

else

Out = NaN;

end

%***********************************************************************************************************

%*1.18 Vapour Volume Fraction

case 'vx_ph'

p = toSIunit_p(In1);

h = toSIunit_h(In2);

if p > 0.000611657 && p < 22.06395

if p < 16.529

vL = v1_pT(p, T4_p(p));

vV = v2_pT(p, T4_p(p));

else

vL = v3_ph(p, h4L_p(p));

vV = v3_ph(p, h4V_p(p));

end

xs = x4_ph(p, h);

Out = fromSIunit_vx((xs * vV / (xs * vV + (1 - xs) * vL)));

else

Out = NaN;

end

case 'vx_ps'

p = toSIunit_p(In1);

s = toSIunit_s(In2);

if p > 0.000611657 && p < 22.06395

if p < 16.529

vL = v1_pT(p, T4_p(p));

vV = v2_pT(p, T4_p(p));

else

vL = v3_ph(p, h4L_p(p));

vV = v3_ph(p, h4V_p(p));

end

xs = x4_ps(p, s);

Out = fromSIunit_vx((xs * vV / (xs * vV + (1 - xs) * vL)));

else

Out = NaN;

end

case 'check'

err=check();

otherwise

error(['Unknown calling function to XSteam, ',fun, ' See help XSteam for valid calling functions']);

end

%***********************************************************************************************************

%*2 IAPWS IF 97 Calling functions *

%***********************************************************************************************************

%*2.1 Functions for region 1

function v1_pT = v1_pT(p, T)

%Release on the IAPWS Industrial formulation 1997 for the Thermodynamic Properties of Water and Steam, September 1997

%5 Equations for Region 1, Section. 5.1 Basic Equation

%Eqution 7, Table 3, Page 6

I1 = [0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 1, 2, 2, 2, 2, 2, 3, 3, 3, 4, 4, 4, 5, 8, 8, 21, 23, 29, 30, 31, 32];

J1 = [-2, -1, 0, 1, 2, 3, 4, 5, -9, -7, -1, 0, 1, 3, -3, 0, 1, 3, 17, -4, 0, 6, -5, -2, 10, -8, -11, -6, -29, -31, -38, -39, -40, -41];

n1 = [0.14632971213167, -0.84548187169114, -3.756360367204, 3.3855169168385, -0.95791963387872, 0.15772038513228, -0.016616417199501, 8.1214629983568E-04, 2.8319080123804E-04, -6.0706301565874E-04, -0.018990068218419, -0.032529748770505, -0.021841717175414, -5.283835796993E-05, -4.7184321073267E-04, -3.0001780793026E-04, 4.7661393906987E-05, -4.4141845330846E-06, -7.2694996297594E-16, -3.1679644845054E-05, -2.8270797985312E-06, -8.5205128120103E-10, -2.2425281908E-06, -6.5171222895601E-07, -1.4341729937924E-13, -4.0516996860117E-07, -1.2734301741641E-09, -1.7424871230634E-10, -6.8762131295531E-19, 1.4478307828521E-20, 2.6335781662795E-23, -1.1947622640071E-23, 1.8228094581404E-24, -9.3537087292458E-26];

R = 0.461526; %kJ/(kg K)

Pi = p / 16.53;

tau = 1386 / T;

gamma_der_pi = 0;

for i = 1 : 34

gamma_der_pi = gamma_der_pi - n1(i) * I1(i) * (7.1 - Pi) ^ (I1(i) - 1) * (tau - 1.222) ^ J1(i);

end

v1_pT = R * T / p * Pi * gamma_der_pi / 1000;

function h1_pT = h1_pT(p, T)

%Release on the IAPWS Industrial formulation 1997 for the Thermodynamic Properties of Water and Steam, September 1997

%5 Equations for Region 1, Section. 5.1 Basic Equation

%Eqution 7, Table 3, Page 6

I1 = [0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 1, 2, 2, 2, 2, 2, 3, 3, 3, 4, 4, 4, 5, 8, 8, 21, 23, 29, 30, 31, 32];

J1 = [-2, -1, 0, 1, 2, 3, 4, 5, -9, -7, -1, 0, 1, 3, -3, 0, 1, 3, 17, -4, 0, 6, -5, -2, 10, -8, -11, -6, -29, -31, -38, -39, -40, -41];

R = 0.461526; %kJ/(kg K)

Pi = p / 16.53;

tau = 1386 / T;

gamma_der_tau = 0;

for i = 1 : 34

gamma_der_tau = gamma_der_tau + (n1(i) * (7.1 - Pi) ^ I1(i) * J1(i) * (tau - 1.222) ^ (J1(i) - 1));

end

h1_pT = R * T * tau * gamma_der_tau;

function u1_pT = u1_pT(p, T)

%Release on the IAPWS Industrial formulation 1997 for the Thermodynamic Properties of Water and Steam, September 1997

%5 Equations for Region 1, Section. 5.1 Basic Equation

%Eqution 7, Table 3, Page 6

I1 = [0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 1, 2, 2, 2, 2, 2, 3, 3, 3, 4, 4, 4, 5, 8, 8, 21, 23, 29, 30, 31, 32];

J1 = [-2, -1, 0, 1, 2, 3, 4, 5, -9, -7, -1, 0, 1, 3, -3, 0, 1, 3, 17, -4, 0, 6, -5, -2, 10, -8, -11, -6, -29, -31, -38, -39, -40, -41];

R = 0.461526; %kJ/(kg K)

Pi = p / 16.53;

tau = 1386 / T;

gamma_der_tau = 0;

gamma_der_pi = 0;

for i = 1 : 34

gamma_der_pi = gamma_der_pi - n1(i) * I1(i) * (7.1 - Pi) ^ (I1(i) - 1) * (tau - 1.222) ^ J1(i);

gamma_der_tau = gamma_der_tau + (n1(i) * (7.1 - Pi) ^ I1(i) * J1(i) * (tau - 1.222) ^ (J1(i) - 1));

end

u1_pT = R * T * (tau * gamma_der_tau - Pi * gamma_der_pi);

function s1_pT = s1_pT(p, T)

%Release on the IAPWS Industrial formulation 1997 for the Thermodynamic Properties of Water and Steam, September 1997

%5 Equations for Region 1, Section. 5.1 Basic Equation

%Eqution 7, Table 3, Page 6

I1 = [0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 1, 2, 2, 2, 2, 2, 3, 3, 3, 4, 4, 4, 5, 8, 8, 21, 23, 29, 30, 31, 32];

J1 = [-2, -1, 0, 1, 2, 3, 4, 5, -9, -7, -1, 0, 1, 3, -3, 0, 1, 3, 17, -4, 0, 6, -5, -2, 10, -8, -11, -6, -29, -31, -38, -39, -40, -41];

R = 0.461526; %kJ/(kg K)

Pi = p / 16.53;

tau = 1386 / T;

gamma = 0;

gamma_der_tau = 0;

for i = 1 : 34

gamma_der_tau = gamma_der_tau + (n1(i) * (7.1 - Pi) ^ I1(i) * J1(i) * (tau - 1.222) ^ (J1(i) - 1));

gamma = gamma + n1(i) * (7.1 - Pi) ^ I1(i) * (tau - 1.222) ^ J1(i);

end

s1_pT = R * tau * gamma_der_tau - R * gamma;

function Cp1_pT = Cp1_pT(p, T)

%Release on the IAPWS Industrial formulation 1997 for the Thermodynamic Properties of Water and Steam, September 1997

%5 Equations for Region 1, Section. 5.1 Basic Equation

%Eqution 7, Table 3, Page 6

I1 = [0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 1, 2, 2, 2, 2, 2, 3, 3, 3, 4, 4, 4, 5, 8, 8, 21, 23, 29, 30, 31, 32];

J1 = [-2, -1, 0, 1, 2, 3, 4, 5, -9, -7, -1, 0, 1, 3, -3, 0, 1, 3, 17, -4, 0, 6, -5, -2, 10, -8, -11, -6, -29, -31, -38, -39, -40, -41];

R = 0.461526; %kJ/(kg K)

Pi = p / 16.53;

tau = 1386 / T;

gamma_der_tautau = 0;

for i = 1 :34

gamma_der_tautau = gamma_der_tautau + (n1(i) * (7.1 - Pi) ^ I1(i) * J1(i) * (J1(i) - 1) * (tau - 1.222) ^ (J1(i) - 2));

end

Cp1_pT = -R * tau ^ 2 * gamma_der_tautau;

function Cv1_pT = Cv1_pT(p, T)

%Release on the IAPWS Industrial formulation 1997 for the Thermodynamic Properties of Water and Steam, September 1997

%5 Equations for Region 1, Section. 5.1 Basic Equation

%Eqution 7, Table 3, Page 6

I1 = [0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 1, 2, 2, 2, 2, 2, 3, 3, 3, 4, 4, 4, 5, 8, 8, 21, 23, 29, 30, 31, 32];

J1 = [-2, -1, 0, 1, 2, 3, 4, 5, -9, -7, -1, 0, 1, 3, -3, 0, 1, 3, 17, -4, 0, 6, -5, -2, 10, -8, -11, -6, -29, -31, -38, -39, -40, -41];

R = 0.461526; %kJ/(kg K)

Pi = p / 16.53;

tau = 1386 / T;

gamma_der_pi = 0;

gamma_der_pipi = 0;

gamma_der_pitau = 0;

gamma_der_tautau = 0;

for i = 1 : 34

gamma_der_pi = gamma_der_pi - n1(i) * I1(i) * (7.1 - Pi) ^ (I1(i) - 1) * (tau - 1.222) ^ J1(i);

gamma_der_pipi = gamma_der_pipi + n1(i) * I1(i) * (I1(i) - 1) * (7.1 - Pi) ^ (I1(i) - 2) * (tau - 1.222) ^ J1(i);

gamma_der_pitau = gamma_der_pitau - n1(i) * I1(i) * (7.1 - Pi) ^ (I1(i) - 1) * J1(i) * (tau - 1.222) ^ (J1(i) - 1);

gamma_der_tautau = gamma_der_tautau + n1(i) * (7.1 - Pi) ^ I1(i) * J1(i) * (J1(i) - 1) * (tau - 1.222) ^ (J1(i) - 2);

end

Cv1_pT = R * (-tau ^ 2 * gamma_der_tautau + (gamma_der_pi - tau * gamma_der_pitau) ^ 2 / gamma_der_pipi);

function w1_pT = w1_pT(p, T)

%Release on the IAPWS Industrial formulation 1997 for the Thermodynamic Properties of Water and Steam, September 1997

%5 Equations for Region 1, Section. 5.1 Basic Equation

%Eqution 7, Table 3, Page 6

I1 = [0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 1, 2, 2, 2, 2, 2, 3, 3, 3, 4, 4, 4, 5, 8, 8, 21, 23, 29, 30, 31, 32];

J1 = [-2, -1, 0, 1, 2, 3, 4, 5, -9, -7, -1, 0, 1, 3, -3, 0, 1, 3, 17, -4, 0, 6, -5, -2, 10, -8, -11, -6, -29, -31, -38, -39, -40, -41];

R = 0.461526; %kJ/(kg K)

Pi = p / 16.53;

tau = 1386 / T;

gamma_der_pi = 0;

gamma_der_pipi = 0;

gamma_der_pitau = 0;

gamma_der_tautau = 0;

for i = 1 : 34

gamma_der_pi = gamma_der_pi - n1(i) * I1(i) * (7.1 - Pi) ^ (I1(i) - 1) * (tau - 1.222) ^ J1(i);

gamma_der_pipi = gamma_der_pipi + n1(i) * I1(i) * (I1(i) - 1) * (7.1 - Pi) ^ (I1(i) - 2) * (tau - 1.222) ^ J1(i);

gamma_der_pitau = gamma_der_pitau - n1(i) * I1(i) * (7.1 - Pi) ^ (I1(i) - 1) * J1(i) * (tau - 1.222) ^ (J1(i) - 1);

gamma_der_tautau = gamma_der_tautau + n1(i) * (7.1 - Pi) ^ I1(i) * J1(i) * (J1(i) - 1) * (tau - 1.222) ^ (J1(i) - 2);

end

w1_pT = (1000 * R * T * gamma_der_pi ^ 2 / ((gamma_der_pi - tau * gamma_der_pitau) ^ 2 / (tau ^ 2 * gamma_der_tautau) - gamma_der_pipi)) ^ 0.5;

function T1_ph = T1_ph(p, h)

%Release on the IAPWS Industrial formulation 1997 for the Thermodynamic Properties of Water and Steam, September 1997

%5 Equations for Region 1, Section. 5.1 Basic Equation, 5.2.1 The Backward Equation T ( p,h )

%Eqution 11, Table 6, Page 10

I1 = [0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 1, 1, 2, 2, 3, 3, 4, 5, 6];

J1 = [0, 1, 2, 6, 22, 32, 0, 1, 2, 3, 4, 10, 32, 10, 32, 10, 32, 32, 32, 32];

n1 = [-238.72489924521, 404.21188637945, 113.49746881718, -5.8457616048039, -1.528548241314E-04, -1.0866707695377E-06, -13.391744872602, 43.211039183559, -54.010067170506, 30.535892203916, -6.5964749423638, 9.3965400878363E-03, 1.157364750534E-07, -2.5858641282073E-05, -4.0644363084799E-09, 6.6456186191635E-08, 8.0670734103027E-11, -9.3477771213947E-13, 5.8265442020601E-15, -1.5020185953503E-17];

Pi = p / 1;

eta = h / 2500;

T = 0;

for i = 1 : 20

T = T + n1(i) * Pi ^ I1(i) * (eta + 1) ^ J1(i);

end

T1_ph = T;

function T1_ps = T1_ps(p, s)

%Release on the IAPWS Industrial formulation 1997 for the Thermodynamic Properties of Water and Steam, September 1997

%5 Equations for Region 1, Section. 5.1 Basic Equation, 5.2.2 The Backward Equation T ( p, s )

%Eqution 13, Table 8, Page 11

I1 = [0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 1, 2, 2, 2, 2, 2, 3, 3, 4];

J1 = [0, 1, 2, 3, 11, 31, 0, 1, 2, 3, 12, 31, 0, 1, 2, 9, 31, 10, 32, 32];

n1 = [174.78268058307, 34.806930892873, 6.5292584978455, 0.33039981775489, -1.9281382923196E-07, -2.4909197244573E-23, -0.26107636489332, 0.22592965981586, -0.064256463395226, 7.8876289270526E-03, 3.5672110607366E-10, 1.7332496994895E-24, 5.6608900654837E-04, -3.2635483139717E-04, 4.4778286690632E-05, -5.1322156908507E-10, -4.2522657042207E-26, 2.6400441360689E-13, 7.8124600459723E-29, -3.0732199903668E-31];

Pi = p / 1;

Sigma = s / 1;

T = 0;

for i = 1 : 20

T = T + n1(i) * Pi ^ I1(i) * (Sigma + 2) ^ J1(i);

end

T1_ps = T;

function p1_hs = p1_hs(h, s)

%Supplementary Release on Backward Equations for Pressure as a Function of Enthalpy and Entropy p(h,s) to the IAPWS Industrial formulation 1997 for the Thermodynamic Properties of Water and Steam

%5 Backward Equation p(h,s) for Region 1

%Eqution 1, Table 2, Page 5

I1 = [0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 2, 2, 2, 3, 4, 4, 5];

J1 = [0, 1, 2, 4, 5, 6, 8, 14, 0, 1, 4, 6, 0, 1, 10, 4, 1, 4, 0];

n1 = [-0.691997014660582, -18.361254878756, -9.28332409297335, 65.9639569909906, -16.2060388912024, 450.620017338667, 854.68067822417, 6075.23214001162, 32.6487682621856, -26.9408844582931, -319.9478483343, -928.35430704332, 30.3634537455249, -65.0540422444146, -4309.9131651613, -747.512324096068, 730.000345529245, 1142.84032569021, -436.407041874559];

eta = h / 3400;

Sigma = s / 7.6;

p = 0;

for i = 1 : 19

p = p + n1(i) * (eta + 0.05) ^ I1(i) * (Sigma + 0.05) ^ J1(i);

end

p1_hs = p * 100;

function T1_prho = T1_prho(p ,rho)

%Solve by iteration. Observe that for low temperatures this equation has 2 solutions.

%Solve with half interval method

Low_Bound = 273.15;

High_Bound = T4_p(p);

rhos=-1000;

while abs(rho - rhos) > 0.00001

Ts = (Low_Bound + High_Bound) / 2;

rhos = 1 / v1_pT(p, Ts);

if rhos < rho

High_Bound = Ts;

else

Low_Bound = Ts;

end

T1_prho = Ts;

%***********************************************************************************************************

%*2.2 functions for region 2

function v2_pT = v2_pT(p, T)

%Release on the IAPWS Industrial formulation 1997 for the Thermodynamic Properties of Water and Steam, September 1997

%6 Equations for Region 2, Section. 6.1 Basic Equation

%Table 11 and 12, Page 14 and 15

J0 = [0, 1, -5, -4, -3, -2, -1, 2, 3];

n0 = [-9.6927686500217, 10.086655968018, -0.005608791128302, 0.071452738081455, -0.40710498223928, 1.4240819171444, -4.383951131945, -0.28408632460772, 0.021268463753307];

Ir = [1, 1, 1, 1, 1, 2, 2, 2, 2, 2, 3, 3, 3, 3, 3, 4, 4, 4, 5, 6, 6, 6, 7, 7, 7, 8, 8, 9, 10, 10, 10, 16, 16, 18, 20, 20, 20, 21, 22, 23, 24, 24, 24];

Jr = [0, 1, 2, 3, 6, 1, 2, 4, 7, 36, 0, 1, 3, 6, 35, 1, 2, 3, 7, 3, 16, 35, 0, 11, 25, 8, 36, 13, 4, 10, 14, 29, 50, 57, 20, 35, 48, 21, 53, 39, 26, 40, 58];

nr = [-1.7731742473213E-03, -0.017834862292358, -0.045996013696365, -0.057581259083432, -0.05032527872793, -3.3032641670203E-05, -1.8948987516315E-04, -3.9392777243355E-03, -0.043797295650573, -2.6674547914087E-05, 2.0481737692309E-08, 4.3870667284435E-07, -3.227767723857E-05, -1.5033924542148E-03, -0.040668253562649, -7.8847309559367E-10, 1.2790717852285E-08, 4.8225372718507E-07, 2.2922076337661E-06, -1.6714766451061E-11, -2.1171472321355E-03, -23.895741934104, -5.905956432427E-18, -1.2621808899101E-06, -0.038946842435739, 1.1256211360459E-11, -8.2311340897998, 1.9809712802088E-08, 1.0406965210174E-19, -1.0234747095929E-13, -1.0018179379511E-09, -8.0882908646985E-11, 0.10693031879409, -0.33662250574171, 8.9185845355421E-25, 3.0629316876232E-13, -4.2002467698208E-06, -5.9056029685639E-26, 3.7826947613457E-06, -1.2768608934681E-15, 7.3087610595061E-29, 5.5414715350778E-17, -9.436970724121E-07];

R = 0.461526; %kJ/(kg K)

Pi = p;

tau = 540 / T;

g0_pi = 1 / Pi;

gr_pi = 0;

for i = 1 : 43

gr_pi = gr_pi + nr(i) * Ir(i) * Pi ^ (Ir(i) - 1) * (tau - 0.5) ^ Jr(i);

end

v2_pT = R * T / p * Pi * (g0_pi + gr_pi) / 1000;

function h2_pT = h2_pT(p, T)

%Release on the IAPWS Industrial formulation 1997 for the Thermodynamic Properties of Water and Steam, September 1997

%6 Equations for Region 2, Section. 6.1 Basic Equation

%Table 11 and 12, Page 14 and 15

J0 = [0, 1, -5, -4, -3, -2, -1, 2, 3];

n0 = [-9.6927686500217, 10.086655968018, -0.005608791128302, 0.071452738081455, -0.40710498223928, 1.4240819171444, -4.383951131945, -0.28408632460772, 0.021268463753307];

Ir = [1, 1, 1, 1, 1, 2, 2, 2, 2, 2, 3, 3, 3, 3, 3, 4, 4, 4, 5, 6, 6, 6, 7, 7, 7, 8, 8, 9, 10, 10, 10, 16, 16, 18, 20, 20, 20, 21, 22, 23, 24, 24, 24];

Jr = [0, 1, 2, 3, 6, 1, 2, 4, 7, 36, 0, 1, 3, 6, 35, 1, 2, 3, 7, 3, 16, 35, 0, 11, 25, 8, 36, 13, 4, 10, 14, 29, 50, 57, 20, 35, 48, 21, 53, 39, 26, 40, 58];

R = 0.461526; %kJ/(kg K)

Pi = p;

tau = 540 / T;

g0_tau = 0;

for i = 1 : 9

g0_tau = g0_tau + n0(i) * J0(i) * tau ^ (J0(i) - 1);

end

gr_tau = 0;

for i = 1 : 43

gr_tau = gr_tau + nr(i) * Pi ^ Ir(i) * Jr(i) * (tau - 0.5) ^ (Jr(i) - 1);

end

h2_pT = R * T * tau * (g0_tau + gr_tau);

function u2_pT = u2_pT(p, T)

%Release on the IAPWS Industrial formulation 1997 for the Thermodynamic Properties of Water and Steam, September 1997

%6 Equations for Region 2, Section. 6.1 Basic Equation

%Table 11 and 12, Page 14 and 15

J0 = [0, 1, -5, -4, -3, -2, -1, 2, 3];

n0 = [-9.6927686500217, 10.086655968018, -0.005608791128302, 0.071452738081455, -0.40710498223928, 1.4240819171444, -4.383951131945, -0.28408632460772, 0.021268463753307];

Ir = [1, 1, 1, 1, 1, 2, 2, 2, 2, 2, 3, 3, 3, 3, 3, 4, 4, 4, 5, 6, 6, 6, 7, 7, 7, 8, 8, 9, 10, 10, 10, 16, 16, 18, 20, 20, 20, 21, 22, 23, 24, 24, 24];

Jr = [0, 1, 2, 3, 6, 1, 2, 4, 7, 36, 0, 1, 3, 6, 35, 1, 2, 3, 7, 3, 16, 35, 0, 11, 25, 8, 36, 13, 4, 10, 14, 29, 50, 57, 20, 35, 48, 21, 53, 39, 26, 40, 58];

R = 0.461526; %kJ/(kg K)

Pi = p;

tau = 540 / T;

g0_pi = 1 / Pi;

g0_tau = 0;

for i = 1 : 9

g0_tau = g0_tau + n0(i) * J0(i) * tau ^ (J0(i) - 1);

end

gr_pi = 0;

gr_tau = 0;

for i = 1 : 43

gr_pi = gr_pi + nr(i) * Ir(i) * Pi ^ (Ir(i) - 1) * (tau - 0.5) ^ Jr(i);

gr_tau = gr_tau + nr(i) * Pi ^ Ir(i) * Jr(i) * (tau - 0.5) ^ (Jr(i) - 1);

end

u2_pT = R * T * (tau * (g0_tau + gr_tau) - Pi * (g0_pi + gr_pi));

function s2_pT = s2_pT(p, T)

%Release on the IAPWS Industrial formulation 1997 for the Thermodynamic Properties of Water and Steam, September 1997

%6 Equations for Region 2, Section. 6.1 Basic Equation

%Table 11 and 12, Page 14 and 15

J0 = [0, 1, -5, -4, -3, -2, -1, 2, 3];

n0 = [-9.6927686500217, 10.086655968018, -0.005608791128302, 0.071452738081455, -0.40710498223928, 1.4240819171444, -4.383951131945, -0.28408632460772, 0.021268463753307];

Ir = [1, 1, 1, 1, 1, 2, 2, 2, 2, 2, 3, 3, 3, 3, 3, 4, 4, 4, 5, 6, 6, 6, 7, 7, 7, 8, 8, 9, 10, 10, 10, 16, 16, 18, 20, 20, 20, 21, 22, 23, 24, 24, 24];

Jr = [0, 1, 2, 3, 6, 1, 2, 4, 7, 36, 0, 1, 3, 6, 35, 1, 2, 3, 7, 3, 16, 35, 0, 11, 25, 8, 36, 13, 4, 10, 14, 29, 50, 57, 20, 35, 48, 21, 53, 39, 26, 40, 58];

R = 0.461526; %kJ/(kg K)

Pi = p;

tau = 540 / T;

g0 = log(Pi);

g0_tau = 0;

for i = 1 : 9

g0 = g0 + n0(i) * tau ^ J0(i);

g0_tau = g0_tau + n0(i) * J0(i) * tau ^ (J0(i) - 1);

end

gr = 0;

gr_tau = 0;

for i = 1 : 43

gr = gr + nr(i) * Pi ^ Ir(i) * (tau - 0.5) ^ Jr(i);

gr_tau = gr_tau + nr(i) * Pi ^ Ir(i) * Jr(i) * (tau - 0.5) ^ (Jr(i) - 1);

end

s2_pT = R * (tau * (g0_tau + gr_tau) - (g0 + gr));

function Cp2_pT = Cp2_pT(p, T)

%Release on the IAPWS Industrial formulation 1997 for the Thermodynamic Properties of Water and Steam, September 1997

%6 Equations for Region 2, Section. 6.1 Basic Equation

%Table 11 and 12, Page 14 and 15

J0 = [0, 1, -5, -4, -3, -2, -1, 2, 3];

n0 = [-9.6927686500217, 10.086655968018, -0.005608791128302, 0.071452738081455, -0.40710498223928, 1.4240819171444, -4.383951131945, -0.28408632460772, 0.021268463753307];

Ir = [1, 1, 1, 1, 1, 2, 2, 2, 2, 2, 3, 3, 3, 3, 3, 4, 4, 4, 5, 6, 6, 6, 7, 7, 7, 8, 8, 9, 10, 10, 10, 16, 16, 18, 20, 20, 20, 21, 22, 23, 24, 24, 24];

Jr = [0, 1, 2, 3, 6, 1, 2, 4, 7, 36, 0, 1, 3, 6, 35, 1, 2, 3, 7, 3, 16, 35, 0, 11, 25, 8, 36, 13, 4, 10, 14, 29, 50, 57, 20, 35, 48, 21, 53, 39, 26, 40, 58];

R = 0.461526; %kJ/(kg K)

Pi = p;

tau = 540 / T;

g0_tautau = 0;

for i = 1 : 9

g0_tautau = g0_tautau + n0(i) * J0(i) * (J0(i) - 1) * tau ^ (J0(i) - 2);

end

gr_tautau = 0;

for i = 1 : 43

gr_tautau = gr_tautau + nr(i) * Pi ^ Ir(i) * Jr(i) * (Jr(i) - 1) * (tau - 0.5) ^ (Jr(i) - 2);

end

Cp2_pT = -R * tau ^ 2 * (g0_tautau + gr_tautau);

function Cv2_pT = Cv2_pT(p, T)

%Release on the IAPWS Industrial formulation 1997 for the Thermodynamic Properties of Water and Steam, September 1997

%6 Equations for Region 2, Section. 6.1 Basic Equation

%Table 11 and 12, Page 14 and 15

J0 = [0, 1, -5, -4, -3, -2, -1, 2, 3];

n0 = [-9.6927686500217, 10.086655968018, -0.005608791128302, 0.071452738081455, -0.40710498223928, 1.4240819171444, -4.383951131945, -0.28408632460772, 0.021268463753307];

Ir = [1, 1, 1, 1, 1, 2, 2, 2, 2, 2, 3, 3, 3, 3, 3, 4, 4, 4, 5, 6, 6, 6, 7, 7, 7, 8, 8, 9, 10, 10, 10, 16, 16, 18, 20, 20, 20, 21, 22, 23, 24, 24, 24];

Jr = [0, 1, 2, 3, 6, 1, 2, 4, 7, 36, 0, 1, 3, 6, 35, 1, 2, 3, 7, 3, 16, 35, 0, 11, 25, 8, 36, 13, 4, 10, 14, 29, 50, 57, 20, 35, 48, 21, 53, 39, 26, 40, 58];

R = 0.461526; %kJ/(kg K)

Pi = p;

tau = 540 / T;

g0_tautau = 0;

for i = 1 : 9

g0_tautau = g0_tautau + n0(i) * J0(i) * (J0(i) - 1) * tau ^ (J0(i) - 2);

end

gr_pi = 0;

gr_pitau = 0;

gr_pipi = 0;

gr_tautau = 0;

for i = 1 : 43

gr_pi = gr_pi + nr(i) * Ir(i) * Pi ^ (Ir(i) - 1) * (tau - 0.5) ^ Jr(i);

gr_pipi = gr_pipi + nr(i) * Ir(i) * (Ir(i) - 1) * Pi ^ (Ir(i) - 2) * (tau - 0.5) ^ Jr(i);

gr_pitau = gr_pitau + nr(i) * Ir(i) * Pi ^ (Ir(i) - 1) * Jr(i) * (tau - 0.5) ^ (Jr(i) - 1);

gr_tautau = gr_tautau + nr(i) * Pi ^ Ir(i) * Jr(i) * (Jr(i) - 1) * (tau - 0.5) ^ (Jr(i) - 2);

end

Cv2_pT = R * (-tau ^ 2 * (g0_tautau + gr_tautau) - (1 + Pi * gr_pi - tau * Pi * gr_pitau) ^ 2 / (1 - Pi ^ 2 * gr_pipi));

function w2_pT = w2_pT(p, T)

%Release on the IAPWS Industrial formulation 1997 for the Thermodynamic Properties of Water and Steam, September 1997

%6 Equations for Region 2, Section. 6.1 Basic Equation

%Table 11 and 12, Page 14 and 15

J0 = [0, 1, -5, -4, -3, -2, -1, 2, 3];

n0 = [-9.6927686500217, 10.086655968018, -0.005608791128302, 0.071452738081455, -0.40710498223928, 1.4240819171444, -4.383951131945, -0.28408632460772, 0.021268463753307];

Ir = [1, 1, 1, 1, 1, 2, 2, 2, 2, 2, 3, 3, 3, 3, 3, 4, 4, 4, 5, 6, 6, 6, 7, 7, 7, 8, 8, 9, 10, 10, 10, 16, 16, 18, 20, 20, 20, 21, 22, 23, 24, 24, 24];

Jr = [0, 1, 2, 3, 6, 1, 2, 4, 7, 36, 0, 1, 3, 6, 35, 1, 2, 3, 7, 3, 16, 35, 0, 11, 25, 8, 36, 13, 4, 10, 14, 29, 50, 57, 20, 35, 48, 21, 53, 39, 26, 40, 58];

R = 0.461526; %kJ/(kg K)

Pi = p;

tau = 540 / T;

g0_tautau = 0;

for i = 1 : 9

g0_tautau = g0_tautau + n0(i) * J0(i) * (J0(i) - 1) * tau ^ (J0(i) - 2);

end

gr_pi = 0;

gr_pitau = 0;

gr_pipi = 0;

gr_tautau = 0;

for i = 1 : 43

gr_pi = gr_pi + nr(i) * Ir(i) * Pi ^ (Ir(i) - 1) * (tau - 0.5) ^ Jr(i);

gr_pipi = gr_pipi + nr(i) * Ir(i) * (Ir(i) - 1) * Pi ^ (Ir(i) - 2) * (tau - 0.5) ^ Jr(i);

gr_pitau = gr_pitau + nr(i) * Ir(i) * Pi ^ (Ir(i) - 1) * Jr(i) * (tau - 0.5) ^ (Jr(i) - 1);

gr_tautau = gr_tautau + nr(i) * Pi ^ Ir(i) * Jr(i) * (Jr(i) - 1) * (tau - 0.5) ^ (Jr(i) - 2);

end

w2_pT = (1000 * R * T * (1 + 2 * Pi * gr_pi + Pi ^ 2 * gr_pi ^ 2) / ((1 - Pi ^ 2 * gr_pipi) + (1 + Pi * gr_pi - tau * Pi * gr_pitau) ^ 2 / (tau ^ 2 * (g0_tautau + gr_tautau)))) ^ 0.5;

function T2_ph = T2_ph(p, h)

%Release on the IAPWS Industrial formulation 1997 for the Thermodynamic Properties of Water and Steam, September 1997

%6 Equations for Region 2,6.3.1 The Backward Equations T( p, h ) for Subregions 2a, 2b, and 2c

if p < 4

sub_reg = 1;

else

if p < (905.84278514723 - 0.67955786399241 * h + 1.2809002730136E-04 * h ^ 2)

sub_reg = 2;

else

sub_reg = 3;

end

switch sub_reg

case 1

%Subregion A

%Table 20, Eq 22, page 22

Ji = [0, 1, 2, 3, 7, 20, 0, 1, 2, 3, 7, 9, 11, 18, 44, 0, 2, 7, 36, 38, 40, 42, 44, 24, 44, 12, 32, 44, 32, 36, 42, 34, 44, 28];

Ii = [0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 2, 2, 2, 2, 2, 2, 2, 2, 3, 3, 4, 4, 4, 5, 5, 5, 6, 6, 7];

ni = [1089.8952318288, 849.51654495535, -107.81748091826, 33.153654801263, -7.4232016790248, 11.765048724356, 1.844574935579, -4.1792700549624, 6.2478196935812, -17.344563108114, -200.58176862096, 271.96065473796, -455.11318285818, 3091.9688604755, 252266.40357872, -6.1707422868339E-03, -0.31078046629583, 11.670873077107, 128127984.04046, -985549096.23276, 2822454697.3002, -3594897141.0703, 1722734991.3197, -13551.334240775, 12848734.66465, 1.3865724283226, 235988.32556514, -13105236.545054, 7399.9835474766, -551966.9703006, 3715408.5996233, 19127.72923966, -415351.64835634, -62.459855192507];

Ts = 0;

hs = h / 2000;

for i = 1 : 34

Ts = Ts + ni(i) * p ^ (Ii(i)) * (hs - 2.1) ^ Ji(i);

end

T2_ph = Ts;

case 2

%Subregion B

%Table 21, Eq 23, page 23

Ji = [0, 1, 2, 12, 18, 24, 28, 40, 0, 2, 6, 12, 18, 24, 28, 40, 2, 8, 18, 40, 1, 2, 12, 24, 2, 12, 18, 24, 28, 40, 18, 24, 40, 28, 2, 28, 1, 40];

Ii = [0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 1, 1, 1, 2, 2, 2, 2, 3, 3, 3, 3, 4, 4, 4, 4, 4, 4, 5, 5, 5, 6, 7, 7, 9, 9];

ni = [1489.5041079516, 743.07798314034, -97.708318797837, 2.4742464705674, -0.63281320016026, 1.1385952129658, -0.47811863648625, 8.5208123431544E-03, 0.93747147377932, 3.3593118604916, 3.3809355601454, 0.16844539671904, 0.73875745236695, -0.47128737436186, 0.15020273139707, -0.002176411421975, -0.021810755324761, -0.10829784403677, -0.046333324635812, 7.1280351959551E-05, 1.1032831789999E-04, 1.8955248387902E-04, 3.0891541160537E-03, 1.3555504554949E-03, 2.8640237477456E-07, -1.0779857357512E-05, -7.6462712454814E-05, 1.4052392818316E-05, -3.1083814331434E-05, -1.0302738212103E-06, 2.821728163504E-07, 1.2704902271945E-06, 7.3803353468292E-08, -1.1030139238909E-08, -8.1456365207833E-14, -2.5180545682962E-11, -1.7565233969407E-18, 8.6934156344163E-15];

Ts = 0;

hs = h / 2000;

for i = 1 : 38

Ts = Ts + ni(i) * (p - 2) ^ (Ii(i)) * (hs - 2.6) ^ Ji(i);

end

T2_ph = Ts;

otherwise

%Subregion C

%Table 22, Eq 24, page 24

Ji = [0, 4, 0, 2, 0, 2, 0, 1, 0, 2, 0, 1, 4, 8, 4, 0, 1, 4, 10, 12, 16, 20, 22];

Ii = [-7, -7, -6, -6, -5, -5, -2, -2, -1, -1, 0, 0, 1, 1, 2, 6, 6, 6, 6, 6, 6, 6, 6];

ni = [-3236839855524.2, 7326335090218.1, 358250899454.47, -583401318515.9, -10783068217.47, 20825544563.171, 610747.83564516, 859777.2253558, -25745.72360417, 31081.088422714, 1208.2315865936, 482.19755109255, 3.7966001272486, -10.842984880077, -0.04536417267666, 1.4559115658698E-13, 1.126159740723E-12, -1.7804982240686E-11, 1.2324579690832E-07, -1.1606921130984E-06, 2.7846367088554E-05, -5.9270038474176E-04, 1.2918582991878E-03];

Ts = 0;

hs = h / 2000;

for i = 1 : 23

Ts = Ts + ni(i) * (p + 25) ^ (Ii(i)) * (hs - 1.8) ^ Ji(i);

end

T2_ph = Ts;

end

function T2_ps = T2_ps(p, s)

%Release on the IAPWS Industrial formulation 1997 for the Thermodynamic Properties of Water and Steam, September 1997

%6 Equations for Region 2,6.3.2 The Backward Equations T( p, s ) for Subregions 2a, 2b, and 2c

%Page 26

if p < 4

sub_reg = 1;

else

if s < 5.85

sub_reg = 3;

else

sub_reg = 2;

end

switch sub_reg

case 1

%Subregion A

%Table 25, Eq 25, page 26

Ii = [-1.5, -1.5, -1.5, -1.5, -1.5, -1.5, -1.25, -1.25, -1.25, -1, -1, -1, -1, -1, -1, -0.75, -0.75, -0.5, -0.5, -0.5, -0.5, -0.25, -0.25, -0.25, -0.25, 0.25, 0.25, 0.25, 0.25, 0.5, 0.5, 0.5, 0.5, 0.5, 0.5, 0.5, 0.75, 0.75, 0.75, 0.75, 1, 1, 1.25, 1.25, 1.5, 1.5];

Ji = [-24, -23, -19, -13, -11, -10, -19, -15, -6, -26, -21, -17, -16, -9, -8, -15, -14, -26, -13, -9, -7, -27, -25, -11, -6, 1, 4, 8, 11, 0, 1, 5, 6, 10, 14, 16, 0, 4, 9, 17, 7, 18, 3, 15, 5, 18];

ni = [-392359.83861984, 515265.7382727, 40482.443161048, -321.93790923902, 96.961424218694, -22.867846371773, -449429.14124357, -5011.8336020166, 0.35684463560015, 44235.33584819, -13673.388811708, 421632.60207864, 22516.925837475, 474.42144865646, -149.31130797647, -197811.26320452, -23554.39947076, -19070.616302076, 55375.669883164, 3829.3691437363, -603.91860580567, 1936.3102620331, 4266.064369861, -5978.0638872718, -704.01463926862, 338.36784107553, 20.862786635187, 0.033834172656196, -4.3124428414893E-05, 166.53791356412, -139.86292055898, -0.78849547999872, 0.072132411753872, -5.9754839398283E-03, -1.2141358953904E-05, 2.3227096733871E-07, -10.538463566194, 2.0718925496502, -0.072193155260427, 2.074988708112E-07, -0.018340657911379, 2.9036272348696E-07, 0.21037527893619, 2.5681239729999E-04, -0.012799002933781, -8.2198102652018E-06];

Pi = p;

Sigma = s / 2;

teta = 0;

for i = 1 : 46

teta = teta + ni(i) * Pi ^ Ii(i) * (Sigma - 2) ^ Ji(i);

end

T2_ps = teta;

case 2

%Subregion B

%Table 26, Eq 26, page 27

Ii = [-6, -6, -5, -5, -4, -4, -4, -3, -3, -3, -3, -2, -2, -2, -2, -1, -1, -1, -1, -1, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 1, 2, 2, 2, 3, 3, 3, 4, 4, 5, 5, 5];

Ji = [0, 11, 0, 11, 0, 1, 11, 0, 1, 11, 12, 0, 1, 6, 10, 0, 1, 5, 8, 9, 0, 1, 2, 4, 5, 6, 9, 0, 1, 2, 3, 7, 8, 0, 1, 5, 0, 1, 3, 0, 1, 0, 1, 2];

ni = [316876.65083497, 20.864175881858, -398593.99803599, -21.816058518877, 223697.85194242, -2784.1703445817, 9.920743607148, -75197.512299157, 2970.8605951158, -3.4406878548526, 0.38815564249115, 17511.29508575, -1423.7112854449, 1.0943803364167, 0.89971619308495, -3375.9740098958, 471.62885818355, -1.9188241993679, 0.41078580492196, -0.33465378172097, 1387.0034777505, -406.63326195838, 41.72734715961, 2.1932549434532, -1.0320050009077, 0.35882943516703, 5.2511453726066E-03, 12.838916450705, -2.8642437219381, 0.56912683664855, -0.099962954584931, -3.2632037778459E-03, 2.3320922576723E-04, -0.1533480985745, 0.029072288239902, 3.7534702741167E-04, 1.7296691702411E-03, -3.8556050844504E-04, -3.5017712292608E-05, -1.4566393631492E-05, 5.6420857267269E-06, 4.1286150074605E-08, -2.0684671118824E-08, 1.6409393674725E-09];

Pi = p;

Sigma = s / 0.7853;

teta = 0;

for i = 1 : 44

teta = teta + ni(i) * Pi ^ Ii(i) * (10 - Sigma) ^ Ji(i);

end

T2_ps = teta;

otherwise

%Subregion C

%Table 27, Eq 27, page 28

Ii = [-2, -2, -1, 0, 0, 0, 0, 1, 1, 1, 1, 2, 2, 2, 3, 3, 3, 4, 4, 4, 5, 5, 5, 6, 6, 7, 7, 7, 7, 7];

Ji = [0, 1, 0, 0, 1, 2, 3, 0, 1, 3, 4, 0, 1, 2, 0, 1, 5, 0, 1, 4, 0, 1, 2, 0, 1, 0, 1, 3, 4, 5];

ni = [909.68501005365, 2404.566708842, -591.6232638713, 541.45404128074, -270.98308411192, 979.76525097926, -469.66772959435, 14.399274604723, -19.104204230429, 5.3299167111971, -21.252975375934, -0.3114733441376, 0.60334840894623, -0.042764839702509, 5.8185597255259E-03, -0.014597008284753, 5.6631175631027E-03, -7.6155864584577E-05, 2.2440342919332E-04, -1.2561095013413E-05, 6.3323132660934E-07, -2.0541989675375E-06, 3.6405370390082E-08, -2.9759897789215E-09, 1.0136618529763E-08, 5.9925719692351E-12, -2.0677870105164E-11, -2.0874278181886E-11, 1.0162166825089E-10, -1.6429828281347E-10];

Pi = p;

Sigma = s / 2.9251;

teta = 0;

for i = 1 : 30

teta = teta + ni(i) * Pi ^ Ii(i) * (2 - Sigma) ^ Ji(i);

end

T2_ps = teta;

end

function p2_hs = p2_hs(h, s)

%Supplementary Release on Backward Equations for Pressure as a function of Enthalpy and Entropy p(h,s) to the IAPWS Industrial formulation 1997 for the Thermodynamic Properties of Water and Steam

%Chapter 6:Backward Equations p(h,s) for Region 2

if h < (-3498.98083432139 + 2575.60716905876 * s - 421.073558227969 * s ^ 2 + 27.6349063799944 * s ^ 3)

sub_reg = 1;

else

if s < 5.85

sub_reg = 3;

else

sub_reg = 2;

end

switch sub_reg

case 1

%Subregion A

%Table 6, Eq 3, page 8

Ii = [0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 2, 2, 2, 3, 3, 3, 3, 3, 4, 5, 5, 6, 7];

Ji = [1, 3, 6, 16, 20, 22, 0, 1, 2, 3, 5, 6, 10, 16, 20, 22, 3, 16, 20, 0, 2, 3, 6, 16, 16, 3, 16, 3, 1];

ni = [-1.82575361923032E-02, -0.125229548799536, 0.592290437320145, 6.04769706185122, 238.624965444474, -298.639090222922, 0.051225081304075, -0.437266515606486, 0.413336902999504, -5.16468254574773, -5.57014838445711, 12.8555037824478, 11.414410895329, -119.504225652714, -2847.7798596156, 4317.57846408006, 1.1289404080265, 1974.09186206319, 1516.12444706087, 1.41324451421235E-02, 0.585501282219601, -2.97258075863012, 5.94567314847319, -6236.56565798905, 9659.86235133332, 6.81500934948134, -6332.07286824489, -5.5891922446576, 4.00645798472063E-02];

eta = h / 4200;

Sigma = s / 12;

Pi = 0;

for i = 1 : 29

Pi = Pi + ni(i) * (eta - 0.5) ^ Ii(i) * (Sigma - 1.2) ^ Ji(i);

end

p2_hs = Pi ^ 4 * 4;

case 2

%Subregion B

%Table 7, Eq 4, page 9

Ii = [0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 1, 2, 2, 2, 3, 3, 3, 3, 4, 4, 5, 5, 6, 6, 6, 7, 7, 8, 8, 8, 8, 12, 14];

Ji = [0, 1, 2, 4, 8, 0, 1, 2, 3, 5, 12, 1, 6, 18, 0, 1, 7, 12, 1, 16, 1, 12, 1, 8, 18, 1, 16, 1, 3, 14, 18, 10, 16];

ni = [8.01496989929495E-02, -0.543862807146111, 0.337455597421283, 8.9055545115745, 313.840736431485, 0.797367065977789, -1.2161697355624, 8.72803386937477, -16.9769781757602, -186.552827328416, 95115.9274344237, -18.9168510120494, -4334.0703719484, 543212633.012715, 0.144793408386013, 128.024559637516, -67230.9534071268, 33697238.0095287, -586.63419676272, -22140322476.9889, 1716.06668708389, -570817595.806302, -3121.09693178482, -2078413.8463301, 3056059461577.86, 3221.57004314333, 326810259797.295, -1441.04158934487, 410.694867802691, 109077066873.024, -24796465425889.3, 1888019068.65134, -123651009018773];

eta = h / 4100;

Sigma = s / 7.9;

Pi = 0;

for i = 1 : 33

Pi = Pi + ni(i) * (eta - 0.6) ^ Ii(i) * (Sigma - 1.01) ^ Ji(i);

end

p2_hs = Pi ^ 4 * 100;

otherwise

%Subregion C

%Table 8, Eq 5, page 10

Ii = [0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 1, 2, 2, 2, 2, 2, 3, 3, 3, 3, 3, 4, 5, 5, 5, 5, 6, 6, 10, 12, 16];

Ji = [0, 1, 2, 3, 4, 8, 0, 2, 5, 8, 14, 2, 3, 7, 10, 18, 0, 5, 8, 16, 18, 18, 1, 4, 6, 14, 8, 18, 7, 7, 10];

ni = [0.112225607199012, -3.39005953606712, -32.0503911730094, -197.5973051049, -407.693861553446, 13294.3775222331, 1.70846839774007, 37.3694198142245, 3581.44365815434, 423014.446424664, -751071025.760063, 52.3446127607898, -228.351290812417, -960652.417056937, -80705929.2526074, 1626980172256.69, 0.772465073604171, 46392.9973837746, -13731788.5134128, 1704703926305.12, -25110462818730.8, 31774883083552, 53.8685623675312, -55308.9094625169, -1028615.22421405, 2042494187562.34, 273918446.626977, -2.63963146312685E+15, -1078908541.08088, -29649262098.0124, -1.11754907323424E+15];

eta = h / 3500;

Sigma = s / 5.9;

Pi = 0;

for i = 1 : 31

Pi = Pi + ni(i) * (eta - 0.7) ^ Ii(i) * (Sigma - 1.1) ^ Ji(i);

end

p2_hs = Pi ^ 4 * 100;

end

function T2_prho=T2_prho(p,rho)

%Solve by iteration. Observe that fo low temperatures this equation has 2 solutions.

%Solve with half interval method

if p < 16.5292

Low_Bound = T4_p(p);

else

Low_Bound = B23T_p(p);

end

High_Bound = 1073.15;

rhos=-1000;

while abs(rho - rhos) > 0.000001

Ts = (Low_Bound + High_Bound) / 2;

rhos = 1 / v2_pT(p, Ts);

if rhos < rho

High_Bound = Ts;

else

Low_Bound = Ts;

end

T2_prho = Ts;

%***********************************************************************************************************

%*2.3 functions for region 3

function p3_rhoT = p3_rhoT(rho, T)

%Release on the IAPWS Industrial formulation 1997 for the Thermodynamic Properties of Water and Steam, September 1997

%7 Basic Equation for Region 3, Section. 6.1 Basic Equation

%Table 30 and 31, Page 30 and 31

Ii = [0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 2, 2, 2, 2, 2, 2, 3, 3, 3, 3, 3, 4, 4, 4, 4, 5, 5, 5, 6, 6, 6, 7, 8, 9, 9, 10, 10, 11];

Ji = [0, 0, 1, 2, 7, 10, 12, 23, 2, 6, 15, 17, 0, 2, 6, 7, 22, 26, 0, 2, 4, 16, 26, 0, 2, 4, 26, 1, 3, 26, 0, 2, 26, 2, 26, 2, 26, 0, 1, 26];

ni = [1.0658070028513, -15.732845290239, 20.944396974307, -7.6867707878716, 2.6185947787954, -2.808078114862, 1.2053369696517, -8.4566812812502E-03, -1.2654315477714, -1.1524407806681, 0.88521043984318, -0.64207765181607, 0.38493460186671, -0.85214708824206, 4.8972281541877, -3.0502617256965, 0.039420536879154, 0.12558408424308, -0.2799932969871, 1.389979956946, -2.018991502357, -8.2147637173963E-03, -0.47596035734923, 0.0439840744735, -0.44476435428739, 0.90572070719733, 0.70522450087967, 0.10770512626332, -0.32913623258954, -0.50871062041158, -0.022175400873096, 0.094260751665092, 0.16436278447961, -0.013503372241348, -0.014834345352472, 5.7922953628084E-04, 3.2308904703711E-03, 8.0964802996215E-05, -1.6557679795037E-04, -4.4923899061815E-05];

R = 0.461526; %kJ/(KgK)

tc = 647.096; %K

pc = 22.064; %MPa

rhoc = 322; %kg/m3

delta = rho / rhoc;

tau = tc / T;

fidelta = 0;

for i = 2 : 40

fidelta = fidelta + ni(i) * Ii(i) * delta ^ (Ii(i) - 1) * tau ^ Ji(i);

end

fidelta = fidelta + ni(1) / delta;

p3_rhoT = rho * R * T * delta * fidelta / 1000;

function u3_rhoT = u3_rhoT(rho, T)

%Release on the IAPWS Industrial formulation 1997 for the Thermodynamic Properties of Water and Steam, September 1997

%7 Basic Equation for Region 3, Section. 6.1 Basic Equation

%Table 30 and 31, Page 30 and 31

Ii = [0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 2, 2, 2, 2, 2, 2, 3, 3, 3, 3, 3, 4, 4, 4, 4, 5, 5, 5, 6, 6, 6, 7, 8, 9, 9, 10, 10, 11];

Ji = [0, 0, 1, 2, 7, 10, 12, 23, 2, 6, 15, 17, 0, 2, 6, 7, 22, 26, 0, 2, 4, 16, 26, 0, 2, 4, 26, 1, 3, 26, 0, 2, 26, 2, 26, 2, 26, 0, 1, 26];

R = 0.461526; %kJ/(KgK)

tc = 647.096; %K

pc = 22.064; %MPa

rhoc = 322; %kg/m3

delta = rho / rhoc;

tau = tc / T;

fitau = 0;

for i = 2 : 40

fitau = fitau + ni(i) * delta ^ Ii(i) * Ji(i) * tau ^ (Ji(i) - 1);

end

u3_rhoT = R * T * (tau * fitau);

function h3_rhoT = h3_rhoT(rho, T)

%Release on the IAPWS Industrial formulation 1997 for the Thermodynamic Properties of Water and Steam, September 1997

%7 Basic Equation for Region 3, Section. 6.1 Basic Equation

%Table 30 and 31, Page 30 and 31

Ii = [0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 2, 2, 2, 2, 2, 2, 3, 3, 3, 3, 3, 4, 4, 4, 4, 5, 5, 5, 6, 6, 6, 7, 8, 9, 9, 10, 10, 11];

Ji = [0, 0, 1, 2, 7, 10, 12, 23, 2, 6, 15, 17, 0, 2, 6, 7, 22, 26, 0, 2, 4, 16, 26, 0, 2, 4, 26, 1, 3, 26, 0, 2, 26, 2, 26, 2, 26, 0, 1, 26];

R = 0.461526; %kJ/(KgK)

tc = 647.096; %K

pc = 22.064; %MPa

rhoc = 322; %kg/m3

delta = rho / rhoc;

tau = tc / T;

fidelta = 0;

fitau = 0;

for i = 2 : 40

fidelta = fidelta + ni(i) * Ii(i) * delta ^ (Ii(i) - 1) * tau ^ Ji(i);

fitau = fitau + ni(i) * delta ^ Ii(i) * Ji(i) * tau ^ (Ji(i) - 1);

end

fidelta = fidelta + ni(1) / delta;

h3_rhoT = R * T * (tau * fitau + delta * fidelta);

function s3_rhoT = s3_rhoT(rho, T)

%Release on the IAPWS Industrial formulation 1997 for the Thermodynamic Properties of Water and Steam, September 1997

%7 Basic Equation for Region 3, Section. 6.1 Basic Equation

%Table 30 and 31, Page 30 and 31

Ii = [0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 2, 2, 2, 2, 2, 2, 3, 3, 3, 3, 3, 4, 4, 4, 4, 5, 5, 5, 6, 6, 6, 7, 8, 9, 9, 10, 10, 11];

Ji = [0, 0, 1, 2, 7, 10, 12, 23, 2, 6, 15, 17, 0, 2, 6, 7, 22, 26, 0, 2, 4, 16, 26, 0, 2, 4, 26, 1, 3, 26, 0, 2, 26, 2, 26, 2, 26, 0, 1, 26];

R = 0.461526; %kJ/(KgK)

tc = 647.096; %K

pc = 22.064; %MPa

rhoc = 322; %kg/m3

delta = rho / rhoc;

tau = tc / T;

fi = 0;

fitau = 0;

for i = 2 : 40

fi = fi + ni(i) * delta ^ Ii(i) * tau ^ Ji(i);

fitau = fitau + ni(i) * delta ^ Ii(i) * Ji(i) * tau ^ (Ji(i) - 1);

end

fi = fi + ni(1) * log(delta);

s3_rhoT = R * (tau * fitau - fi);

function Cp3_rhoT = Cp3_rhoT(rho, T)

%Release on the IAPWS Industrial formulation 1997 for the Thermodynamic Properties of Water and Steam, September 1997

%7 Basic Equation for Region 3, Section. 6.1 Basic Equation

%Table 30 and 31, Page 30 and 31

Ii = [0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 2, 2, 2, 2, 2, 2, 3, 3, 3, 3, 3, 4, 4, 4, 4, 5, 5, 5, 6, 6, 6, 7, 8, 9, 9, 10, 10, 11];

Ji = [0, 0, 1, 2, 7, 10, 12, 23, 2, 6, 15, 17, 0, 2, 6, 7, 22, 26, 0, 2, 4, 16, 26, 0, 2, 4, 26, 1, 3, 26, 0, 2, 26, 2, 26, 2, 26, 0, 1, 26];

R = 0.461526; %kJ/(KgK)

tc = 647.096; %K

pc = 22.064; %MPa

rhoc = 322; %kg/m3

delta = rho / rhoc;

tau = tc / T;

fitautau = 0;

fidelta = 0;

fideltatau = 0;

fideltadelta = 0;

for i = 2 : 40

fitautau = fitautau + ni(i) * delta ^ Ii(i) * Ji(i) * (Ji(i) - 1) * tau ^ (Ji(i) - 2);

fidelta = fidelta + ni(i) * Ii(i) * delta ^ (Ii(i) - 1) * tau ^ Ji(i);

fideltatau = fideltatau + ni(i) * Ii(i) * delta ^ (Ii(i) - 1) * Ji(i) * tau ^ (Ji(i) - 1);

fideltadelta = fideltadelta + ni(i) * Ii(i) * (Ii(i) - 1) * delta ^ (Ii(i) - 2) * tau ^ Ji(i);

end

fidelta = fidelta + ni(1) / delta;

fideltadelta = fideltadelta - ni(1) / (delta ^ 2);

Cp3_rhoT = R * (-tau ^ 2 * fitautau + (delta * fidelta - delta * tau * fideltatau) ^ 2 / (2 * delta * fidelta + delta ^ 2 * fideltadelta));

function Cv3_rhoT = Cv3_rhoT(rho, T)

%Release on the IAPWS Industrial formulation 1997 for the Thermodynamic Properties of Water and Steam, September 1997

%7 Basic Equation for Region 3, Section. 6.1 Basic Equation

%Table 30 and 31, Page 30 and 31

Ii = [0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 2, 2, 2, 2, 2, 2, 3, 3, 3, 3, 3, 4, 4, 4, 4, 5, 5, 5, 6, 6, 6, 7, 8, 9, 9, 10, 10, 11];

Ji = [0, 0, 1, 2, 7, 10, 12, 23, 2, 6, 15, 17, 0, 2, 6, 7, 22, 26, 0, 2, 4, 16, 26, 0, 2, 4, 26, 1, 3, 26, 0, 2, 26, 2, 26, 2, 26, 0, 1, 26];

R = 0.461526; %kJ/(KgK)

tc = 647.096; %K

pc = 22.064; %MPa

rhoc = 322; %kg/m3

delta = rho / rhoc;

tau = tc / T;

fitautau = 0;

for i = 1 : 40

fitautau = fitautau + ni(i) * delta ^ Ii(i) * Ji(i) * (Ji(i) - 1) * tau ^ (Ji(i) - 2);

end

Cv3_rhoT = R * -(tau * tau * fitautau);

function w3_rhoT = w3_rhoT(rho, T)

%Release on the IAPWS Industrial formulation 1997 for the Thermodynamic Properties of Water and Steam, September 1997

%7 Basic Equation for Region 3, Section. 6.1 Basic Equation

%Table 30 and 31, Page 30 and 31

Ii = [0, 0, 0, 0, 0, 0, 0, 0, 1, 1, 1, 1, 2, 2, 2, 2, 2, 2, 3, 3, 3, 3, 3, 4, 4, 4, 4, 5, 5, 5, 6, 6, 6, 7, 8, 9, 9, 10, 10, 11];

Ji = [0, 0, 1, 2, 7, 10, 12, 23, 2, 6, 15, 17, 0, 2, 6, 7, 22, 26, 0, 2, 4, 16, 26, 0, 2, 4, 26, 1, 3, 26, 0, 2, 26, 2, 26, 2, 26, 0, 1, 26];

R = 0.461526; %kJ/(KgK)

tc = 647.096; %K

pc = 22.064; %MPa

rhoc = 322; %kg/m3

delta = rho / rhoc;

tau = tc / T;

fitautau = 0;

fidelta = 0;

fideltatau = 0;

fideltadelta = 0;

for i = 2 : 40

fitautau = fitautau + ni(i) * delta ^ Ii(i) * Ji(i) * (Ji(i) - 1) * tau ^ (Ji(i) - 2);

fidelta = fidelta + ni(i) * Ii(i) * delta ^ (Ii(i) - 1) * tau ^ Ji(i);

fideltatau = fideltatau + ni(i) * Ii(i) * delta ^ (Ii(i) - 1) * Ji(i) * tau ^ (Ji(i) - 1);

fideltadelta = fideltadelta + ni(i) * Ii(i) * (Ii(i) - 1) * delta ^ (Ii(i) - 2) * tau ^ Ji(i);

end

fidelta = fidelta + ni(1) / delta;

fideltadelta = fideltadelta - ni(1) / (delta ^ 2);

w3_rhoT = (1000 * R * T * (2 * delta * fidelta + delta ^ 2 * fideltadelta - (delta * fidelta - delta * tau * fideltatau) ^ 2 / (tau ^ 2 * fitautau))) ^ 0.5;

function T3_ph = T3_ph(p, h)

%Revised Supplementary Release on Backward Equations for the functions T(p,h), v(p,h) and T(p,s), v(p,s) for Region 3 of the IAPWS Industrial formulation 1997 for the Thermodynamic Properties of Water and Steam

%2004

%Section 3.3 Backward Equations T(p,h) and v(p,h) for Subregions 3a and 3b

%Boundary equation, Eq 1 Page 5

h3ab = 2014.64004206875 + 3.74696550136983 * p - 2.19921901054187E-02 * p ^ 2 + 8.7513168600995E-05 * p ^ 3;

if h < h3ab

%Subregion 3a

%Eq 2, Table 3, Page 7

Ii = [-12, -12, -12, -12, -12, -12, -12, -12, -10, -10, -10, -8, -8, -8, -8, -5, -3, -2, -2, -2, -1, -1, 0, 0, 1, 3, 3, 4, 4, 10, 12];

Ji = [0, 1, 2, 6, 14, 16, 20, 22, 1, 5, 12, 0, 2, 4, 10, 2, 0, 1, 3, 4, 0, 2, 0, 1, 1, 0, 1, 0, 3, 4, 5];

ni = [-1.33645667811215E-07, 4.55912656802978E-06, -1.46294640700979E-05, 6.3934131297008E-03, 372.783927268847, -7186.54377460447, 573494.7521034, -2675693.29111439, -3.34066283302614E-05, -2.45479214069597E-02, 47.8087847764996, 7.64664131818904E-06, 1.28350627676972E-03, 1.71219081377331E-02, -8.51007304583213, -1.36513461629781E-02, -3.84460997596657E-06, 3.37423807911655E-03, -0.551624873066791, 0.72920227710747, -9.92522757376041E-03, -0.119308831407288, 0.793929190615421, 0.454270731799386, 0.20999859125991, -6.42109823904738E-03, -0.023515586860454, 2.52233108341612E-03, -7.64885133368119E-03, 1.36176427574291E-02, -1.33027883575669E-02];

ps = p / 100;

hs = h / 2300;

Ts = 0;

for i = 1 : 31

Ts = Ts + ni(i) * (ps + 0.24) ^ Ii(i) * (hs - 0.615) ^ Ji(i);

end

T3_ph = Ts * 760;

else

%Subregion 3b

%Eq 3, Table 4, Page 7,8

Ii = [-12, -12, -10, -10, -10, -10, -10, -8, -8, -8, -8, -8, -6, -6, -6, -4, -4, -3, -2, -2, -1, -1, -1, -1, -1, -1, 0, 0, 1, 3, 5, 6, 8];

Ji = [0, 1, 0, 1, 5, 10, 12, 0, 1, 2, 4, 10, 0, 1, 2, 0, 1, 5, 0, 4, 2, 4, 6, 10, 14, 16, 0, 2, 1, 1, 1, 1, 1];

ni = [3.2325457364492E-05, -1.27575556587181E-04, -4.75851877356068E-04, 1.56183014181602E-03, 0.105724860113781, -85.8514221132534, 724.140095480911, 2.96475810273257E-03, -5.92721983365988E-03, -1.26305422818666E-02, -0.115716196364853, 84.9000969739595, -1.08602260086615E-02, 1.54304475328851E-02, 7.50455441524466E-02, 2.52520973612982E-02, -6.02507901232996E-02, -3.07622221350501, -5.74011959864879E-02, 5.03471360939849, -0.925081888584834, 3.91733882917546, -77.314600713019, 9493.08762098587, -1410437.19679409, 8491662.30819026, 0.861095729446704, 0.32334644281172, 0.873281936020439, -0.436653048526683, 0.286596714529479, -0.131778331276228, 6.76682064330275E-03];

hs = h / 2800;

ps = p / 100;

Ts = 0;

for i = 1 : 33

Ts = Ts + ni(i) * (ps + 0.298) ^ Ii(i) * (hs - 0.72) ^ Ji(i);

end

T3_ph = Ts * 860;

end

function v3_ph = v3_ph(p, h)

%2004

%Section 3.3 Backward Equations T(p,h) and v(p,h) for Subregions 3a and 3b

%Boundary equation, Eq 1 Page 5

h3ab = 2014.64004206875 + 3.74696550136983 * p - 2.19921901054187E-02 * p ^ 2 + 8.7513168600995E-05 * p ^ 3;

if h < h3ab

%Subregion 3a

%Eq 4, Table 6, Page 9

Ii = [-12, -12, -12, -12, -10, -10, -10, -8, -8, -6, -6, -6, -4, -4, -3, -2, -2, -1, -1, -1, -1, 0, 0, 1, 1, 1, 2, 2, 3, 4, 5, 8];

Ji = [6, 8, 12, 18, 4, 7, 10, 5, 12, 3, 4, 22, 2, 3, 7, 3, 16, 0, 1, 2, 3, 0, 1, 0, 1, 2, 0, 2, 0, 2, 2, 2];

ni = [5.29944062966028E-03, -0.170099690234461, 11.1323814312927, -2178.98123145125, -5.06061827980875E-04, 0.556495239685324, -9.43672726094016, -0.297856807561527, 93.9353943717186, 1.92944939465981E-02, 0.421740664704763, -3689141.2628233, -7.37566847600639E-03, -0.354753242424366, -1.99768169338727, 1.15456297059049, 5683.6687581596, 8.08169540124668E-03, 0.172416341519307, 1.04270175292927, -0.297691372792847, 0.560394465163593, 0.275234661176914, -0.148347894866012, -6.51142513478515E-02, -2.92468715386302, 6.64876096952665E-02, 3.52335014263844, -1.46340792313332E-02, -2.24503486668184, 1.10533464706142, -4.08757344495612E-02];

ps = p / 100;

hs = h / 2100;

vs = 0;

for i = 1 : 32

vs = vs + ni(i) * (ps + 0.128) ^ Ii(i) * (hs - 0.727) ^ Ji(i);

end

v3_ph = vs * 0.0028;

else

%Subregion 3b

%Eq 5, Table 7, Page 9

Ii = [-12, -12, -8, -8, -8, -8, -8, -8, -6, -6, -6, -6, -6, -6, -4, -4, -4, -3, -3, -2, -2, -1, -1, -1, -1, 0, 1, 1, 2, 2];

Ji = [0, 1, 0, 1, 3, 6, 7, 8, 0, 1, 2, 5, 6, 10, 3, 6, 10, 0, 2, 1, 2, 0, 1, 4, 5, 0, 0, 1, 2, 6];

ni = [-2.25196934336318E-09, 1.40674363313486E-08, 2.3378408528056E-06, -3.31833715229001E-05, 1.07956778514318E-03, -0.271382067378863, 1.07202262490333, -0.853821329075382, -2.15214194340526E-05, 7.6965608822273E-04, -4.31136580433864E-03, 0.453342167309331, -0.507749535873652, -100.475154528389, -0.219201924648793, -3.21087965668917, 607.567815637771, 5.57686450685932E-04, 0.18749904002955, 9.05368030448107E-03, 0.285417173048685, 3.29924030996098E-02, 0.239897419685483, 4.82754995951394, -11.8035753702231, 0.169490044091791, -1.79967222507787E-02, 3.71810116332674E-02, -5.36288335065096E-02, 1.6069710109252];

ps = p / 100;

hs = h / 2800;

vs = 0;

for i = 1 : 30

vs = vs + ni(i) * (ps + 0.0661) ^ Ii(i) * (hs - 0.72) ^ Ji(i);

end

v3_ph = vs * 0.0088;

end

function T3_ps = T3_ps(p, s)

%2004

%3.4 Backward Equations T(p,s) and v(p,s) for Subregions 3a and 3b

%Boundary equation, Eq 6 Page 11

if s <= 4.41202148223476

%Subregion 3a

%Eq 6, Table 10, Page 11

Ii = [-12, -12, -10, -10, -10, -10, -8, -8, -8, -8, -6, -6, -6, -5, -5, -5, -4, -4, -4, -2, -2, -1, -1, 0, 0, 0, 1, 2, 2, 3, 8, 8, 10];

Ji = [28, 32, 4, 10, 12, 14, 5, 7, 8, 28, 2, 6, 32, 0, 14, 32, 6, 10, 36, 1, 4, 1, 6, 0, 1, 4, 0, 0, 3, 2, 0, 1, 2];

ni = [1500420082.63875, -159397258480.424, 5.02181140217975E-04, -67.2057767855466, 1450.58545404456, -8238.8953488889, -0.154852214233853, 11.2305046746695, -29.7000213482822, 43856513263.5495, 1.37837838635464E-03, -2.97478527157462, 9717779473494.13, -5.71527767052398E-05, 28830.794977842, -74442828926270.3, 12.8017324848921, -368.275545889071, 6.64768904779177E+15, 0.044935925195888, -4.22897836099655, -0.240614376434179, -4.74341365254924, 0.72409399912611, 0.923874349695897, 3.99043655281015, 3.84066651868009E-02, -3.59344365571848E-03, -0.735196448821653, 0.188367048396131, 1.41064266818704E-04, -2.57418501496337E-03, 1.23220024851555E-03];

Sigma = s / 4.4;

Pi = p / 100;

teta = 0;

for i = 1 : 33

teta = teta + ni(i) * (Pi + 0.24) ^ Ii(i) * (Sigma - 0.703) ^ Ji(i);

end

T3_ps = teta * 760;

else

%Subregion 3b

%Eq 7, Table 11, Page 11

Ii = [-12, -12, -12, -12, -8, -8, -8, -6, -6, -6, -5, -5, -5, -5, -5, -4, -3, -3, -2, 0, 2, 3, 4, 5, 6, 8, 12, 14];

Ji = [1, 3, 4, 7, 0, 1, 3, 0, 2, 4, 0, 1, 2, 4, 6, 12, 1, 6, 2, 0, 1, 1, 0, 24, 0, 3, 1, 2];

ni = [0.52711170160166, -40.1317830052742, 153.020073134484, -2247.99398218827, -0.193993484669048, -1.40467557893768, 42.6799878114024, 0.752810643416743, 22.6657238616417, -622.873556909932, -0.660823667935396, 0.841267087271658, -25.3717501764397, 485.708963532948, 880.531517490555, 2650155.92794626, -0.359287150025783, -656.991567673753, 2.41768149185367, 0.856873461222588, 0.655143675313458, -0.213535213206406, 5.62974957606348E-03, -316955725450471, -6.99997000152457E-04, 1.19845803210767E-02, 1.93848122022095E-05, -2.15095749182309E-05];

Sigma = s / 5.3;

Pi = p / 100;

teta = 0;

for i = 1 : 28

teta = teta + ni(i) * (Pi + 0.76) ^ Ii(i) * (Sigma - 0.818) ^ Ji(i);

end

T3_ps = teta * 860;

end

function v3_ps = v3_ps(p, s)

%2004

%3.4 Backward Equations T(p,s) and v(p,s) for Subregions 3a and 3b

%Boundary equation, Eq 6 Page 11

if s <= 4.41202148223476

%Subregion 3a

%Eq 8, Table 13, Page 14

Ii = [-12, -12, -12, -10, -10, -10, -10, -8, -8, -8, -8, -6, -5, -4, -3, -3, -2, -2, -1, -1, 0, 0, 0, 1, 2, 4, 5, 6];

Ji = [10, 12, 14, 4, 8, 10, 20, 5, 6, 14, 16, 28, 1, 5, 2, 4, 3, 8, 1, 2, 0, 1, 3, 0, 0, 2, 2, 0];

ni = [79.5544074093975, -2382.6124298459, 17681.3100617787, -1.10524727080379E-03, -15.3213833655326, 297.544599376982, -35031520.6871242, 0.277513761062119, -0.523964271036888, -148011.182995403, 1600148.99374266, 1708023226634.27, 2.46866996006494E-04, 1.6532608479798, -0.118008384666987, 2.537986423559, 0.965127704669424, -28.2172420532826, 0.203224612353823, 1.10648186063513, 0.52612794845128, 0.277000018736321, 1.08153340501132, -7.44127885357893E-02, 1.64094443541384E-02, -6.80468275301065E-02, 0.025798857610164, -1.45749861944416E-04];

Pi = p / 100;

Sigma = s / 4.4;

omega = 0;

for i = 1 : 28

omega = omega + ni(i) * (Pi + 0.187) ^ Ii(i) * (Sigma - 0.755) ^ Ji(i);

end

v3_ps = omega * 0.0028;

else

%Subregion 3b

%Eq 9, Table 14, Page 14

Ii = [-12, -12, -12, -12, -12, -12, -10, -10, -10, -10, -8, -5, -5, -5, -4, -4, -4, -4, -3, -2, -2, -2, -2, -2, -2, 0, 0, 0, 1, 1, 2];

Ji = [0, 1, 2, 3, 5, 6, 0, 1, 2, 4, 0, 1, 2, 3, 0, 1, 2, 3, 1, 0, 1, 2, 3, 4, 12, 0, 1, 2, 0, 2, 2];

ni = [5.91599780322238E-05, -1.85465997137856E-03, 1.04190510480013E-02, 5.9864730203859E-03, -0.771391189901699, 1.72549765557036, -4.67076079846526E-04, 1.34533823384439E-02, -8.08094336805495E-02, 0.508139374365767, 1.28584643361683E-03, -1.63899353915435, 5.86938199318063, -2.92466667918613, -6.14076301499537E-03, 5.76199014049172, -12.1613320606788, 1.67637540957944, -7.44135838773463, 3.78168091437659E-02, 4.01432203027688, 16.0279837479185, 3.17848779347728, -3.58362310304853, -1159952.60446827, 0.199256573577909, -0.122270624794624, -19.1449143716586, -1.50448002905284E-02, 14.6407900162154, -3.2747778718823];

Pi = p / 100;

Sigma = s / 5.3;

omega = 0;

for i = 1 : 31

omega = omega + ni(i) * (Pi + 0.298) ^ Ii(i) * (Sigma - 0.816) ^ Ji(i);

end

v3_ps = omega * 0.0088;

end

function p3_hs = p3_hs(h, s)

%Supplementary Release on Backward Equations ( ) , p h s for Region 3,

%Equations as a function of h and s for the Region Boundaries, and an Equation

%( ) sat , T hs for Region 4 of the IAPWS Industrial formulation 1997 for the

%Thermodynamic Properties of Water and Steam

%2004

%Section 3 Backward functions p(h,s), T(h,s), and v(h,s) for Region 3

if s < 4.41202148223476

%Subregion 3a

%Eq 1, Table 3, Page 8

Ii = [0, 0, 0, 1, 1, 1, 1, 1, 2, 2, 3, 3, 3, 4, 4, 4, 4, 5, 6, 7, 8, 10, 10, 14, 18, 20, 22, 22, 24, 28, 28, 32, 32];

Ji = [0, 1, 5, 0, 3, 4, 8, 14, 6, 16, 0, 2, 3, 0, 1, 4, 5, 28, 28, 24, 1, 32, 36, 22, 28, 36, 16, 28, 36, 16, 36, 10, 28];

ni = [7.70889828326934, -26.0835009128688, 267.416218930389, 17.2221089496844, -293.54233214597, 614.135601882478, -61056.2757725674, -65127225.1118219, 73591.9313521937, -11664650591.4191, 35.5267086434461, -596.144543825955, -475.842430145708, 69.6781965359503, 335.674250377312, 25052.6809130882, 146997.380630766, 5.38069315091534E+19, 1.43619827291346E+21, 3.64985866165994E+19, -2547.41561156775, 2.40120197096563E+27, -3.93847464679496E+29, 1.47073407024852E+24, -4.26391250432059E+31, 1.94509340621077E+38, 6.66212132114896E+23, 7.06777016552858E+33, 1.75563621975576E+41, 1.08408607429124E+28, 7.30872705175151E+43, 1.5914584739887E+24, 3.77121605943324E+40];

Sigma = s / 4.4;

eta = h / 2300;

Pi = 0;

for i = 1 : 33

Pi = Pi + ni(i) * (eta - 1.01) ^ Ii(i) * (Sigma - 0.75) ^ Ji(i);

end

p3_hs = Pi * 99;

else

%Subregion 3b

%Eq 2, Table 4, Page 8

Ii = [-12, -12, -12, -12, -12, -10, -10, -10, -10, -8, -8, -6, -6, -6, -6, -5, -4, -4, -4, -3, -3, -3, -3, -2, -2, -1, 0, 2, 2, 5, 6, 8, 10, 14, 14];

Ji = [2, 10, 12, 14, 20, 2, 10, 14, 18, 2, 8, 2, 6, 7, 8, 10, 4, 5, 8, 1, 3, 5, 6, 0, 1, 0, 3, 0, 1, 0, 1, 1, 1, 3, 7];

ni = [1.25244360717979E-13, -1.26599322553713E-02, 5.06878030140626, 31.7847171154202, -391041.161399932, -9.75733406392044E-11, -18.6312419488279, 510.973543414101, 373847.005822362, 2.99804024666572E-08, 20.0544393820342, -4.98030487662829E-06, -10.230180636003, 55.2819126990325, -206.211367510878, -7940.12232324823, 7.82248472028153, -58.6544326902468, 3550.73647696481, -1.15303107290162E-04, -1.75092403171802, 257.98168774816, -727.048374179467, 1.21644822609198E-04, 3.93137871762692E-02, 7.04181005909296E-03, -82.910820069811, -0.26517881813125, 13.7531682453991, -52.2394090753046, 2405.56298941048, -22736.1631268929, 89074.6343932567, -23923456.5822486, 5687958081.29714];

Sigma = s / 5.3;

eta = h / 2800;

Pi = 0;

for i = 1 : 35

Pi = Pi + ni(i) * (eta - 0.681) ^ Ii(i) * (Sigma - 0.792) ^ Ji(i);

end

p3_hs = 16.6 / Pi;

end

function h3_pT = h3_pT(p, T)

%Not avalible with if 97

%Solve function T3_ph-T=0 with half interval method.

%ver2.6 Start corrected bug

if p < 22.06395 %Bellow tripple point

Ts = T4_p(p); %Saturation temperature

if T <= Ts %Liquid side

High_Bound = h4L_p(p); %Max h är liauid h.

Low_Bound = h1_pT(p, 623.15);

else

Low_Bound = h4V_p(p); %Min h är Vapour h.

High_Bound = h2_pT(p, B23T_p(p));

end

else %Above tripple point. R3 from R2 till R3.

Low_Bound = h1_pT(p, 623.15);

High_Bound = h2_pT(p, B23T_p(p));

end

%ver2.6 End corrected bug

Ts = T+1;

while abs(T - Ts) > 0.00001

hs = (Low_Bound + High_Bound) / 2;

Ts = T3_ph(p, hs);

if Ts > T

High_Bound = hs;

else

Low_Bound = hs;

end

h3_pT = hs;

function T3_prho = T3_prho(p, rho)

%Solve by iteration. Observe that fo low temperatures this equation has 2 solutions.

%Solve with half interval method

Low_Bound = 623.15;

High_Bound = 1073.15;

ps=-1000;

while abs(p - ps) > 0.00000001

Ts = (Low_Bound + High_Bound) / 2;

ps = p3_rhoT(rho, Ts);

if ps > p

High_Bound = Ts;

else

Low_Bound = Ts;

end

T3_prho = Ts;

%***********************************************************************************************************

%*2.4 functions for region 4

function p4_T = p4_T(T)

%Release on the IAPWS Industrial formulation 1997 for the Thermodynamic Properties of Water and Steam, September 1997

%Section 8.1 The Saturation-Pressure Equation

%Eq 30, Page 33

teta = T - 0.23855557567849 / (T - 650.17534844798);

a = teta ^ 2 + 1167.0521452767 * teta - 724213.16703206;

B = -17.073846940092 * teta ^ 2 + 12020.82470247 * teta - 3232555.0322333;

C = 14.91510861353 * teta ^ 2 - 4823.2657361591 * teta + 405113.40542057;

p4_T = (2 * C / (-B + (B ^ 2 - 4 * a * C) ^ 0.5)) ^ 4;

function T4_p = T4_p(p)

%Release on the IAPWS Industrial formulation 1997 for the Thermodynamic Properties of Water and Steam, September 1997

%Section 8.2 The Saturation-Temperature Equation

%Eq 31, Page 34

beta = p ^ 0.25;

E = beta ^ 2 - 17.073846940092 * beta + 14.91510861353;

f = 1167.0521452767 * beta ^ 2 + 12020.82470247 * beta - 4823.2657361591;

G = -724213.16703206 * beta ^ 2 - 3232555.0322333 * beta + 405113.40542057;

D = 2 * G / (-f - (f ^ 2 - 4 * E * G) ^ 0.5);

T4_p = (650.17534844798 + D - ((650.17534844798 + D) ^ 2 - 4 * (-0.23855557567849 + 650.17534844798 * D)) ^ 0.5) / 2;

function h4_s = h4_s(s)

%Supplementary Release on Backward Equations ( ) , p h s for Region 3,Equations as a function of h and s for the Region Boundaries, and an Equation( ) sat , T hs for Region 4 of the IAPWS Industrial formulation 1997 for the Thermodynamic Properties of Water and Steam

%4 Equations for Region Boundaries Given Enthalpy and Entropy

% Se picture page 14

if (s > -0.0001545495919 & s <= 3.77828134)==1

%hL1_s

%Eq 3,Table 9,Page 16

Ii = [0, 0, 1, 1, 2, 2, 3, 3, 4, 4, 4, 5, 5, 7, 8, 12, 12, 14, 14, 16, 20, 20, 22, 24, 28, 32, 32];

Ji = [14, 36, 3, 16, 0, 5, 4, 36, 4, 16, 24, 18, 24, 1, 4, 2, 4, 1, 22, 10, 12, 28, 8, 3, 0, 6, 8];

ni = [0.332171191705237, 6.11217706323496E-04, -8.82092478906822, -0.45562819254325, -2.63483840850452E-05, -22.3949661148062, -4.28398660164013, -0.616679338856916, -14.682303110404, 284.523138727299, -113.398503195444, 1156.71380760859, 395.551267359325, -1.54891257229285, 19.4486637751291, -3.57915139457043, -3.35369414148819, -0.66442679633246, 32332.1885383934, 3317.66744667084, -22350.1257931087, 5739538.75852936, 173.226193407919, -3.63968822121321E-02, 8.34596332878346E-07, 5.03611916682674, 65.5444787064505];

Sigma = s / 3.8;

eta = 0;

for i = 1 : 27

eta = eta + ni(i) * (Sigma - 1.09) ^ Ii(i) * (Sigma + 0.0000366) ^ Ji(i);

end

h4_s = eta * 1700;

elseif (s > 3.77828134 & s <= 4.41202148223476 )==1

%hL3_s

%Eq 4,Table 10,Page 16

Ii = [0, 0, 0, 0, 2, 3, 4, 4, 5, 5, 6, 7, 7, 7, 10, 10, 10, 32, 32];

Ji = [1, 4, 10, 16, 1, 36, 3, 16, 20, 36, 4, 2, 28, 32, 14, 32, 36, 0, 6];

ni = [0.822673364673336, 0.181977213534479, -0.011200026031362, -7.46778287048033E-04, -0.179046263257381, 4.24220110836657E-02, -0.341355823438768, -2.09881740853565, -8.22477343323596, -4.99684082076008, 0.191413958471069, 5.81062241093136E-02, -1655.05498701029, 1588.70443421201, -85.0623535172818, -31771.4386511207, -94589.0406632871, -1.3927384708869E-06, 0.63105253224098];

Sigma = s / 3.8;

eta = 0;

for i = 1 : 19

eta = eta + ni(i) * (Sigma - 1.09) ^ Ii(i) * (Sigma + 0.0000366) ^ Ji(i);

end

h4_s = eta * 1700;

elseif (s > 4.41202148223476 & s <= 5.85 )==1

%Section 4.4 Equations ( ) 2ab " h s and ( ) 2c3b "h s for the Saturated Vapor Line

%Page 19, Eq 5

%hV2c3b_s(s)

Ii = [0, 0, 0, 1, 1, 5, 6, 7, 8, 8, 12, 16, 22, 22, 24, 36];

Ji = [0, 3, 4, 0, 12, 36, 12, 16, 2, 20, 32, 36, 2, 32, 7, 20];

ni = [1.04351280732769, -2.27807912708513, 1.80535256723202, 0.420440834792042, -105721.24483466, 4.36911607493884E+24, -328032702839.753, -6.7868676080427E+15, 7439.57464645363, -3.56896445355761E+19, 1.67590585186801E+31, -3.55028625419105E+37, 396611982166.538, -4.14716268484468E+40, 3.59080103867382E+18, -1.16994334851995E+40];

Sigma = s / 5.9;

eta = 0;

for i = 1 : 16

eta = eta + ni(i) * (Sigma - 1.02) ^ Ii(i) * (Sigma - 0.726) ^ Ji(i);

end

h4_s = eta ^ 4 * 2800;

elseif (s > 5.85 & s < 9.155759395)==1

%Section 4.4 Equations ( ) 2ab " h s and ( ) 2c3b "h s for the Saturated Vapor Line

%Page 20, Eq 6

Ii = [1, 1, 2, 2, 4, 4, 7, 8, 8, 10, 12, 12, 18, 20, 24, 28, 28, 28, 28, 28, 32, 32, 32, 32, 32, 36, 36, 36, 36, 36];

Ji = [8, 24, 4, 32, 1, 2, 7, 5, 12, 1, 0, 7, 10, 12, 32, 8, 12, 20, 22, 24, 2, 7, 12, 14, 24, 10, 12, 20, 22, 28];

ni = [-524.581170928788, -9269472.18142218, -237.385107491666, 21077015581.2776, -23.9494562010986, 221.802480294197, -5104725.33393438, 1249813.96109147, 2000084369.96201, -815.158509791035, -157.612685637523, -11420042233.2791, 6.62364680776872E+15, -2.27622818296144E+18, -1.71048081348406E+31, 6.60788766938091E+15, 1.66320055886021E+22, -2.18003784381501E+29, -7.87276140295618E+29, 1.51062329700346E+31, 7957321.70300541, 1.31957647355347E+15, -3.2509706829914E+23, -4.18600611419248E+25, 2.97478906557467E+34, -9.53588761745473E+19, 1.66957699620939E+24, -1.75407764869978E+32, 3.47581490626396E+34, -7.10971318427851E+38];

Sigma1 = s / 5.21;

Sigma2 = s / 9.2;

eta = 0;

for i = 1 : 30

eta = eta + ni(i) * (1 / Sigma1 - 0.513) ^ Ii(i) * (Sigma2 - 0.524) ^ Ji(i);

end

h4_s = exp(eta) * 2800;

else

h4_s = -99999;

end

function p4_s = p4_s(s)

%Uses h4_s and p_hs for the diffrent regions to determine p4_s

h_sat = h4_s(s);

if (s > -0.0001545495919 & s <= 3.77828134)==1

p4_s = p1_hs(h_sat, s);

elseif (s > 3.77828134 & s <= 5.210887663)==1

p4_s = p3_hs(h_sat, s);

elseif (s > 5.210887663 & s < 9.155759395)==1

p4_s = p2_hs(h_sat, s);

else

p4_s = -99999;

end

function h4L_p = h4L_p(p)

if (p > 0.000611657 & p < 22.06395)==1

Ts = T4_p(p);

if p < 16.529

h4L_p = h1_pT(p, Ts);

else

%Iterate to find the the backward solution of p3sat_h

Low_Bound = 1670.858218;

High_Bound = 2087.23500164864;

ps=-1000;

while abs(p - ps) > 0.00001

hs = (Low_Bound + High_Bound) / 2;

ps = p3sat_h(hs);

if ps > p

High_Bound = hs;

else

Low_Bound = hs;

end

h4L_p = hs;

end

else

h4L_p = -99999;

end

function h4V_p = h4V_p(p)

if (p > 0.000611657 & p < 22.06395)==1

Ts = T4_p(p);

if p < 16.529

h4V_p = h2_pT(p, Ts);

else

%Iterate to find the the backward solution of p3sat_h

Low_Bound = 2087.23500164864;

High_Bound = 2563.592004+5;

ps=-1000;

while abs(p - ps) > 0.000001

hs = (Low_Bound + High_Bound) / 2;

ps = p3sat_h(hs);

if ps < p

High_Bound = hs;

else

Low_Bound = hs;

end

h4V_p = hs;

end

else

h4V_p = -99999;

end

function x4_ph = x4_ph(p, h)

%Calculate vapour fraction from hL and hV for given p

h4v = h4V_p(p);

h4L = h4L_p(p);

if h > h4v

x4_ph = 1;

elseif h < h4L

x4_ph = 0;

else

x4_ph = (h - h4L) / (h4v - h4L);

end

function x4_ps = x4_ps(p, s)

if p < 16.529

ssv = s2_pT(p, T4_p(p));

ssL = s1_pT(p, T4_p(p));

else

ssv = s3_rhoT(1 / (v3_ph(p, h4V_p(p))), T4_p(p));

ssL = s3_rhoT(1 / (v3_ph(p, h4L_p(p))), T4_p(p));

end

if s < ssL

x4_ps = 0;

elseif s > ssv

x4_ps = 1;

else

x4_ps = (s - ssL) / (ssv - ssL);

end

function T4_hs = T4_hs(h, s)

%Supplementary Release on Backward Equations ( ) , p h s for Region 3,

%Chapter 5.3 page 30.

%The if 97 function is only valid for part of region4. Use iteration outsida.

Ii = [0, 0, 0, 1, 1, 1, 1, 2, 2, 2, 3, 3, 3, 3, 4, 4, 5, 5, 5, 5, 6, 6, 6, 8, 10, 10, 12, 14, 14, 16, 16, 18, 18, 18, 20, 28];

Ji = [0, 3, 12, 0, 1, 2, 5, 0, 5, 8, 0, 2, 3, 4, 0, 1, 1, 2, 4, 16, 6, 8, 22, 1, 20, 36, 24, 1, 28, 12, 32, 14, 22, 36, 24, 36];

ni = [0.179882673606601, -0.267507455199603, 1.162767226126, 0.147545428713616, -0.512871635973248, 0.421333567697984, 0.56374952218987, 0.429274443819153, -3.3570455214214, 10.8890916499278, -0.248483390456012, 0.30415322190639, -0.494819763939905, 1.07551674933261, 7.33888415457688E-02, 1.40170545411085E-02, -0.106110975998808, 1.68324361811875E-02, 1.25028363714877, 1013.16840309509, -1.51791558000712, 52.4277865990866, 23049.5545563912, 2.49459806365456E-02, 2107964.67412137, 366836848.613065, -144814105.365163, -1.7927637300359E-03, 4899556021.00459, 471.262212070518, -82929439019.8652, -1715.45662263191, 3557776.82973575, 586062760258.436, -12988763.5078195, 31724744937.1057];

if (s > 5.210887825 & s < 9.15546555571324)==1

Sigma = s / 9.2;

eta = h / 2800;

teta = 0;

for i = 1 : 36

teta = teta + ni(i) * (eta - 0.119) ^ Ii(i) * (Sigma - 1.07) ^ Ji(i);

end

T4_hs = teta * 550;

else

%function psat_h

if (s > -0.0001545495919 && s <= 3.77828134)==1

Low_Bound = 0.000611;

High_Bound = 165.291642526045;

hL=-1000;

while abs(hL - h) > 0.00001 && abs(High_Bound - Low_Bound) > 0.0001

PL = (Low_Bound + High_Bound) / 2;

Ts = T4_p(PL);

hL = h1_pT(PL, Ts);

if hL > h

High_Bound = PL;

else

Low_Bound = PL;

end

elseif s > 3.77828134 && s <= 4.41202148223476

PL = p3sat_h(h);

elseif s > 4.41202148223476 && s <= 5.210887663

PL = p3sat_h(h);

end

Low_Bound = 0.000611;

High_Bound = PL;

sss=-1000;

while (abs(s - sss) > 0.000001 & abs(High_Bound - Low_Bound) > 0.0000001)==1

p = (Low_Bound + High_Bound) / 2;

%Calculate s4_ph

Ts = T4_p(p);

xs = x4_ph(p, h);

if p < 16.529

s4v = s2_pT(p, Ts);

s4L = s1_pT(p, Ts);

else

v4v = v3_ph(p, h4V_p(p));

s4v = s3_rhoT(1 / v4v, Ts);

v4L = v3_ph(p, h4L_p(p));

s4L = s3_rhoT(1 / v4L, Ts);

end

sss = (xs * s4v + (1 - xs) * s4L);

if sss < s

High_Bound = p;

else

Low_Bound = p;

end

T4_hs = T4_p(p);

end

%***********************************************************************************************************

%*2.5 functions for region 5

function h5_pT = h5_pT(p, T)

%Release on the IAPWS Industrial formulation 1997 for the Thermodynamic Properties of Water and Steam, September 1997

%Basic Equation for Region 5

%Eq 32,33, Page 36, Tables 37-41

Ji0 = [0, 1, -3, -2, -1, 2];

ni0 = [-13.179983674201, 6.8540841634434, -0.024805148933466, 0.36901534980333, -3.1161318213925, -0.32961626538917];

Iir = [1, 1, 1, 2, 3];

Jir = [0, 1, 3, 9, 3];

nir = [-1.2563183589592E-04, 2.1774678714571E-03, -0.004594282089991, -3.9724828359569E-06, 1.2919228289784E-07];

R = 0.461526; %kJ/(kg K)

tau = 1000 / T;

Pi = p;

gamma0_tau = 0;

for i = 1 : 6

gamma0_tau = gamma0_tau + ni0(i) * Ji0(i) * tau ^ (Ji0(i) - 1);

end

gammar_tau = 0;

for i = 1 : 5

gammar_tau = gammar_tau + nir(i) * Pi ^ Iir(i) * Jir(i) * tau ^ (Jir(i) - 1);

end

h5_pT = R * T * tau * (gamma0_tau + gammar_tau);

function v5_pT = v5_pT(p, T)

%Release on the IAPWS Industrial formulation 1997 for the Thermodynamic Properties of Water and Steam, September 1997

%Basic Equation for Region 5

%Eq 32,33, Page 36, Tables 37-41

Ji0 = [0, 1, -3, -2, -1, 2];

ni0 = [-13.179983674201, 6.8540841634434, -0.024805148933466, 0.36901534980333, -3.1161318213925, -0.32961626538917];

Iir = [1, 1, 1, 2, 3];

Jir = [0, 1, 3, 9, 3];

nir = [-1.2563183589592E-04, 2.1774678714571E-03, -0.004594282089991, -3.9724828359569E-06, 1.2919228289784E-07];

R = 0.461526; %kJ/(kg K)

tau = 1000 / T;

Pi = p;

gamma0_pi = 1 / Pi;

gammar_pi = 0;

for i = 1 : 5

gammar_pi = gammar_pi + nir(i) * Iir(i) * Pi ^ (Iir(i) - 1) * tau ^ Jir(i);

end

v5_pT = R * T / p * Pi * (gamma0_pi + gammar_pi) / 1000;

function u5_pT = u5_pT(p, T)

%Release on the IAPWS Industrial formulation 1997 for the Thermodynamic Properties of Water and Steam, September 1997

%Basic Equation for Region 5

%Eq 32,33, Page 36, Tables 37-41

Ji0 = [0, 1, -3, -2, -1, 2];

ni0 = [-13.179983674201, 6.8540841634434, -0.024805148933466, 0.36901534980333, -3.1161318213925, -0.32961626538917];

Iir = [1, 1, 1, 2, 3];

Jir = [0, 1, 3, 9, 3];

nir = [-1.2563183589592E-04, 2.1774678714571E-03, -0.004594282089991, -3.9724828359569E-06, 1.2919228289784E-07];

R = 0.461526; %kJ/(kg K)

tau = 1000 / T;

Pi = p;

gamma0_pi = 1 / Pi;

gamma0_tau = 0;

for i = 1 : 6

gamma0_tau = gamma0_tau + ni0(i) * Ji0(i) * tau ^ (Ji0(i) - 1);

end

gammar_pi = 0;

gammar_tau = 0;

for i = 1 : 5

gammar_pi = gammar_pi + nir(i) * Iir(i) * Pi ^ (Iir(i) - 1) * tau ^ Jir(i);

gammar_tau = gammar_tau + nir(i) * Pi ^ Iir(i) * Jir(i) * tau ^ (Jir(i) - 1);

end

u5_pT = R * T * (tau * (gamma0_tau + gammar_tau) - Pi * (gamma0_pi + gammar_pi));

function Cp5_pT = Cp5_pT(p, T)

%Release on the IAPWS Industrial formulation 1997 for the Thermodynamic Properties of Water and Steam, September 1997

%Basic Equation for Region 5

%Eq 32,33, Page 36, Tables 37-41

Ji0 = [0, 1, -3, -2, -1, 2];

ni0 = [-13.179983674201, 6.8540841634434, -0.024805148933466, 0.36901534980333, -3.1161318213925, -0.32961626538917];

Iir = [1, 1, 1, 2, 3];

Jir = [0, 1, 3, 9, 3];

nir = [-1.2563183589592E-04, 2.1774678714571E-03, -0.004594282089991, -3.9724828359569E-06, 1.2919228289784E-07];

R = 0.461526; %kJ/(kg K)

tau = 1000 / T;

Pi = p;

gamma0_tautau = 0;

for i = 1 : 6

gamma0_tautau = gamma0_tautau + ni0(i) * Ji0(i) * (Ji0(i) - 1) * tau ^ (Ji0(i) - 2);

end

gammar_tautau = 0;

for i = 1 : 5

gammar_tautau = gammar_tautau + nir(i) * Pi ^ Iir(i) * Jir(i) * (Jir(i) - 1) * tau ^ (Jir(i) - 2);

end

Cp5_pT = -R * tau ^ 2 * (gamma0_tautau + gammar_tautau);

function s5_pT = s5_pT(p, T)

%Release on the IAPWS Industrial formulation 1997 for the Thermodynamic Properties of Water and Steam, September 1997

%Basic Equation for Region 5

%Eq 32,33, Page 36, Tables 37-41

Ji0 = [0, 1, -3, -2, -1, 2];

ni0 = [-13.179983674201, 6.8540841634434, -0.024805148933466, 0.36901534980333, -3.1161318213925, -0.32961626538917];

Iir = [1, 1, 1, 2, 3];

Jir = [0, 1, 3, 9, 3];

nir = [-1.2563183589592E-04, 2.1774678714571E-03, -0.004594282089991, -3.9724828359569E-06, 1.2919228289784E-07];

R = 0.461526; %kJ/(kg K)

tau = 1000 / T;

Pi = p;

gamma0 = log(Pi);

gamma0_tau = 0;

for i = 1 : 6

gamma0_tau = gamma0_tau + ni0(i) * Ji0(i) * tau ^ (Ji0(i) - 1);

gamma0 = gamma0 + ni0(i) * tau ^ Ji0(i);

end

gammar = 0;

gammar_tau = 0;

for i = 1 : 5

gammar = gammar + nir(i) * Pi ^ Iir(i) * tau ^ Jir(i);

gammar_tau = gammar_tau + nir(i) * Pi ^ Iir(i) * Jir(i) * tau ^ (Jir(i) - 1);

end

s5_pT = R * (tau * (gamma0_tau + gammar_tau) - (gamma0 + gammar));

function Cv5_pT = Cv5_pT(p, T)

%Release on the IAPWS Industrial formulation 1997 for the Thermodynamic Properties of Water and Steam, September 1997

%Basic Equation for Region 5

%Eq 32,33, Page 36, Tables 37-41

Ji0 = [0, 1, -3, -2, -1, 2];

ni0 = [-13.179983674201, 6.8540841634434, -0.024805148933466, 0.36901534980333, -3.1161318213925, -0.32961626538917];

Iir = [1, 1, 1, 2, 3];

Jir = [0, 1, 3, 9, 3];

nir = [-1.2563183589592E-04, 2.1774678714571E-03, -0.004594282089991, -3.9724828359569E-06, 1.2919228289784E-07];

R = 0.461526; %kJ/(kg K)

tau = 1000 / T;

Pi = p;

gamma0_tautau = 0;

for i = 1 : 6

gamma0_tautau = gamma0_tautau + ni0(i) * (Ji0(i) - 1) * Ji0(i) * tau ^ (Ji0(i) - 2);

end

gammar_pi = 0;

gammar_pitau = 0;

gammar_pipi = 0;

gammar_tautau = 0;

for i = 1 : 5

gammar_pi = gammar_pi + nir(i) * Iir(i) * Pi ^ (Iir(i) - 1) * tau ^ Jir(i);

gammar_pitau = gammar_pitau + nir(i) * Iir(i) * Pi ^ (Iir(i) - 1) * Jir(i) * tau ^ (Jir(i) - 1);

gammar_pipi = gammar_pipi + nir(i) * Iir(i) * (Iir(i) - 1) * Pi ^ (Iir(i) - 2) * tau ^ Jir(i);

gammar_tautau = gammar_tautau + nir(i) * Pi ^ Iir(i) * Jir(i) * (Jir(i) - 1) * tau ^ (Jir(i) - 2);

end

Cv5_pT = R * (-(tau ^ 2 *(gamma0_tautau + gammar_tautau)) - (1 + Pi * gammar_pi - tau * Pi * gammar_pitau)^2 / (1 - Pi ^ 2 * gammar_pipi));

function w5_pT = w5_pT(p, T)

%Release on the IAPWS Industrial formulation 1997 for the Thermodynamic Properties of Water and Steam, September 1997

%Basic Equation for Region 5

%Eq 32,33, Page 36, Tables 37-41

Ji0 = [0, 1, -3, -2, -1, 2];

ni0 = [-13.179983674201, 6.8540841634434, -0.024805148933466, 0.36901534980333, -3.1161318213925, -0.32961626538917];

Iir = [1, 1, 1, 2, 3];

Jir = [0, 1, 3, 9, 3];

nir = [-1.2563183589592E-04, 2.1774678714571E-03, -0.004594282089991, -3.9724828359569E-06, 1.2919228289784E-07];

R = 0.461526; %kJ/(kg K)

tau = 1000 / T;

Pi = p;

gamma0_tautau = 0;

for i = 1 : 6

gamma0_tautau = gamma0_tautau + ni0(i) * (Ji0(i) - 1) * Ji0(i) * tau ^ (Ji0(i) - 2);

end

gammar_pi = 0;

gammar_pitau = 0;

gammar_pipi = 0;

gammar_tautau = 0;

for i = 1 : 5

gammar_pi = gammar_pi + nir(i) * Iir(i) * Pi ^ (Iir(i) - 1) * tau ^ Jir(i);

gammar_pitau = gammar_pitau + nir(i) * Iir(i) * Pi ^ (Iir(i) - 1) * Jir(i) * tau ^ (Jir(i) - 1);

gammar_pipi = gammar_pipi + nir(i) * Iir(i) * (Iir(i) - 1) * Pi ^ (Iir(i) - 2) * tau ^ Jir(i);

gammar_tautau = gammar_tautau + nir(i) * Pi ^ Iir(i) * Jir(i) * (Jir(i) - 1) * tau ^ (Jir(i) - 2);

end

w5_pT = (1000 * R * T * (1 + 2 * Pi * gammar_pi + Pi ^ 2 * gammar_pi ^ 2) / ((1 - Pi ^ 2 * gammar_pipi) + (1 + Pi * gammar_pi - tau * Pi * gammar_pitau) ^ 2 / (tau ^ 2 * (gamma0_tautau + gammar_tautau)))) ^ 0.5;

function T5_ph = T5_ph(p, h)

%Solve with half interval method

Low_Bound = 1073.15;

High_Bound = 2273.15;

hs=h-1;

while abs(h - hs) > 0.00001

Ts = (Low_Bound + High_Bound) / 2;

hs = h5_pT(p, Ts);

if hs > h

High_Bound = Ts;

else

Low_Bound = Ts;

end

T5_ph = Ts;

function T5_ps = T5_ps(p, s)

%Solve with half interval method

Low_Bound = 1073.15;

High_Bound = 2273.15;

ss=s-1;

while abs(s - ss) > 0.00001

Ts = (Low_Bound + High_Bound) / 2;

ss = s5_pT(p, Ts);

if ss > s

High_Bound = Ts;

else

Low_Bound = Ts;

end

T5_ps = Ts;

function T5_prho=T5_prho(p,rho)

%Solve by iteration. Observe that fo low temperatures this equation has 2 solutions.

%Solve with half interval method

Low_Bound = 1073.15;

High_Bound = 2073.15;

rhos=-1000;

while abs(rho - rhos) > 0.000001

Ts = (Low_Bound + High_Bound) / 2;

rhos = 1 / v2_pT(p, Ts);

if rhos < rho

High_Bound = Ts;

else

Low_Bound = Ts;

end

T5_prho = Ts;

%***********************************************************************************************************

%*3 Region Selection

%***********************************************************************************************************

%*3.1 Regions as a function of pT

function region_pT = region_pT(p, T)

if T > 1073.15 && p < 10 && T < 2273.15 && p > 0.000611

region_pT = 5;

elseif T <= 1073.15 && T > 273.15 && p <= 100 && p > 0.000611

if T > 623.15

if p > B23p_T(T)

region_pT = 3;

if T < 647.096

ps = p4_T(T);

if abs(p - ps) < 0.00001

region_pT = 4;

end

else

region_pT = 2;

end

else

ps = p4_T(T);

if abs(p - ps) < 0.00001

region_pT = 4;

elseif p > ps

region_pT = 1;

else

region_pT = 2;

end

else

region_pT = 0; %**Error, Outside valid area

end

%***********************************************************************************************************

%*3.2 Regions as a function of ph

function region_ph = region_ph( p, h)

%Check if outside pressure limits

if p < 0.000611657 || p > 100

region_ph = 0;

return

end

%Check if outside low h.

if h < 0.963 * p + 2.2 %Linear adaption to h1_pt()+2 to speed up calcualations.

if h < h1_pT(p, 273.15)

region_ph = 0;

return

end

if p < 16.5292 %Bellow region 3,Check region 1,4,2,5

%Check Region 1

Ts = T4_p(p);

hL = 109.6635 * log(p) + 40.3481 * p + 734.58; %Approximate function for hL_p

if abs(h - hL) < 100 %if approximate is not god enough use real function

hL = h1_pT(p, Ts);

end

if h <= hL

region_ph = 1;

return

end

%Check Region 4

hV = 45.1768 * log(p) - 20.158 * p + 2804.4; %Approximate function for hV_p

if abs(h - hV) < 50 %if approximate is not god enough use real function

hV = h2_pT(p, Ts);

end

if h < hV

region_ph = 4;

return

end

%Check upper limit of region 2 Quick Test

if h < 4000

region_ph = 2;

return

end

%Check region 2 (Real value)

h_45 = h2_pT(p, 1073.15);

if h <= h_45

region_ph = 2;

return

end

%Check region 5

if p > 10

region_ph = 0;

return

end

h_5u = h5_pT(p, 2273.15);

if h < h_5u

region_ph = 5;

return

end

region_ph = 0;

return

else %for p>16.5292

%Check if in region1

if h < h1_pT(p, 623.15)

region_ph = 1;

return

end

%Check if in region 3 or 4 (Bellow Reg 2)

if h < h2_pT(p, B23T_p(p))

%Region 3 or 4

if p > p3sat_h(h)

region_ph = 3;

return

else

region_ph = 4;

return

end

%Check if region 2

if h < h2_pT(p, 1073.15)

region_ph = 2;

return

end

region_ph = 0;

%***********************************************************************************************************

%*3.3 Regions as a function of ps

function region_ps = region_ps( p, s)

if p < 0.000611657 || p > 100 || s < 0 || s > s5_pT(p, 2273.15)

region_ps = 0;

return

end

%Check region 5

if s > s2_pT(p, 1073.15)

if p <= 10

region_ps = 5;

return

else

region_ps = 0;

return

end

%Check region 2

if p > 16.529

ss = s2_pT(p, B23T_p(p)); %Between 5.047 & 5.261. Use to speed up!

else

ss = s2_pT(p, T4_p(p));

end

if s > ss

region_ps = 2;

return

end

%Check region 3

ss = s1_pT(p, 623.15);

if p > 16.529 && s > ss

if p > p3sat_s(s)

region_ps = 3;

return

else

region_ps = 4;

return

end

%Check region 4 (Not inside region 3)

if p < 16.529 && s > s1_pT(p, T4_p(p))

region_ps = 4;

return

end

%Check region 1

if p > 0.000611657 && s > s1_pT(p, 273.15)

region_ps = 1;

return

end

region_ps = 1;

%***********************************************************************************************************

%*3.4 Regions as a function of hs

function region_hs = region_hs( h, s)

if s < -0.0001545495919

region_hs = 0;

return

end

%Check linear adaption to p=0.000611. if bellow region 4.

hMin = (((-0.0415878 - 2500.89262) / (-0.00015455 - 9.155759)) * s);

if s < 9.155759395 && h < hMin

region_hs = 0;

return

end

%******Kolla 1 eller 4. (+liten bit över B13)

if s >= -0.0001545495919 && s <= 3.77828134

if h < h4_s(s)

region_hs = 4;

return

elseif s < 3.397782955 %100MPa line is limiting

TMax = T1_ps(100, s);

hMax = h1_pT(100, TMax);

if h < hMax

region_hs = 1;

return

else

region_hs = 0;

return

end

else %The point is either in region 4,1,3. Check B23

hB = hB13_s(s);

if h < hB

region_hs = 1;

return

end

TMax = T3_ps(100, s);

vmax = v3_ps(100, s);

hMax = h3_rhoT(1 / vmax, TMax);

if h < hMax

region_hs = 3;

return

else

region_hs = 0;

return

end

%******Kolla region 2 eller 4. (Övre delen av område b23-> max)

if s >= 5.260578707 && s <= 11.9212156897728

if s > 9.155759395 %Above region 4

Tmin = T2_ps(0.000611, s);

hMin = h2_pT(0.000611, Tmin);

%function adapted to h(1073.15,s)

hMax = -0.07554022 * s ^ 4 + 3.341571 * s ^ 3 - 55.42151 * s ^ 2 + 408.515 * s + 3031.338;

if h > hMin && h < hMax

region_hs = 2;

return

else

region_hs = 0;

return

end

hV = h4_s(s);

if h < hV %Region 4. Under region 3.

region_hs = 4;

return

end

if s < 6.04048367171238

TMax = T2_ps(100, s);

hMax = h2_pT(100, TMax);

else

%function adapted to h(1073.15,s)

hMax = -2.988734 * s ^ 4 + 121.4015 * s ^ 3 - 1805.15 * s ^ 2 + 11720.16 * s - 23998.33;

end

if h < hMax %Region 2. Över region 4.

region_hs = 2;

return

else

region_hs = 0;

return

end

%Kolla region 3 eller 4. Under kritiska punkten.

if s >= 3.77828134 && s <= 4.41202148223476

hL = h4_s(s);

if h < hL

region_hs = 4;

return

end

TMax = T3_ps(100, s);

vmax = v3_ps(100, s);

hMax = h3_rhoT(1 / vmax, TMax);

if h < hMax

region_hs = 3;

return

else

region_hs = 0;

return

end

%Kolla region 3 eller 4 från kritiska punkten till övre delen av b23

if s >= 4.41202148223476 && s <= 5.260578707

hV = h4_s(s);

if h < hV

region_hs = 4;

return

end

%Kolla om vi är under b23 giltighetsområde.

if s <= 5.048096828

TMax = T3_ps(100, s);

vmax = v3_ps(100, s);

hMax = h3_rhoT(1 / vmax, TMax);

if h < hMax

region_hs = 3;

return

else

region_hs = 0;

return

end

else %Inom området för B23 i s led.

if (h > 2812.942061) %Ovanför B23 i h_led

if s > 5.09796573397125

TMax = T2_ps(100, s);

hMax = h2_pT(100, TMax);

if h < hMax

region_hs = 2;

return

else

region_hs = 0;

return

end

else

region_hs = 0;

return

end

if (h < 2563.592004) %Nedanför B23 i h_led men vi har redan kollat ovanför hV2c3b

region_hs = 3;

return

end

%Vi är inom b23 området i både s och h led.

Tact = TB23_hs(h, s);

pact = p2_hs(h, s);

pBound = B23p_T(Tact);

if pact > pBound

region_hs = 3;

return

else

region_hs = 2;

return

end

region_hs = 0;

%***********************************************************************************************************

%*3.5 Regions as a function of p and rho

function Region_prho = Region_prho(p,rho)

v = 1 / rho;

if p < 0.000611657 || p > 100

Region_prho = 0;

return

end

if p < 16.5292 %Bellow region 3, Check region 1,4,2

if v < v1_pT(p, 273.15) %Observe that this is not actually min of v. Not valid Water of 4°C is ligther.

Region_prho = 0;

return

end

if v <= v1_pT(p, T4_p(p))

Region_prho = 1;

return

end

if v < v2_pT(p, T4_p(p))

Region_prho = 4;

return

end

if v <= v2_pT(p, 1073.15)

Region_prho = 2;

return

end

if p > 10 %Above region 5

Region_prho = 0;

return

end

if v <= v5_pT(p, 2073.15)

Region_prho = 5;

return

end

else %Check region 1,3,4,3,2 (Above the lowest point of region 3.)

if v < v1_pT(p, 273.15) %Observe that this is not actually min of v. Not valid Water of 4°C is ligther.

Region_prho = 0;

return

end

if v < v1_pT(p, 623.15)

Region_prho = 1;

return

end

%Check if in region 3 or 4 (Bellow Reg 2)

if v < v2_pT(p, B23T_p(p))

%Region 3 or 4

if p > 22.064 %Above region 4

Region_prho = 3;

return

end

if v < v3_ph(p, h4L_p(p)) || v > v3_ph(p, h4V_p(p)) %Uses iteration!!

Region_prho = 3;

return

else

Region_prho = 4;

return

end

%Check if region 2

if v < v2_pT(p, 1073.15)

Region_prho = 2;

return

end

Region_prho = 0;

%***********************************************************************************************************

%*4 Region Borders

%***********************************************************************************************************

%*4.1 Boundary between region 2 and 3.

function B23p_T = B23p_T(T)

%Release on the IAPWS Industrial formulation 1997 for the Thermodynamic Properties of Water and Steam

%1997

%Section 4 Auxiliary Equation for the Boundary between Regions 2 and 3

%Eq 5, Page 5

B23p_T = 348.05185628969 - 1.1671859879975 * T + 1.0192970039326E-03 * T ^ 2;

function B23T_p = B23T_p(p)

%Release on the IAPWS Industrial formulation 1997 for the Thermodynamic Properties of Water and Steam

%1997

%Section 4 Auxiliary Equation for the Boundary between Regions 2 and 3

%Eq 6, Page 6

B23T_p = 572.54459862746 + ((p - 13.91883977887) / 1.0192970039326E-03) ^ 0.5;

%***********************************************************************************************************

%*4.2 Region 3. pSat_h & pSat_s

function p3sat_h = p3sat_h(h)

%Revised Supplementary Release on Backward Equations for the functions T(p,h), v(p,h) & T(p,s), v(p,s) for Region 3 of the IAPWS Industrial formulation 1997 for the Thermodynamic Properties of Water & Steam

%2004

%Section 4 Boundary Equations psat(h) & psat(s) for the Saturation Lines of Region 3

%Se pictures Page 17, Eq 10, Table 17, Page 18

Ii = [0, 1, 1, 1, 1, 5, 7, 8, 14, 20, 22, 24, 28, 36];

Ji = [0, 1, 3, 4, 36, 3, 0, 24, 16, 16, 3, 18, 8, 24];

ni = [0.600073641753024, -9.36203654849857, 24.6590798594147, -107.014222858224, -91582131580576.8, -8623.32011700662, -23.5837344740032, 2.52304969384128E+17, -3.89718771997719E+18, -3.33775713645296E+22, 35649946963.6328, -1.48547544720641E+26, 3.30611514838798E+18, 8.13641294467829E+37];

hs = h / 2600;

ps = 0;

for i = 1:14

ps = ps + ni(i) * (hs - 1.02) ^ Ii(i) * (hs - 0.608) ^ Ji(i);

end

p3sat_h = ps * 22;

function p3sat_s = p3sat_s(s)

Ii = [0, 1, 1, 4, 12, 12, 16, 24, 28, 32];

Ji = [0, 1, 32, 7, 4, 14, 36, 10, 0, 18];

ni = [0.639767553612785, -12.9727445396014, -2.24595125848403E+15, 1774667.41801846, 7170793495.71538, -3.78829107169011E+17, -9.55586736431328E+34, 1.87269814676188E+23, 119254746466.473, 1.10649277244882E+36];

Sigma = s / 5.2;

Pi = 0;

for i = 1:10

Pi = Pi + ni(i) * (Sigma - 1.03) ^ Ii(i) * (Sigma - 0.699) ^ Ji(i);

end

p3sat_s = Pi * 22;

%***********************************************************************************************************

%4.3 Region boundary 1to3 & 3to2 as a functions of s

function hB13_s = hB13_s(s)

%Supplementary Release on Backward Equations ( ) , p h s for Region 3,

%Chapter 4.5 page 23.

Ii = [0, 1, 1, 3, 5, 6];

Ji = [0, -2, 2, -12, -4, -3];

ni = [0.913965547600543, -4.30944856041991E-05, 60.3235694765419, 1.17518273082168E-18, 0.220000904781292, -69.0815545851641];

Sigma = s / 3.8;

eta = 0;

for i = 1 : 6

eta = eta + ni(i) * (Sigma - 0.884) ^ Ii(i) * (Sigma - 0.864) ^ Ji(i);

end

hB13_s = eta * 1700;

function TB23_hs = TB23_hs(h, s)

%Supplementary Release on Backward Equations ( ) , p h s for Region 3,

%Chapter 4.6 page 25.

Ii = [-12, -10, -8, -4, -3, -2, -2, -2, -2, 0, 1, 1, 1, 3, 3, 5, 6, 6, 8, 8, 8, 12, 12, 14, 14];

Ji = [10, 8, 3, 4, 3, -6, 2, 3, 4, 0, -3, -2, 10, -2, -1, -5, -6, -3, -8, -2, -1, -12, -1, -12, 1];

ni = [6.2909626082981E-04, -8.23453502583165E-04, 5.15446951519474E-08, -1.17565945784945, 3.48519684726192, -5.07837382408313E-12, -2.84637670005479, -2.36092263939673, 6.01492324973779, 1.48039650824546, 3.60075182221907E-04, -1.26700045009952E-02, -1221843.32521413, 0.149276502463272, 0.698733471798484, -2.52207040114321E-02, 1.47151930985213E-02, -1.08618917681849, -9.36875039816322E-04, 81.9877897570217, -182.041861521835, 2.61907376402688E-06, -29162.6417025961, 1.40660774926165E-05, 7832370.62349385];

Sigma = s / 5.3;

eta = h / 3000;

teta = 0;

for i = 1 : 25

teta = teta + ni(i) * (eta - 0.727) ^ Ii(i) * (Sigma - 0.864) ^ Ji(i);

end

TB23_hs = teta * 900;

%***********************************************************************************************************

%*5 Transport properties

%***********************************************************************************************************

%*5.1 Viscosity (IAPWS formulation 1985, Revised 2003)

%***********************************************************************************************************

function my_AllRegions_pT = my_AllRegions_pT( p, T)

h0 = [0.5132047, 0.3205656, 0, 0, -0.7782567, 0.1885447];

h1 = [0.2151778, 0.7317883, 1.241044, 1.476783, 0, 0];

h2 = [-0.2818107, -1.070786, -1.263184, 0, 0, 0];

h3 = [0.1778064, 0.460504, 0.2340379, -0.4924179, 0, 0];

h4 = [-0.0417661, 0, 0, 0.1600435, 0, 0];

h5 = [0, -0.01578386, 0, 0, 0, 0];

h6 = [0, 0, 0, -0.003629481, 0, 0];

%Calcualte density.

switch region_pT(p, T)

case 1

rho = 1 / v1_pT(p, T);

case 2

rho = 1 / v2_pT(p, T);

case 3

hs = h3_pT(p, T);

rho = 1 / v3_ph(p, hs);

case 4

rho = NaN;

case 5

rho = 1 / v5_pT(p, T);

otherwise

my_AllRegions_pT = NaN;

return

end

rhos = rho / 317.763;

Ts = T / 647.226;

ps = p / 22.115;

%Check valid area

if T > 900 + 273.15 || (T > 600 + 273.15 && p > 300) || (T > 150 + 273.15 && p > 350) || p > 500

my_AllRegions_pT = NaN;

return

end

my0 = Ts ^ 0.5 / (1 + 0.978197 / Ts + 0.579829 / (Ts ^ 2) - 0.202354 / (Ts ^ 3));

Sum = 0;

for i = 0 : 5

Sum = Sum + h0(i+1) * (1 / Ts - 1) ^ i + h1(i+1) * (1 / Ts - 1) ^ i * (rhos - 1) ^ 1 + h2(i+1) * (1 / Ts - 1) ^ i * (rhos - 1) ^ 2 + h3(i+1) * (1 / Ts - 1) ^ i * (rhos - 1) ^ 3 + h4(i+1) * (1 / Ts - 1) ^ i * (rhos - 1) ^ 4 + h5(i+1) * (1 / Ts - 1) ^ i * (rhos - 1) ^ 5 + h6(i+1) * (1 / Ts - 1) ^ i * (rhos - 1) ^ 6;

end

my1 = exp(rhos * Sum);

mys = my0 * my1;

my_AllRegions_pT = mys * 0.000055071;

function my_AllRegions_ph = my_AllRegions_ph( p, h)

h0 = [0.5132047, 0.3205656, 0, 0, -0.7782567, 0.1885447];

h1 = [0.2151778, 0.7317883, 1.241044, 1.476783, 0, 0];

h2 = [-0.2818107, -1.070786, -1.263184, 0, 0, 0];

h3 = [0.1778064, 0.460504, 0.2340379, -0.4924179, 0, 0];

h4 = [-0.0417661, 0, 0, 0.1600435, 0, 0];

h5 = [0, -0.01578386, 0, 0, 0, 0];

h6 = [0, 0, 0, -0.003629481, 0, 0];

%Calcualte density.

switch region_ph(p, h)

case 1

Ts = T1_ph(p, h);

T = Ts;

rho = 1 / v1_pT(p, Ts);

case 2

Ts = T2_ph(p, h);

T = Ts;

rho = 1 / v2_pT(p, Ts);

case 3

rho = 1 / v3_ph(p, h);

T = T3_ph(p, h);

case 4

xs = x4_ph(p, h);

if p < 16.529

v4v = v2_pT(p, T4_p(p));

v4L = v1_pT(p, T4_p(p));

else

v4v = v3_ph(p, h4V_p(p));

v4L = v3_ph(p, h4L_p(p));

end

rho = 1 / (xs * v4v + (1 - xs) * v4L);

T = T4_p(p);

case 5

Ts = T5_ph(p, h);

T = Ts;

rho = 1 / v5_pT(p, Ts);

otherwise

my_AllRegions_ph = NaN;

return

end

rhos = rho / 317.763;

Ts = T / 647.226;

ps = p / 22.115;

%Check valid area

if T > 900 + 273.15 || (T > 600 + 273.15 && p > 300) || (T > 150 + 273.15 && p > 350) || p > 500

my_AllRegions_ph = NaN;

return

end

my0 = Ts ^ 0.5 / (1 + 0.978197 / Ts + 0.579829 / (Ts ^ 2) - 0.202354 / (Ts ^ 3));

Sum = 0;

for i = 0 : 5

end

my1 = exp(rhos * Sum);

mys = my0 * my1;

my_AllRegions_ph = mys * 0.000055071;

%***********************************************************************************************************

%*5.2 Thermal Conductivity (IAPWS formulation 1985)

function tc_ptrho = tc_ptrho( p, T, rho)

%Revised release on the IAPWS formulation 1985 for the Thermal Conductivity of ordinary water

%IAPWS September 1998

%Page 8

%ver2.6 Start corrected bug

if T < 273.15

tc_ptrho = NaN; %Out of range of validity (para. B4)

return

elseif T < 500 + 273.15

if p > 100

tc_ptrho = NaN; %Out of range of validity (para. B4)

return

end

elseif T <= 650 + 273.15

if p > 70

tc_ptrho = NaN; %Out of range of validity (para. B4)

return

end

else T <= 800 + 273.15

if p > 40

tc_ptrho = NaN; %Out of range of validity (para. B4)

return

end

%ver2.6 End corrected bug

T = T / 647.26;

rho = rho / 317.7;

tc0 = T ^ 0.5 * (0.0102811 + 0.0299621 * T + 0.0156146 * T ^ 2 - 0.00422464 * T ^ 3);

tc1 = -0.39707 + 0.400302 * rho + 1.06 * exp(-0.171587 * (rho + 2.39219) ^ 2);

dT = abs(T - 1) + 0.00308976;

Q = 2 + 0.0822994 / dT ^ (3 / 5);

if T >= 1

s = 1 / dT;

else

s = 10.0932 / dT ^ (3 / 5);

end

tc2 = (0.0701309 / T ^ 10 + 0.011852) * rho ^ (9 / 5) * exp(0.642857 * (1 - rho ^ (14 / 5))) + 0.00169937 * s * rho ^ Q * exp((Q / (1 + Q)) * (1 - rho ^ (1 + Q))) - 1.02 * exp(-4.11717 * T ^ (3 / 2) - 6.17937 / rho ^ 5);

tc_ptrho = tc0 + tc1 + tc2;

%***********************************************************************************************************

%5.3 Surface Tension

function Surface_Tension_T = Surface_Tension_T( T)

%IAPWS Release on Surface Tension of Ordinary Water Substance,

%September 1994

tc = 647.096; %K

B = 0.2358; %N/m

bb = -0.625;

my = 1.256;

if T < 0.01 || T > tc

Surface_Tension_T = NaN; %"Out of valid region"

return

end

tau = 1 - T / tc;

Surface_Tension_T = B * tau ^ my * (1 + bb * tau);

%***********************************************************************************************************

%*6 Units *

%***********************************************************************************************************

function toSIunit_p = toSIunit_p( Ins )

%Translate bar to MPa

toSIunit_p = Ins / 10;

function fromSIunit_p = fromSIunit_p( Ins )

%Translate bar to MPa

fromSIunit_p = Ins * 10;

function toSIunit_T = toSIunit_T( Ins )

%Translate degC to Kelvon

toSIunit_T = Ins + 273.15;

function fromSIunit_T = fromSIunit_T( Ins )

%Translate Kelvin to degC

fromSIunit_T = Ins - 273.15;

function toSIunit_h = toSIunit_h( Ins )

toSIunit_h = Ins;

function fromSIunit_h = fromSIunit_h( Ins )

fromSIunit_h = Ins;

function toSIunit_v = toSIunit_v( Ins )

toSIunit_v = Ins;

function fromSIunit_v = fromSIunit_v( Ins )

fromSIunit_v = Ins;

function toSIunit_s = toSIunit_s( Ins )

toSIunit_s = Ins;

function fromSIunit_s = fromSIunit_s( Ins )

fromSIunit_s = Ins;

function toSIunit_u = toSIunit_u( Ins )

toSIunit_u = Ins;

function fromSIunit_u = fromSIunit_u( Ins )

fromSIunit_u = Ins;

function toSIunit_Cp = toSIunit_Cp( Ins )

toSIunit_Cp = Ins;

function fromSIunit_Cp = fromSIunit_Cp( Ins )

fromSIunit_Cp = Ins;

function toSIunit_Cv = toSIunit_Cv( Ins )

toSIunit_Cv = Ins;

function fromSIunit_Cv = fromSIunit_Cv( Ins )

fromSIunit_Cv = Ins;

function toSIunit_w = toSIunit_w( Ins )

toSIunit_w = Ins;

function fromSIunit_w = fromSIunit_w( Ins )

fromSIunit_w = Ins;

function toSIunit_tc = toSIunit_tc( Ins )

toSIunit_tc = Ins;

function fromSIunit_tc = fromSIunit_tc( Ins )

fromSIunit_tc = Ins;

function toSIunit_st = toSIunit_st( Ins )

toSIunit_st = Ins;

function fromSIunit_st = fromSIunit_st( Ins )

fromSIunit_st = Ins;

function toSIunit_x = toSIunit_x( Ins )

toSIunit_x = Ins;

function fromSIunit_x = fromSIunit_x( Ins )

fromSIunit_x = Ins;

function toSIunit_vx = toSIunit_vx( Ins )

toSIunit_vx = Ins;

function fromSIunit_vx = fromSIunit_vx( Ins )

fromSIunit_vx = Ins;

function toSIunit_my = toSIunit_my( Ins )

toSIunit_my = Ins;

function fromSIunit_my = fromSIunit_my( Ins )

fromSIunit_my = Ins;

%***********************************************************************************************************

%*7 Verification *

%***********************************************************************************************************

function err = check()

err=0;

%*********************************************************************************************************

%* 7.1 Verifiy region 1

%IF-97 Table 5, Page 9

p=[30/10,800/10,30/10];

T=[300,300,500];

Fun={'v1_pT','h1_pT','u1_pT','s1_pT','Cp1_pT','w1_pT'};

IF97=[0.00100215168,0.000971180894,0.001202418;...

115.331273,184.142828,975.542239;...

112.324818,106.448356,971.934985;...

0.392294792,0.368563852,2.58041912;...

4.17301218,4.01008987,4.65580682;...

1507.73921,1634.69054,1240.71337];

R1=zeros(6,3);

for i=1:3

for j=1:6

R1(j,i)=eval([char(Fun(j)),'(',num2str(p(i)),',',num2str(T(i)),');']);

end

Region1_error=abs((R1-IF97)./IF97)

err=err+sum(sum(Region1_error>1E-8))

%IF-97 Table 7, Page 11

p=[30/10,800/10,800/10];

h=[500,500,1500];

IF97=[391.798509,378.108626,611.041229];

R1=zeros(1,3);

for i=1:3

R1(i)=T1_ph(p(i),h(i));

end

T1_ph_error=abs((R1-IF97)./IF97)

err=err+sum(sum(T1_ph_error>1E-8))

%IF-97 Table 9, Page 12

p=[30/10,800/10,800/10];

s=[0.5,0.5,3];

IF97=[307.842258,309.979785,565.899909];

R1=zeros(1,3);

for i=1:3

R1(i)=T1_ps(p(i),s(i));

end

T1_ps_error=abs((R1-IF97)./IF97)

err=err+sum(sum(T1_ps_error>1E-8))

%Supplementary Release on Backward Equations

%for Pressure as a Function of Enthalpy and Entropy p(h,s)

%Table 3, Page 6

h=[0.001,90,1500];

s=[0,0,3.4];

IF97=[0.0009800980612,91.929547272,58.68294423];

R1=zeros(1,3);

for i=1:3

R1(i)=p1_hs(h(i),s(i));

end

p1_hs_error=abs((R1-IF97)./IF97)

err=err+sum(sum(p1_hs_error>1E-8))

%*********************************************************************************************************

%* 7.2 Verifiy region 2

% IF-97 Table 15, Page 17

p=[0.035/10,0.035/10,300/10];

T=[300,700,700];

Fun={'v2_pT','h2_pT','u2_pT','s2_pT','Cp2_pT','w2_pT'};

IF97=[39.4913866,92.3015898,0.00542946619;...

2549.91145,3335.68375,2631.49474;...

2411.6916,3012.62819,2468.61076;...

8.52238967,10.1749996,5.17540298;...

1.91300162,2.08141274,10.3505092;...

427.920172,644.289068,480.386523];

R2=zeros(6,3);

for i=1:3

for j=1:6

R2(j,i)=eval([char(Fun(j)),'(',num2str(p(i)),',',num2str(T(i)),');']);

end

Region2_error=abs((R2-IF97)./IF97)

err=err+sum(sum(Region2_error>1E-8))

%IF-97 Table 24, Page 25

p=[0.01/10,30/10,30/10,50/10,50/10,250/10,400/10,600/10,600/10];

h=[3000,3000,4000,3500,4000,3500,2700,2700,3200];

IF97=[534.433241,575.37337,1010.77577,801.299102,1015.31583,875.279054,743.056411,791.137067,882.75686];

R2=zeros(1,9);

for i=1:9

R2(i)=T2_ph(p(i),h(i));

end

T2_ph_error=abs((R2-IF97)./IF97)

err=err+sum(sum(T2_ph_error>1E-8))

%IF-97 Table 29, Page 29

p=[1/10,1/10,25/10,80/10,80/10,900/10,200/10,800/10,800/10];

s=[7.5,8,8,6,7.5,6,5.75,5.25,5.75];

IF97=[399.517097,514.127081,1039.84917,600.48404,1064.95556,1038.01126,697.992849,854.011484,949.017998];

R2=zeros(1,9);

for i=1:9

R2(i)=T2_ps(p(i),s(i));

end

T2_ps_error=abs((R2-IF97)./IF97)

err=err+sum(sum(T2_ps_error>1E-8))

%Supplementary Release on Backward Equations for Pressure as a Function of Enthalpy and Entropy p(h,s)

%Table 3, Page 6

h=[2800,2800,4100,2800,3600,3600,2800,2800,3400];

s=[6.5,9.5,9.5,6,6,7,5.1,5.8,5.8];

IF97=[1.371012767,0.001879743844,0.1024788997,4.793911442,83.95519209,7.527161441,94.3920206,8.414574124,83.76903879];

R2=zeros(1,9);

for i=1:9

R2(i)=p2_hs(h(i),s(i));

end

p2_hs_error=abs((R2-IF97)./IF97)

err=err+sum(sum(p2_hs_error>1E-8))

%*********************************************************************************************************

%* 7.3 Verifiy region 3

% IF-97 Table 33, Page 32

T=[650,650,750];

rho=[500,200,500];

Fun={'p3_rhoT','h3_rhoT','u3_rhoT','s3_rhoT','Cp3_rhoT','w3_rhoT'};

IF97=[25.5837018,22.2930643,78.3095639;...

1863.43019,2375.12401,2258.68845;...

1812.26279,2263.65868,2102.06932;...

4.05427273,4.85438792,4.46971906;...

13.8935717,44.6579342,6.34165359;...

502.005554,383.444594,760.696041];

R3=zeros(6,3);

for i=1:3

for j=1:6

R3(j,i)=eval([char(Fun(j)),'(',num2str(rho(i)),',',num2str(T(i)),');']);

end

Region3_error=abs((R3-IF97)./IF97)

err=err+sum(sum(Region3_error>1E-8))

%T3_ph

p=[200/10,500/10,1000/10,200/10,500/10,1000/10];

h=[1700,2000,2100,2500,2400,2700];

IF97=[629.3083892,690.5718338,733.6163014,641.8418053,735.1848618,842.0460876];

R3=zeros(1,6);

for i=1:6

R3(i)=T3_ph(p(i),h(i));

end

T3_ph_error=abs((R3-IF97)./IF97)

err=err+sum(sum(T3_ph_error>1E-8))

%v3_ph

p=[200/10,500/10,1000/10,200/10,500/10,1000/10];

h=[1700,2000,2100,2500,2400,2700];

IF97=[0.001749903962,0.001908139035,0.001676229776,0.006670547043,0.0028012445,0.002404234998];

R3=zeros(1,6);

for i=1:6

R3(i)=v3_ph(p(i),h(i));

end

v3_ph_error=abs((R3-IF97)./IF97)

err=err+sum(sum(v3_ph_error>1E-7))

%T3_ps

p=[200/10,500/10,1000/10,200/10,500/10,1000/10];

s=[3.7,3.5,4,5,4.5,5];

IF97=[620.8841563,618.1549029,705.6880237,640.1176443,716.3687517,847.4332825];

R3=zeros(1,6);

for i=1:6

R3(i)=T3_ps(p(i),s(i));

end

T3_ps_error=abs((R3-IF97)./IF97)

err=err+sum(sum(T3_ps_error>1E-8))

%v3_ps

p=[200/10,500/10,1000/10,200/10,500/10,1000/10];

s=[3.7,3.5,4,5,4.5,5];

IF97=[0.001639890984,0.001423030205,0.001555893131,0.006262101987,0.002332634294,0.002449610757];

R3=zeros(1,6);

for i=1:6

R3(i)=v3_ps(p(i),s(i));

end

v3_ps_error=abs((R3-IF97)./IF97)

err=err+sum(sum(v3_ps_error>1E-8))

%p3_hs

h=[1700,2000,2100,2500,2400,2700];

s=[3.8,4.2,4.3,5.1,4.7,5];

IF97=[25.55703246,45.40873468,60.7812334,17.20612413,63.63924887,88.39043281];

R3=zeros(1,6);

for i=1:6

R3(i)=p3_hs(h(i),s(i));

end

p3_hs_error=abs((R3-IF97)./IF97)

err=err+sum(sum(p3_hs_error>1E-8))

%h3_pT (Iteration)

p=[255.83702,222.93064,783.09564]./10;

T=[650,650,750];

IF97=[1863.271389,2375.696155,2258.626582];

R3=zeros(1,3);

for i=1:3

R3(i)=h3_pT(p(i),T(i));

end

h3_pT_error=abs((R3-IF97)./IF97)

err=err+sum(sum(h3_pT_error>1E-6)) %Decimals in IF97

%*********************************************************************************************************

%* 7.4 Verifiy region 4

%Saturation pressure, If97, Table 35, Page 34

T=[300,500,600];

IF97=[0.0353658941, 26.3889776, 123.443146]/10;

R3=zeros(1,3);

for i=1:3

R4(i)=p4_T(T(i));

end

p4_t_error=abs((R4-IF97)./IF97)

err=err+sum(sum( p4_t_error>1E-7))

T=[1,10,100]/10;

IF97=[372.755919,453.035632,584.149488];

R3=zeros(1,3);

for i=1:3

R4(i)=T4_p(T(i));

end

T4_p_error=abs((R4-IF97)./IF97)

err=err+sum(sum( T4_p_error>1E-7))

s=[1,2,3,3.8,4,4.2,7,8,9,5.5,5,4.5];

IF97=[308.5509647,700.6304472,1198.359754,1685.025565,1816.891476,1949.352563,2723.729985,2599.04721,2511.861477,2687.69385,2451.623609,2144.360448];

R3=zeros(1,12);

for i=1:12

R4(i)=h4_s(s(i));

end

h4_s_error=abs((R4-IF97)./IF97)

err=err+sum(sum( h4_s_error>1E-7))

%*********************************************************************************************************

%* 7.5 Verifiy region 5

% IF-97 Table 42, Page 39

T=[1500,1500,2000];

p=[5,80,80]/10;

Fun={'v5_pT','h5_pT','u5_pT','s5_pT','Cp5_pT','w5_pT'};

IF97=[1.38455354,0.0865156616,0.115743146;...

5219.76332,5206.09634,6583.80291;...

4527.48654,4513.97105,5657.85774;...

9.65408431,8.36546724,9.15671044;...

2.61610228,2.64453866,2.8530675;...

917.071933,919.708859,1054.35806];

R5=zeros(6,3);

for i=1:3

for j=1:6

R5(j,i)=eval([char(Fun(j)),'(',num2str(p(i)),',',num2str(T(i)),');']);

end

Region5_error=abs((R5-IF97)./IF97)

err=err+sum(sum(Region5_error>1E-8))

%T5_ph (Iteration)

p=[0.5,8,8];

h=[5219.76331549428,5206.09634477373,6583.80290533381];

IF97=[1500,1500,2000];

R5=zeros(1,3);

for i=1:3

R5(i)=T5_ph(p(i),h(i));

end

T5_ph_error=abs((R5-IF97)./IF97)

err=err+sum(sum(T5_ph_error>1E-7)) %Decimals in IF97

%T5_ps (Iteration)

p=[0.5,8,8];

s=[9.65408430982588,8.36546724495503,9.15671044273249];

IF97=[1500,1500,2000];

R5=zeros(1,3);

for i=1:3

R5(i)=T5_ps(p(i),s(i));

end

T5_ps_error=abs((R5-IF97)./IF97)

err=err+sum(sum(T5_ps_error>1E-4)) %Decimals in IF97

%*********************************************************************************************************

%* 7.6 Verifiy calling funtions

fun={'Tsat_p','T_ph','T_ps','T_hs','psat_T','p_hs','hV_p','hL_p','hV_T','hL_T','h_pT','h_ps','h_px','h_prho','h_Tx','vV_p','vL_p','vV_T','vL_T','v_pT','v_ph','v_ps','rhoV_p','rhoL_p','rhoV_T','rhoL_T','rho_pT','rho_ph','rho_ps','sV_p','sL_p','sV_T','sL_T','s_pT','s_ph','uV_p','uL_p','uV_T','uL_T','u_pT','u_ph','u_ps','CpV_p','CpL_p','CpV_T','CpL_T','Cp_pT','Cp_ph','Cp_ps','CvV_p','CvL_p','CvV_T','CvL_T','Cv_pT','Cv_ph','Cv_ps','wV_p','wL_p','wV_T','wL_T','w_pT','w_ph','w_ps','my_pT','my_ph','my_ps','tcL_p','tcV_p','tcL_T','tcV_T','tc_pT','tc_ph','tc_hs','st_T','st_p','x_ph','x_ps','vx_ph','vx_ps'};

In1={'1','1','1','100','100','84','1','1','100','100','1','1','1','1','100','1','1','100','100','1','1','1','1','1','100','100','1','1','1','0.006117','0.0061171','0.0001','100','1','1','1','1','100','100','1','1','1','1','1','100','100','1','1','1','1','1','100','100','1','1','1','1','1','100','100','1','1','1','1','1','1','1','1','25','25','1','1','100','100','1','1','1','1','1'};

In2={'0','100','1','0.2','0','0.296','0','0','0','0','20','1','0.5','2','0.5','0','0','0','0','100','1000','5','0','0','0','0','100','1000','1','0','0','0','0','20','84.01181117','0','0','0','0','100','1000','1','0','0','0','0','100','200','1','0','0','0','0','100','200','1','0','0','0','0','100','200','1','100','100','1','0','0','0','0','25','100','0.34','0','0','1000','4','418','4'};

Control={'99.60591861','23.84481908','73.70859421','13.84933511','1.014179779','2.295498269','2674.949641','417.4364858','2675.572029','419.099155','84.01181117','308.6107171','1546.193063','1082.773391','1547.33559210927','1.694022523','0.001043148','1.671860601','0.001043455','1.695959407','0.437925658','1.03463539','0.590310924','958.6368897','0.598135993','958.3542773','0.589636754','2.283492601','975.6236788','9.155465556','1.8359E-05','9.155756716','1.307014328','0.296482921','0.296813845','2505.547389','417.332171','2506.015308','418.9933299','2506.171426','956.2074342','308.5082185','2.075938025','4.216149431','2.077491868','4.216645119','2.074108555','4.17913573168802','4.190607038','1.552696979','3.769699683','1.553698696','3.76770022','1.551397249','4.035176364','3.902919468','472.0541571','1545.451948','472.2559492','1545.092249','472.3375235','1542.682475','1557.8585','1.22704E-05','0.000914003770302108','0.000384222','0.677593822','0.024753668','0.607458162','0.018326723','0.607509806','0.605710062','0.606283124','0.0589118685876641','0.058987784','0.258055424','0.445397961','0.288493093','0.999233827'};

for i=1:length(fun)

T=['XSteam(''',char(fun(i)),''',',char(In1(i)),',',char(In2(i)),')'];

Res=eval(T);

Error=(Res-(str2num(char(Control(i)))))/str2num(char(Control(i)));

Check=[T,'=',num2str(Res),' - (Control)',char(Control(i)),'=',num2str(Error)]

if Error>1E-5

err=err+1;

error('To large error')

end

workspace :

Project 2 - Rankine cycle Simulator

Rankine cycle

Basic Cycle

Inefficiencies of Real Rankine Cycles

Increasing the Efficiency of Rankine Cycles

Pressure difference

Superheating and reheating

Feed water preheating

Combined cycles

Ship work like this
in your own course.

Talk to a career counsellor

Rankine cycle

Basic Cycle

Inefficiencies of Real Rankine Cycles

Increasing the Efficiency of Rankine Cycles

Pressure difference

Superheating and reheating

Feed water preheating

Combined cycles

Ship work like thisin your own course.

Talk to a career counsellor

Ship work like this
in your own course.
