Project 2 - Rankine cycle Simulator
Aim- Create a Rankine cycle simulator
Objective -
1. To Simulate a Rankine cycle using matlab
2. Calculating all the state points of the cycle based on User inputs.
3. Plotting the T vs s and H vs s plot for the given input.
Rankine Cycle -

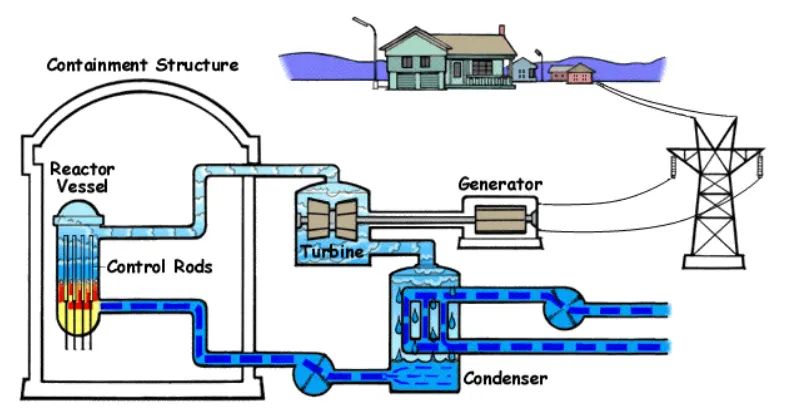

Rankine cycle is an idealized thermodynamic cycle or heat engine in which a fuel is used to produce heat within a boiler, converting water into steam which then expands through a turbine producing useful wok . This process was developed in 1859
by scottish engineer william J.m Rankine . It is a cycle which converts heat into mechanical energy which usually is converted
into electrical energy.
In this project an idealized cycle is simulated. Hence neglecting losses.
1) Rankine cycle is derived out of carnot cycle. its power depends on the temperature difference between the heat source and acold source. The more the difference the more mechanical power can be efficiently extracted out of heat energy .
2) Since ideal cycles are only in theory , Efficiency of rankine cycle is limited by high heat of vaporization of the working fluid and friction losses etc.
3) Water is usually the fluid of choice due to its favorable properties, such as its non-toxic and unreactive chemistry, abundance, and low cost, as well as its thermodynamic properties. By condensing the working steam vapor to a liquid the pressure at the turbine outlet is lowered and the energy required by the feed pump consumes only 1% to 3% of the turbine output power and these factors contribute to a higher efficiency for the cycle. The benefit of this is offset by the low temperatures of steam admitted to the turbine.
Processes -
1. Process 1-2 : Isentropic Expansion in the turbine .
2. Process 2-3 : Constant pressure Heat rejection in condenser
3. Process 3-4 : Isentropic compression in the pump
4. Process 4-1 : Constant pressure heat addition in the boiler
Working-
i. In process 1-2 , The dry saturated vapour expands through a turbine, generating power. This decreases the temperature and pressure of the vapour, and some condensation may occur.
ii. Process 2-3 , The vapor-liquid mixture leaving the turbine (2) is condensed at low pressure, usually in a surface condenser using cooling water. In well designed and maintained condensers, the pressure of the vapor is well below atmospheric pressure, approaching the saturation pressure of the operating fluid at the cooling water temperature.
iii. Process 3-4 , The pressure of the condensate is raised in the feed pump. Because of the low specific volume of liquids, the pump work is relatively small and often neglected in thermodynamic calculations.
iv. Process 4-1 , High pressure liquid enters the boiler from the feed pump (4) and is heated to the saturation temperature (on the saturation curve). Further addition of energy causes evaporation of the liquid until it is fully converted to saturated steam (1) or superheated (1).
Matlab Main Program
%% Rankine Cycle Simulator
% Objective of this program is to simulate the rankine cycle
% Plotting t-s and h-s diagram using data from XSteam data
clear all
close all
clc
disp(' RANKINE CYCLE '); % Displaying
disp('1-2 is Isentropic Expansion in the turbine');
disp('2-3 is constant pressure heat removal in the condenser');
disp('3-4 is Isentropic compression in the pump');
disp('4-1 is Constant pressure heat addition in the boiler');
%Obtaining the input data
p1 = input('nValue of pressure at turbine inlet, p1(in bar) = ');
T1 = input('nValue of temperature at turbine inlet, T1(in degree.C) = ');
p2 = input('nValue of prssure at condenser inlet, p2(in bar) = ');
% Extracting data _ defining variables
% State 1
h1 = XSteam('h_pT', p1, T1); % extracting enthalpy at state pt 1
s1 = XSteam('s_pT', p1, T1); % similarly
% State 2
s2 = s1; % Isentropic expansion
sf2= XSteam('sL_p', p2); % Saturated liquid Entropy
sg2 = XSteam('sV_p', p2); % Saturated Vapour Entropy
x2 = (s2-sf2)/(sg2-sf2);
hf2 = XSteam('hL_p', p2);
hg2 = XSteam('hV_p', p2);
h2 = hf2 + (x2*(hg2-hf2));
% State 3
p3 = p2; % Constant pressure Heat rejection in condenser
s3= XSteam('sL_p', p3);
h3 = XSteam('hL_p', p3);
% State 4
s4 = s3;
p4 = p1;
%%
% Work done by turbine
Wt = h1 - h2;
% Work done to run pump
v3 = XSteam('vL_p', p3);
Wp = v3*(p4 - p3)*100;
h4 = h3 + Wp;
%net work
Wnet = Wt - Wp;
%Heat into the system
Qin = h1 - h4;
%Heat out of the system
Qout = h2 - h3;
%Thermal efficiency
eff = (Wnet/Qin)*100;
%Specific Steam Consumption
%SSC = mass flow rate/power
SSC = (3600/Wnet);
%Calculating temperatures at the state points Schedule a counselling
T3 = XSteam('Tsat_p', p3);
T2 = T3;
Cp4 = XSteam('Cp_ps', p4, s4);
Cv4 = XSteam('Cv_ps', p4, s4);
k = Cp4/Cv4;
T4 = T3/((p3/p4)^((k-1)/k));
%Calculating temperature, entropy and enthalpy at the vapour and liquid
%line for plotting
T6 = XSteam('Tsat_p', p1);
s5 = XSteam('sL_p', p1);
s6 = XSteam('sV_p', p1);
h5 = XSteam('hL_p', p1);
h6 = XSteam('hV_p', p1);
T5 = T6;
%Plotting the saturation curve
T = linspace(1,375,1000);
for i = 1:length(T)
sf(i) = XSteam('sL_T', T(i));
sg(i) = XSteam('sV_T', T(i));
hf(i) = XSteam('hL_T', T(i));
hg(i) = XSteam('hV_T', T(i));
end

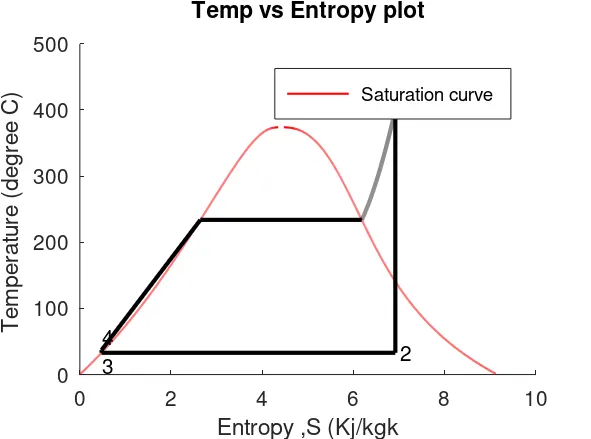

%Plotting T-s diagram
figure(1)
hold on
plot(sf, T, 'r','linewidth',1)
plot(sg, T, 'r','linewidth',1)
plot([s1 s2], [T1 T2], 'k', 'linewidth', 2)
plot([s2 s3], [T2 T3] ,'k', 'linewidth', 2)
plot([s3 s4], [T3 T4], 'k', 'linewidth', 2)
plot([s4 s5], [T4 T5], 'k', 'linewidth', 2)
plot([s5 s6], [T5 T6], 'k', 'linewidth', 2)
sc1 = linspace(s6, s1, 1000);
for l = 1:length(sc1)
Tc1(l) = XSteam('T_ps', p1, sc1(l));
end
plot(sc1, Tc1, 'k', 'linewidth', 2)
text(s1+0.1, T1, '1')
text(s2+0.1, T2, '2')
text(s3, T3-20, '3')
text(s4, T4+20, '4')
title('Temp vs Entropy plot')
xlabel('Entropy ,S (Kj/kgk')
ylabel('Temperature (degree C) ')
legend('Saturation curve')

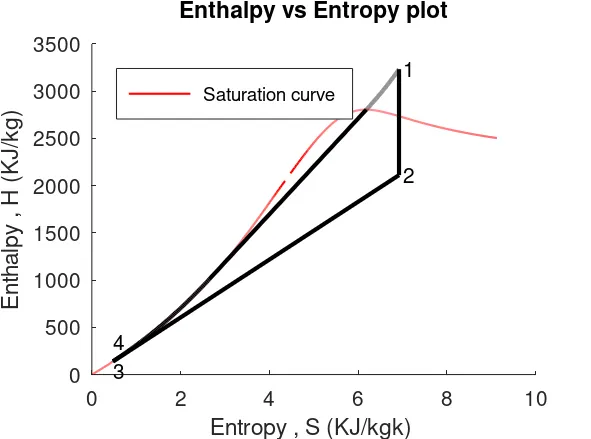

%Plotting h-s diagram
figure(2)
hold on
plot(sf, hf, 'r', 'linewidth', 1)
plot(sg, hg, 'r', 'linewidth', 1)
plot([s1 s2], [h1 h2], 'k', 'linewidth', 2)
plot([s2 s3], [h2 h3], 'k', 'linewidth', 2)
plot([s3 s4], [h3 h4], 'k', 'linewidth', 2)
hc = linspace(h4, h5, 100);
for k = 1:length(hc)
sch(k) = XSteam('s_ph', p1, hc(k));
end
plot(sch,hc, 'k', 'linewidth', 2)
plot([s5 s6], [h5 h6], 'k', 'linewidth', 2)
for m = 1:length(sc1)
hc1(m) = XSteam('h_ps', p1, sc1(m));
end
plot(sc1, hc1, 'k', 'linewidth', 2)
text(s1+0.1, h1, '1')
text(s2+0.1, h2, '2')
text(s3, h3-100, '3')
text(s4, h4 +200, '4')
title('Enthalpy vs Entropy plot')
xlabel('Entropy , S (KJ/kgk) ')
ylabel('Enthalpy , H (KJ/kg)')
legend('Saturation curve','location','northwest')
% Displaying Results
disp(' RESULTS');
fprintf('At State Point 1:n');
fprintf('p1: %8.3f barn', p1);
fprintf('T1: %8.3f Cn', T1);
fprintf('h1: %8.3f KJ/kgn', h1);
fprintf('s1: %8.3f KJ/kgKnn', s1);
fprintf('At State Point 2:n');
fprintf('p2: %8.3f barn', p2);
fprintf('T2: %8.3f Cn', T2);
fprintf('h2: %8.3f kJ/kgn', h2);
fprintf('s2: %8.3f kJ/kgKn', s2);
fprintf('x2: %8.3fnn', x2);
fprintf('At State Point 3:n');
fprintf('p3: %8.3f barn', p3);
fprintf('T3: %8.3f Kn', T3);
fprintf('h3: %8.3f kJ/kgn', h3);
fprintf('s3: %8.3f kJ/kgKnn', s3);
fprintf('At State Point 4:n');
fprintf('p4: %8.3f barn', p4);
fprintf('T4: %8.3f Kn', T4);
fprintf('h4: %8.3f KJ/kgn', h4);
fprintf('s4: %8.3f kJ/kgKnn', s4);
fprintf('Turbine Work: %8.3f kJ/kgn', Wt);
fprintf('Pump Work: %8.3f kJ/kgn', Wp);
fprintf('Wnet: %8.3f kJ/kgn', Wnet);
fprintf('Efficiency: %8.3f Percent n ', eff);
fprintf('S.S.C: %8.3f kJ/kWh', SSC);EXPLANATION TO THE CODE:
1.Using fprintf or disp print the processes involved in the ranking cycle.
2.using input display the prompt at command to get initial values.
3.Read the Xsteam.m code carefully and use it to obtain the value of thermodynamic properties at different states.
4.We need at least 2independent, insensitive properties to define any state.
5.During phase changes, the temperature remains constant.
6.Display the outputs of computed thermodynamic properties of each state.
7.Calculate the efficiency, net work, back work ratio and display it in the command window.
8.To create a vapour dome make use the fact that the critical temperature of the water is 233.86 degree centigrade
9.compute the variation of entropy during the isobaric process and plot the T-S and H-S indicator diagrams.
10.My states 3 and 4 are mixed up because in the 3 to 4 process entropy remains constant and my temperatures T3 and T4 are almost the same which means that pump work is very small.

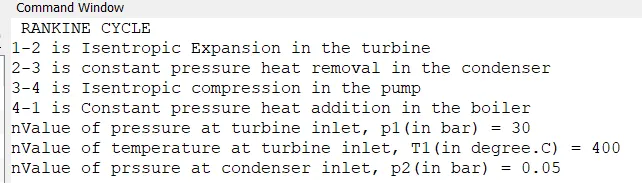

Pass the following inputs during running the program-

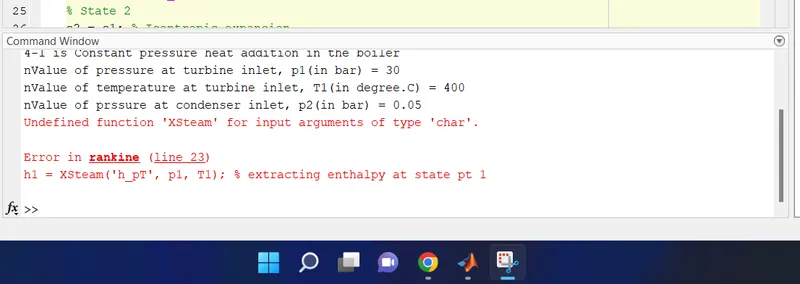

after giving above inputs we have this error
to remove this error we have to put xsteam file in same directory in which our main program is saved, after completion this

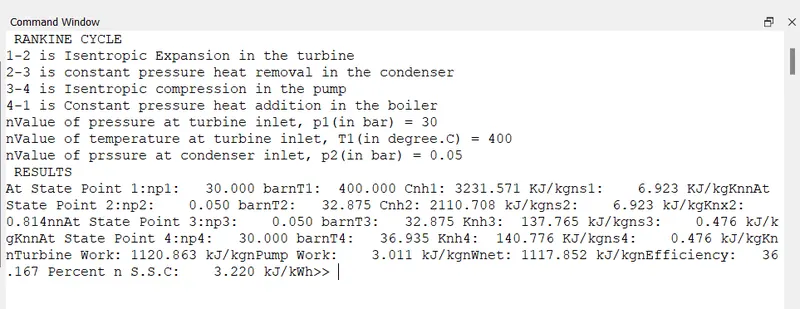

We got following output-
