Project 2 - Modeling of 3 phase Induction Motor Drive

1)

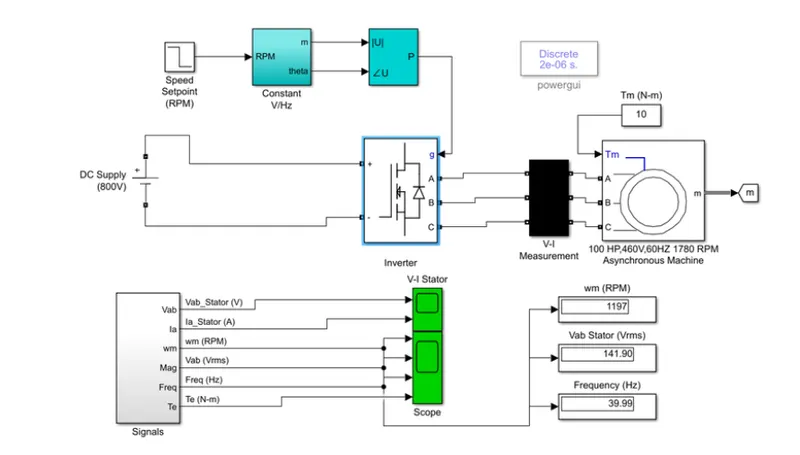

simulink model

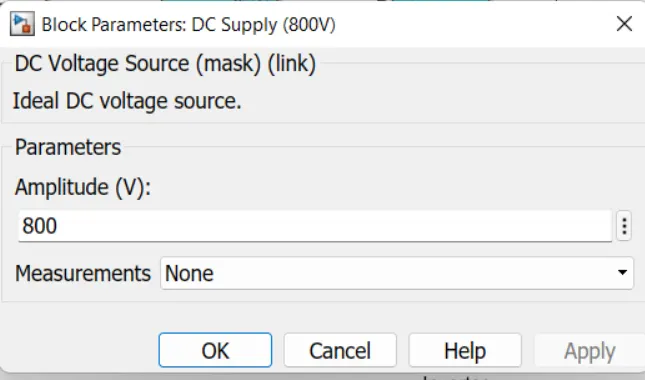

voltage is given as 800V ie given in parameters

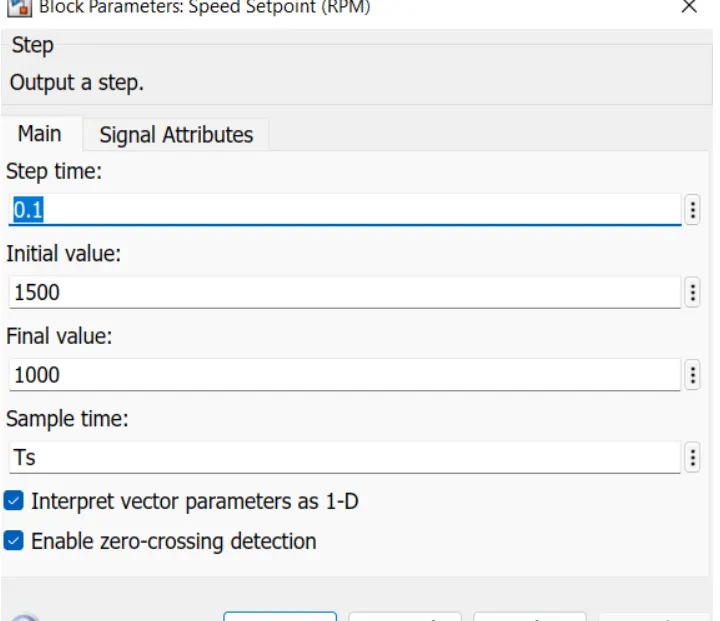

in step block the step time is given as 0.1

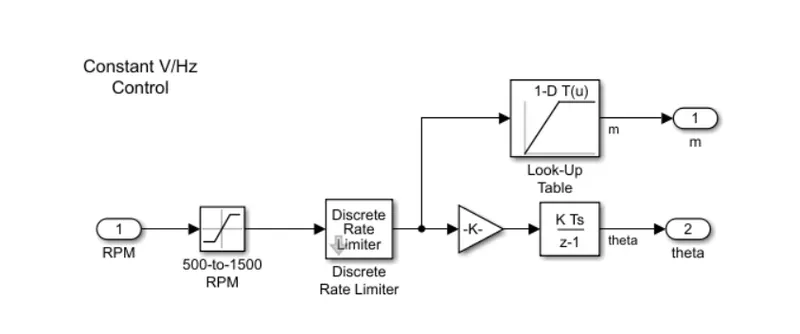

blocks inside the V/HZ control subsystem

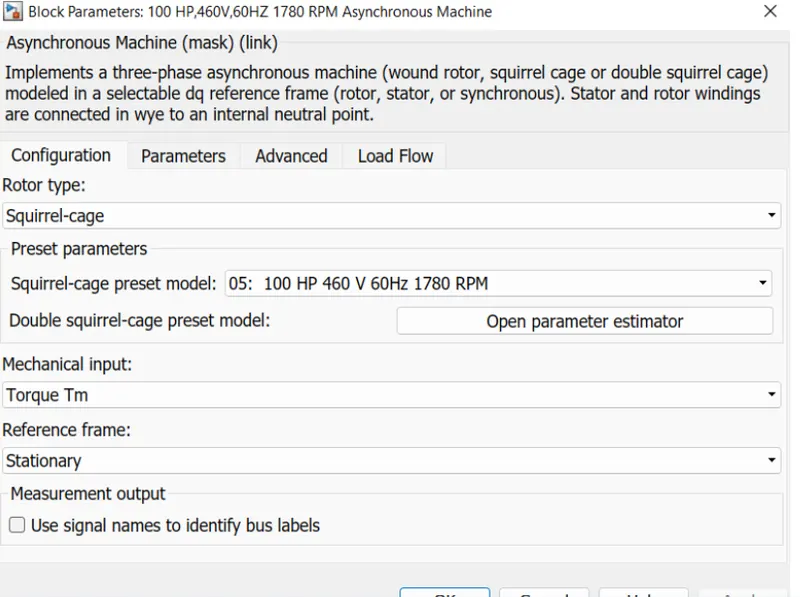

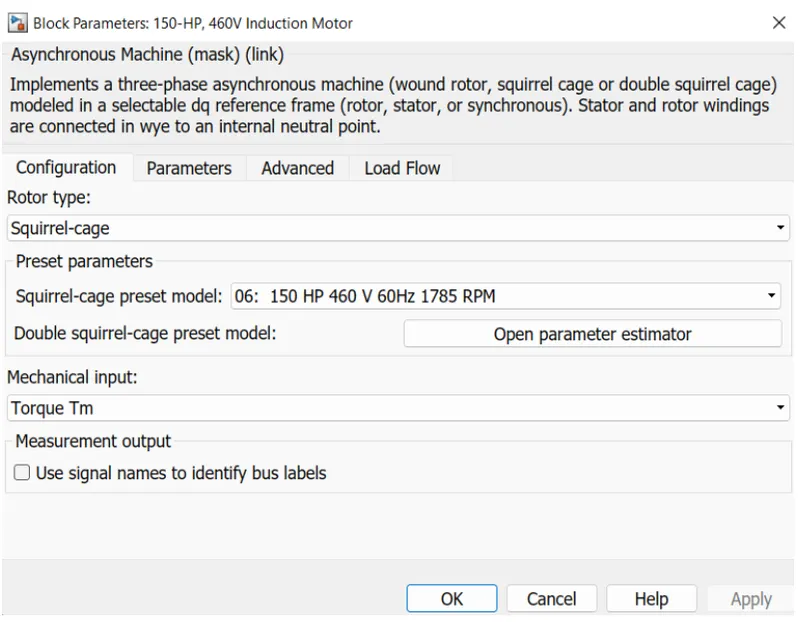

in the asynchronous machine parameters, the rotor type is changed into squirrel cage as advised in the parameters

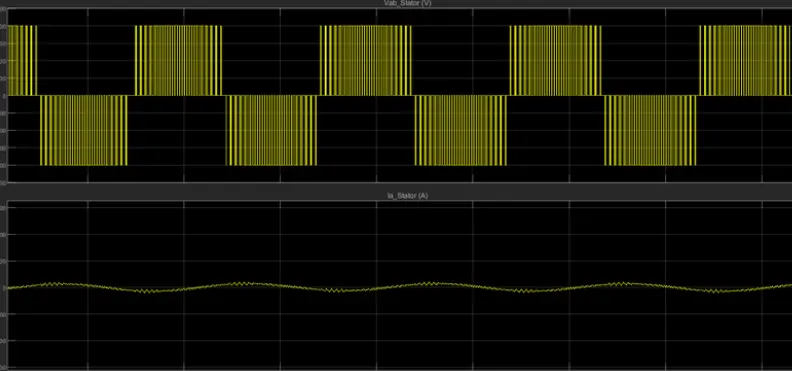

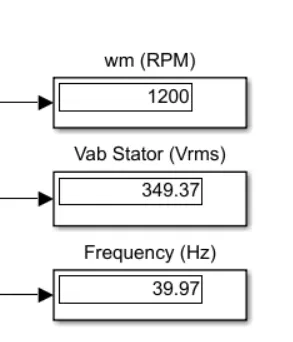

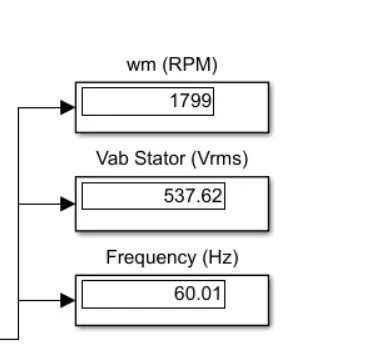

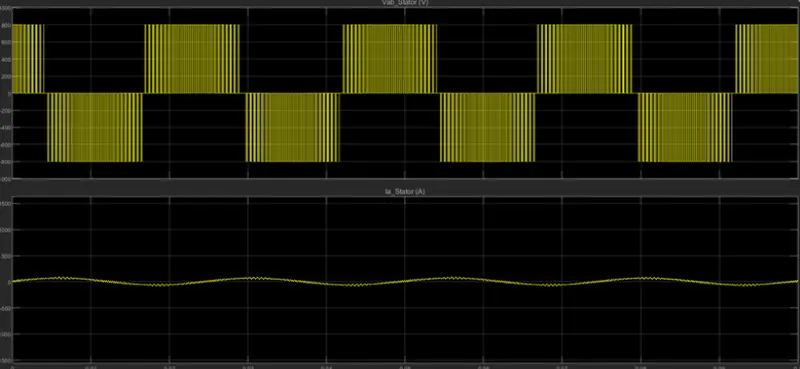

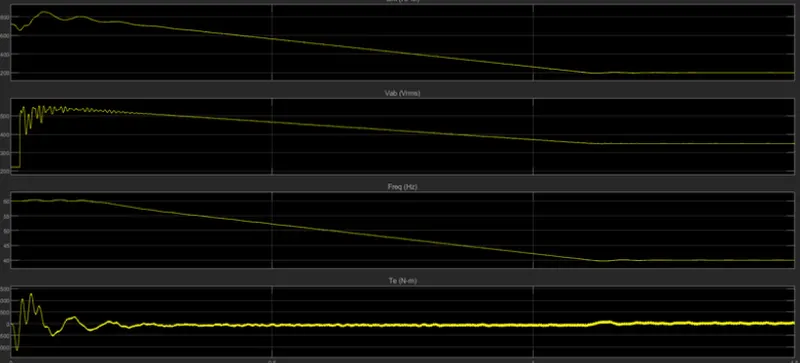

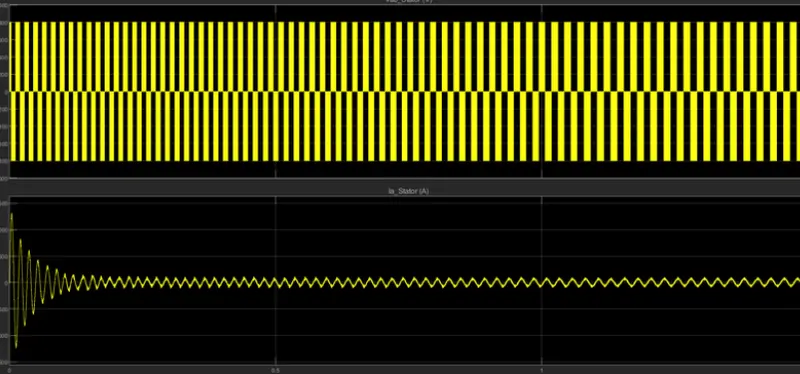

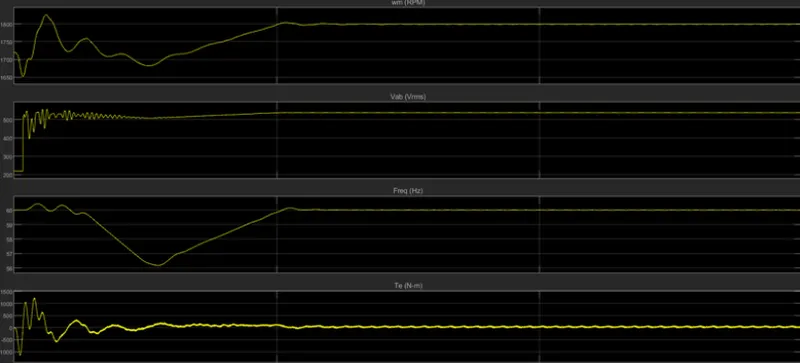

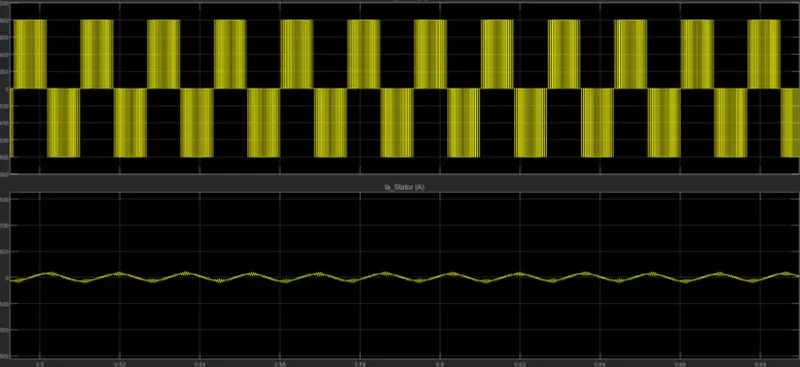

output waveform

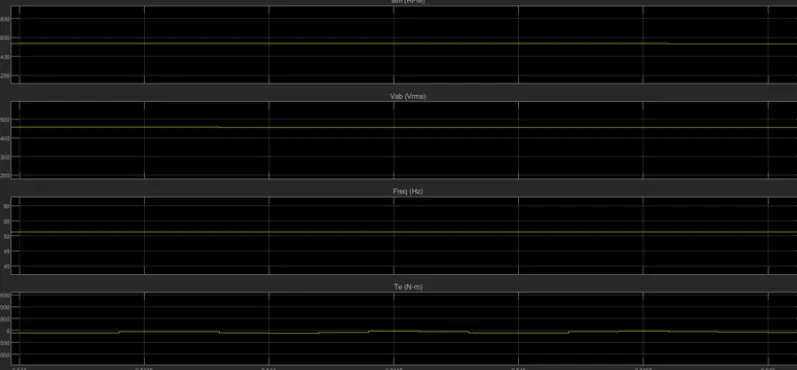

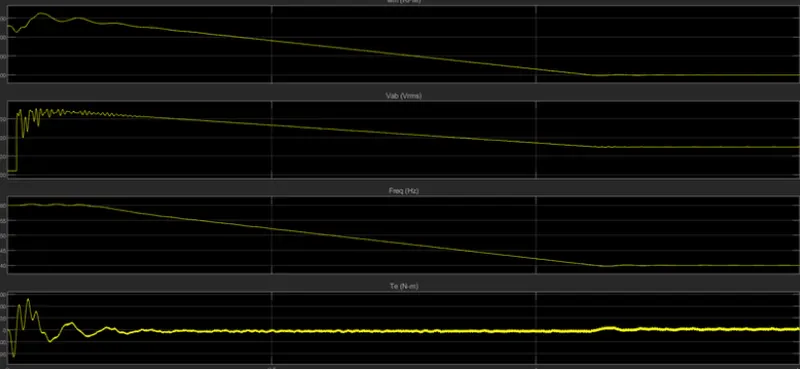

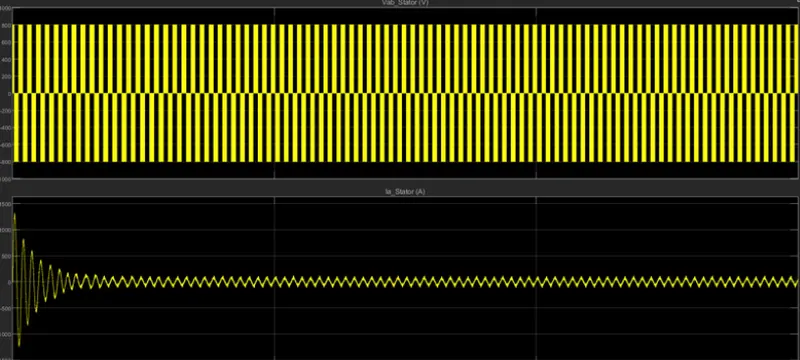

when constant torque at 20NM

*For back emf to speed relation, assume a linear rate from 0.25 to 1, with speed changing from 500 RPM to 2000 RPM

2)

3)

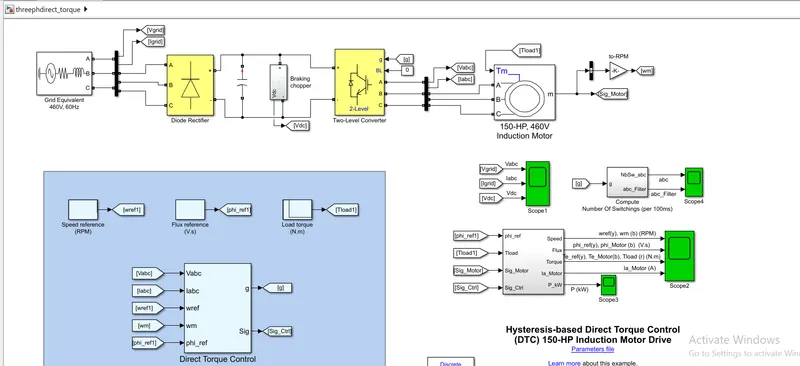

simulink model

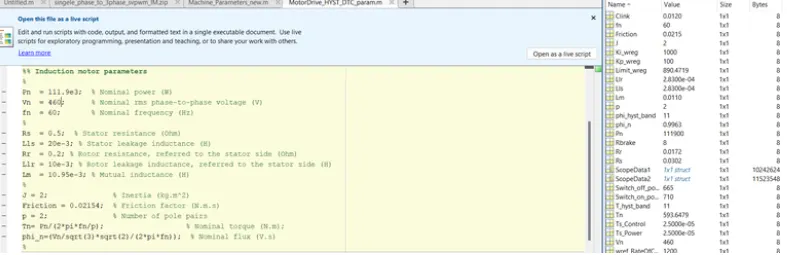

command window

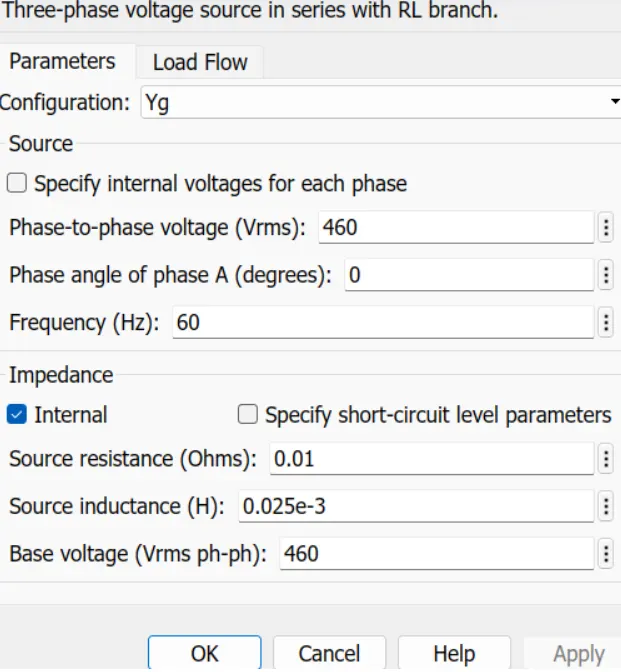

three phase ac source

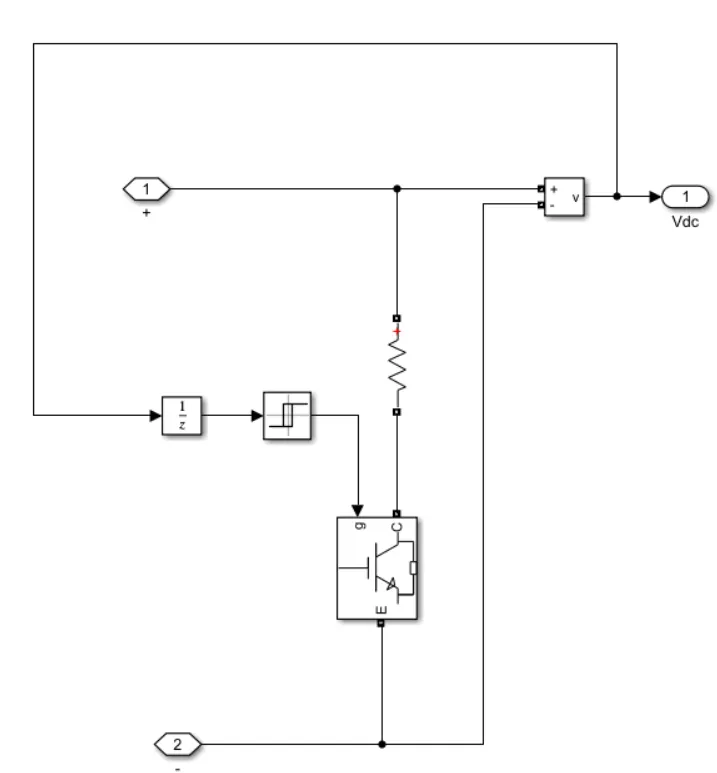

braking chopper

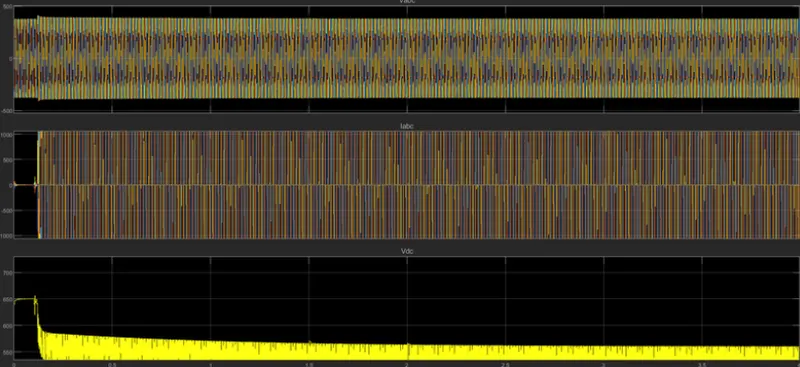

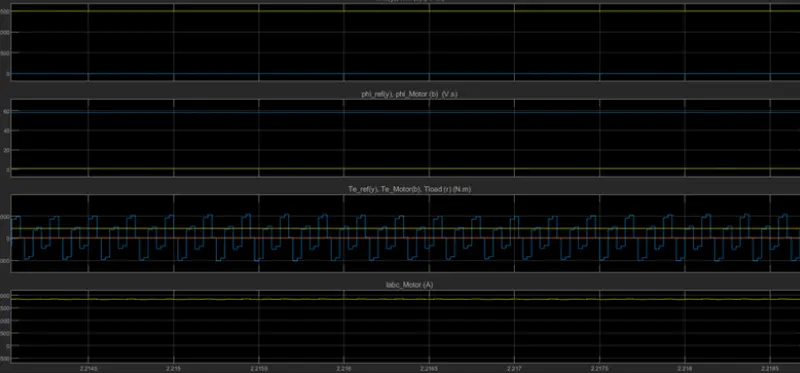

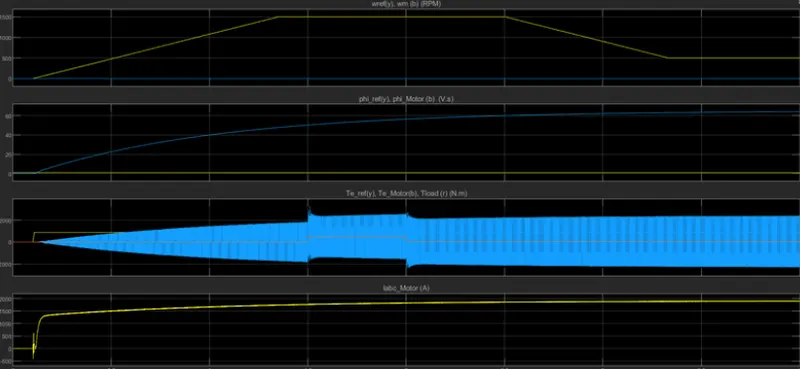

output

*Vabc

*Iabc

* Vdc

*abc

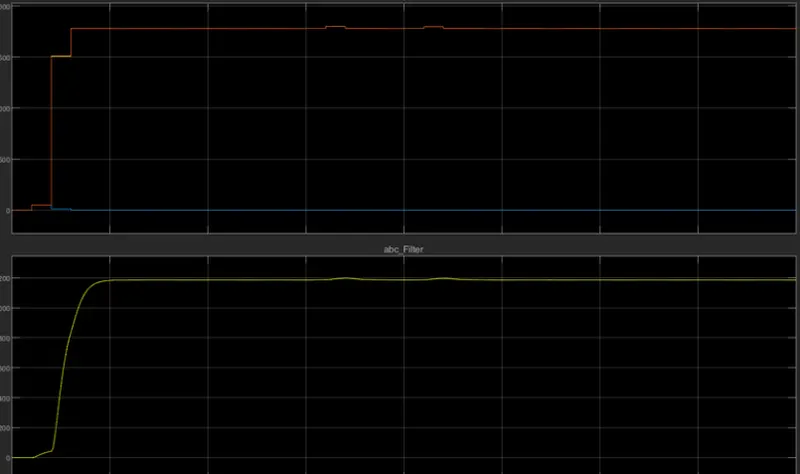

*abc filter
