Project - 2 - Meshing on the suspension Assembly

https://drive.google.com/file/d/11cGIob6IFGVBw2plP9OlTGRP-8dBJ6jP/view?usp=sharing

model was 150 mb and couldnt be uploaded

procedure-

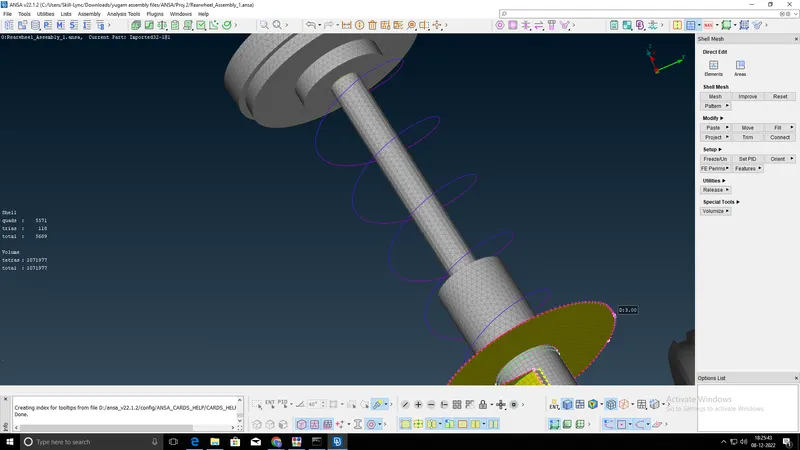

for spring
create a curve , by using middle option
create a COG for curve
go to nastran deck , and use cbar element to convert spring curve into a connection
select curve , and point
select box method
select element size to be 3
set area by keeping radius as 5

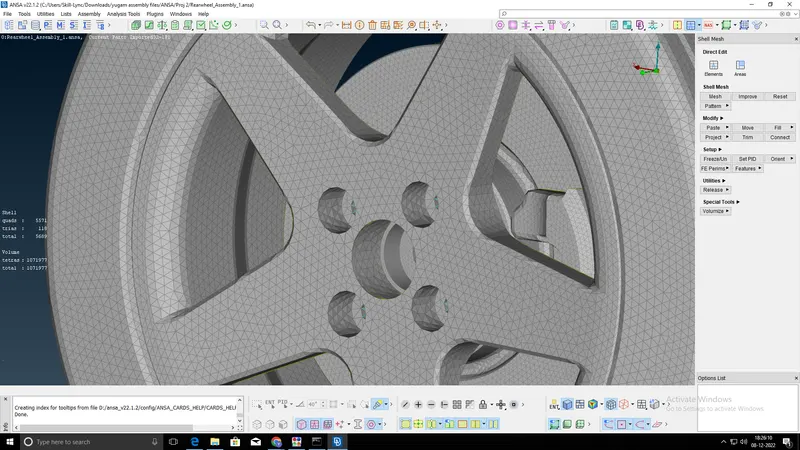

for tyre and rim
create tria elements of required quality parameter
convert to tetra
and check for failure

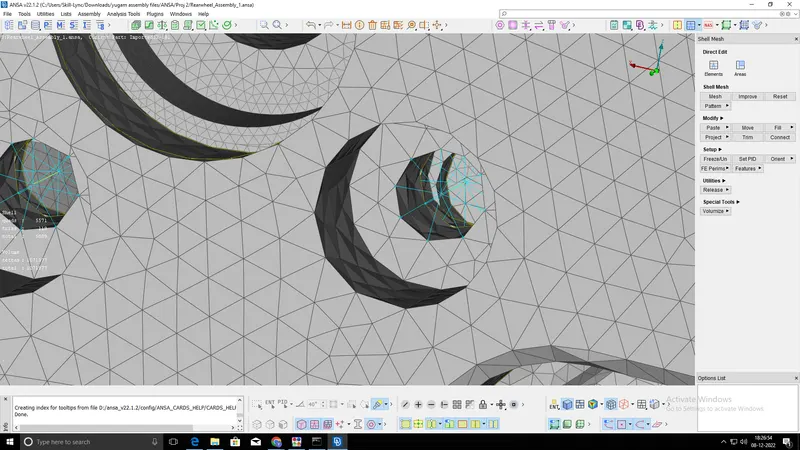

create bolt connectiong using rbe2 elements

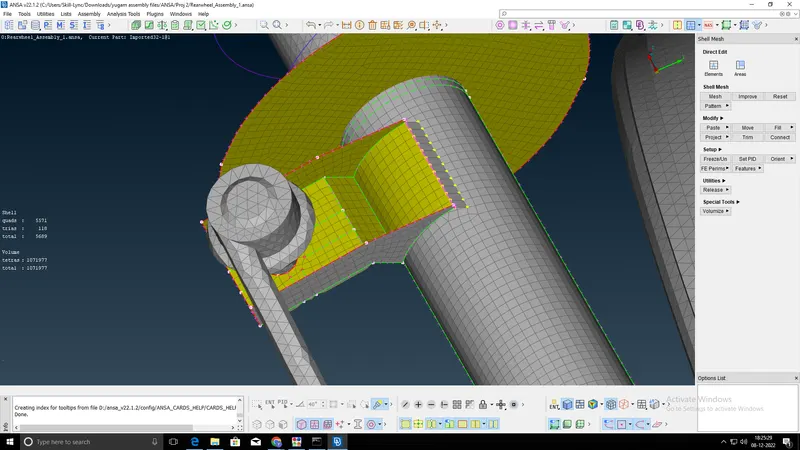

create seam weld for spring connecting the sheet metal component
