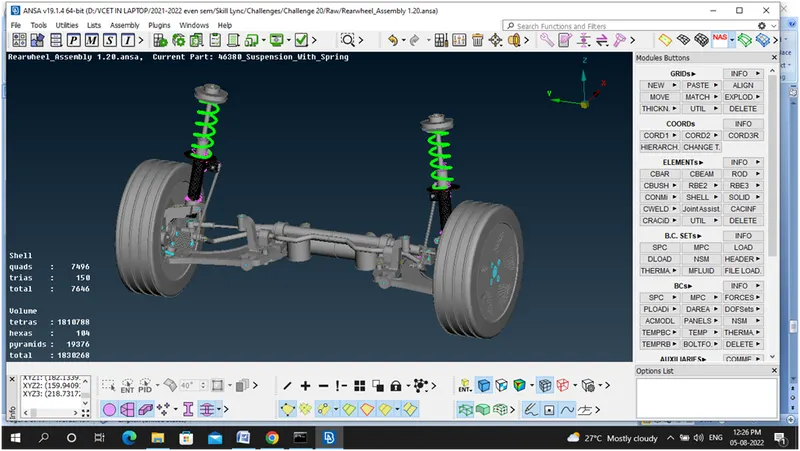

Project - 2 - Meshing on the suspension Assembly

Aim:

For the given rear wheel assembly to check for geometrical errors, mesh with quality criteria, for mid component thickness has to be assigned and use proper connections to connect the components.

Step 1: Geometry Clean up done for Rim

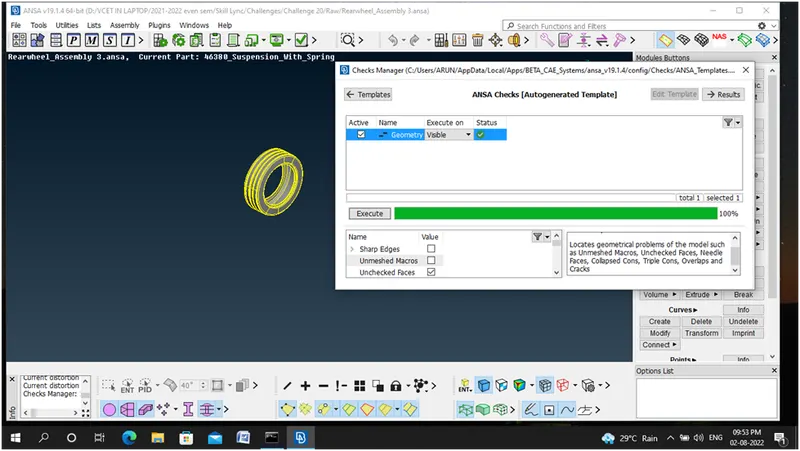

Step 2: Geometry Clean up done for tyre

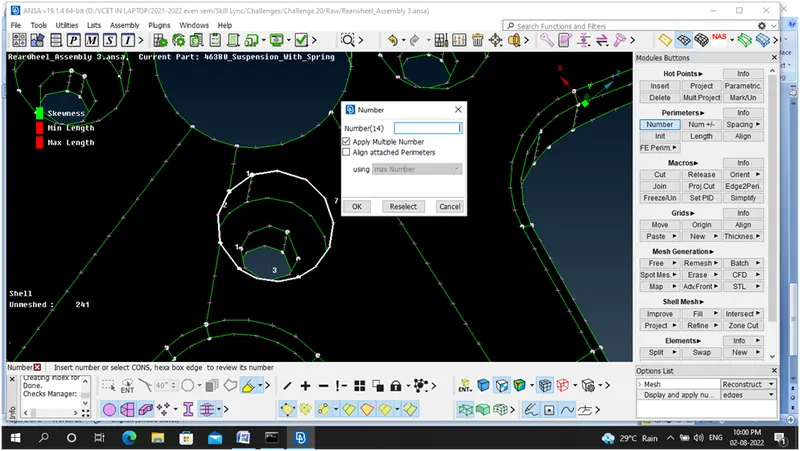

Step 3: For circular components make the element numbers as even number

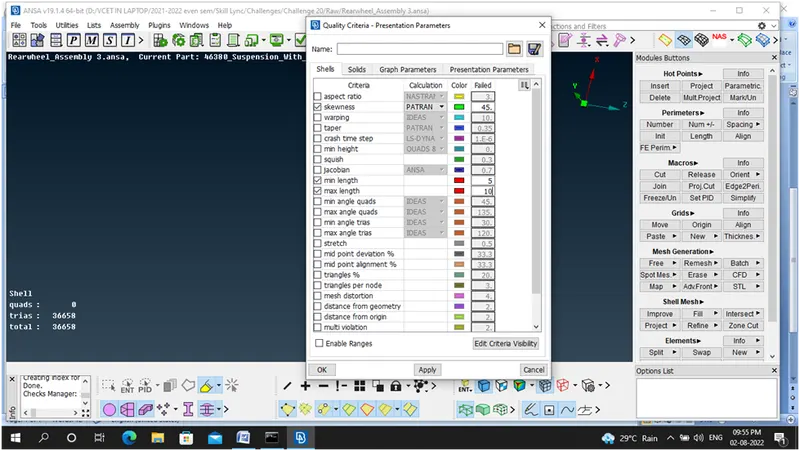

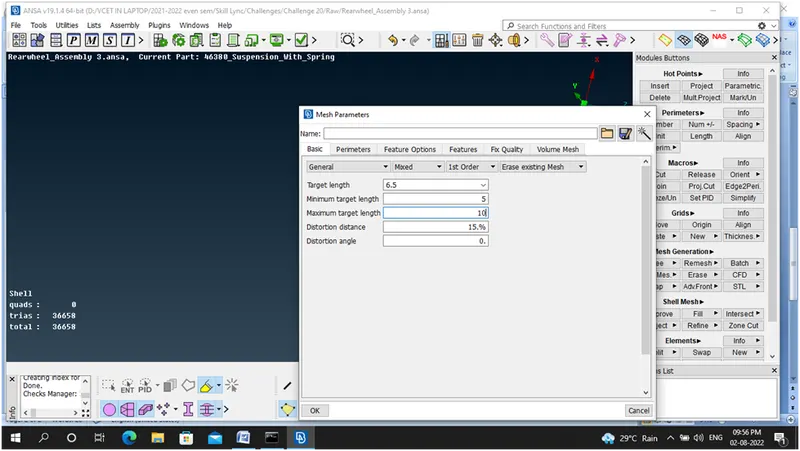

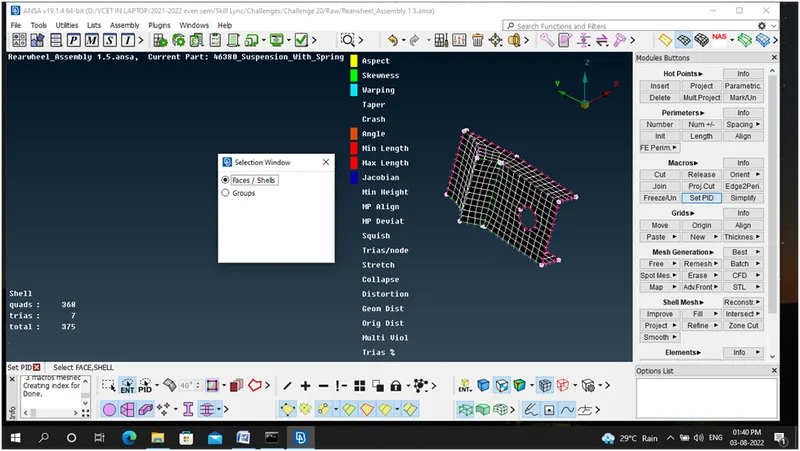

Step 4: Setting quality criteria and meh parametres for rim and tyre

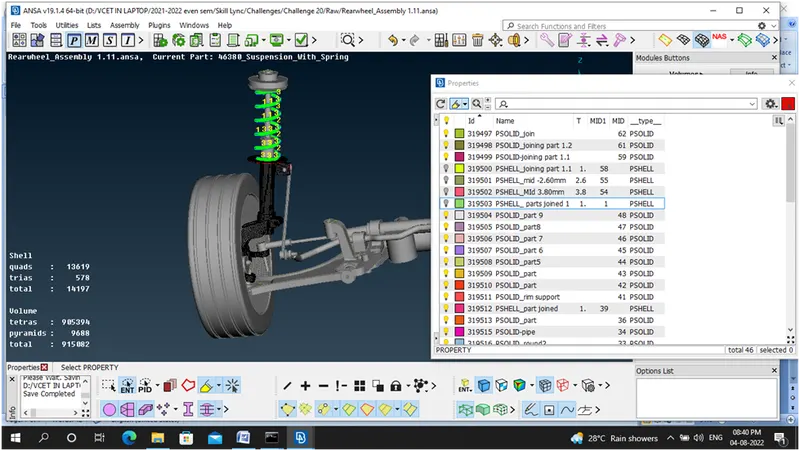

Step 5:Mid taken for the parts

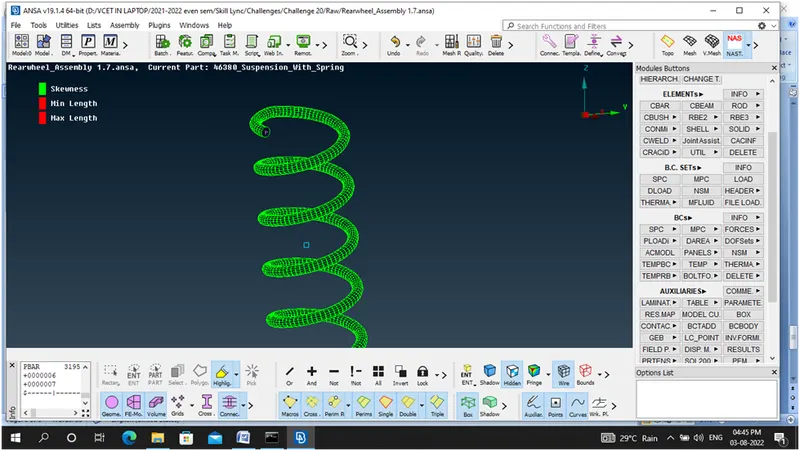

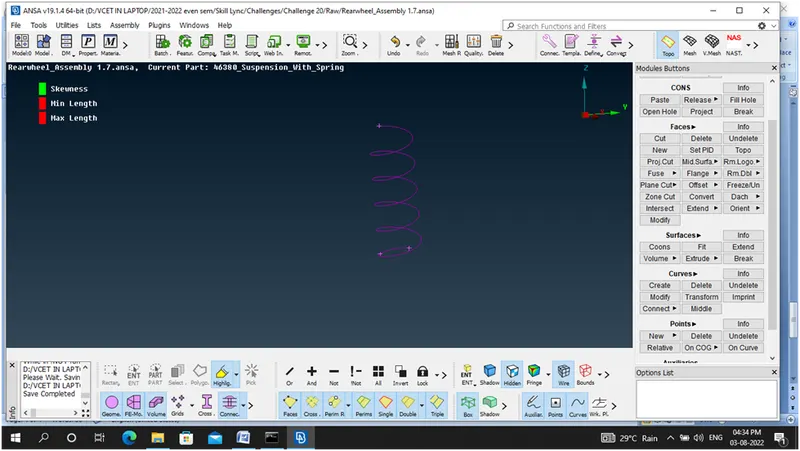

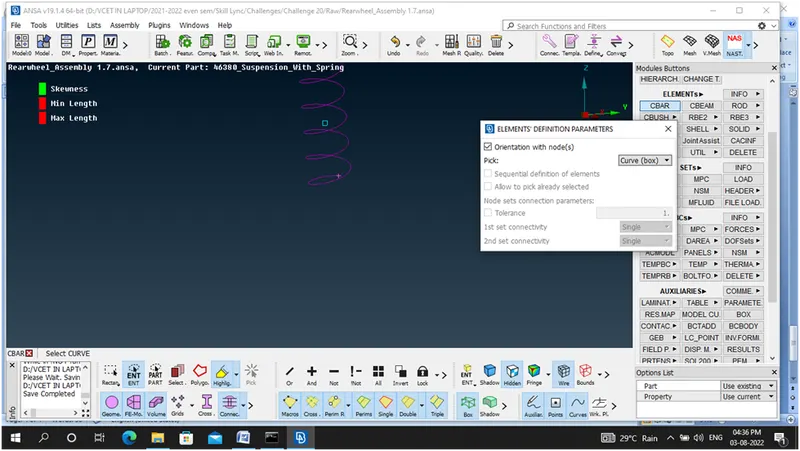

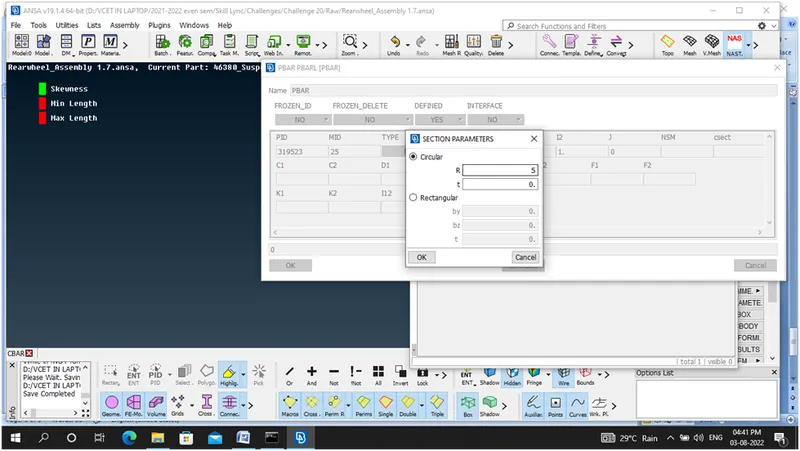

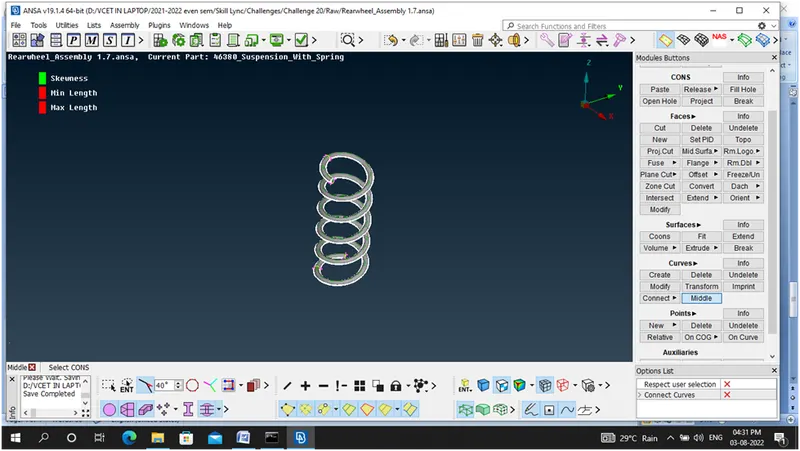

Step 6: Mid surface for the spring

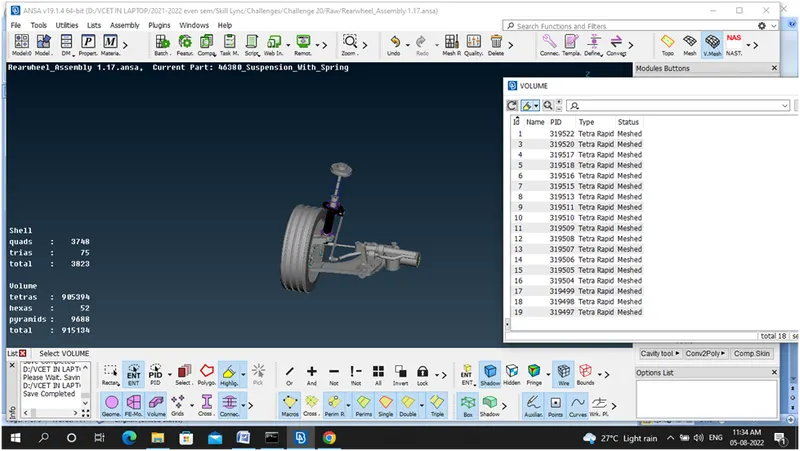

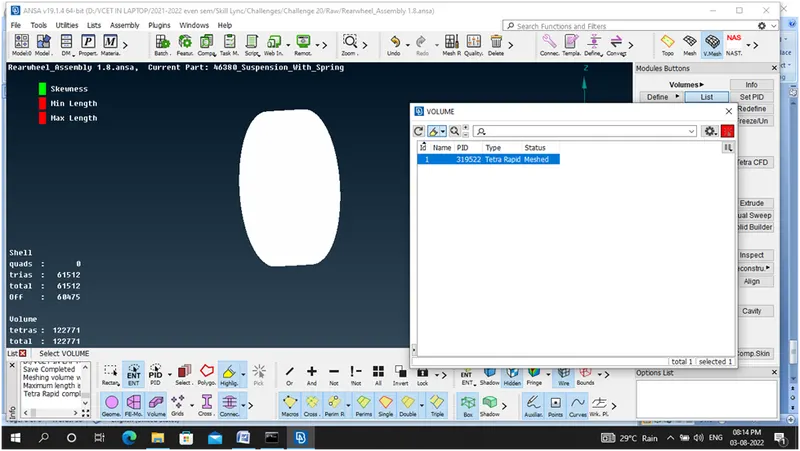

Step 7: Define volume mesh for tyre, rim and other components and set specific PIDS

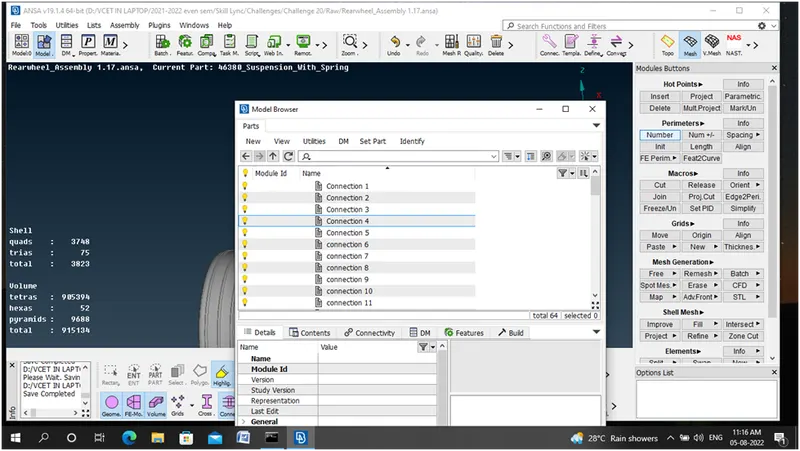

Connections:

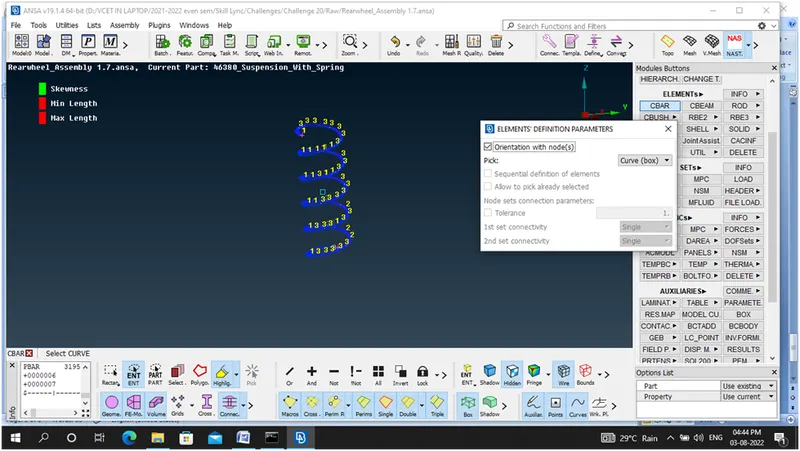

Necessary RBE2 connections have done

RBE3-HEXA RBE3-Necessary spot weld connections have done

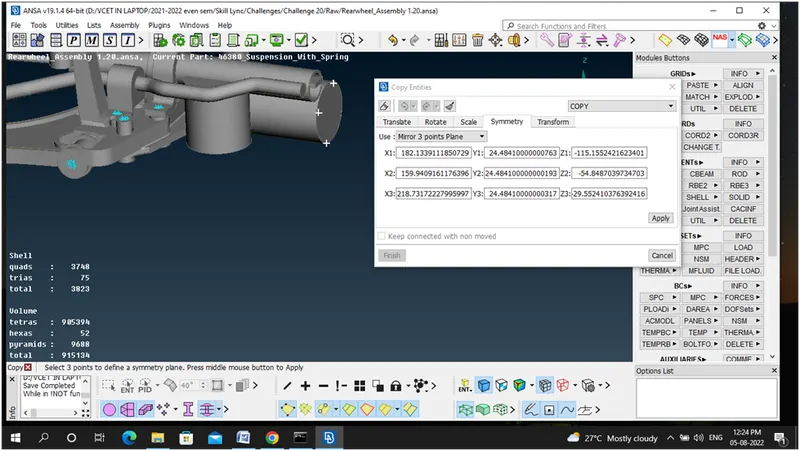

Transform –copy-symmetry-mirror 3 point plane

Learning Outcomes:

Learned and utilized the commands like

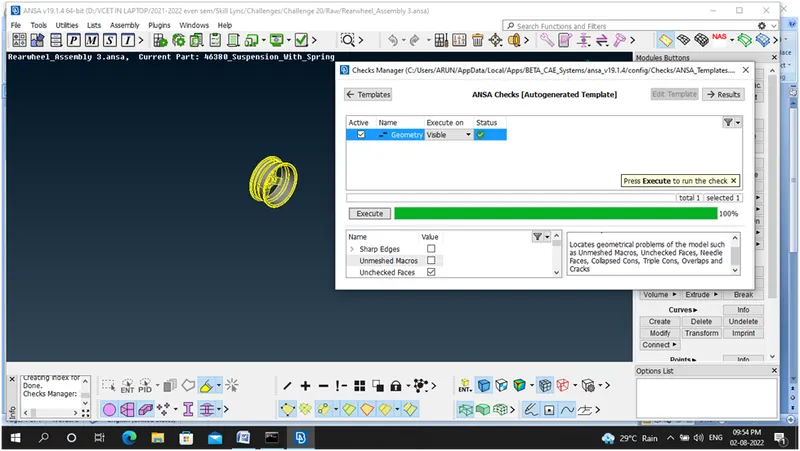

Geometry check

Topo Module-Hot points, cons,curves, points and auxiliaries

Mesh module-Mesh generation-best, Reconstruction, Reshape, Smooth

Elements – swap, split, new, delete

V-Mesh Module- Define, List

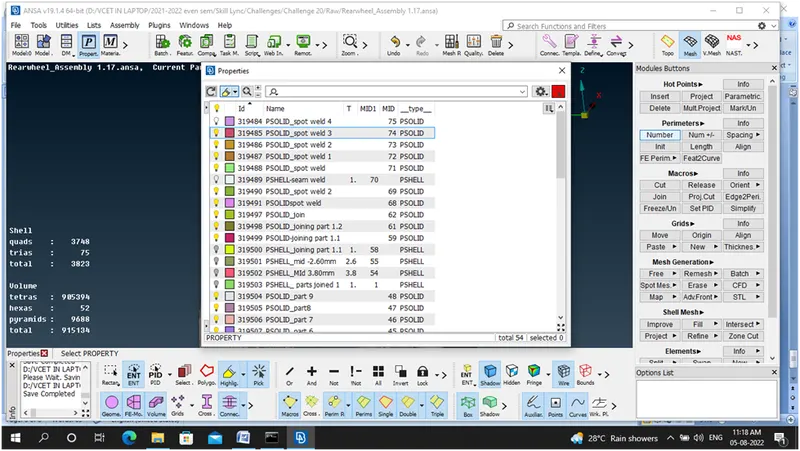

Nastran Deck- RBE2, RBE3-HEXA-RBE3-SEAM WELD-OVERLAPSHELL, Y JOINT SHELL

F11-Setting quality criteria

F12-Database Module

Conclusion:

For the given rear wheel assembly geometrical errors, mesh with quality criteria, for mid component thickness has to be assigned and proper connections to connect the components have done successfully.
