Project 2 - Measuring the distance of an object using ultrasonic sensor and also smoothen the sensor data using moving average filter

MMohamed Thameemul Ansari A19 May 2023

Overview of the Project:

In this project the implementation of code for “Measuring distance of an object using ultrasonic distance sensor (28015 Ping) and also smoothen the sensor data using moving average filter”.

Goals:

Measuring the distance in terms of inches of an object using Ultrasonic Distance Sensor (28015 Ping).
The sensor data is smoothened by using Moving average filter technique to eliminate the high frequency variations from the sensor data.

Key Highlights of the Project:

Measuring the distance travelled by the wave to the object and gets bounced back from the object to sensor.
Smoothening the sensor data by moving average filter technique, the filter has a window of certain size. That window determines that how many data the filter can take.

Deliverables of this project:

The distance travelled by a wave to the object for which we want to measure the distance using Ultrasonic Distance Sensor (28015 Ping).
Eliminate the high frequency jitters from the sensor data by Moving Average filter to smoothen the sensor data.

Expected Outcomes:

The students will get the Knowledge on Ultrasonic sensor (28015 Ping) to measure the distance travelled by wave to the object, the hardware connection of 2 Arduino’s connected to the sensor and smoothening the sensor data by removing high frequency variations using Moving Average Filter Technique.

Ultrasonic Distance Sensor :

ultrasonic distance sensor provides precise, non-contact distance measurements from about 3 cmto 3 meters. It is very easy to connect to microcontrollers such as the BASIC Stamp, Propeller chip, or Arduino, requiring only one I/O pin.

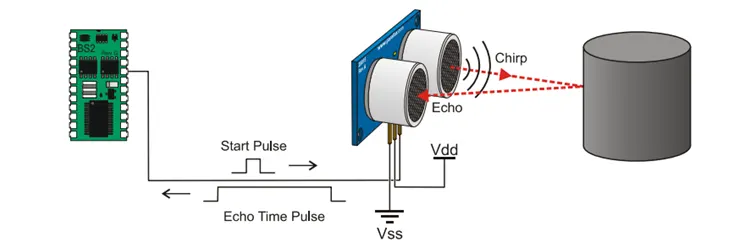

The PING sensor works by transmitting an ultrasonic (well above human hearing range) burst and providing an output pulse that corresponds to the time required for the burst echo to return to the sensor. By measuring the echo pulse width, the distance to target can easily be calculated.

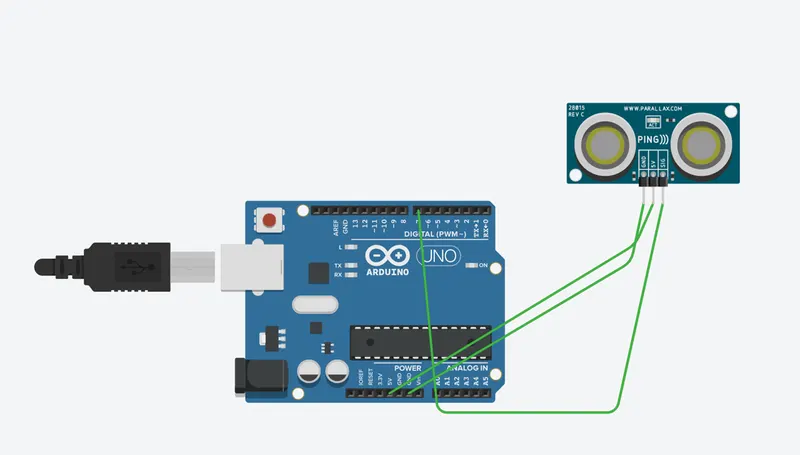

Diagram :

Ping sensor 5v pin conncected to Arduino 5V supply.
Ping sensor Echo pin Connected to Pin no 7.
Gnd connected to Arduino Ground pin.

Program Code :

const int pingPin = 7;

void setup() {

// initialize serial communication:

Serial.begin(9600);

}

void loop() {

// establish variables for duration of the ping, and the distance result

// in inches and centimeters:

long duration, inches, cm;

// The PING is triggered by a HIGH pulse of 2 or more microseconds.

// Give a short LOW pulse beforehand to ensure a clean HIGH pulse:

pinMode(pingPin, OUTPUT);

digitalWrite(pingPin, LOW);

delayMicroseconds(2);

digitalWrite(pingPin, HIGH);

delayMicroseconds(5);

digitalWrite(pingPin, LOW);

// The same pin is used to read the signal from the PING))): a HIGH pulse

// whose duration is the time (in microseconds) from the sending of the ping

// to the reception of its echo off of an object.

pinMode(pingPin, INPUT);

duration = pulseIn(pingPin, HIGH);

// convert the time into a distance

inches = microsecondsToInches(duration);

cm = microsecondsToCentimeters(duration);

Serial.print(inches);

Serial.print("in, ");

Serial.print(cm);

Serial.print("cm");

Serial.println();

delay(100);

}

long microsecondsToInches(long microseconds)

{

return microseconds / 74 / 2;

}

long microsecondsToCentimeters(long microseconds)

{

// The speed of sound is 340 m/s or 29 microseconds per centimeter.

// The ping travels out and back, so to find the distance of the object we

// take half of the distance travelled.

return microseconds / 29 / 2;

}

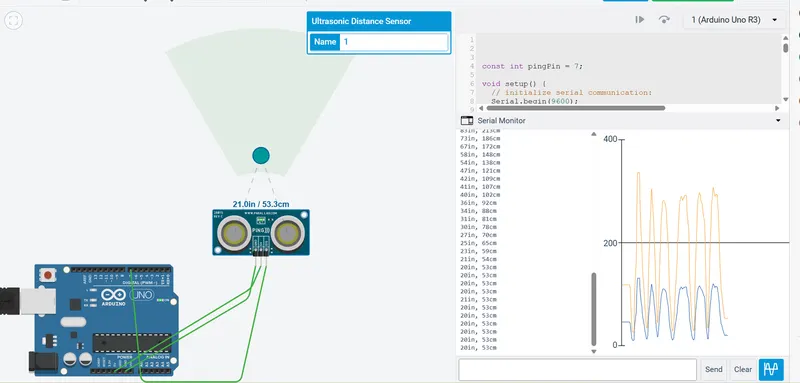

OUTPUT :
