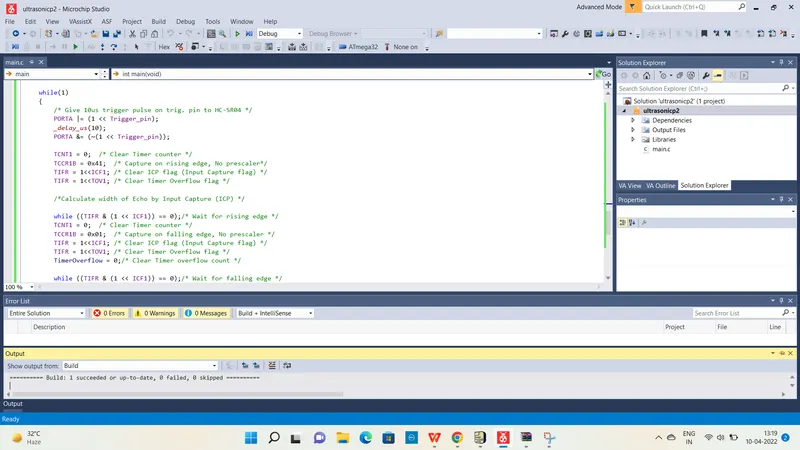

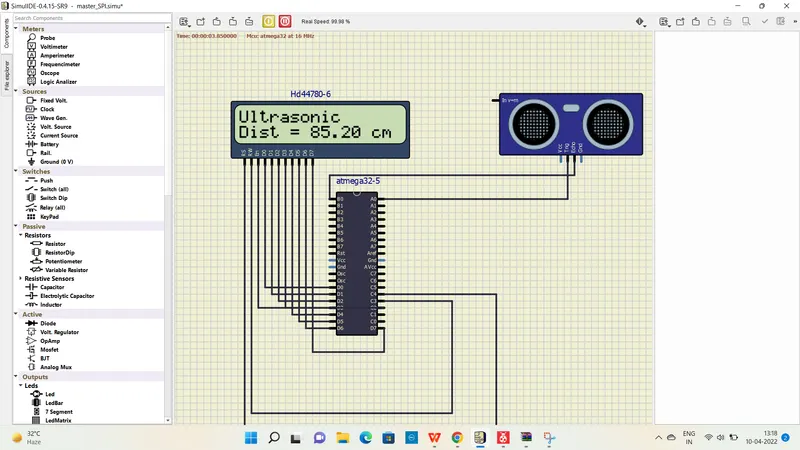

Steps of Programming ATmega16 microcontroller needs to transmit at least 10 us trigger pulse to the HC-SR04 Trig Pin. After getting a trigger pulse, HC-SR04 automatically sends eight 40 kHz sound waves and the microcontroller waits for rising edge output at the Echo pin. When the rising edge capture occurs at the Echo…

Configuring Timer0 for PWM generation It is simple to configure PWM mode in Timer. We just need to set some bits in the TCCR0 register. TCCR0: Timer Counter Control Register 0   Bit 7- FOC0: Force compare match Write only bit, which can be used while generating a wave. Writing 1 to this bit will force the wave…
