Project 2 - Implement the Code for controlling the retraction and extension of Airplane’s landing gear

Overview of the Project: In this project, a Finite State Machine is used to manage the retraction and extension of an airplane's landing gear (FSM). The most efficient algorithm is the FSM, which is a mathematical processing model.

Actually an airplane has 3 gears for landing: Nose gear, Left gear, Right gear.

There is an electrically powered hydraulic pump that applies pressure to the gears to bring it down or pull it up.

There is a limit switch on each leg of the gear. One extra squat switch is installed in the nose gear to assess whether the plane is on the ground or not.

Goals:

Valve's direction can be controlled.

Controlling the retraction and extension of the landing gear on an aeroplane.

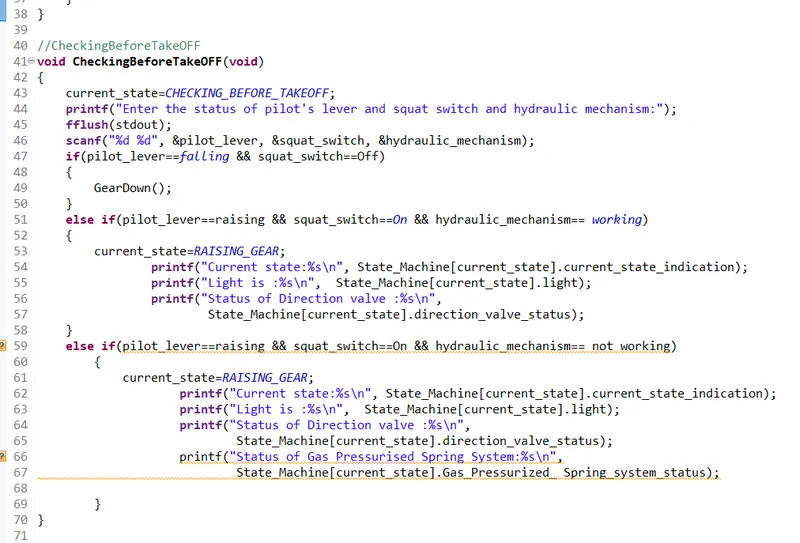

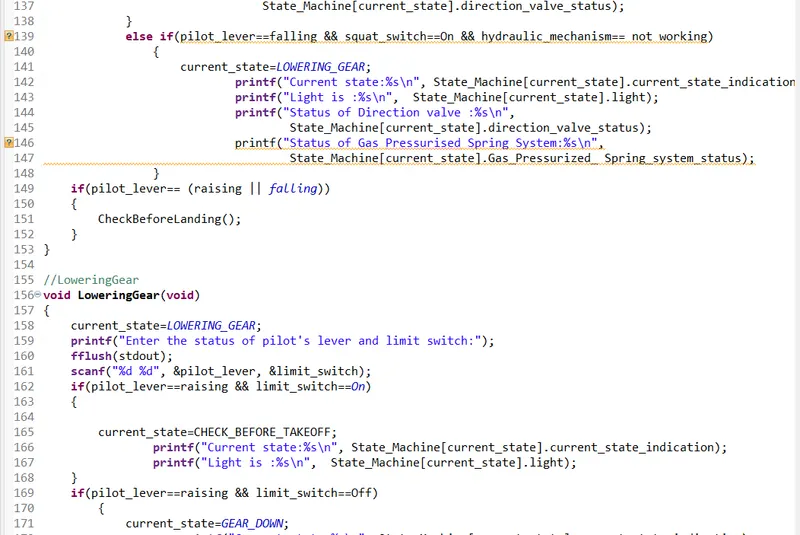

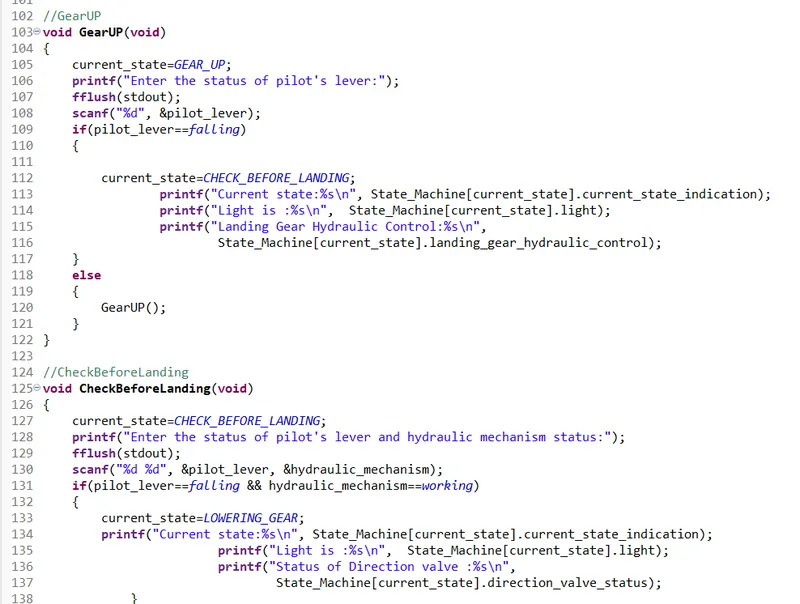

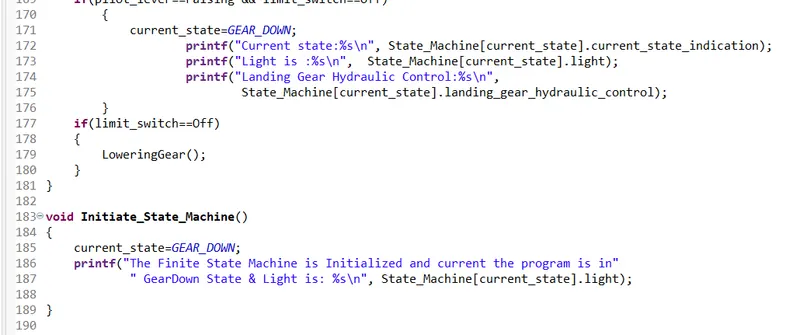

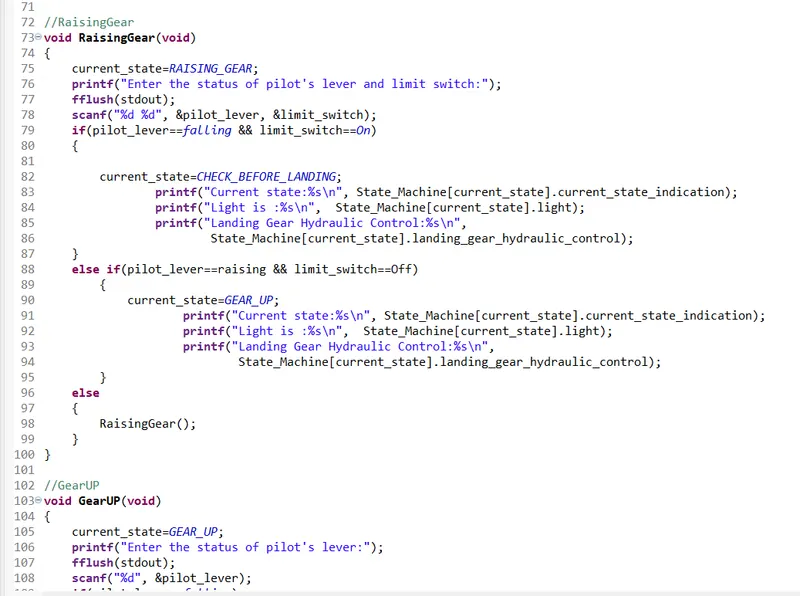

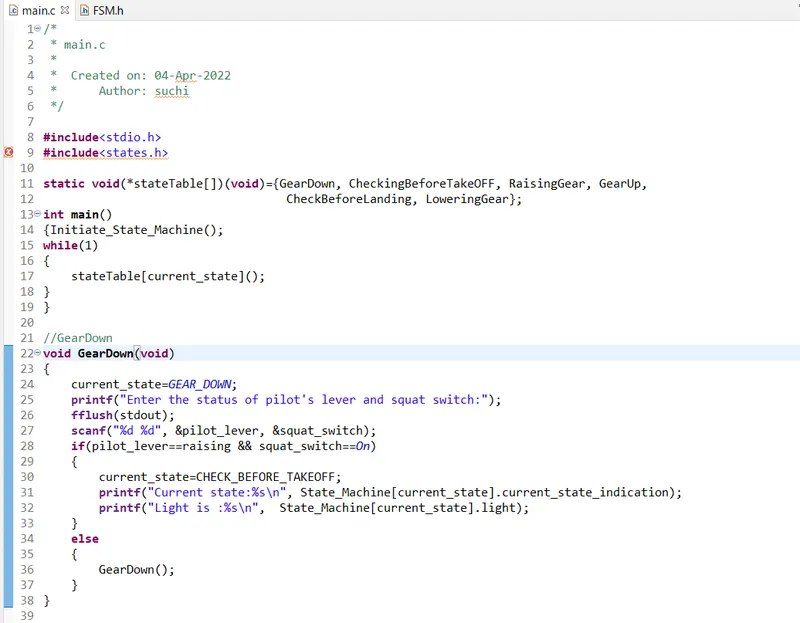

Source File:

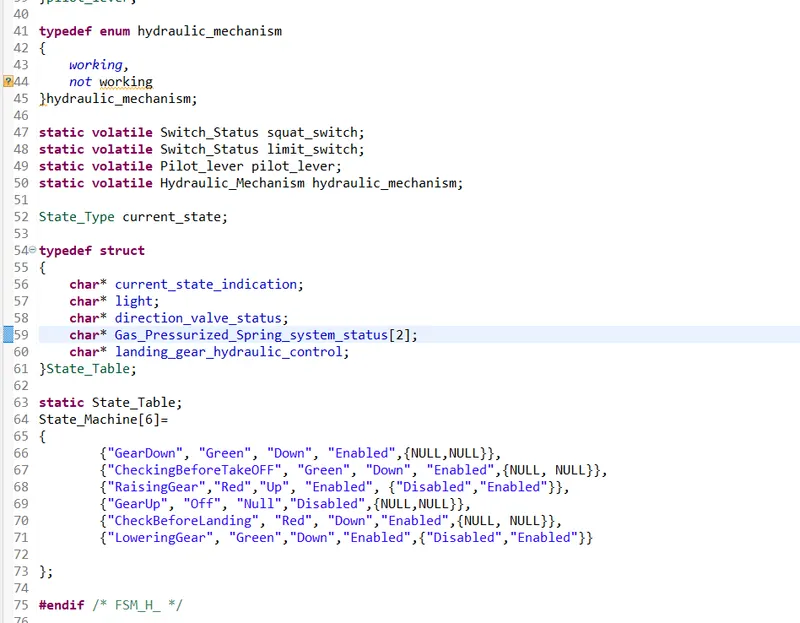

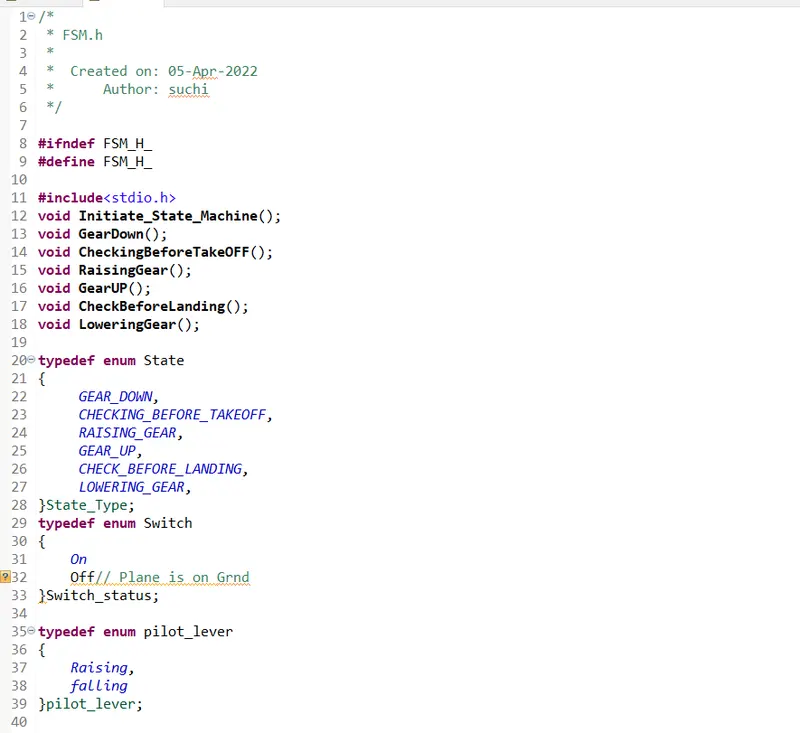

Header File:
