Project 2 - Development of TFT Cluster Speedometer Software Component

Aim:

To develop Cluster Instrument receives the signals from other ECU via CAN bus interface. It also receives commands from the driver via steering wheel buttons. The signals are then processed by the Cluster ECU, after which the Cluster ECU may send the vehicle information to the LCD or light the LEDs and so forth, according to the results. Therefore, the Cluster ECU can be viewed as a carrier of the information flow

solution

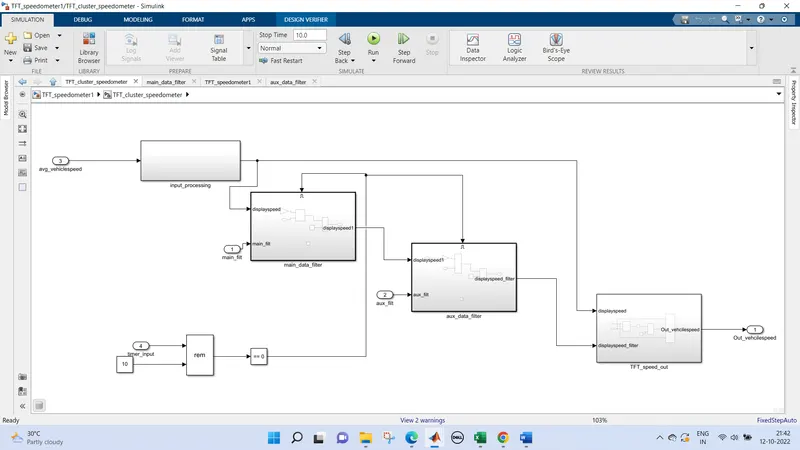

TFT Cluster Speedmeter is developed using MATLAB/Simulink using the requirement shown below

Requirements:

1.1 Calculating TFT Display Speed

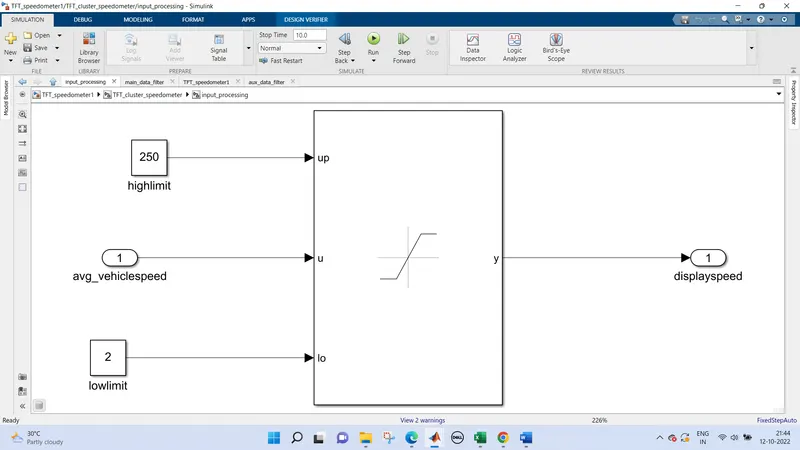

Average Vehicle Speed would be displayed only if its between 2 kmph & 250 kmph. Any value outside this range will be discarded by its lower limit & upper limit.When Average Vehicle Speed is < 2 kmph, DisplaySpeed = 2 kmph.When Average Vehicle Speed is in between 2 kmph & 250 kmph, DisplaySpeed = Average Vehicle Speed.When Average Vehicle Speed is > 250 kmph, DisplaySpeed = 250 kmph

1.2 Main Data Filtering

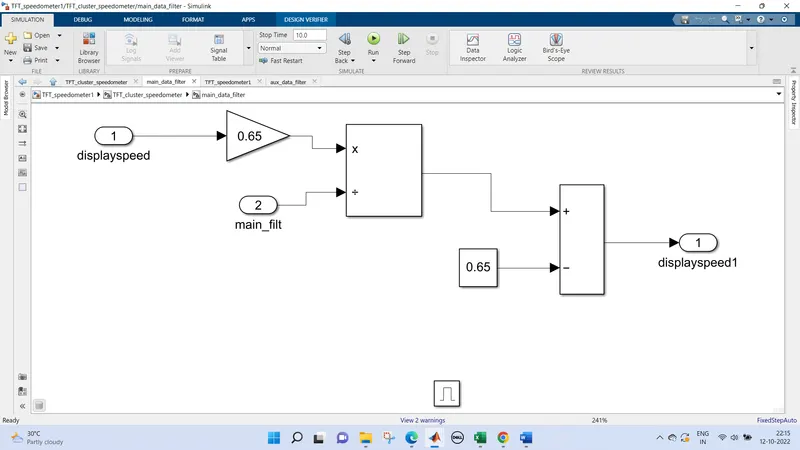

Main Data Filtering subsystem will be activated for every 10th millisecond.DisplaySpeed1 (t) = ((DisplaySpeed (t) x 0.65)/ Main Filter Speed Value) 0.05

1.3 Auxiliary Data Filtering

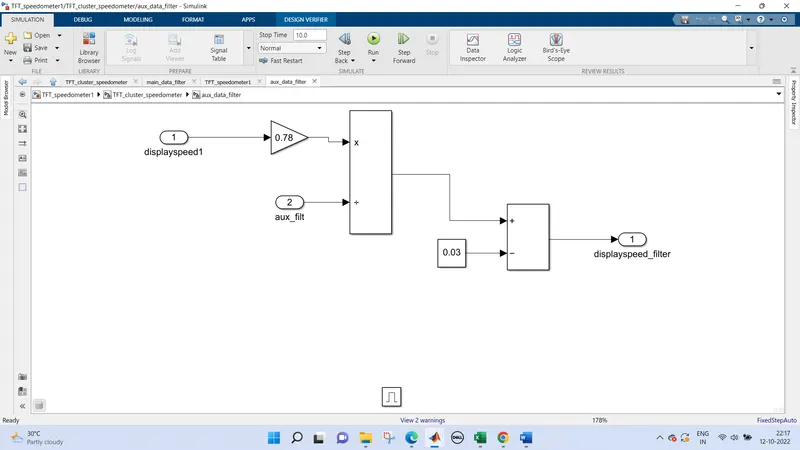

Auxiliary Data Filtering subsystem will be activated for every 10th millisecond,DisplaySpeed_Filter (t) = ((DisplaySpeed1 (t) x 0.78)/ Auxillary Filter Speed Value) - 0.03

1.4 TFT Speed Output

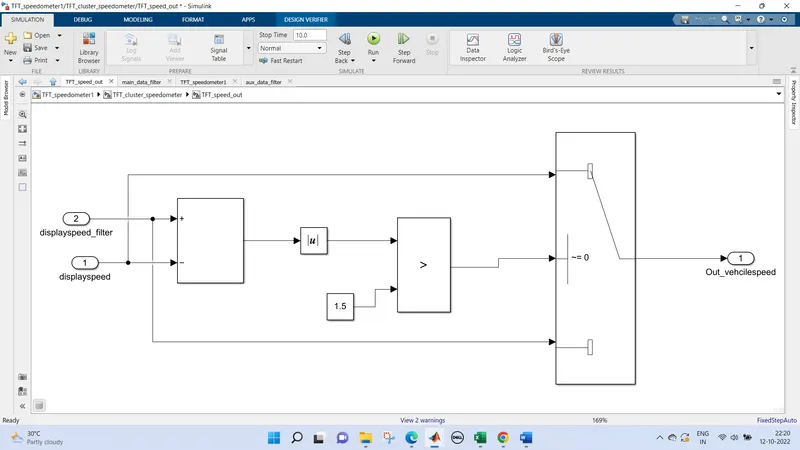

If |(DisplaySpeedFilter - DisplaySpeed)| > 1.5

{

Vehicle Speed Display = DisplaySpeed

}

else

{

Vehicle Speed Display = DisplaySpeed Filter

}

SLDD file tagging

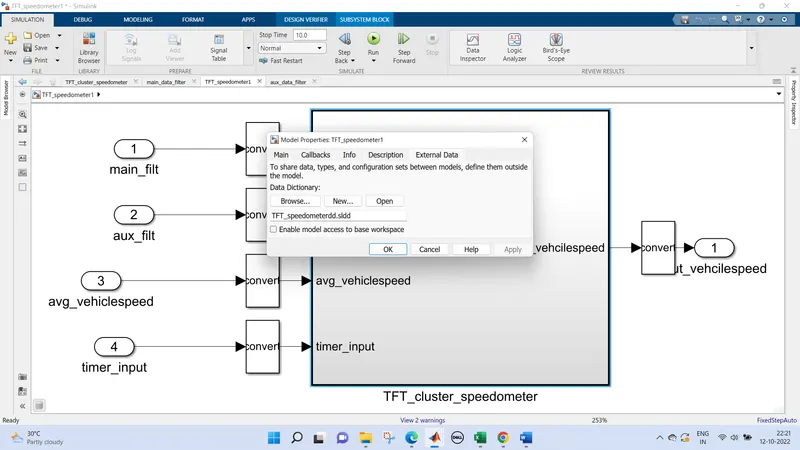

simulink data dictionaryfile

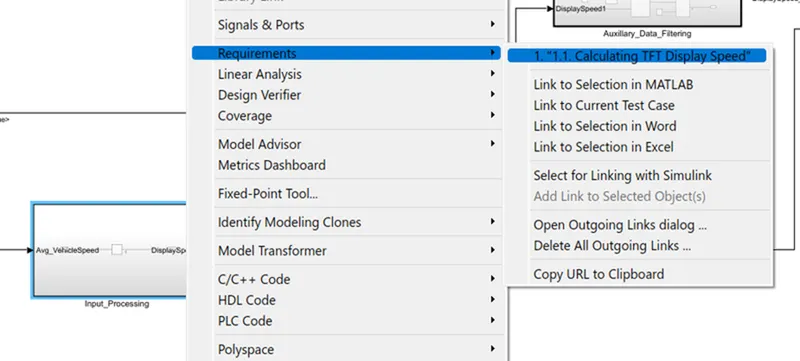

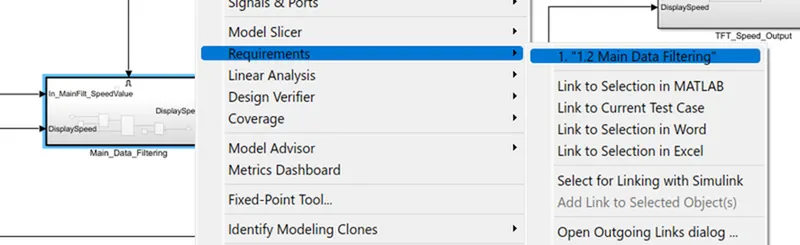

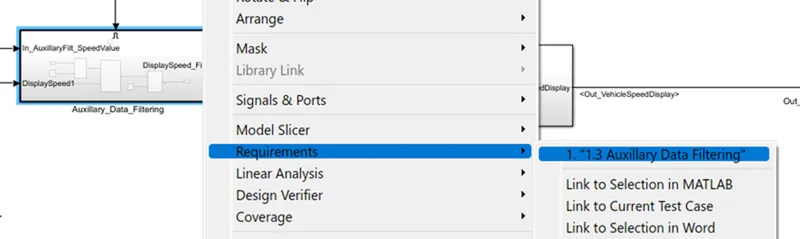

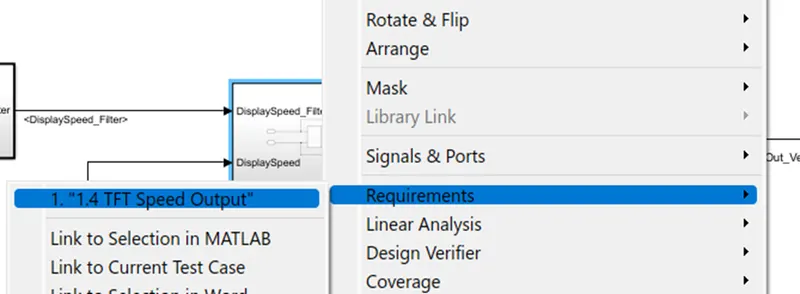

Requirement tagging1

Requirement tagging2

Requirement tagging3

Requirement tagging4

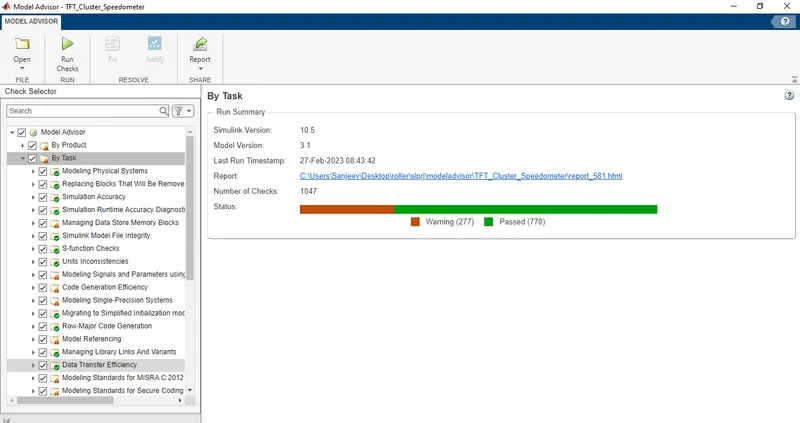

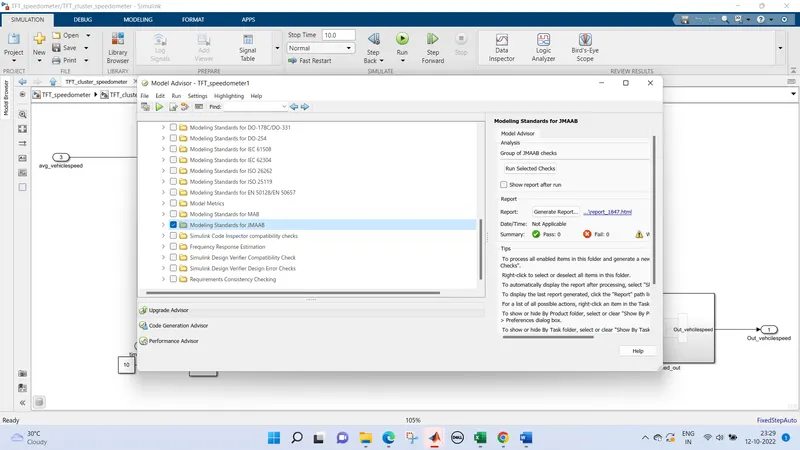

Model advisor JMAAB checking

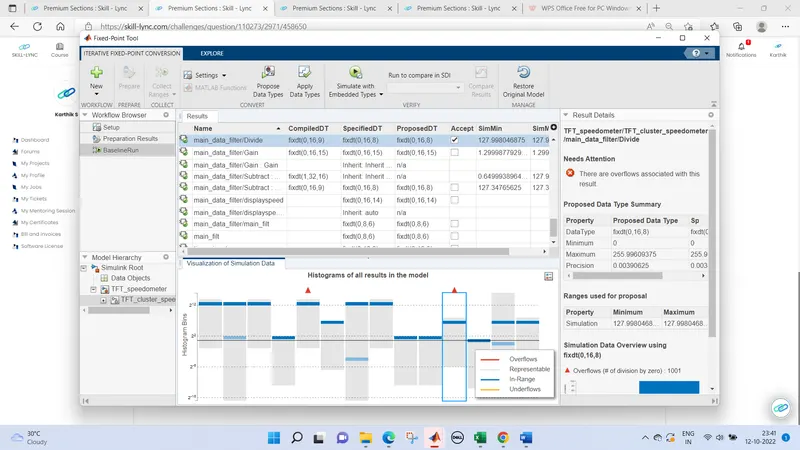

Fixed point tool report

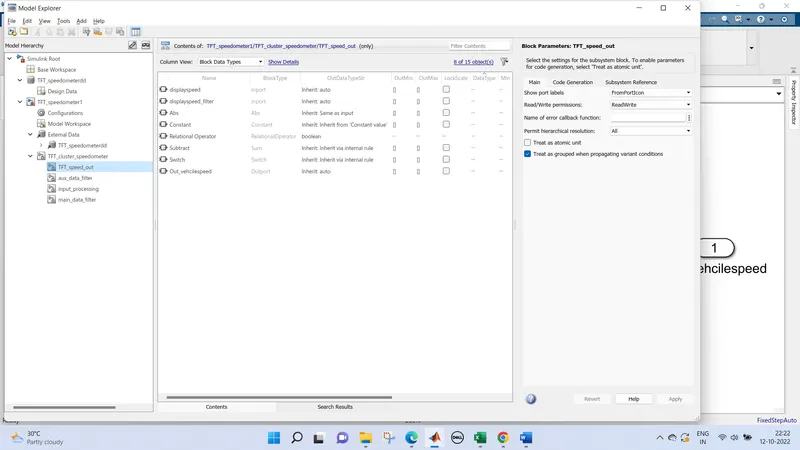

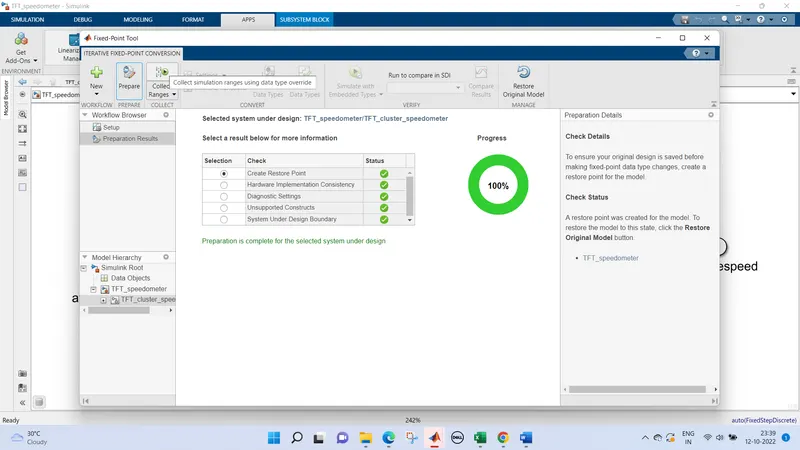

Applied the corresponding data types

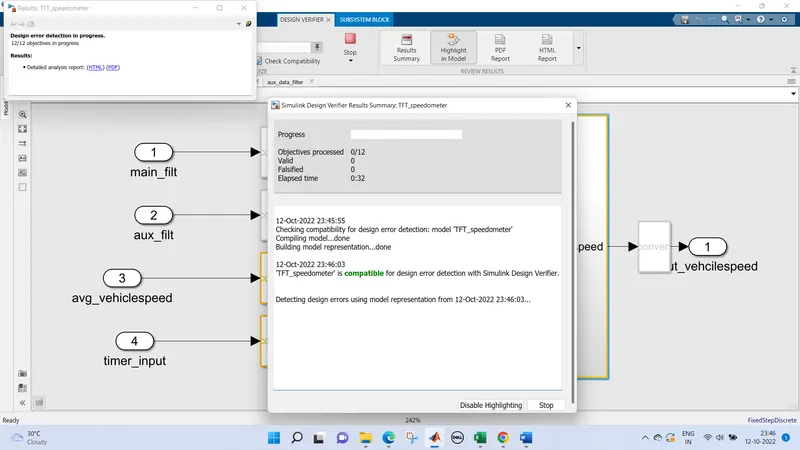

Checked the SLDVDesign error report

report attached as TFT_speedometer_reportSLDV

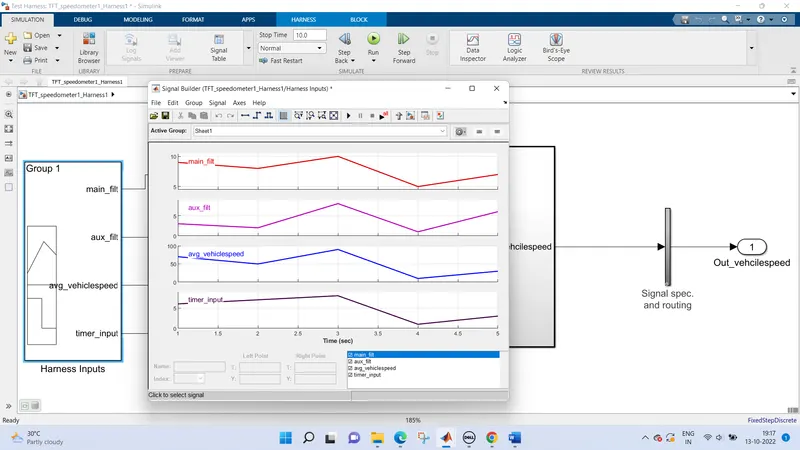

MIL testing shoen below
