Project - Data Handling and Interpolation

Project:-

In a laboratory experiment, data of voltage and current has been recorded and the same is attached in an excel file ( Click on this link VI.xlsx ). Read the excel file in the Matlab program and perform the interpolation in the range of -17.3:0.1:0.9. Generate the interactive plot for the interpolated data and store them in a text file.

Answer:-

AIM:

• In this project, we are reading the excel file into the MATLAB program.
• perform the interpolation in the range of -17.3:0.1:0.9
• Generate the interactive plot for the interpolated data and store them in a text file.

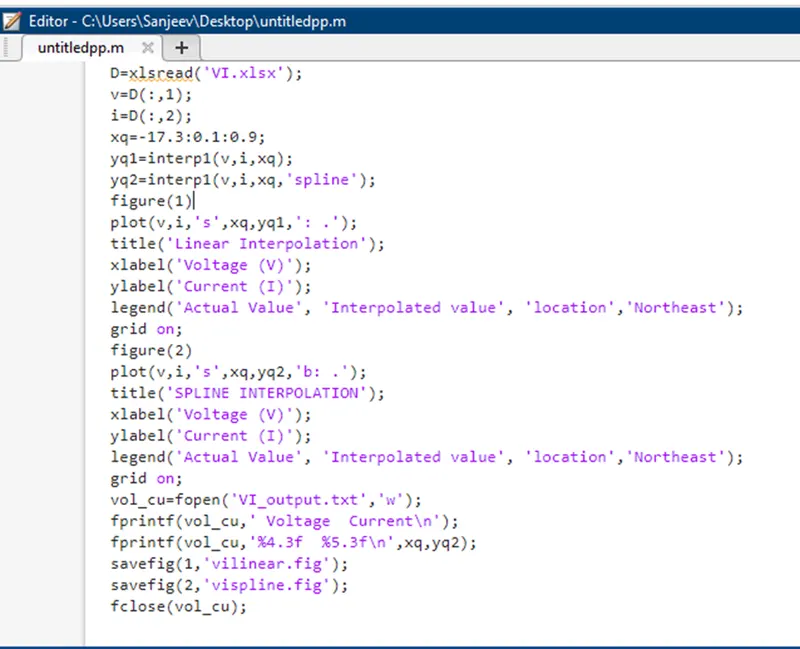

M-Script:-

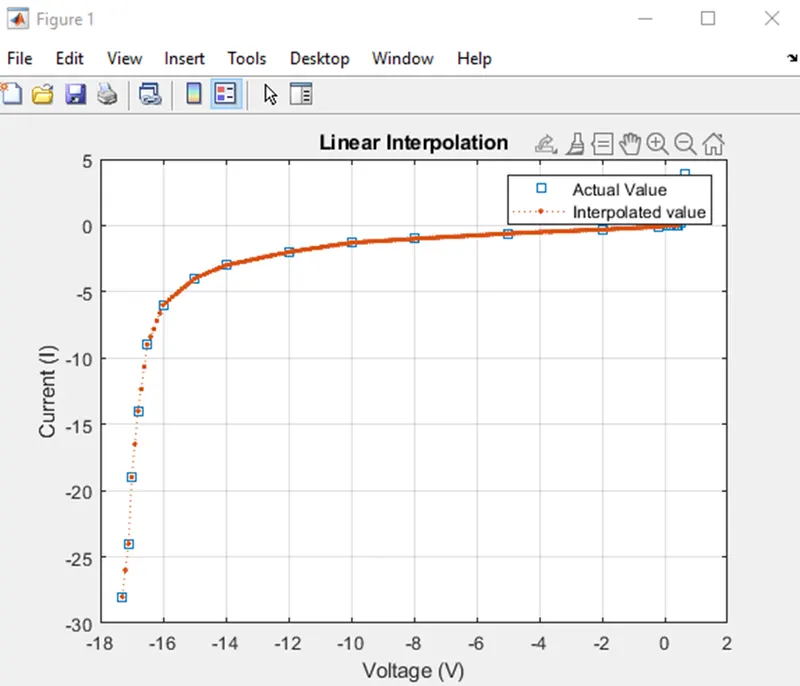

Linear Interpolation graph:-
