Project 2_Design & Analysis of a Hostel building at Guwahati, Assam

Aim

To model analyse and design the G+3 RCC structural building with relevant seismic parameter using Etabs. And also design the Pile footing and pile cap using SAFE.

Procedure in Detail

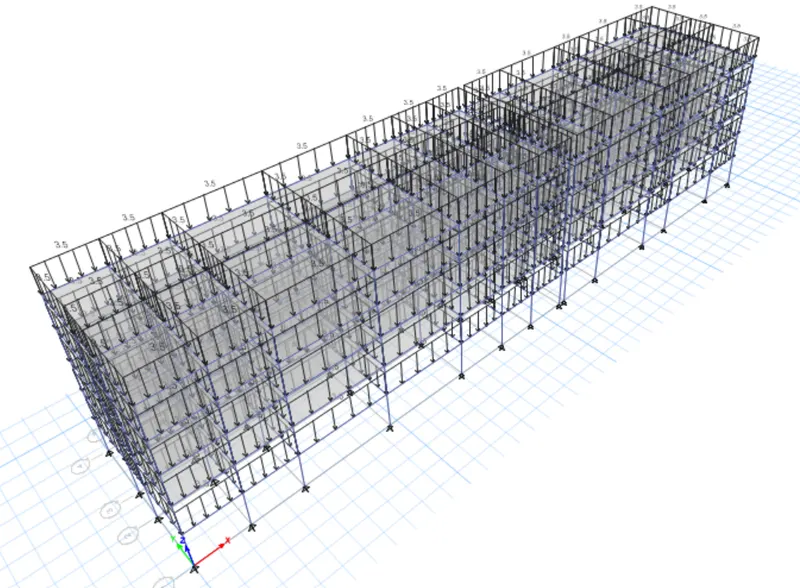

1. Modelling the Structure

Once the architectural drawing were received postion the column and finalize, then model the structure in Etabs through grid lines

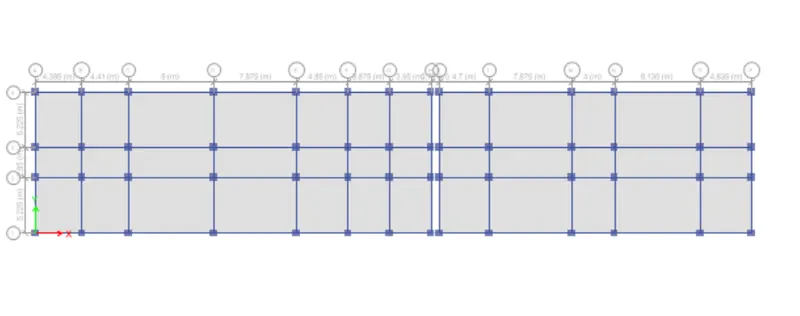

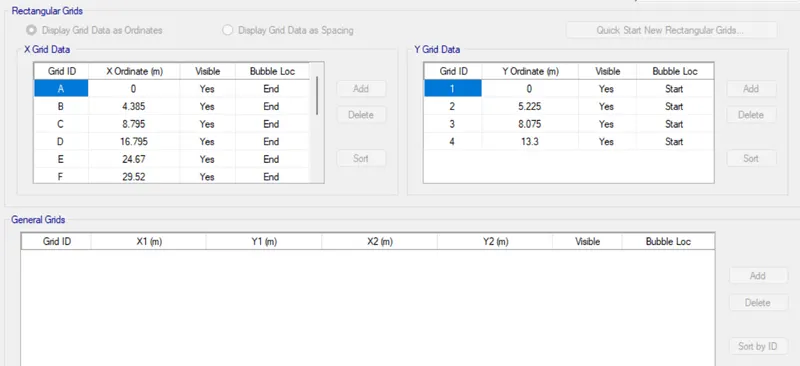

Assigning Grid Lines with reference of architectural drawings

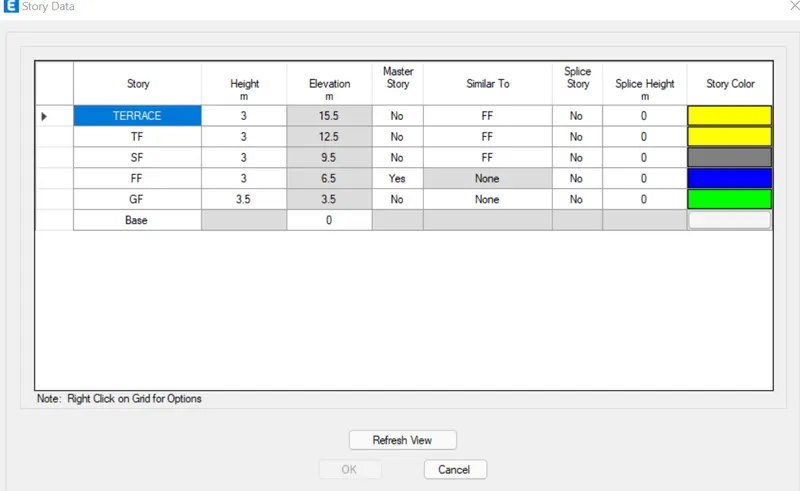

Assigning Story Data

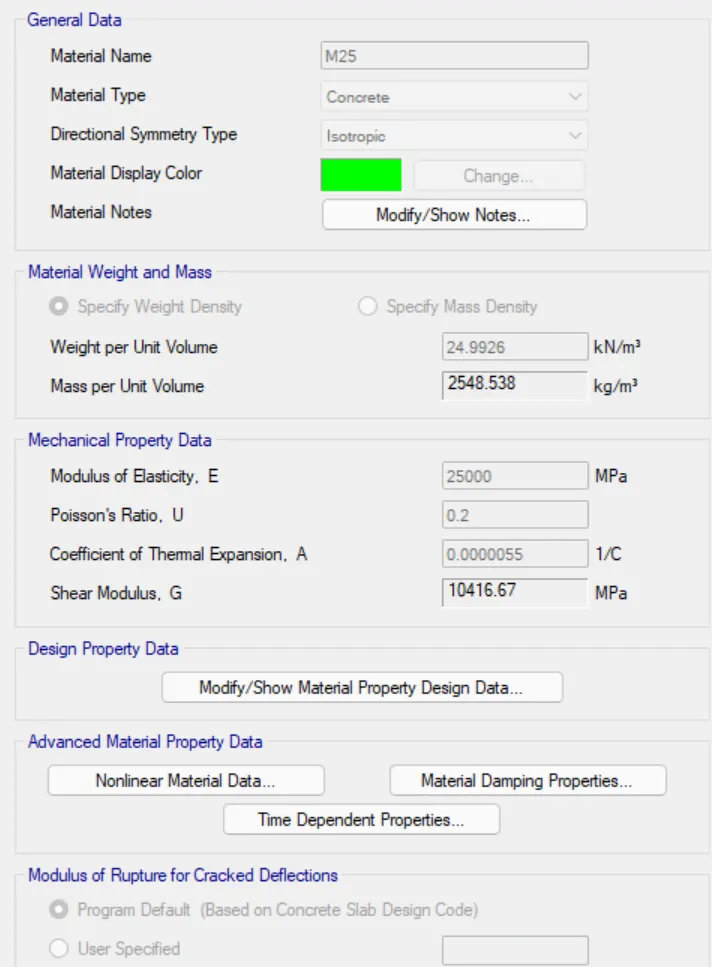

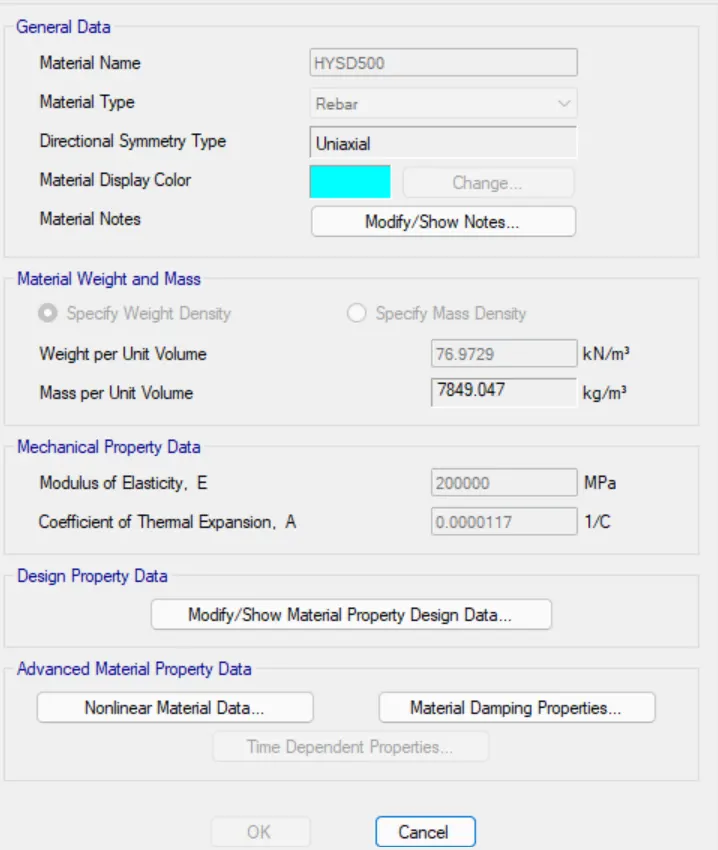

Define Material properties

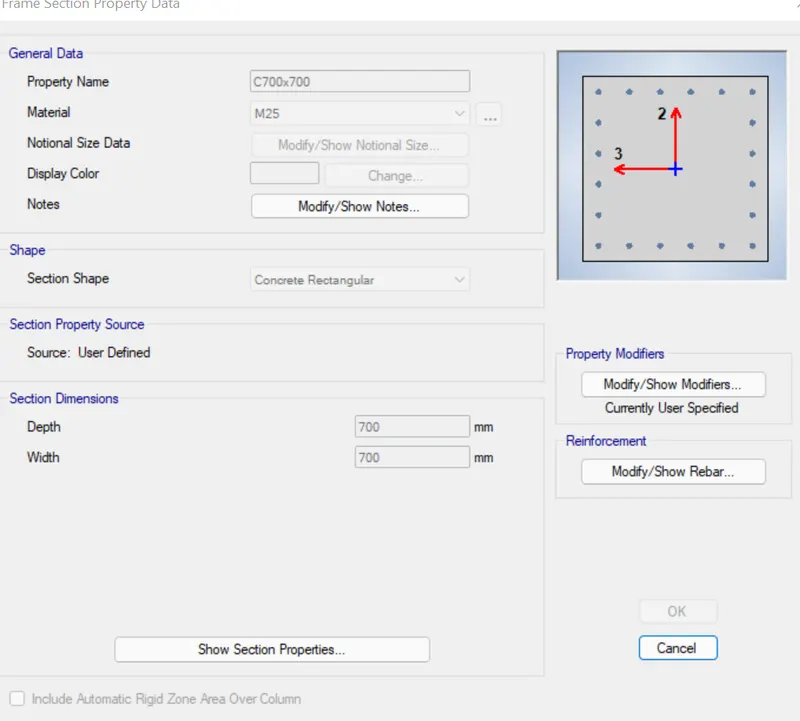

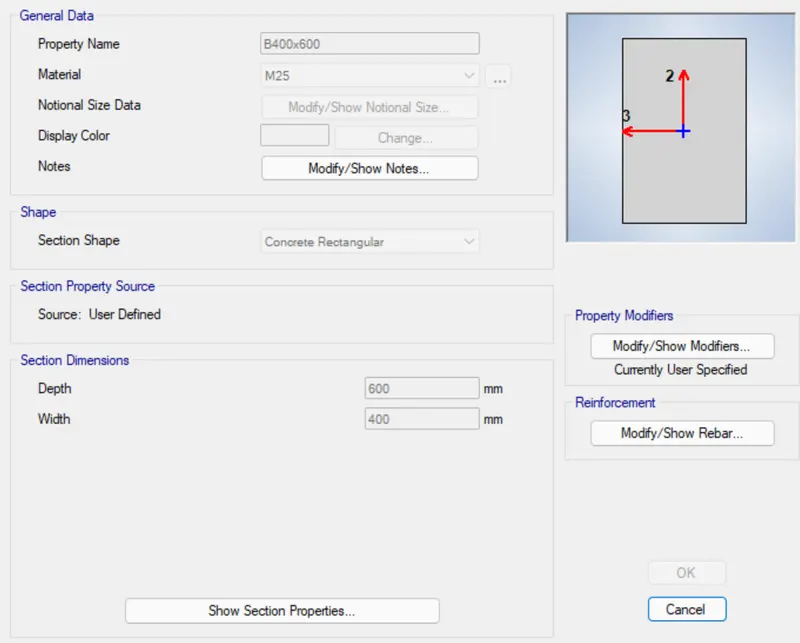

Define Frame Properties

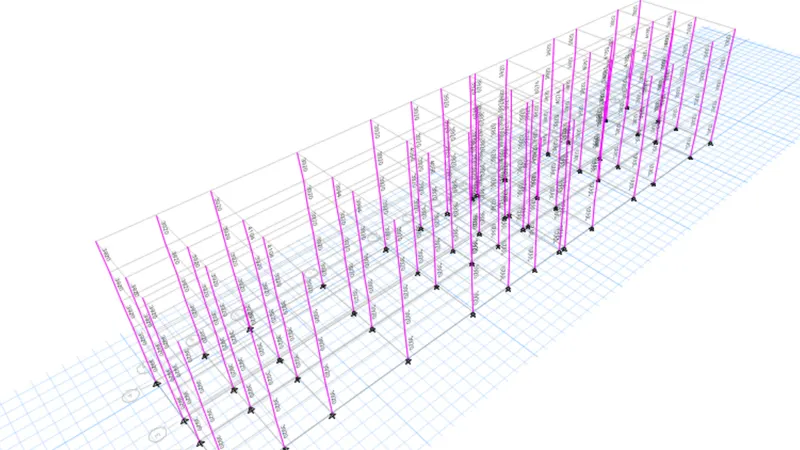

Assigning Frame properties

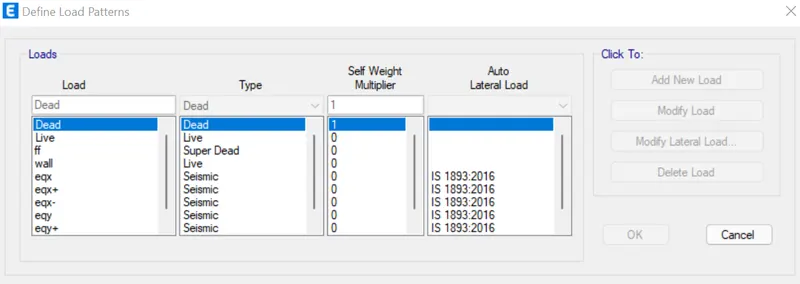

Define Load and Load combination

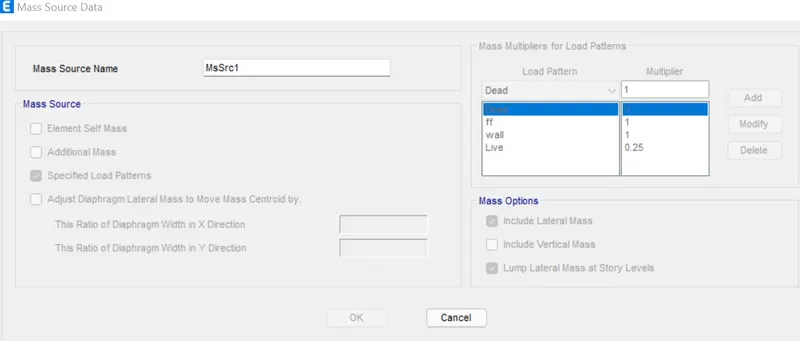

Define Mass Source

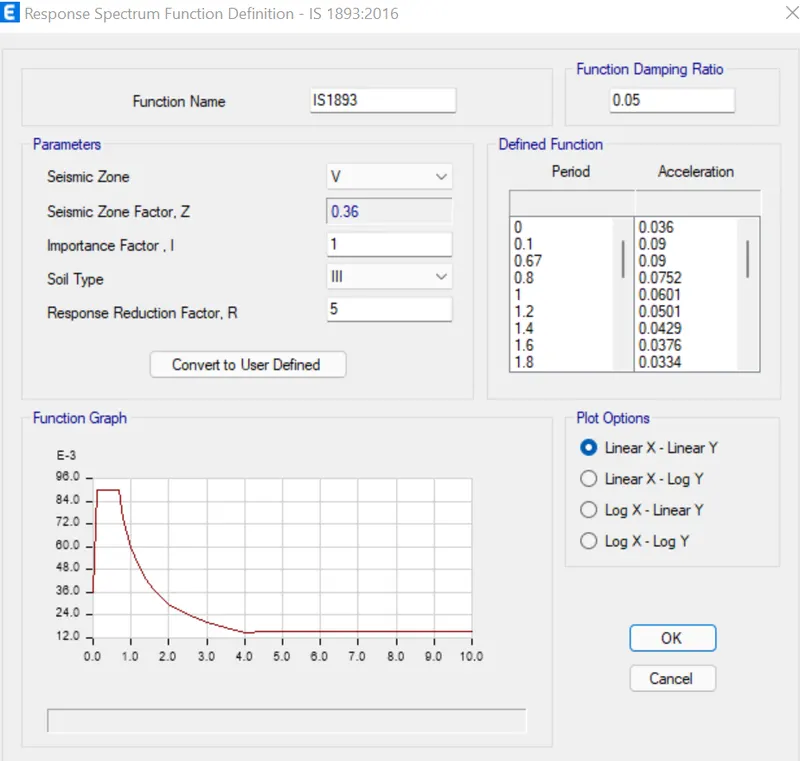

Define Response Spectrum Function

Assigning Load

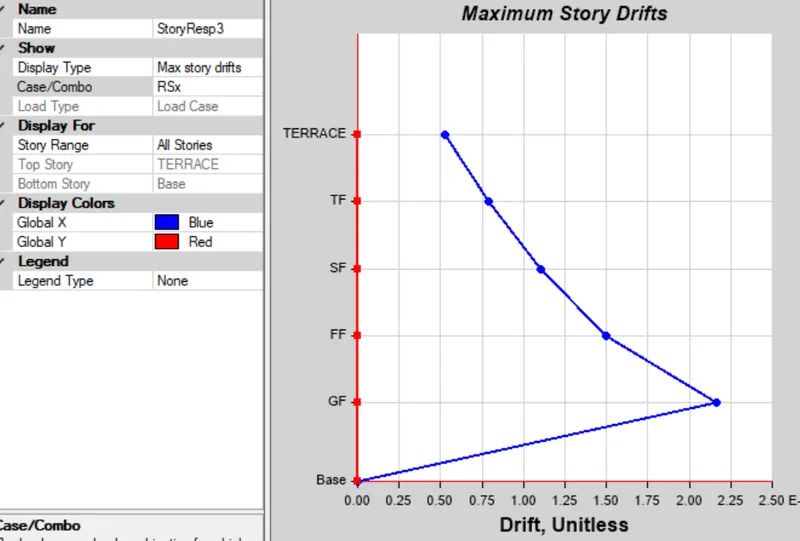

After Analysis Check Storey Drift are within the limit as per IS 1893:2016

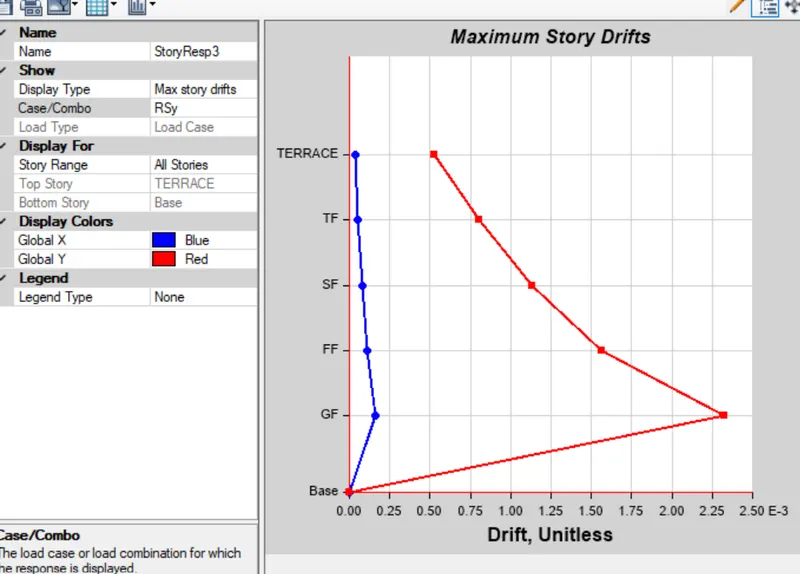

Both RSx and RSy are within the limit.

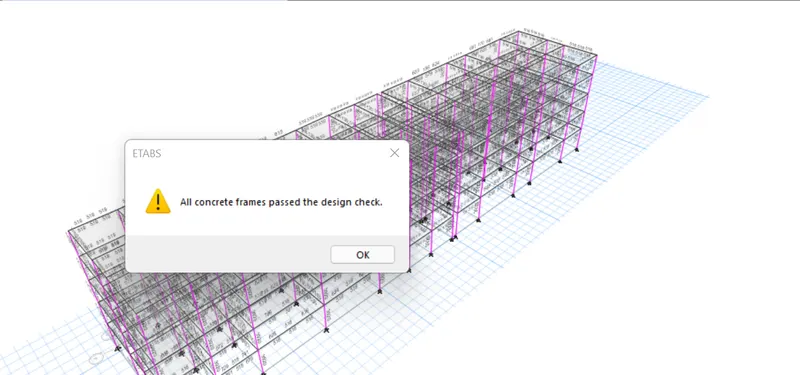

Design the Concrete Frame and verify the members passed

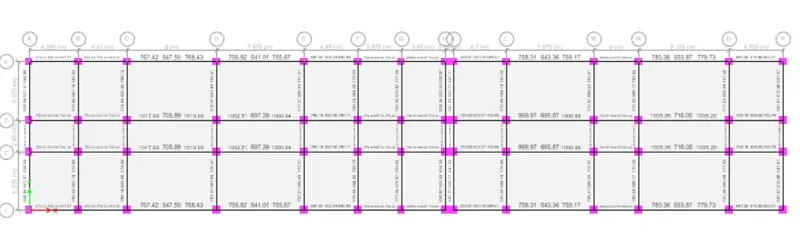

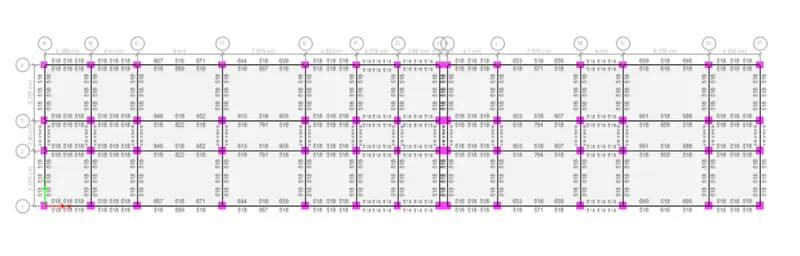

Flexural Rebar details

Shear rebar details

Column Rebar Details

Axial Load Details for footing design

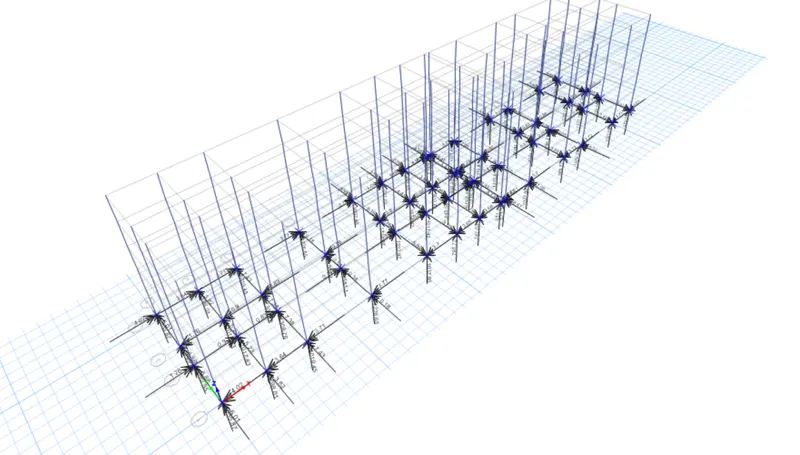

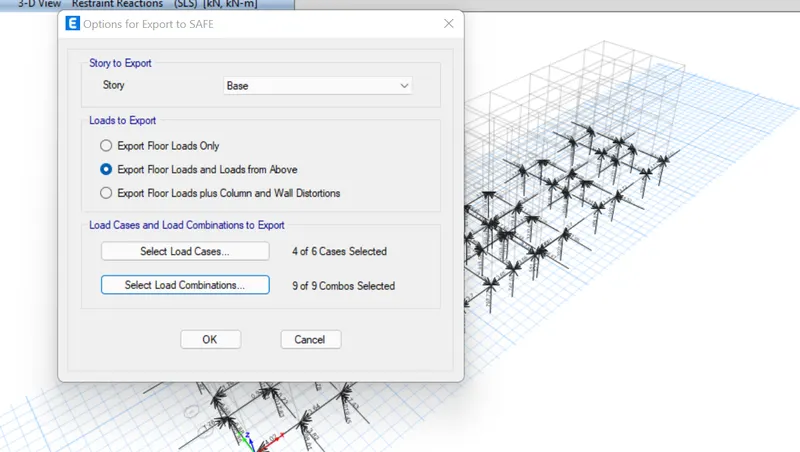

Export Base support reaction and load conditions from Etabs and save as f2k file format

Assign Slab Property of grid

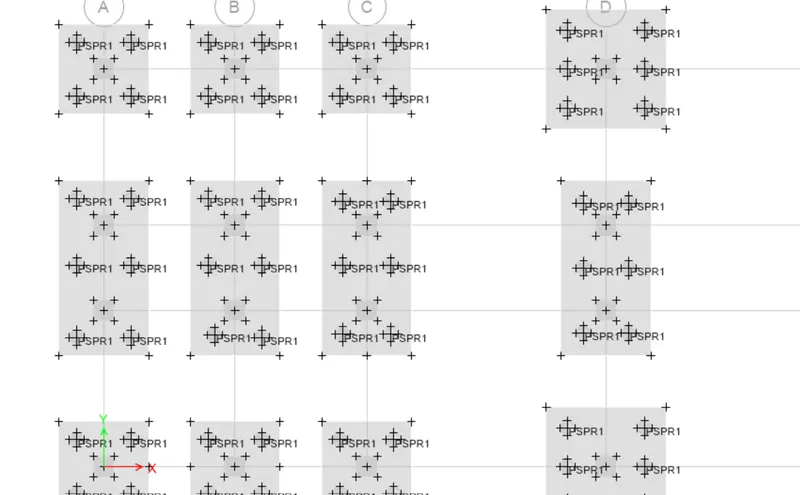

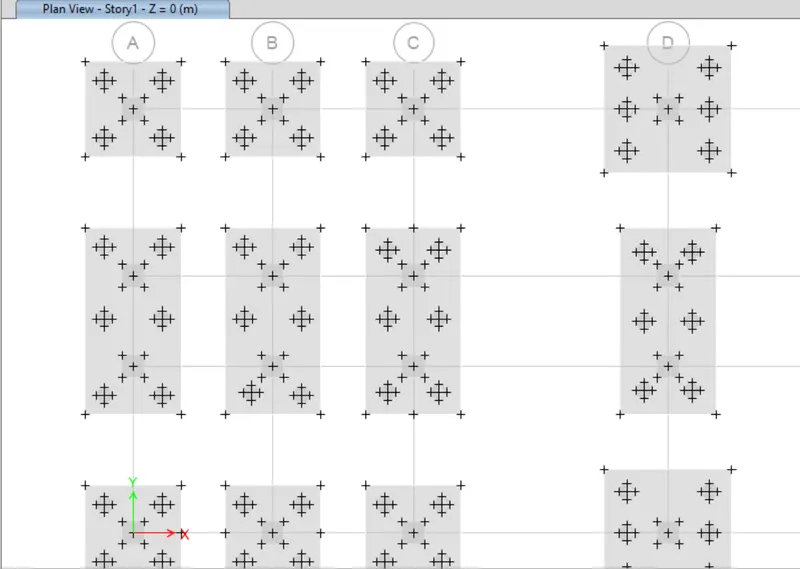

Assign Spring constant to the piles

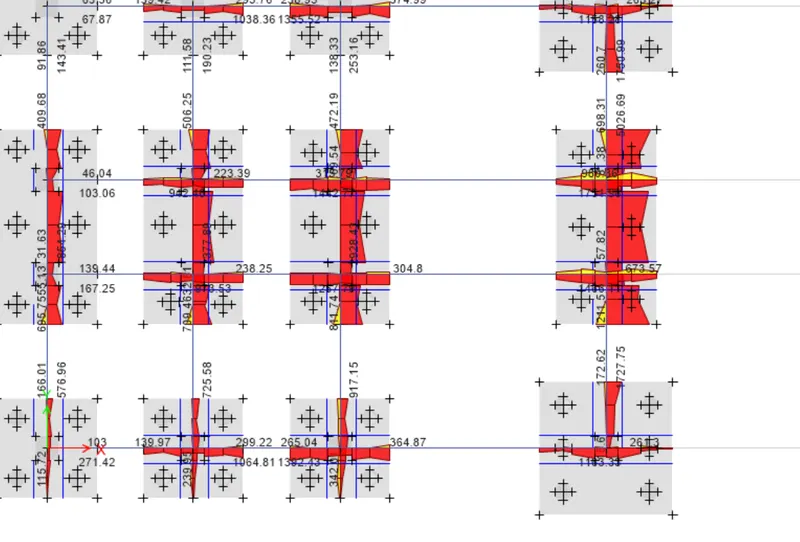

After assigning all Run analysis and design the model

Result

The given G+3 model were analyzed and designed using Etabs and the pile foundation were designed and verified using SAFE.
