Project 2_Design & Analysis of a Hostel building at Guwahati, Assam

ANS:-

Etab

open the etabs software

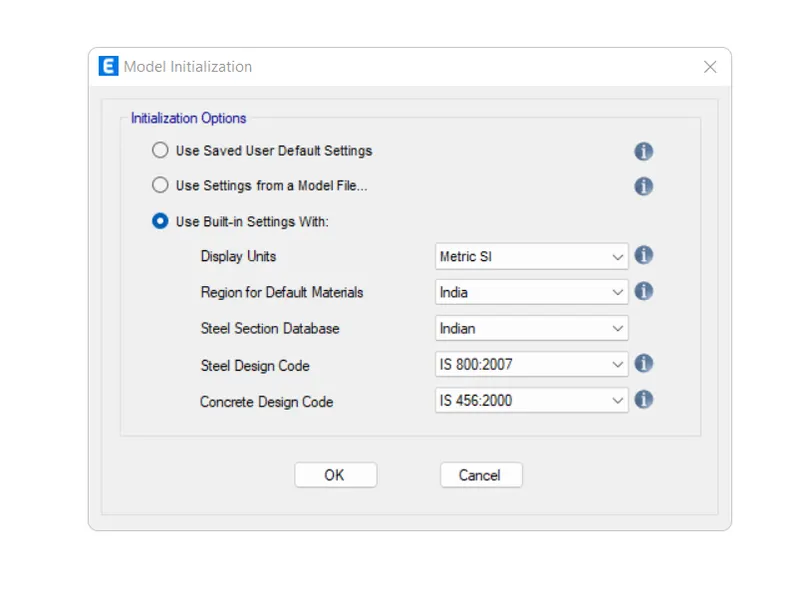

click on built up option from instialisation window

then put all correcect code

like that

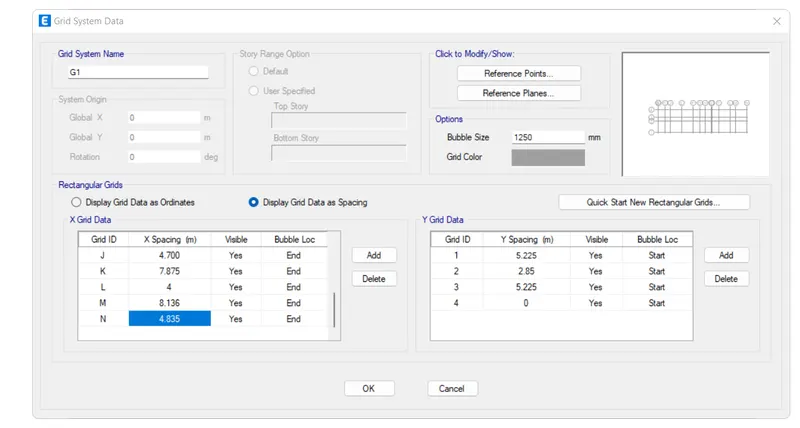

grid setting

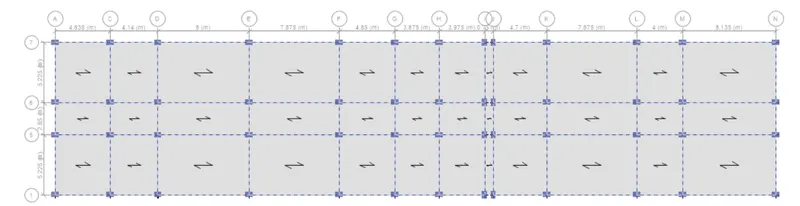

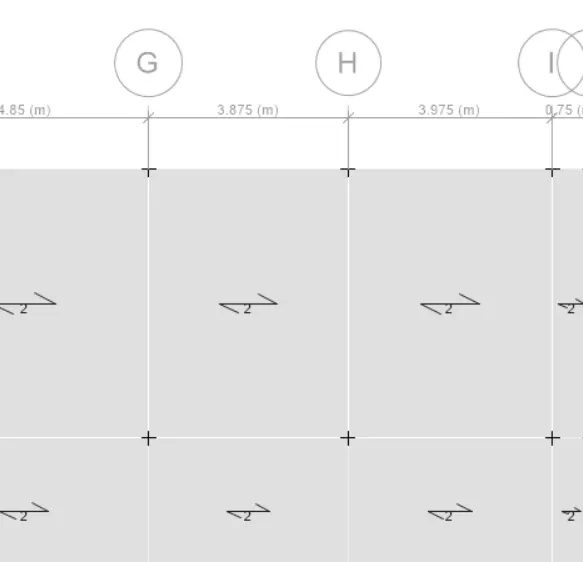

set grid of X direction and Y direction accordingly plan as shoiwn below

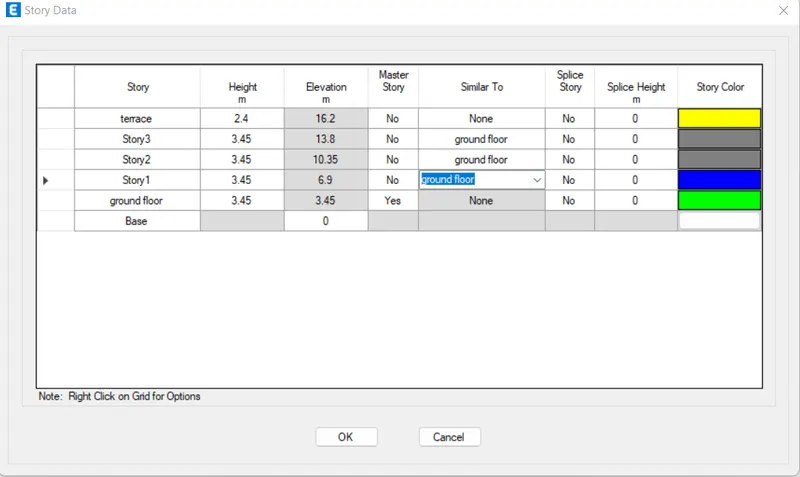

now add storie data

like that

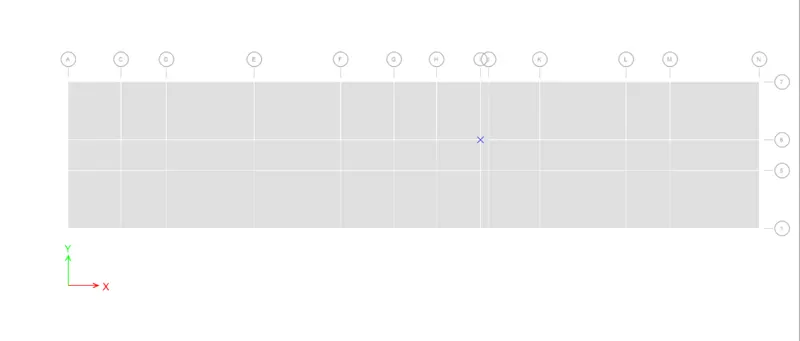

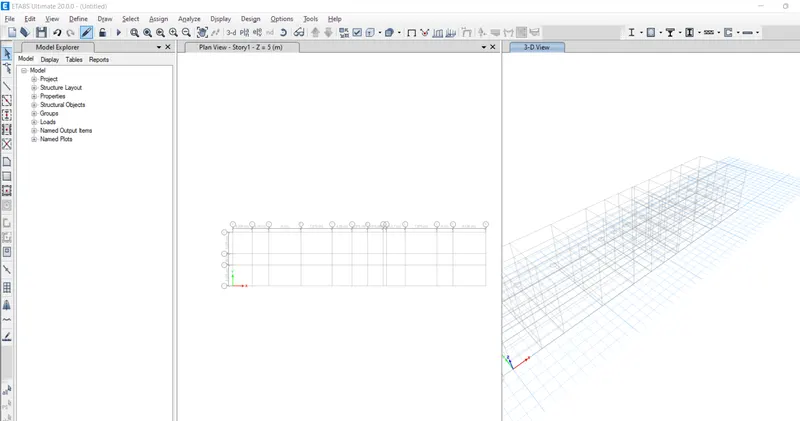

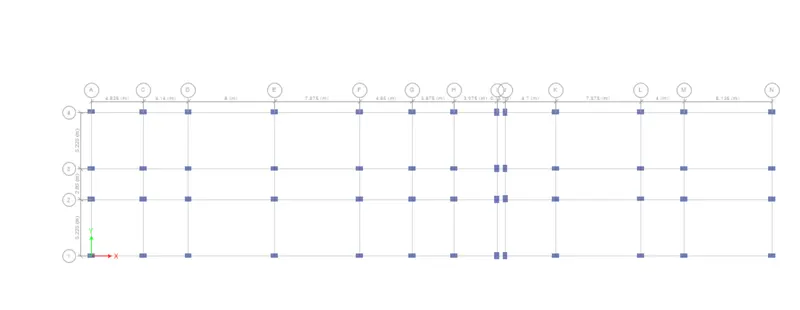

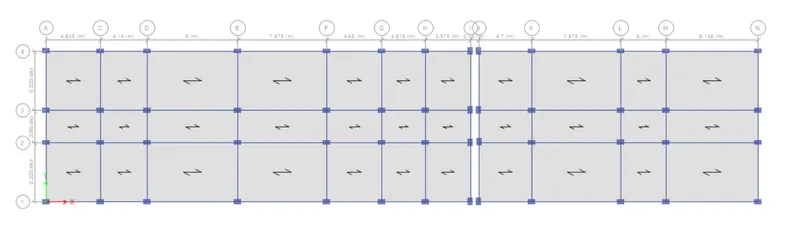

now our frame plan is ready on etabs screen

now define material property

go to define tab and select material option

click on add new material option

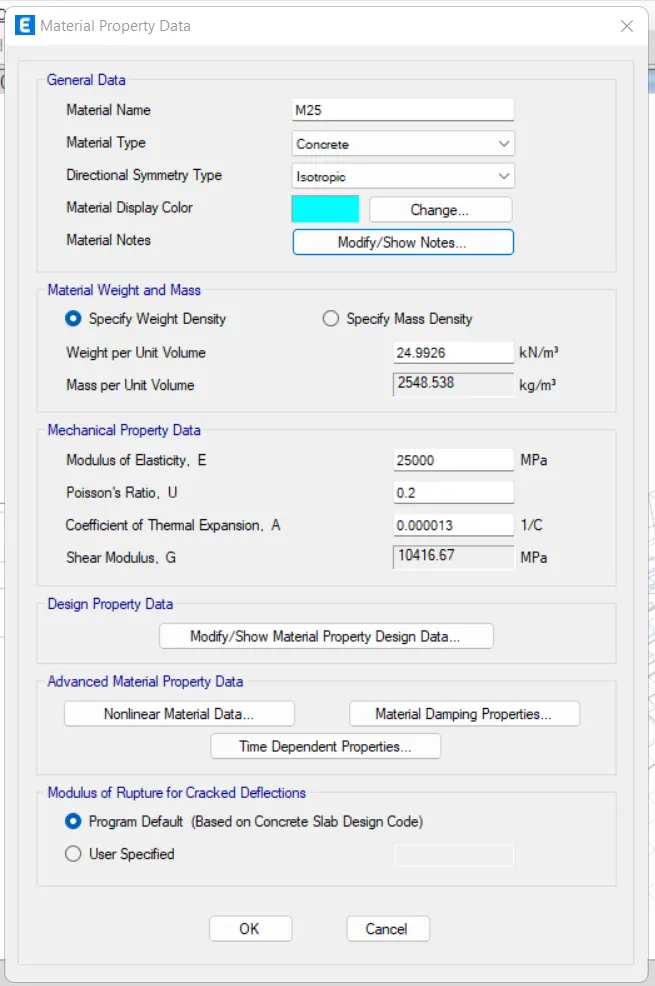

and add M25 grade concrete

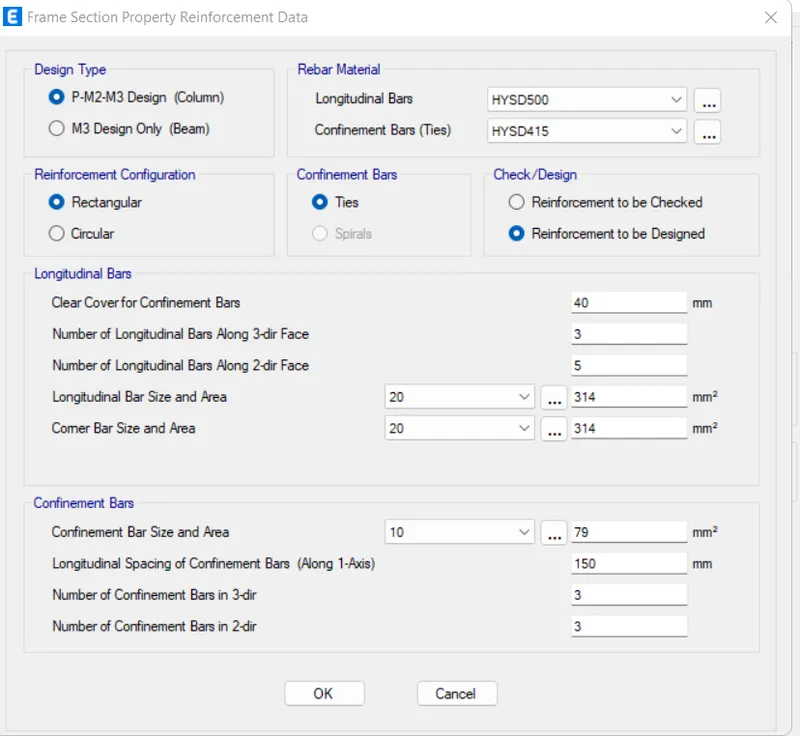

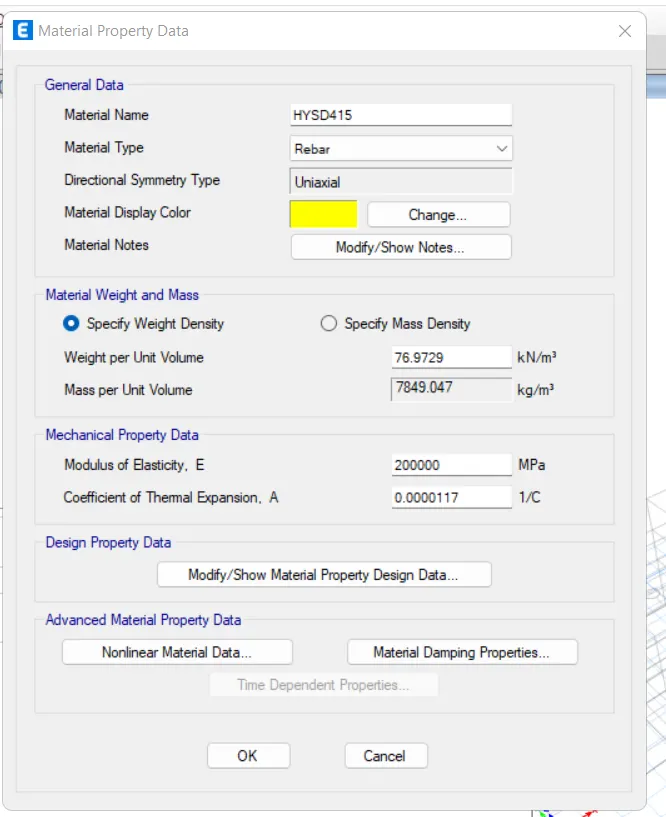

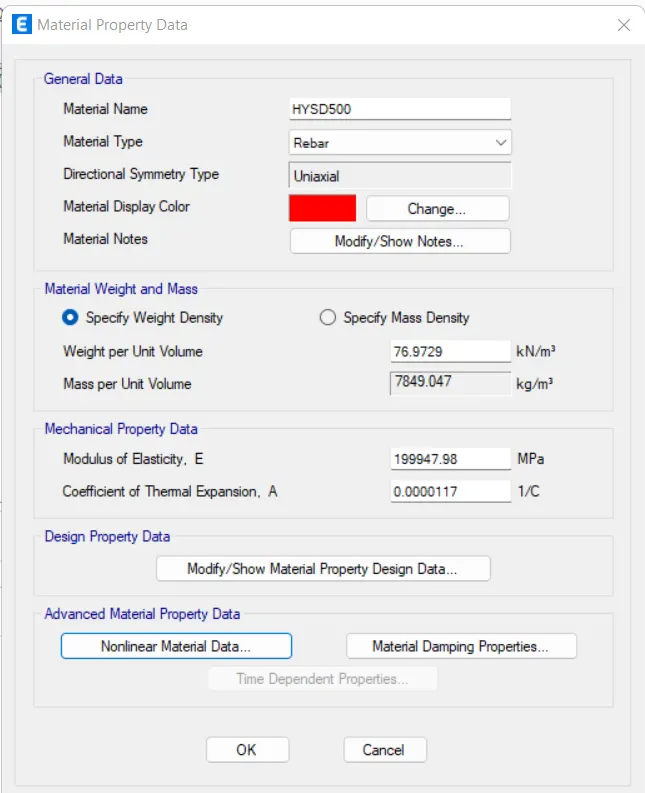

and also rebar of fe415 and fe500 fck

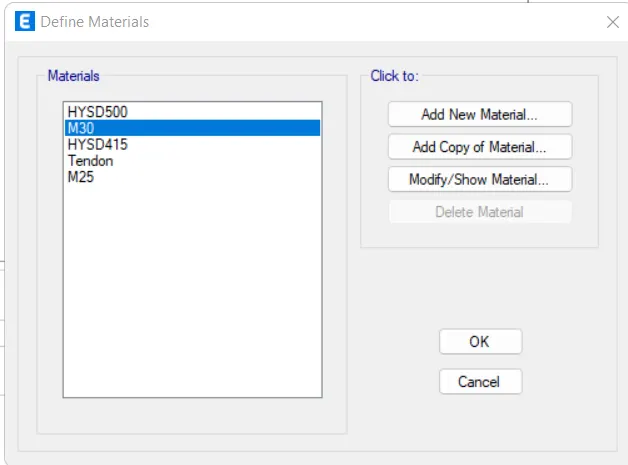

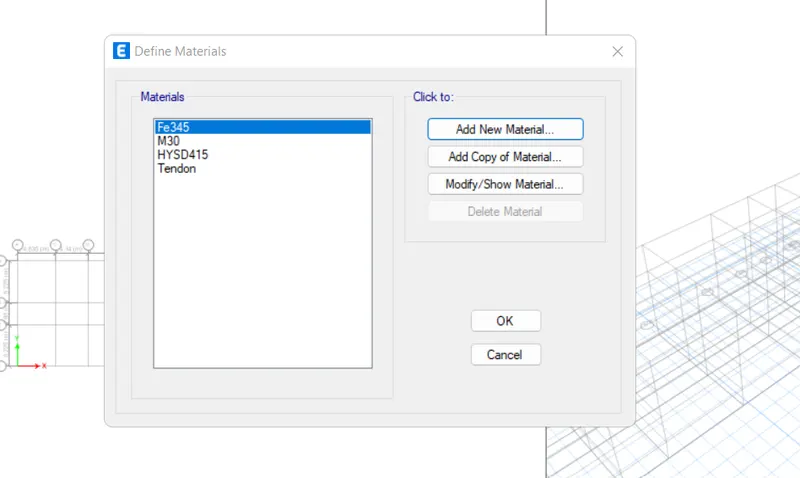

our all material are shown below

go to define

and click on frame section

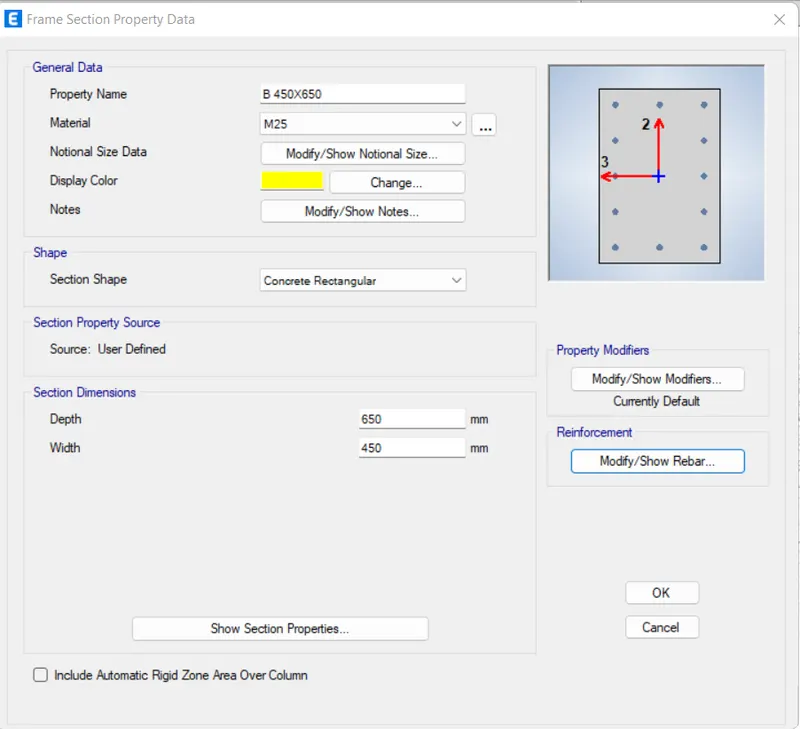

then click on add new property

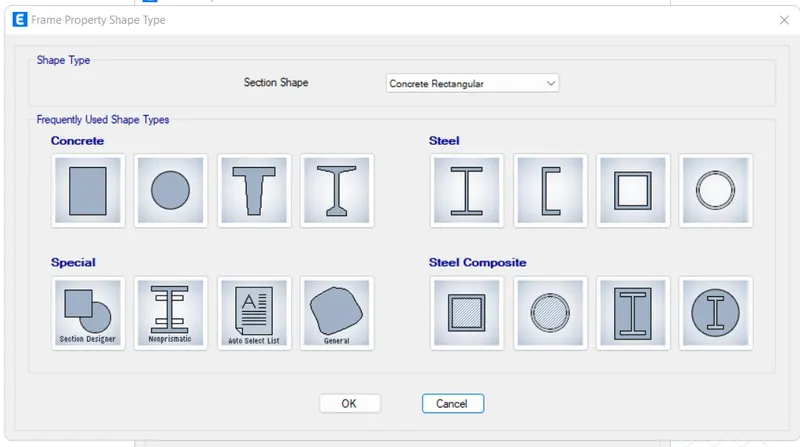

select rectangular section

and press ok

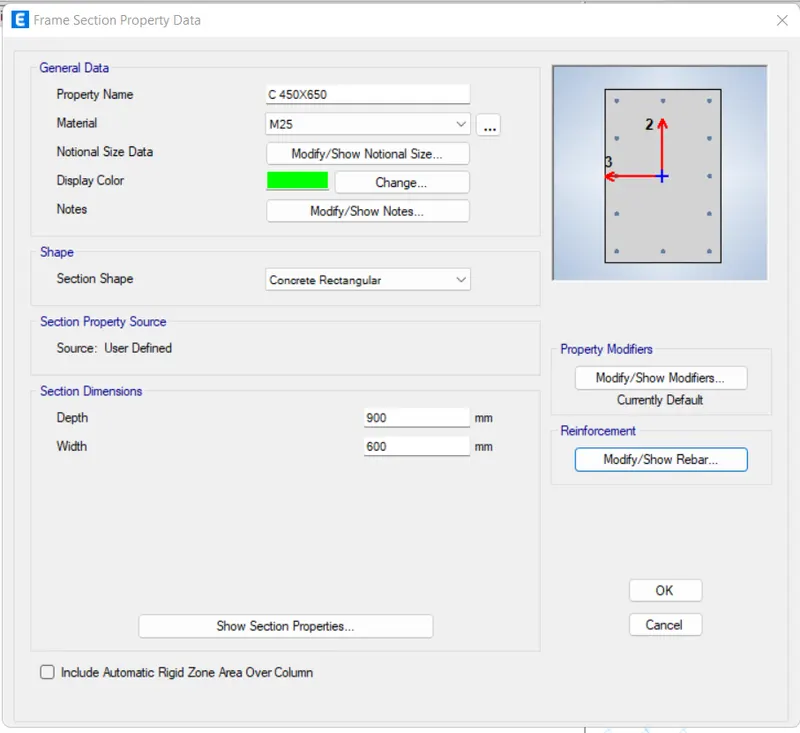

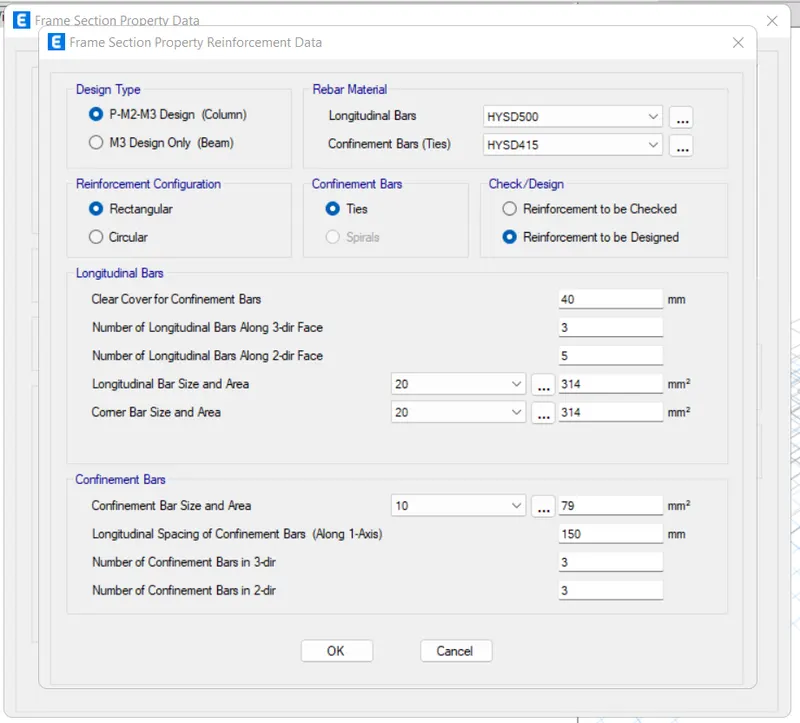

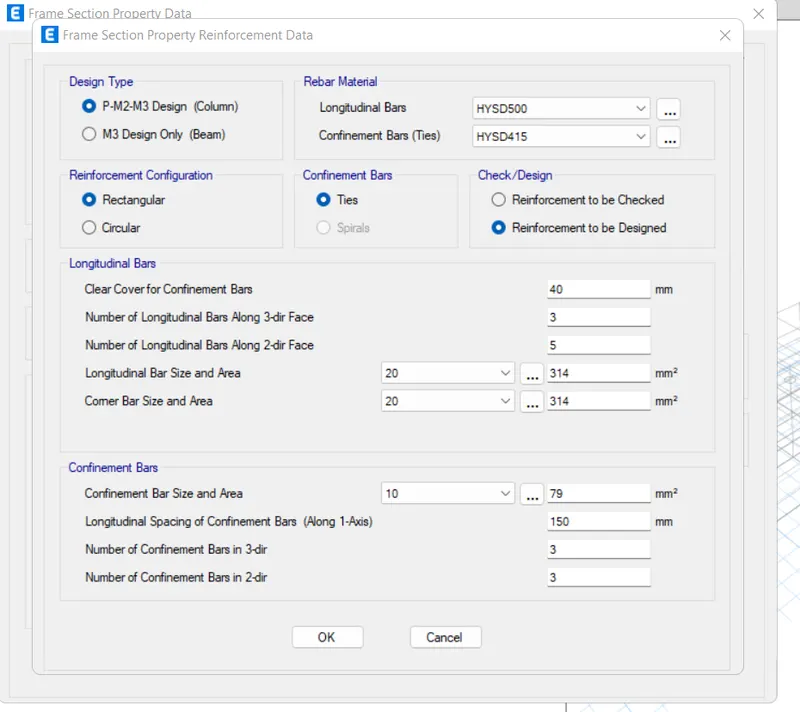

now for column

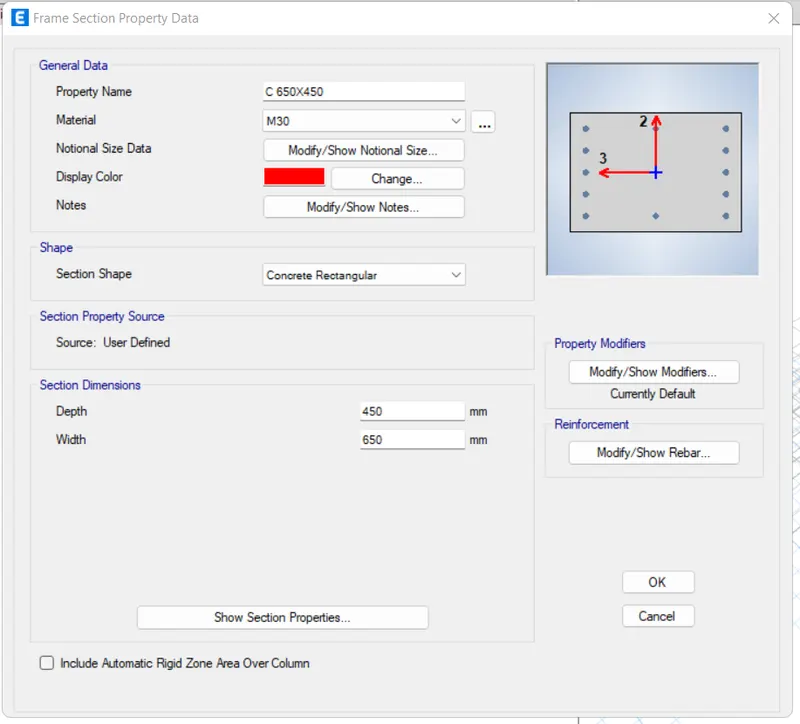

again add column of size 650X450

go to define

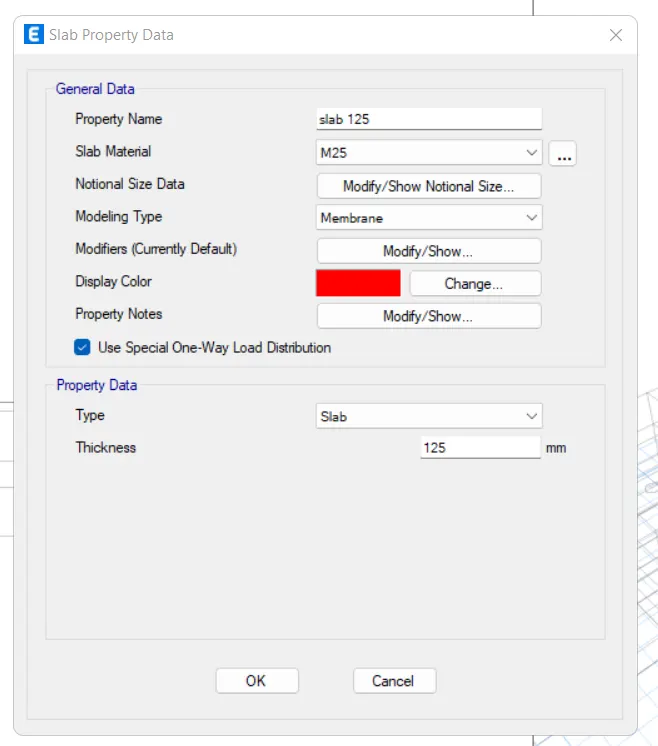

then select slab section from section proprties

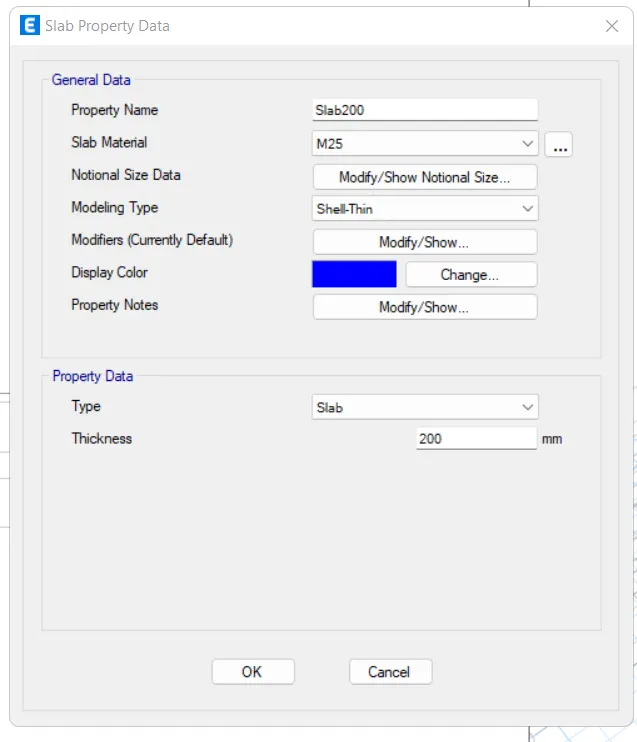

now also take 200 slab thickness seprate for staircase

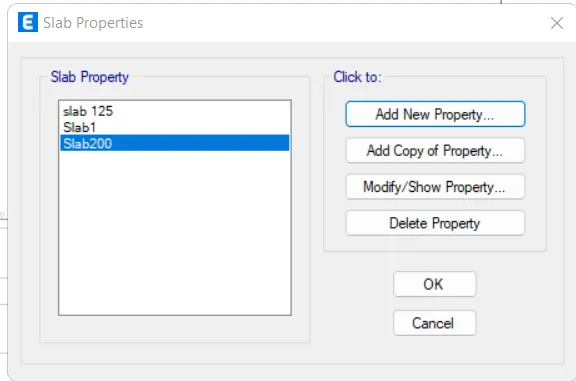

our slab properties are as below

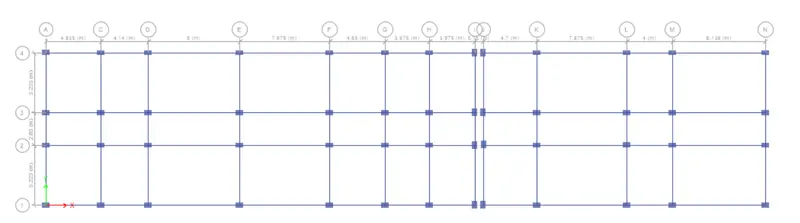

draw column using quick draw option

draw beam B 450X650 to for all stories

by changing working plane as all stories

using quick draw beams

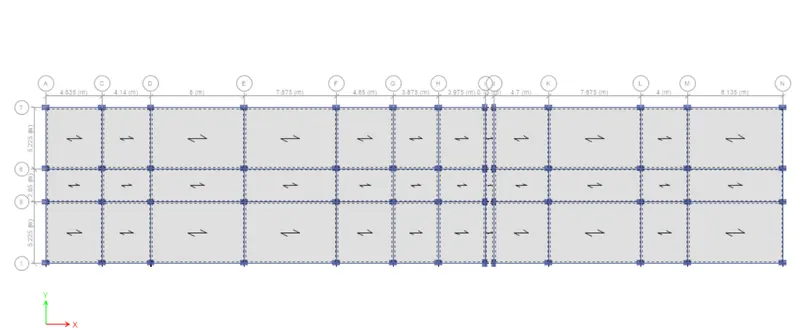

add slab using quick draw floor/wall option

now go to base plan from plan option

and select all joints

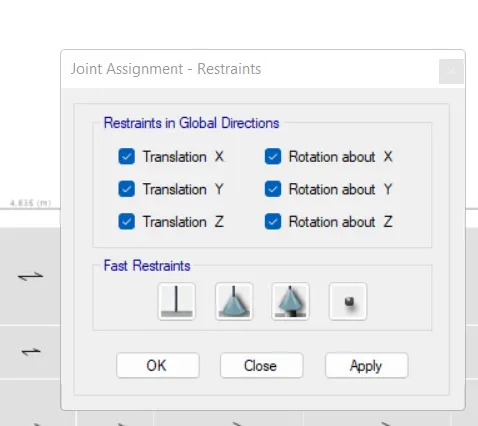

and assign restraint joint option from assign

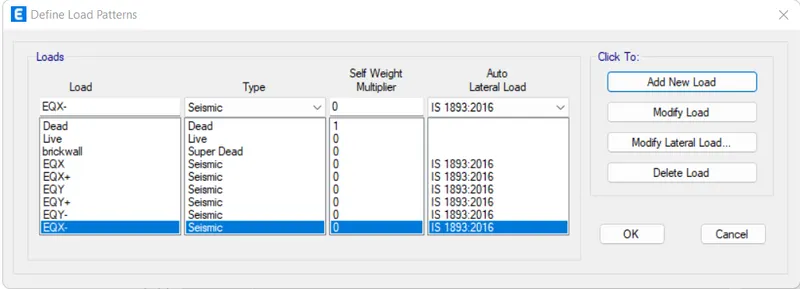

now go for load pattern from define option \

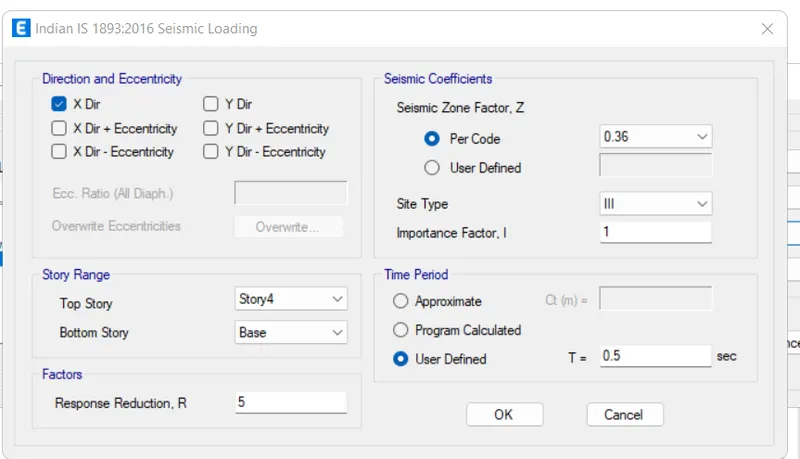

then select EQX and click on modify lateral load, new tab will appear

in that select X direction as per IS 800-2002, seismic zone factor for guwahati, aasam is taken as 0.36 as mentioned below

select site type as 3

click Ok

similarly do for all seismic load

now select floor for all stories to apply LL load on floor

go to select click on object in that slect floor

click on select button and click close

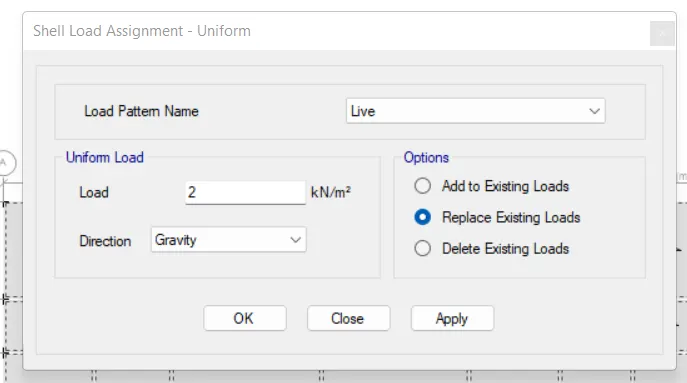

then click to assign option assign option select shell load, from shell load select uniform option

and click ok

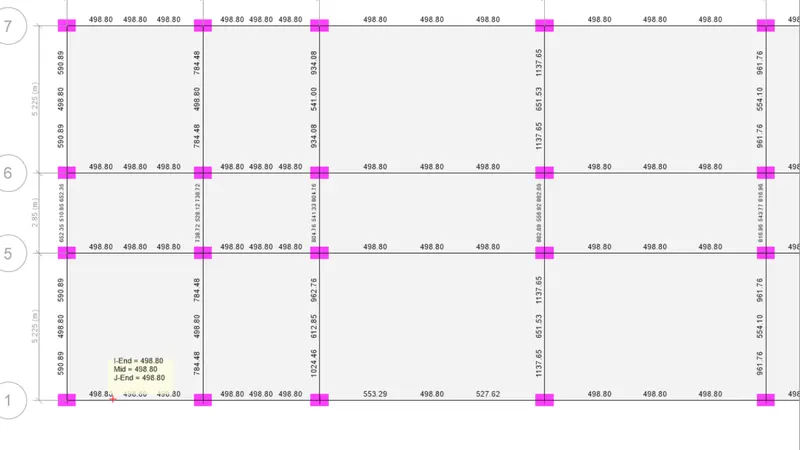

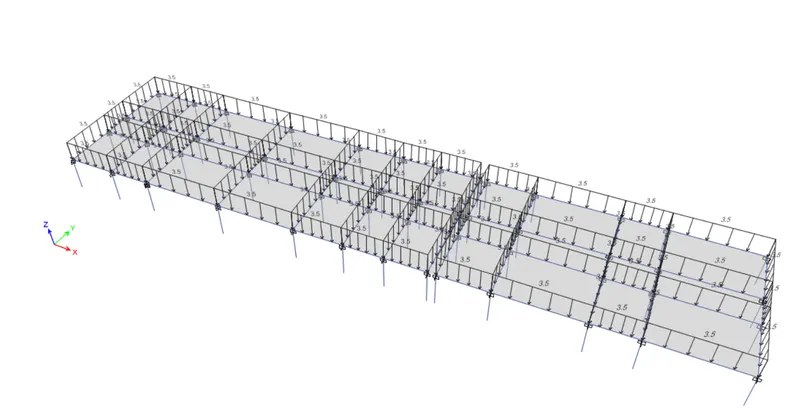

assign load on beam

select object type option then select beam and click on select button

and then close it

now click on assign option and then select frame load

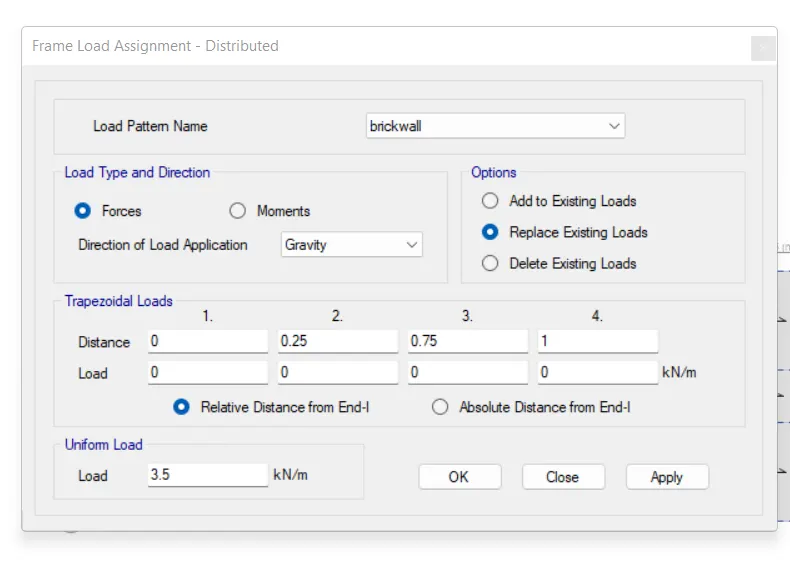

click on sistributed load option

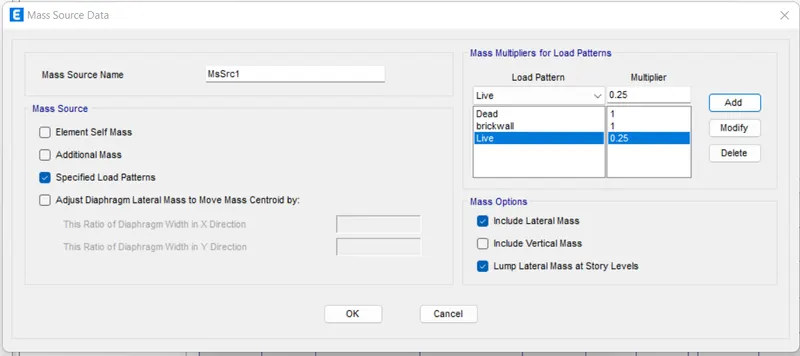

mass source

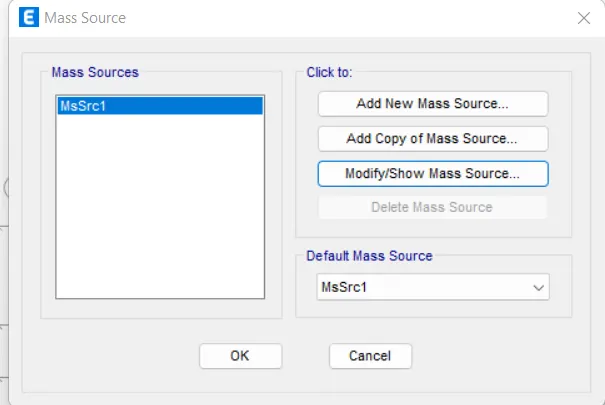

from define option select mass source

as shown below

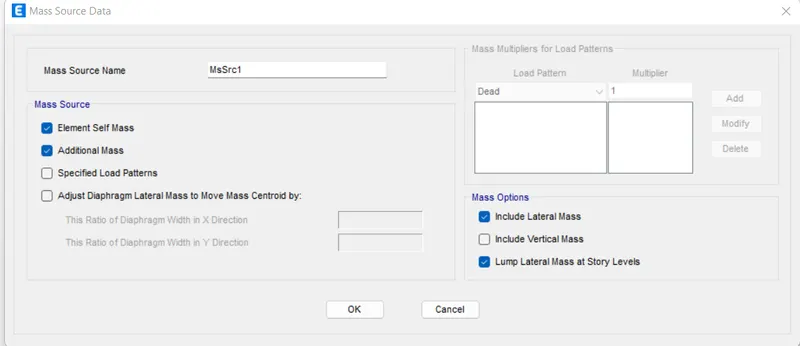

in that click on modify mass source

in that add load pattern in mass source data

like that

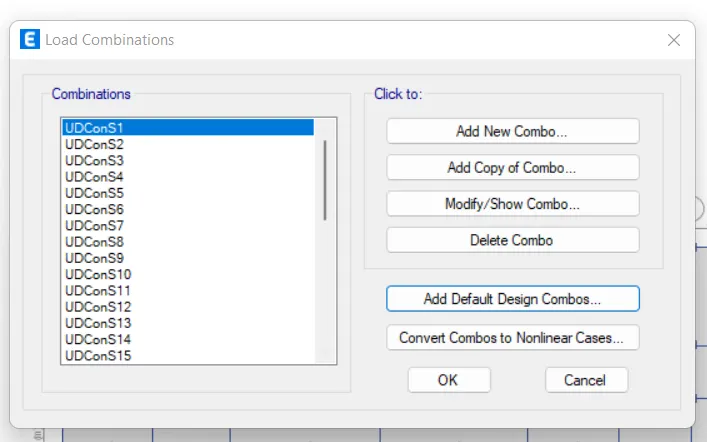

load combination

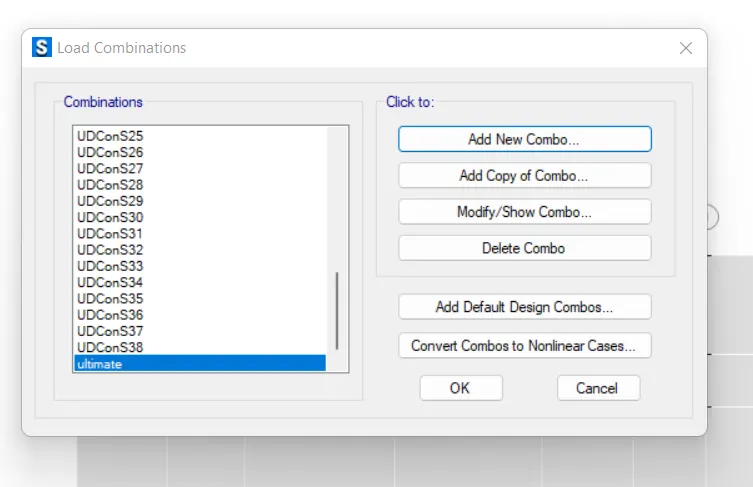

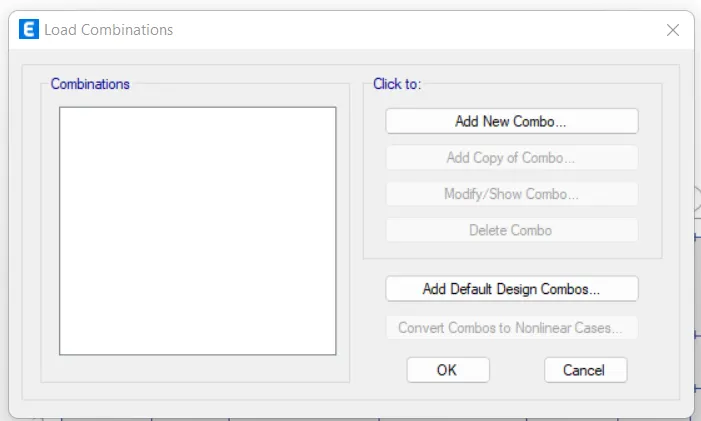

select load combination from define option

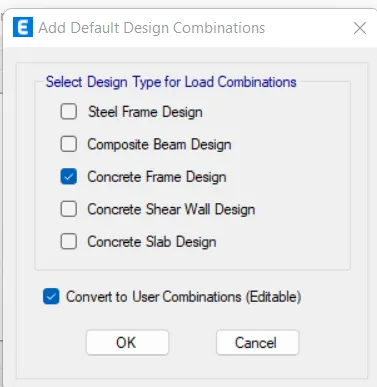

in that click on add default design combos

in that click on concrete frame design

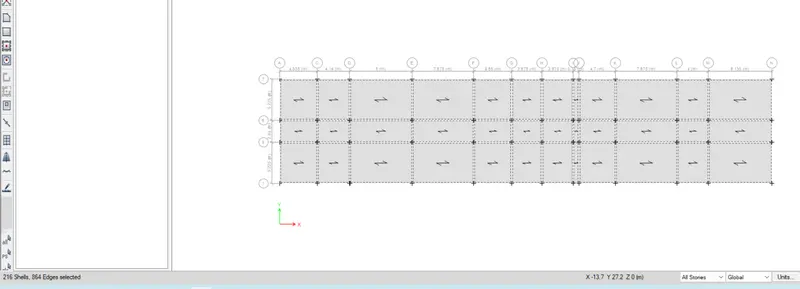

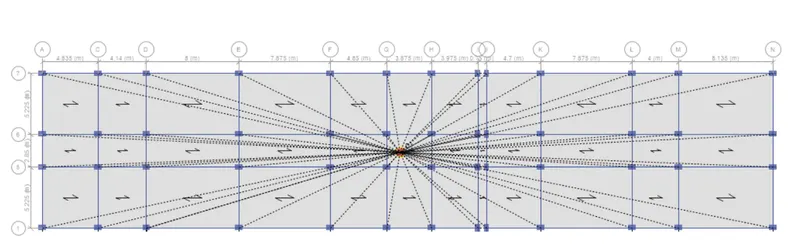

select floor for diaphram

select option then object type then floor

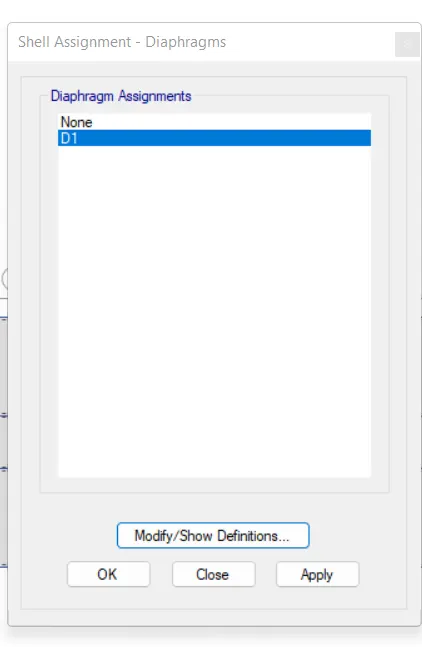

then select diphram from shell option from assign

then click on D1 press apply and then close

diphram is assign to slab

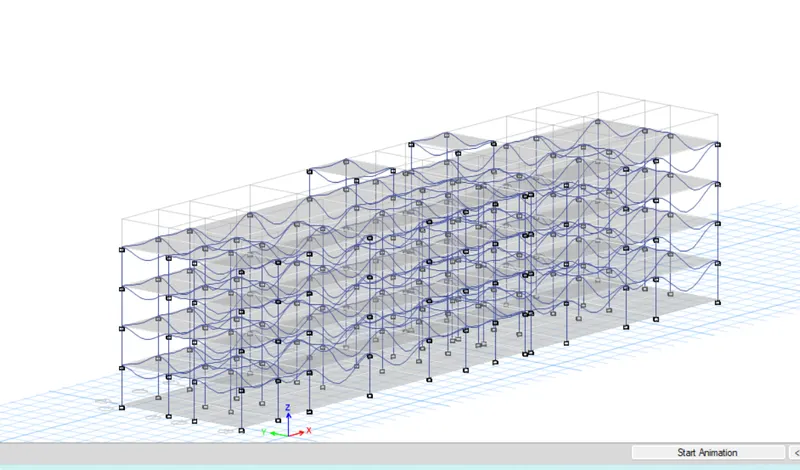

Run analysis

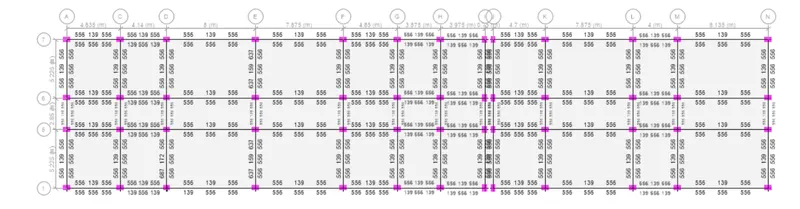

now beam design and column design by selecting start design option

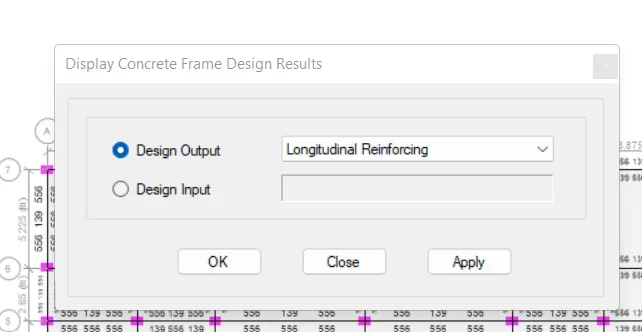

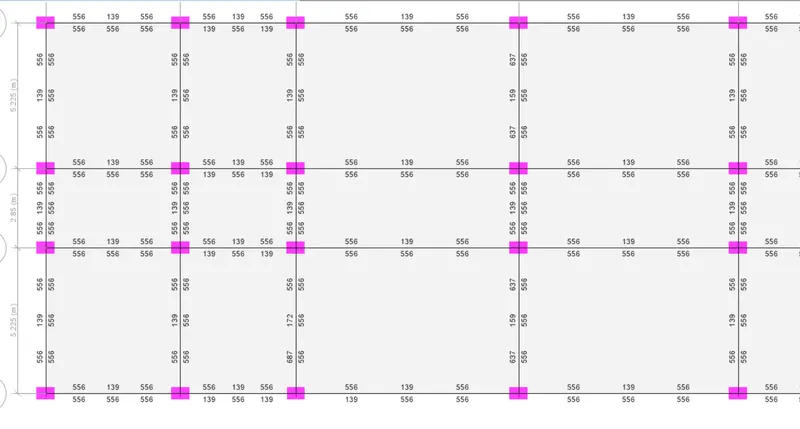

after that we select display design information from design option

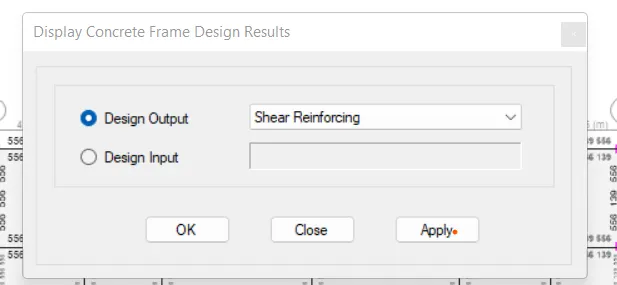

also check for shear reinforcement

and for column we need 2340 sq.mm reinforcement required

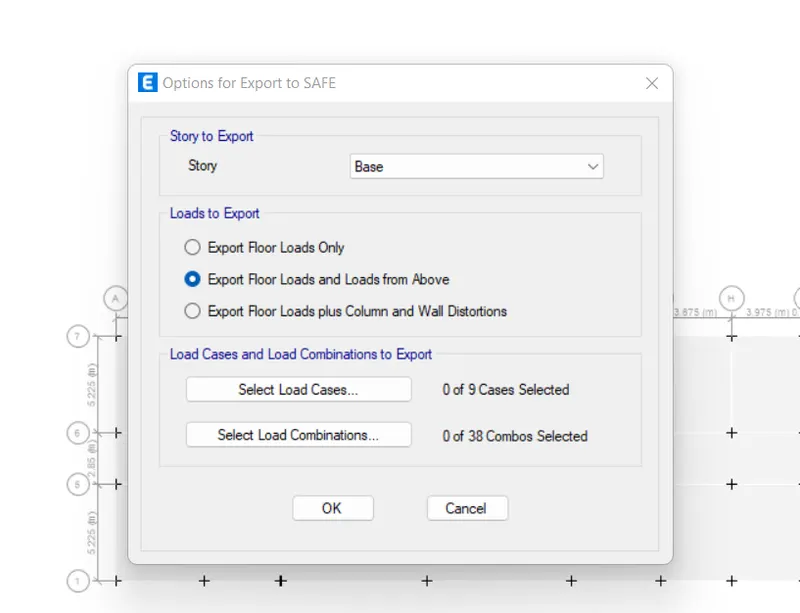

export base floor load and load from above in safe

Safe

after exporting etabs model to safe then open the safe and import file

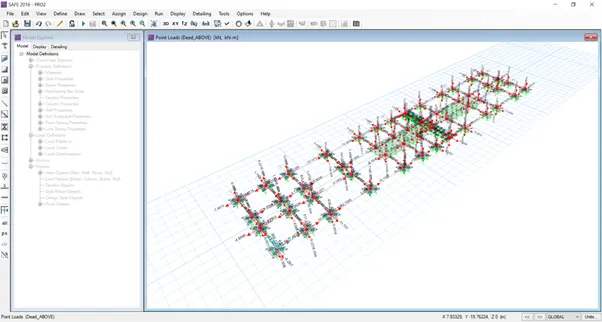

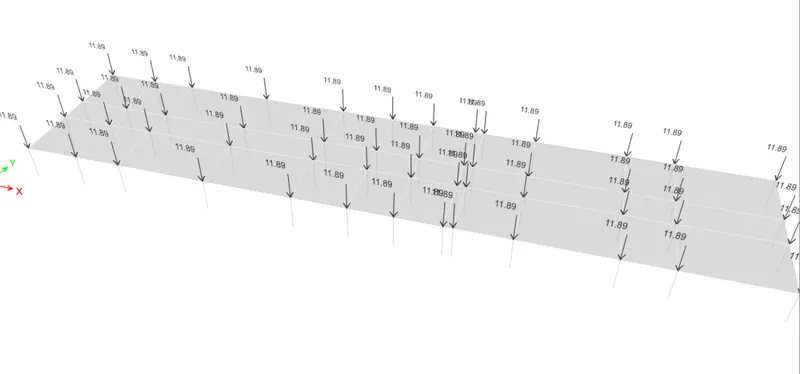

now show load from display option

dead above load

given in question

soil type = 3

piles of length = 10m

pile dia = 500mm

load carrying capacity = 280KN

pile cap = slab type = mat = 500mm thick

column cap slab = stiff 500mm thick

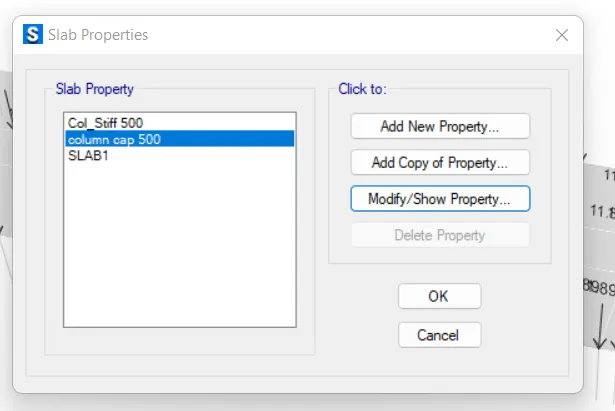

so firstly define the slab property

define slab property

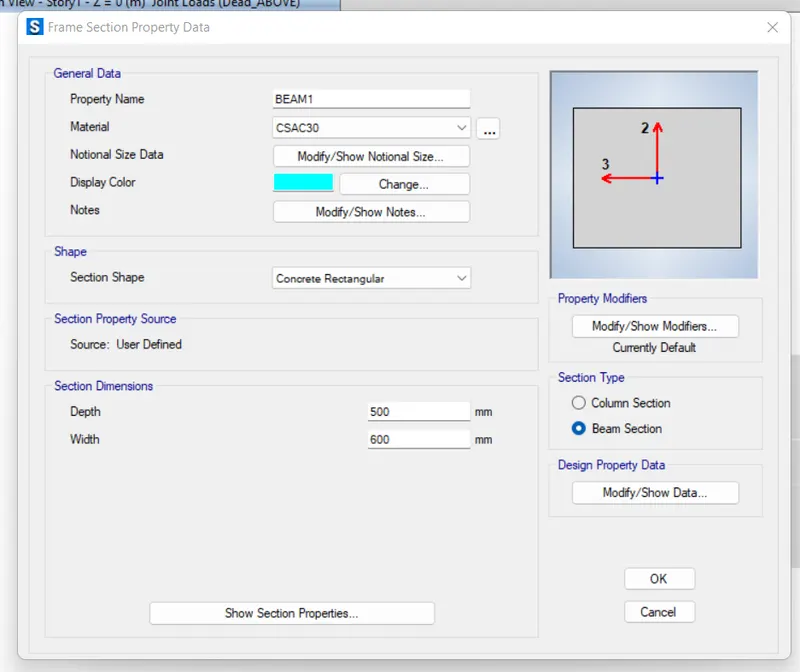

RC beam section of tie connection of foundation is 600X500mm is assigned

for piles the point springs are assigned

for bearing pressure checking the service load combination is considered

for flexural design the ultimate load combination is considered

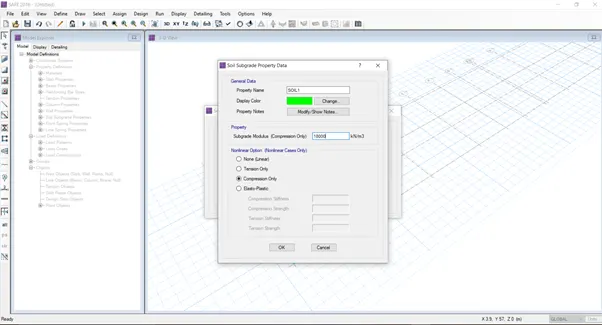

Define the soil
.

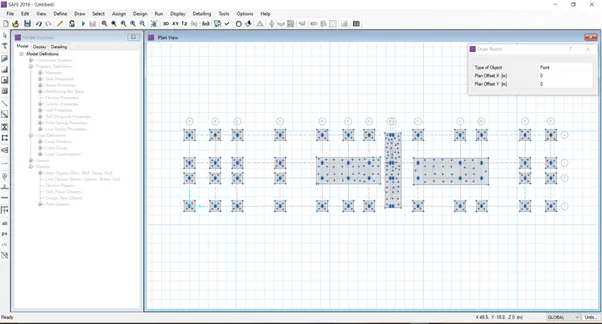

Draw the points for the reference of the pile

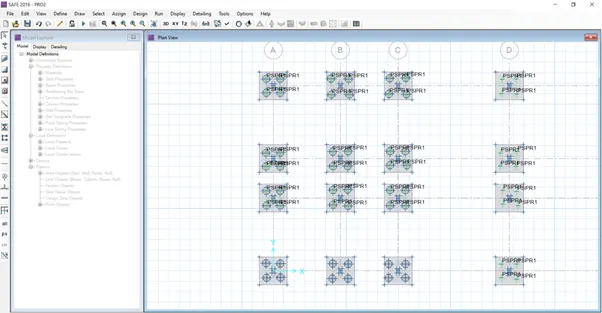

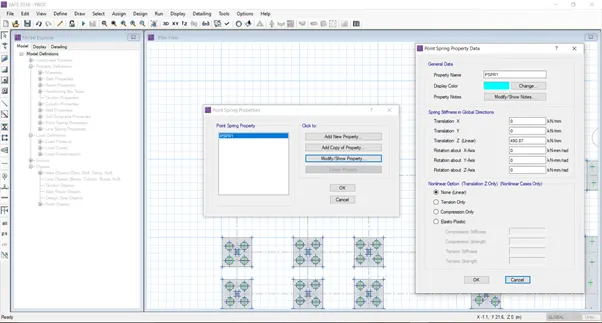

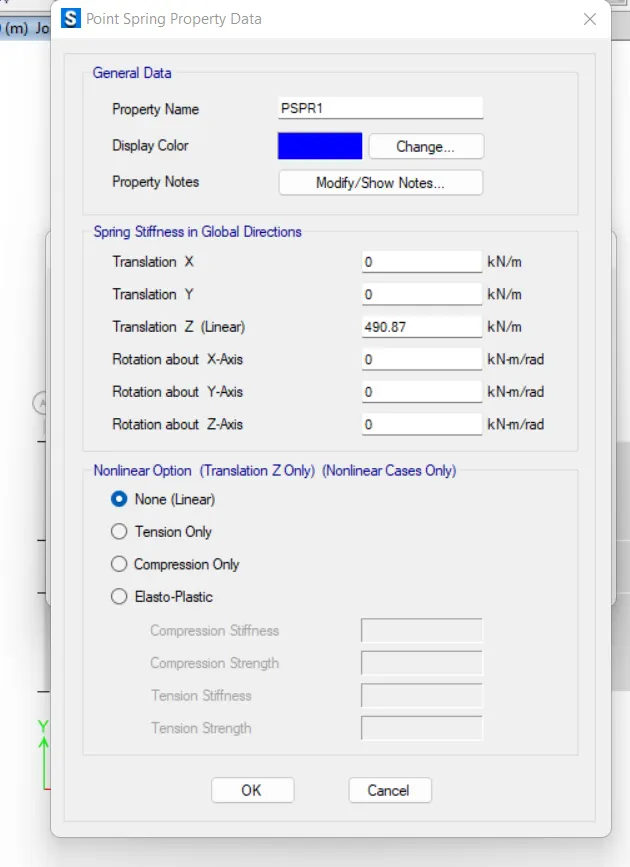

draw piles And assign the point springs
.
.

Draw columns below the loads
.

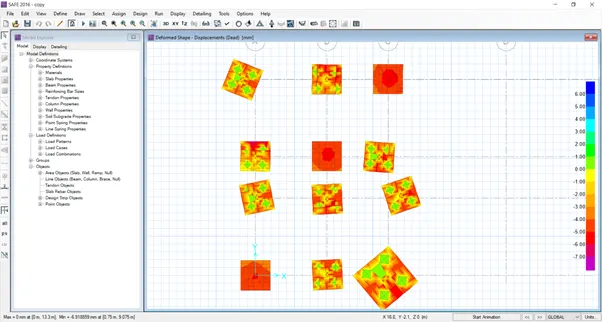

Run model Display the deflection
.

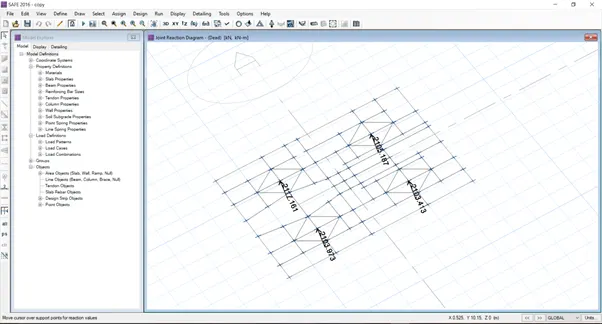

Reactions
.

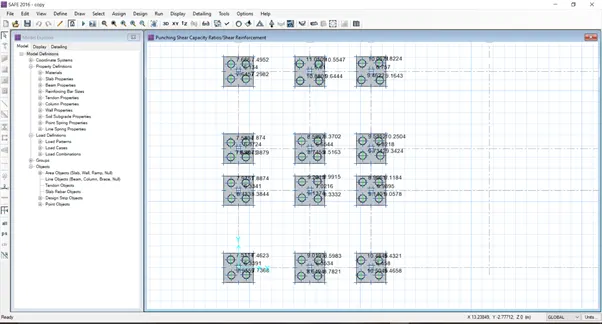

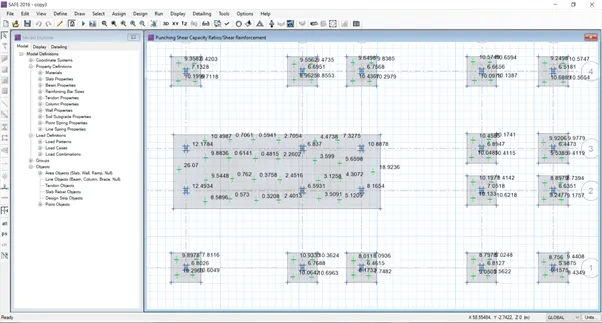

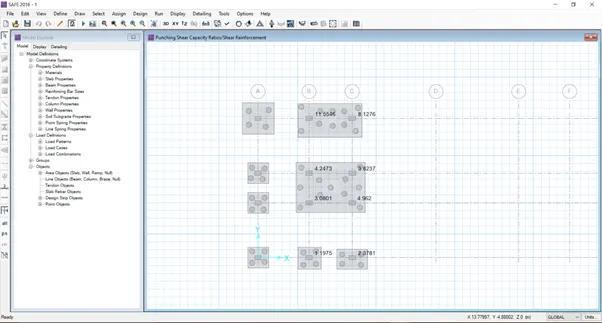

Punching shear

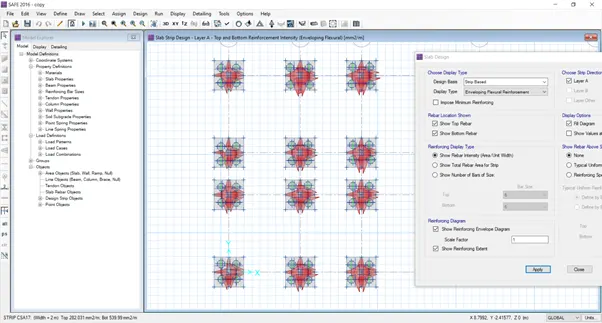

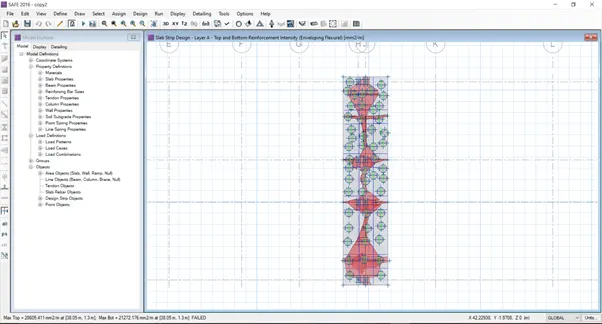

Design reinforcement
Since load was heavy the model divided to 3 pasts and analysis was done
.
.
.
.
