DESIGN AND ANALYSIS OF A HOSTEL BUILDING AT GUWAHATI, ASSAM
AIM -
TO STUDY THE DESIGN AND ANALYSIS OF A HOSTEL BUILDING AT GUWAHATI, ASSAM
INTRIDUCTION -
- ETABS is an engineering software product that caters to multi strorey building analysis and design.
- SAFE represents the state of art in three dimensional finfite element technologies for structural engineering.
- Here, in this project we are carrying out the design analysis of a G+3 building situated in Guwahati, Assam using ETABS software and then foundation design is carried out using SAFE software.
PROCEDURE -

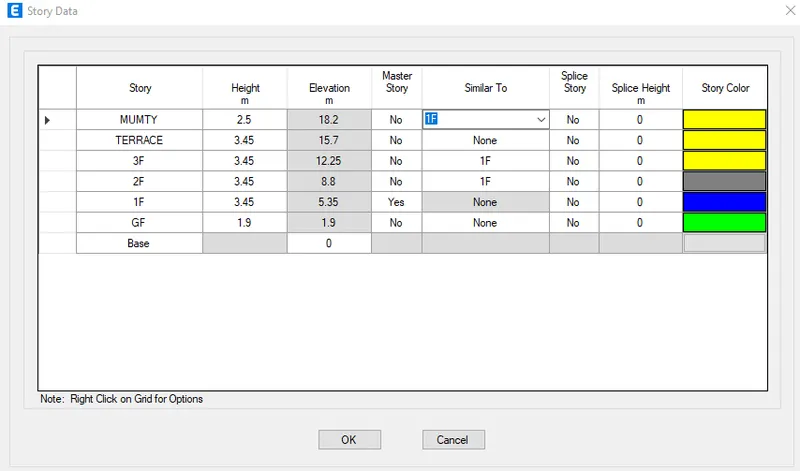

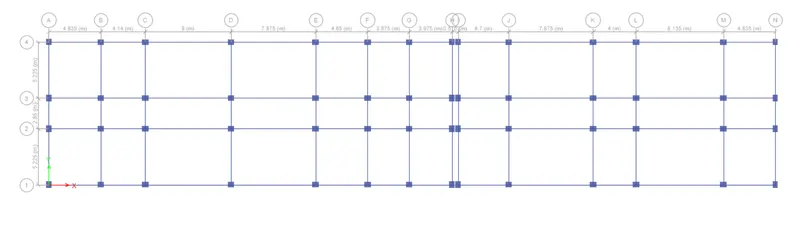

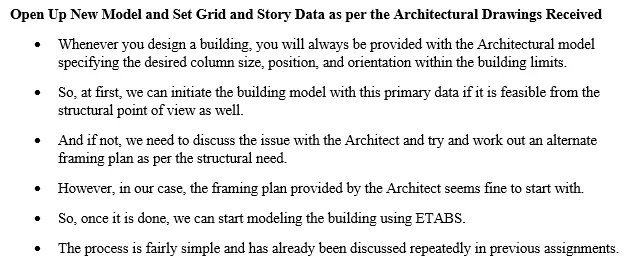

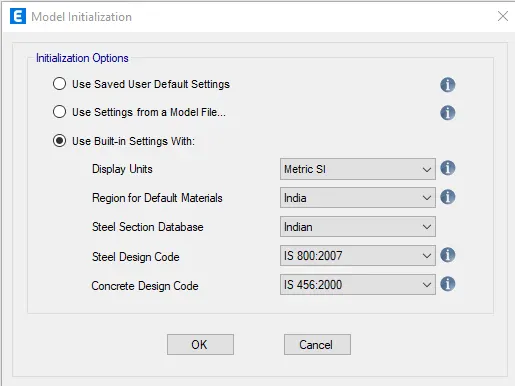

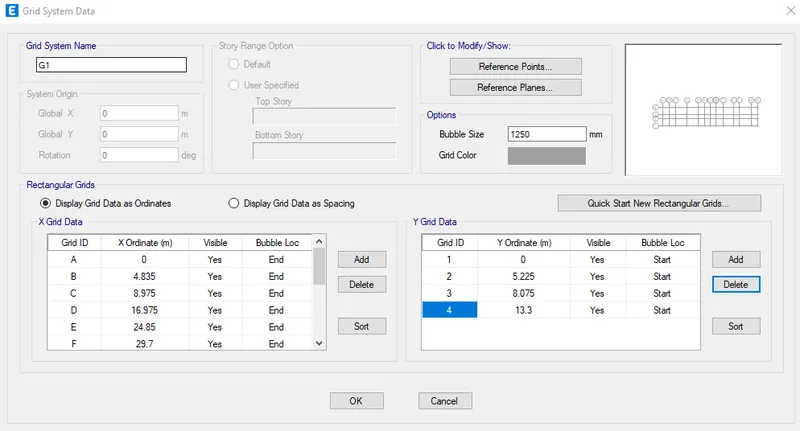

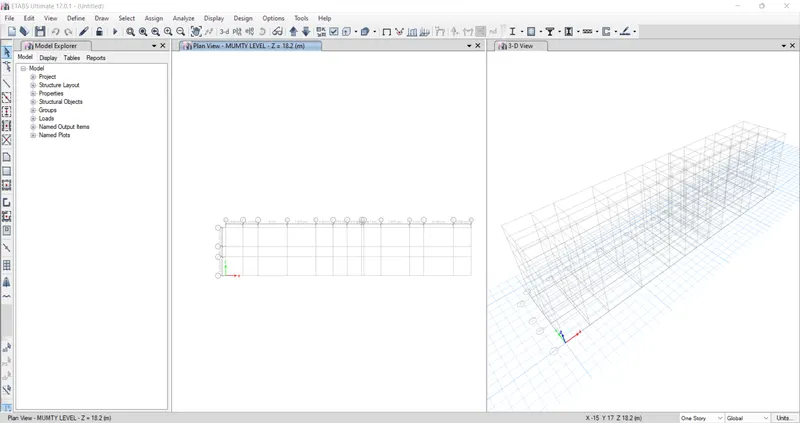

New ETABS Model with Custom Grid and Story Data

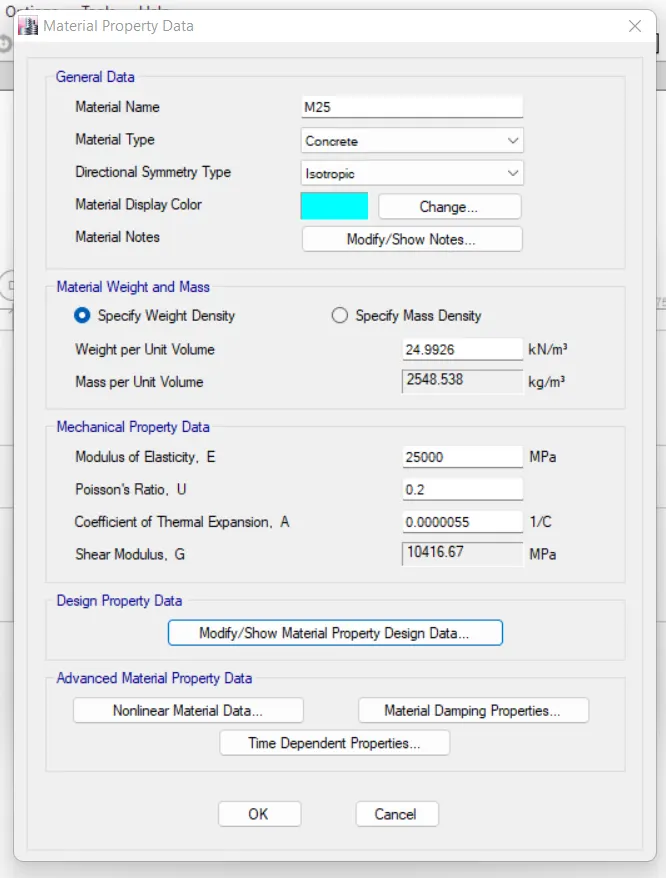

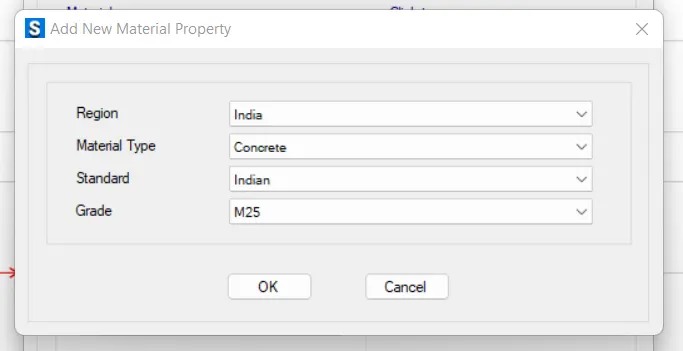

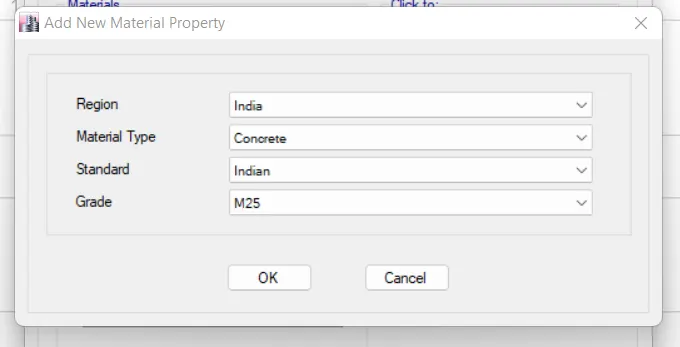

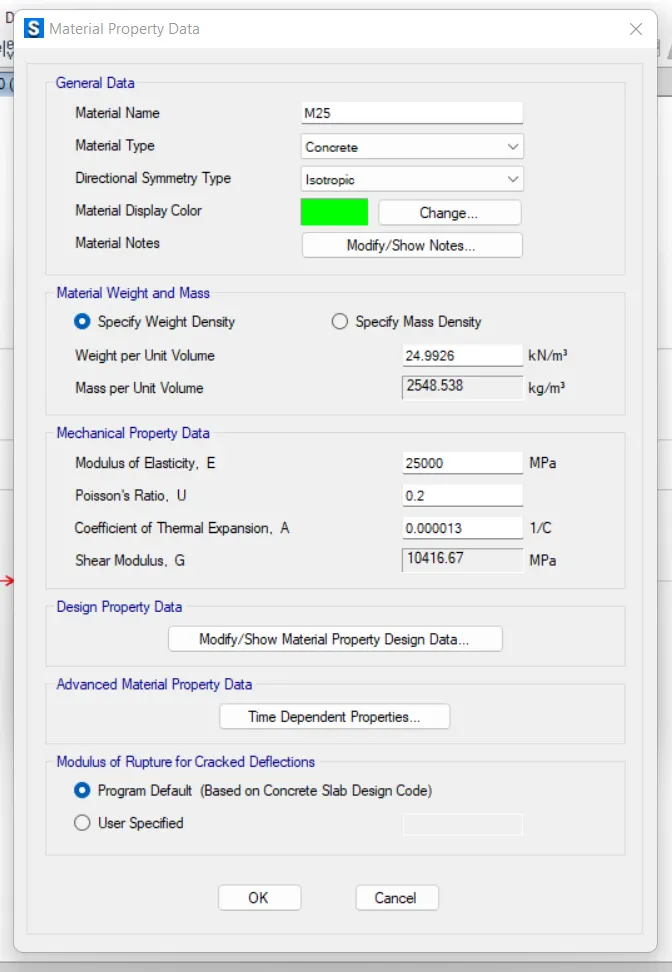

M25

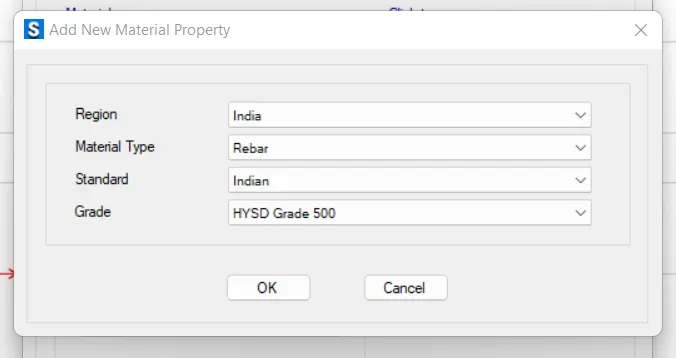

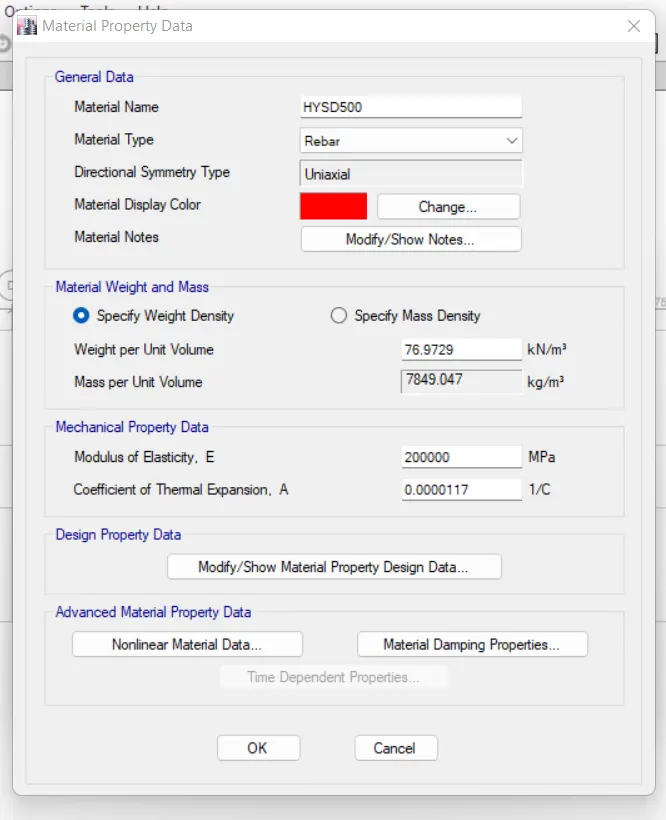

HYSD 500

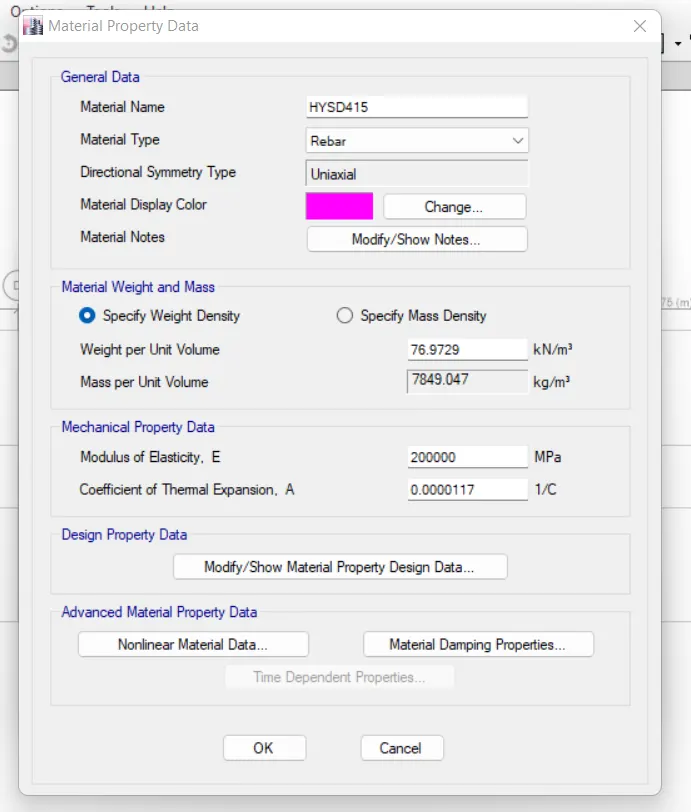

HYSD 450

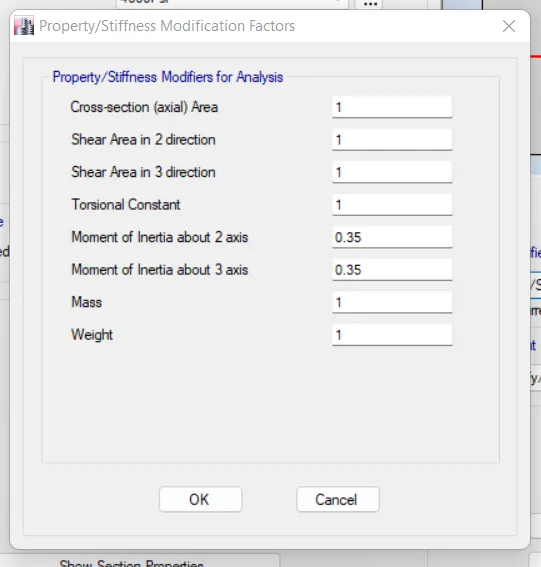

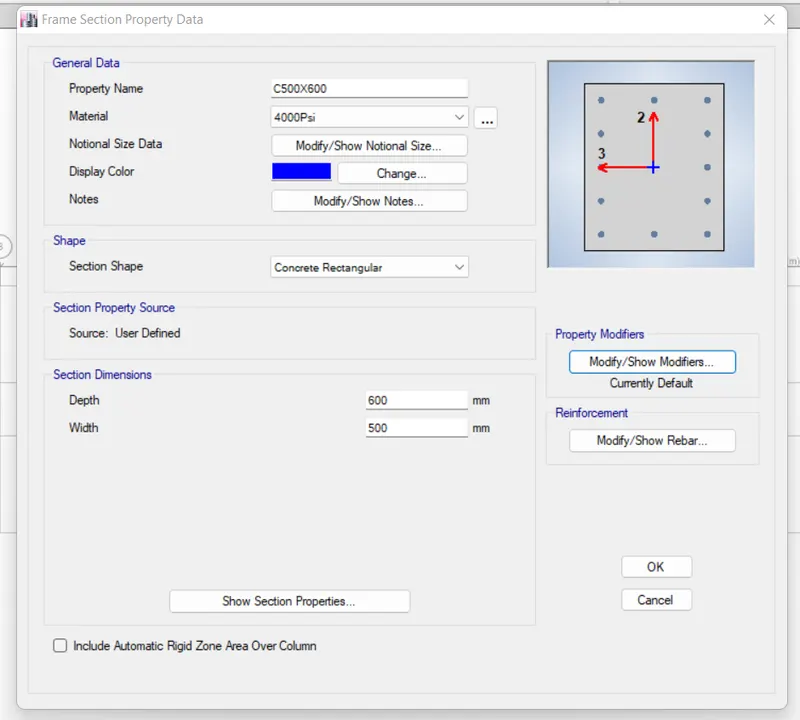

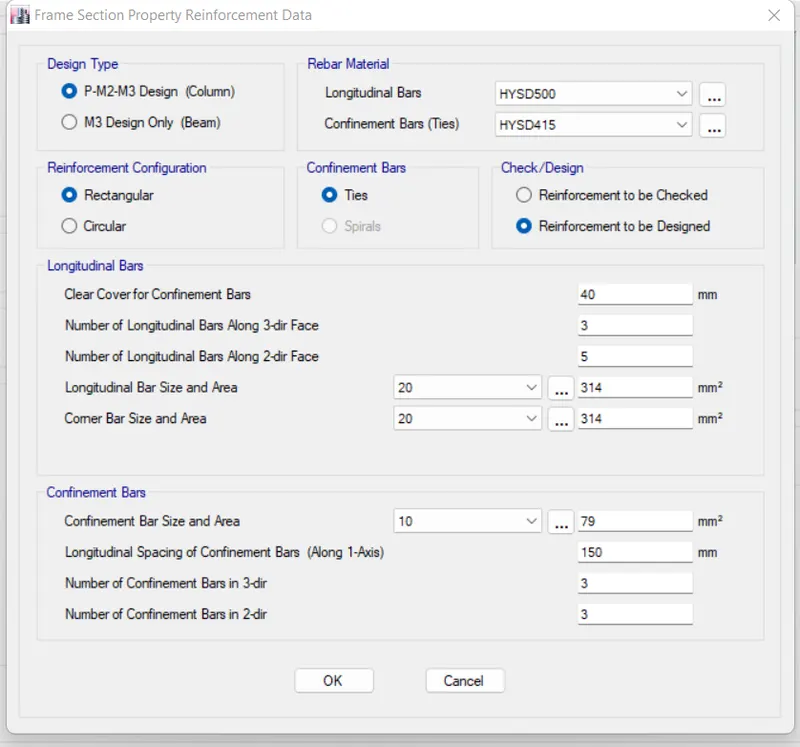

C500X600

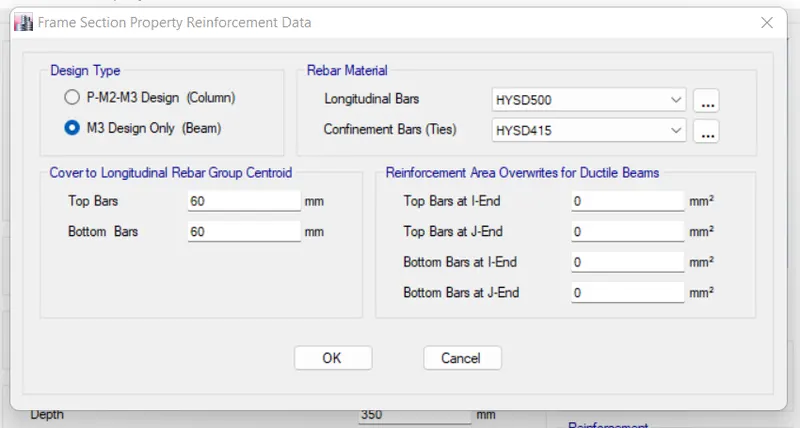

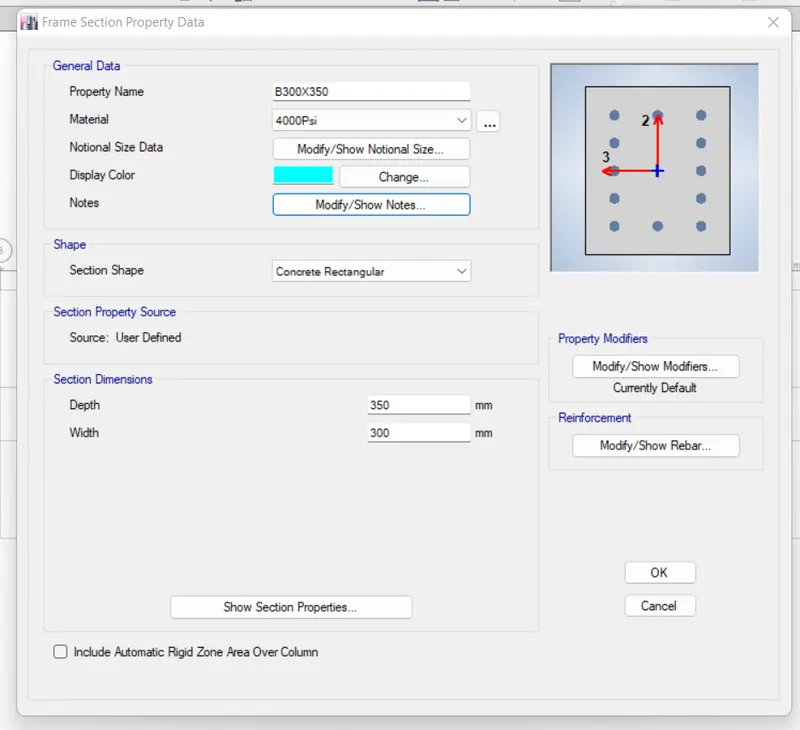

B300X350

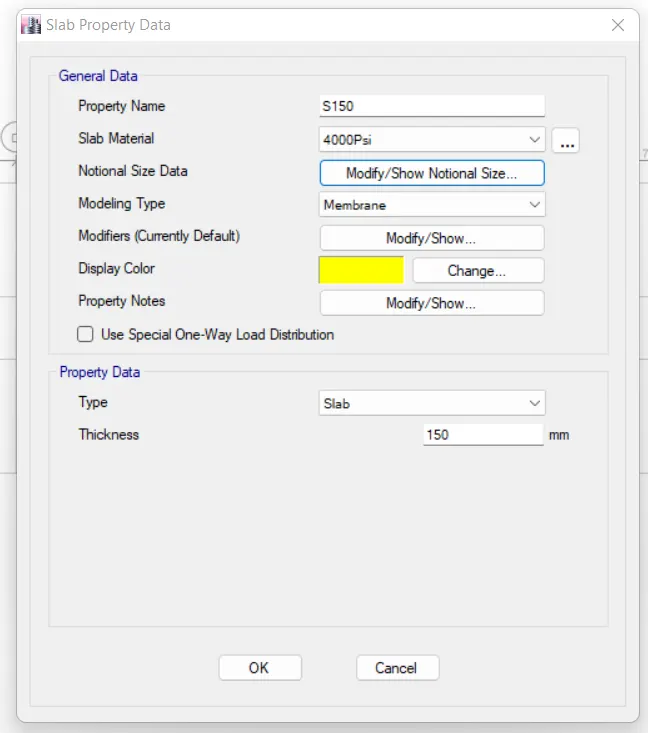

SLAB 150mm Thick

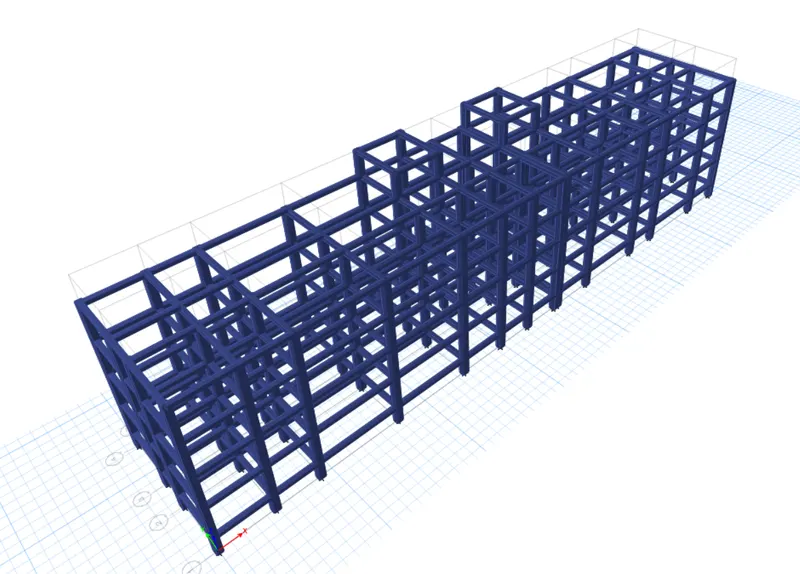

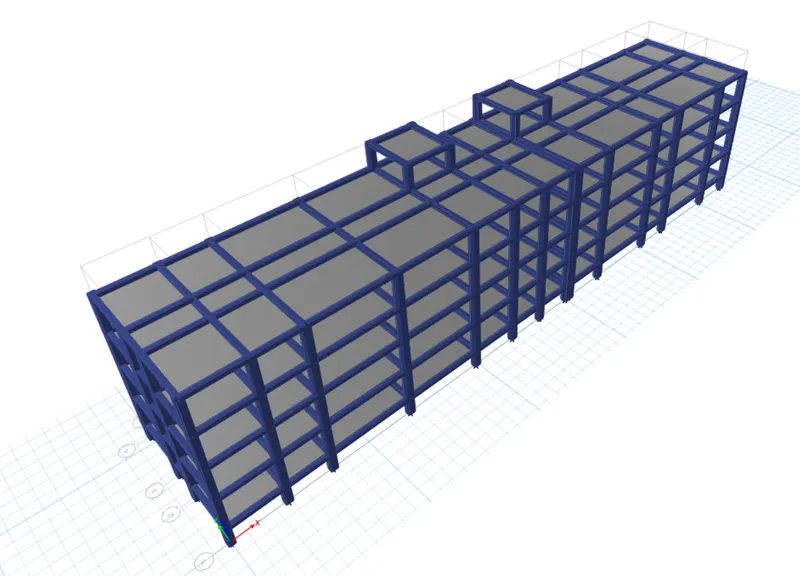

Start Modeling by Drawing Structural Elements

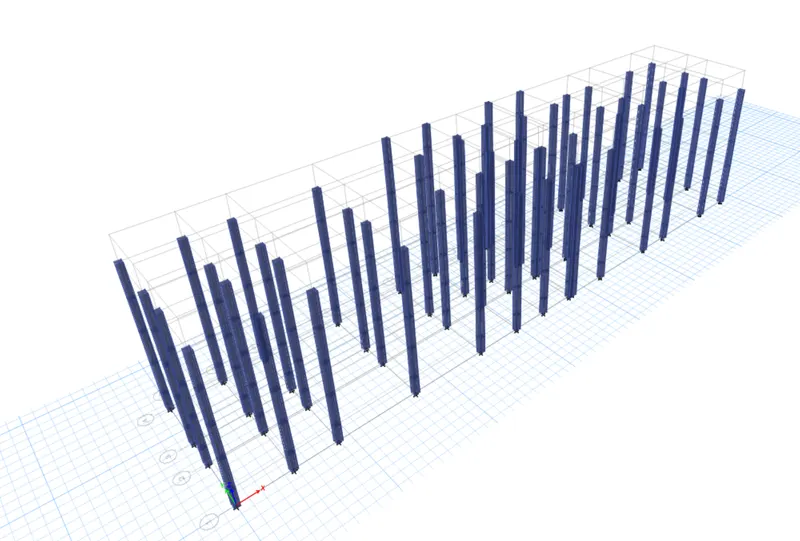

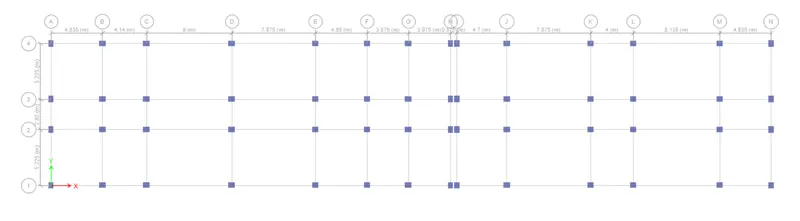

Quick Draw Columns
Quick Draw Beams

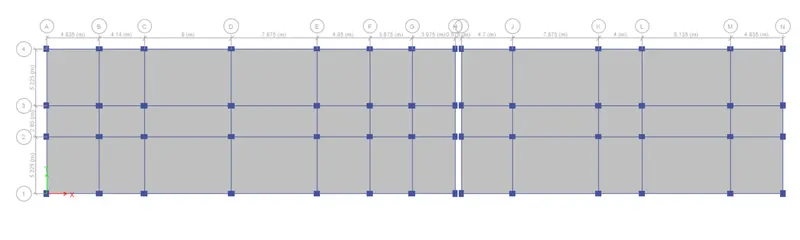

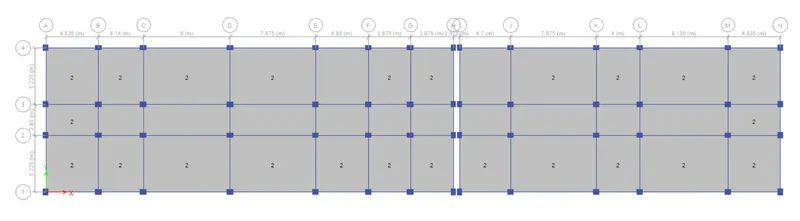

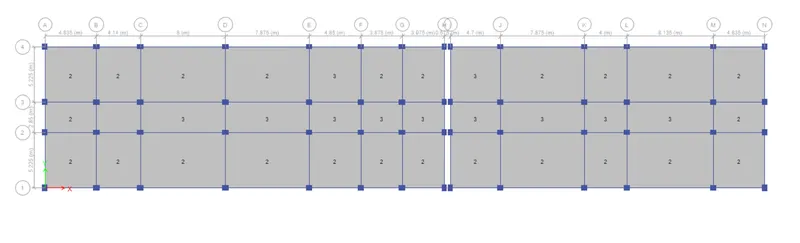

Quick Draw Floors

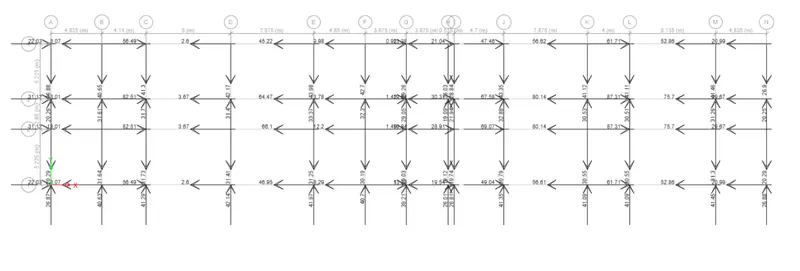

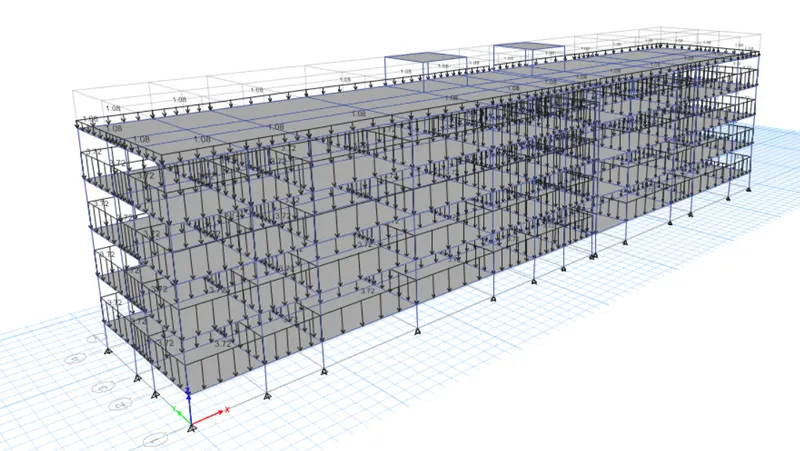

Define and Assign Load Patterns

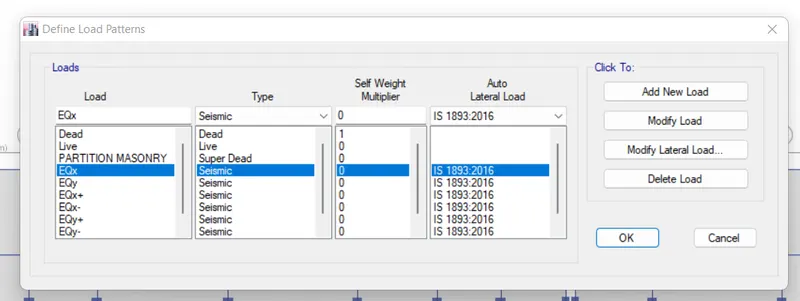

Load Patterns

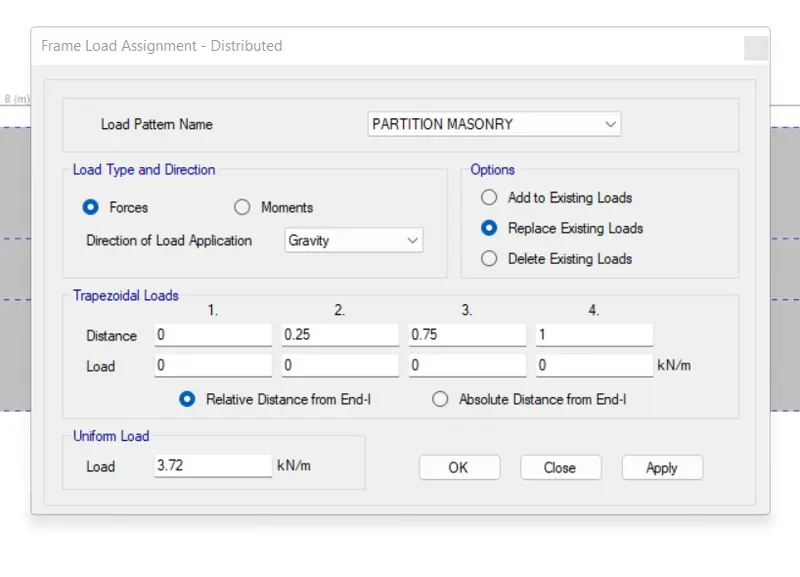

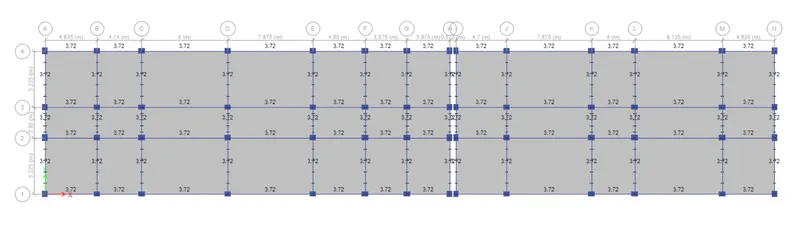

AAC Block Load Assign
AAC Load for Terrace

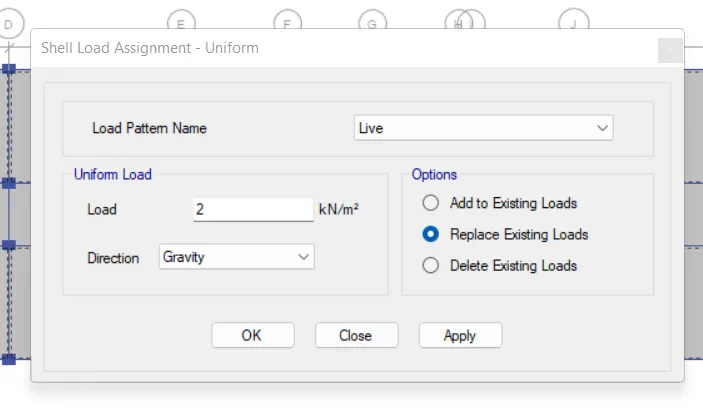

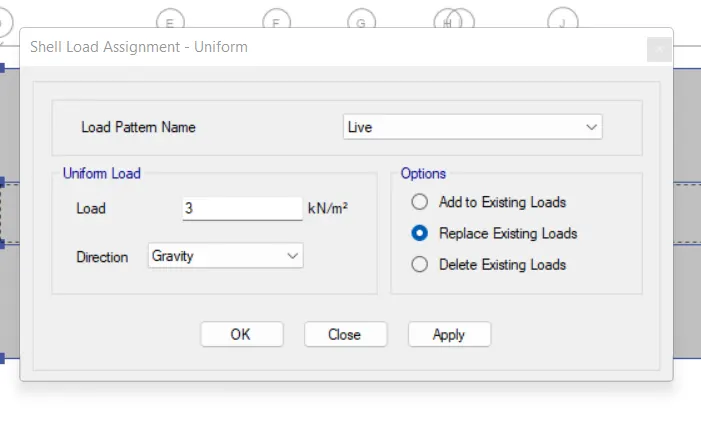

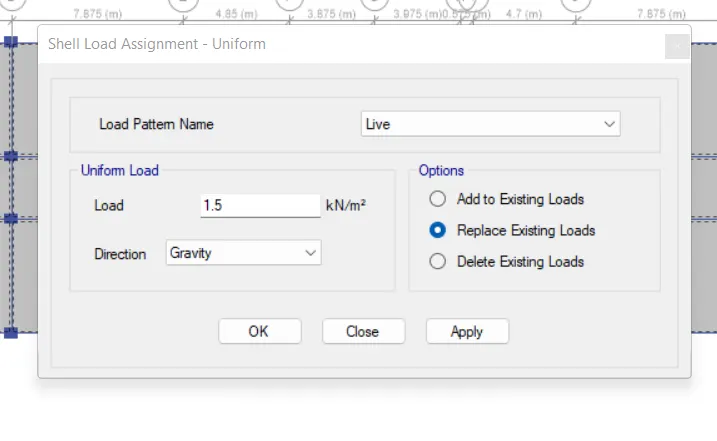

Live Load Assign (For All Rooms)
For Corridor and Staircase
For Terrace

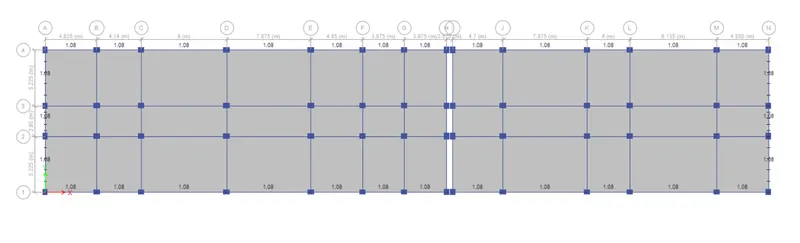

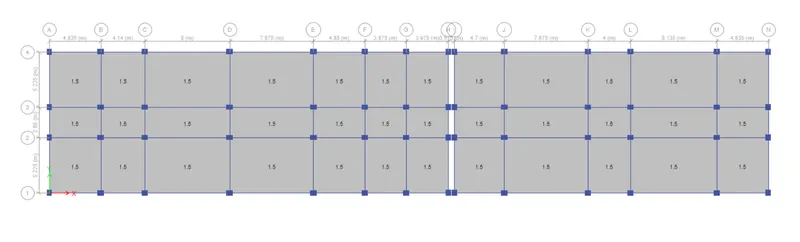

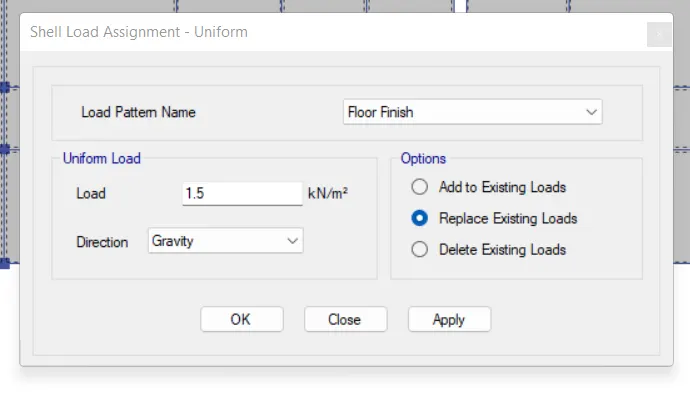

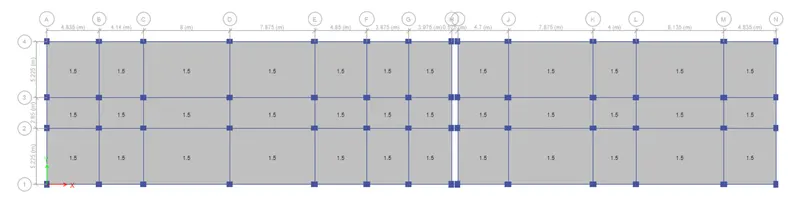

Floor Finish Load
Define Mass Source, Modal Case, and Response Spectrum Function

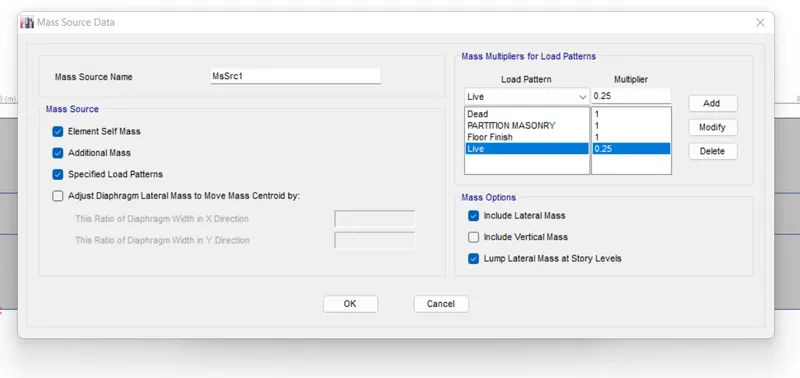

Mass Source

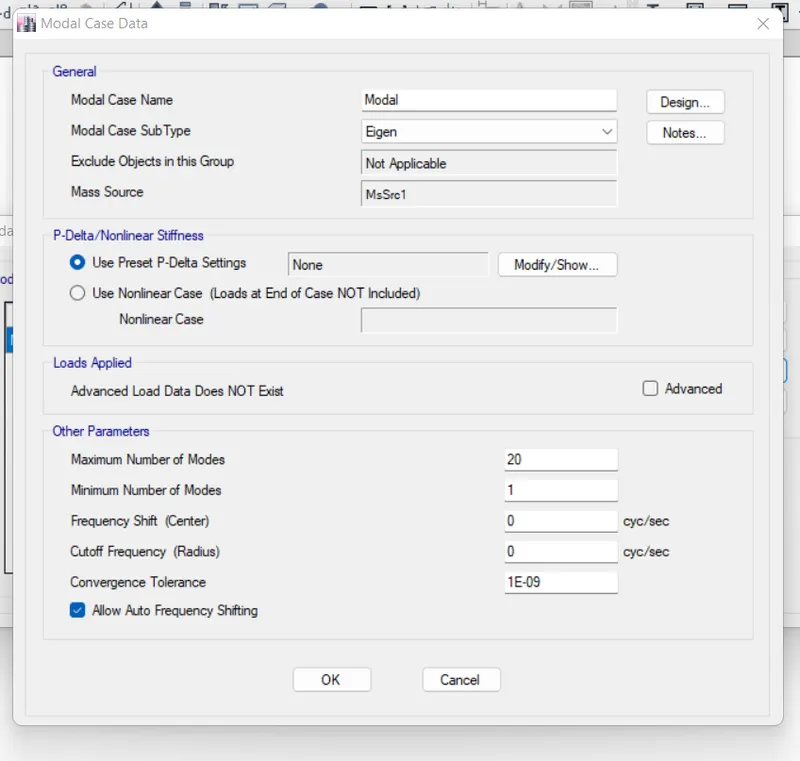

Moal Case

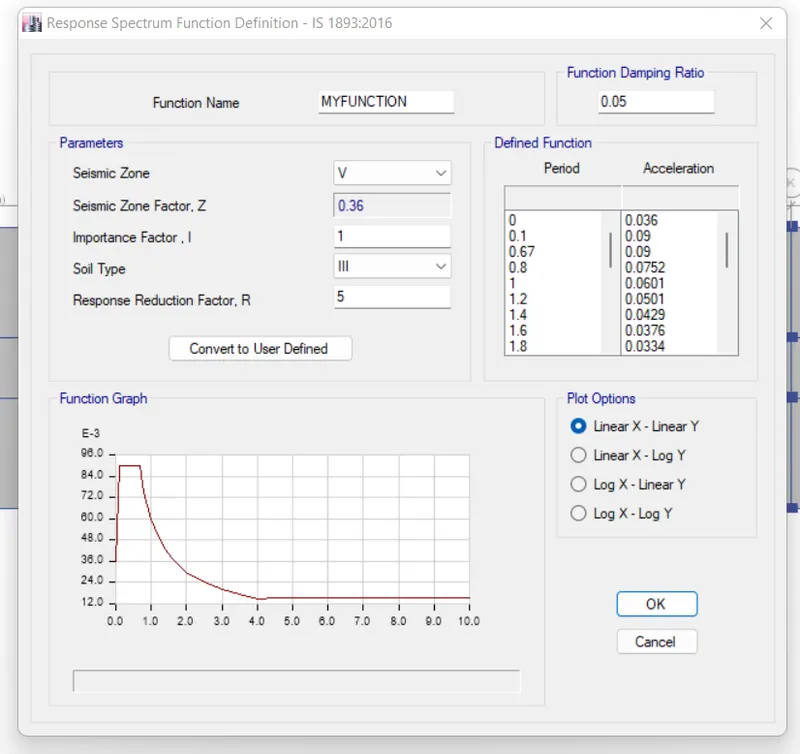

Response Spectrum Function

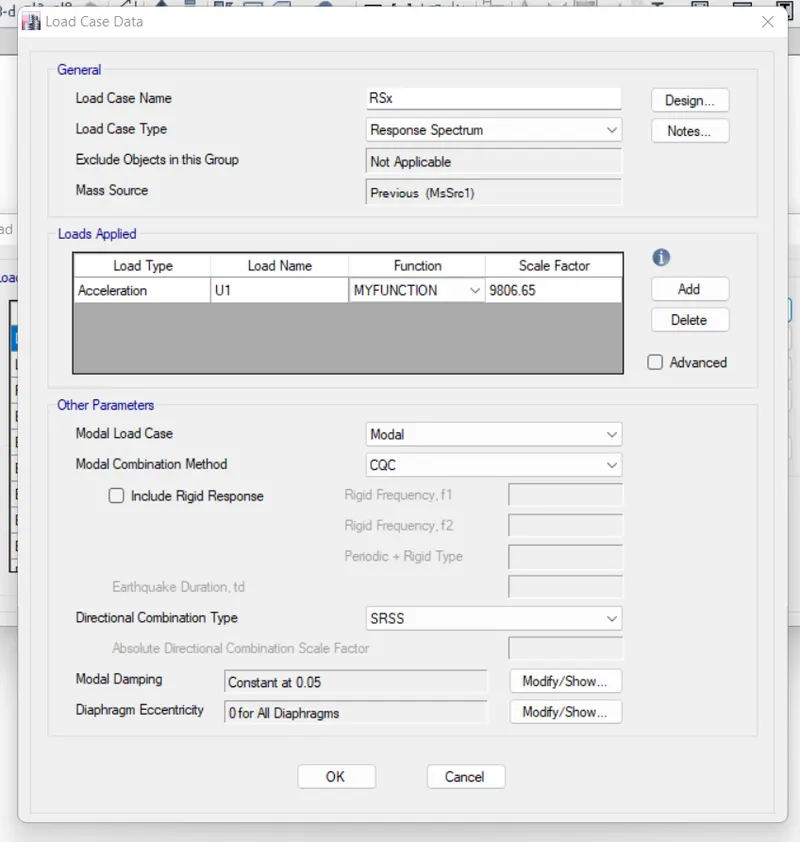

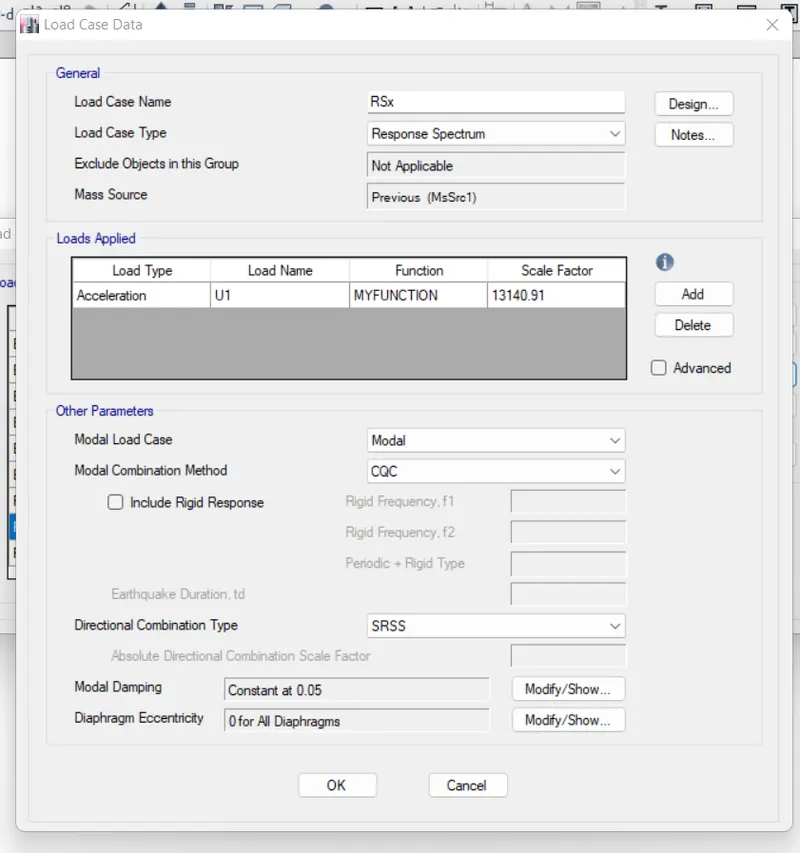

RSx

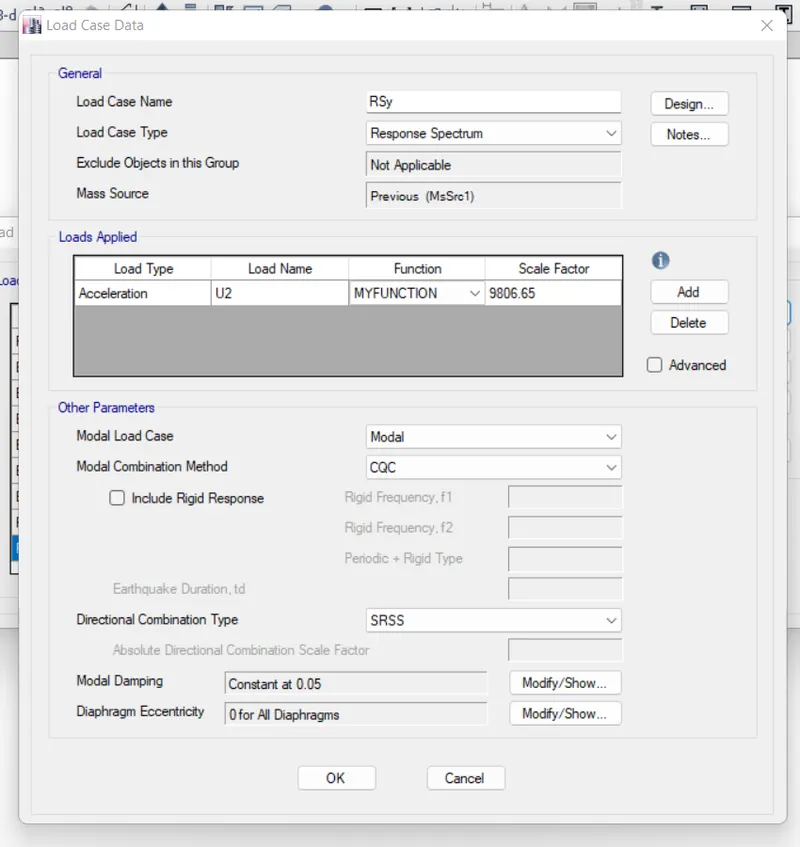

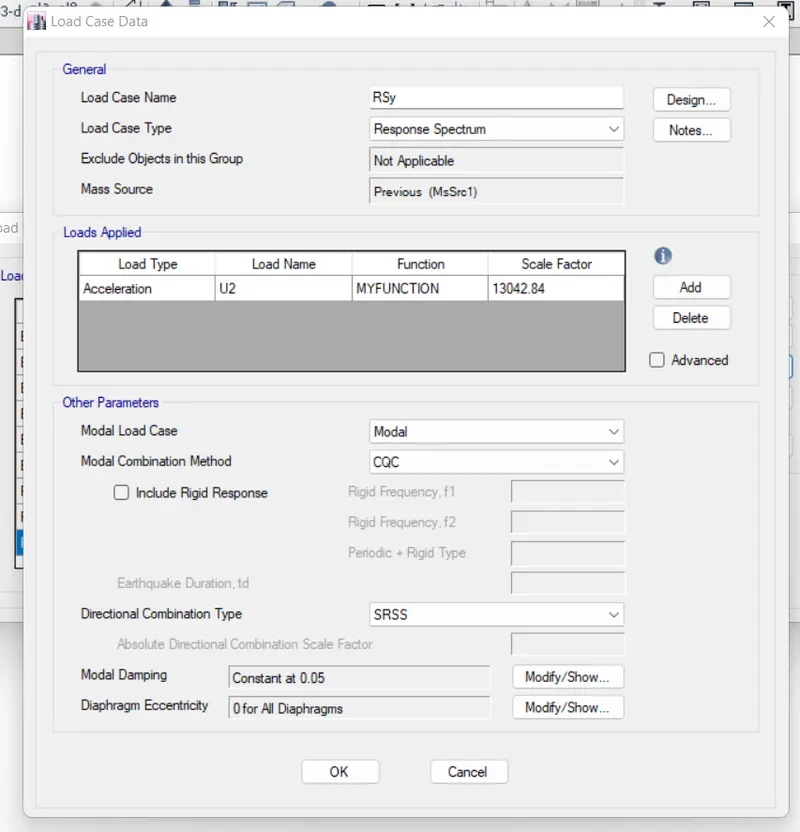

RSy

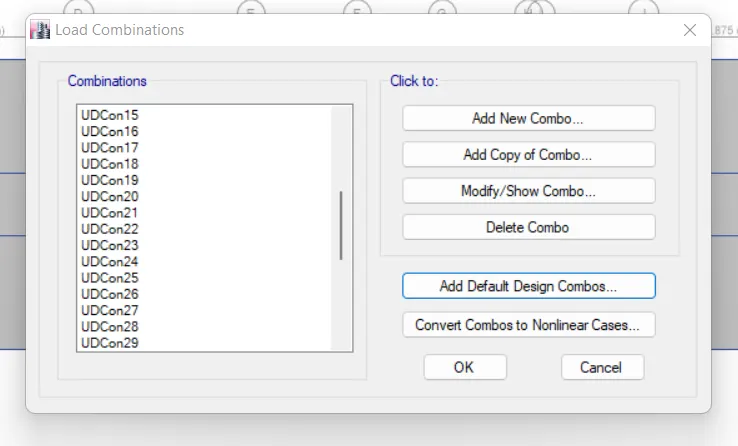

Generate Load Combinations

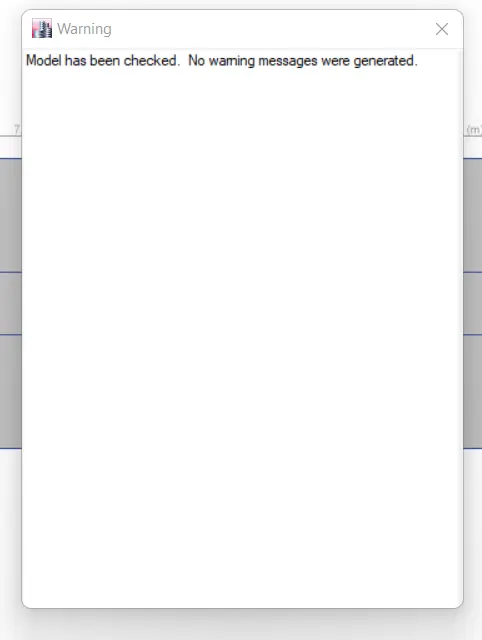

Check The Model and Run the Analysis
Conduct the Structural Output Checks

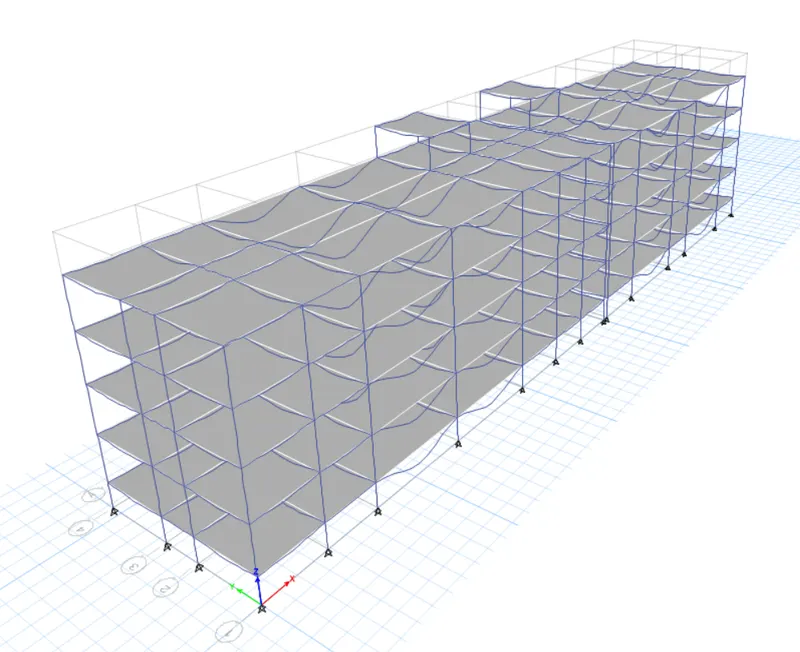

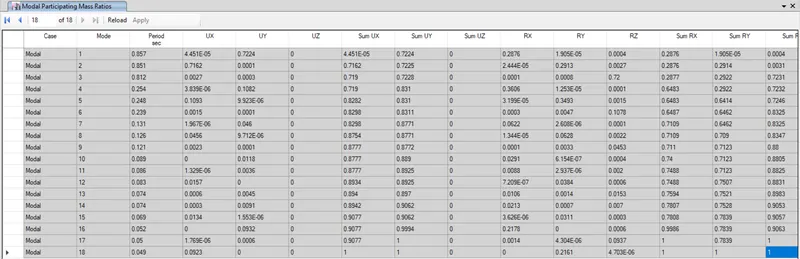

Modal Response Check

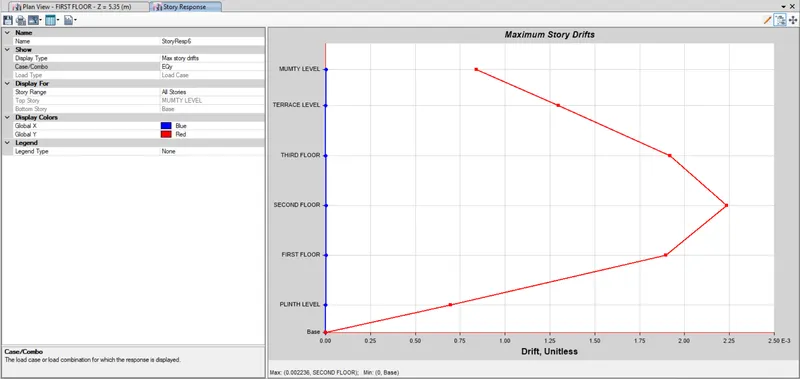

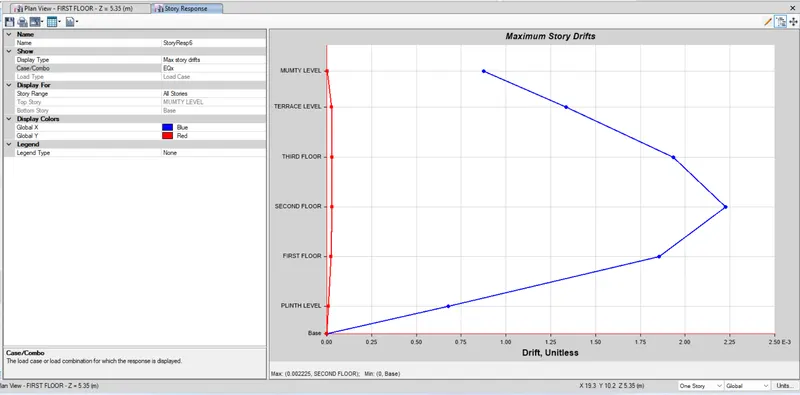

Story Drift Check

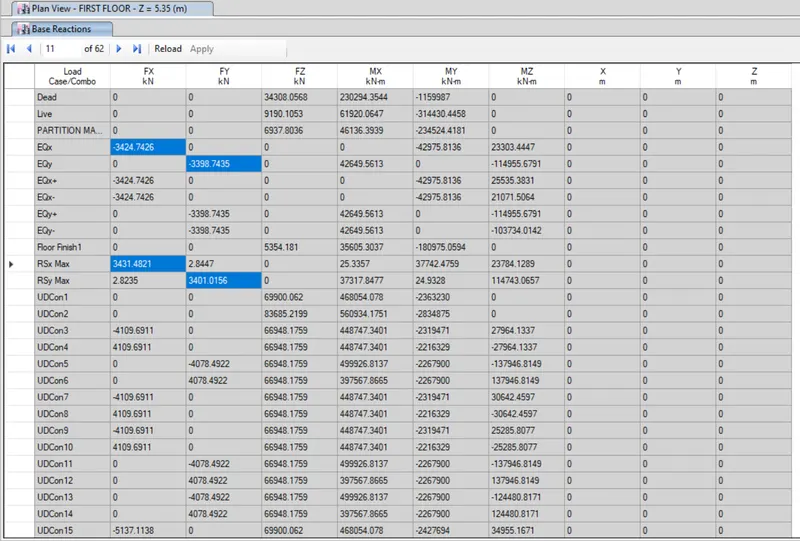

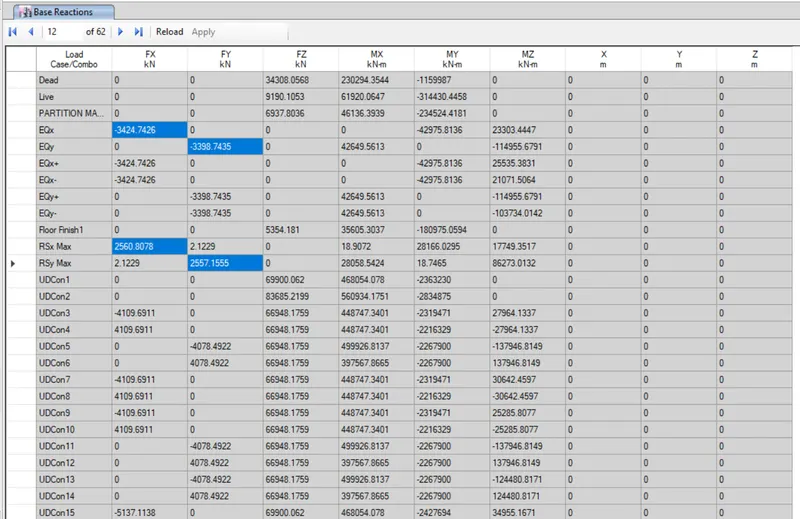

Base Shear Scaling
Difference in the base shear
Scale Factor Multiplication
Equal Base Shear

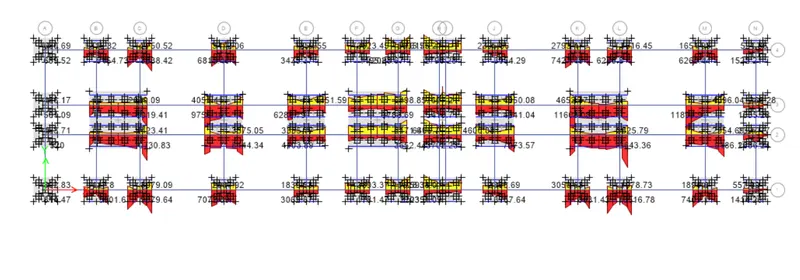

Run the Design

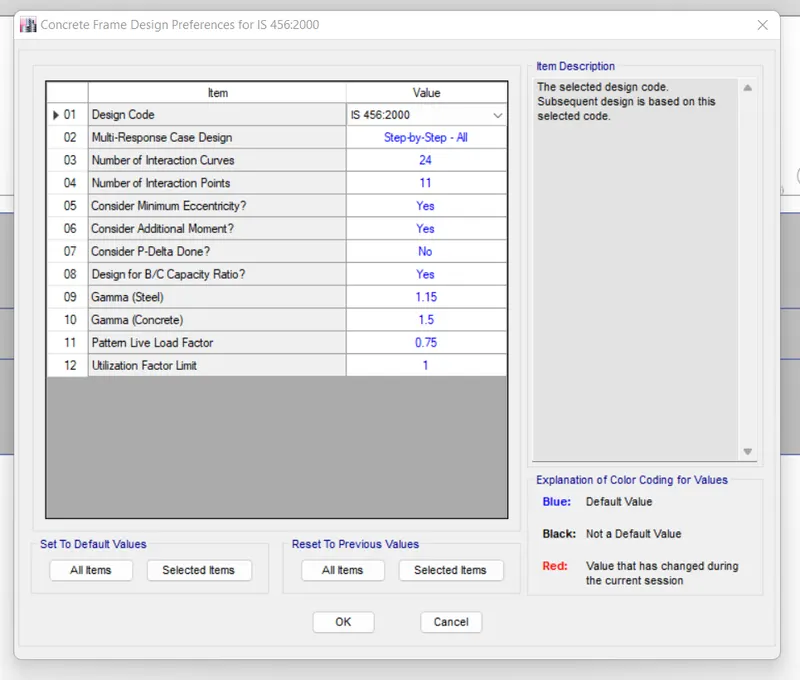

View/Revise Design References
Design Completed

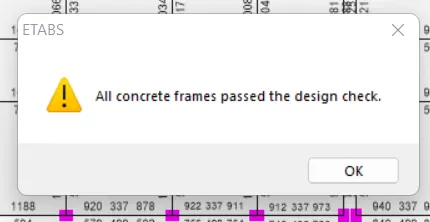

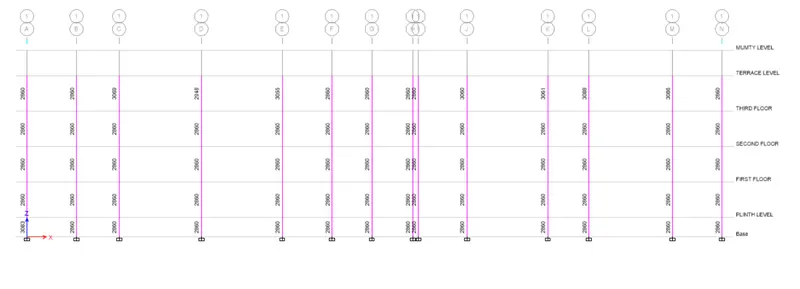

Verify all Members Passed
2. Reinforcement detailing of the concrete frame using AutoCAD.

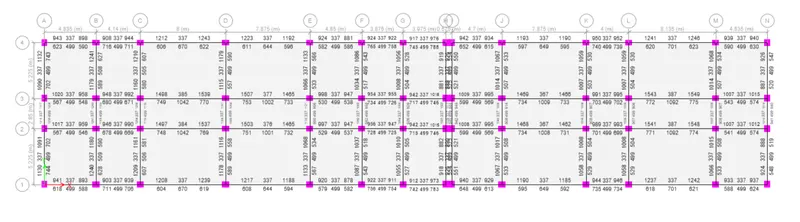

- Max Steel as per ETABS Results

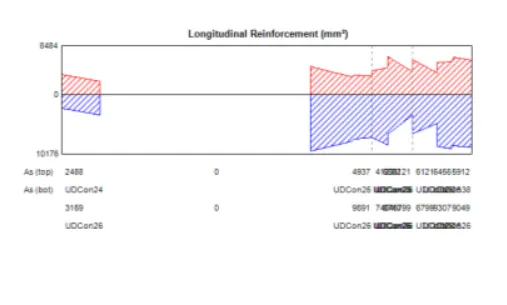

Beam B34 Longitudinal Steel Requirements
B34 Shear Steel Requirements

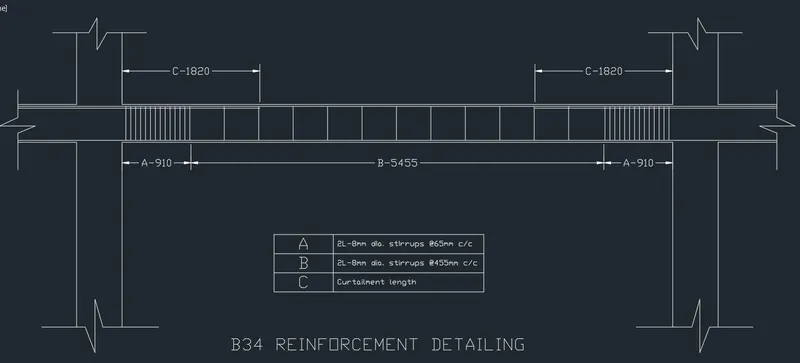

B34 Reinforcement Detailing as per IS-13920

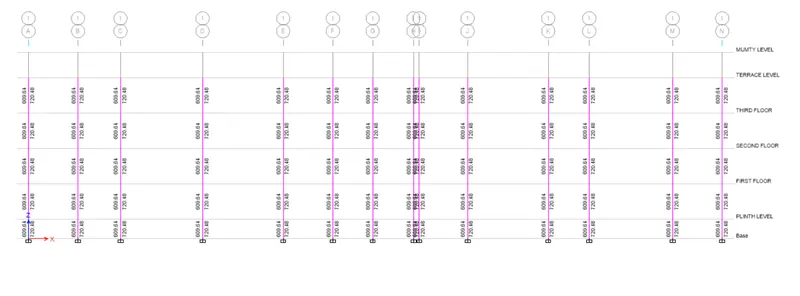

Column C29 Longitudinal Steel Requirements
C29 Shear Requirements

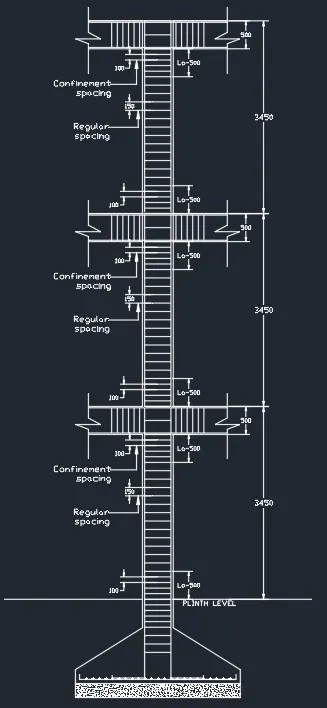

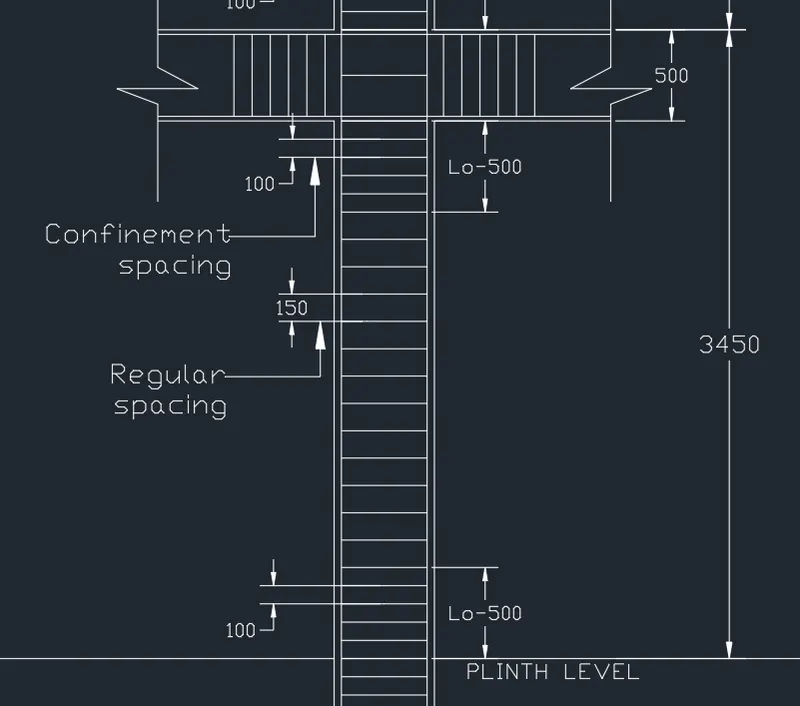

C29 Reinforcement Detailing As per the IS-13920
3. Foundation Design Using SAFE

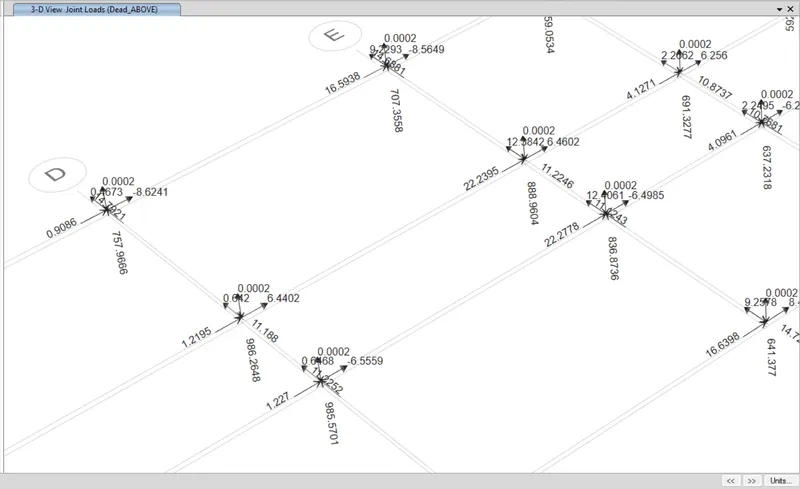

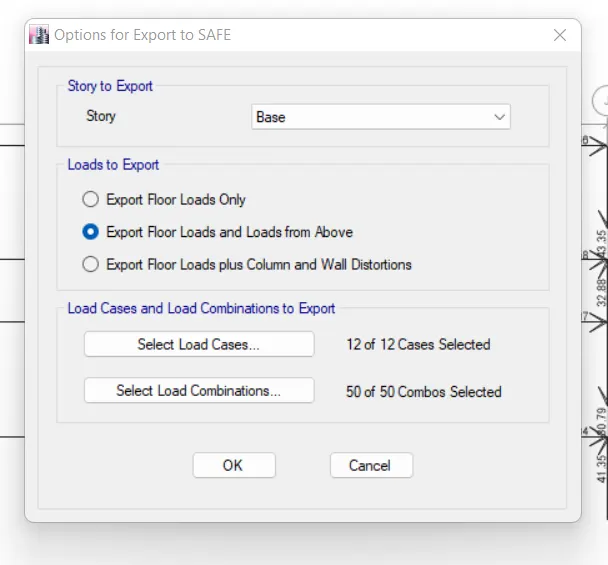

- Export Base Reactions from ETABS to SAFE
Open Base Level Plan in ETABS

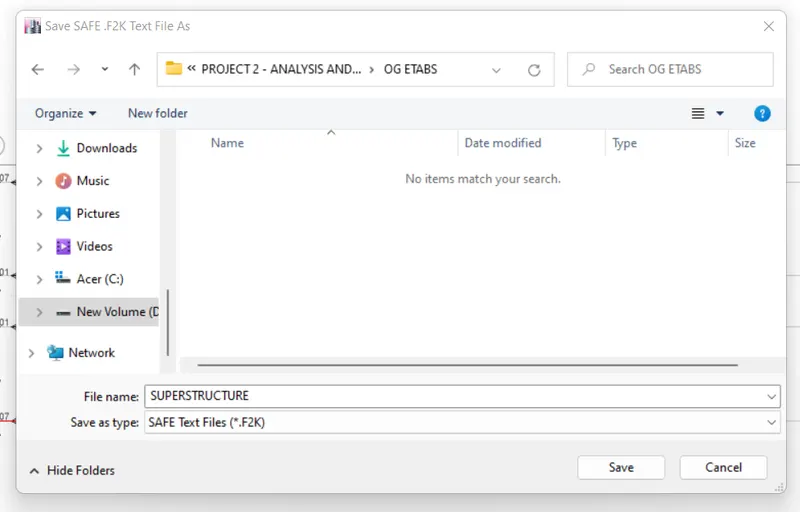

Go to File>Export>F2k File for SAFE
Save at the Desired Location on your Machine

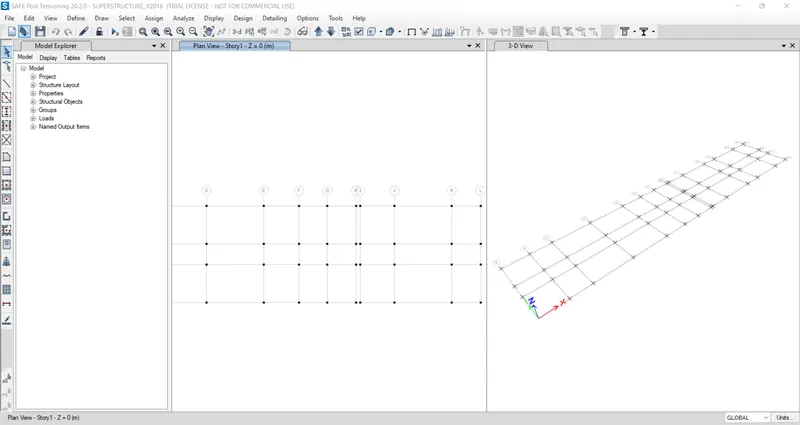

- Open SAFE and Import the Same File
Open safe>files>import>f2k file>Select model>OK

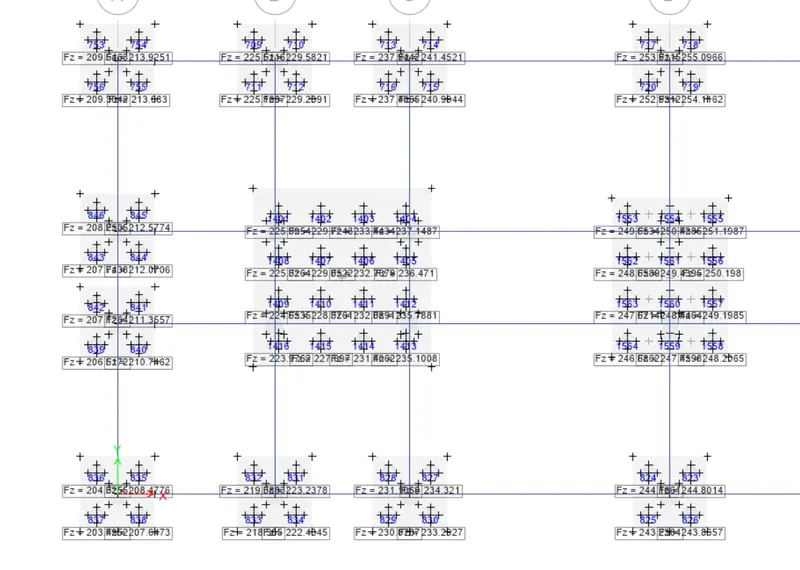

All the Loads Imported and Assigned Already While Importing

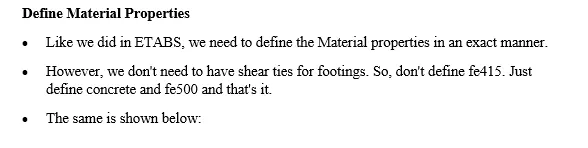

- Define Material and Section Properties
M25

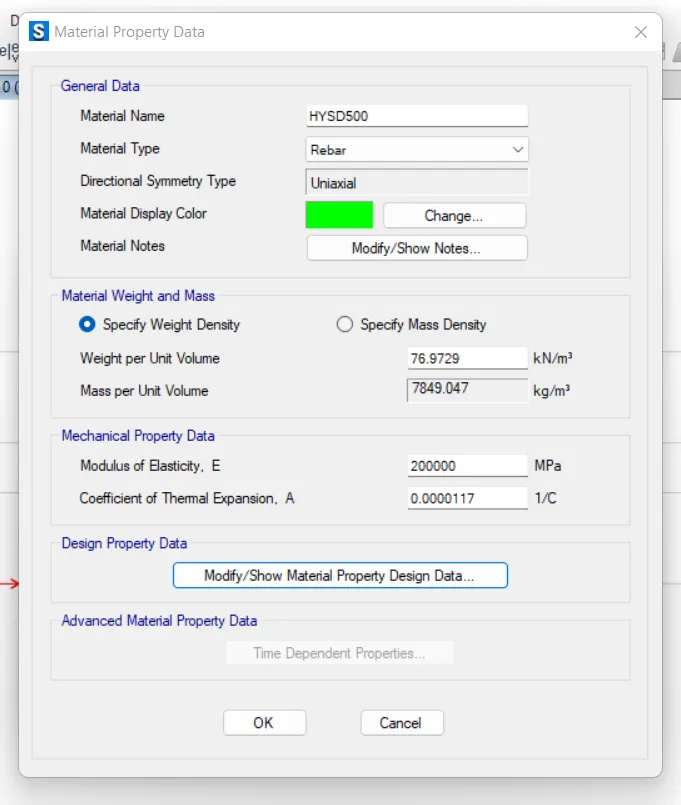

HYSD 500

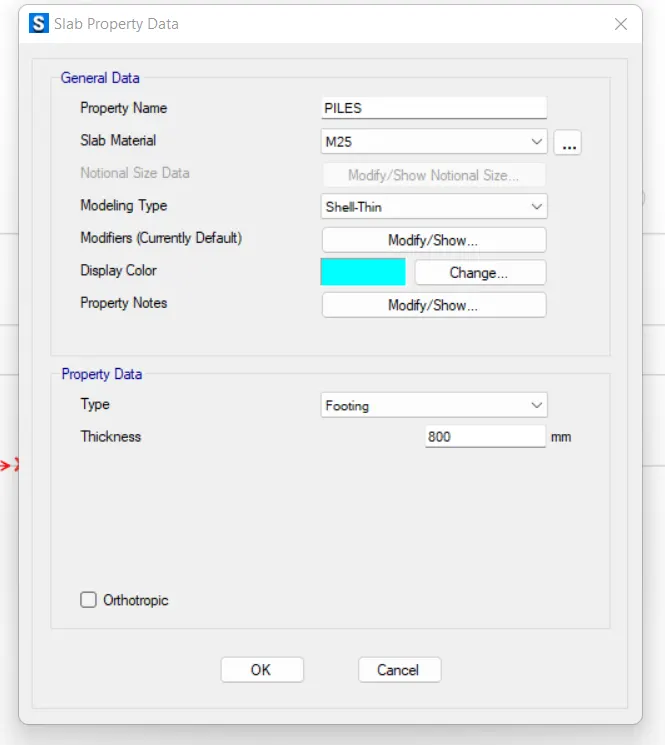

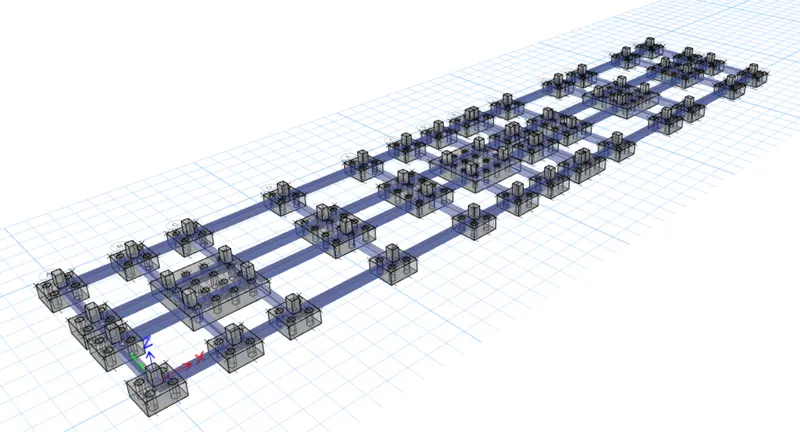

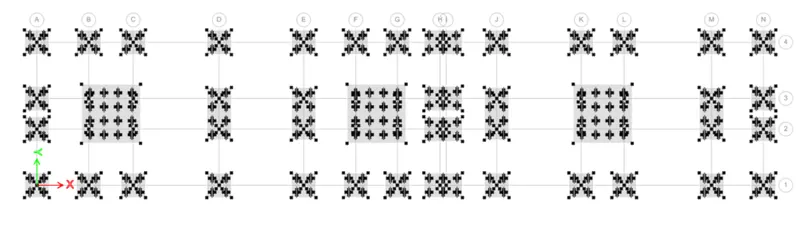

PileCAP
500mm dia. Piles

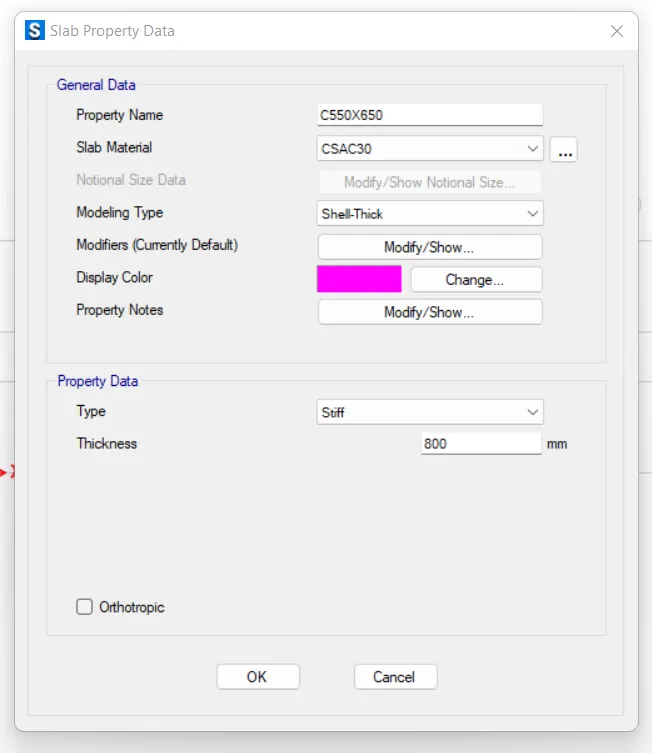

Stiff Column Section

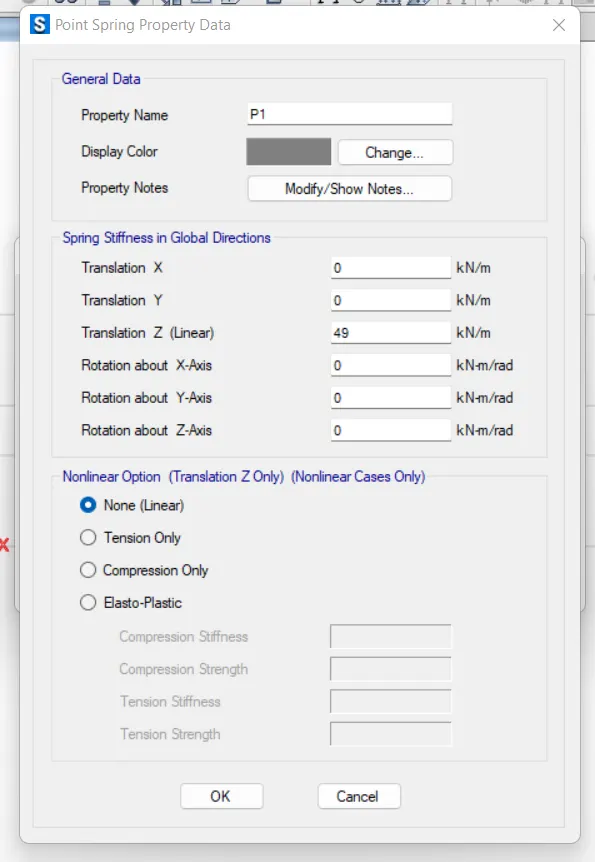

Define Point Spring

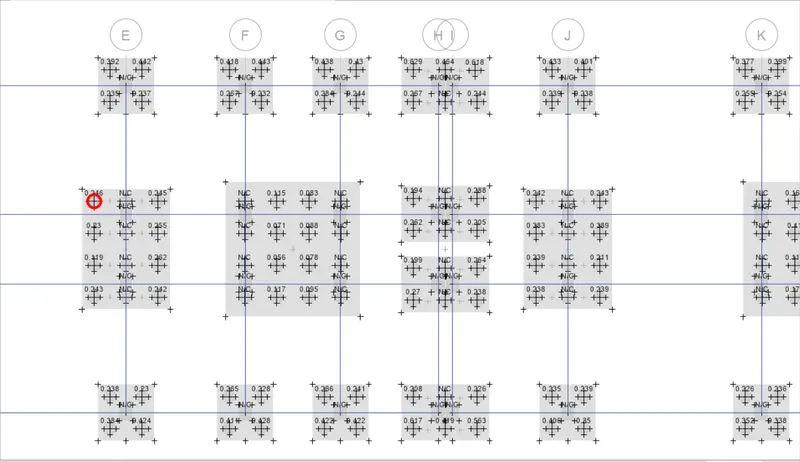

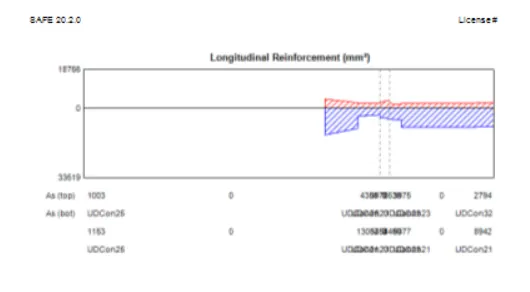

Steel Requirements
