Project 2_Design & Analysis of a Hostel building at Guwahati, Assam

A. Open a new model providing settings as perIS 456-2000

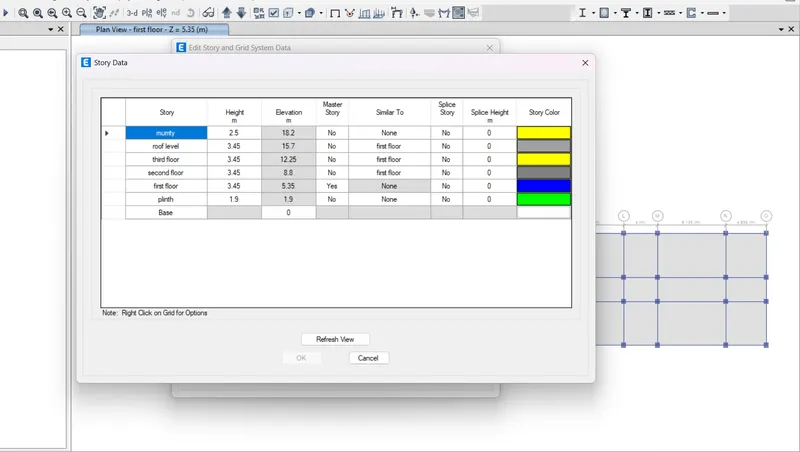

story assignment as per given problem

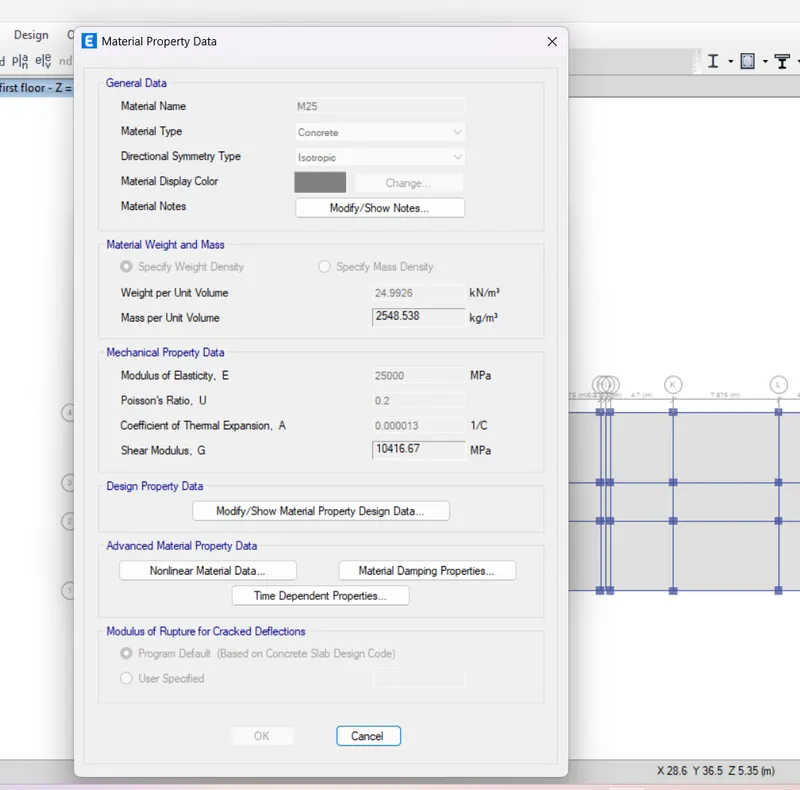

material properties

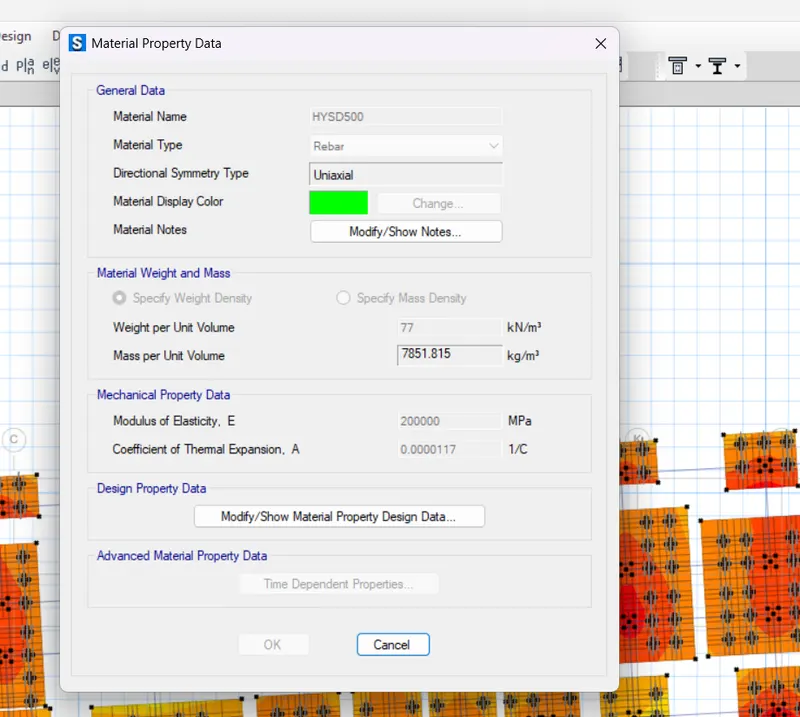

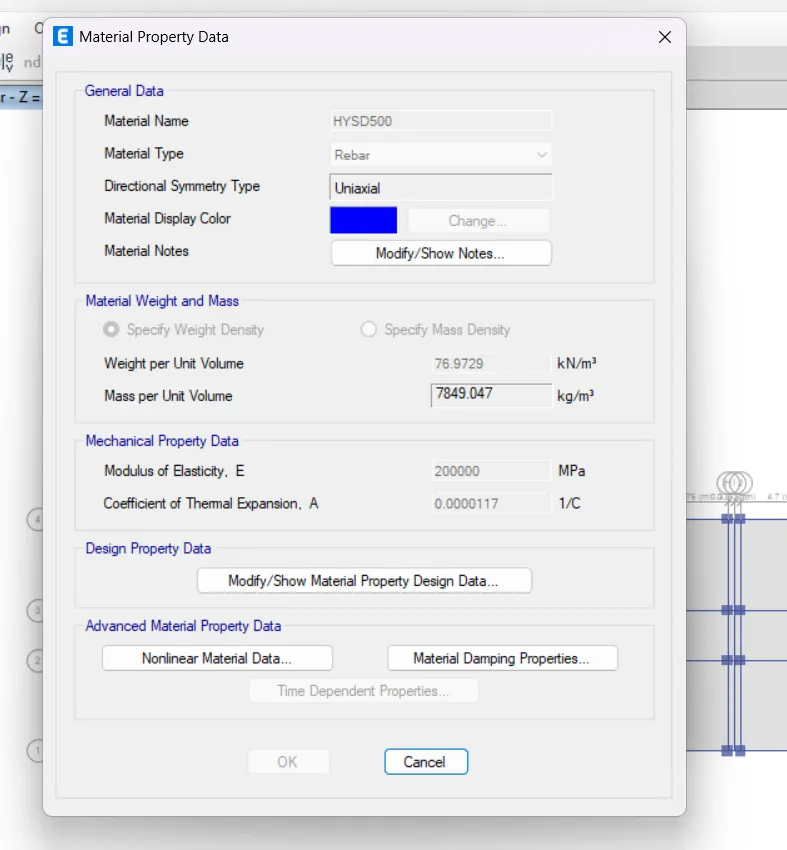

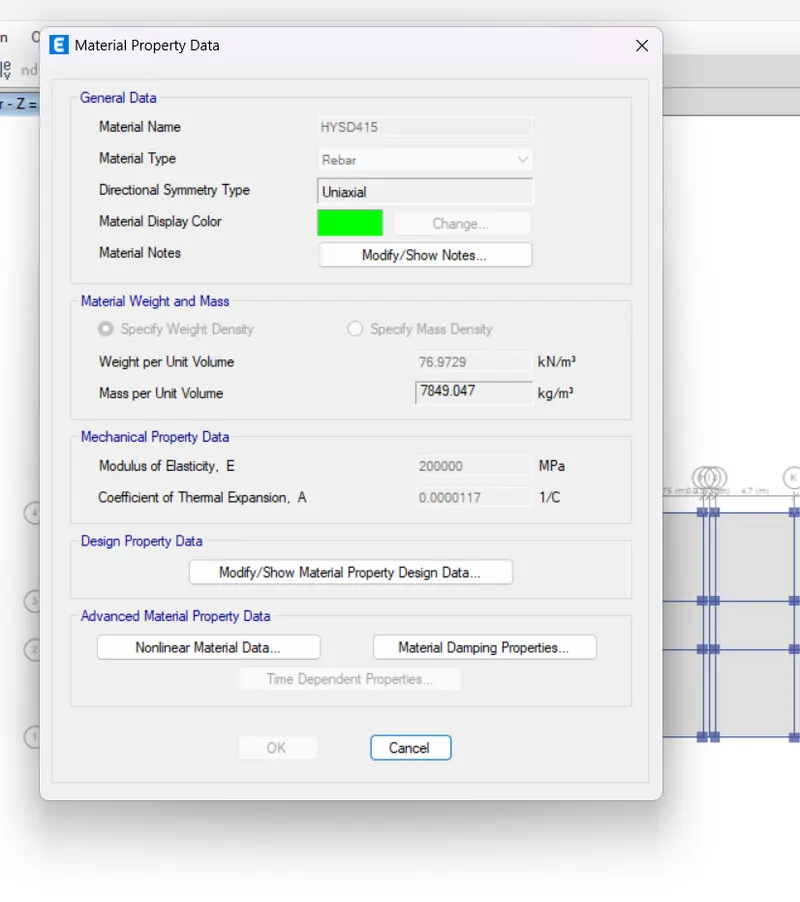

Go to define , material properties

Fe 500 used for flexural design, Fe 415 used for shear reinforcement

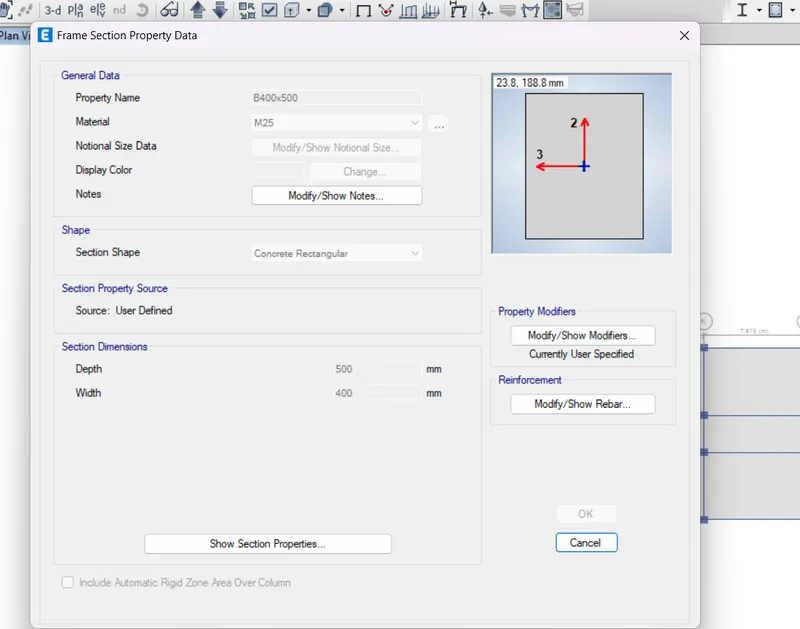

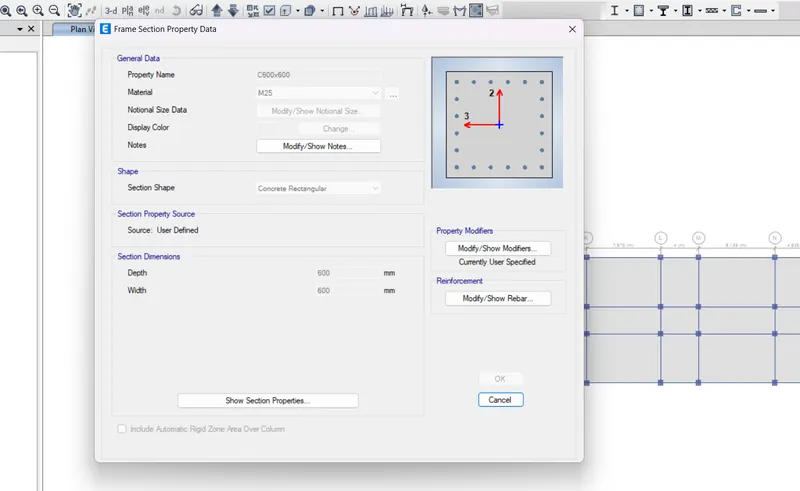

column and beam section

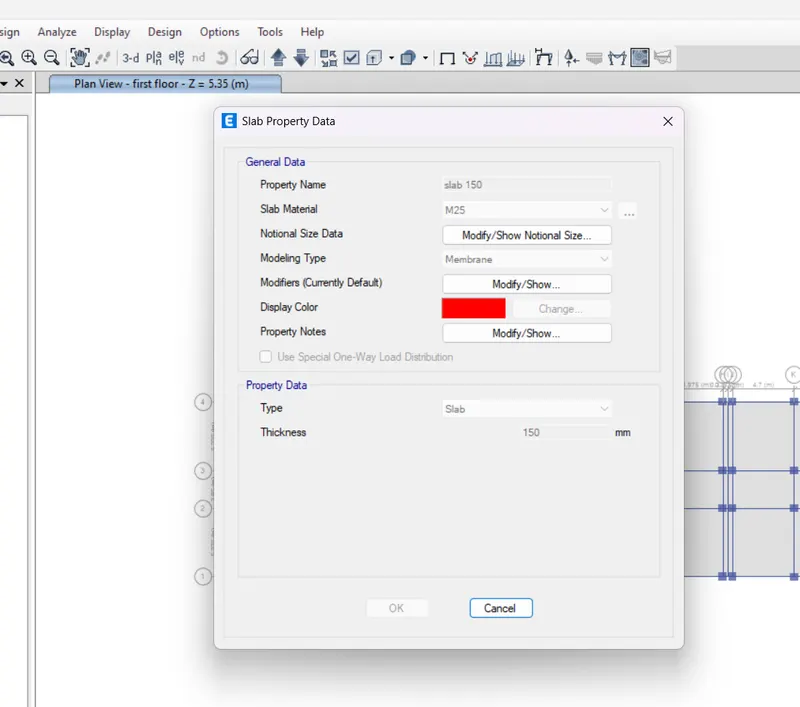

slab section

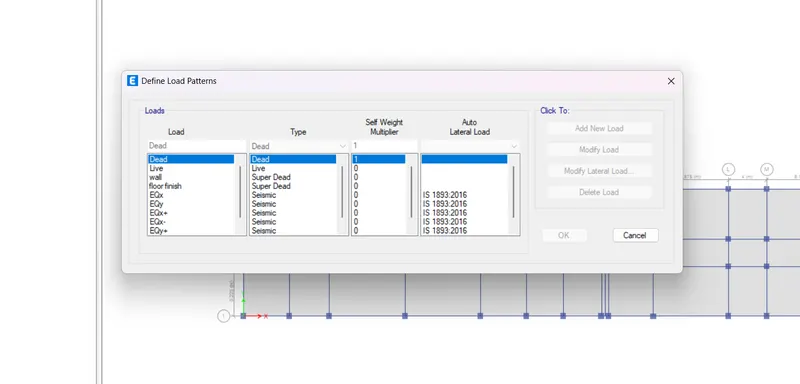

Go to define, load patterns

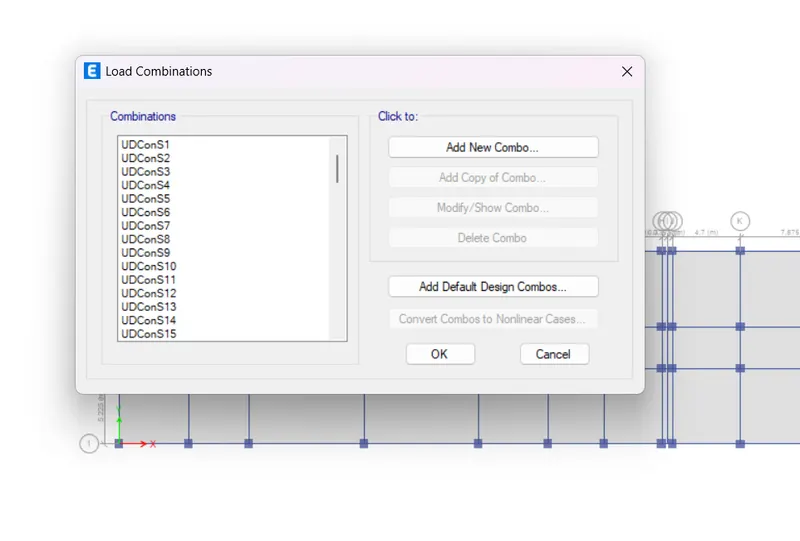

load combination

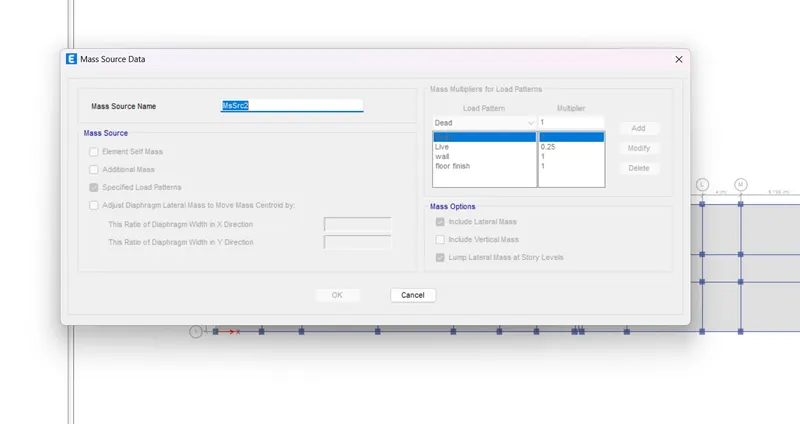

Go to define , mass source

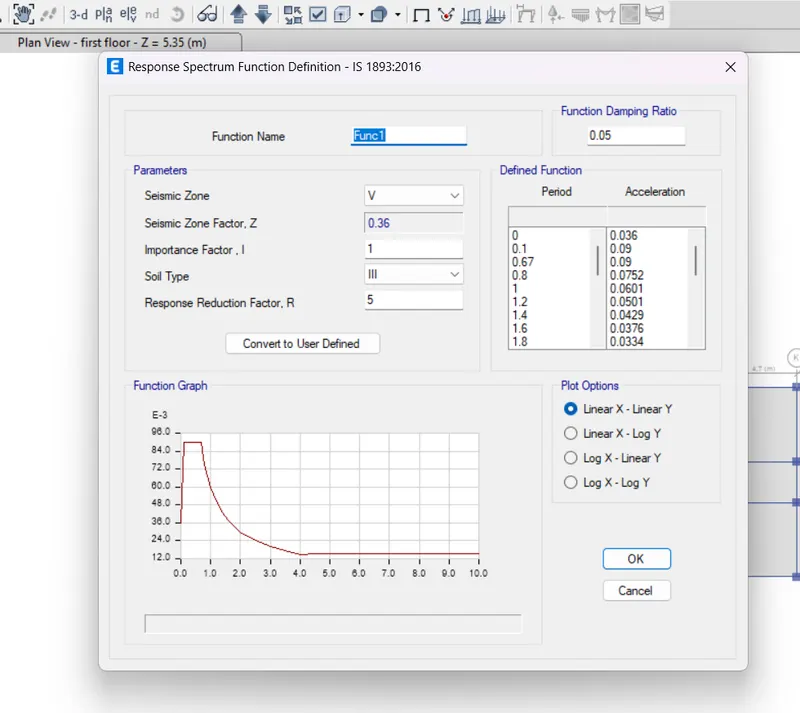

Go to define, function and response spectrum

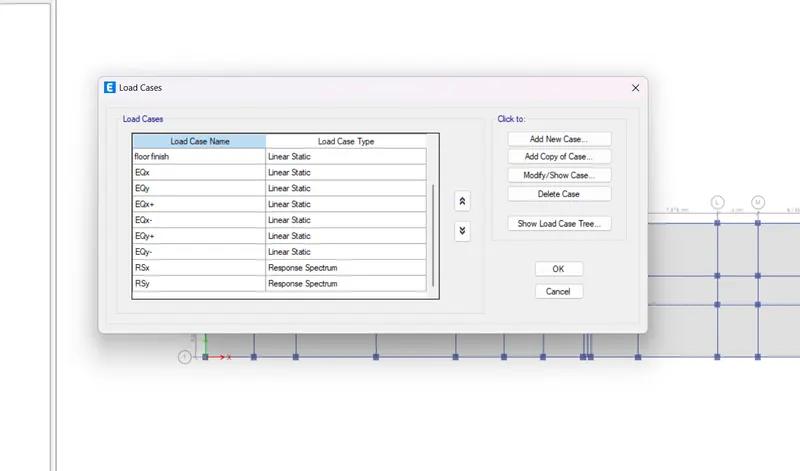

Go to define , load cases

include RSx, RSy factor for reponse spectrum analysis

scale factor accordingly

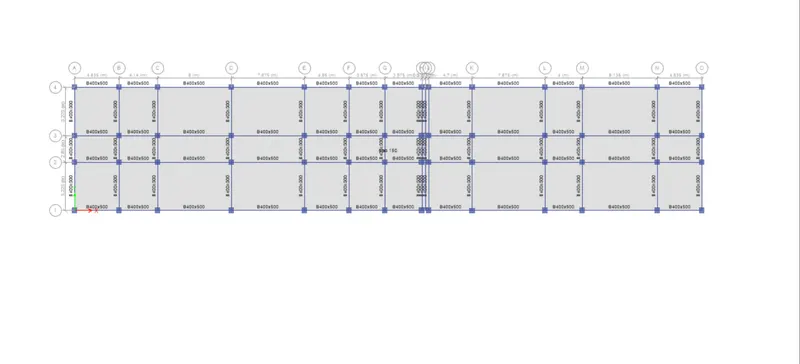

model G+3 building place columns, beams, floors using quick draw panel

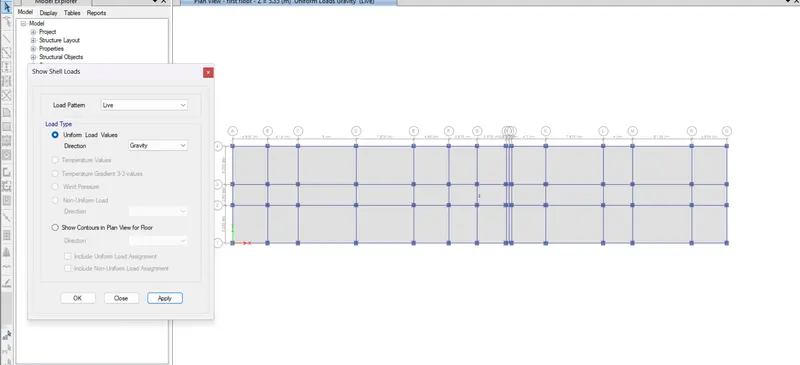

live load assigned as per Is 875 part-2

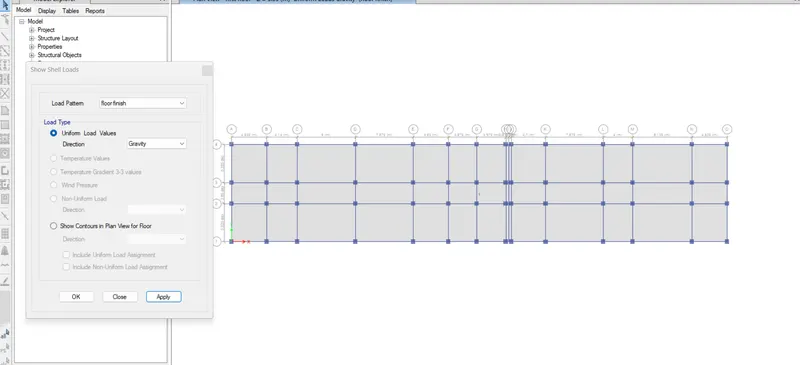

floor finish of 1 kn/m2

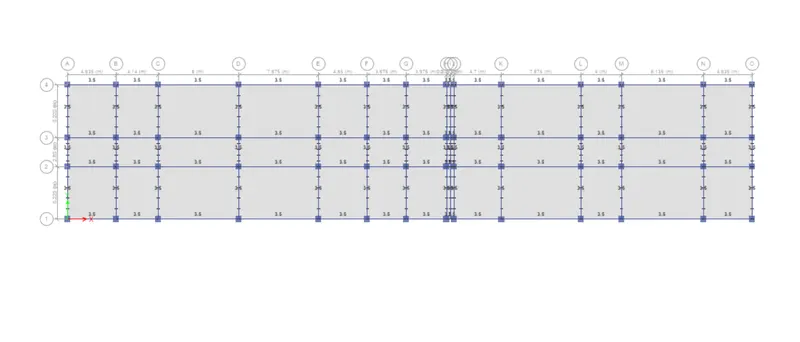

brickwall load as 3.5 kn/m

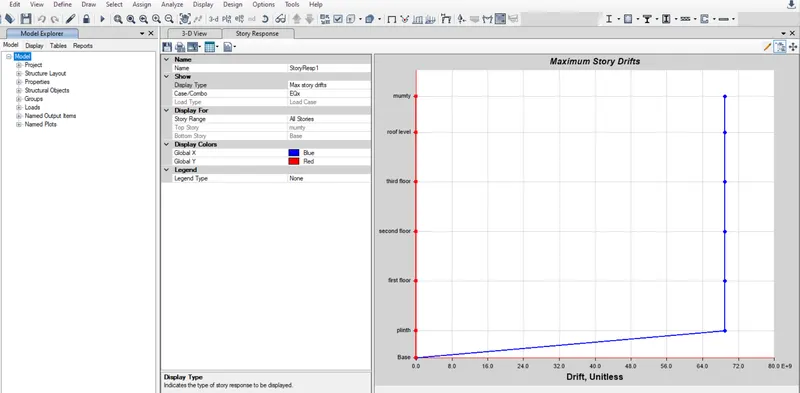

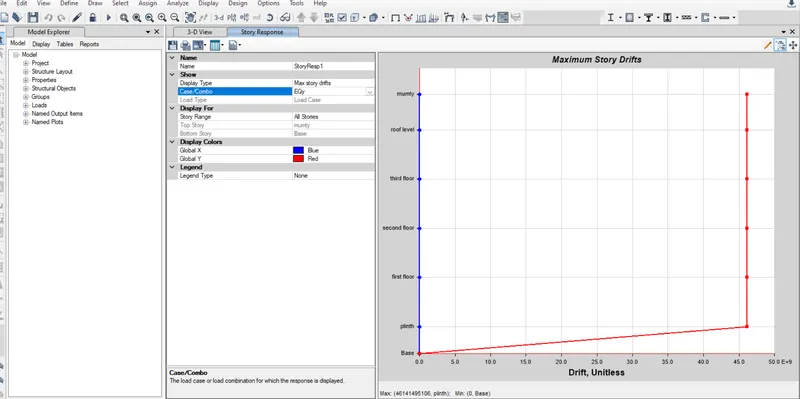

story drifts

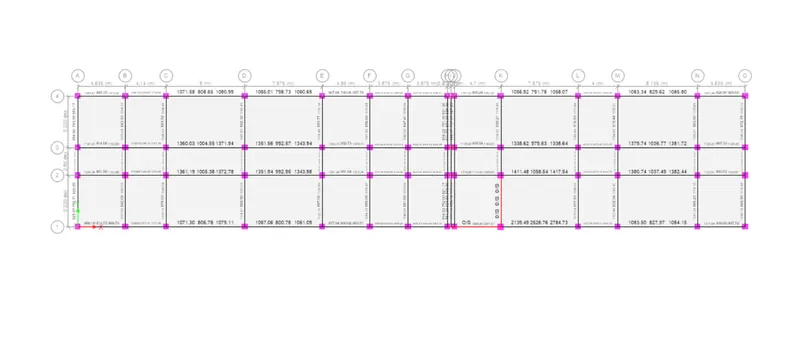

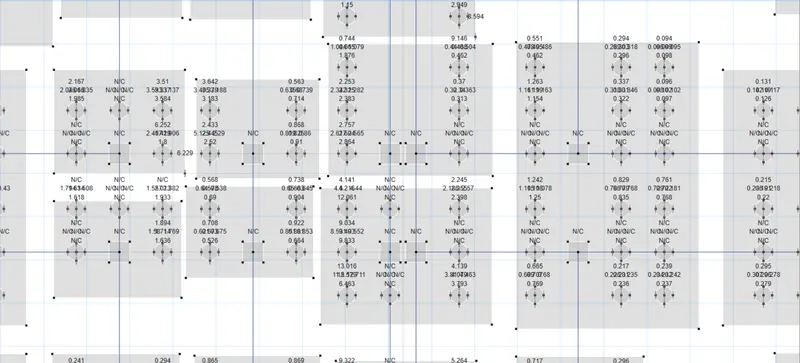

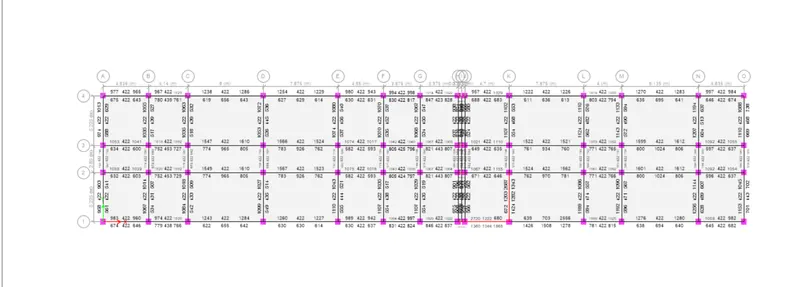

RC beam flexural reinforcement (longitudinal reinforcement )

RC beam Shear reinforcement

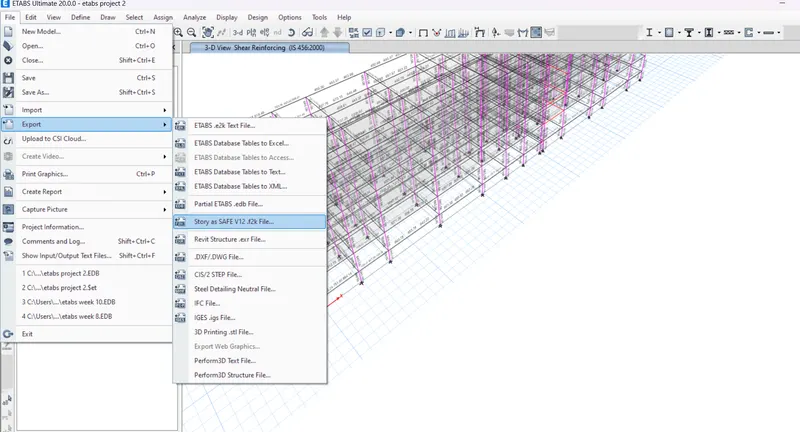

extracting file to safe software for pile foundation design

(base level is exported)

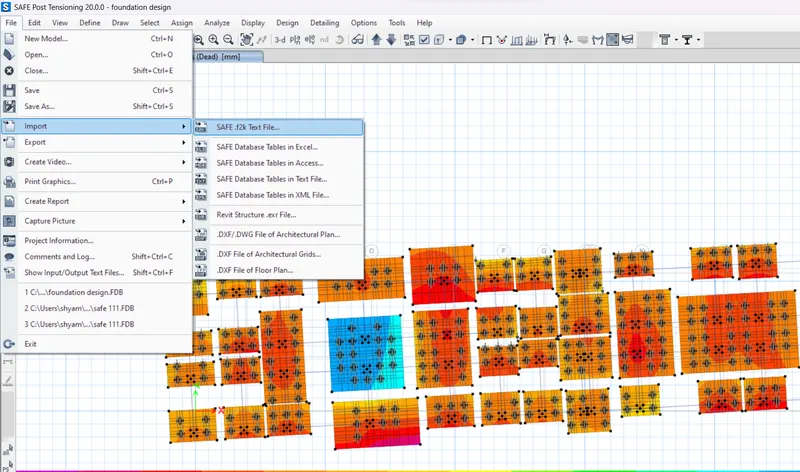

open safe existing model import the file

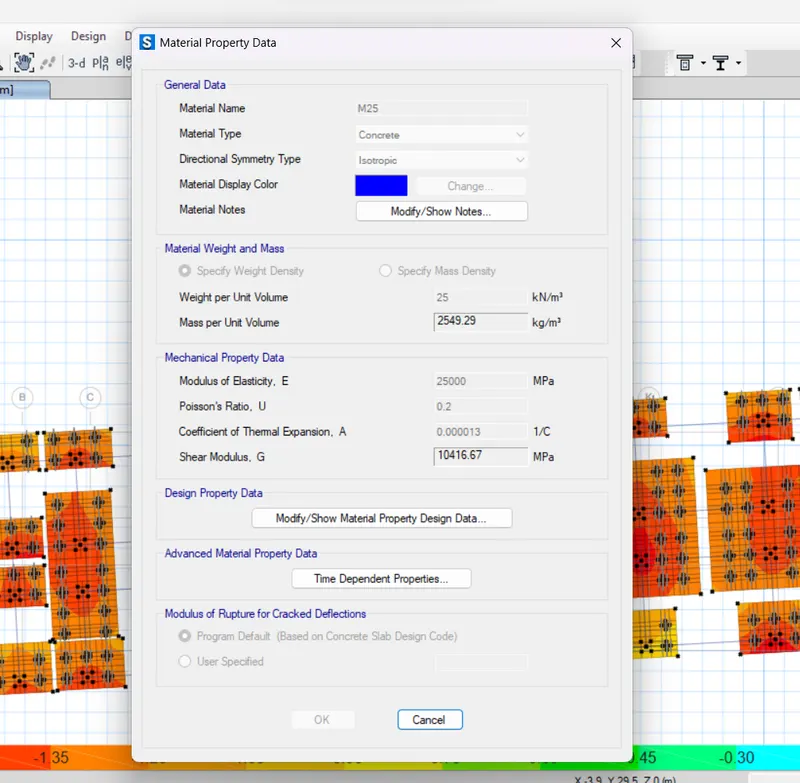

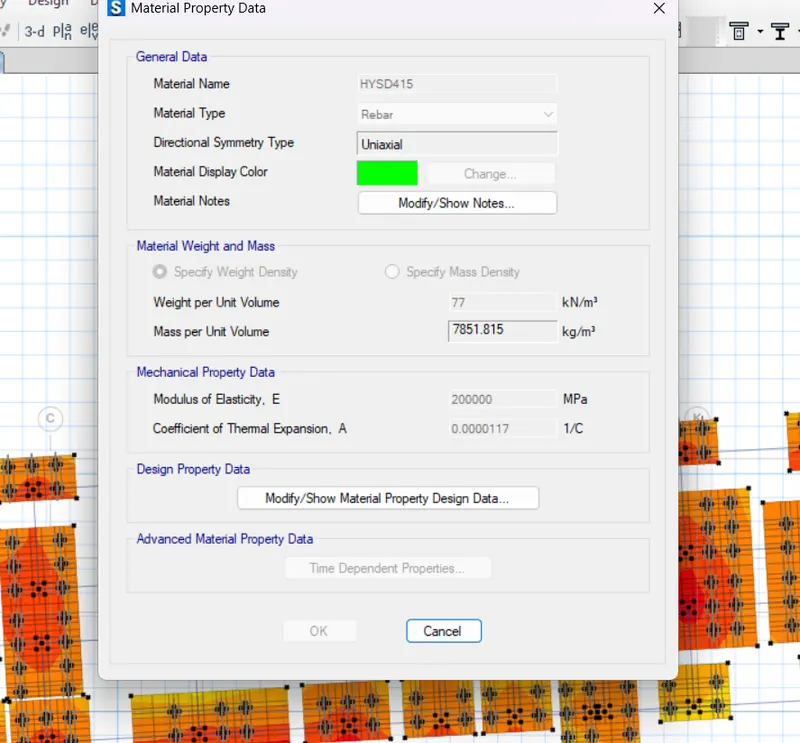

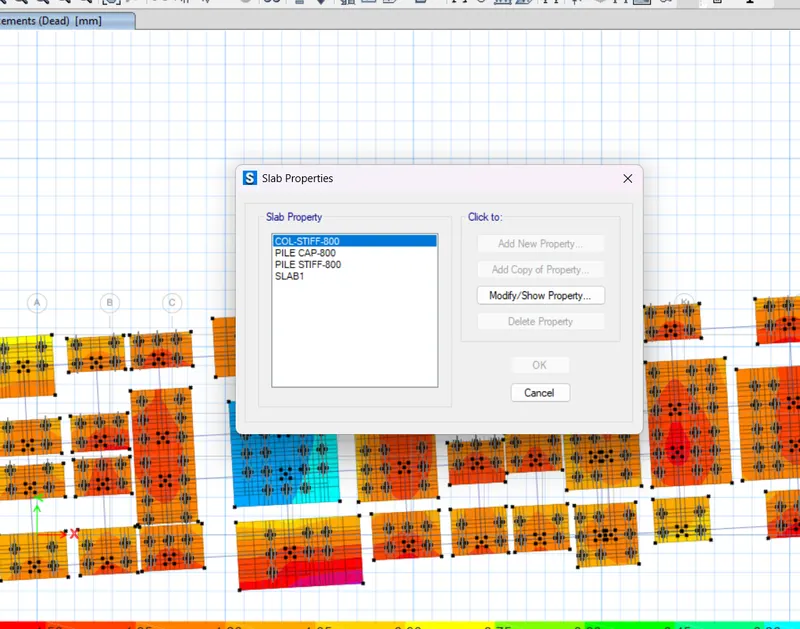

Go to define , material properties

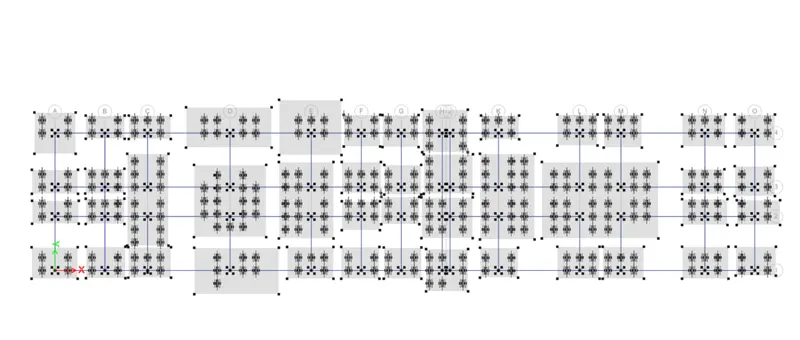

For piles -piles stiffness, pile cap , column stiffness for piles 800 mm thickness is considered

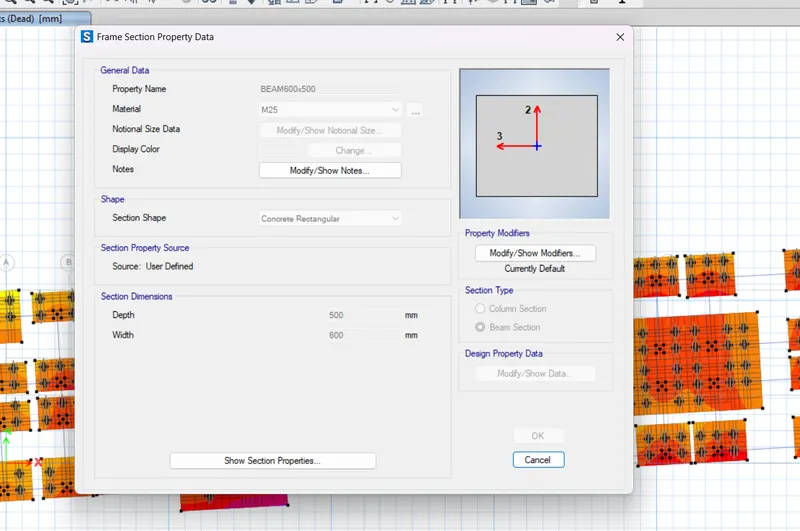

Beam (600X500) TIE beam is used for connecting column to column stiffness piles

for any differential settlement in foundation

Go to assign spring ,

spring constant = EA/L

Elastic modulus(E)= 25000 N/m2

Area of pile (A)= 3.14x(500)2/4= 196349 m2

length of pile = 10000 mm

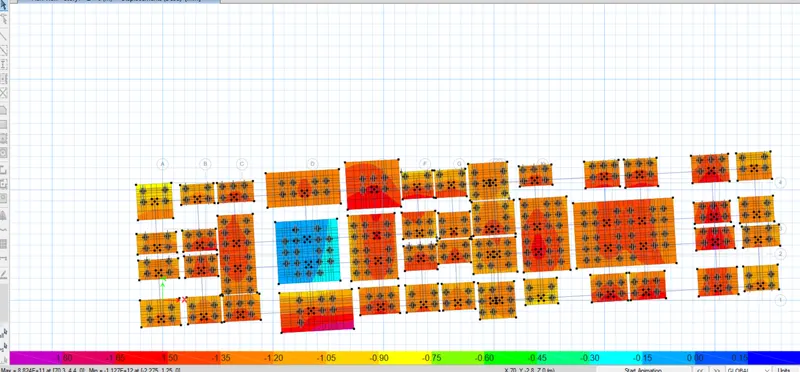

For soil bearing pressure , sls is used. flexural design , uls is used.

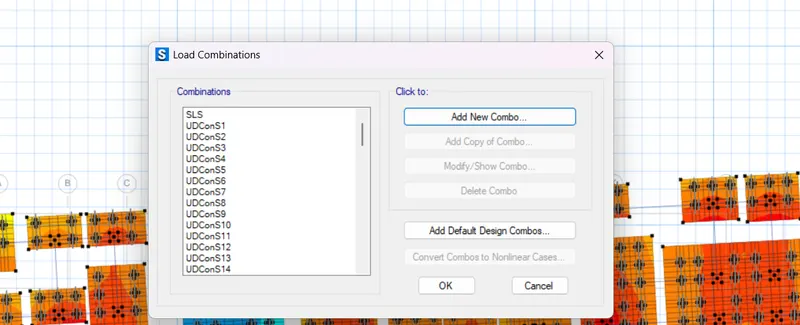

load combination

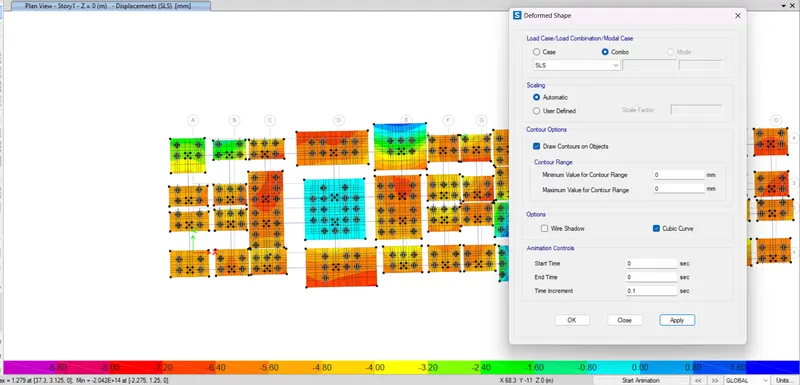

deflection statisfies as per IS code

Punching shear check design

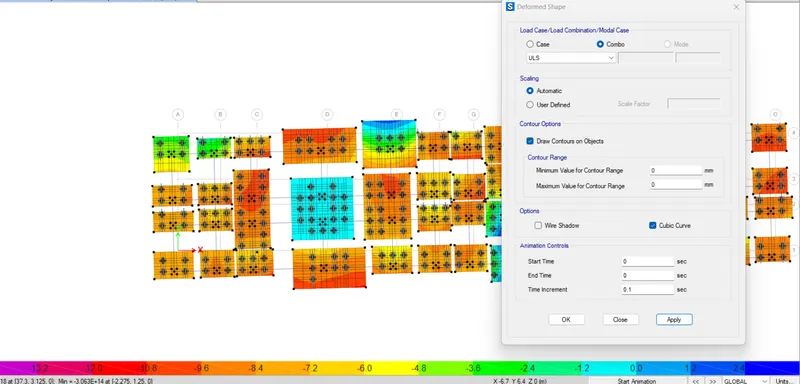

deflection statifies as per codal requirements
