Project 2 - Crush analysis of aluminium Tube

CRUSH ANALYSIS OF ALUMINIUM TUBE

The given problem is solved using ansys workbench.

first we model the given problem using spaceclaim.

now we open the model and give properties of the tube as aluminium aloy.

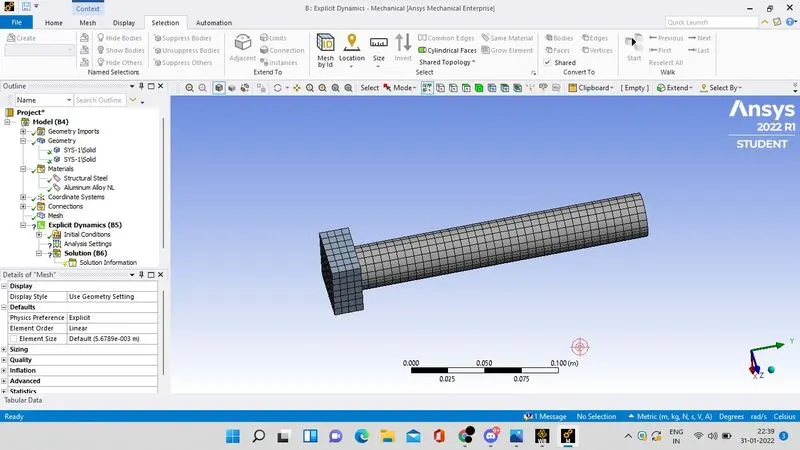

now we mesh the model appropriatly as shown in the figure.

now we find the deformation and stress values for various given velocities.

1)30m/s

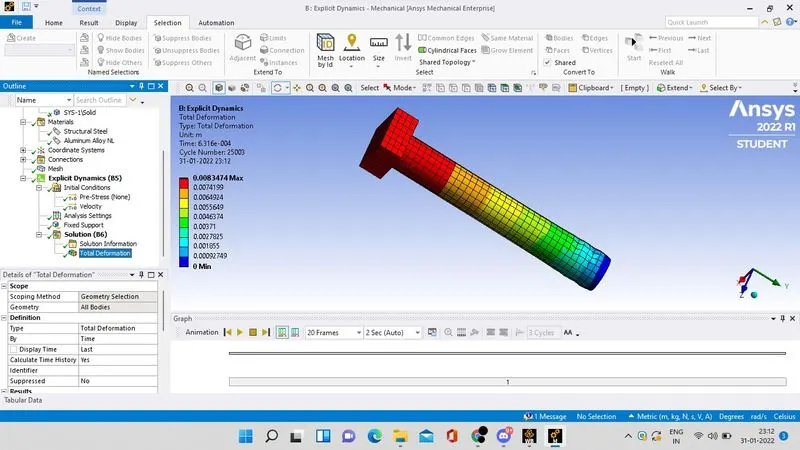

max deformation = 0.0083474.

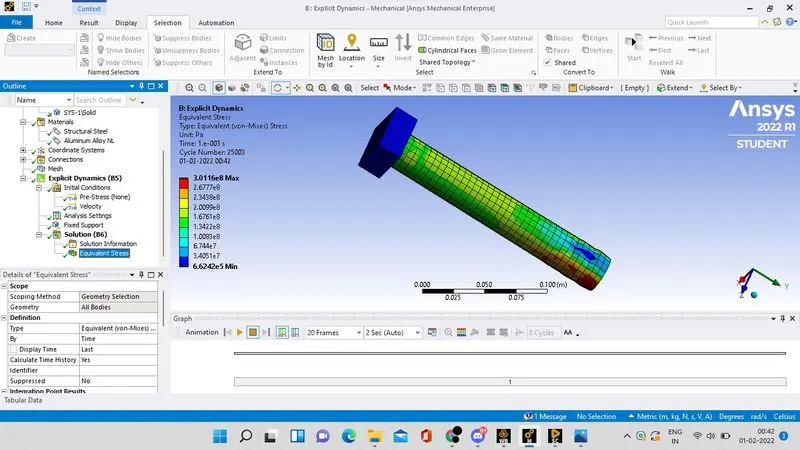

max stress = 3.0116e8

2)40m/s

max deformation = 0.015231

max stress = 2.2604e8

3)50m/s

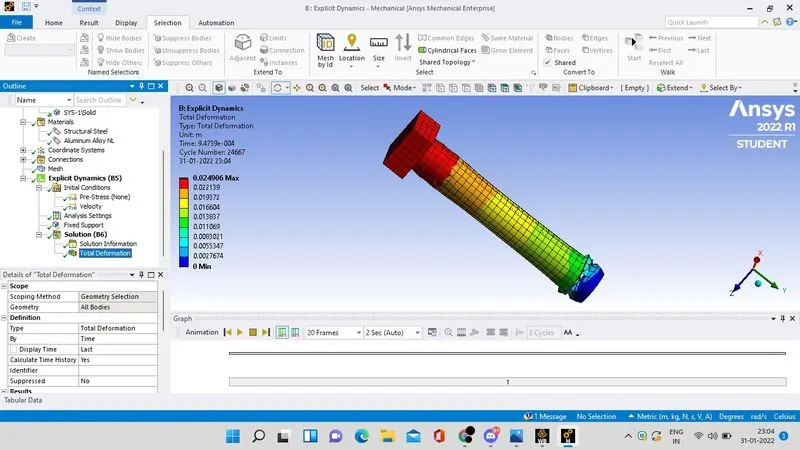

max deformation = 0.024906

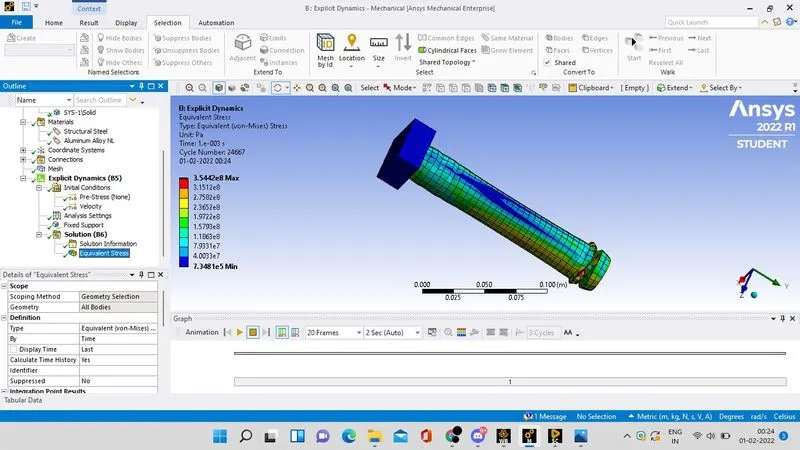

max stress = 3.5442e8

4)60m/s

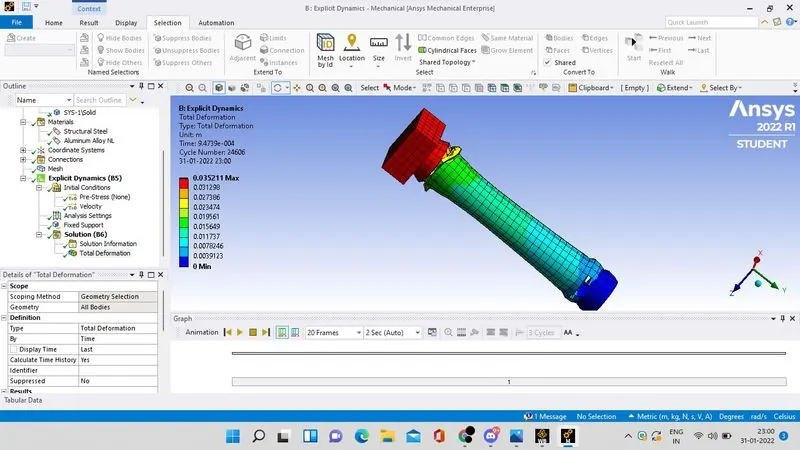

max deformation = 0.035211

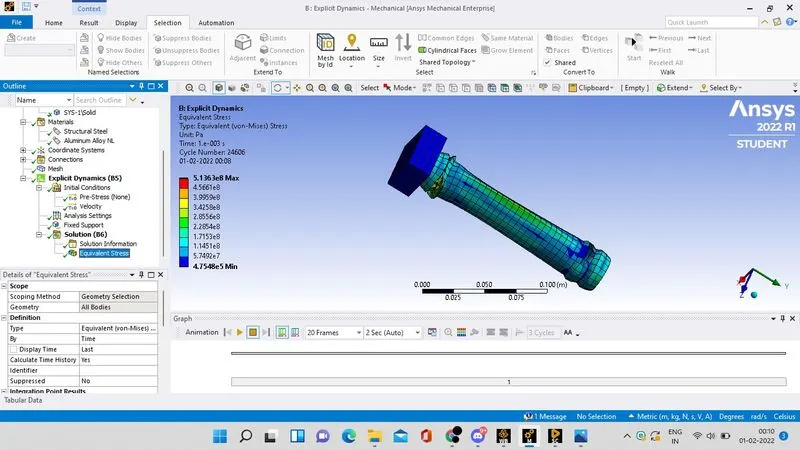

max stress = 5.1363e8
