Project 2_Creating a 3D rendered model for a Residential Building in AutoCad

Q.1

AIM- Create a 3D rendered view of residential building.

PROCEDURE-

• For the creation of 3D rendered view of a residential building firstly drew the plan of residential building .
• After it extruded in 3D like door, window, wall, floor, roof, upper floor etc.
• All the component of building materialised by material command.
• After creation of whole 3D draft of building it rendered and save it in jpeg file format.

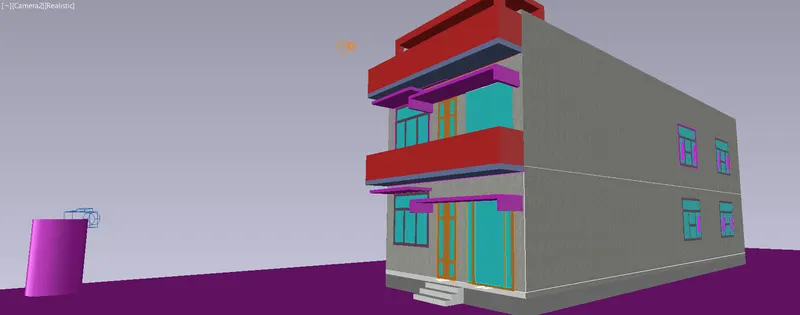

Camera1 view-

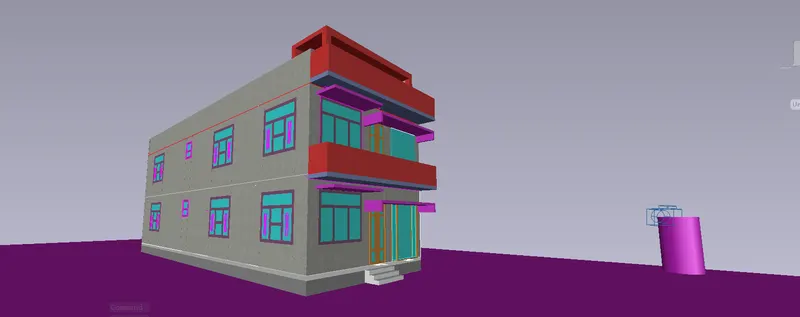

Camera2 view-

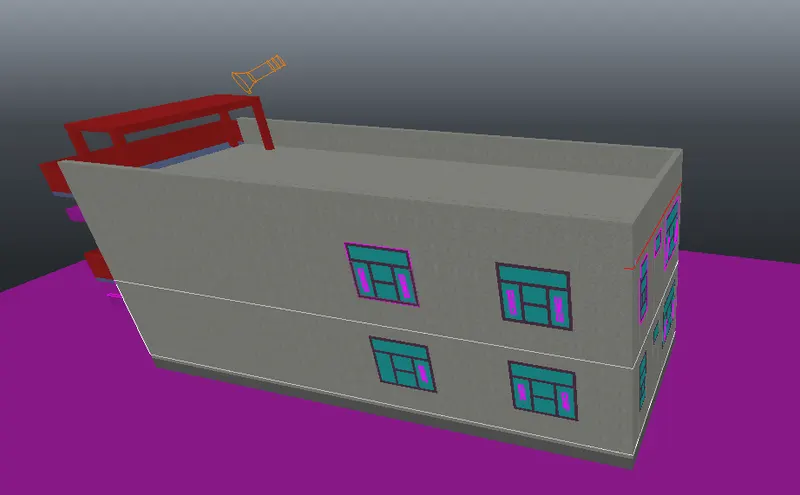

Back and upper view-

Result-

Main command which is used to draw 3D rendered view of a residential building is line command, trim command, copy, move, Extrude command, subtract command, Ucs command, rectangular command, pl command, materials command, RR Command and for camera, camera command etc.
