Project 2_Creating a 3D rendered model for a Residential Building in AutoCad

AIM:

TO CREATE A 3D VIEW OF RESIDENTIAL BUILDING WITH RENDERING VIEW.

PROCEDURE:

HERE ALL UNITS ARE IN ENGINEERING.

SELECT THE CONSTRUCTION LINE IN HORIZONTAL AND VERTICAL DIRECTION.

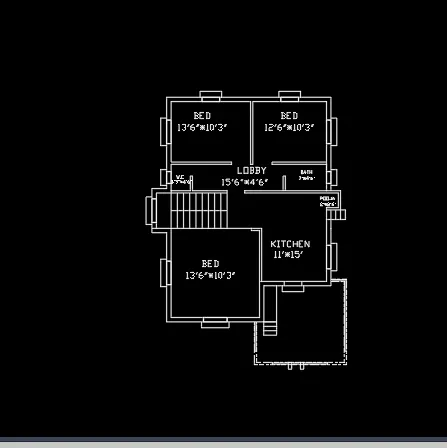

GROUND FLOOR:

TAKE OFFSET OF 9" FOR THE OUTER WALL FROM THE VERTICAL LINE.

TAKE OFFSET OF 9" FOR THE OUTER WALL FROM THE HORIZONTAL LINE.

TAKE OFFSET 13'6" LEFT SIDE FROM THE 9" LINE.

THEN TAKE OFFSET 10'3" DOWNWARD FROM THE 9" HORIZONTAL LINE CREATED BEDROOM.

THEN TAKE OFFSET OF 4.5" LEFT SIDE FROM THE 13'6" LINE.

THEN TAKE OFFSET OF 12'6" LEFT SIDE FROM THE 4.5" LINE.

THEN TAKE OFFSET 10'3" DOWNWARD FROM THE 9" WALL BEDROOM IS CREATED.

THEN TAKE OFFSET 3'3" FROM THE LEFT SIDE OF 9" WALL.

THEN TAKE OFFSET 4.5" DOWNWARD FROM THE 10'3" LINE.

THEN OFFSET 4'6" DOWNWARD FROM THE 4.5" LINE. W.C IS CREATED.

THEN TAKE OFFSET 4.5" LEFT SIDE FROM THE 3'3" LINE.

THEN TAKE OFFSET 15'6" LEFT SIDE FROM THE 4.5" LINE.

THEN TAKE OFFSET 4'6" DOWNWARD FROM THE 4.5" LINE. LOBBY AREA IS CREATED.

TAKE OFFSET 4.5" LEFT SIDE FRO THE 15'6" LINE. THEN TAKE OFFSET 7' LEFT SIDE FROM THE 4.5" LINE.

THEN TAKE OFFSET 4'6" DOWNWARD FROM THE 4.5" LINE BATH IS CREATED.

TAKE OFFSET 2' RIGHT SIDE FROM THE 9" LINE.

THEN TAKE OFFSET 2'6" DOWNWARD FROM THE 4.5" LINE CREATE POOJA ROOM.

TAKE OFFSET 13'6" LEFT SIDE FROM THE 9" WALL AND TAKE OFFSET 10'3" DOWNWARD FROM THE 4.5" WALL BEROOM IS CREATED.

THEN TAKE OFFSET 4.5" LEFT SIDE FROM THE 13'6' LINE.

THEN TAKE OFFSET 11' LEFT SIDE FROM THE 4.5" LINE THEN TAKE OFFSET 15' DOWNWARD FROM THE 4.5" LINE KITCHEN IS CREATED.

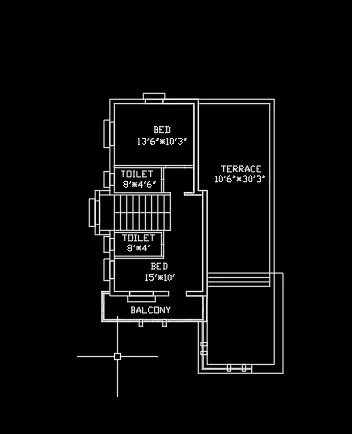

FIRST FLOOR:

TAKE OFFSET 13'6" LEFT SIDE FROM THE 9" VERTICAL LINE.

THEN TAKE OFFSET 10'3" DOWNWARD FROM THE 9" HORIZONTAL LINE CREATED BEDROOM.

TAKE OFFSET 4.5" DOWNWARD FROM THE 10'3" LINE.

TAKE OFFSET 8' FROM LEFT SIDE FROM THE 9" LINE.

THEN TAKE OFFSET 4'6" DOWNWARD FROM THE 4.5" LINE. TOILET IS CREATED.

THEN TAKE OFFSET 15' LEFT SIDE FROM THE 9" LINE.

THEN TAKE OFFSET 10' DOWNWARD FROM THE 4.5" LINE. BEDROOM IS CREATED.

THEN TAKE OFFSET 8' LEFT SIDE FROM THE 9" LINE.

THEN TAKE OFFSET 4' DOWNWARD FROM THE 4.5" LINE. TOILET IS CREATED.

THEN TAKE OFFSET 10'6" RIGHT SIDE FROM THE 9" LINE

THEN TAKE OFFSET 30'3" DOWNWARD FROM THE 9" LINE . TERRACE IS CREATED.

THEN DRAW DOOR AND WINDOW

D1=3'3"*7' W1=4'*4'

D2=3'*7" V=3'*2'

D3=2'*7"

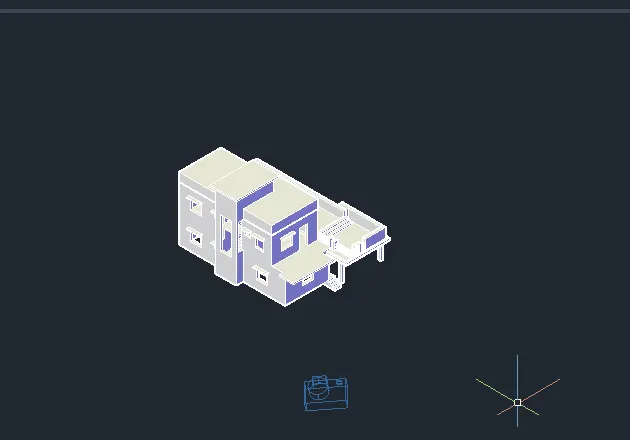

SET THE 3D VIEW USE BOUNDARY COMMAND CREATE REGION OF WALL FOR GROUNND FLOOR

EXTRUDE THE REGION AT HEIGHT OF 10'.

THEN CREATE DOOR WINDOW OPENNING

EXTRUDE THE RECTANGLE OF WINDOW AT 4'

THEN EXTRUDE THE RECTANGLE OF DOOR AT 7'

THEN COPY THE DOOR AND WINDOW AND PLACE IT.

CREATE A PLINTH AREA. VIEW TO PLAN.CREATE POLYLINE IN THE PLACE OF PLINTH AREA.

THEN USE BOUNDARY COMMAND CREATE A REGION .

EXTRUDE THE REGION DEPTH AT 1'6"

THEN CREATE A SLAB .

POLYLINE AT THE TOP OF THE WALL.

USE BOUNDARY COMMAND CREATE A REGION OF THE POLYLINE.

EXTRUDE AT A DEPTH AT 6"

FIRST FLOOR:

EXTRUDE THE REGION AT HEIGHT OF 10'.

THEN CREATE DOOR WINDOW OPENNING

EXTRUDE THE RECTANGLE OF WINDOW AT 4'

THEN EXTRUDE THE RECTANGLE OF DOOR AT 7'

THEN COPY THE DOOR AND WINDOW AND PLACE IT.

THEN CREATE A SLAB .

POLYLINE AT THE TOP OF THE WALL.

USE BOUNDARY COMMAND CREATE A REGION OF THE POLYLINE.

EXTRUDE AT A DEPTH AT 6"

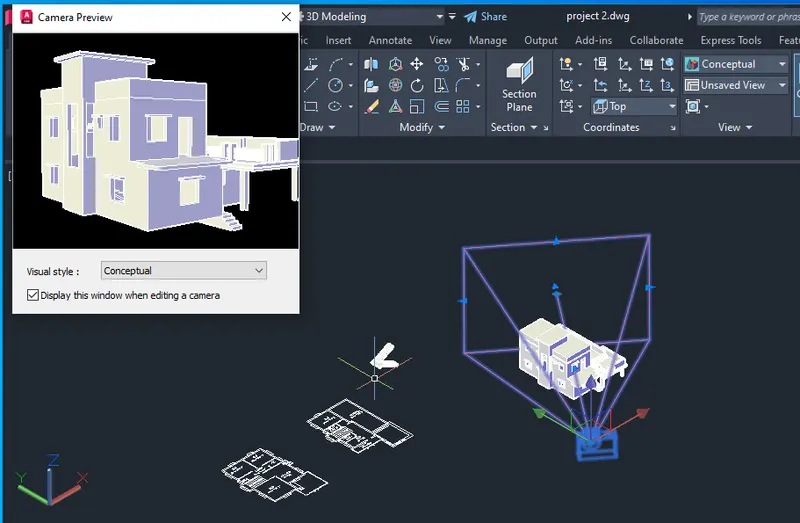

THEN SET CAMERA TO THE OBJECT TO CREATE THE VIEWS.

CREATE A CIRCLE AT THE GROUND LEVEL

THEN SELECT THE CREATE A CEMERA OPTION.

PLACE THE CEMERA ABOVE CYLINDER.

THEN CREATE A CEMERA VIEW.

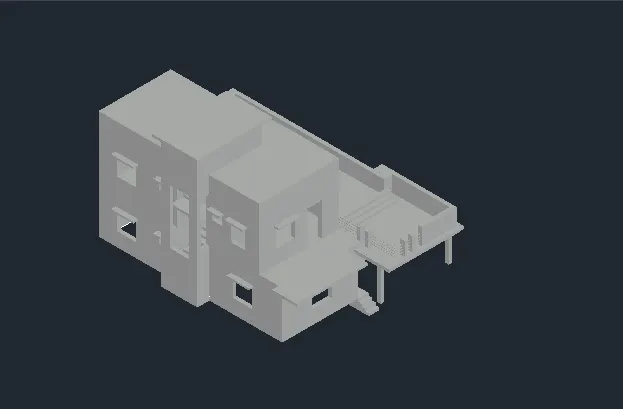

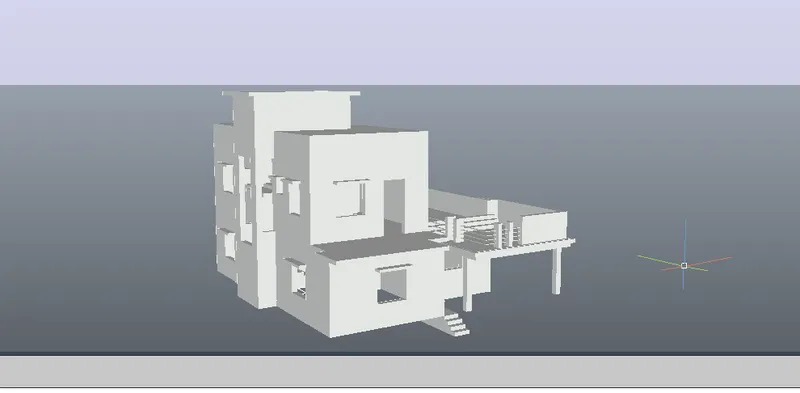

RENDER THE CREATE A 3D MODEL.
