Project 2_Creating a 3D rendered model for a Residential Building in AutoCad

AIM:TO Create a 3 dimensional model of the residential building with a rendered view.

INTRODUCTION:Create the 3d model of residential building by using required 3d commands with rendering.

PROCEDURE:

• Start autocad with required format.
• Draw the residential plan with required measurements.
• Draw the Elevation for residential plan.
• Convert the autocad workspace from 2d drafting to 3d modeling.
• Set the required view for modeling.
• Extrude command are used for projection.
• 3d orbit command used for revolve the object.
• solidedit command for faces,edges,color etc.
• Layer are used for 3d modelings preparations.
• Apply the materials as per requirement.
• Apply the render.

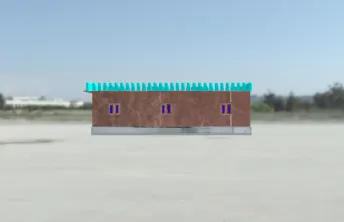

RESULT:To complete the 3 dimensional model of the residential building with applying material and the applying render for rendered view.
