Project 2_Creating a 3D rendered model for a Residential Building in AutoCad

Aim - Creating a 3D rendered model for a Residential Building in AutoCad

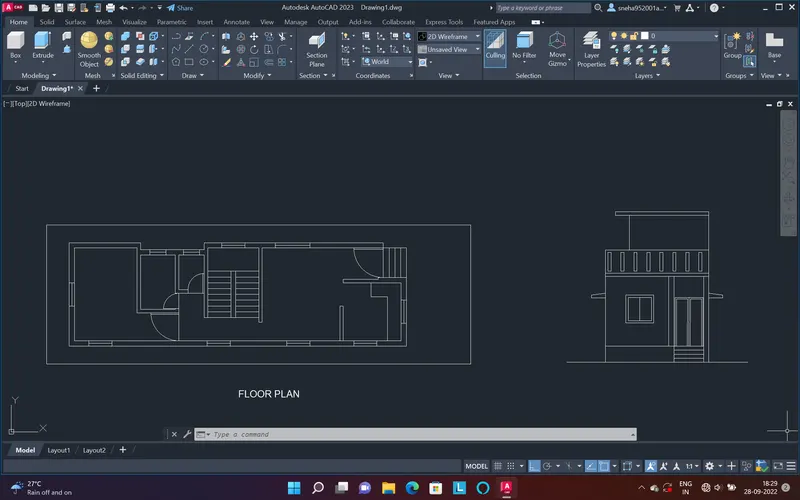

Introduction - for 3D rendering i used the plan which i created while autocad project 1. I 3d modelled that plan and redered it using AutoCAD 3D commands

Procedure -

1. open Autocad

2. open the plan and switch to 3d modelling workspace

3. then create the layers required in 3d modelling like wall, door, window etc.

4. then prepare the wall boundary regian

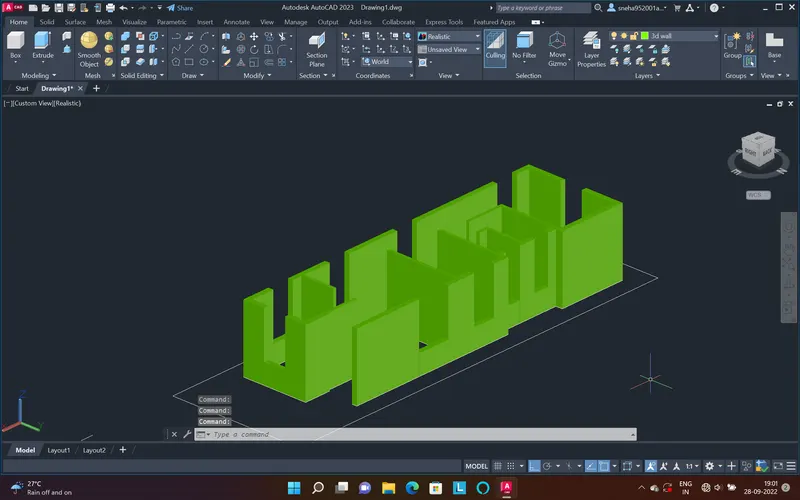

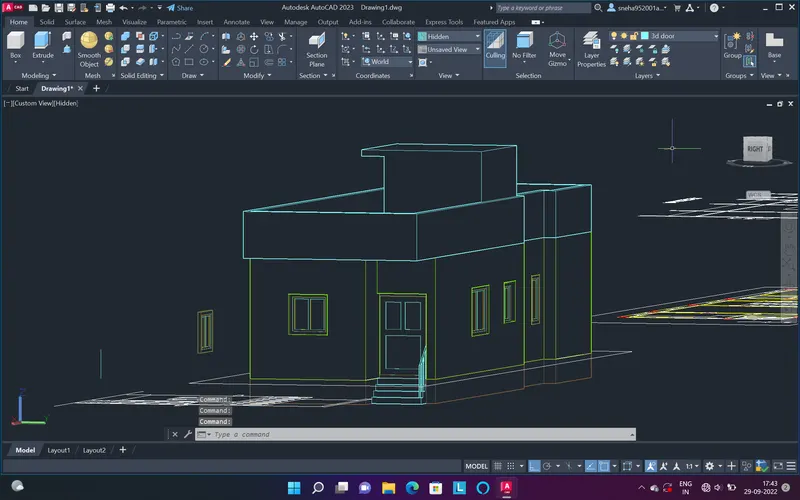

5. then extrude the walls

6. then create windows and doors

7.place windows and doors at reuquired place

8. then create plinth and slab

9. then draw parapet

10. then staircase

11. then do some extrusions for architectural purpose

12. then give the materials

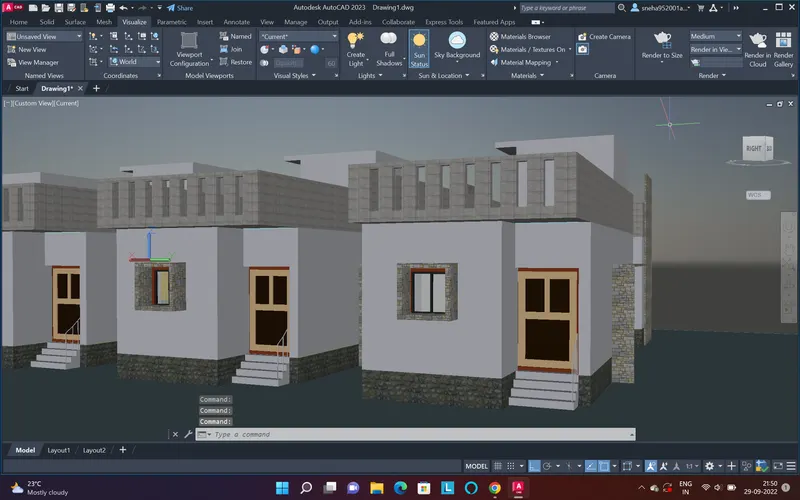

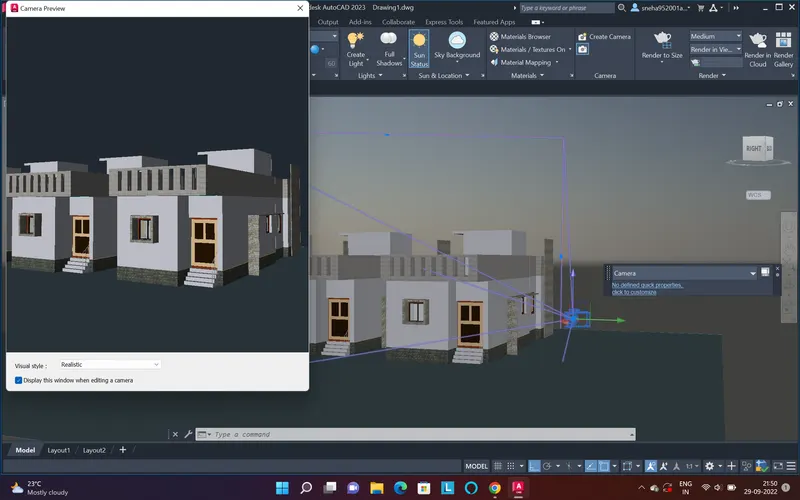

13. then set the camera

14. then do the render settings

15. then render the model

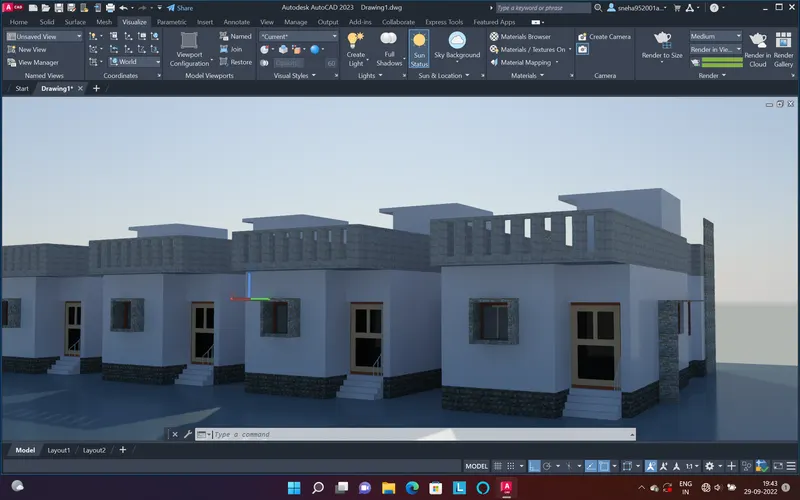

Result -
