Project 2_Creating a 3D rendered model for a Residential Building in AutoCad

AIM:

   To create a 3D rendered model for a Residential Building in AutoCad.

PROCEDURE:

    - Open AutoCad.

    - Select 3d modelling and enter units command and choose decimal.

    - Select line command and draw in top face.

    - After drawing remove the unwanted lines.

    - Offset a distance of 230 for wall.

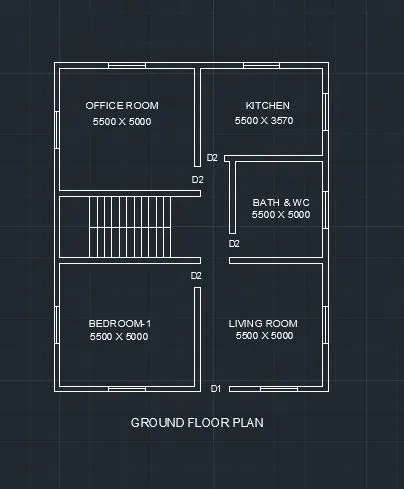

    - Assume sizes of rooms and draw accordingly.

    - Draw windows of size 1500 X 1500.

    - For steps tread is 300 and rise is 150.

    - Mtext command is used name the plan.

    - Now extrude the walls to the height of 3000 from bottom.

    - Assign colors to each layer separately.

    - Move and copy command is used to move the windows to their specific locations.

    - Create different views using the camera and finally render the building.\

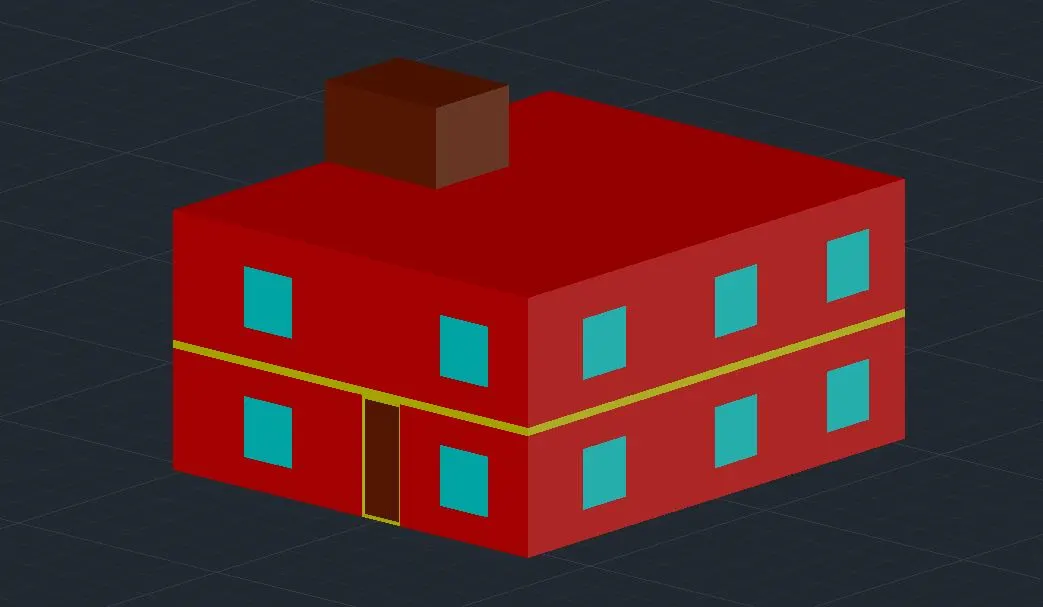

RESULT:
