Project 2_Creating a 3D rendered model for a Residential Building in AutoCad

1. Ans :

Aim :

To Create a 3 dimensional model of the residential building with a rendered view.

Introduction :

Draw the Residential building using Autocad command and execute 3D and rendered view in Autocad

Procedure :

For the project of Residental building Open the Autocad Software.
In Autocad change the Settings of 3D modeling basic to execute the diagram in 3D.

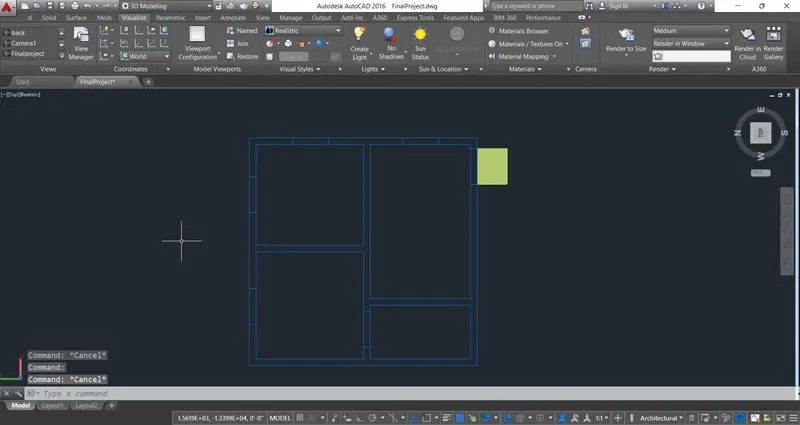

Draw the Residential building Plan in 2D with standerd dimensions.
Then Turn it to 3D view by using VIEW CUBE
Once the 3D view appear then we want to make the Wall and Flooring By using Boundary COmmand and make it region
Once the Region created the Using Extrude command to give height of the wall 10'.

Layer Creating :

Once Extrude done we have to create layer for all the parts of the building like ( flooring,wall,door ( Frame, million, Glass), window (Frame, million, Glass), Roof, sunshade, Slab projections, Elevation of wall, Parapet wall etc...
Each layer we can assess seperate colour to Draw easy.

Window & Doors :

Once the wall is extrude then the next work is we have to draw Doors and Windows in all the elevation views and alos in inside the building.

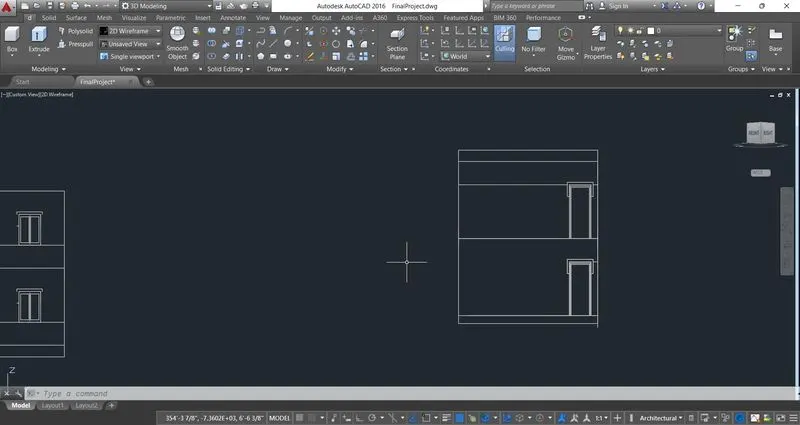

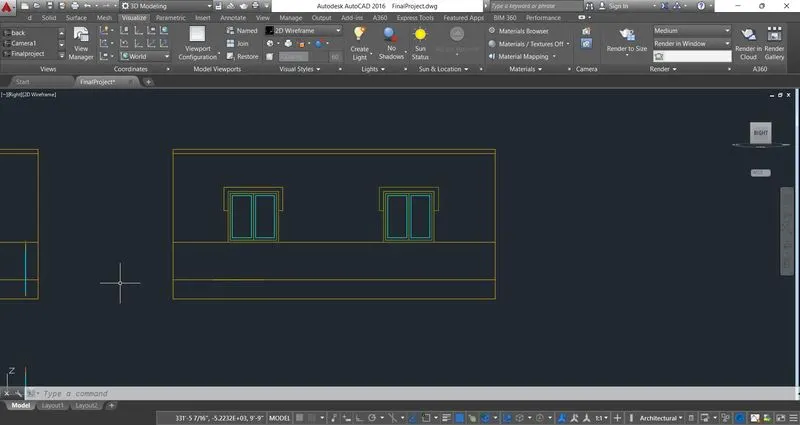

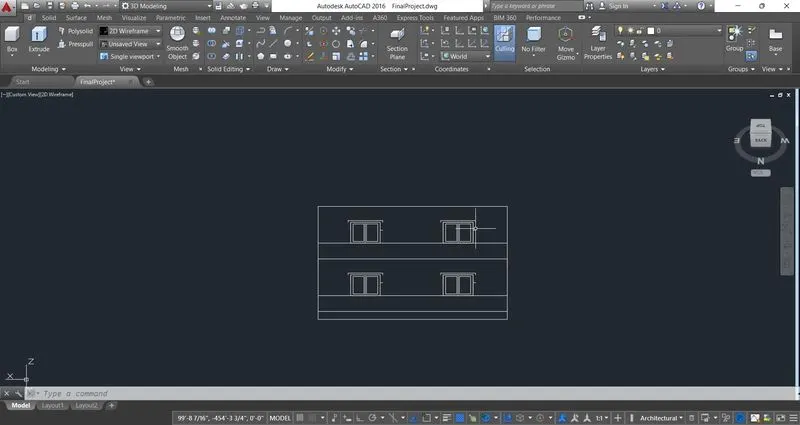

Draw the Elevation of the builidng in all directions using line command.
Specify the doors and windows in the elevation with seperate lines
Once the elevation is done Doors and windows with ( Frame, million and Glass ) 2D elevation is created.
Then make the boundary command to region and then we can apply layer for each and every parts of the structure.

Assemble :

Elevation are created with windows and doors are done in 2D then we can make assembe on the 3D view.
By using Rotate3d command make the 2D elevation which parallel to the 3D view.
And Move with common point and assemble with the 3D diagram and the over all view of the building is fixed.
IF we want to make flooring by selectiong Layiso ( freaze all the layer ) expect the plan .
From plan outer boundary we can extrude the flooring with 4' of slab.
Hence the Ground floor is done we can make first floor by coping overall diagram and place the End point to join the ground and first floor.

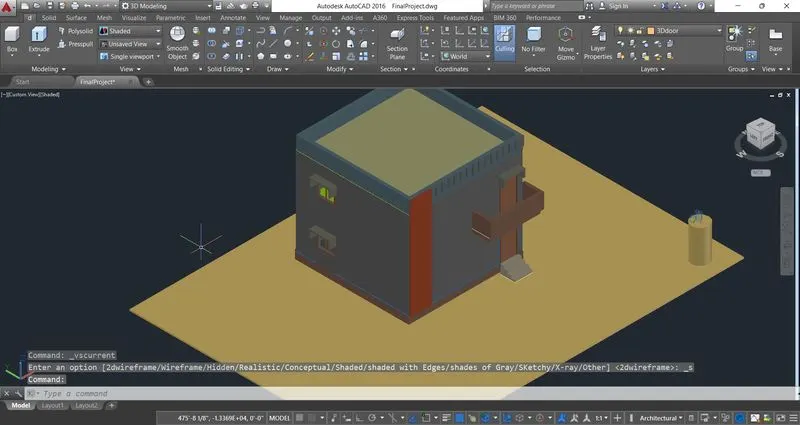

Then the over all 3D view of the building is Assemble.

Roof and Parapet wall :

ONce the wall and flooring done.
We can make the roof with using selecting the outer boundary of wall and extrude it with roof thickness of 4 inch.
Then same procedure of the parapet wall with of set of 9 inch and make a boundary and extrude it.
Then make the Elevation of the wall front area.
By click ucs command on face of front wall and make a square and extrude it have a stone work for front elevation of building.

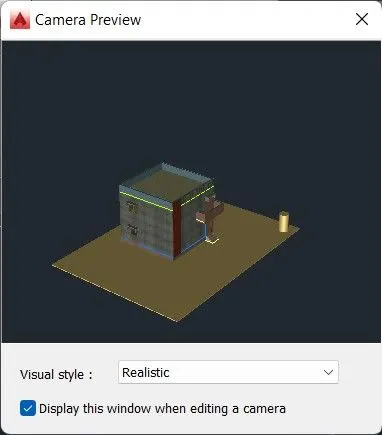

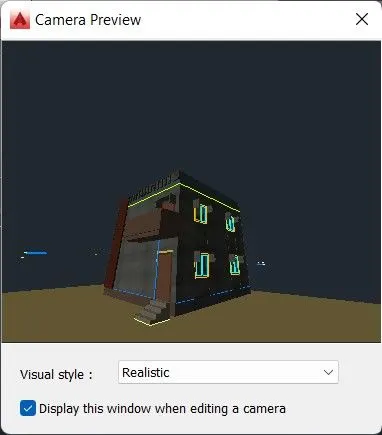

Camera Views :

Rendering :

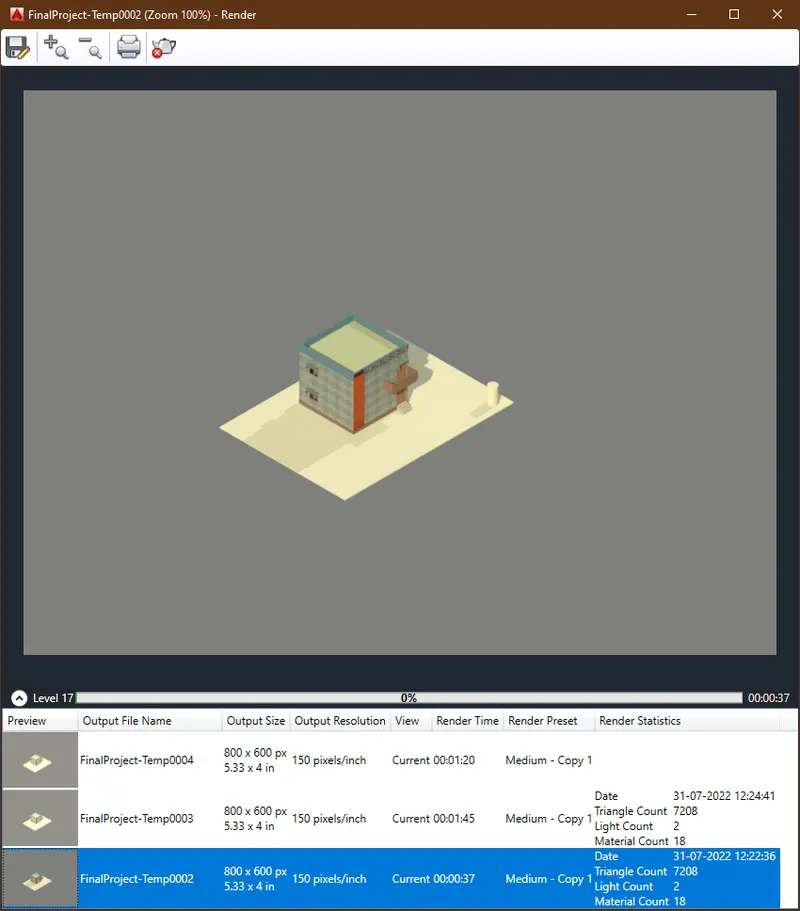

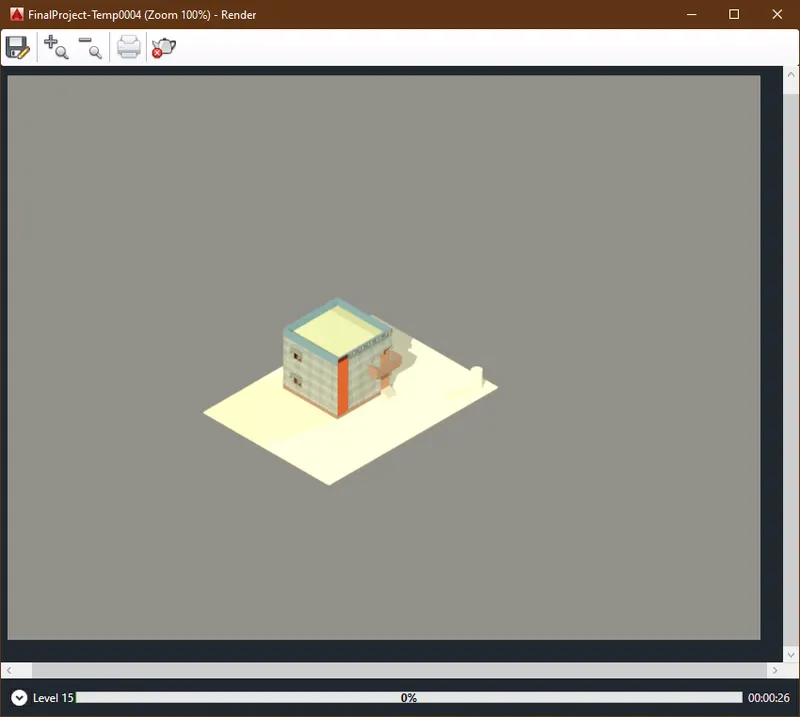

All the above steps are completed the last part is rendering .
This is to view the diagram more realistic and real.
This Rendering option is avaliable in Visualize Tab.

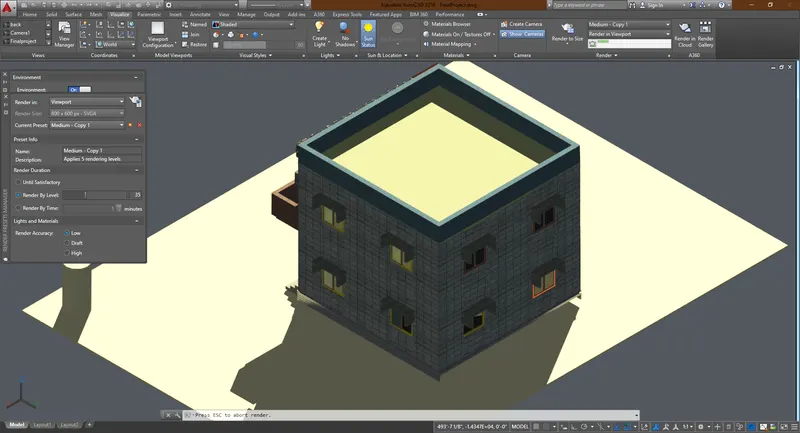

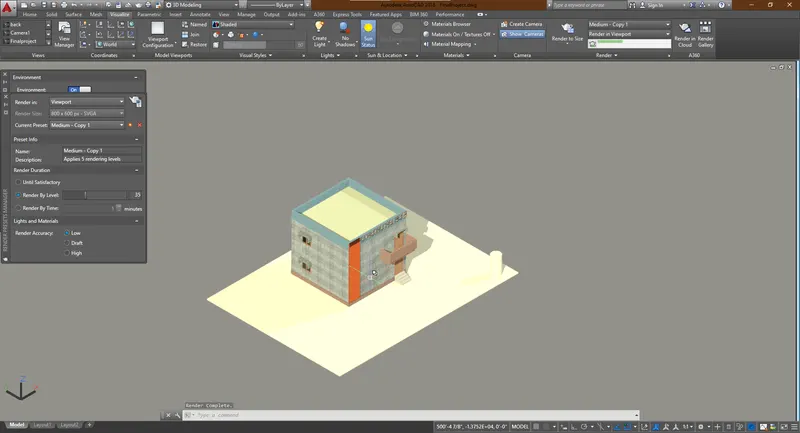

Select Rendering and select setting select what type of picture quality and day light etc are all avaliable in it.
In Render environment and exposure window we can select the quality and other things to highlight it .
So This are the steps which we required to Do a 3D residential building with rendering process.

Reult :

From above all procedure we have done The project using all AutoCAD essential command.Some of the main points are ( Draw using line, boundary comman, extrude, layer, extrude, ucs, setucs, visualizer , render, camera, light , sunlight , sky background etc........
Hence the project is completed.
