Project 2_Analyze and Design the RC office building as per IS standard code in TEKLA STRUCTURAL DESIGNER
Aim - To analyse and design the building as per IS standard code in TEKLA structural designer
Procedure -
- Open TEKLA software and select new file

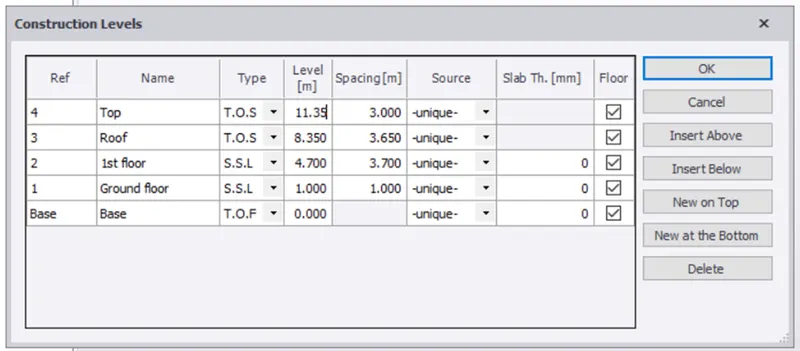

- Create construction levels for the structure according to the plan

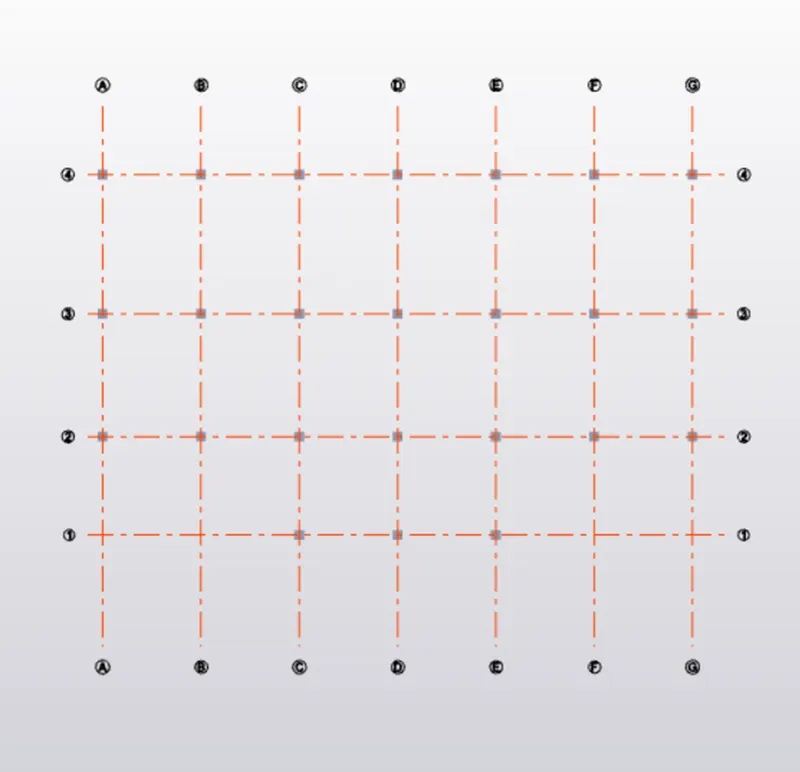

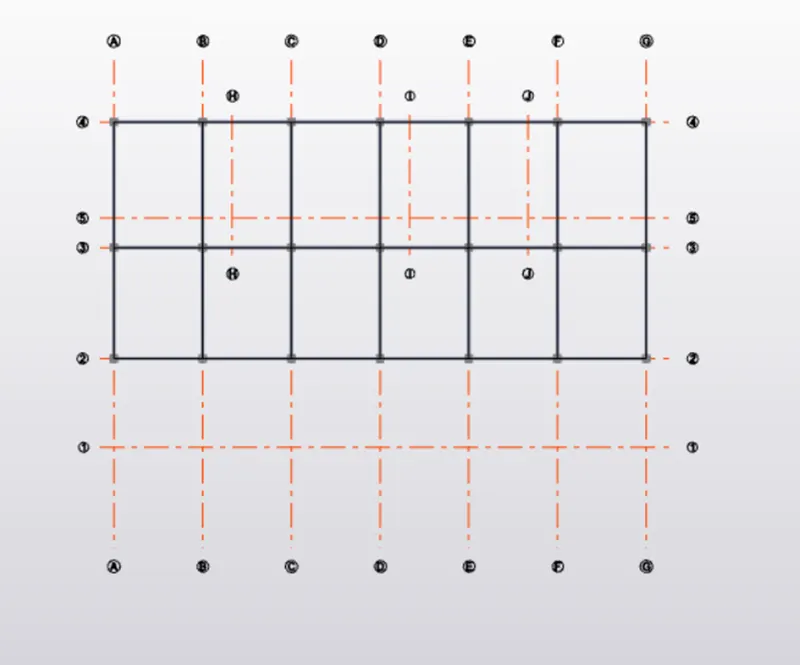

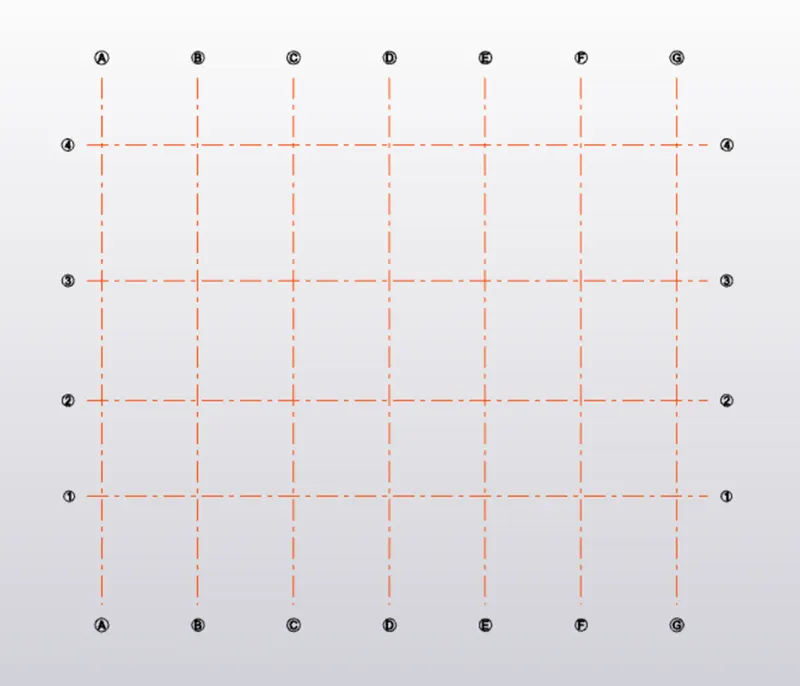

- Under model tab draw grid lines

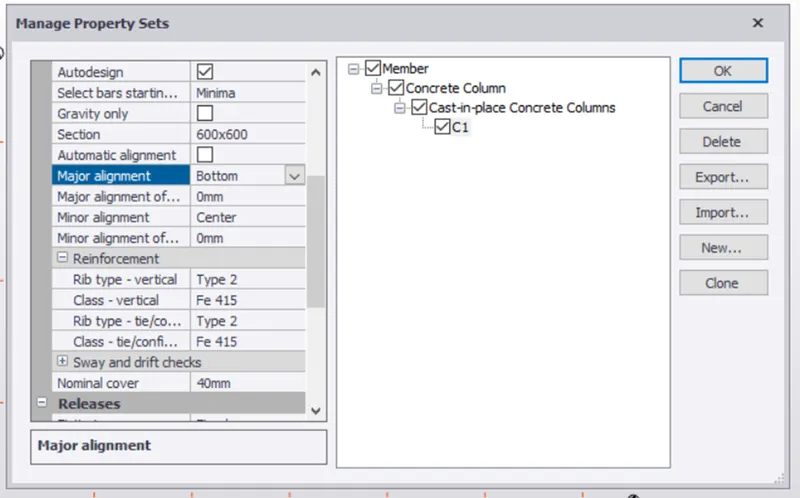

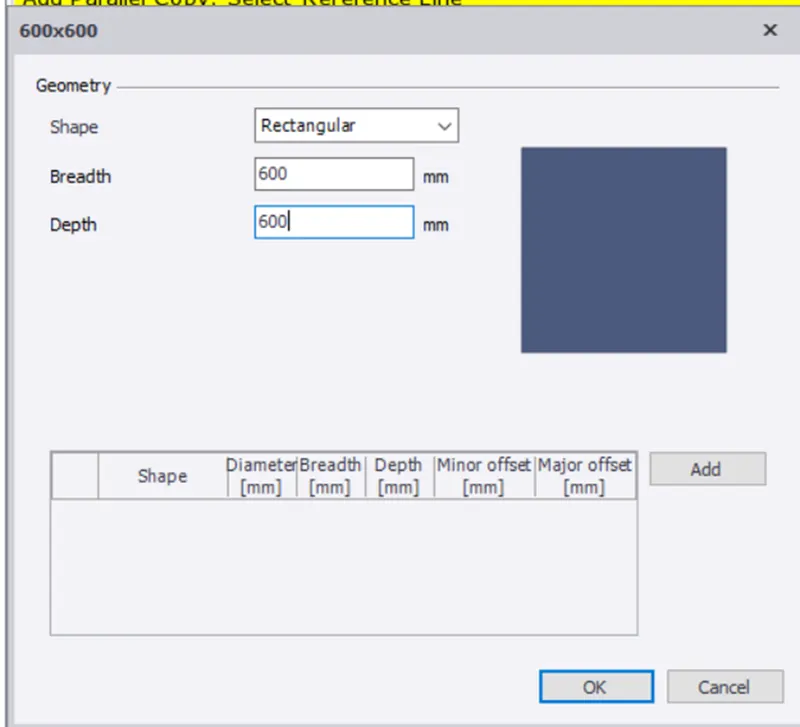

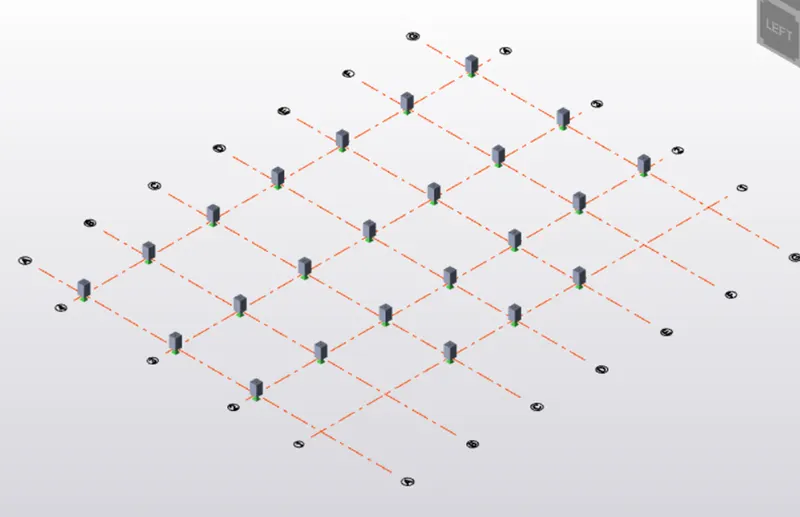

- Go to manage property sets,and select a new member and define the column and its properties
- 3D view -

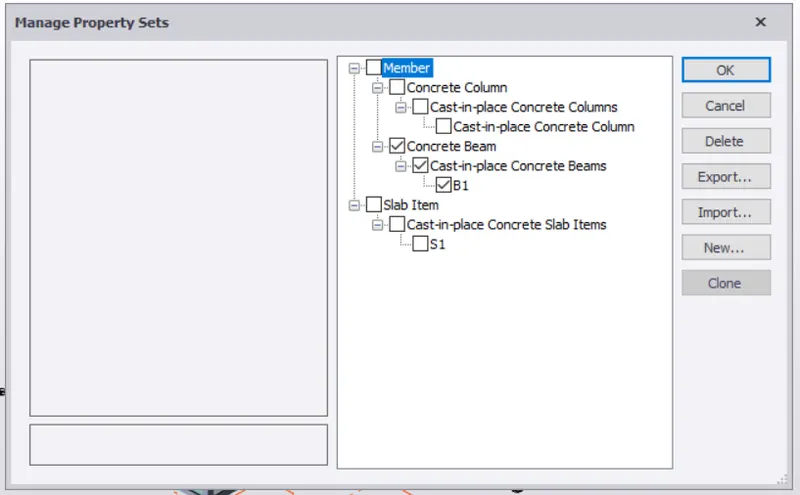

- Go to manage property sets,and select a new member and define the beam and its properties

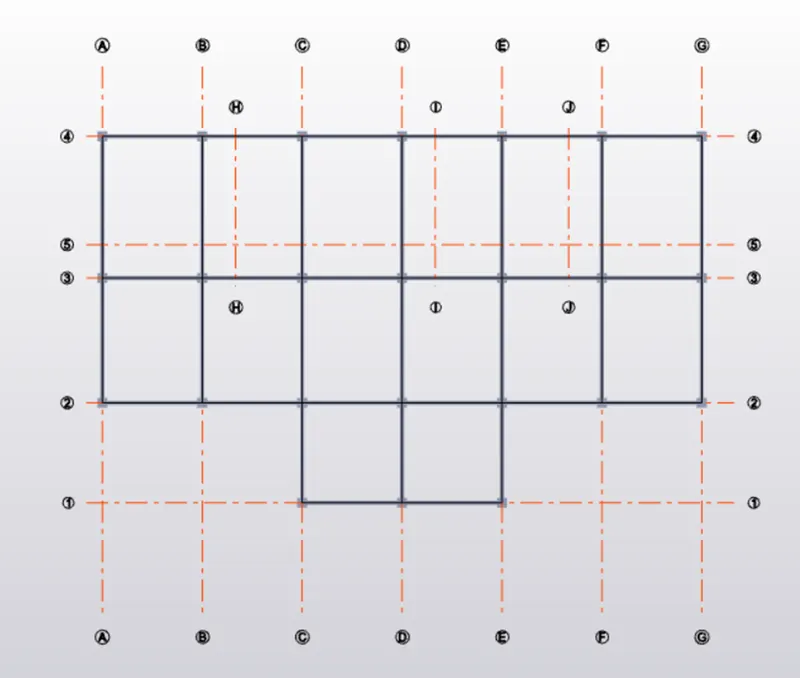

- Now place the beams connecting to the column

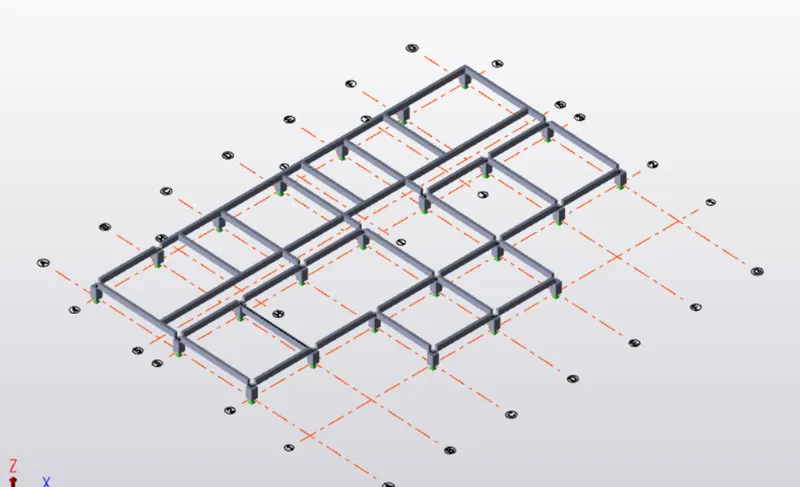

- Ground floor -
- First floor -
- Roof -

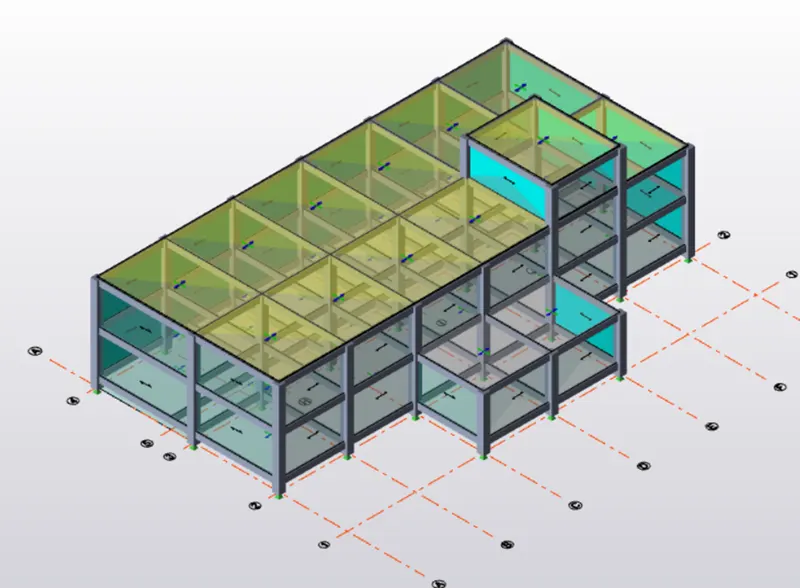

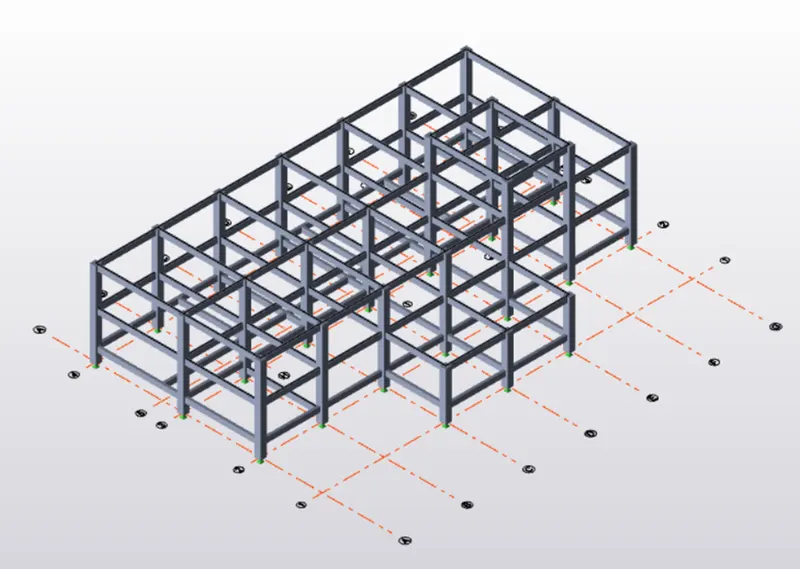

- 3D view -

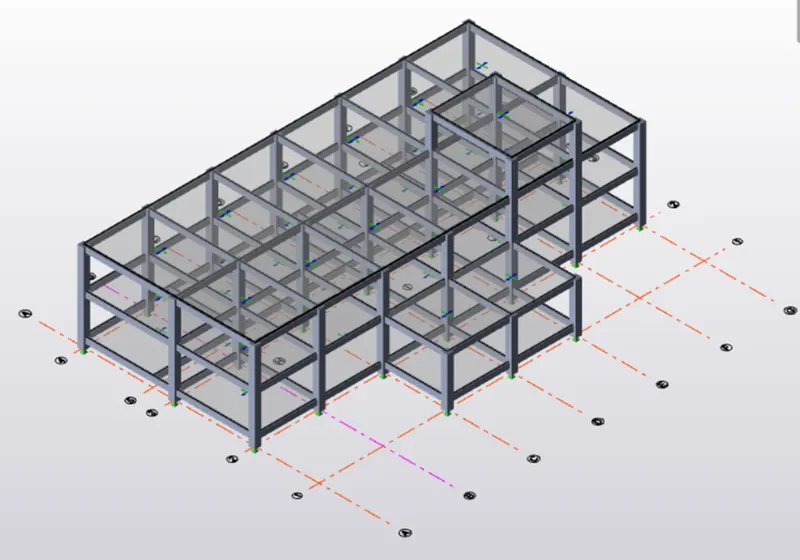

- Now use slab on beam option to placed the slab on each floor of building

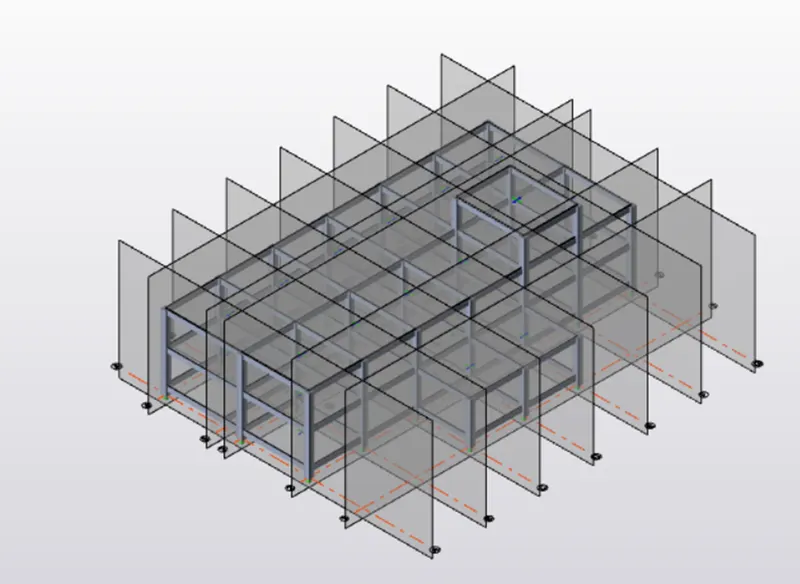

- Select frame option to insert the frame on each grid

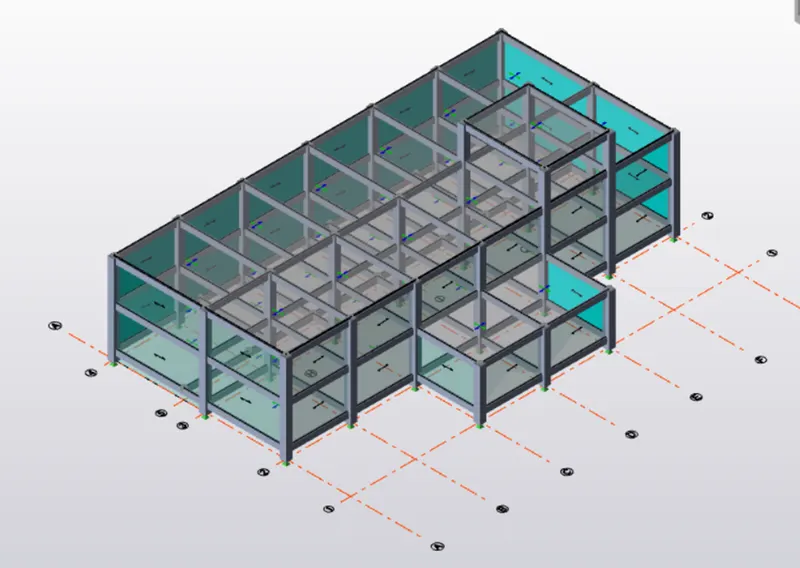

- Add wall panel to the structure

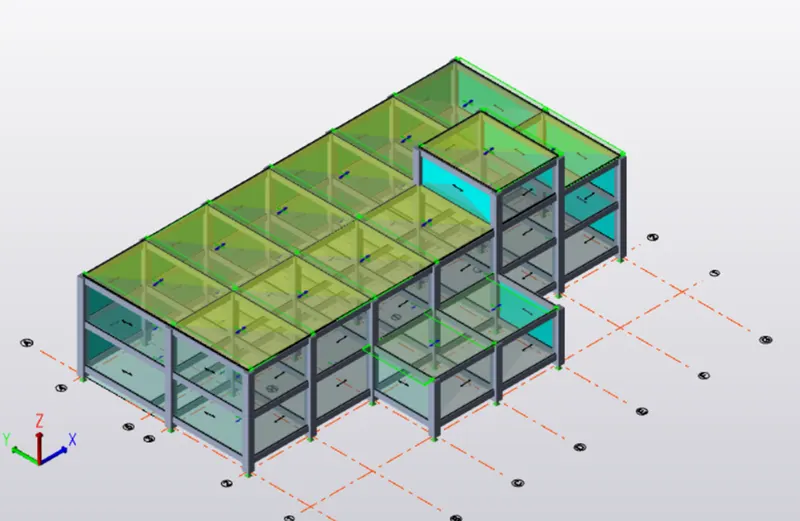

- Add roof panel to the structure

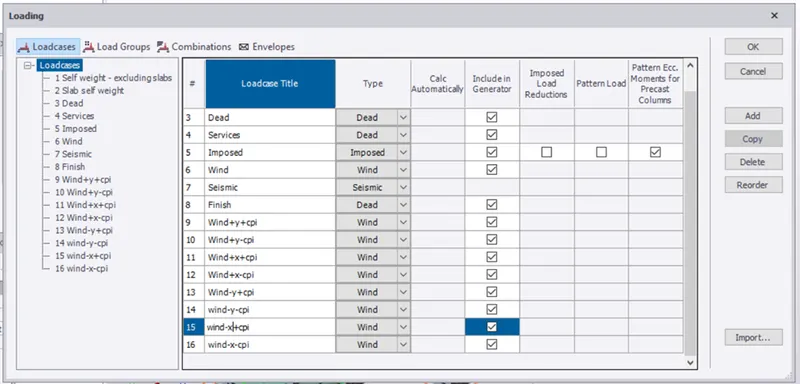

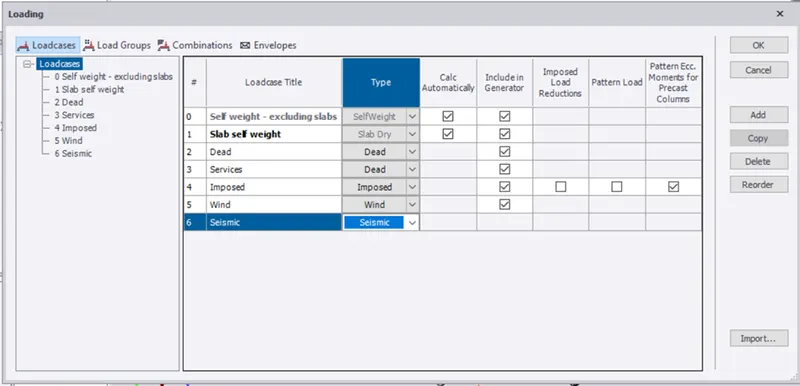

- Under load menu create new loadcases

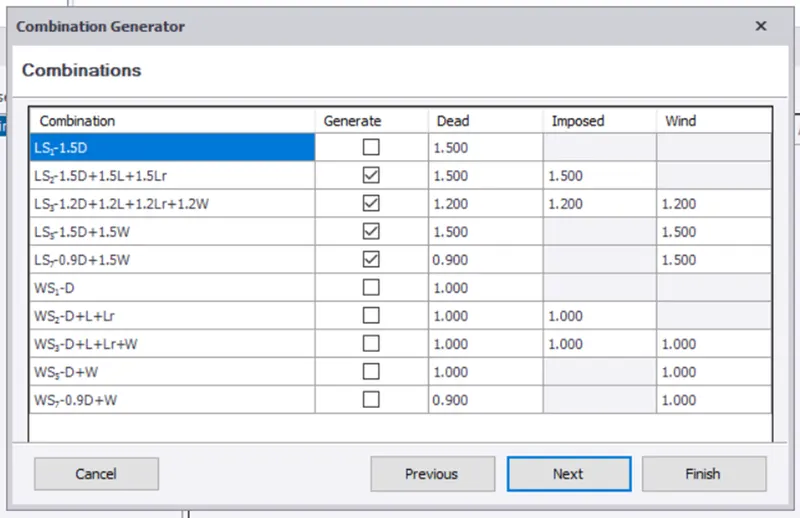

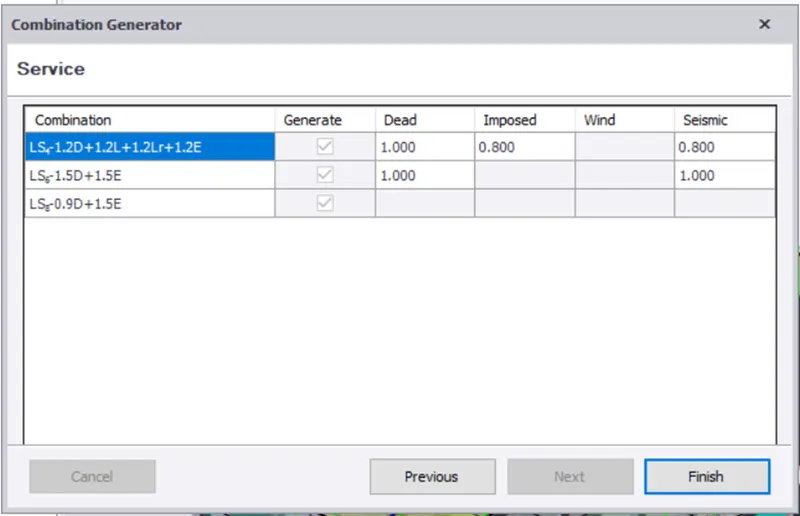

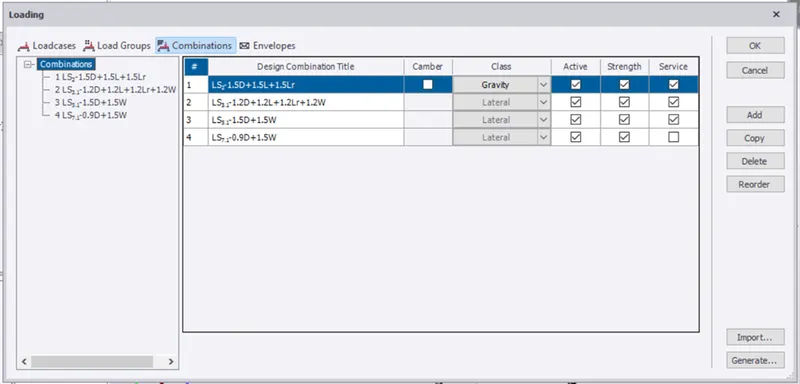

- Select Load combinations -

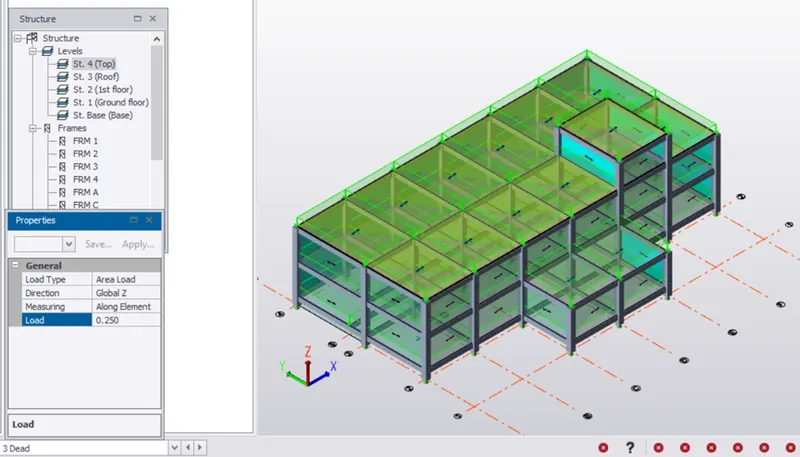

- Now add dead load on structure

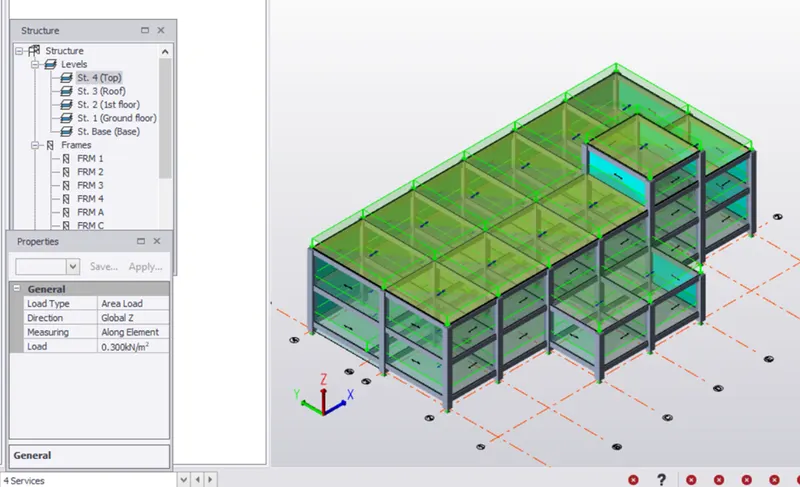

- Add service load on structure
- Now add Brickwall wall load on all beam

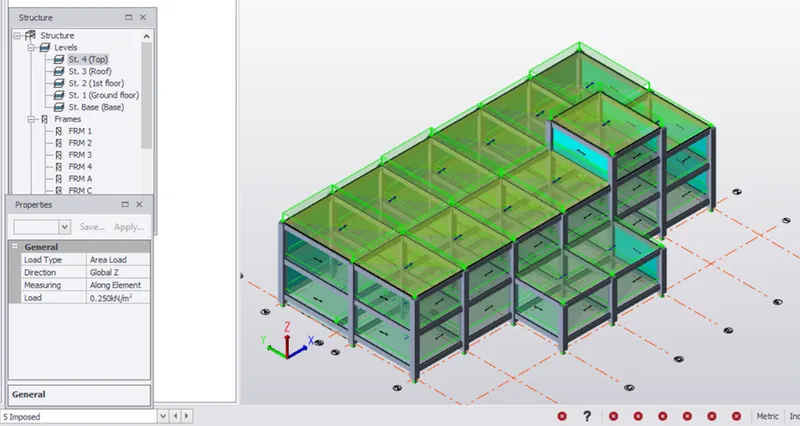

- Also add Imposed load on structure

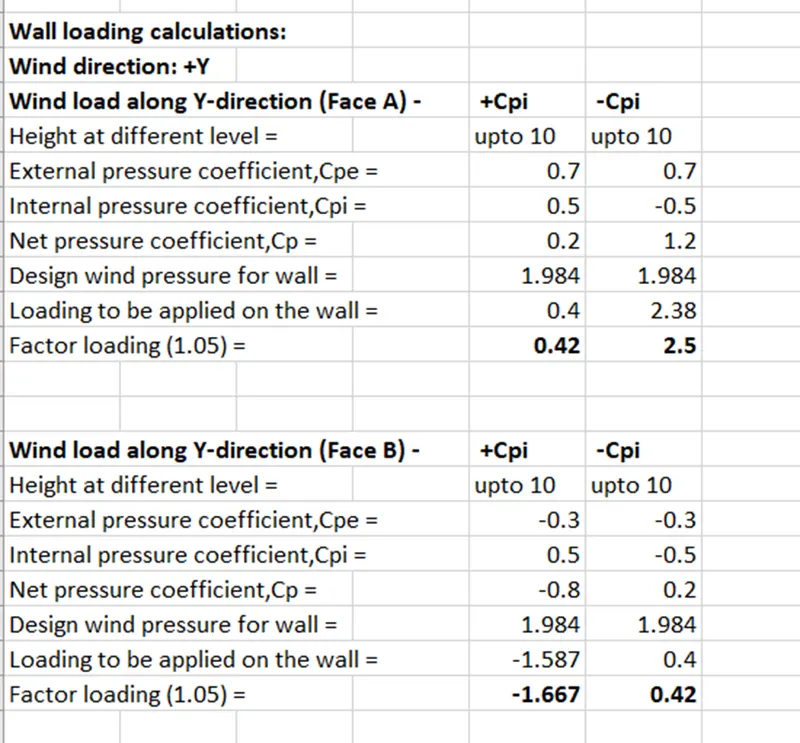

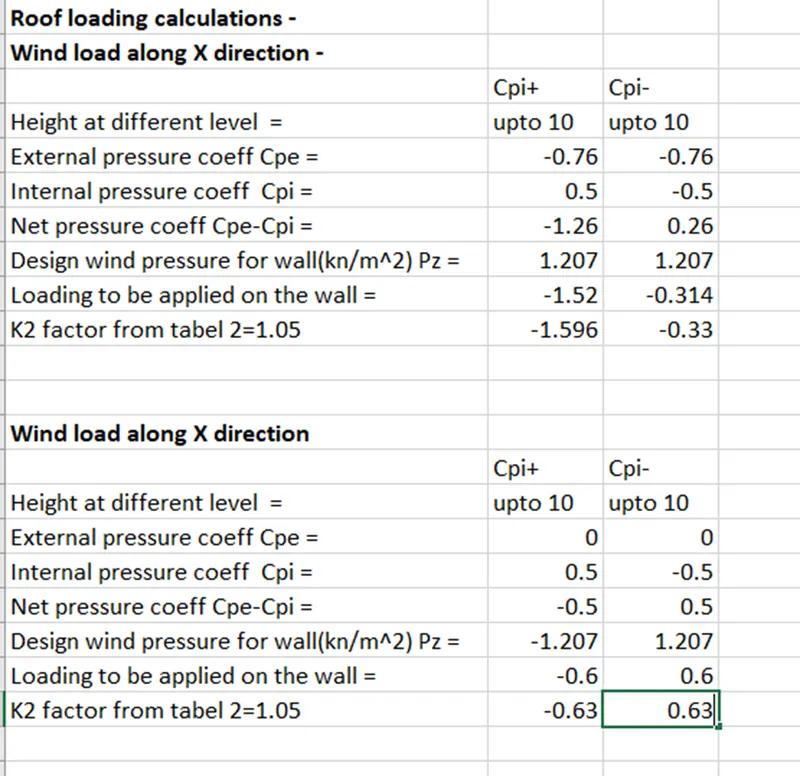

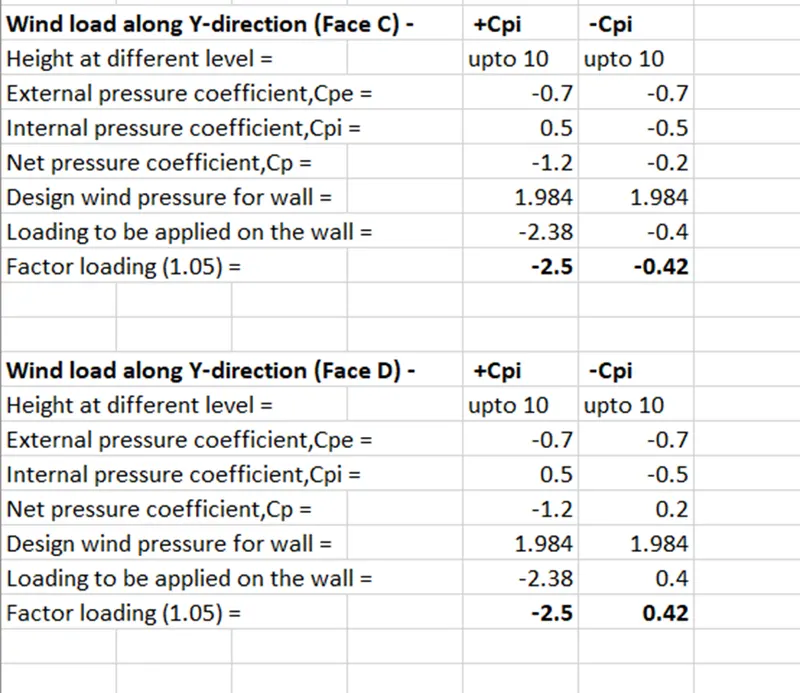

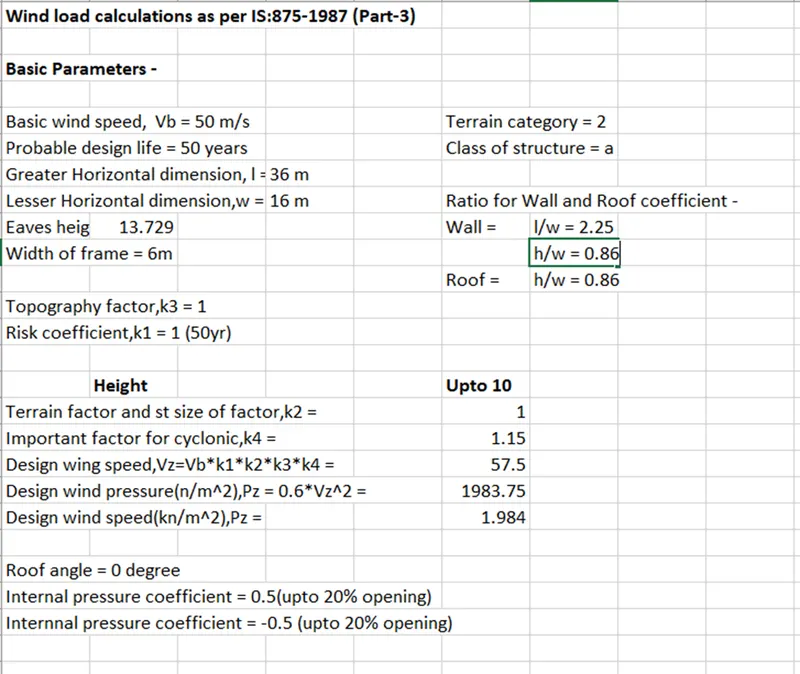

- wind load calculations -

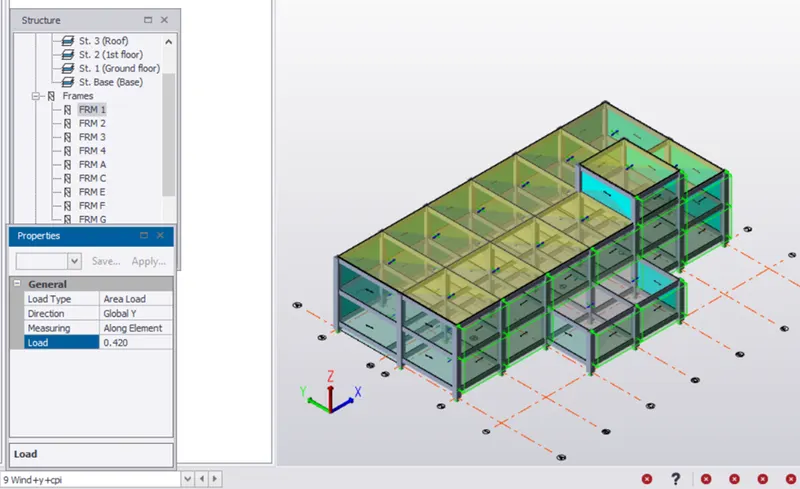

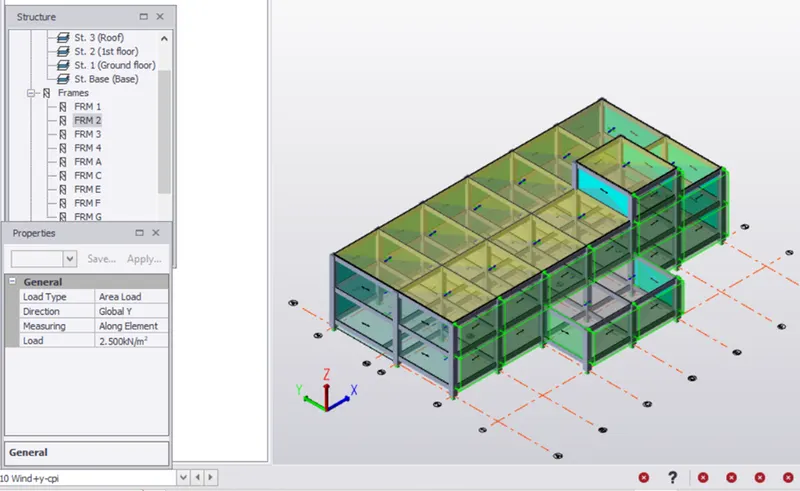

- Now add wind load on structure -
- Wind+y+cpi
- Wind+y-cpi

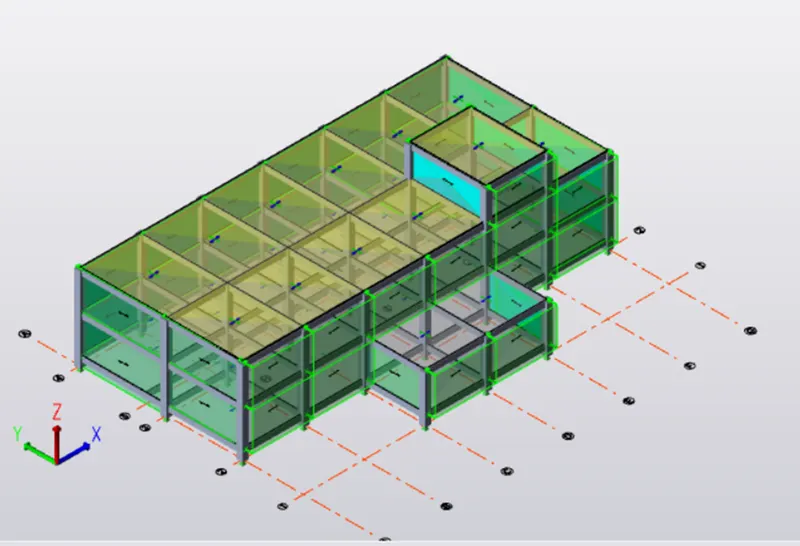

- 3D view -

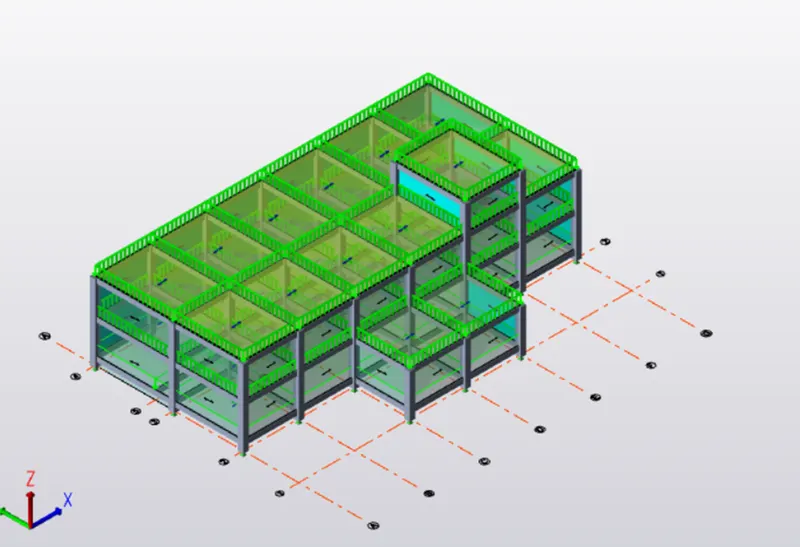

- Now add wind load on roof

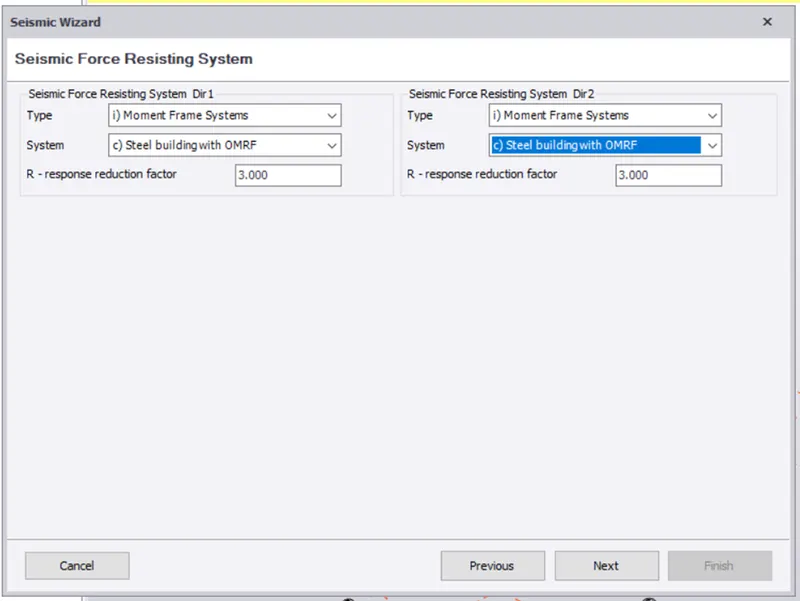

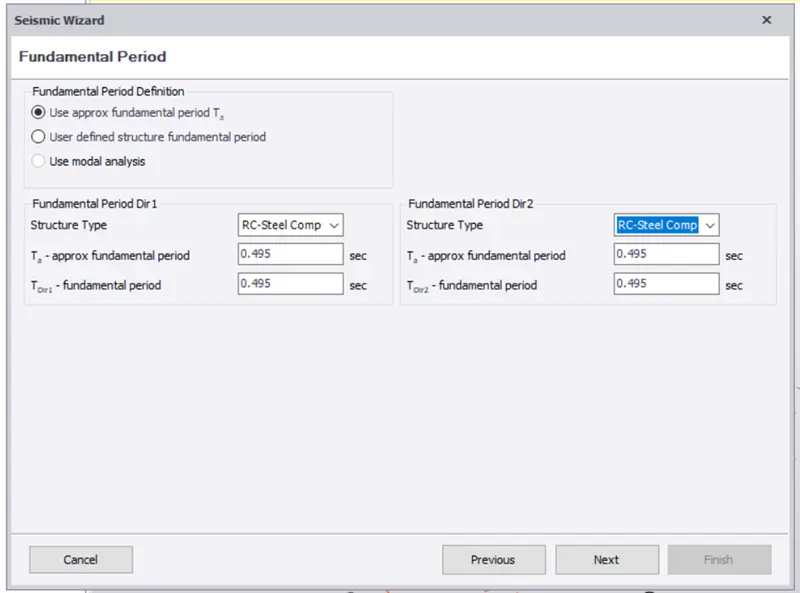

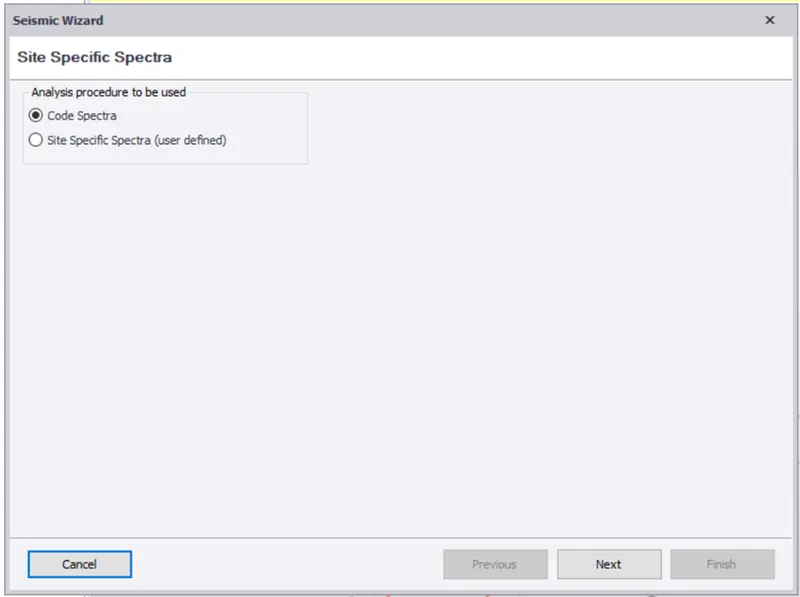

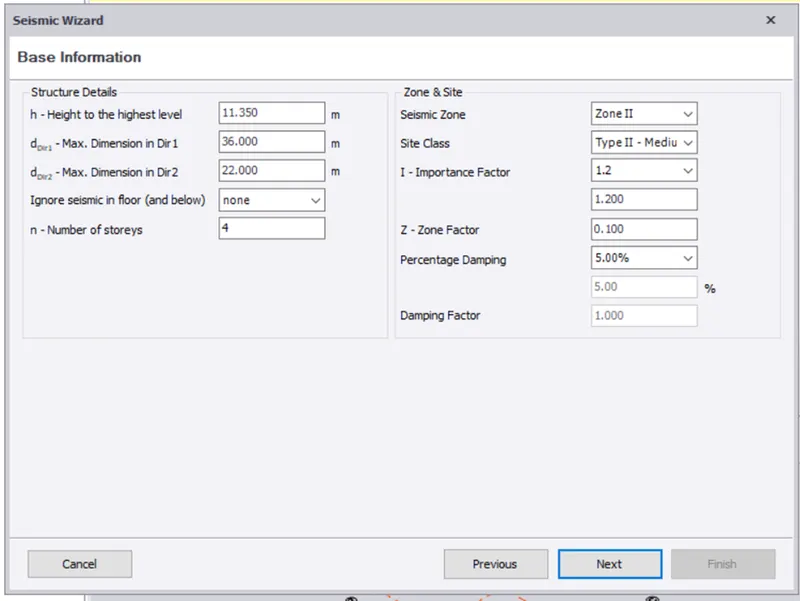

- Apply seismic load on the structure by selecting seismic wizard
- Apply the load

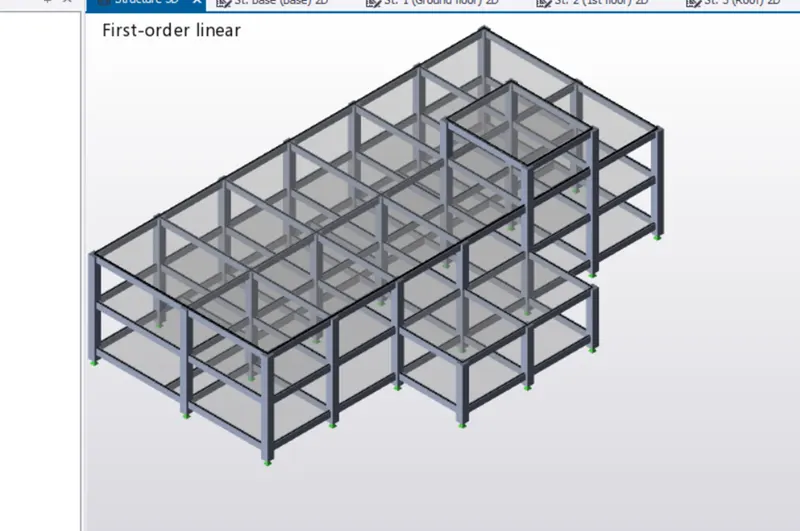

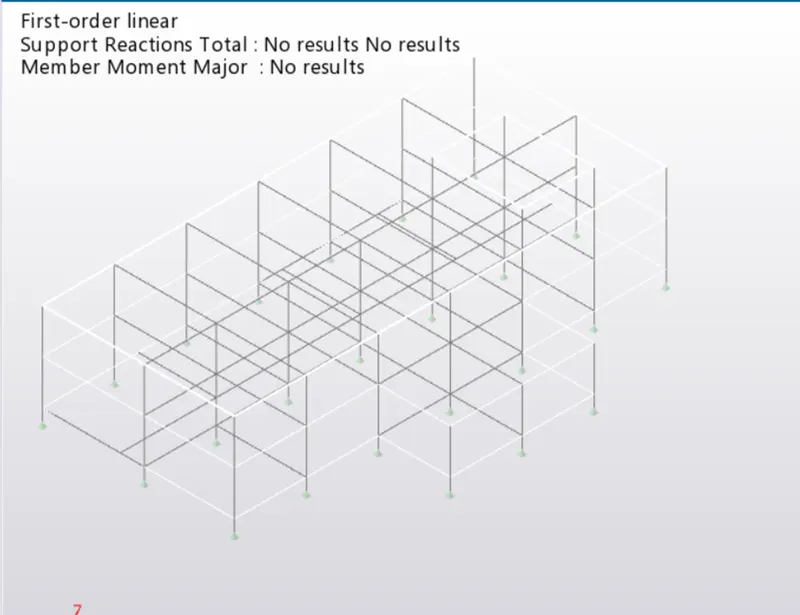

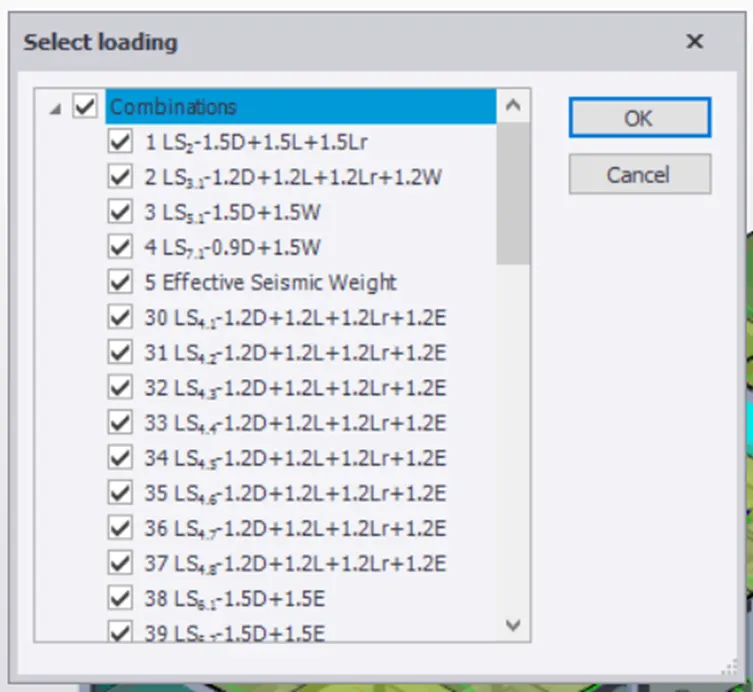

- Analyze the strucure by selecting 1st order linear analysis and select all loads
- And validate the model

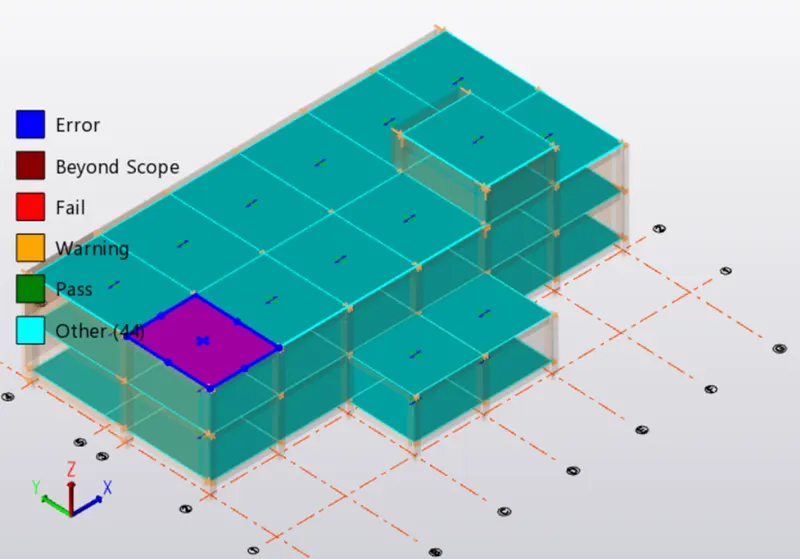

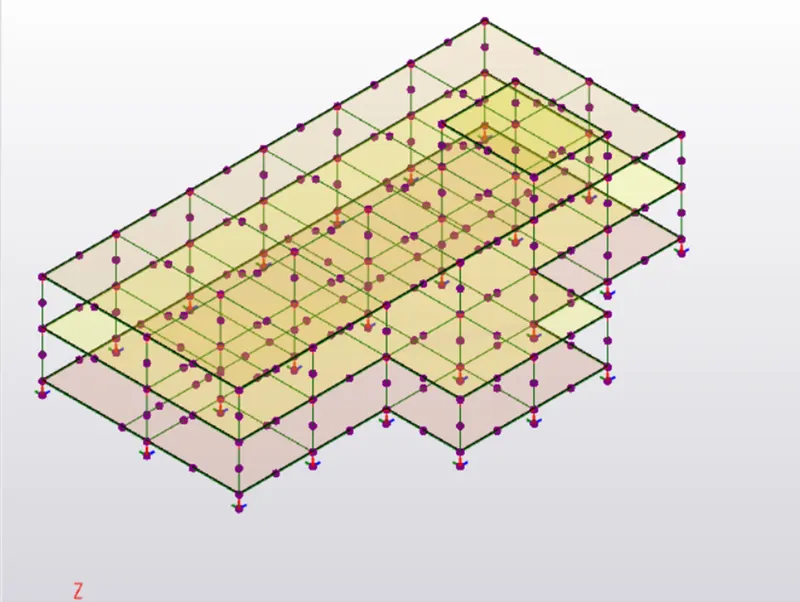

- Analysis result -
- Solver analysis result -

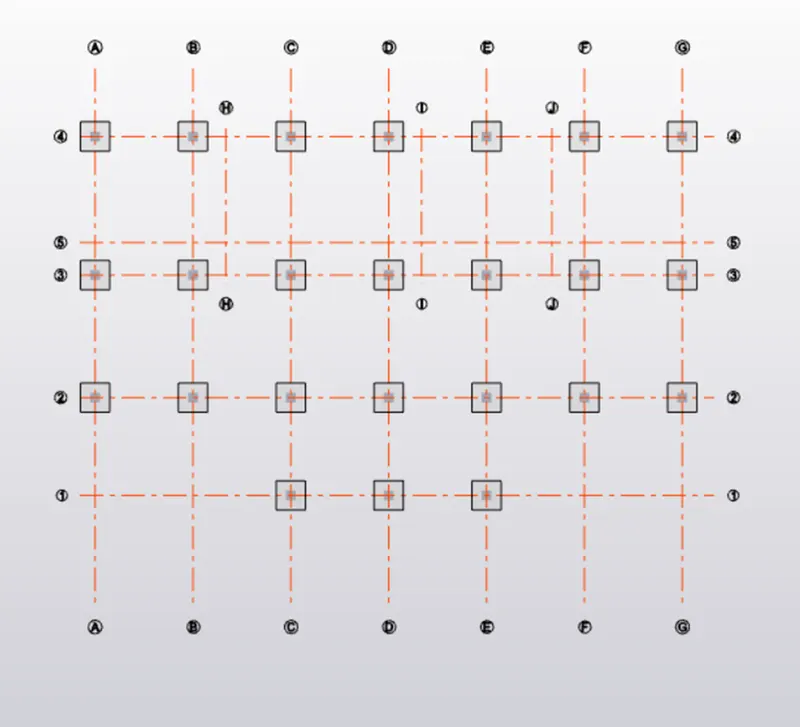

- Now Create pad base column to the structure
- Now create report of the structure

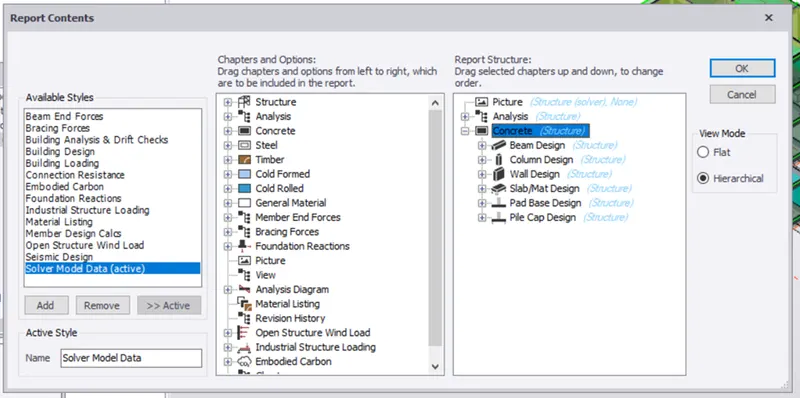

- For that select model report in report tab and and then click on show report option
Result -
The model is designed and analysed as per IS standard provision.
