Project 2_Analyze and Design the RC office building as per IS standard code in TEKLA STRUCTURAL DESIGNER
- Project 2
- Ans -
- Aim -
- To develop model as per given plan and anlyze and design the structure.
- Tools Used -
- Paint
- Manage property set
- Construction levels
- Grids
- Columns
- Beams
- Reports
- Model report

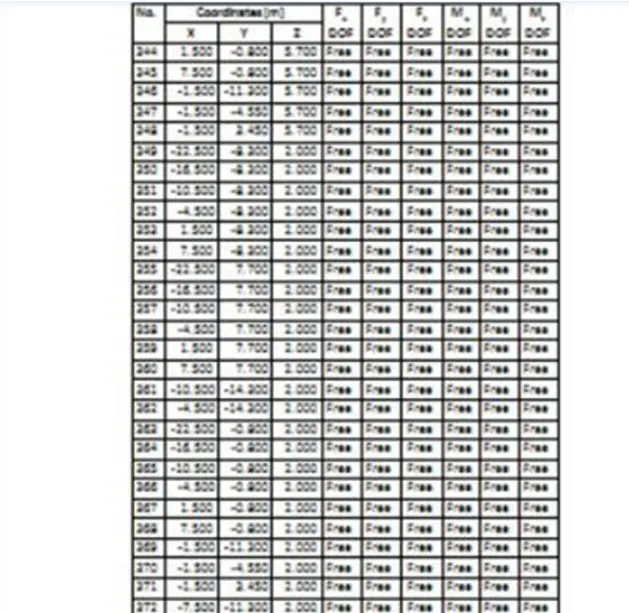

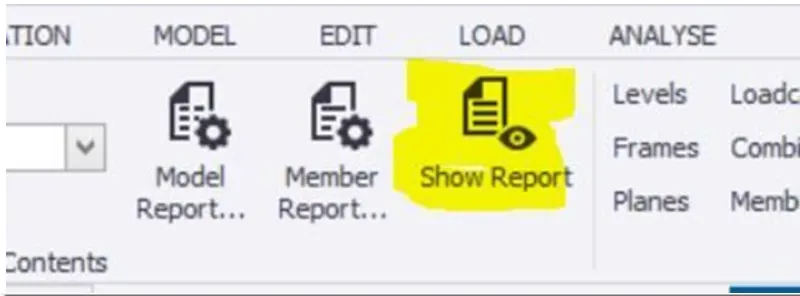

- Show report
- Interactive design
- Slab on beams
- Frames
- Roof panels
- Wall panels
- Loads
- Load cases
- Seismic wizard
- Process -

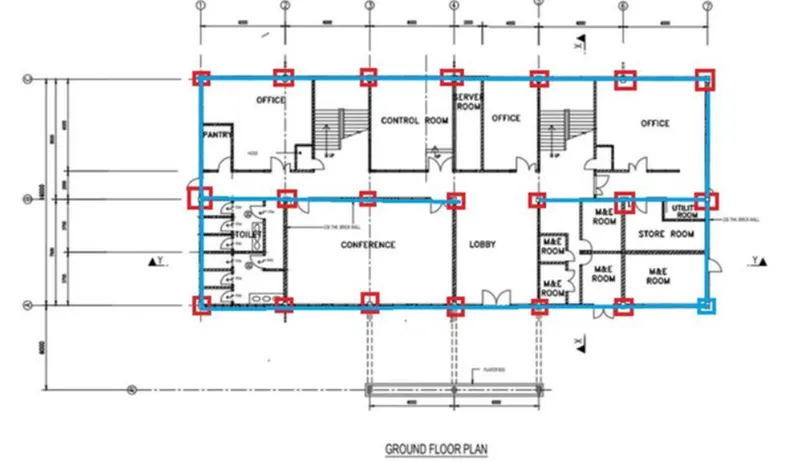

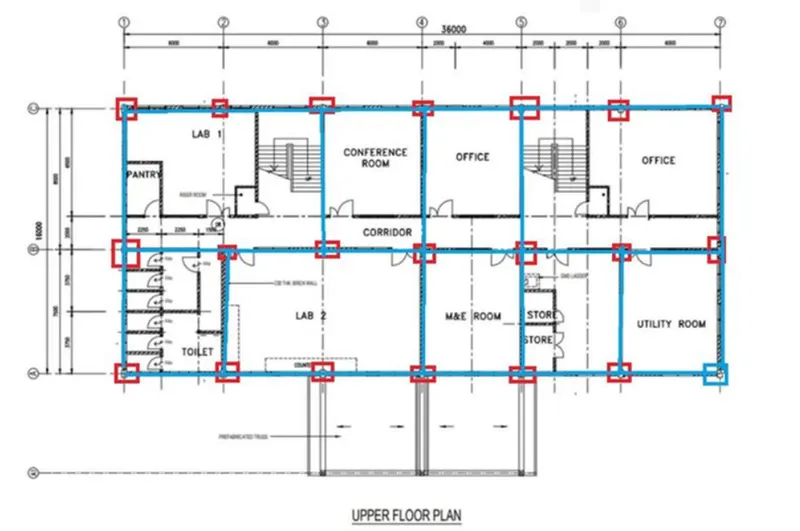

- 1. Take screen shot of plan open them in paint.

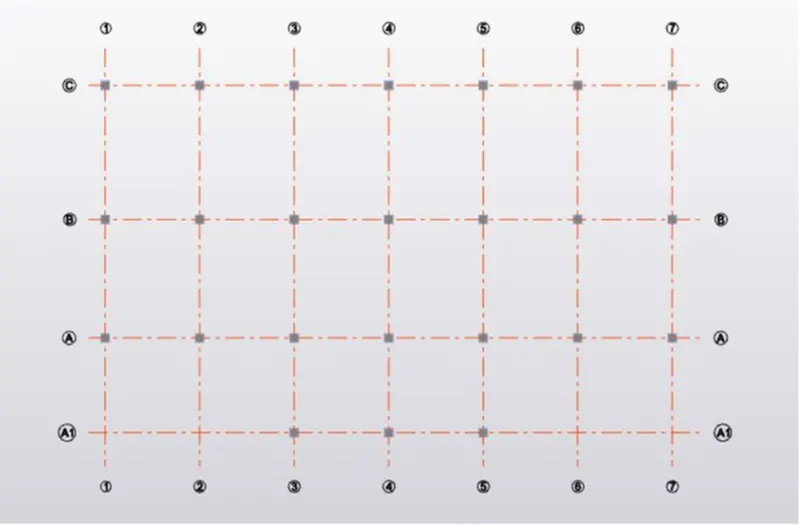

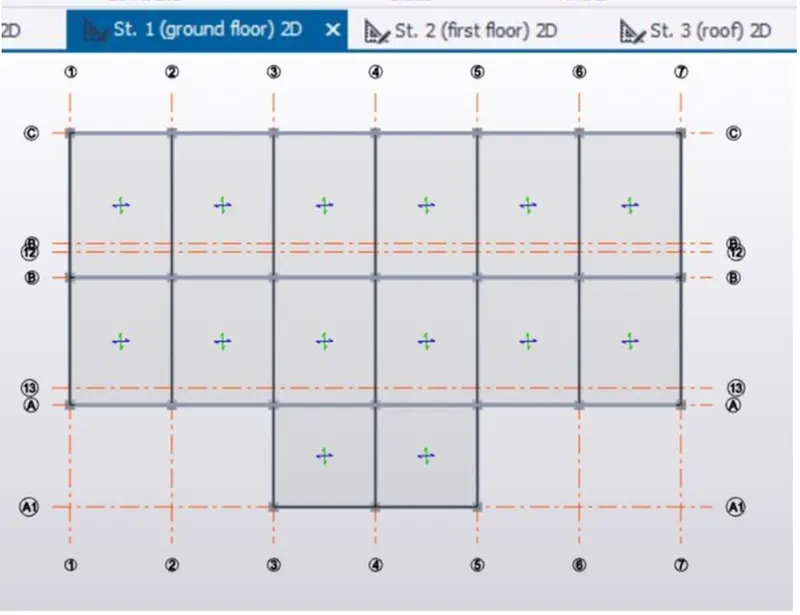

- 2. Draw positions of columns and beams in paint.

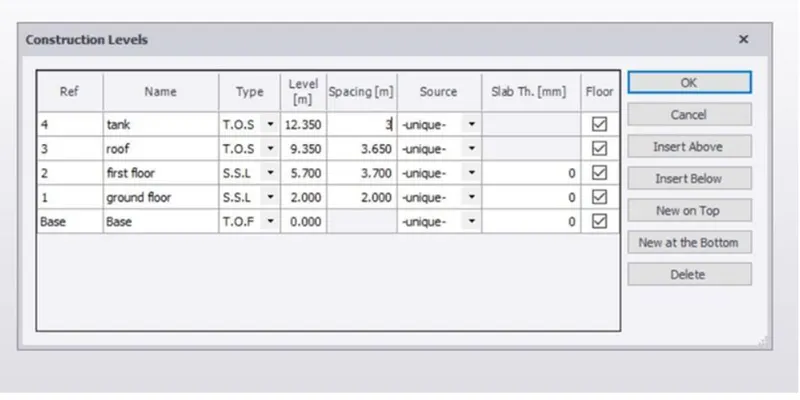

- 3. Open Tekla file create construction level for structure according to plan.

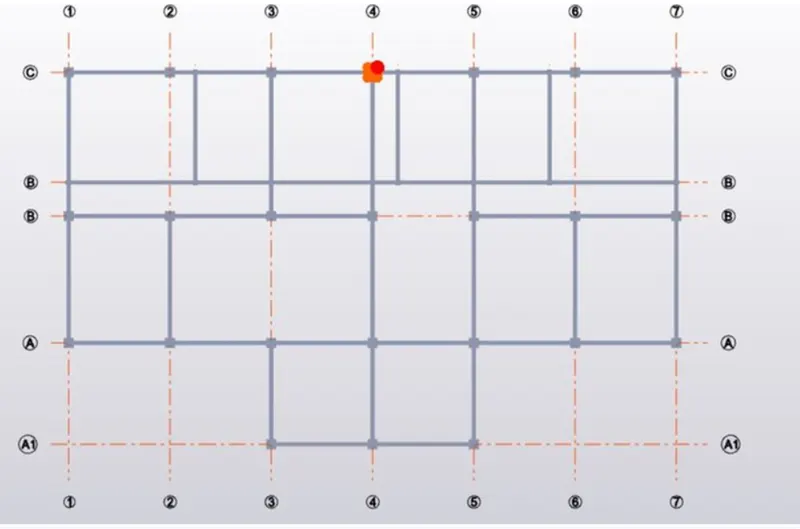

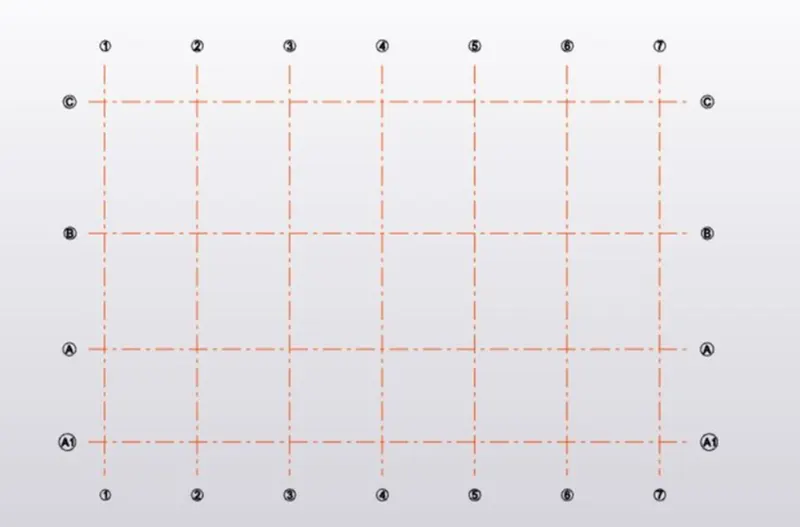

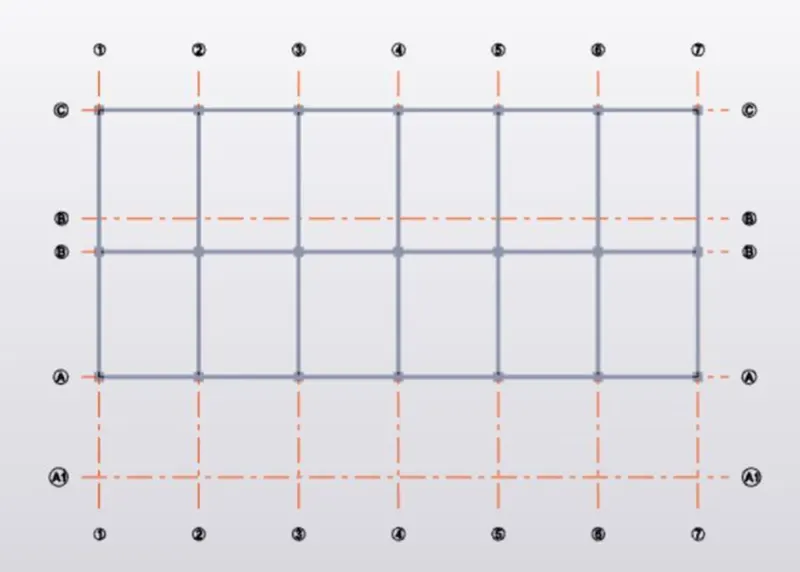

- 4. Construct horizontal and vertical grid line

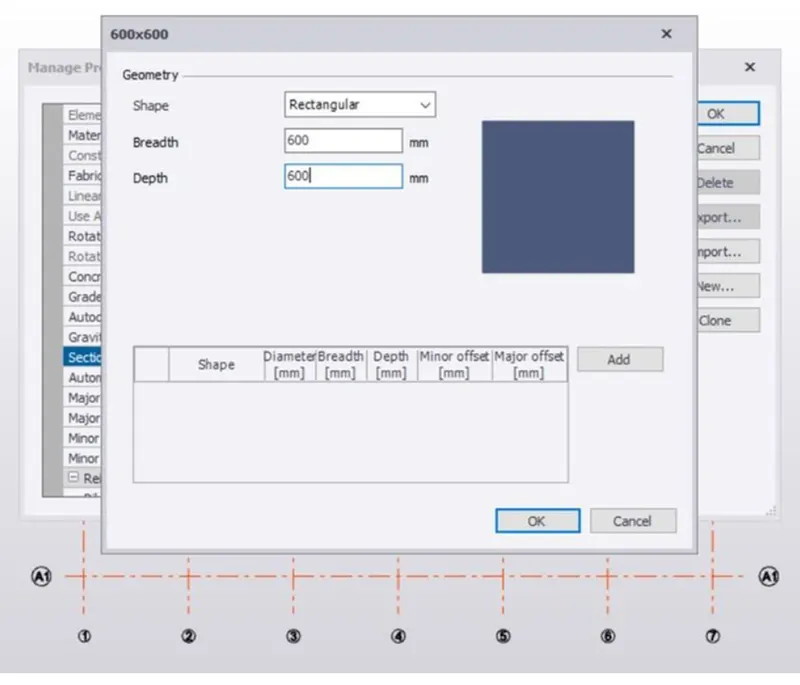

- 5. Select the size of the concrete column section used in the construction as per requirement.

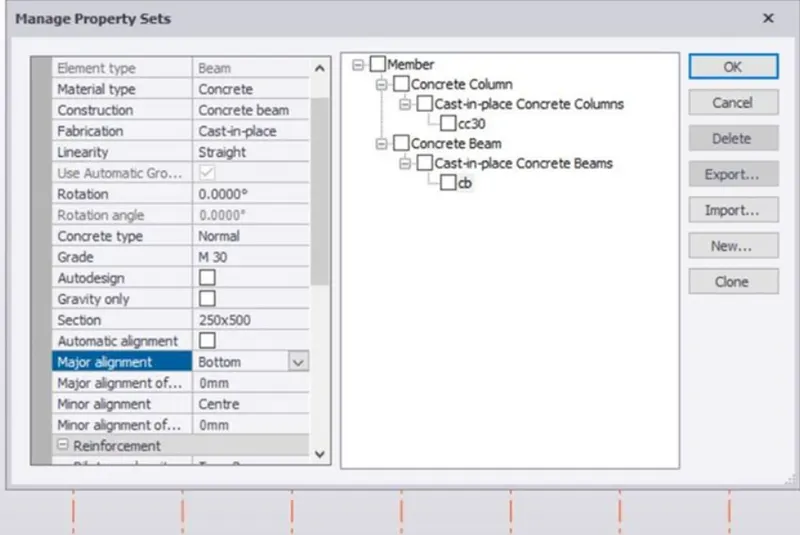

- 6. Go to manage property sets and create members used for modelling

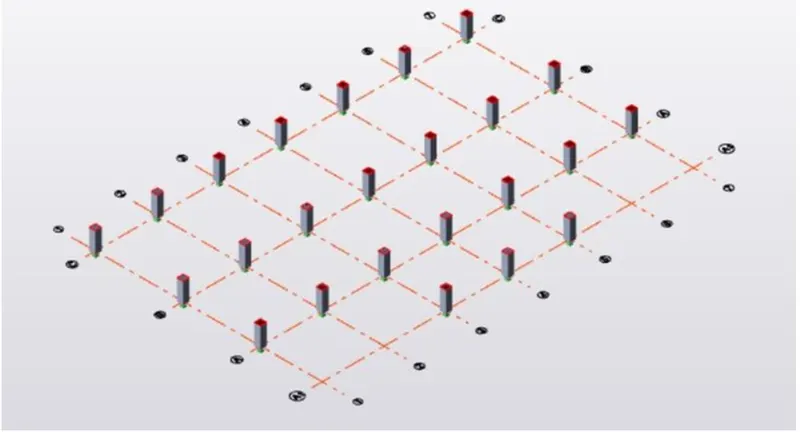

- 7. Go to model tab and insert concrete columns in the structure

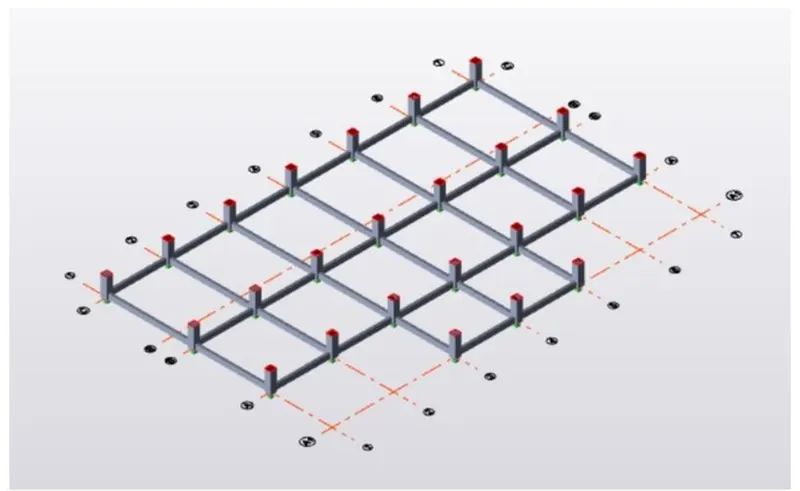

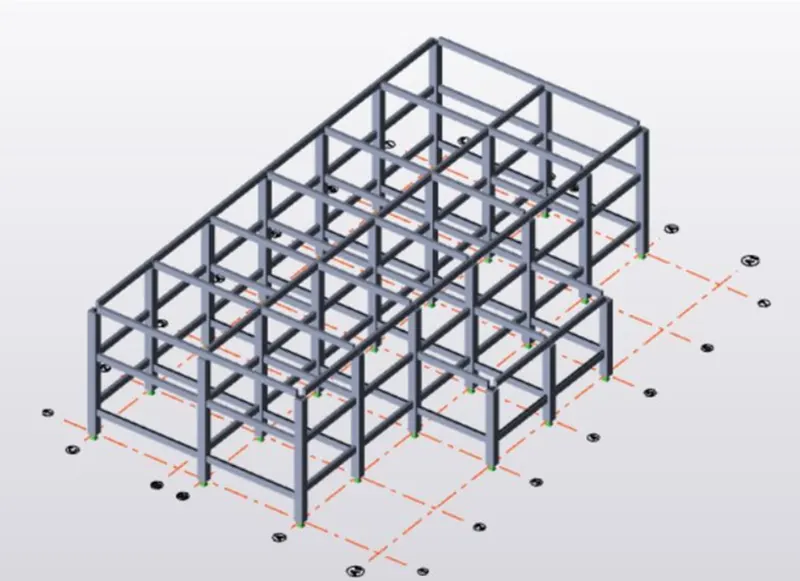

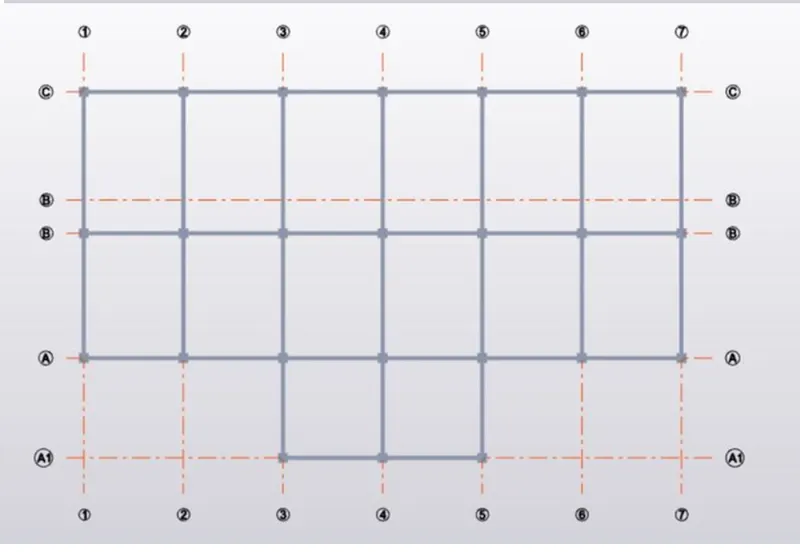

- 8. Go to model tab select beams tool and draw beams as per plan.

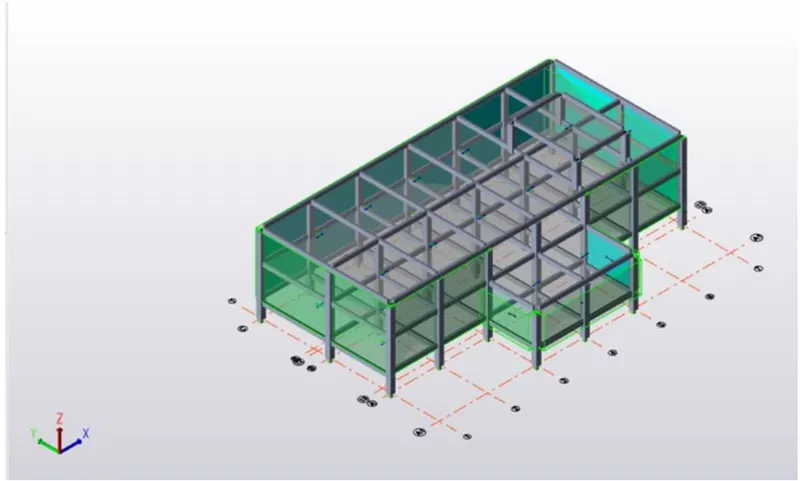

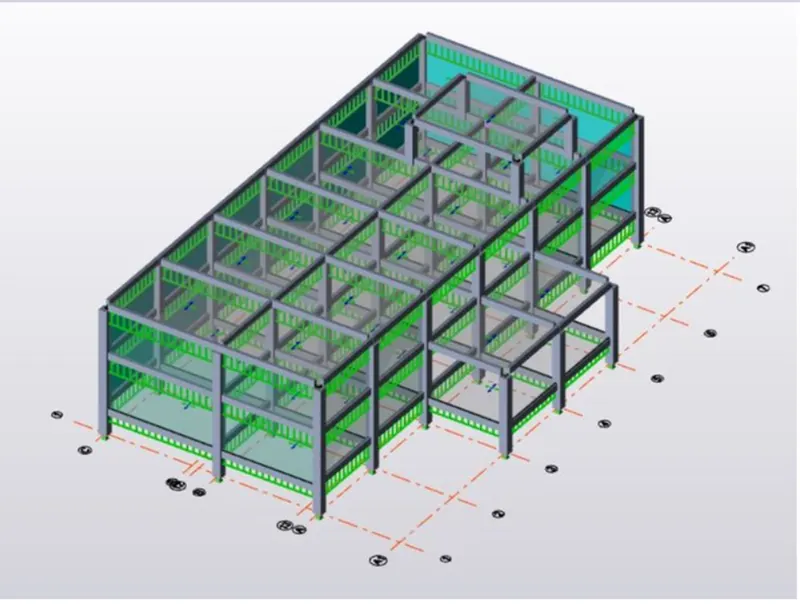

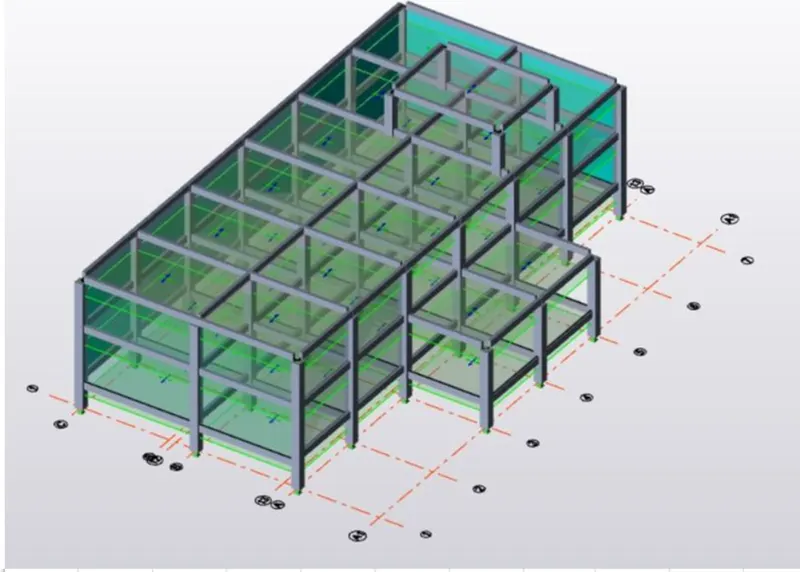

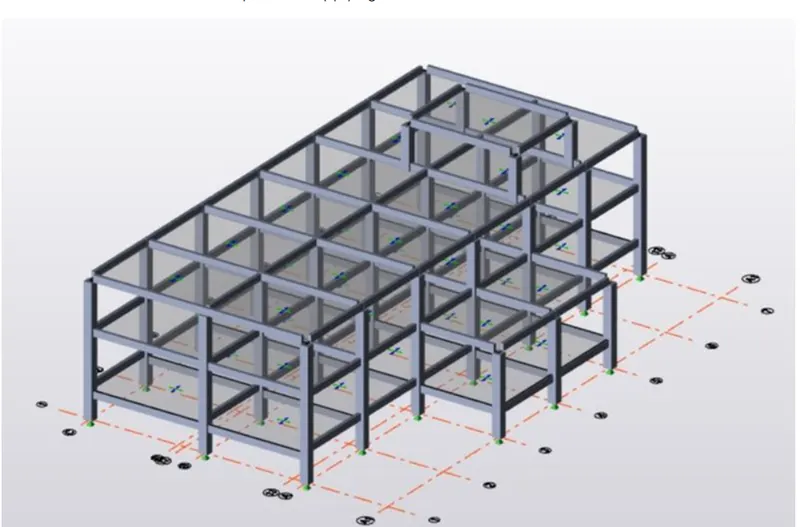

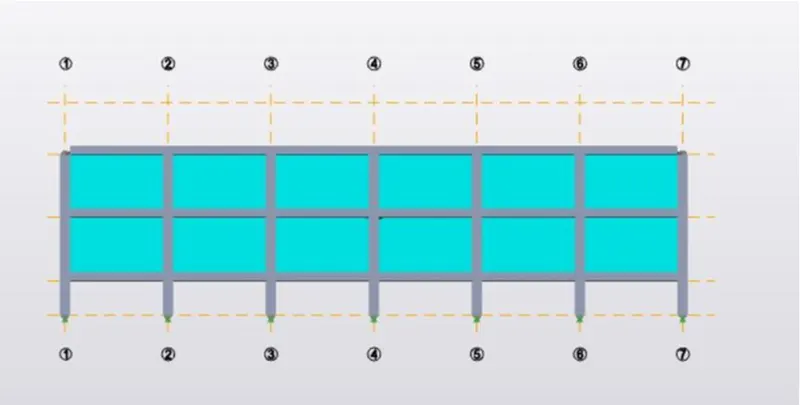

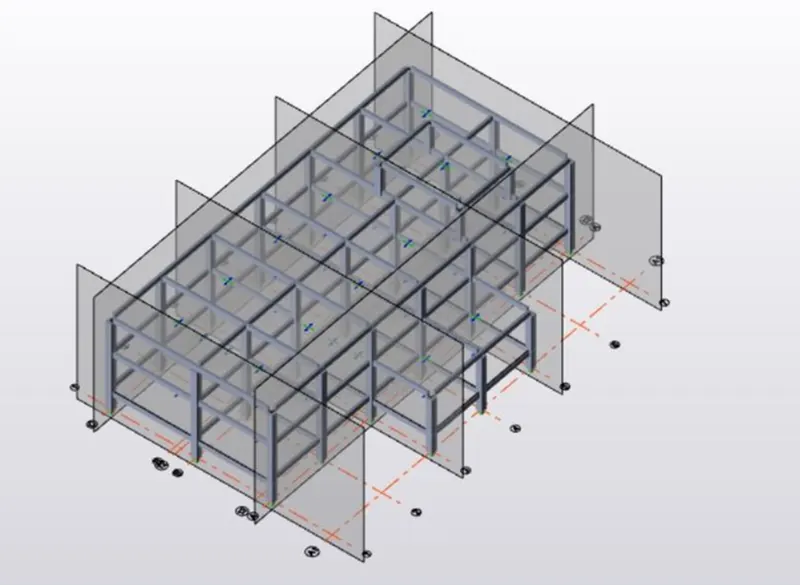

- 9. We can check the structure in 3D for view
- 10. Repeat same process for the level as per plan.
- 11. Select slab on beams and insert slabs for all the floors where ever required.

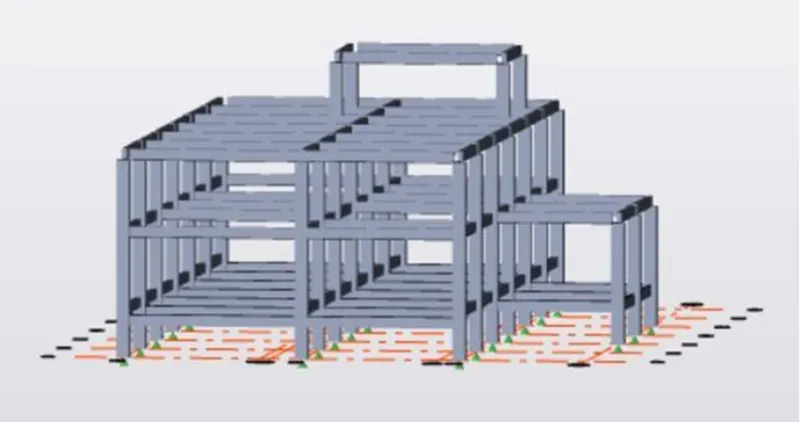

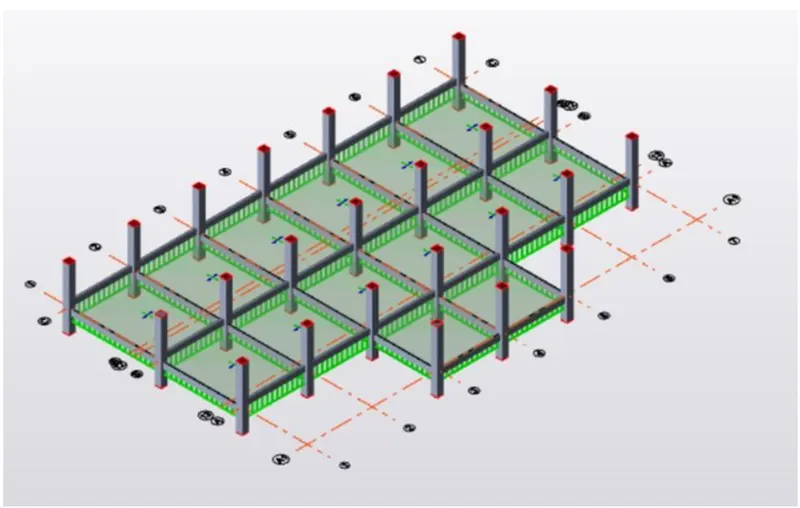

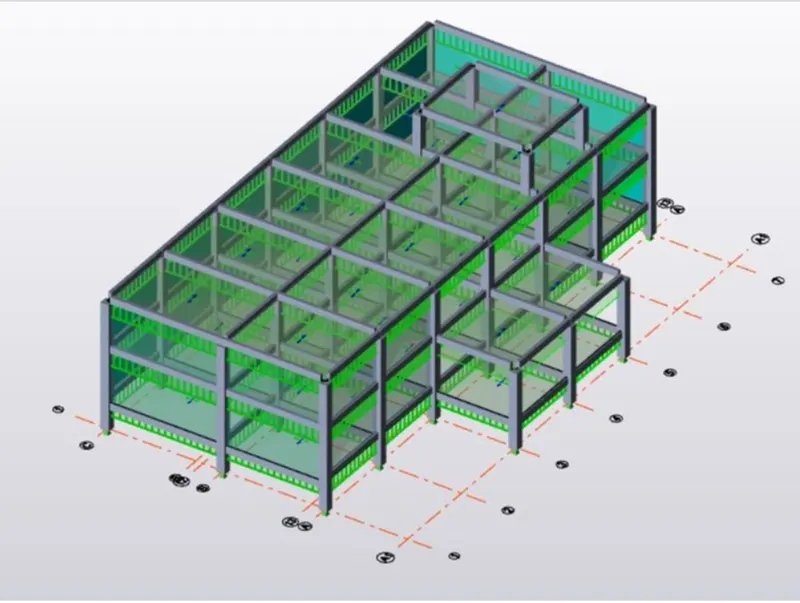

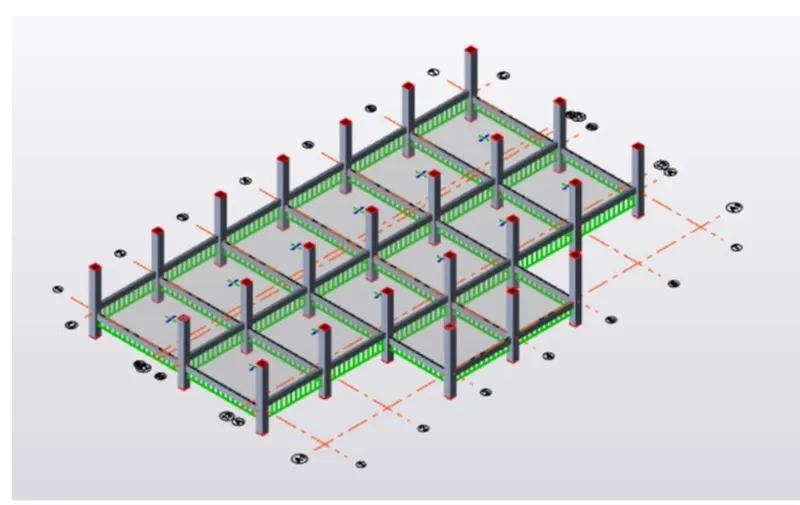

- 12. Go to 3D view to get clear view of the slab inserted.
- 13. Insert frame which will be helpful while applying loads on the structure.

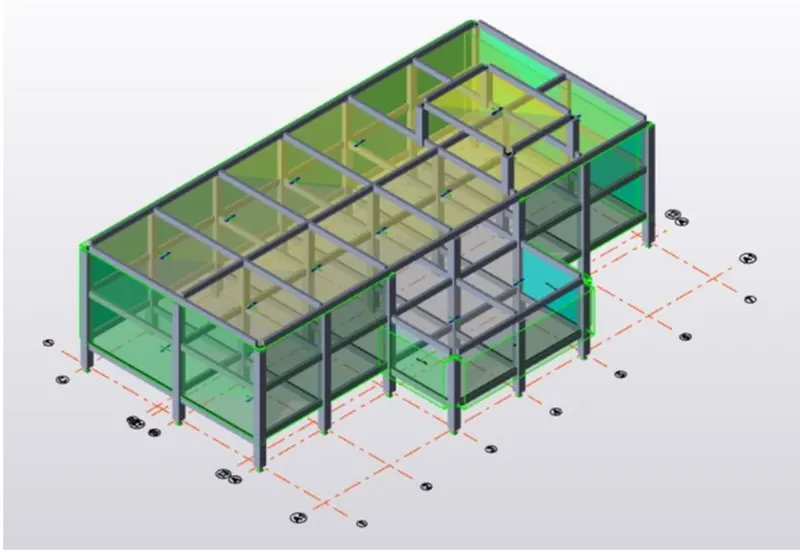

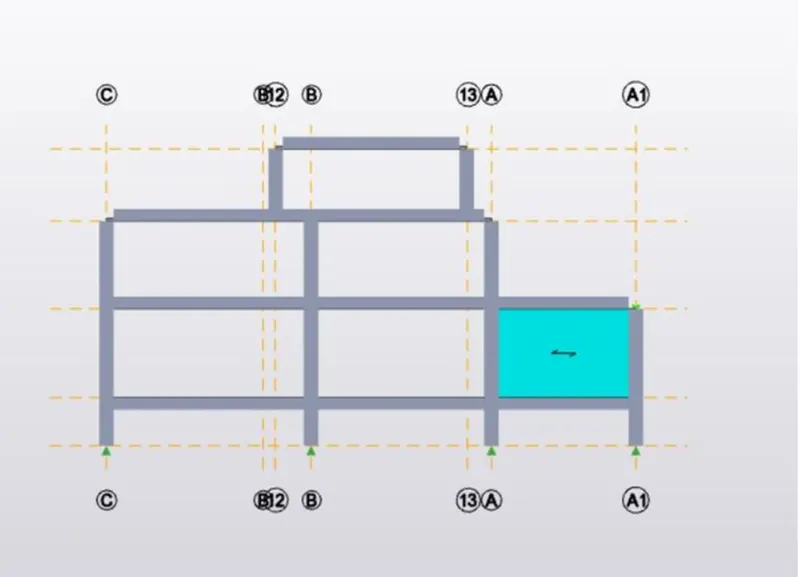

- 14. Add wall panels to the structure.
- 15. Repeat same step for all wall.

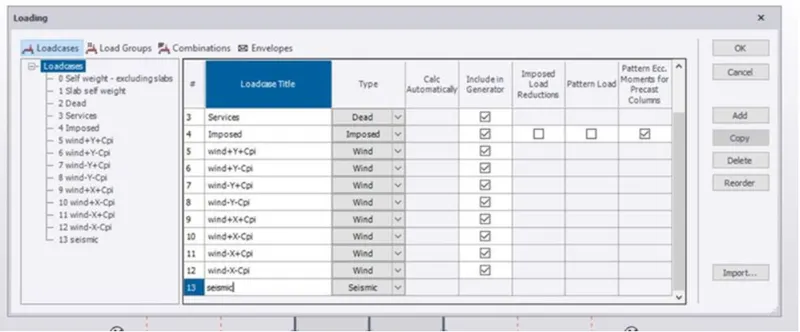

- 16. Go to loads create new load cases
- 17. Add dead loads on the beam.
- 18. Add dead loads on slab.
- 19. Repeat same step for all floor.
- 20. Add live load on the structure for all floors.

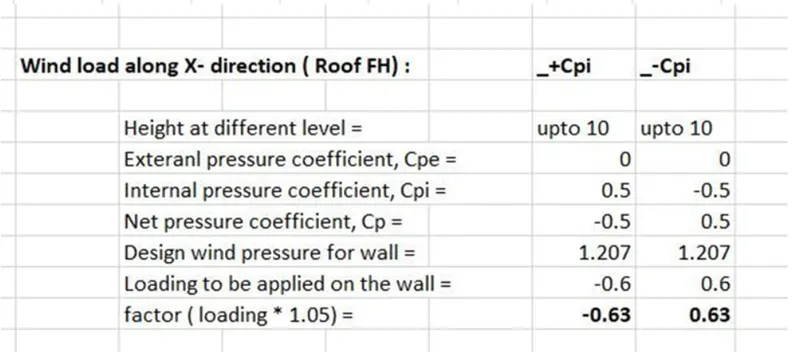

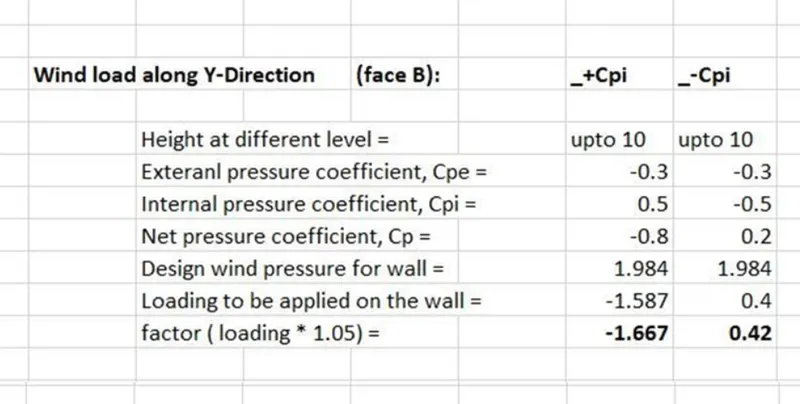

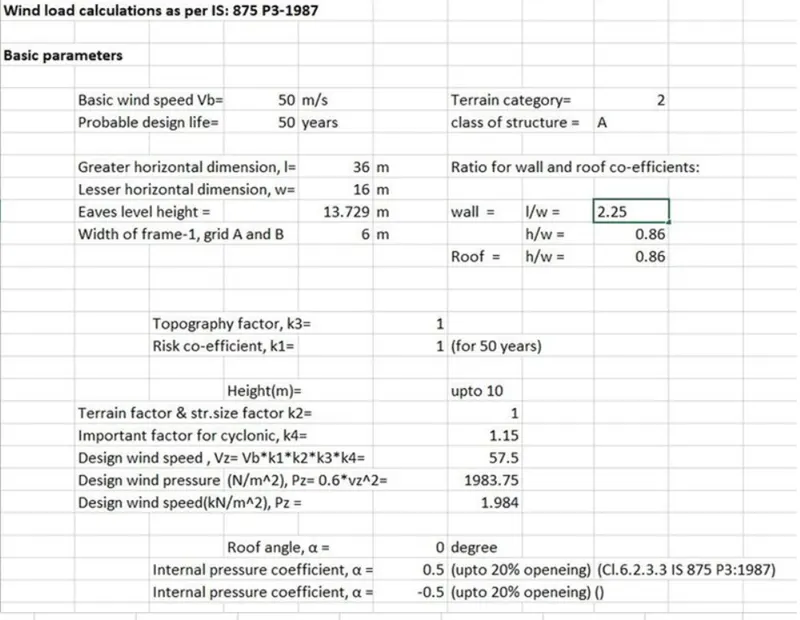

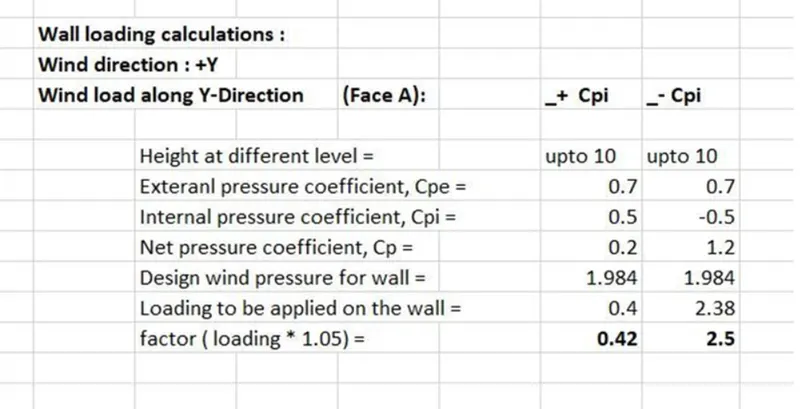

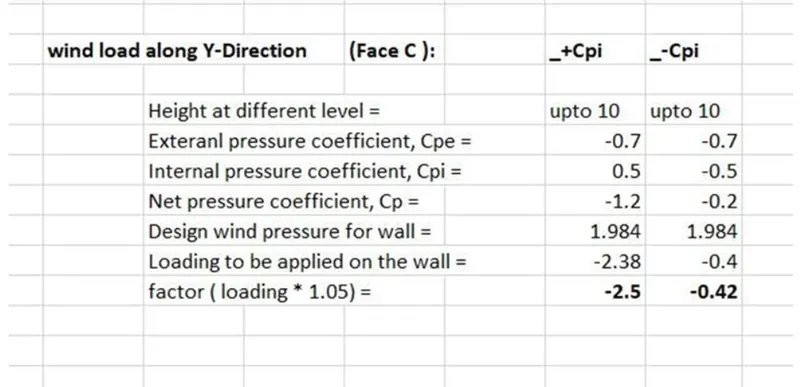

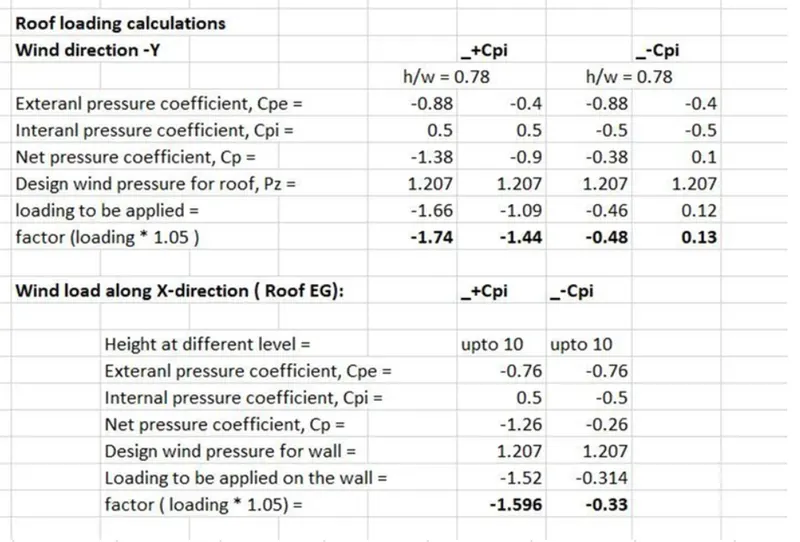

- 21. Do the wind load calculation for all the sides for both X and Y (including +cpi and -cpi values)

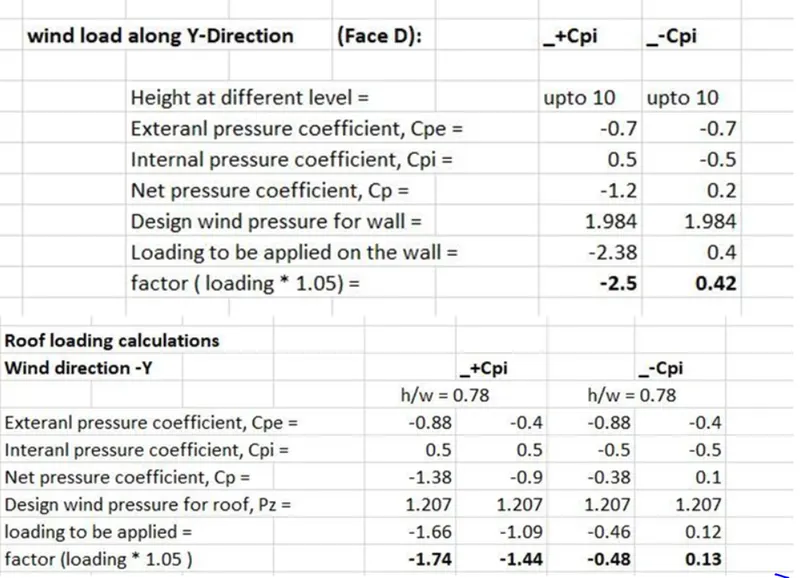

- 22. Start applying wind loads on structure.
- 23. Repeat the same process for all the sides.

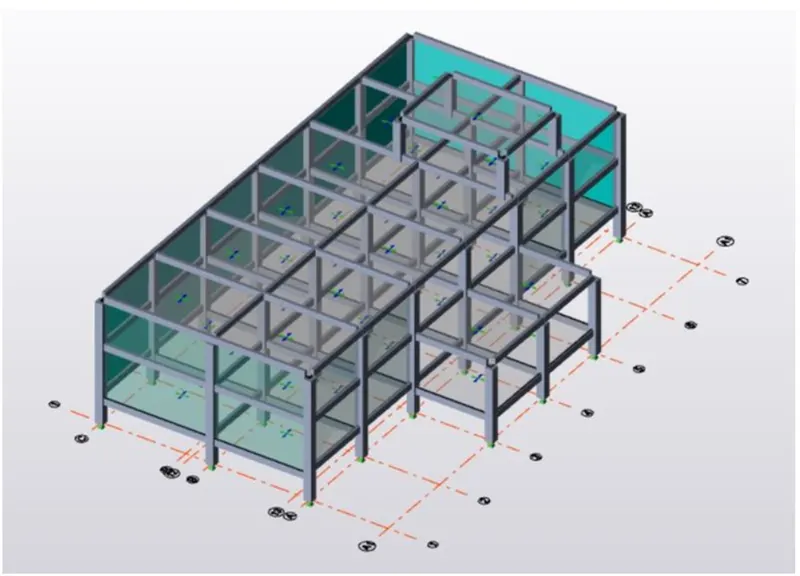

- 24. Add roof panels to structure and also add roof load.

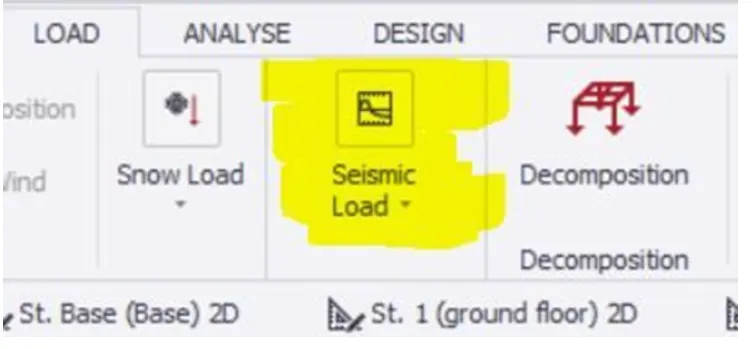

- 25. Apply seismic load on the structure by selecting wizard.

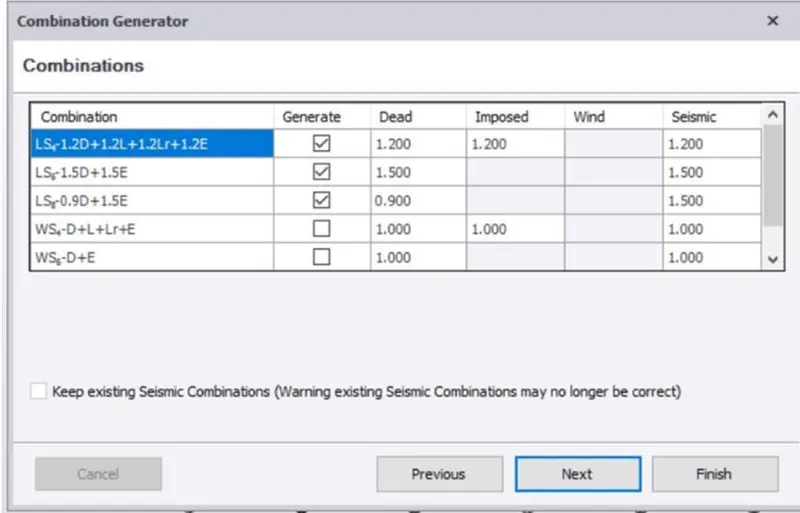

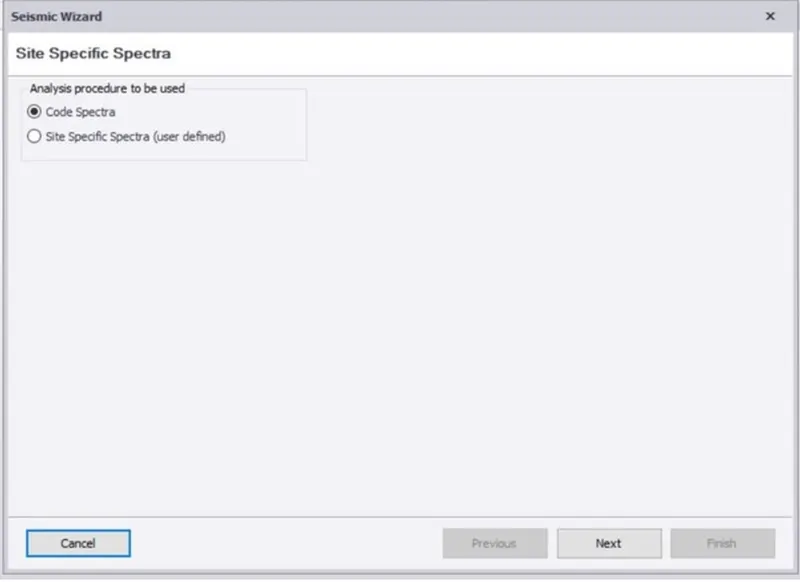

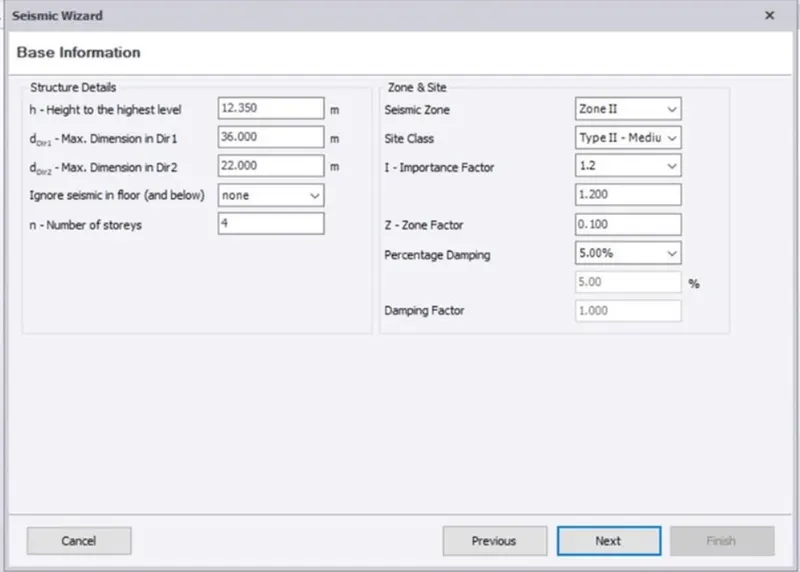

- 26. Seismic wizard dialog box appears.
- 27. Enter the required values for seismic load calculation.
- 28. Add loads which will be applied are visible now.

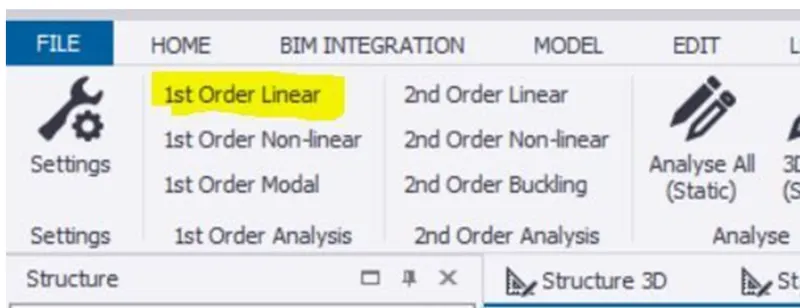

- 29. Analyze the structure by selecting 1st order linear option.

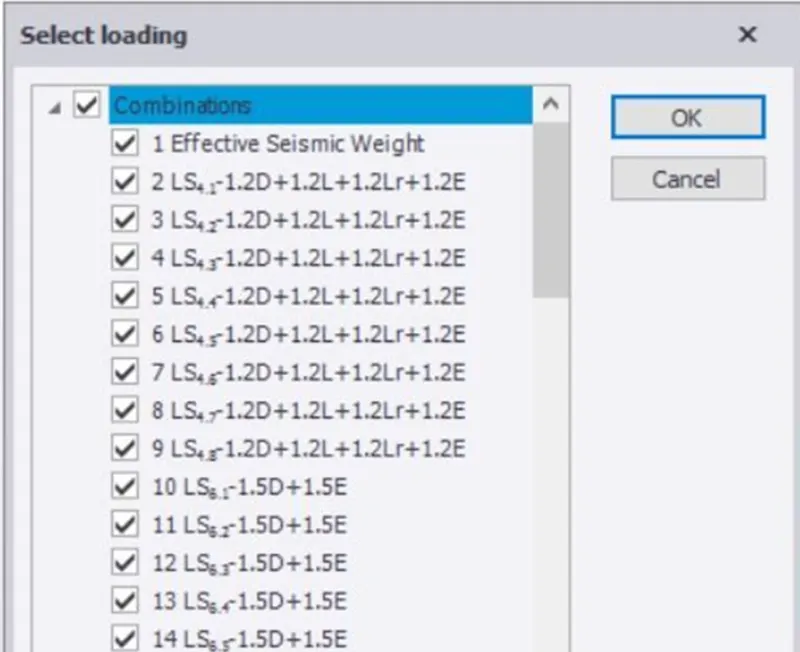

- 30. Select all the loadings required for the analysis.

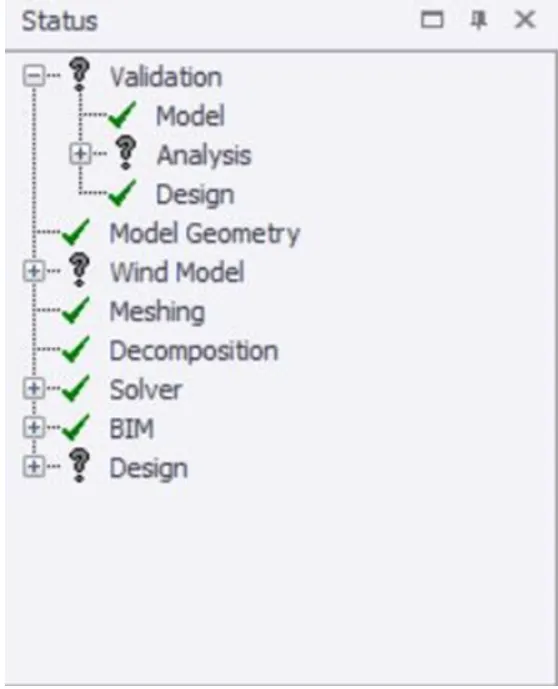

- 31. Validate the model to check that there no errors.

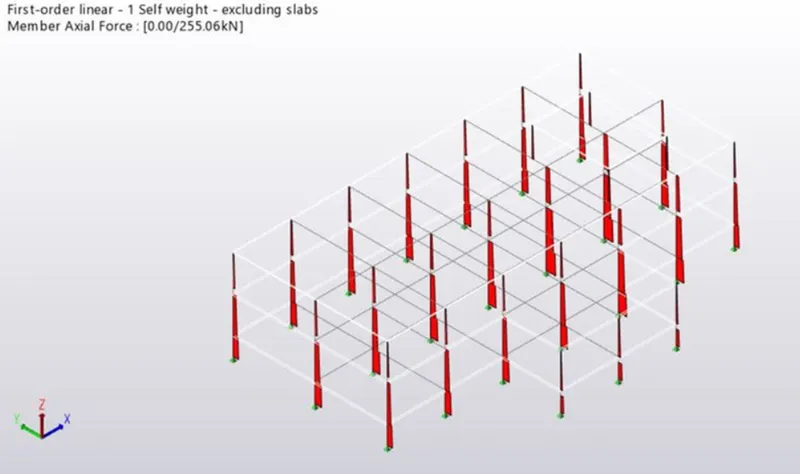

- 32. Check axial load diagram.

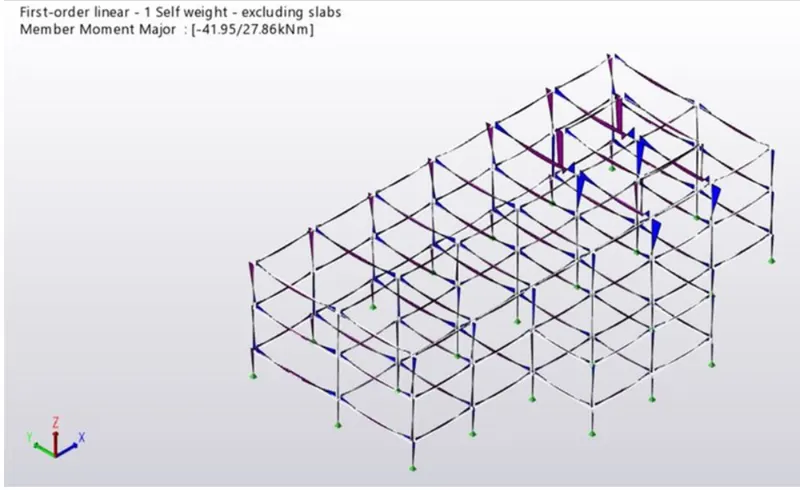

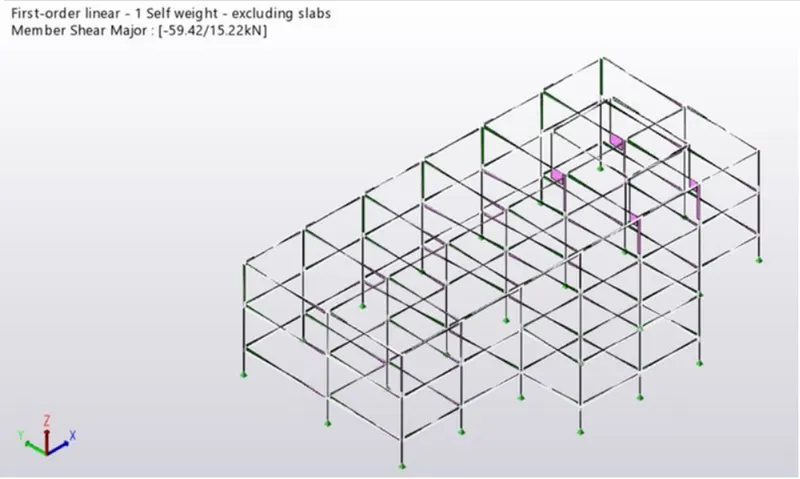

- 33. Check the shear force and bending moment diagram.

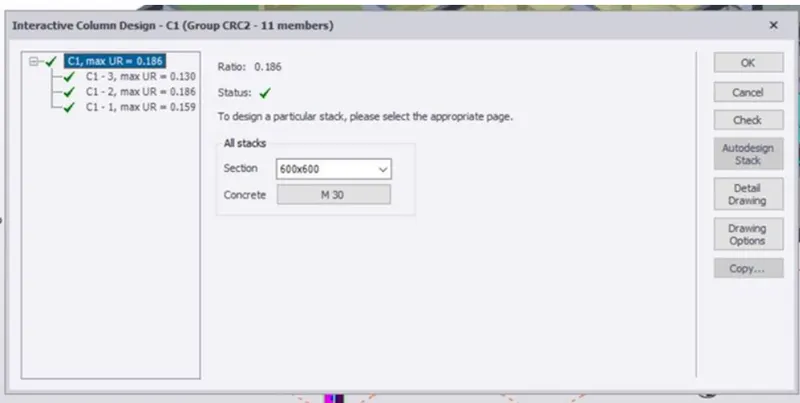

- 34. Check eachand every column and perform interactive design.

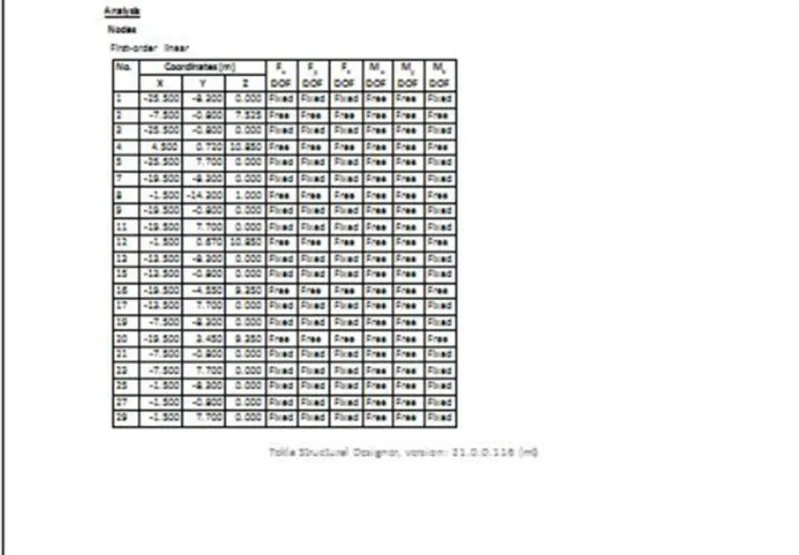

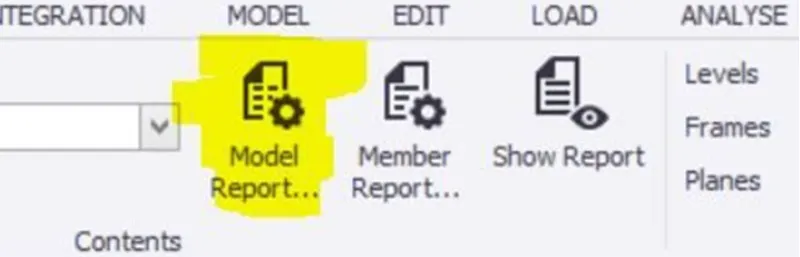

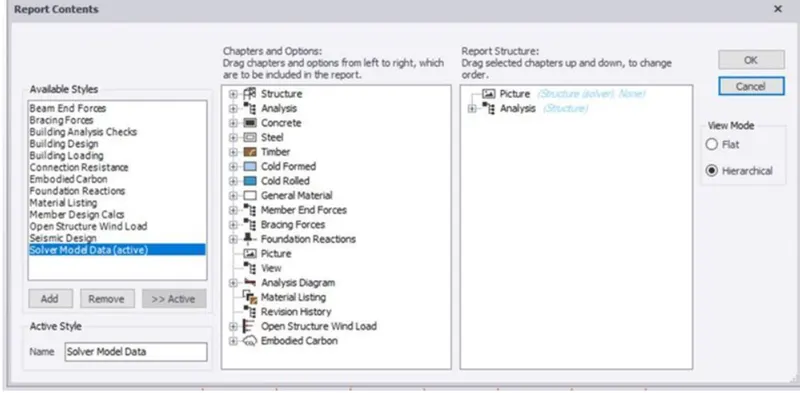

- 35. Now we ccan model the structure by pressing on model report to obtain reports.
