Project 2 Adaptive Cruise Control

Main Project – Adaptive Cruise Control (ACC)

Aim:- 1)Developing Adaptive Cruise Control feature as per the Requirement Document using MATLAB Simulink.

2)Follow all the MBD related processes: Requirement Tagging & Traceability, SLDD creation, Configuration Parameter changes, Model Advisor check & Code Generation.

Adaptive Cruise control:-

The main function of adaptive Cruise control is to easeoff some load from driver by controlling some features of car .It control the speed of the car according to the surrounding traffic. The main feature of the this feature is to maintain the safe distance from the further moving and to control and change in speed according to surrounding traffic.

The camera fit on the front side of the car and the various sensors keeps on monitoring the speed of the further vehicle and if it speed is more or equal to users speed then users vehicle run with the normal speed as if it is running , but if the further vehicle's speed is reduced the it either deaccelerate the vehile's speed or applies brake automatically and makes users speed comparative less than the further vehile . Even if it is required this feature will make the user's car on the standstill condication.

Mainly Adaptive Cruise Control feature is used when the speed of vehile is more then 30kmph or equal to that or when vehicle is running on Highway . Mostly in such case where less rush of vehicle is their . The process of taking the access of vehile by adaptive cruise control and leaving it that is giving access of car back to driver keeps on the whole journey as per the speed of vehicle .

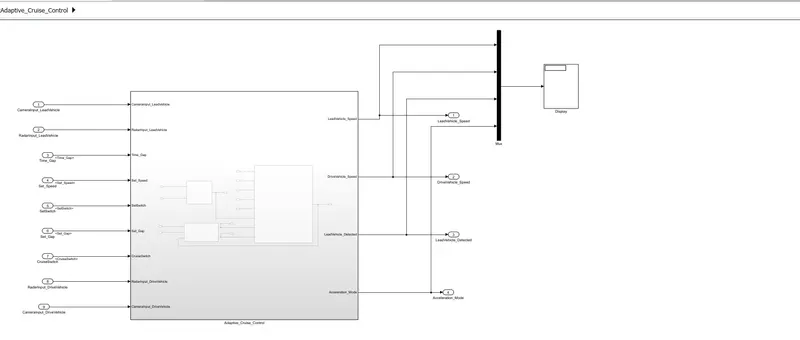

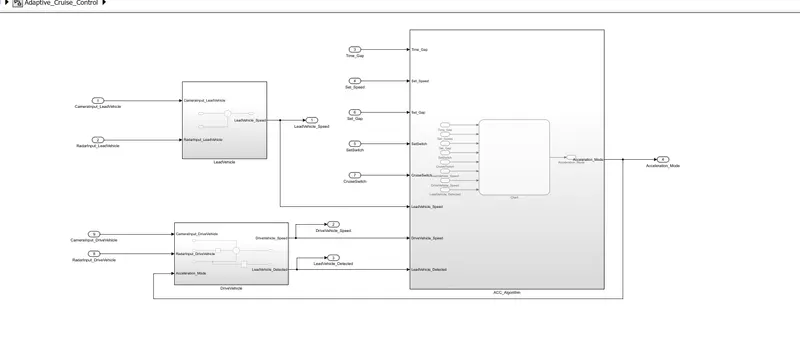

Main model:-

Requirement 1:- Lead-Vehicle

• Lead Vehicle is a vehicle which is driving in the road ahead of our drive vehicle. Two input signals (Signal Name: CameraInput_LeadVehicle & RadarInput_LeadVehicle).
• Ideally sensor fusion techniques will be deployed to process & analyze data from camera & radar. For complexity reasons, let’s not adapt to any such algorithms.

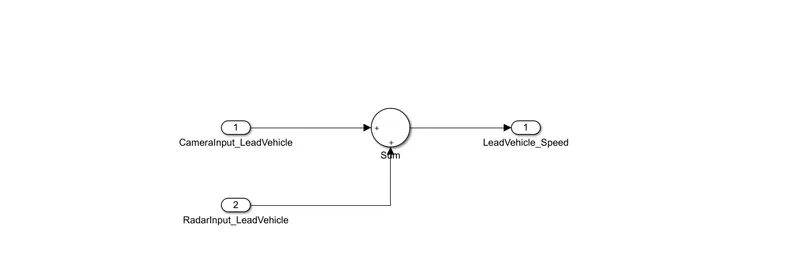

• We can simply add both the radar & camera inputs & the corresponding output is read as Speed profile output (Signal Name: LeadVehicle_Speed).
• Speed data of the lead vehicle is critical in implementing the Adaptive Cruise Control algorithm.

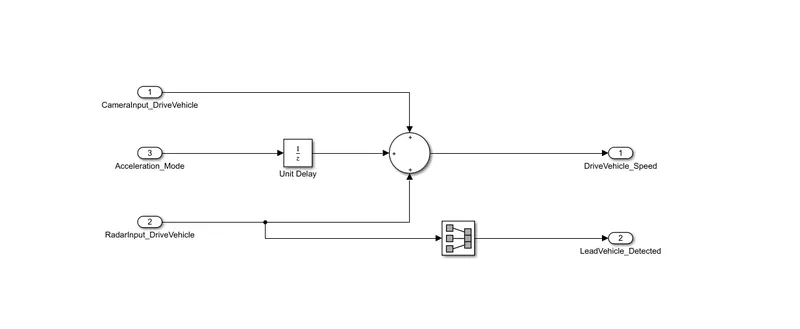

Requirement:-2 Drive Vehicle

• Drive Vehicle is the vehicle driven by the user & this is the vehicle which has ACC algorithm in it.
• Like the Lead Vehicle, Drive Vehicle algorithm also has 2 input signals (Signal Name: CameraInput_DriveVehicle, RadarInput_DriveVehicle) & one signal coming as an Input to this subsystem (Signal Name: Acceleration_Mode) – three inputs into this requirement in total.
• Like the above requirement, sensor fusion techniques will also be deployed here, for complexity reasons we are ignoring them.
• Two output signals come from this subsystem (Signal Name: DriveVehicle_Speed & LeadVehicle_Detected).
• Signal DriveVehicle_Speed is summation of three input signals mentioned above & LeadVehicle_Detected is renamed from Input Signal RadarInput_DriveVehicle by mere use of Signal Conversion block.

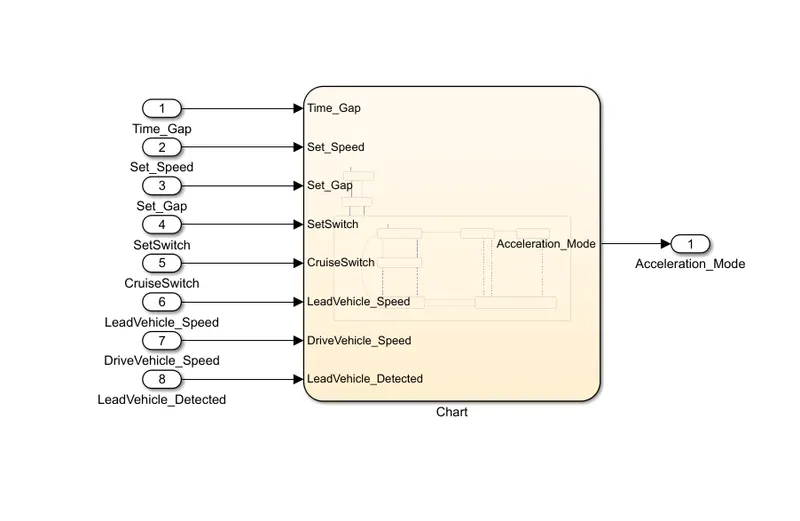

Requirement 3:- Adaptive Cruise control

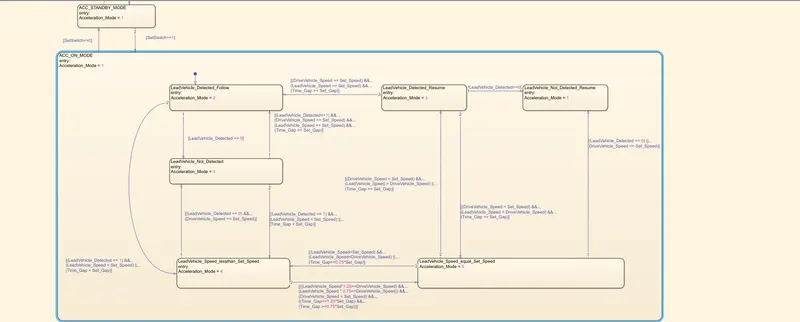

• Adaptive Cruise Control feature has 3 major modes of operation: OFF Mode, STANDBY Mode & ON Mode. This particular requirement has to be implemented as state machine logic in Simulink.
• The input signals to this state machine system are (Signal Name: Time_Gap, Set_Speed, Set_Gap, CruiseSwitch, SetSwitch).
• Also, the output signals (Signal Name: DriveVehicle_Speed & LeadVehicle_Detected) from requirement-2 is fed back as an input signal into this state machine block.
• Additionally, output signal (Signal Name: LeadVehicle_Speed) from requirement-1 is given as an input signal to this state machine block as well.
• Output from this subsystem is a signal (Signal Name: Acceleration_Mode) which governs the vehicular speed of the drive vehicle which automatically adjusts its speed & velocity to match the lead vehicle.

Various Test cases or Requirement

Requirement 3a – ACC OFF MODE state logic:

• This is the default state inside state machine logic. Output signal Acceleration_Mode is at value 0 in this state.
• This state is governed by input signal CruiseSwitch.
• If CruiseSwitch is equal to 1, state ACC STANDBY mode will get activated. If CruiseSwitch is equal to 0, state ACC OFF mode will get activated, from either ACC ON mode or ACC STANDBY mode

Requirement 3b – ACC STANDBY MODE state logic:

• This is the second activated state inside state machine logic. Output signal Acceleration_Mode is at value 1 in this state.
• This state is governed by both input signals CruiseSwitch & SetSwitch.
• If CruiseSwitch is equal to 1, state ACC STANDBY mode will get activated. If CruiseSwitch is equal to 0, state ACC OFF mode will get activated, from either ACC ON mode or ACC STANDBY mode
• If SetSwitch is equal to 1, state ACC ON mode will get activated. If SetSwitch is equal to 0, state ACC STANDBY mode will get activated.

Requirement 3c – ACC ON MODE state logic:

This state will be activated when input signal SetSwitch is equal to 1. There are 6 sub states to this state logic: They are:

• LeadVehicle_Detected_Follow (Default)
• LeadVehicle_Not_Detected
• LeadVehicle_Detected_Resume
• LeadVehicle_Not_Detected_Resume
• LeadVehicle_Speed_lessthan_Set_Speed

Requirement 3a – ACC OFF MODE state logic:

• This is the default state inside state machine logic. Output signal Acceleration_Mode is at value 0 in this state.
• This state is governed by input signal CruiseSwitch.
• If CruiseSwitch is equal to 1, state ACC STANDBY mode will get activated. If CruiseSwitch is equal to 0, state ACC OFF mode will get activated, from either ACC ON mode or ACC STANDBY mode

Requirement 3b – ACC STANDBY MODE state logic:

• This is the second activated state inside state machine logic. Output signal Acceleration_Mode is at value 1 in this state.
• This state is governed by both input signals CruiseSwitch & SetSwitch.
• If CruiseSwitch is equal to 1, state ACC STANDBY mode will get activated. If CruiseSwitch is equal to 0, state ACC OFF mode will get activated, from either ACC ON mode or ACC STANDBY mode
• If SetSwitch is equal to 1, state ACC ON mode will get activated. If SetSwitch is equal to 0, state ACC STANDBY mode will get activated.

Requirement 3c – ACC ON MODE state logic:

This state will be activated when input signal SetSwitch is equal to 1. There are 6 sub states to this state logic: They are:

• LeadVehicle_Detected_Follow (Default)
• LeadVehicle_Not_Detected
• LeadVehicle_Detected_Resume
• LeadVehicle_Not_Detected_Resume
• LeadVehicle_Speed_lessthan_Set_Speed

Requirement 3c (i) – LeadVehicle_Detected_Follow (ACC ON MODE):

• This is the default sub state inside ACC ON MODE state. Output signal Acceleration_Mode is equal to 2.
• Condition to transit from LeadVehicle_Detected_Follow to LeadVehicle_Not_Detected; Input signal condition LeadVehicle_Detected == 0.
• Condition to transit from LeadVehicle_Detected_Follow to LeadVehicle_Speed_lessthan_Set_Speed; Input Signals condition (LeadVehicle_Detected == 1) && (LeadVehicle_Speed < Set_Speed) || (Time_Gap < Set_Gap).

Requirement 3c (ii) – LeadVehicle_Not_Detected (ACC ON MODE):

• Output signal Acceleration_Mode is equal to 1.
• Condition to transit from LeadVehicle_Not_Detected to LeadVehicle_Detected_Follow; Input signals condition [(LeadVehicle_Detected==1) && (DriveVehicle_Speed == Set_Speed) && (LeadVehicle_Speed >= Set_Speed) && (Time_Gap >= Set_Gap)]
• Condition to transit from LeadVehicle_Not_Detected to LeadVehicle_Speed_lessthan_Set_Speed; Input signals condition [(LeadVehicle_Detected == 1) && (LeadVehicle_Speed < Set_Speed) || (Time_Gap < Set_Gap)]

Requirement 3c (iii) – LeadVehicle_Detected_Resume (ACC ON MODE):

• Output signal Acceleration_Mode is equal to 3.
• Condition to transit from LeadVehicle_Detected_Resume to LeadVehicle_Detected_Follow; Input signals condition [(DriveVehicle_Speed == Set_Speed) && (LeadVehicle_Speed >= Set_Speed) && (Time_Gap >= Set_Gap)]
• Condition to transit from LeadVehicle_Detected_Resume to LeadVehicle_Not_Detected_Resume; Input signal condition LeadVehicle_Detected==0.
• Condition to transit from LeadVehicle_Detected_Resume to LeadVehicle_Speed_equal_Set_Speed; Input Signal condition [(DriveVehicle_Speed < Set_Speed) && (LeadVehicle_Speed > DriveVehicle_Speed) && (Time_Gap >= Set_Gap)]

Requirement 3c (iv) - LeadVehicle_Not_Detected_Resume (ACC ON MODE):

• Output signal Acceleration_Mode is equal to 1.

Requirement 3c (v) - LeadVehicle_Speed_lessthan_Set_Speed (ACC ON MODE):

• Output signal Acceleration_Mode is equal to 4.
• Condition to transit from LeadVehicle_Speed_lessthan_Set_Speed to LeadVehicle_Not_Detected; Input signal condition [(LeadVehicle_Detected == 0) && (DriveVehicle_Speed == Set_Speed)]
• Condition to transit from LeadVehicle_Speed_lessthan_Set_Speed to LeadVehicle_Speed_equal_Set_Speed; Input signals condition [((LeadVehicle_Speed*1.25>=DriveVehicle_Speed) && (LeadVehicle_Speed * 0.75<=DriveVehicle_Speed)) && (DriveVehicle_Speed < Set_Speed) && ((Time_Gap<=1.25*Set_Gap) && (Time_Gap >=0.75*Set_Gap))]

Requirement 3c (vi) - LeadVehicle_Speed_equal_Set_Speed (ACC ON MODE):

• Output signal Acceleration_Mode is equal to 5.
• Condition to transit from LeadVehicle_Speed_equal_Set_Speed to LeadVehicle_Not_Detected_Resume; Input signal conditions is [(LeadVehicle_Detected == 0) || (DriveVehicle_Speed <= Set_Speed)]
• Condition to transit from LeadVehicle_Speed_equal_Set_Speed to LeadVehicle_Detected_Resume; Input signal conditions [(DriveVehicle_Speed < Set_Speed) && (LeadVehicle_Speed > DriveVehicle_Speed) || (Time_Gap >= Set_Gap)]
• Condition to transit from LeadVehicle_Speed_equal_Set_Speed to LeadVehicle_Speed_lessthan_Set_Speed; Input signals conditions [(LeadVehicle_Speed

From the given conditions of ACC System, the vehicle keeps on accelerating with speed of Set speed 40kmph when the acceleration mode is 0,1,3,5. That is If the leading vehicle detected resume, lead vehicle not detected resume and lead vehicle speed equal to drive vehicle speed.
The vehicle keep on decrease a speed to 20kmph when the acceleration mode number is 2 and 4. That is lead vehicle detected follows and lead vehicle speed less than the drive Vehicle speed. The output in this requirement (ACC algorithm) is Acceleration mode. This is fed back as input to drive vehicle speed control algorithm. That is requirement 2.

Along with it given data has been load into SLDD file .

Signals & Calibration Data List:

Signal / Calibration Name	Signal Type	Data Type	Dimension	Min	Max	Initial Value	Units
CameraInput_LeadVehicle	Input	Uint8	1	0	255	-	-
RadarInput_LeadVehicle	Input	Uint8	1	0	255	-	-
CameraInput_DriveVehicle	Input	Uint8	1	0	255	-	-
RadarInput_DriveVehicle	Input	Uint8	1	0	255	-	-
Time_Gap	Input	Uint8	1	0	255	-	-
Set_Speed	Input	Uint8	1	0	255	-	-
Set_Gap	Input	Uint8	1	0	255	-	-
CruiseSwitch	Input	Boolean	1	0	1	-	-
SetSwitch	Input	Boolean	1	0	1	-	-
Acceleration_Mode	Output	Uint8	1	0	255	-	-
LeadVehicle_Speed	Output	Uint8	1	0	255	-	-
DriveVehicle_Speed	Output	Uint8	1	0	255	-	-
LeadVehicle_Detected	Output	Uint8	1	0	255	-	-

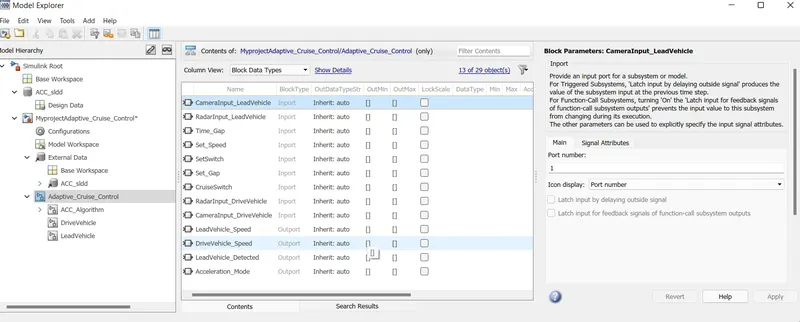

Creating the SLDD file of the given data and load into it.

Just Go into model setting , click on option of model properties , then click on external data and load the file in which SLDD data has been feeded, and then click on apply ok

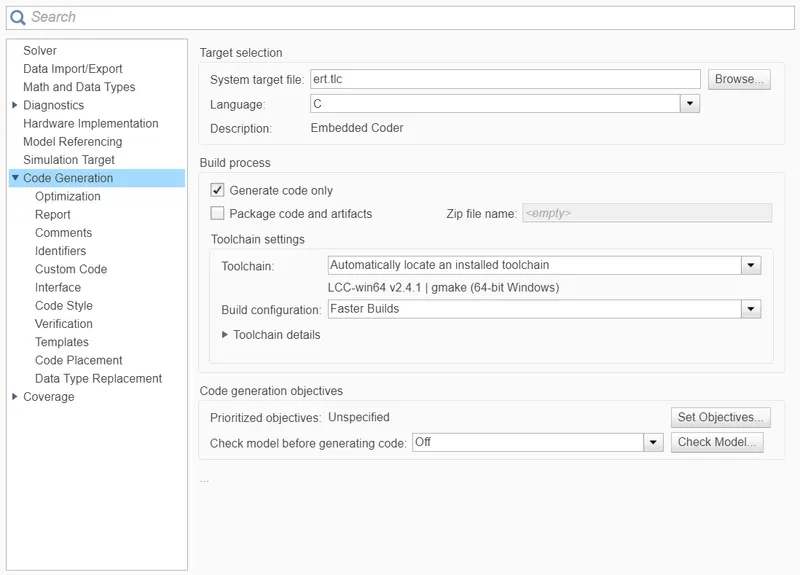

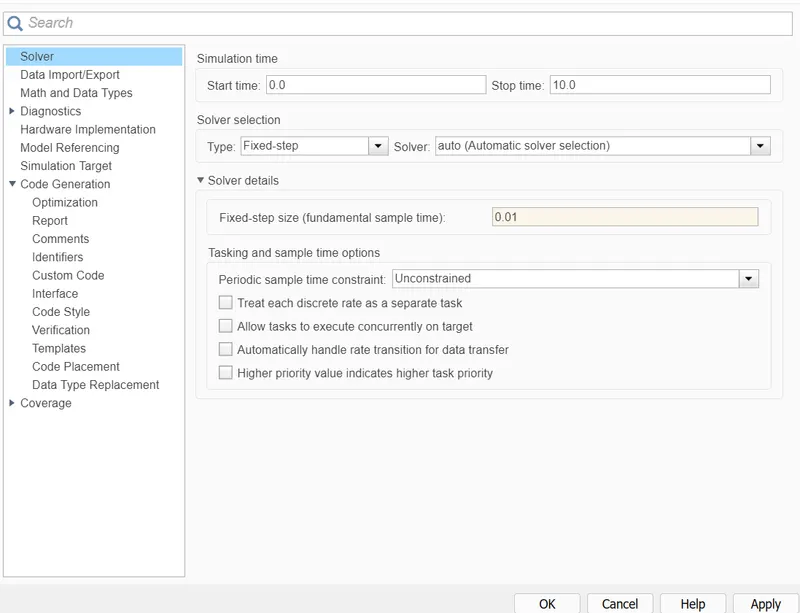

Configuration Setting for MBD compliencer:-

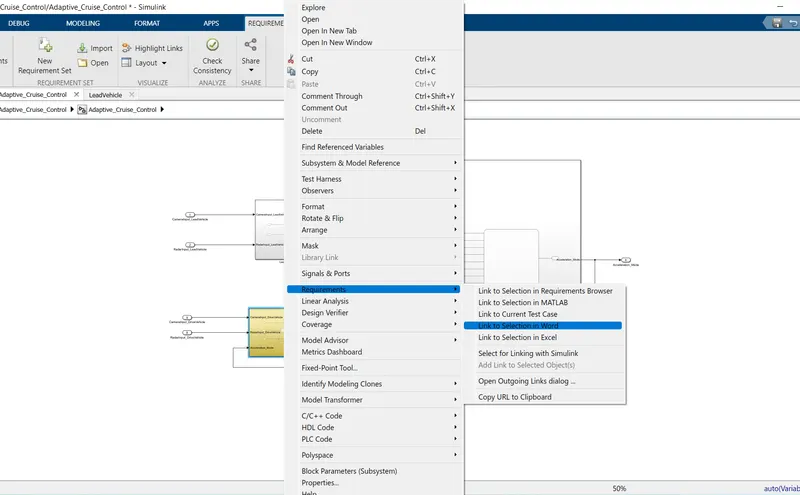

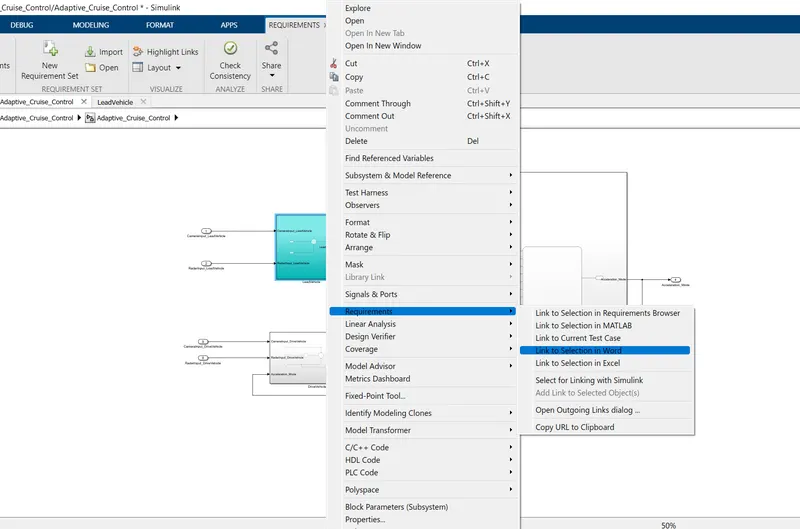

Adding a Word document into the system

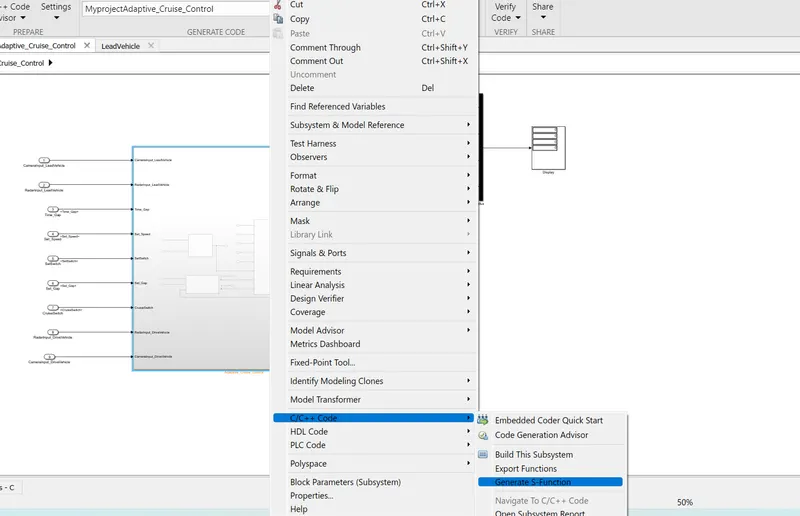

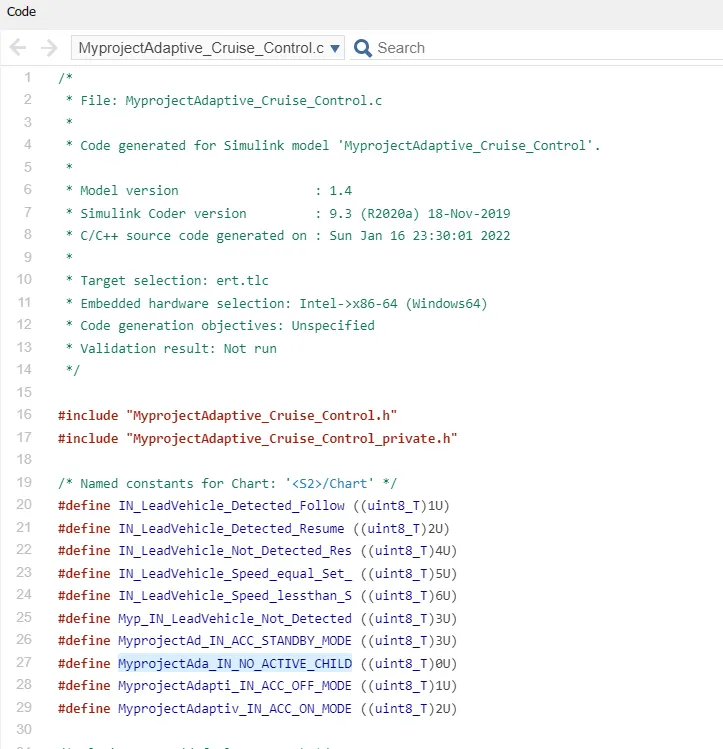

For Code Generation:-

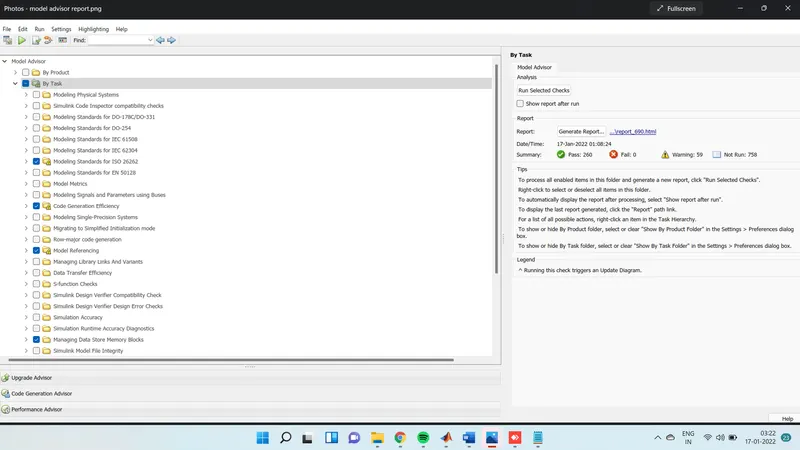

Test result By Model Advisor:-

Conclusion:-

As Adaptive Cruise Control system has been designed according to the given requirement . Where as the the code has been generated by the option embeded coder. Model has been verified by the Modal advisor and the test report has been submitted along with it.
