Project 2

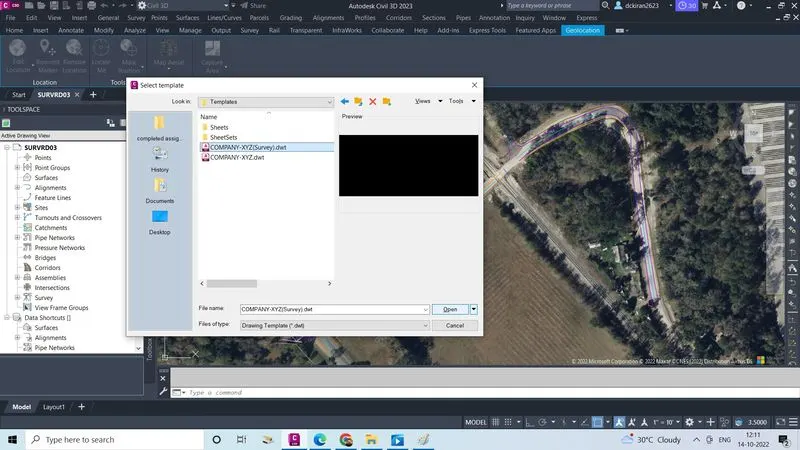

1.Clik on files and open new file and select the templete provided in the project data in survey folder

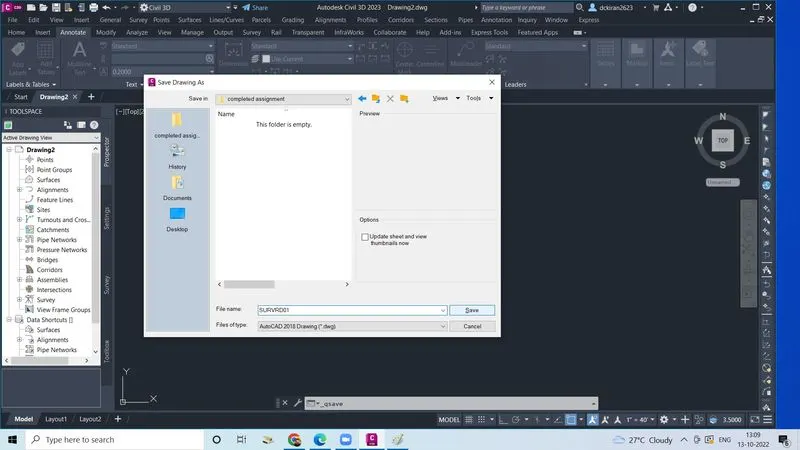

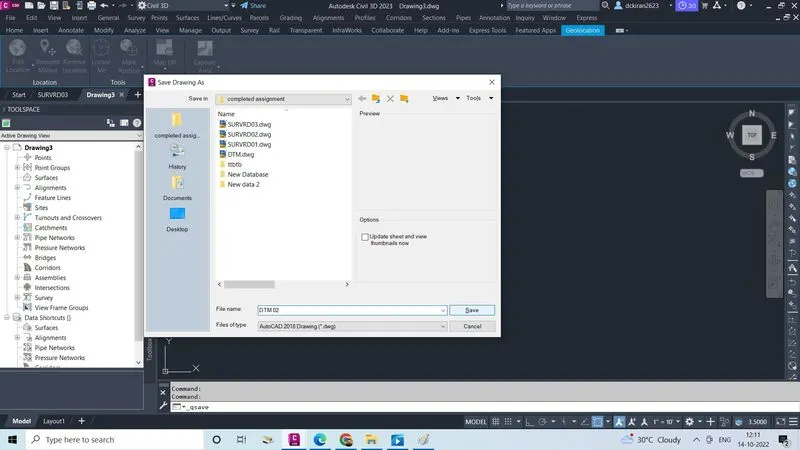

2.Click open and save the file name as (SURVRD01.dwg) and survey file is created

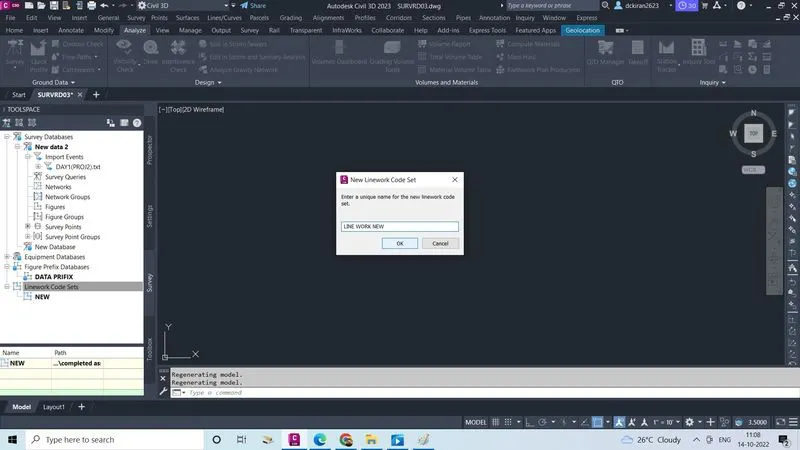

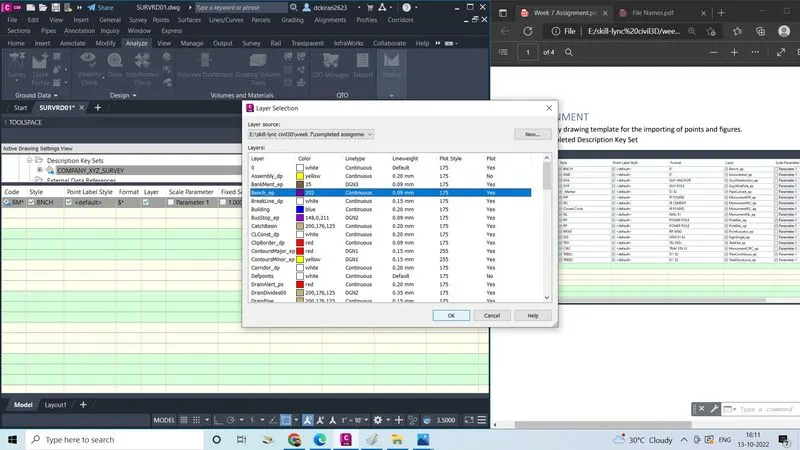

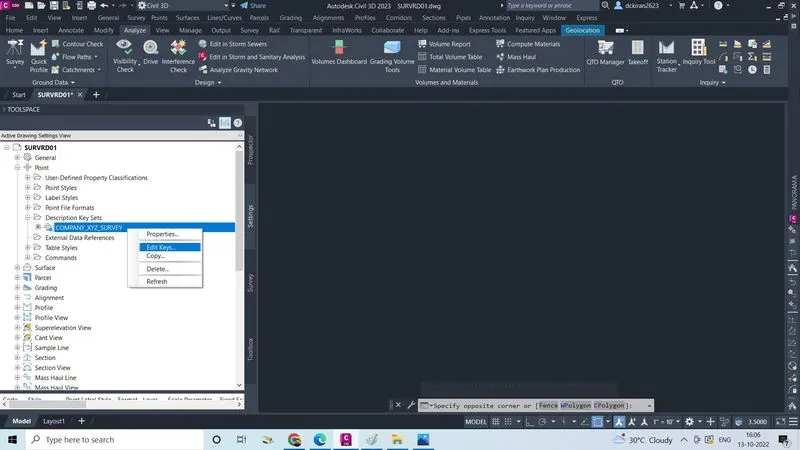

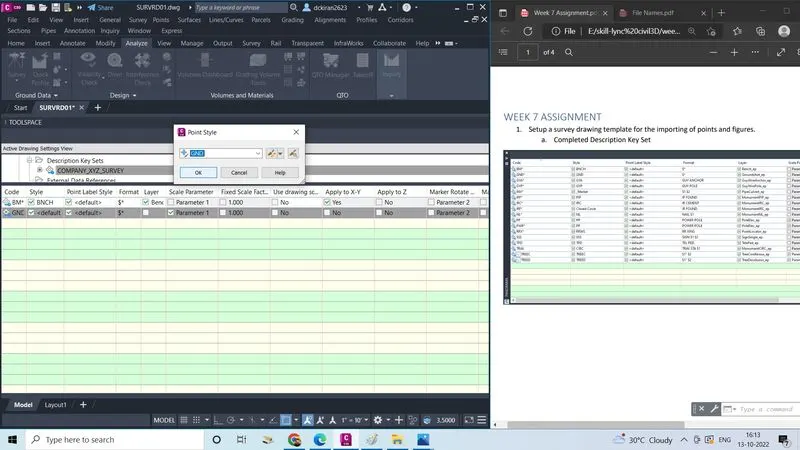

3.In the SURVRD01, go to toolspace/setting Click on the points/description key sets,select and right click on the civil3D,Click on the edit key or click on the points/description key sets, select and right click on the civil3d,click on the properties give name and description key sets and

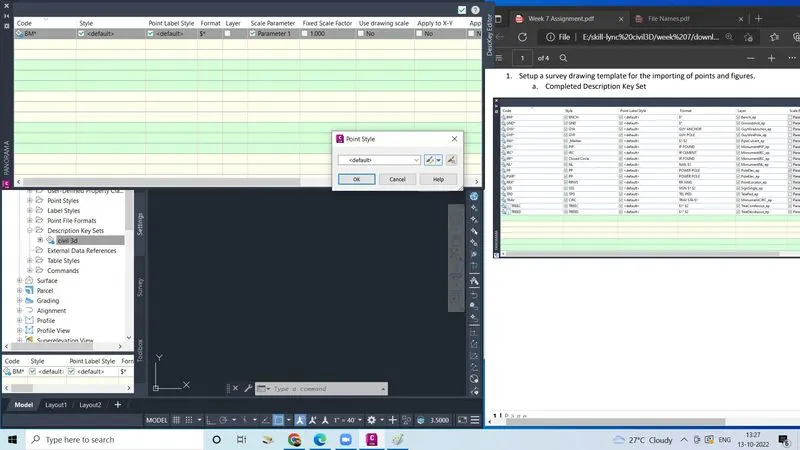

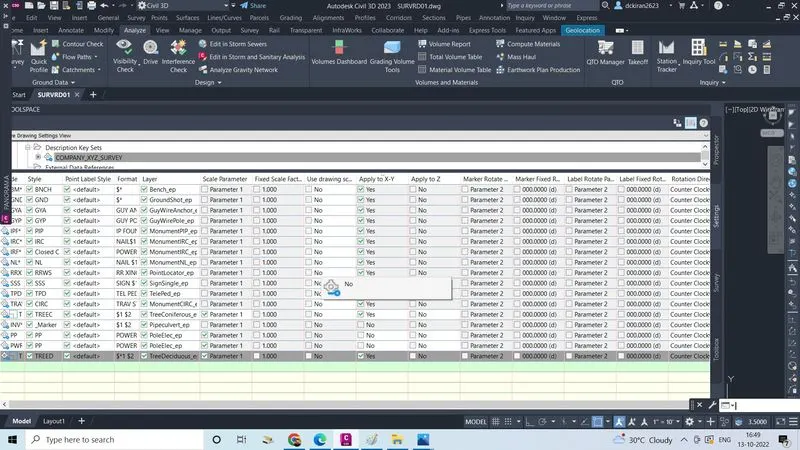

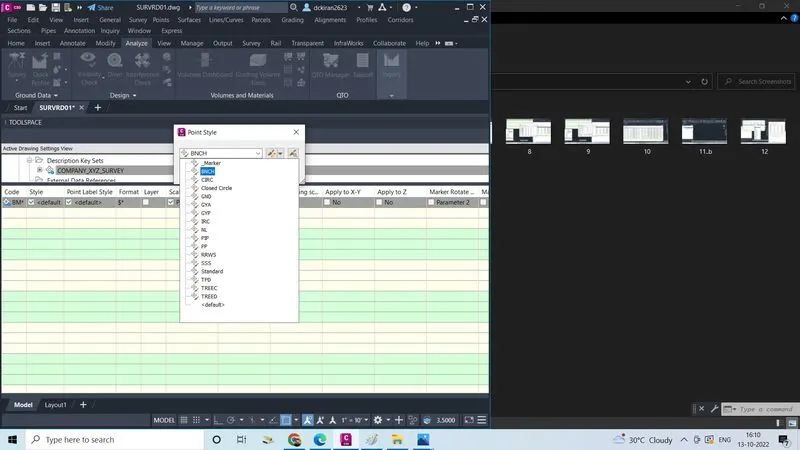

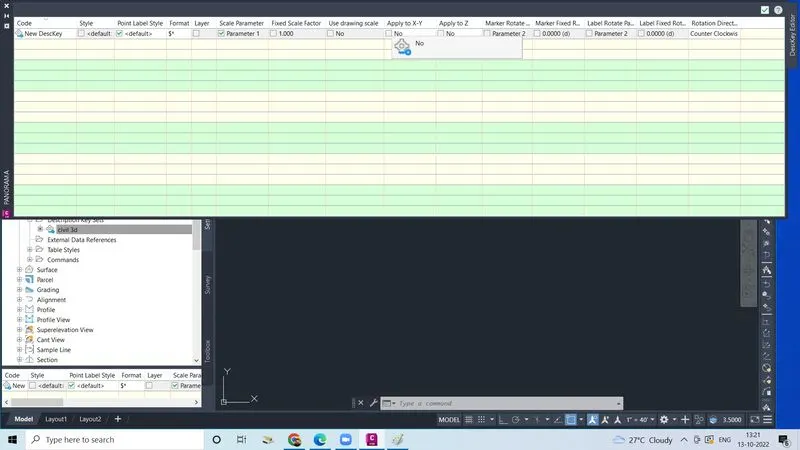

4.Select and right click on description key set click on edit key and new PANORAMA table will open in that enter or import all the code,style,points lable style,formate,layer,scaleparameter,fixed scale factor,use drawing scale,apply to X-Y,...etc as provided by company

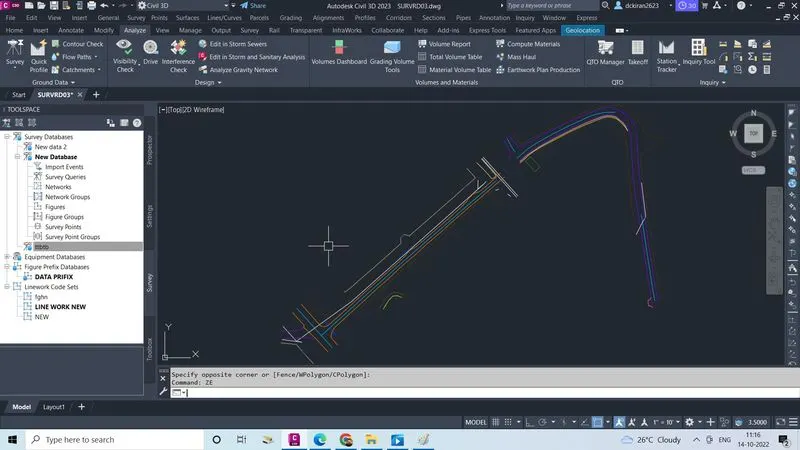

5.Go to survey database and click on survey data base in that create new survey data base and set the corrdinate system also to FL83-NF

6.The survey data base file is created in toolspace then click on import events and then import survey data tab opens then edit the coordintes and click next

7.Then specify the source data ,by clciking the point file type,Select the file loaction and point file format which is PNEZD delimiate formate and click next

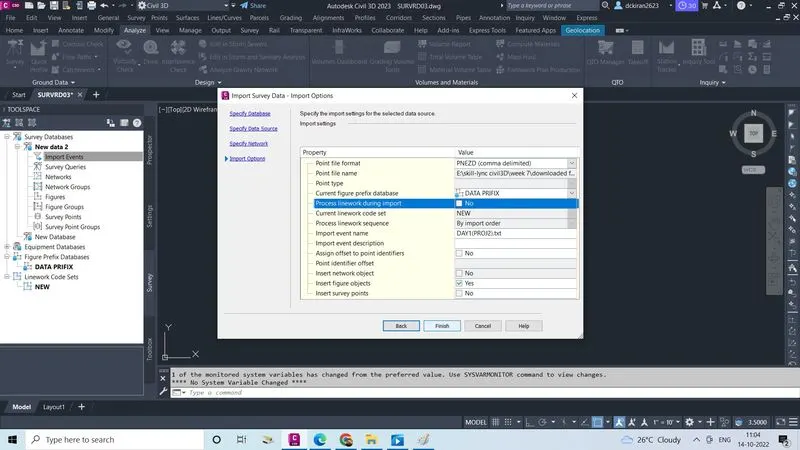

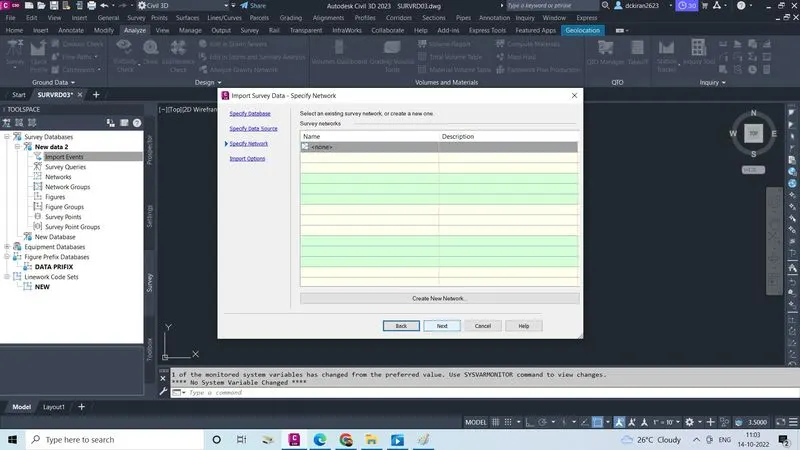

8.Then specifiy the survey network if there.Then import options tab opens and do the necessary settings like order of data import etc then click finish then the survey points apper.

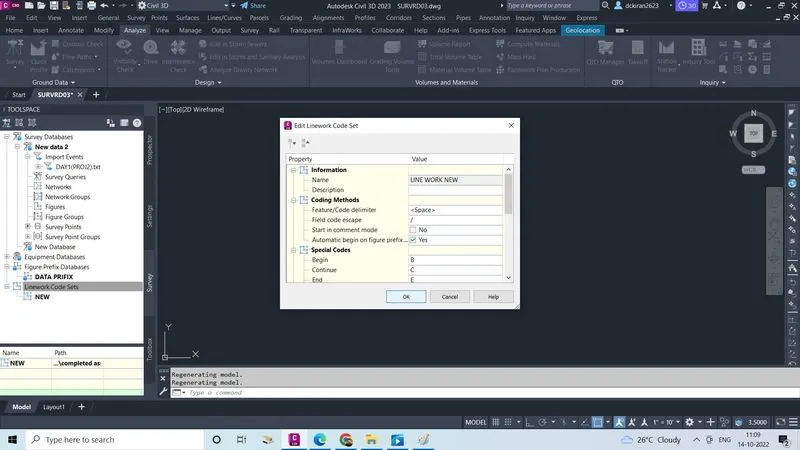

9. Go to survey and click on figure database

10.Then click on create breaklines and a tab open to create breaklines and click ok

11.Then new tab opens to add breaklines click on standard option and click ok the create surface tab opens name the surface and click ok the DTM surface is created

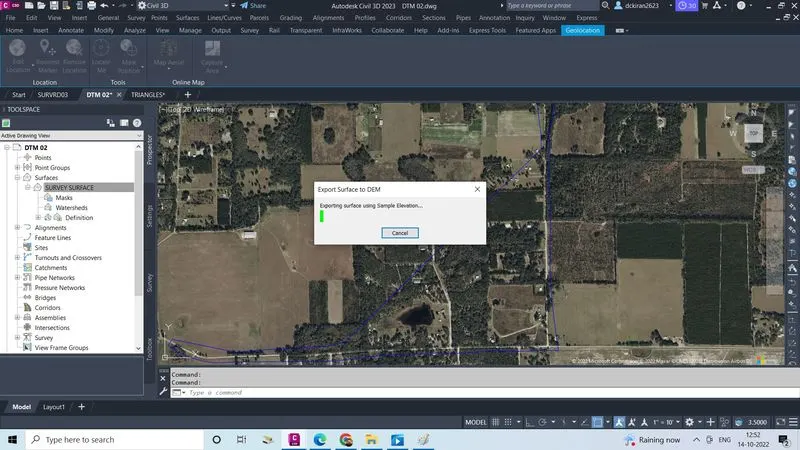

12.Then go to surface and select and open then similarly and the point group and select tin surface and triangles and the surface is attached and completly created.

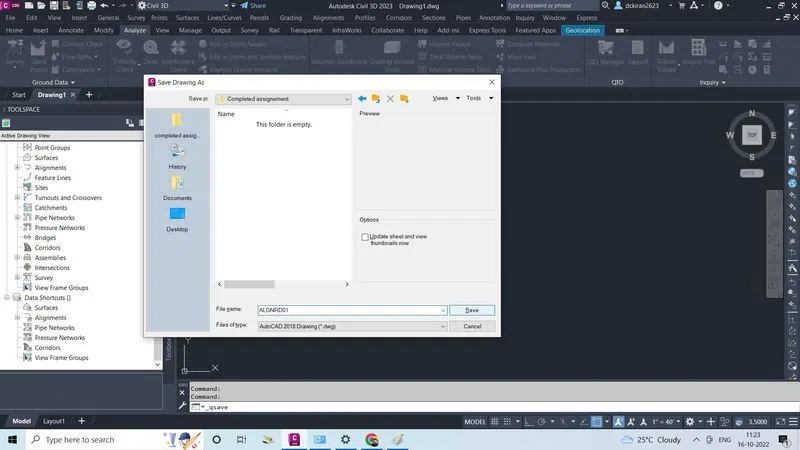

1.Open the provided file and save it as ALRGD01 file and save it

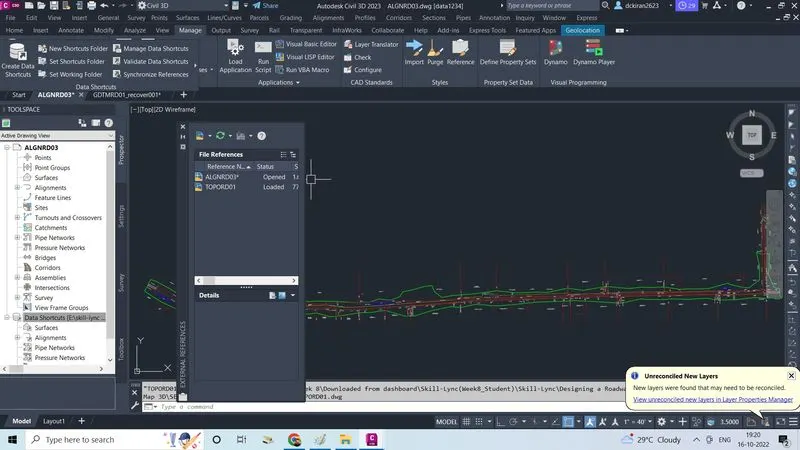

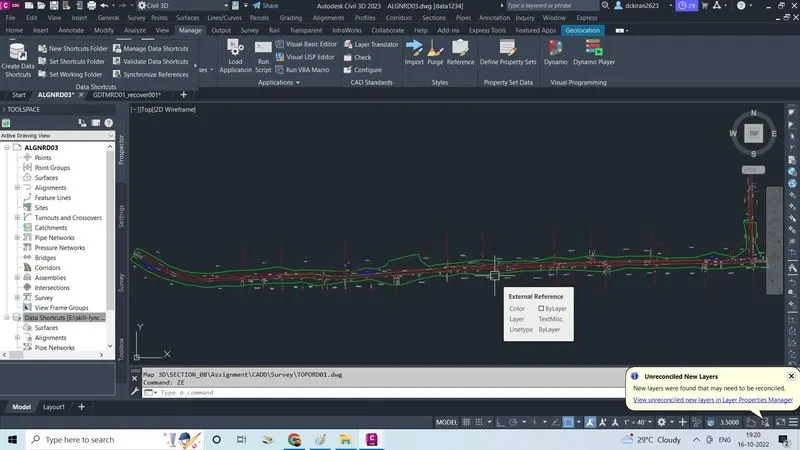

2.Now xRefrence(xref) the TOPO01 file in the ALRGD01 file and save it.

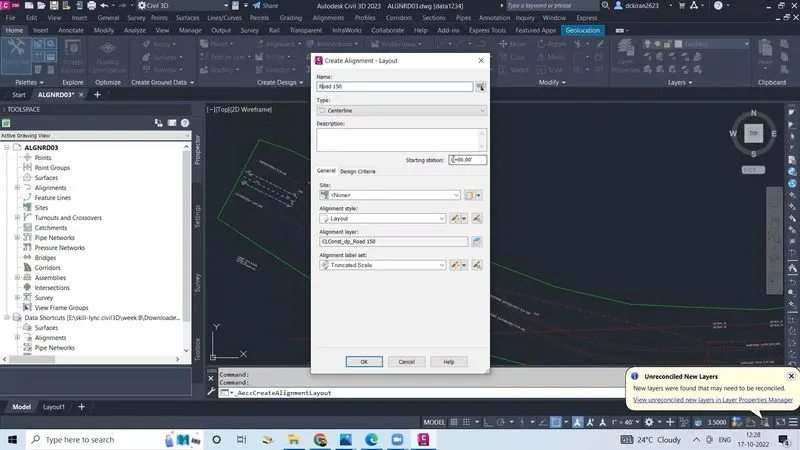

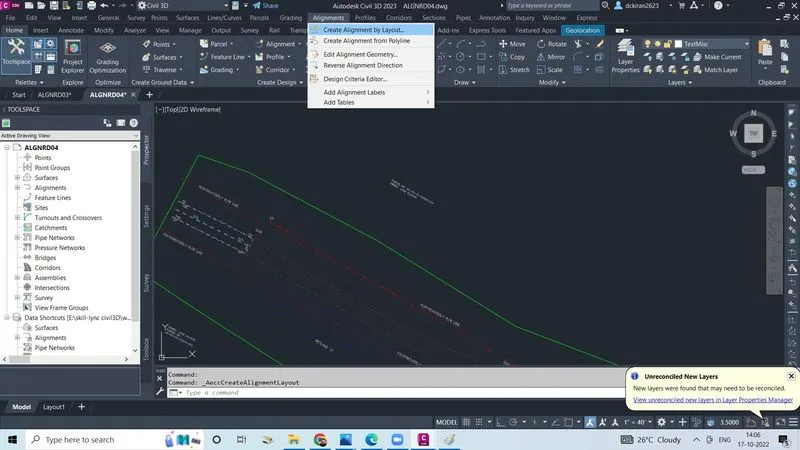

3.Go to alignment option in menubar and click on create alignment by layout.

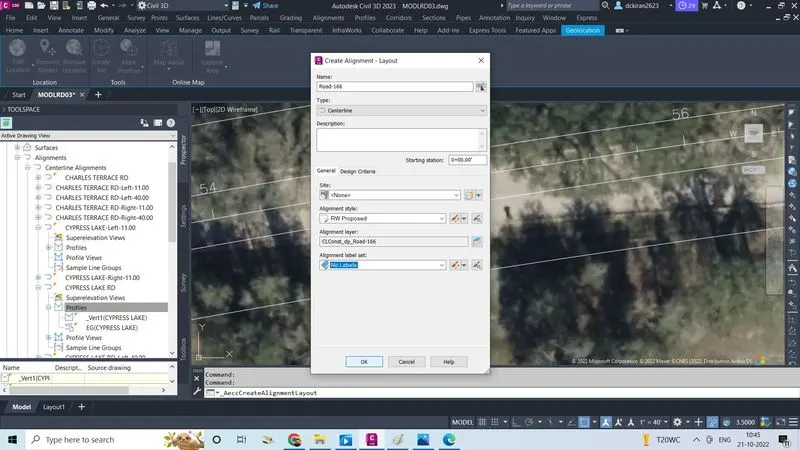

4.Then create alignment tab opens and name the alignment As ROAD 01

5.Then a panrama window open which has alignment creation tools

6.Then click on the line command and select the fixed line (two point) option and draw the lines .

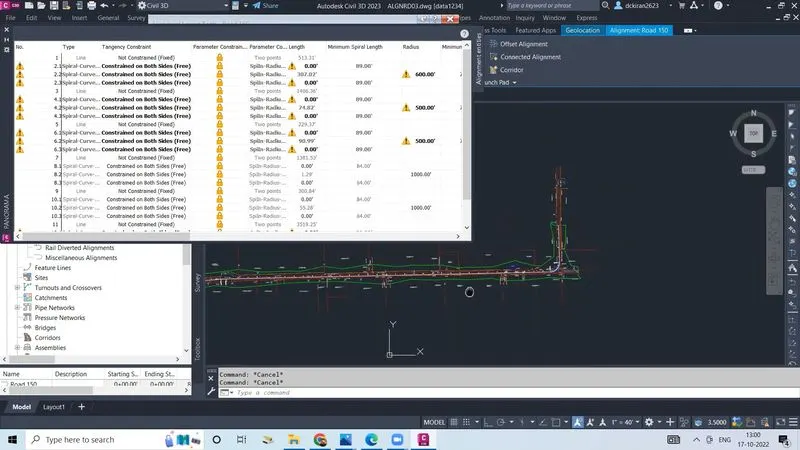

7.Then add the curve to it so click on free spiral-curve-spiral ( between to entities ) based on the curve radius select the lenght from the table 9

8.Now to the changes in curve radius and adjust if required then the alignment is ready

9.Select the alignment and go to alignment properties and assign design speed to the curves

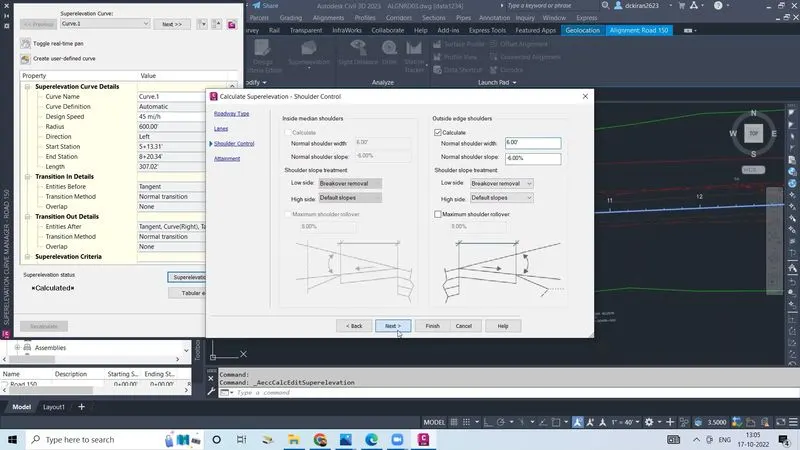

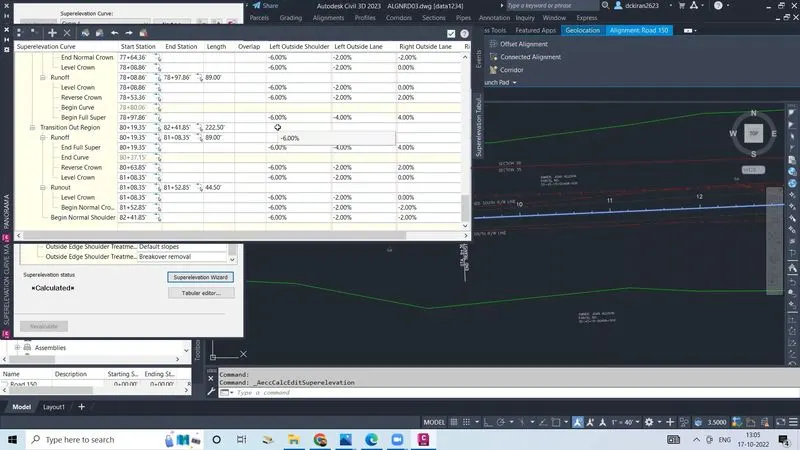

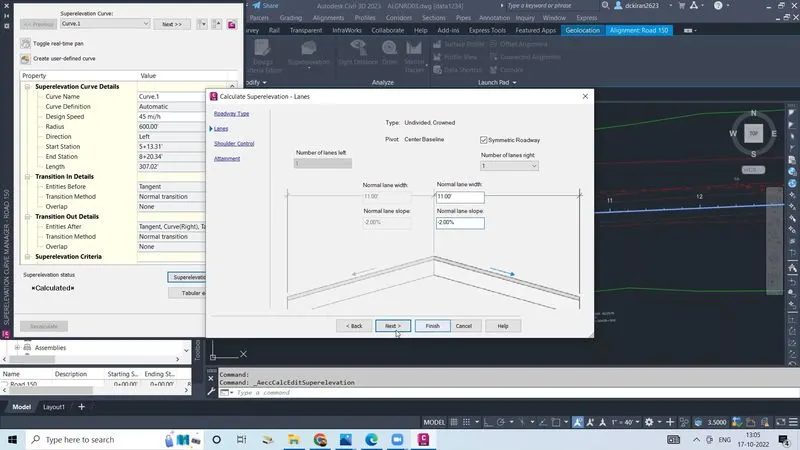

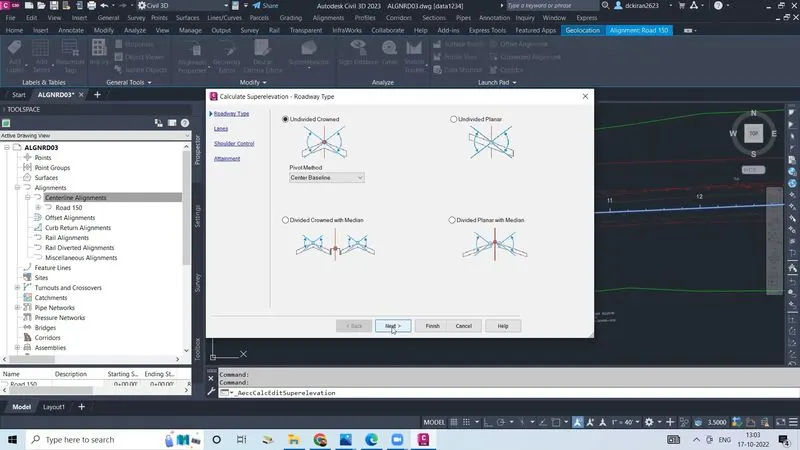

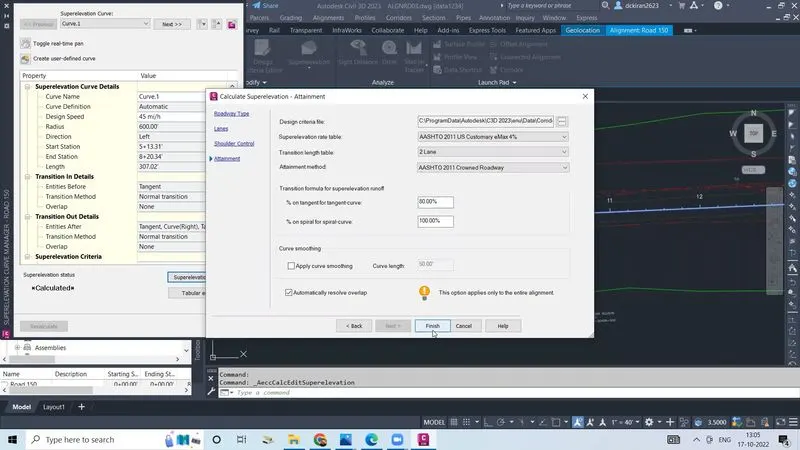

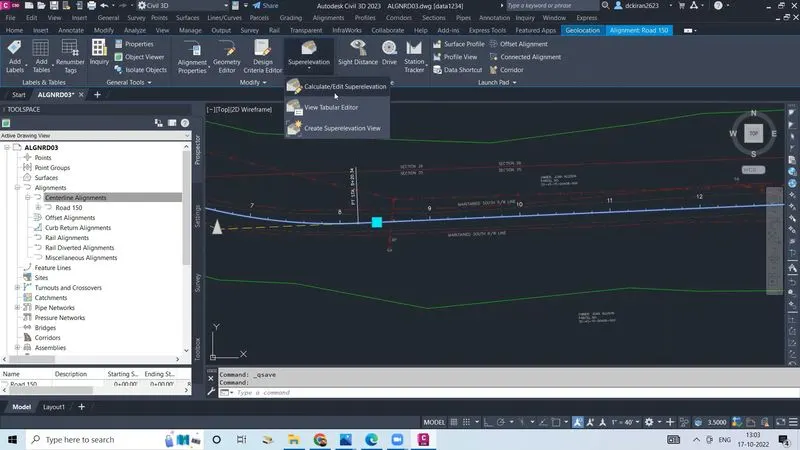

10.Then again select the alignment and click on superelevation and tab opens set the standards of IRC and check the other standards also then click assign superelevation

11.Then the assigned superelevation values tab opens , then copy the radius and superelevation values in the execel sheet provide.

12.Note: Assemblies, subassemblies and coridor are created in modling file (MODLRD) file

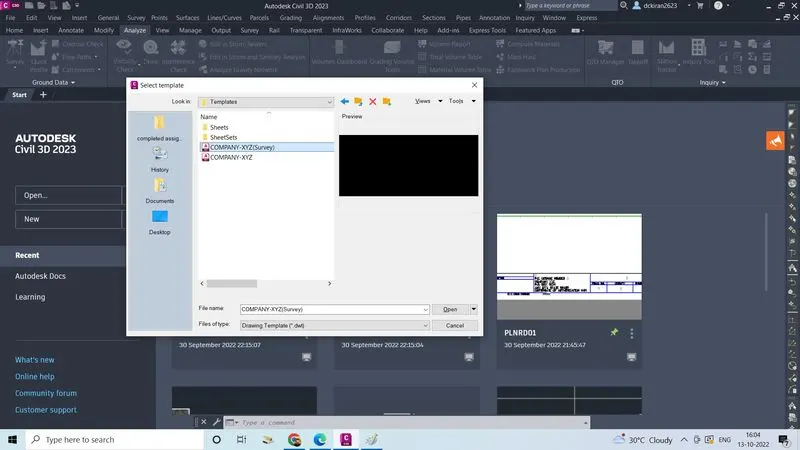

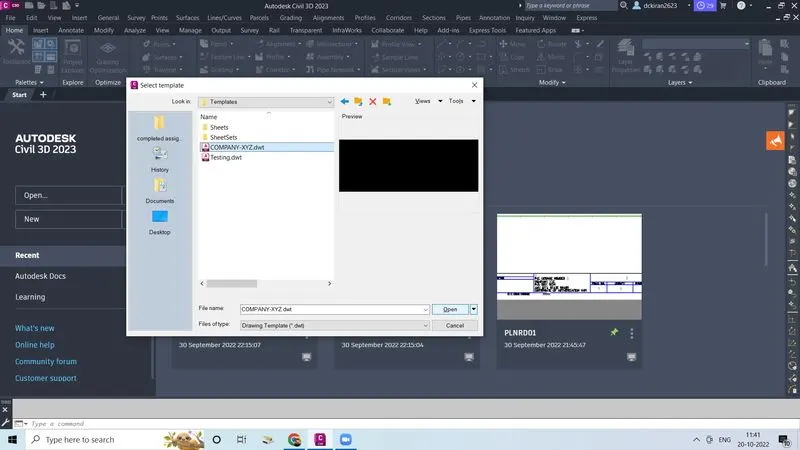

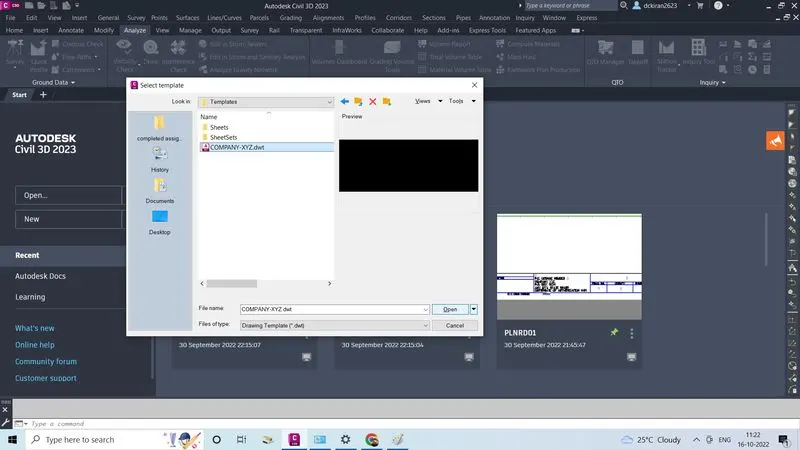

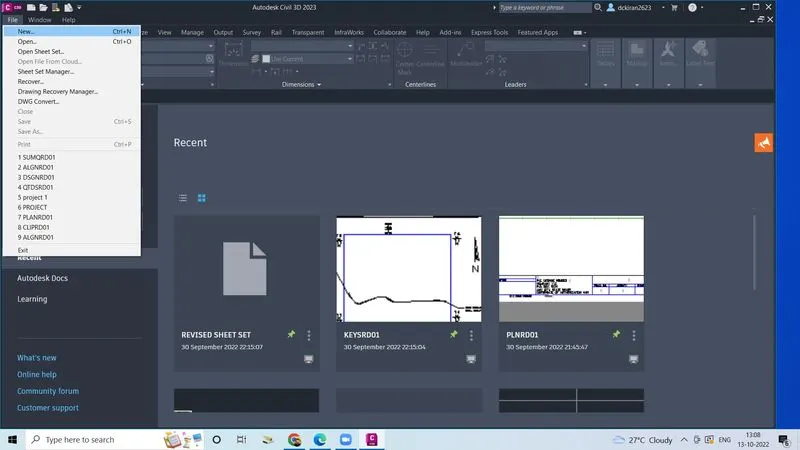

13.First we have to create a (MODLRD) file ,go to file click on new select one template file company XYZ which is provided by the company (skill-lync/week9/support/template/company-xyz)

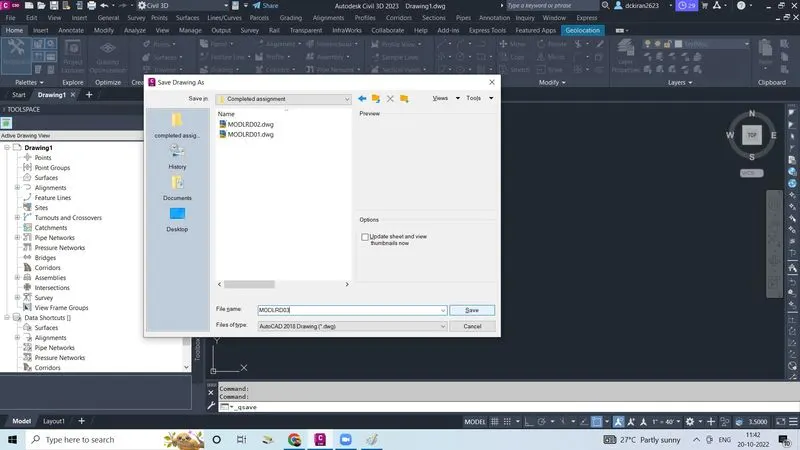

14.Click open and click on save as give a name as (GDTMRD01) and store in a partical folder (skill-lync/week9/completed assignment) and save the file

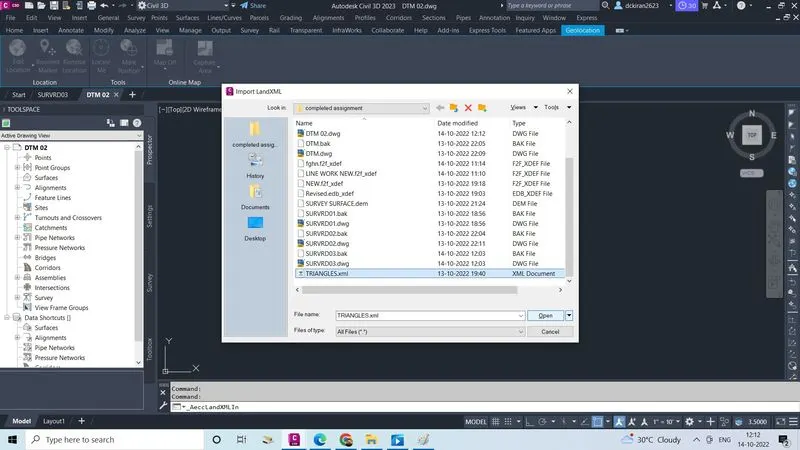

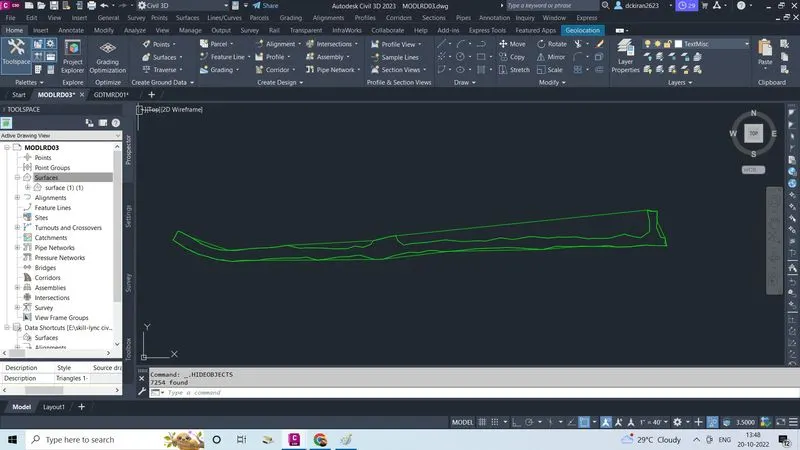

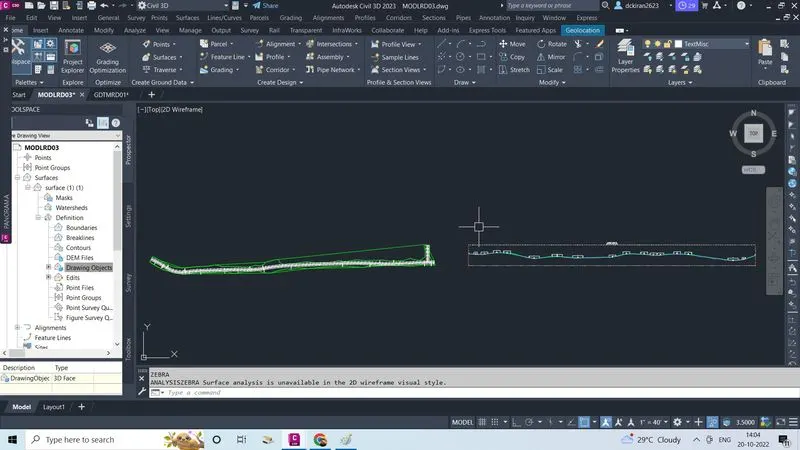

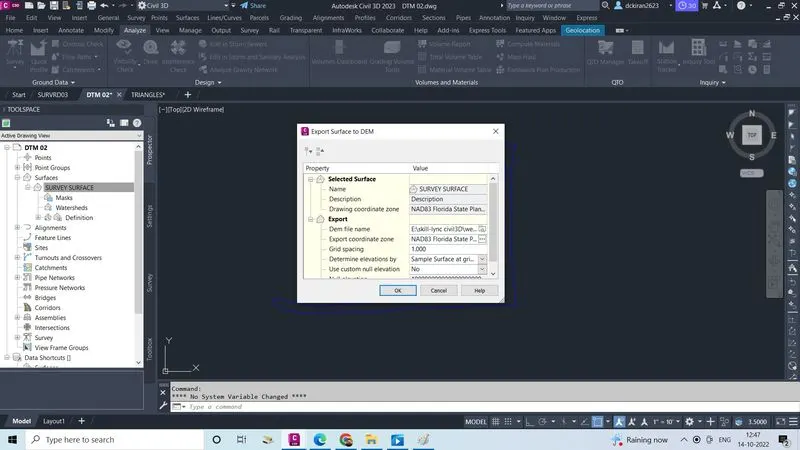

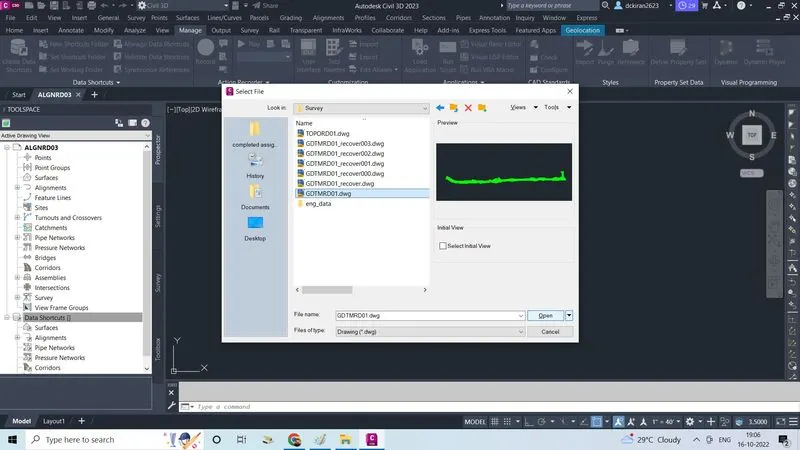

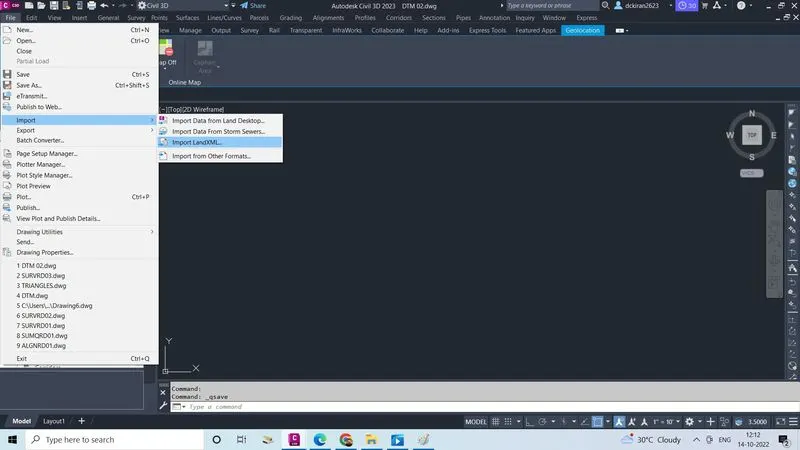

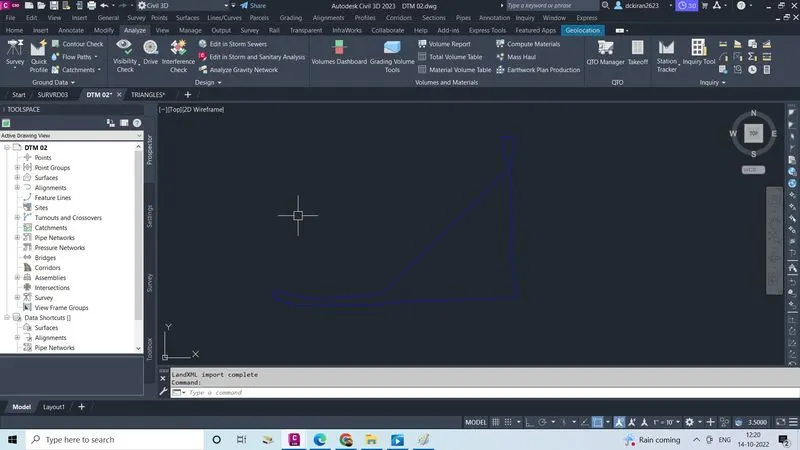

15.Instead of creating data shortcut , Open the (DTMRD) survey file in the civil3D and create a surface of (DTMRD) and export it into a land XML file ,Again the import (DTMRD) XML file into (MODLRD) file

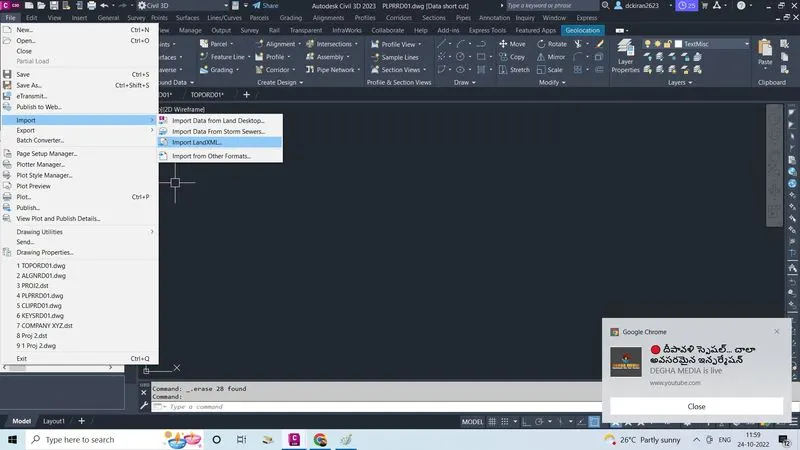

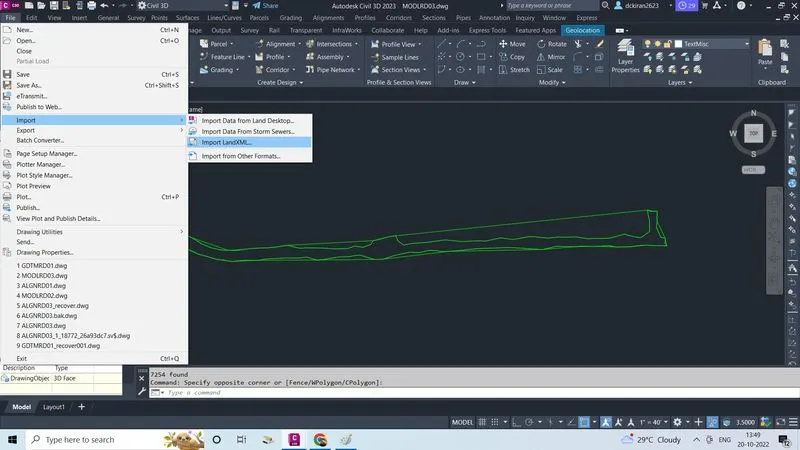

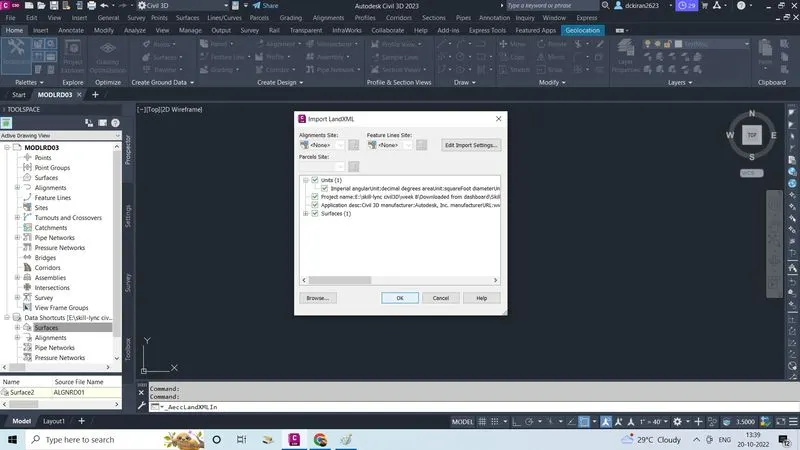

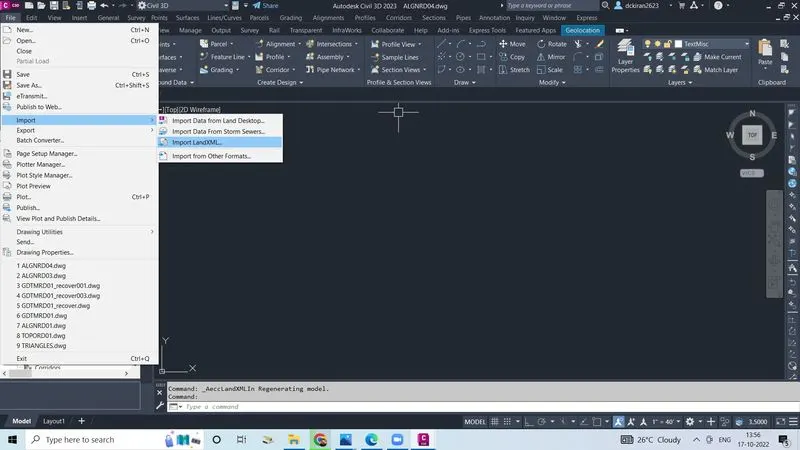

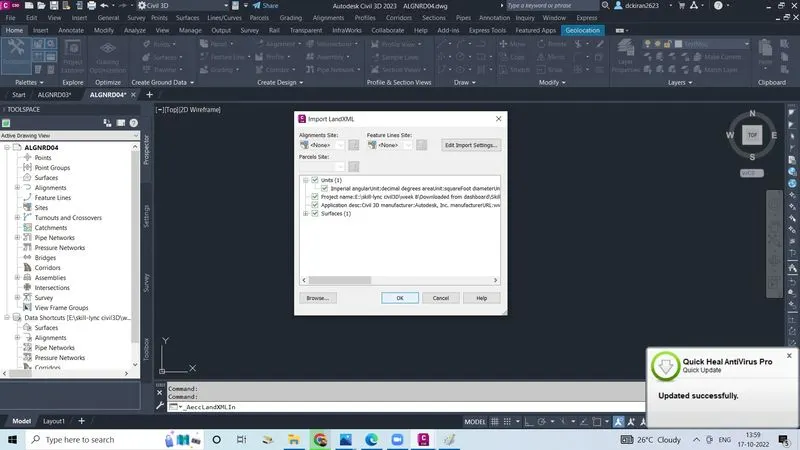

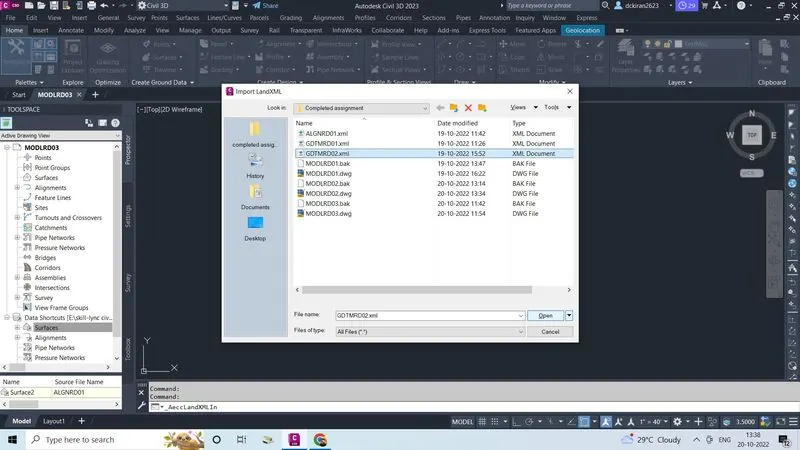

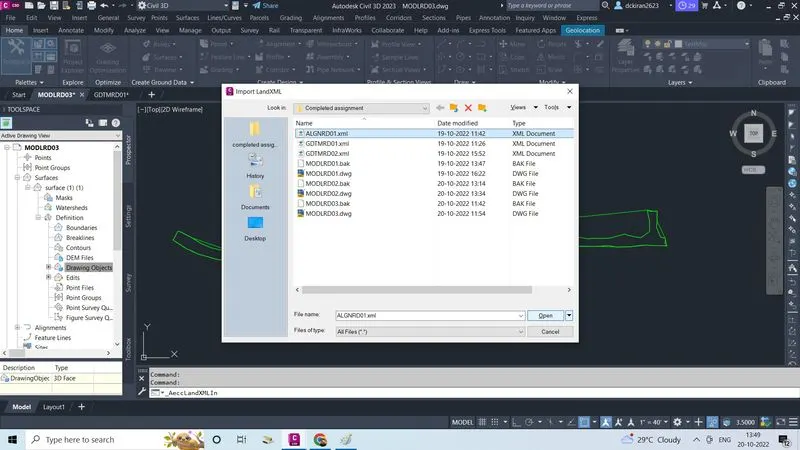

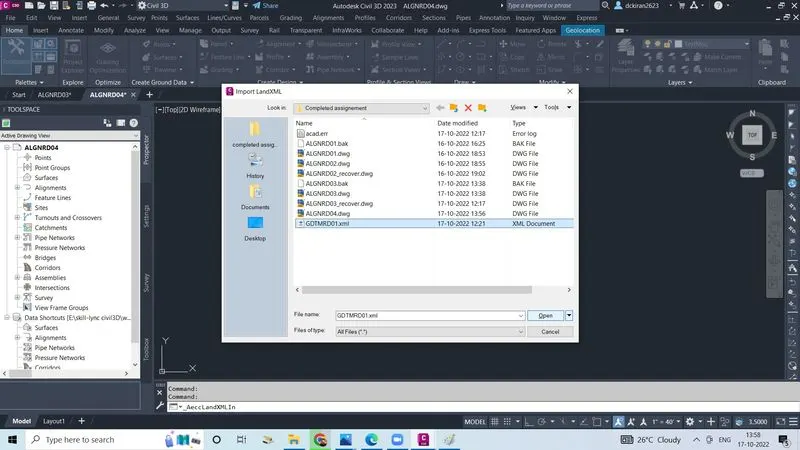

16.Also we want alignment,profile so open the (TOPORD) file in the civil3D and export into landXML file and again import the (TOPRD) file XML into a (MODLRD) file and create profile in the (MODLRD) file

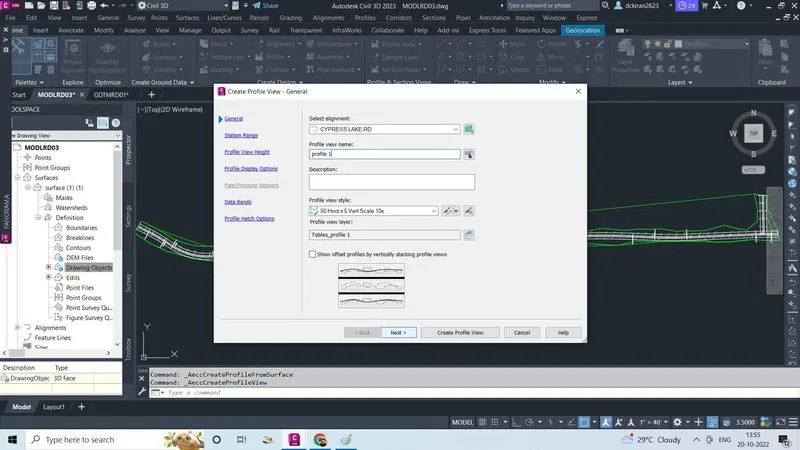

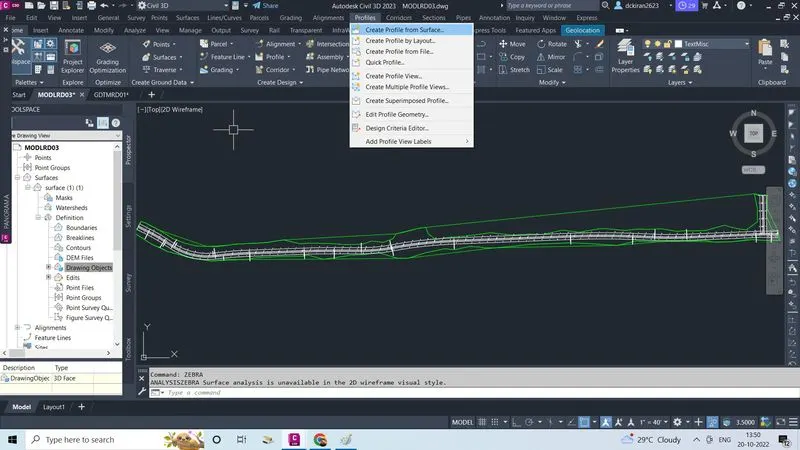

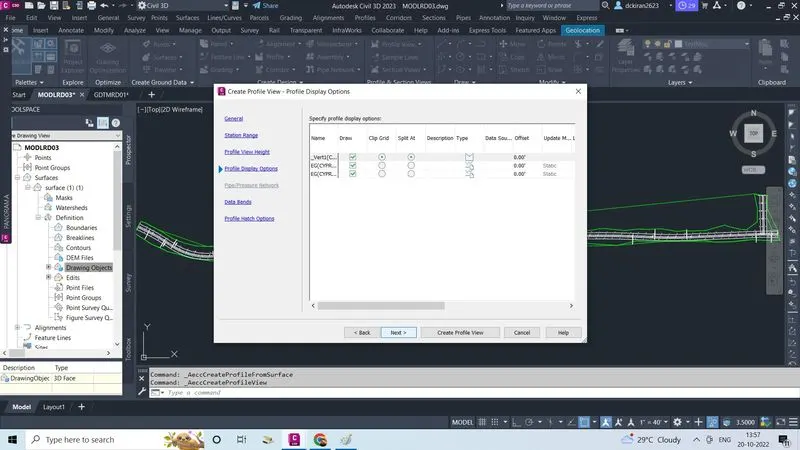

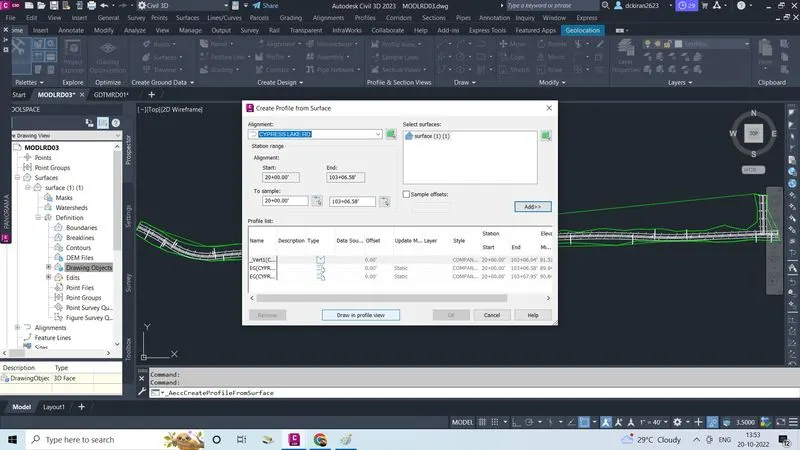

17.Click on the profile, click on create a layout by surface Select the alignment and already surface is selected which is created Click on draw in profile view, give peofile view name, select profile view style,click next and do required settings and Click next, and click on create profile view

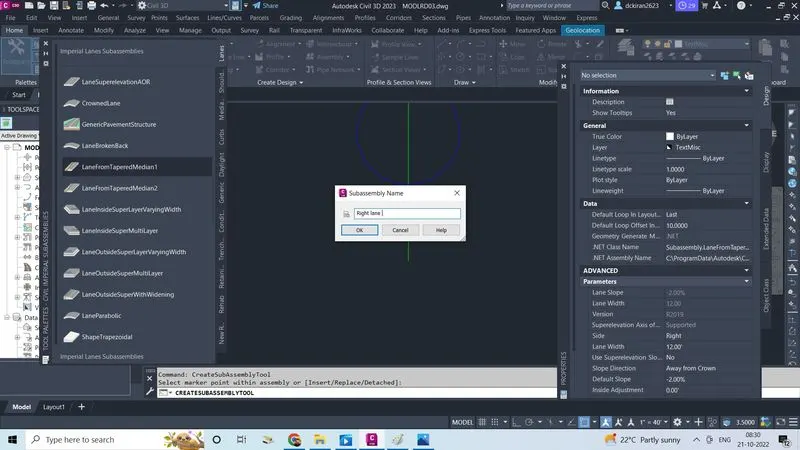

18.Now start to create the assemblies and subassemblies Click on assembly/ create assembly Give a name as "TCD -1 assembly" click on ok and Click on where to create the subassembly

19.Type command "MT" after tyle CTRL+F select the object infield categary/in object type click on green mark and go and click on the assembly mark automatticaly dailog bpx will open there we have to select name in preview we want uppercase and Click on ok

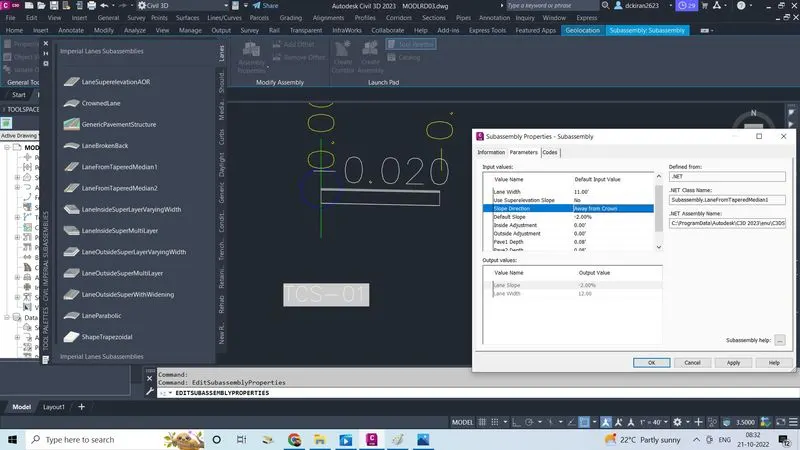

20.Select the assembly click on the tool palette ,Tool box will open in the lane section select the "lane from tapered median 1or2" again properties box will open

21.Click on the mark,if the text size is big then select the text and right click, click on label properties their we can edit If lane text is big then select and right click on the subbassembly properties their we can edit

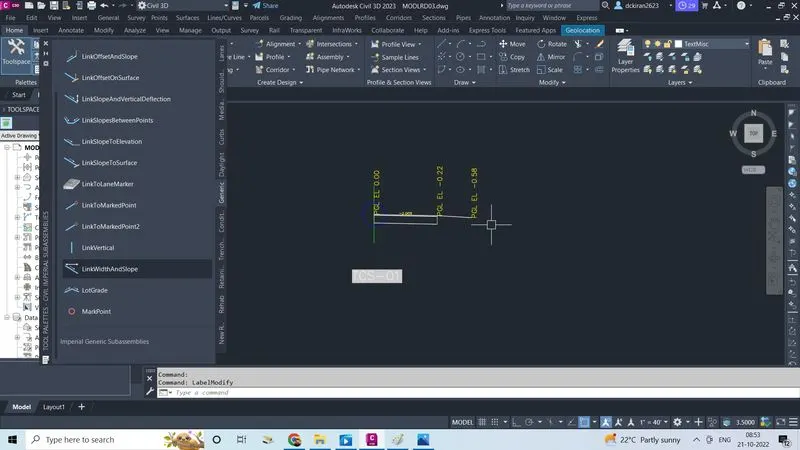

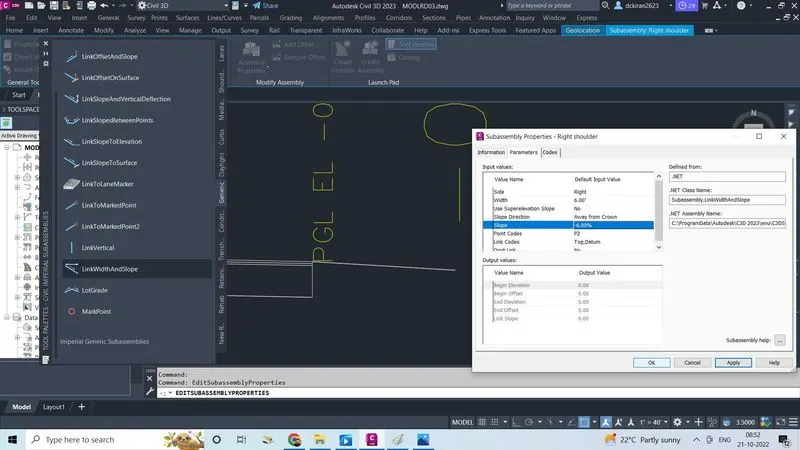

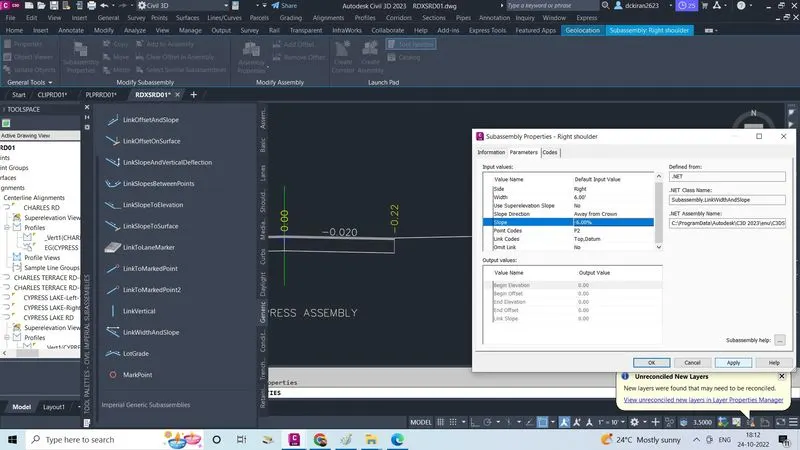

22.Now we have to create the shoulder ,Click on the assembly/toolpalet/ in the generic/ select link width and slope and click on the right lane, then select the shoulder and right click/subassembly properties/parameter here we can change the width of the shoulder and slope as per the TCS Click apply and ok

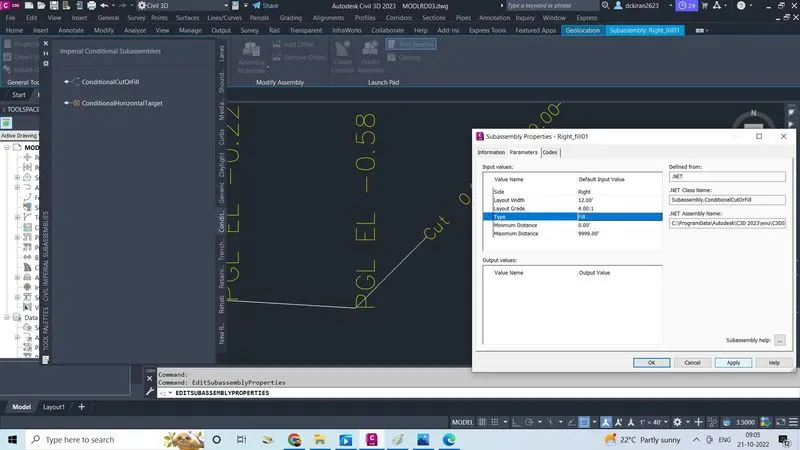

23.Now we have do cut and fill so Click on the assembly/tool palet/in the condition/ select condition cut or fill create the cut and fill 1:4 Click apply and ok

24.Now we have to add the ditch so,Go on the generic/link width and slope/ Click on the cut fill line/ give slope, width of -25% or 25% and 8' Click apply and ok

25.Go on the Condition selection/select condition cut and fill and click on mirror all the right subassembly to the left side

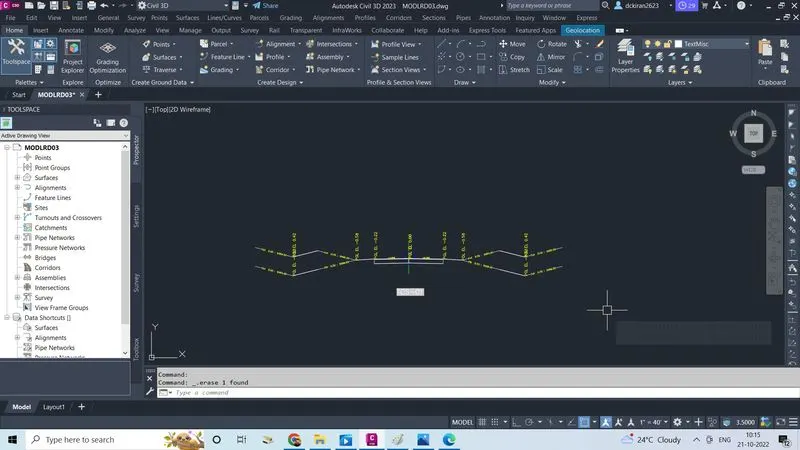

26.Then assembly is created.

1.Now we have to create intersection and pond tie on given station , so We have to create a new alignment, profile, assembly for that

2.Click on alignment /click on create connected alignments ,Select the 1st alignment and 2nd alignment and pick a location to connect alignment

3.Give a name as "CA right side"Select the curve group type as a circular fillet, radius 30, offset 0 and connection overlap is 20' click ok

4.Do the same for left side also

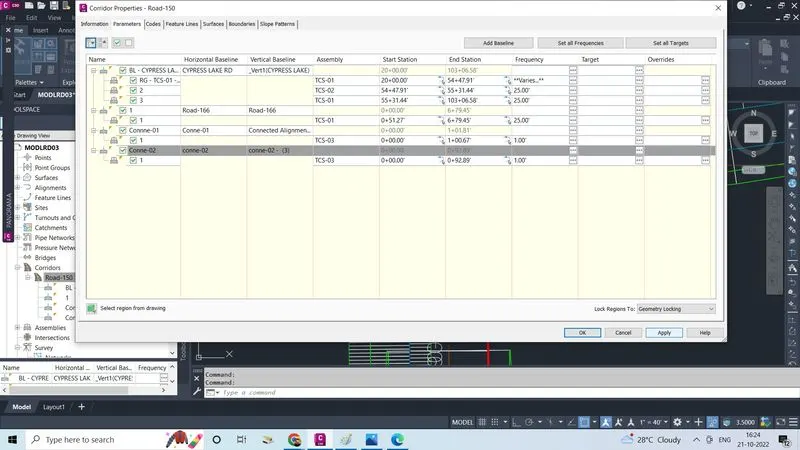

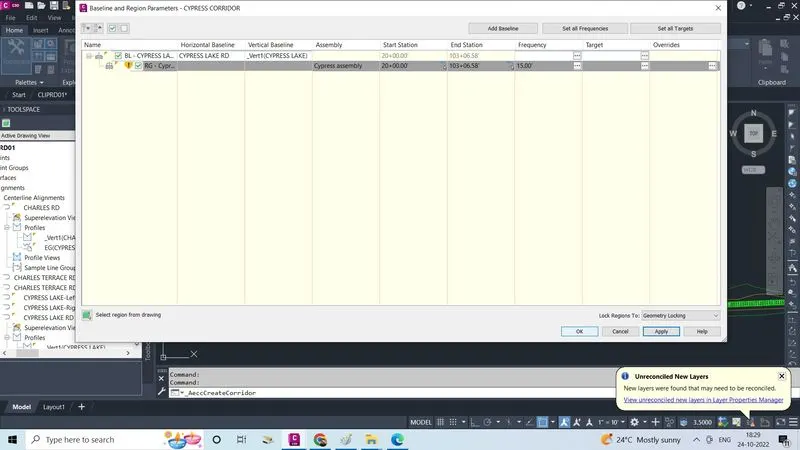

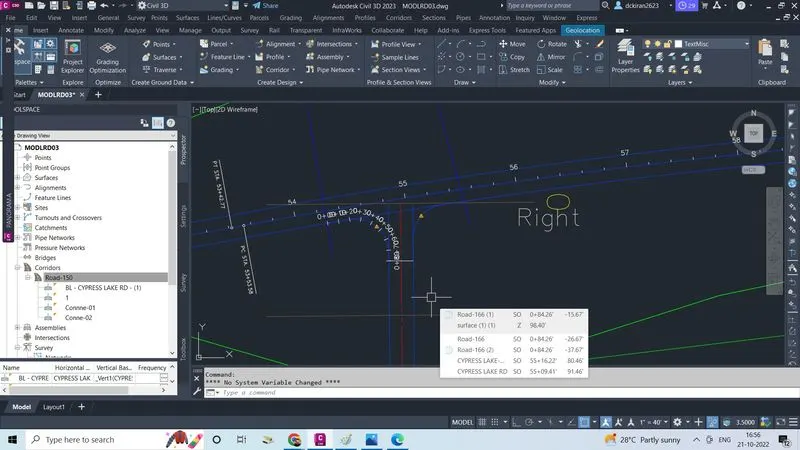

5.Take a line to Split the region ,After drawing the perpendicular line Go to corridor, select and right click on Road 150, click on properties Add the frequency of along tangent,along curve,along spiral,along vertical curves, click ok Check the target and set then Click apply and ok

6.Now the Corridor is created then Click on split region And select the region from where to where to split the region and make assembly and subassembly for splited portion also call it as TCS-3

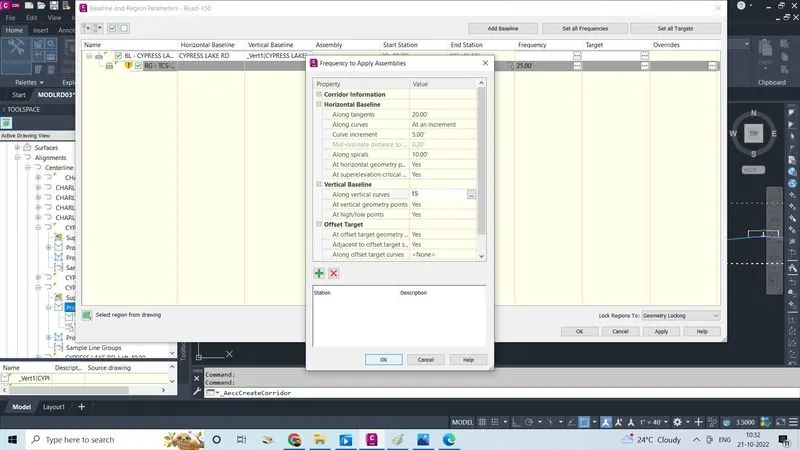

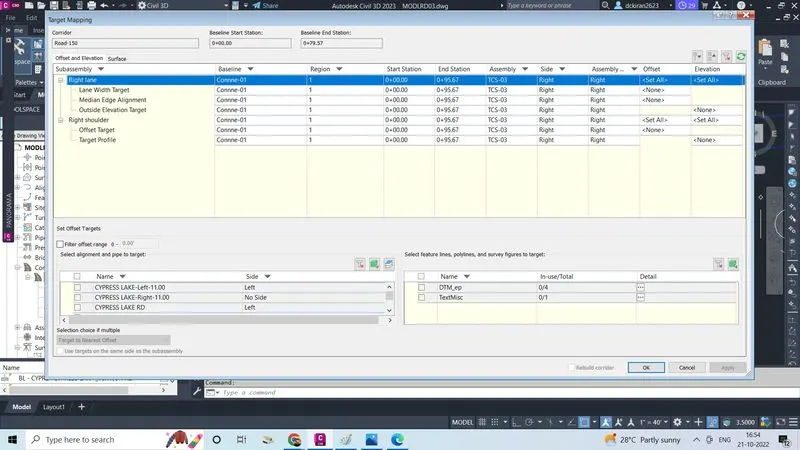

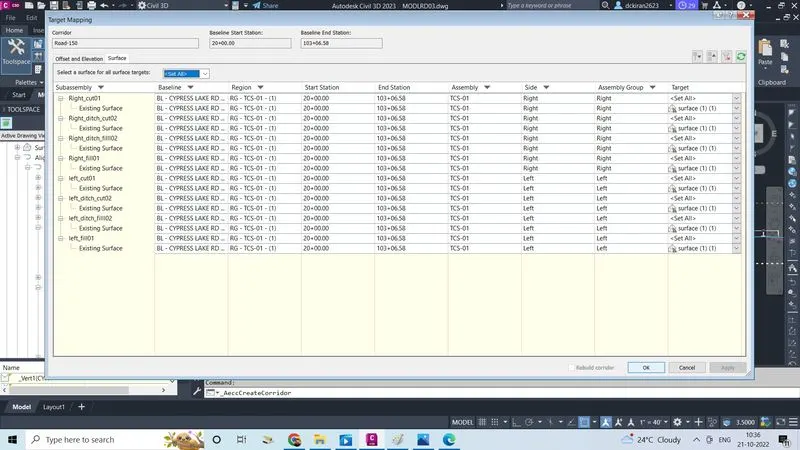

7.Make a corridor for TCS-3 also and set the target click on apply and ok , Intersection and pond tie in (54+00 to 54+80) is done

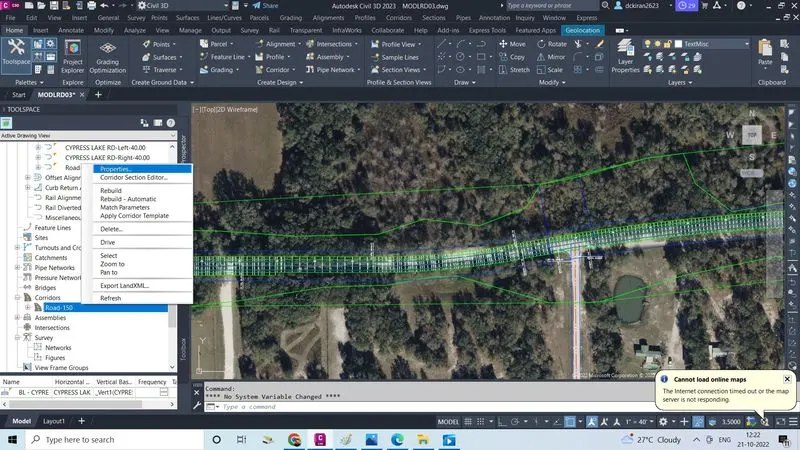

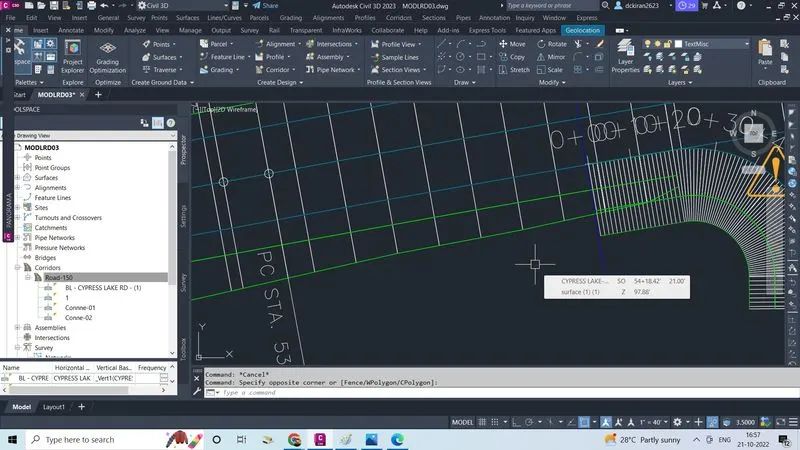

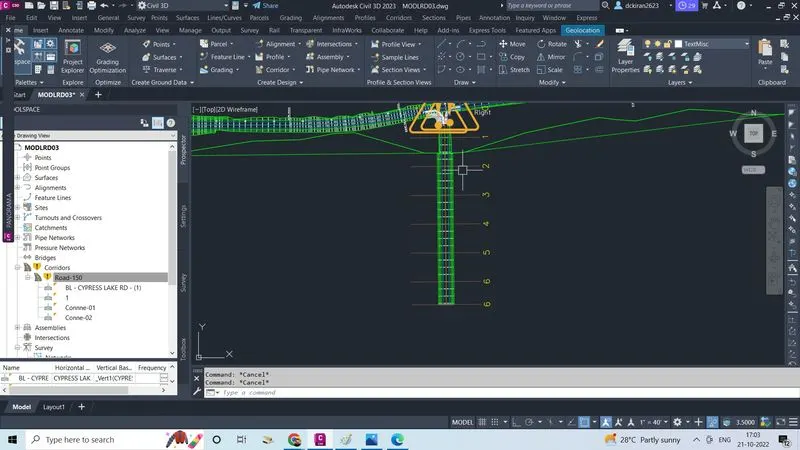

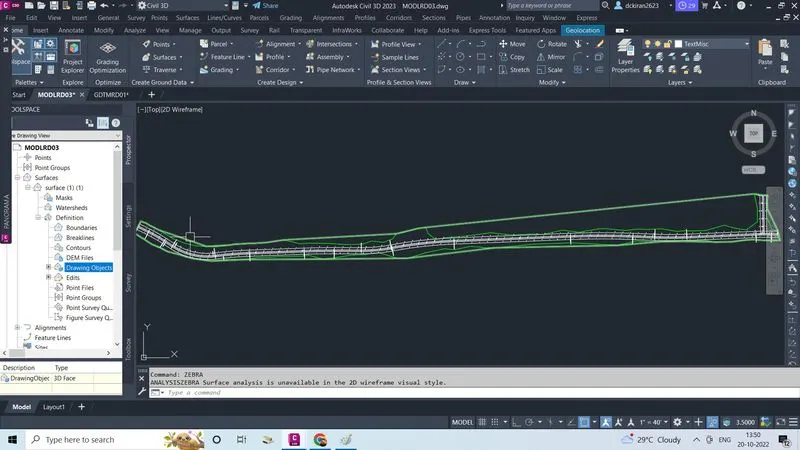

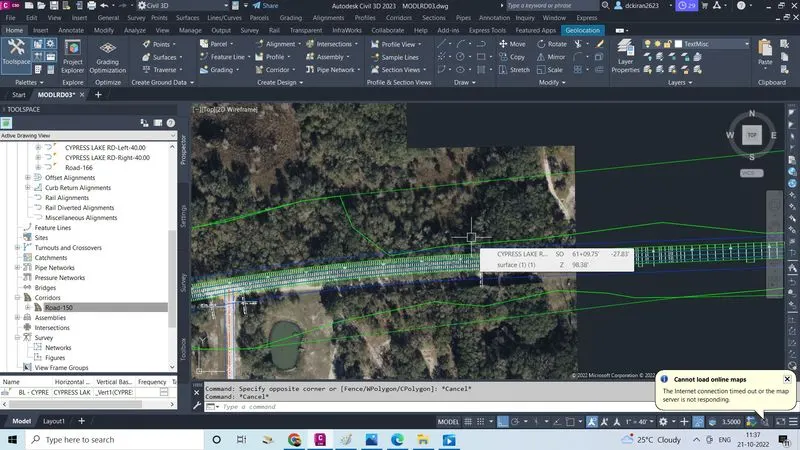

1.In MODLRD file toolspace/prospector/select and right click on the created corridor( Road150) click on the properties ,One dailogbox will appear in that click on the surface

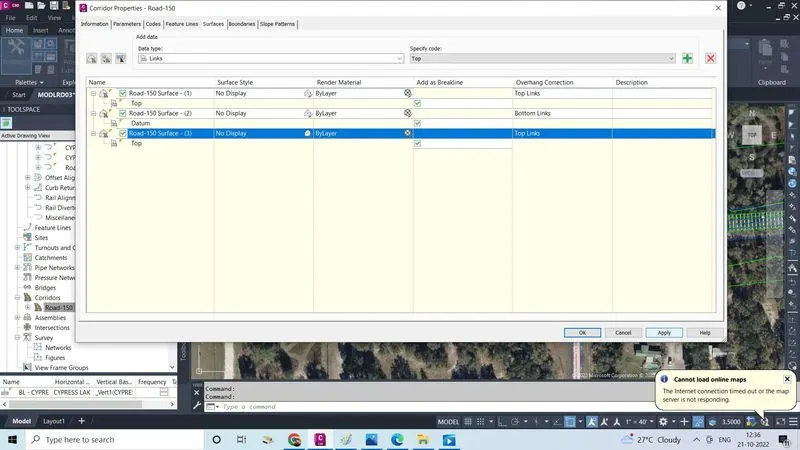

2.Click on the create a corridor surface mark and select the specify code as "Top"click on (+) mark and make check mark on the add base line and in overhang correction, select top links

3.Click on the create a corridor surface mark and select the specify code as "Datum"click on (+) mark and make check mark on the add base line and in overhang correction, select Bottom links Click apply and ok

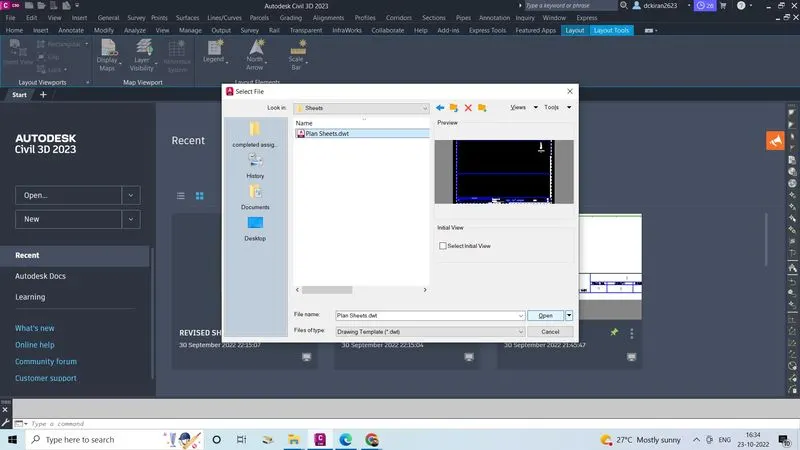

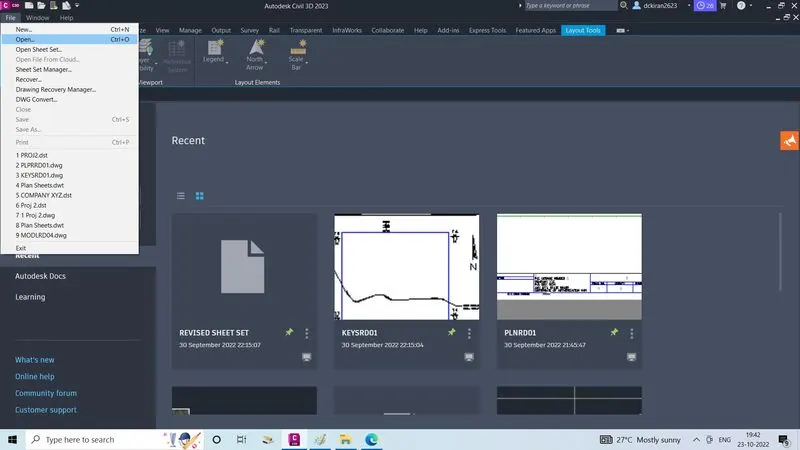

1.Open the Plan sheets in the civil3D which is provided by the company ,Go to file Click on open

2.Chose the Plansheets.dwt file which is in the skill-lync /week 11/downloaded from dashboard/ support/ sheets/plan sheets dwt Click on open ,Select and right click on the single plan scale

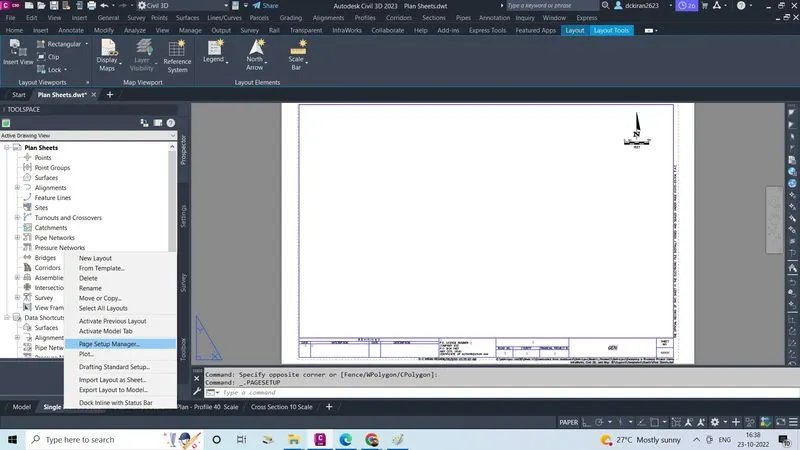

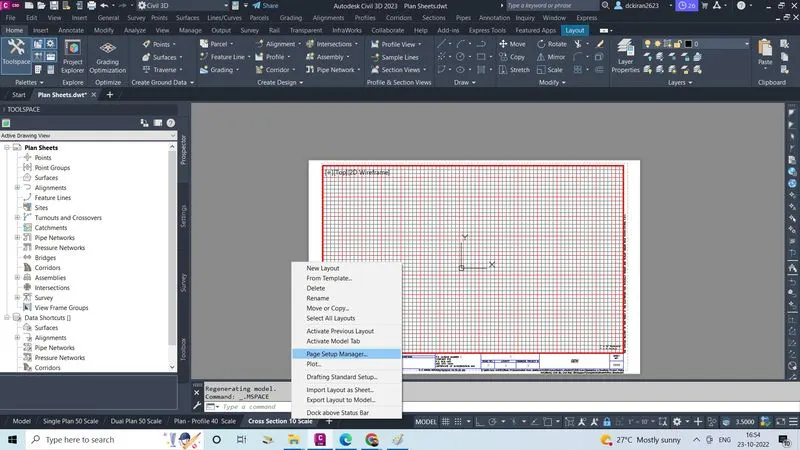

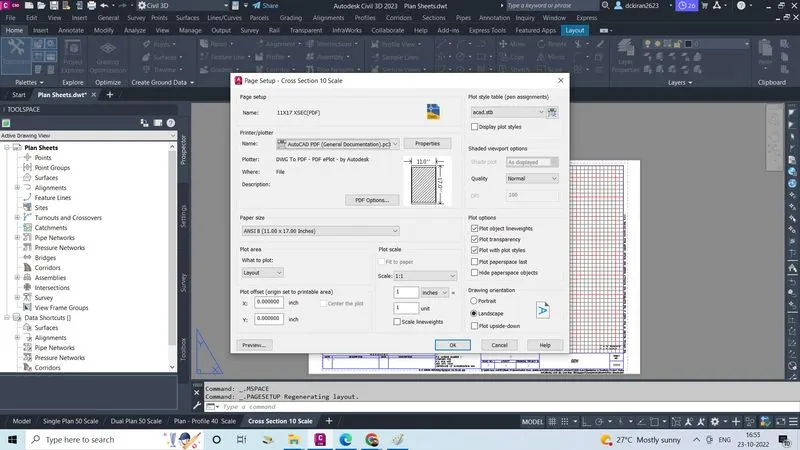

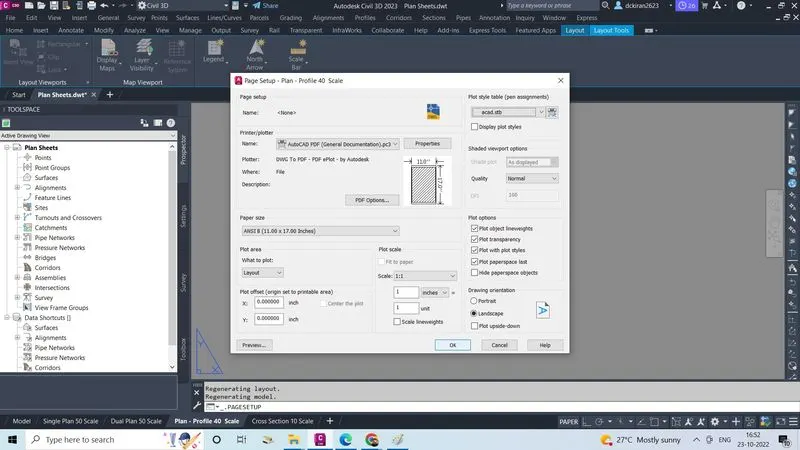

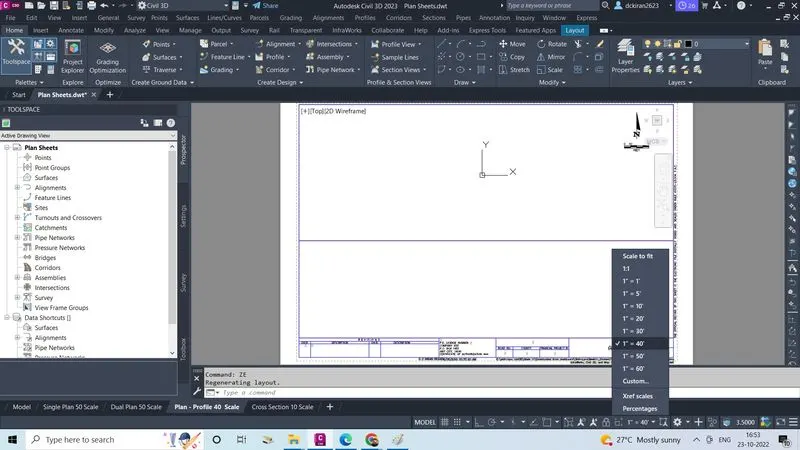

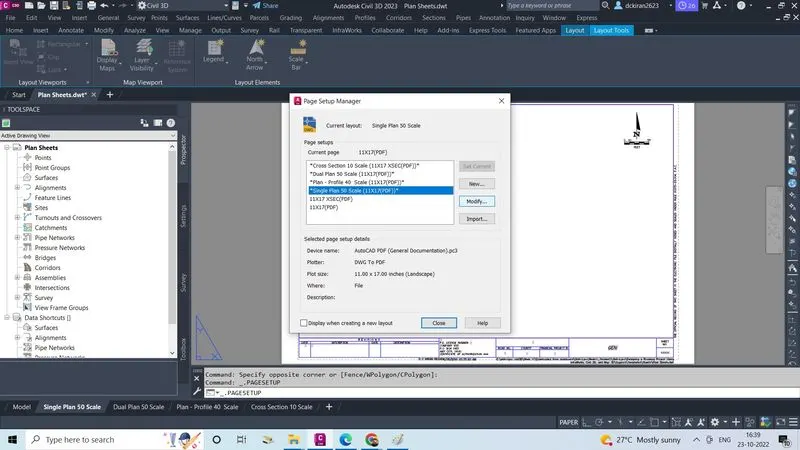

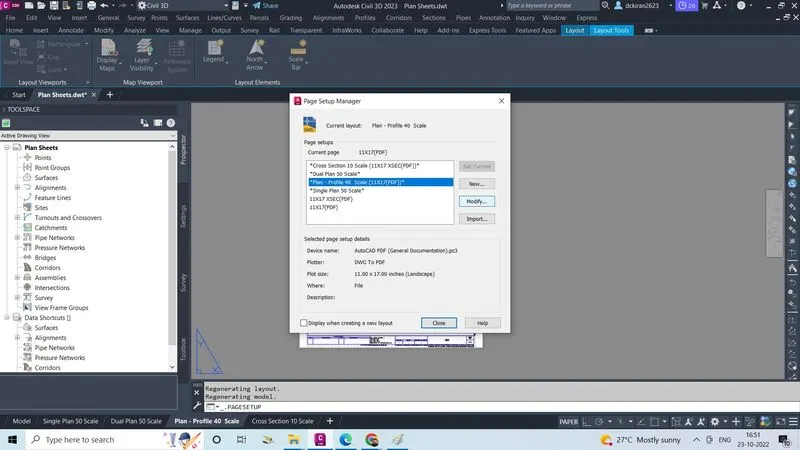

3.Click on the page setup manager Click on the modify,view port toolbox will open

4.Check the printer name give correctly ,Give the paper size Ansi bleed B(11x17 inches),Give plot style table (pen assignment) as acad.stb

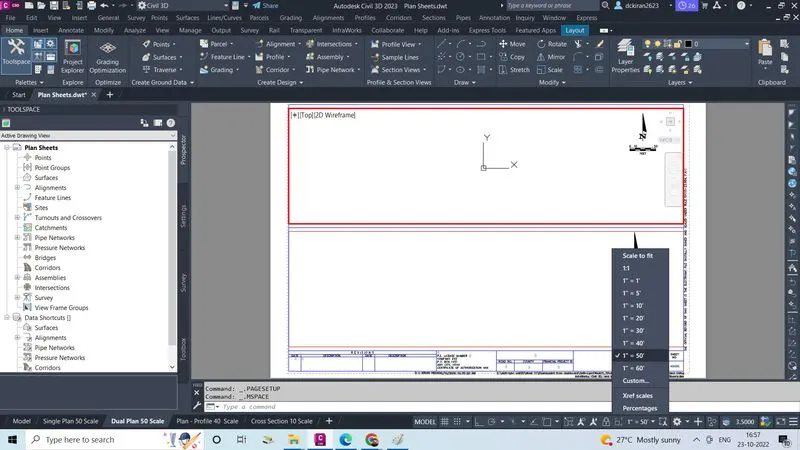

5.Select landscape and, now all are in set so click ok,click on close set the scale and lock it and set the properties

6.Do the same procedure for dual plan 50 scale,plan-profile 40 scale, cross section 10 scale viewport to the correct property

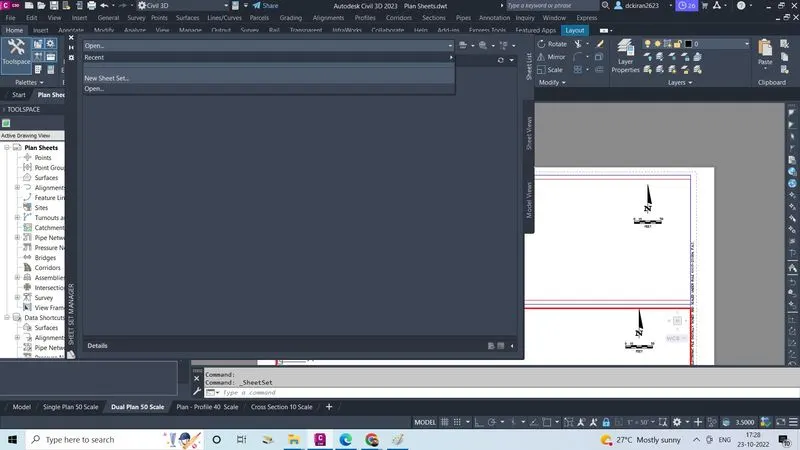

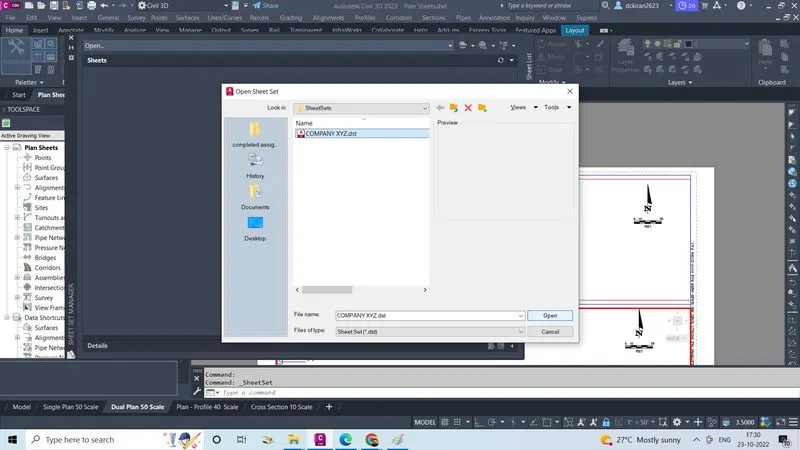

1.Press CTRL+4 and sheet set manager will open ,Click on open then select the company.dst file ,Select and right click on that import .dst file (companyn XYZ) PROJ2

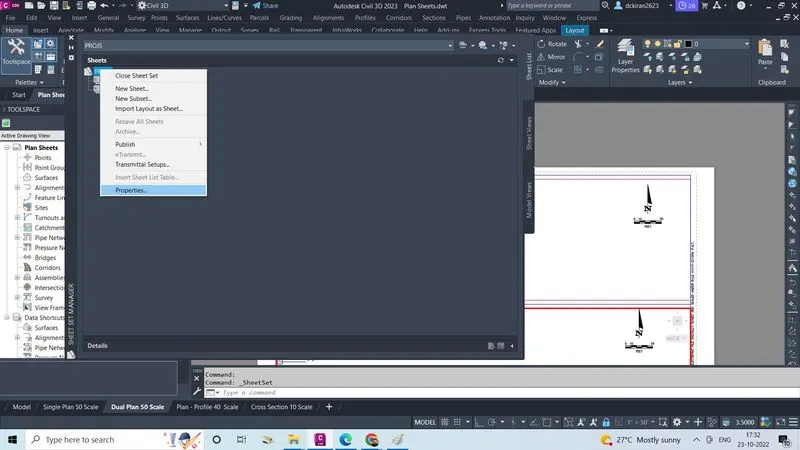

2.Click on properties ,Give the name as PROJ2 as said by the company

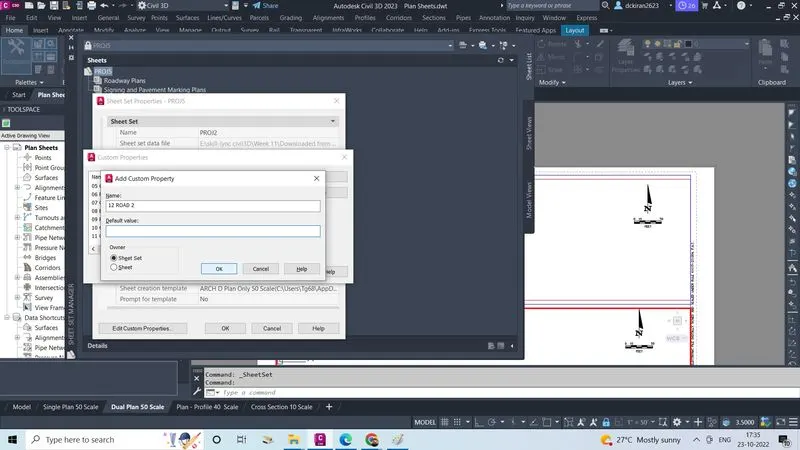

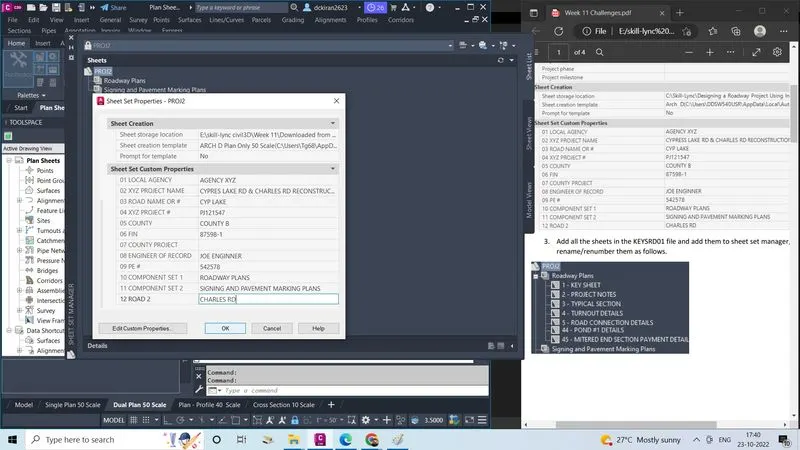

3.Enter all the custom properties as said and given by the company then Click on ok Now the sheetset is created

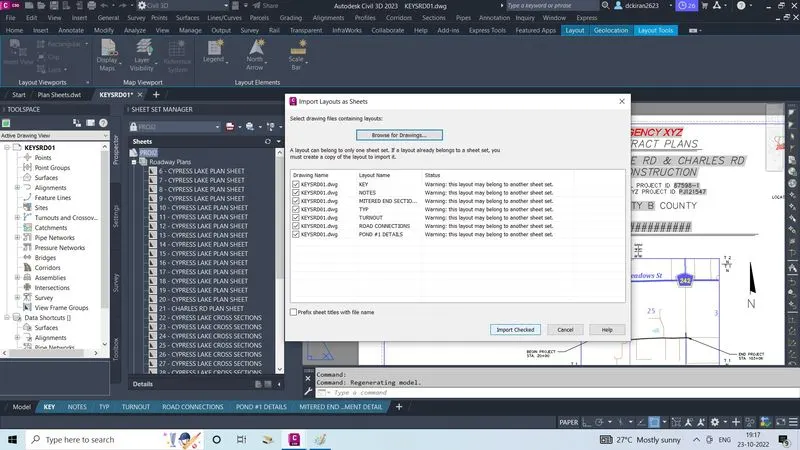

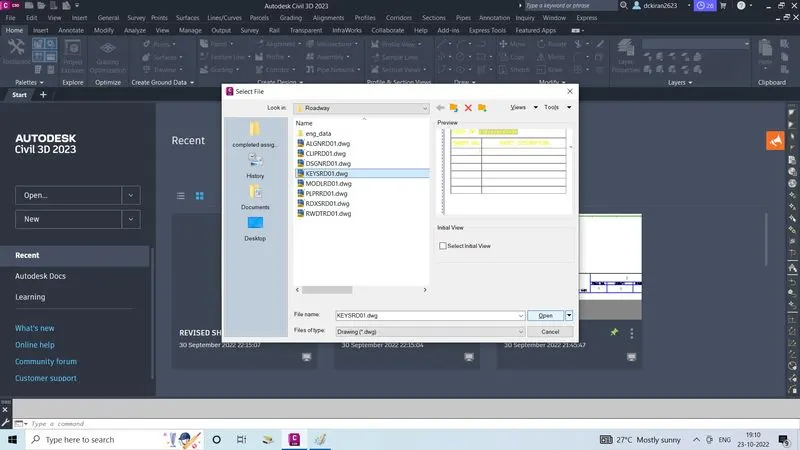

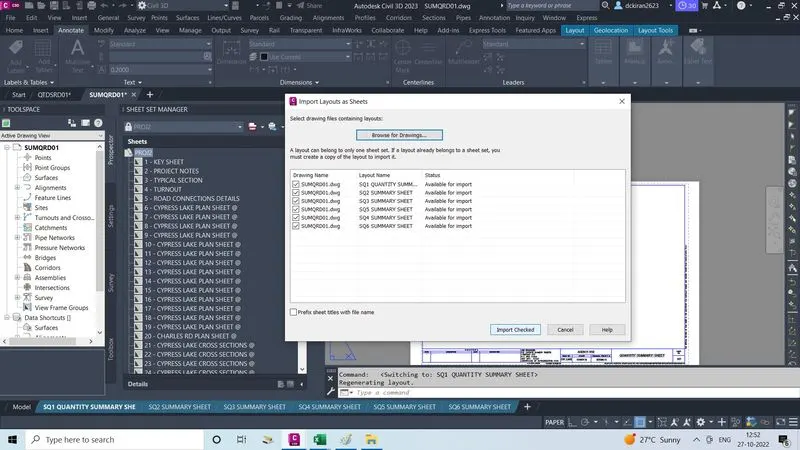

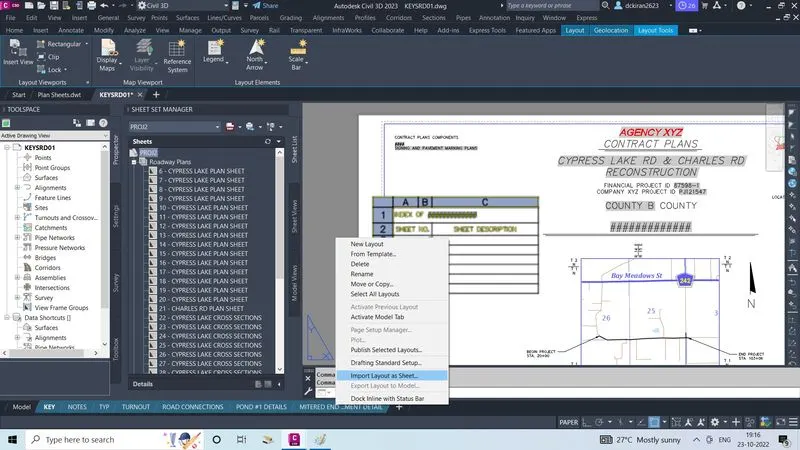

1.Open the KEYSRD01 file in the civil3D Select all the sheets right click ,Click on the import layout as sheet then Click on import checked all the sheets are imported in the sheet set manager

2.Select and right Click on key in the sheet set manager Click on the rename and renumber Do the same procedure for all sheets Set in the serial wise

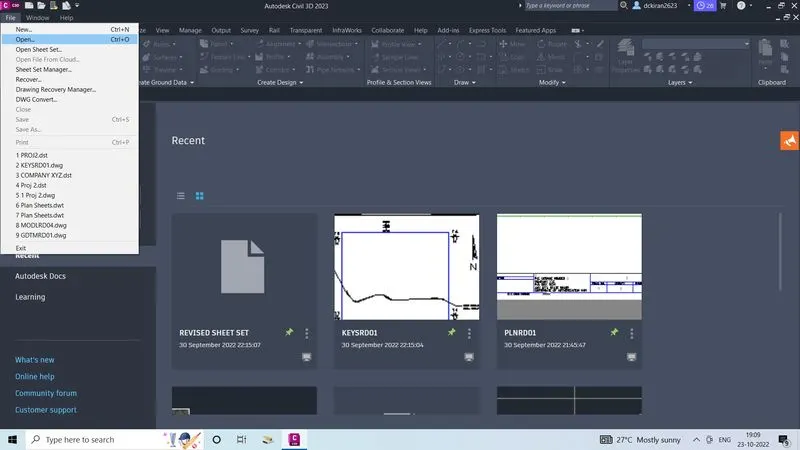

1.Go to file,Click on the open File manager will open select the CLIPRD01 .dwg file which is provided by the company

2.Click on open ,We want alignment so,open ALGNRD01 file in civil3D,by doing the same procedure

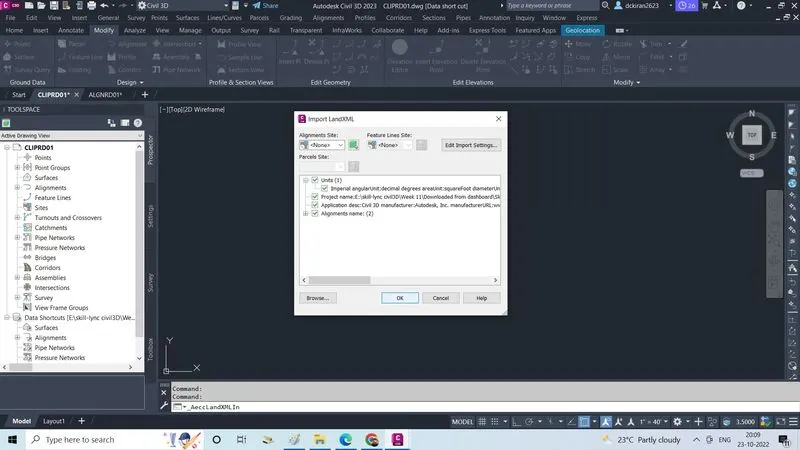

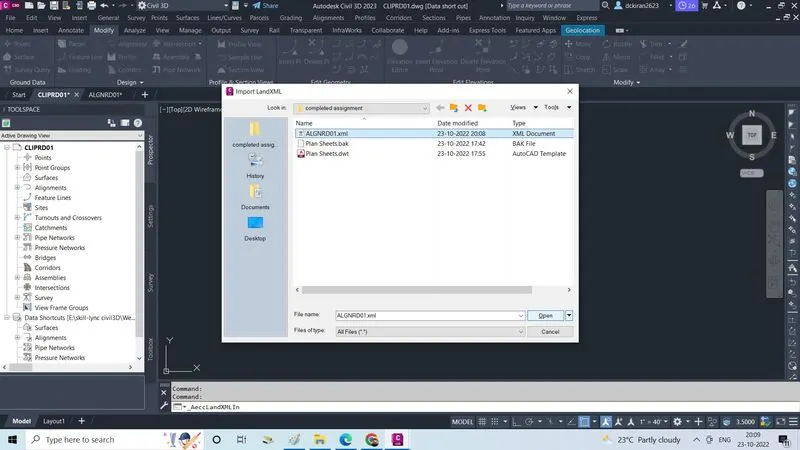

3.Click on open we want alignment in the CLIPRD01 file then copy the alignment by creating the data shortcut of the alignment (cypress lake and charless RD)

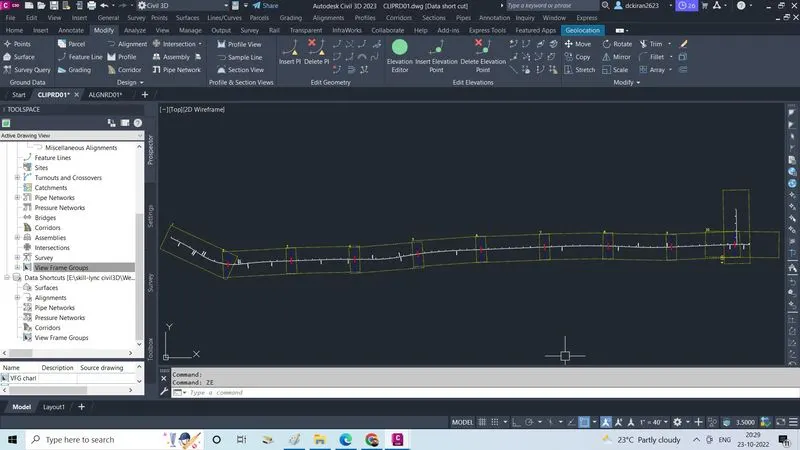

4.Now create view frame ,In CLIPRD01 file toolspace/prospector/select and right click on viewframe groups

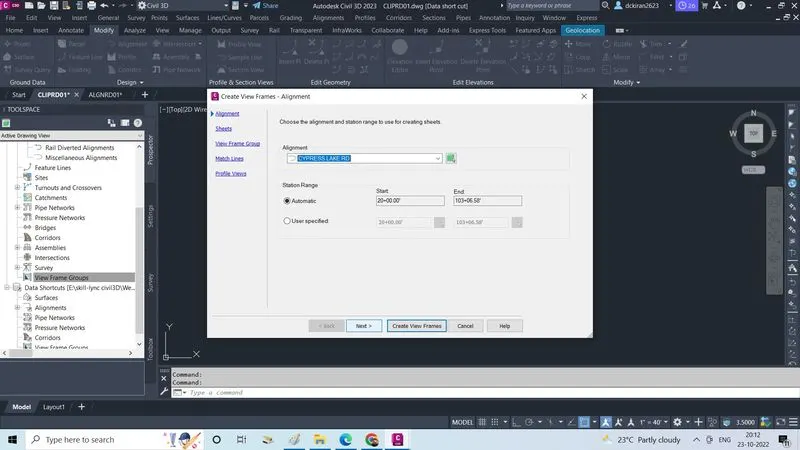

5.Click on create viewframes,Select the alignment and all the necessary settings

6.Give the name as "VFG CYPRESS LAKE" click on next Match line give snap station 10 and overlap is 50',click next

7.Click on create viewframe and view frames are then Do the same procedure for CHARLESS RD

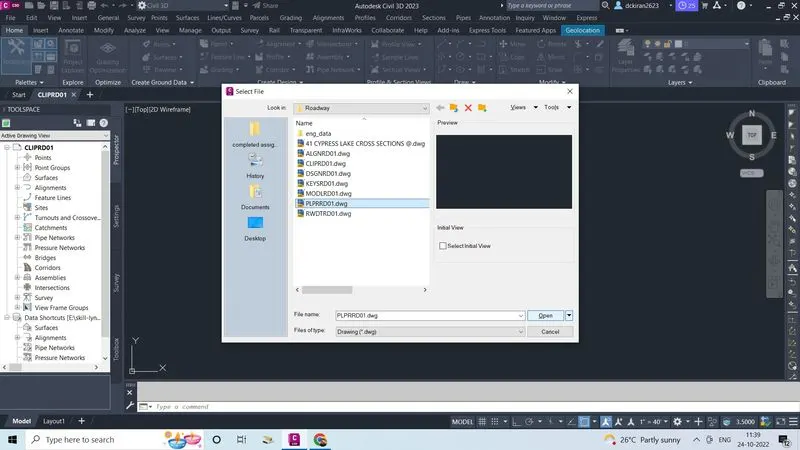

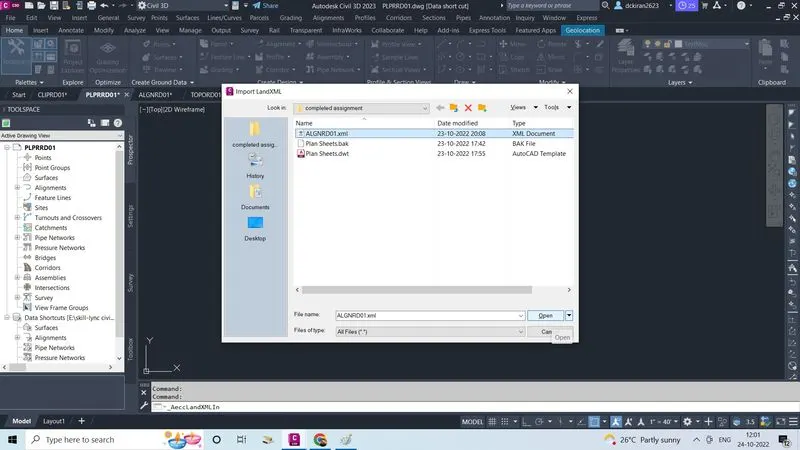

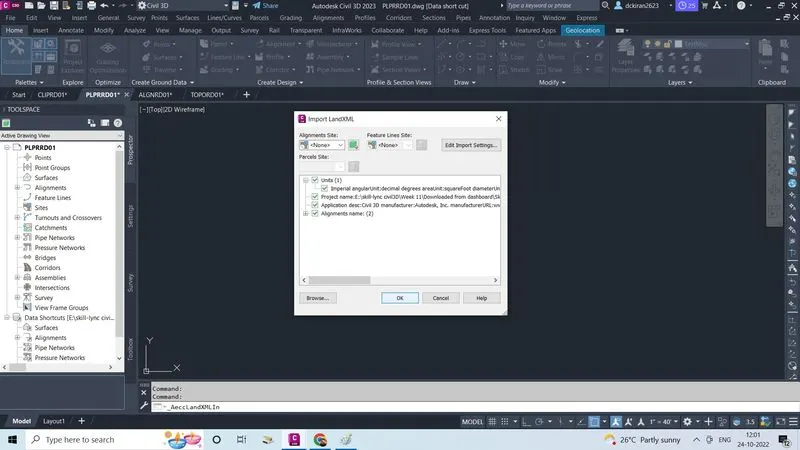

1.Open PLPRD01 file in the civil3D as said by the company to create plan and profile sheets then Import the alignment land xml in the ALGNRD01 file which is already created and exist in the (skill-lync/week11/completed assgnment

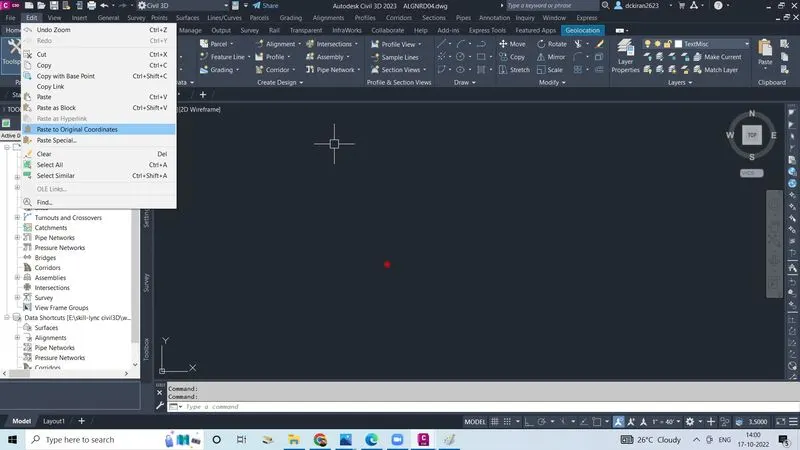

2.Copy the alignment from ALGNRD01 file and paste it into orriginal co-ordinates into a PLPRD01 file

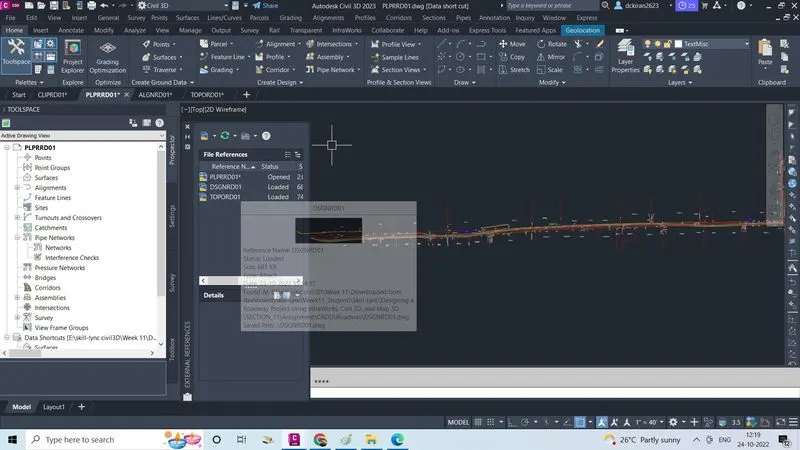

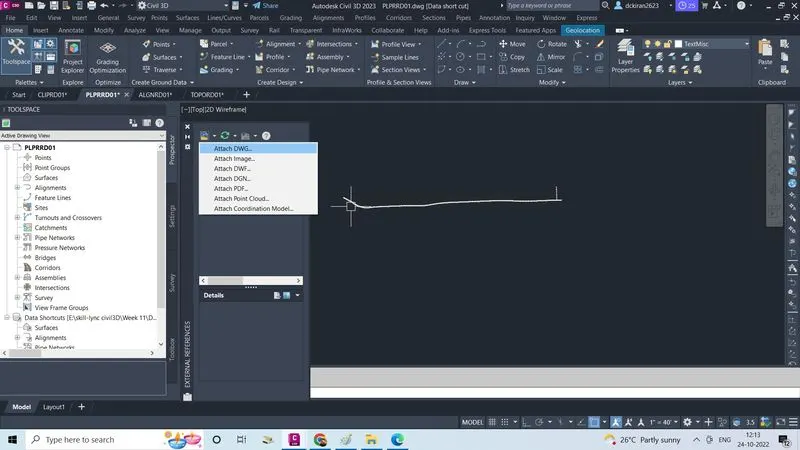

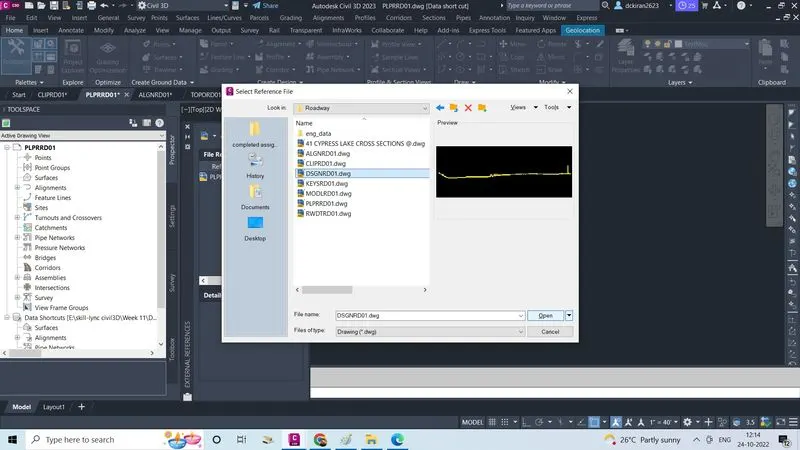

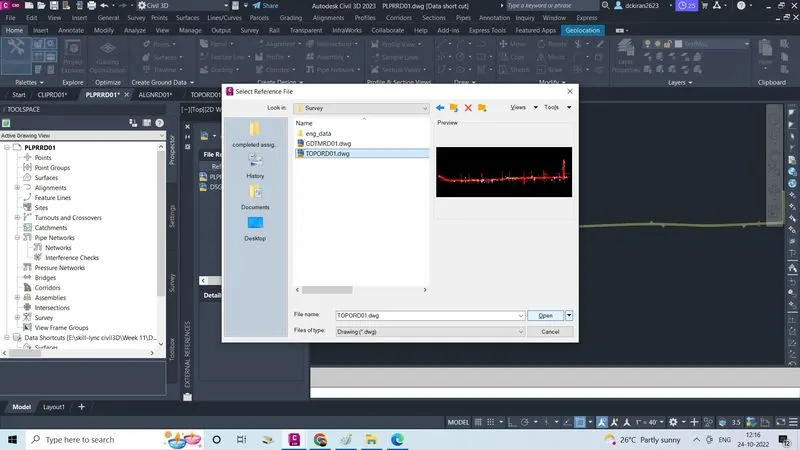

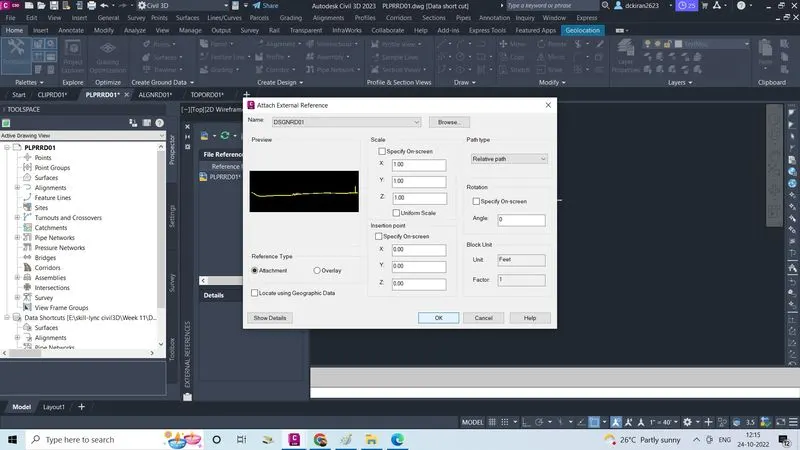

3.Type command "XREF" to import the "DSNRD01 and TOPORD01"file in the CLIPRD01 file type command "XREF"to import the TOPORD01 file in the CLIPRD01 exizt in the syrvey file

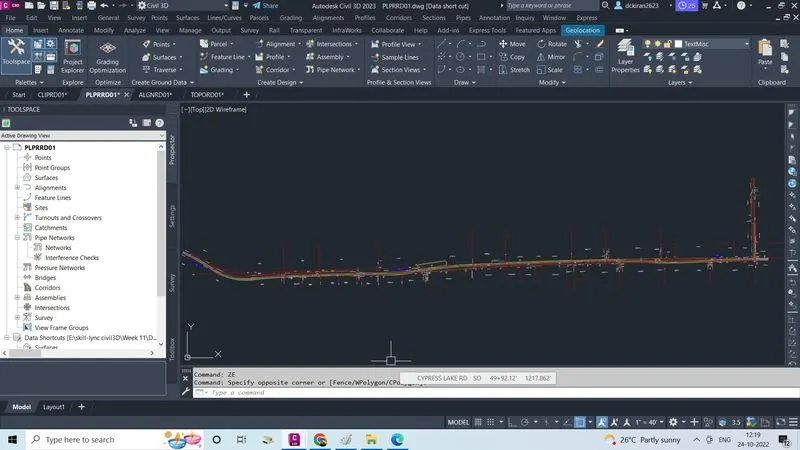

4.Before create viewframe lets check the profile and surfce is exist or not , ok Lets create viewframe in PLPRD01 file

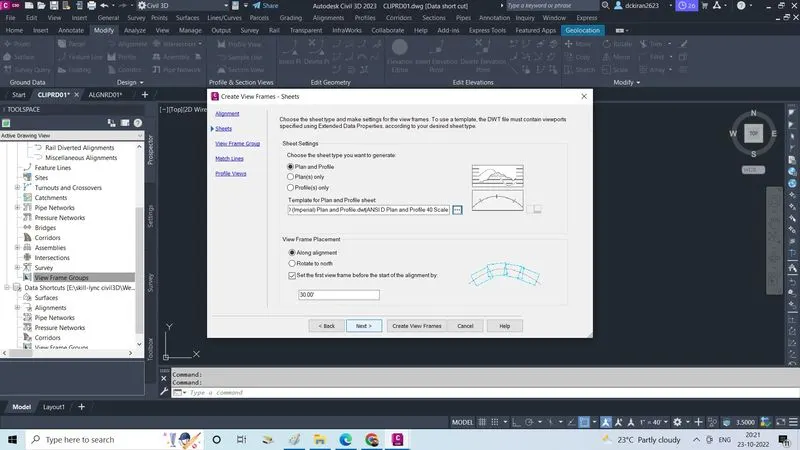

5.Go to toolspace/prospector/select and right click on the view frame groups Click on create viewframes again

6.After creating viewframes, create a sheets

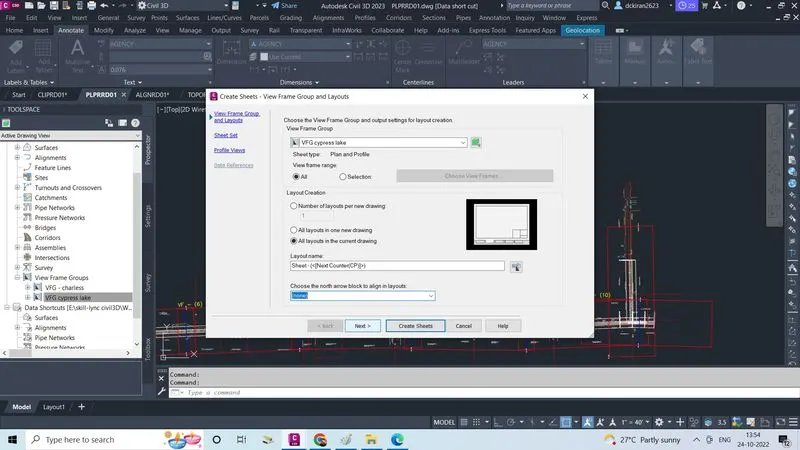

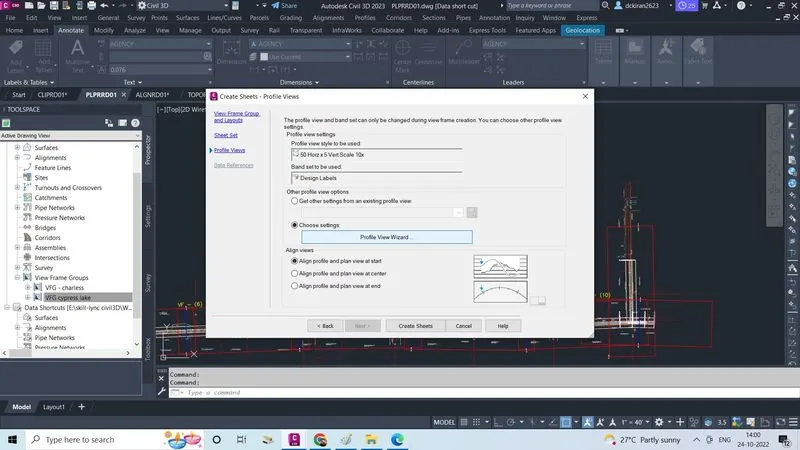

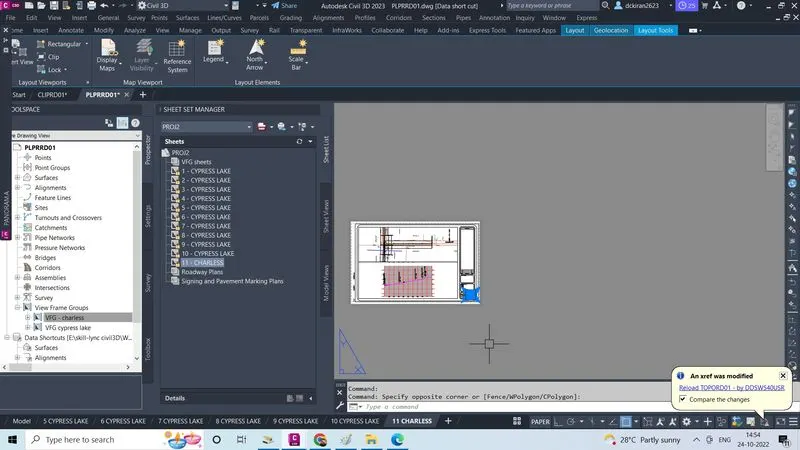

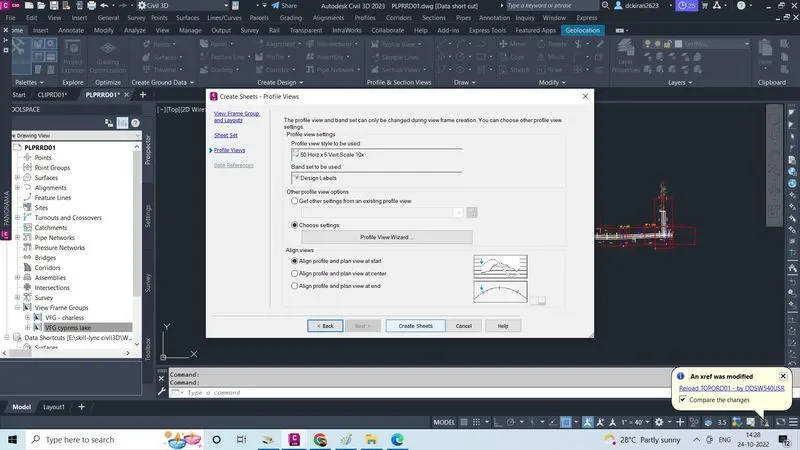

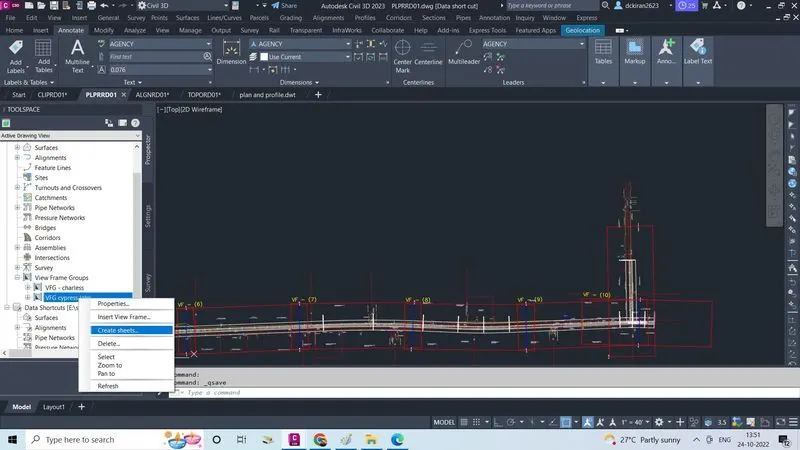

7.Select and right click on cypress lake Click on the create sheets 1st Select view frame groups as VFG CYPRESS LAKE ,Make dot mark on the all layouts in the current drawing click next

8.Make dot mark on the add to existing sheet set and select existing sheets from skil-lync/week11,click next

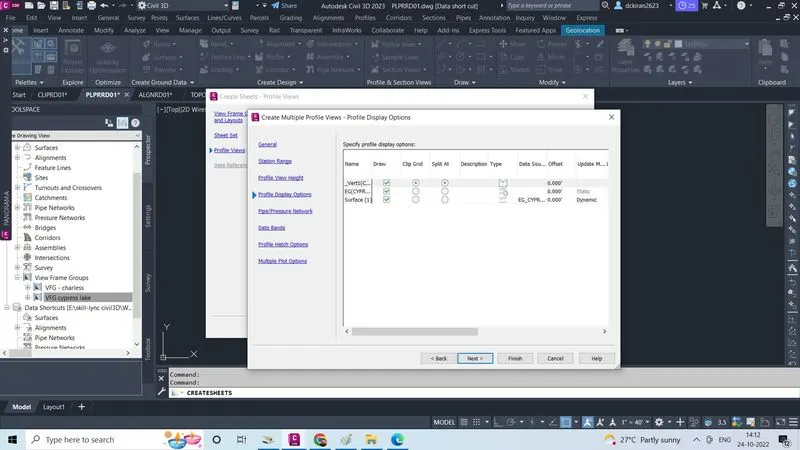

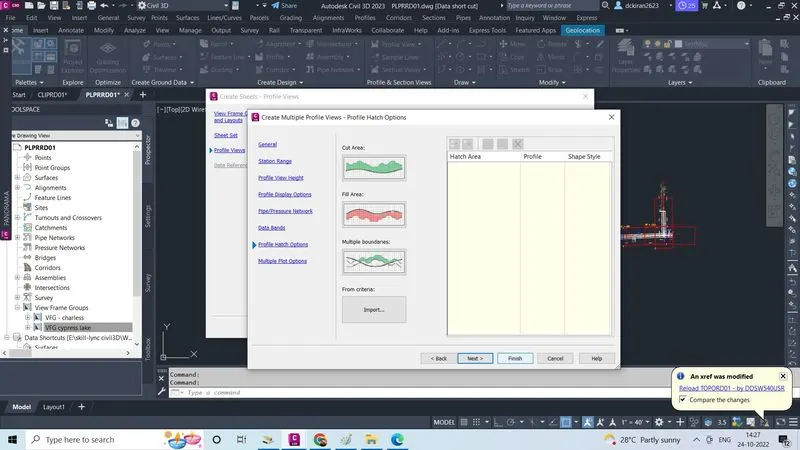

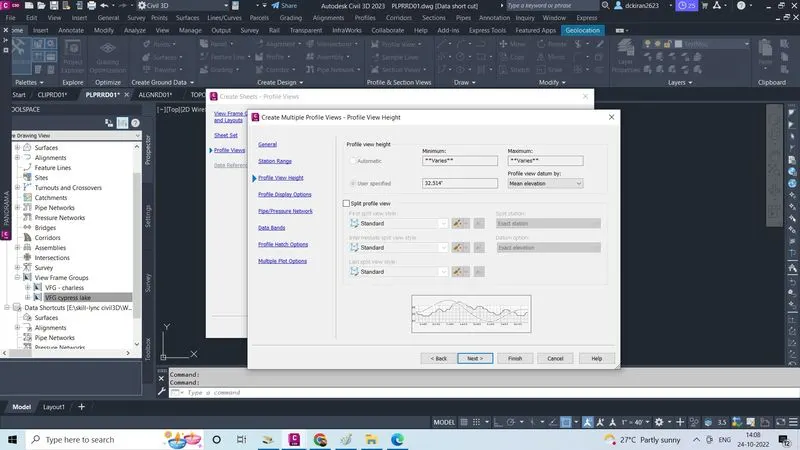

9.Make dot mark on the choose setting, click on profile view wizard

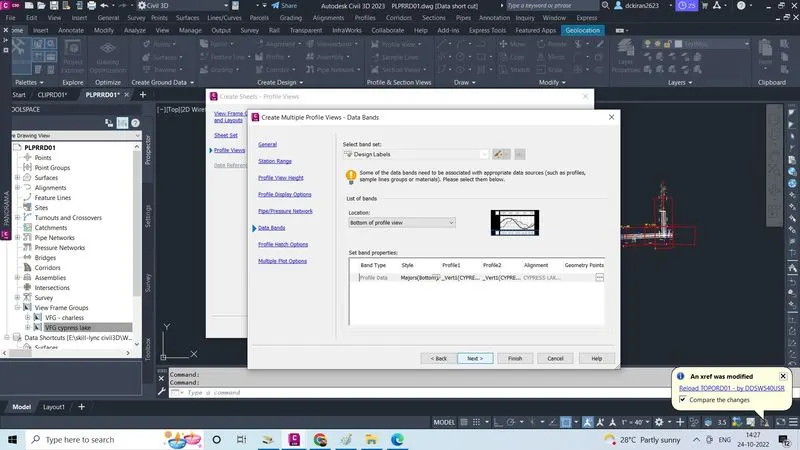

10.Select mean elevation inprofile view datum, click next Select labels in profile dispaly options, click next In data band select profile 1 & 2 as vert1 (cypresslake ) click next

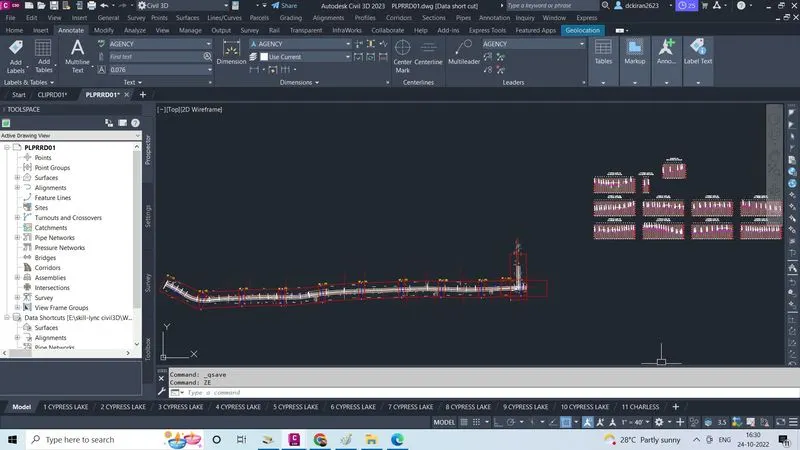

11.Click on create sheets Click somewhere plan and profile sheets us created

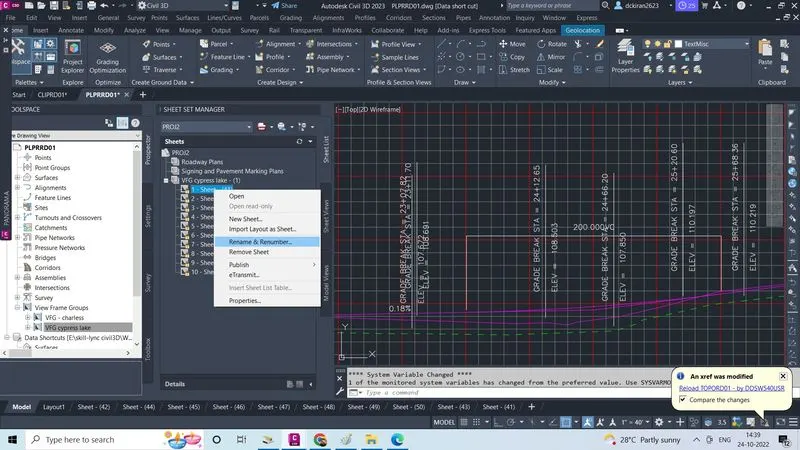

12.Now edit some change in profile In existing .dst file right click on sheet, click on rename and renumber give the name as cypress lake Click on next , do the same for all sheets plan profile sheet is created

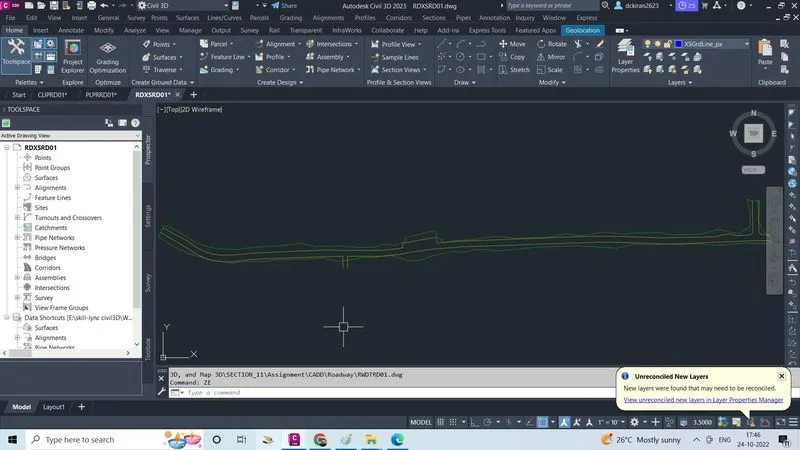

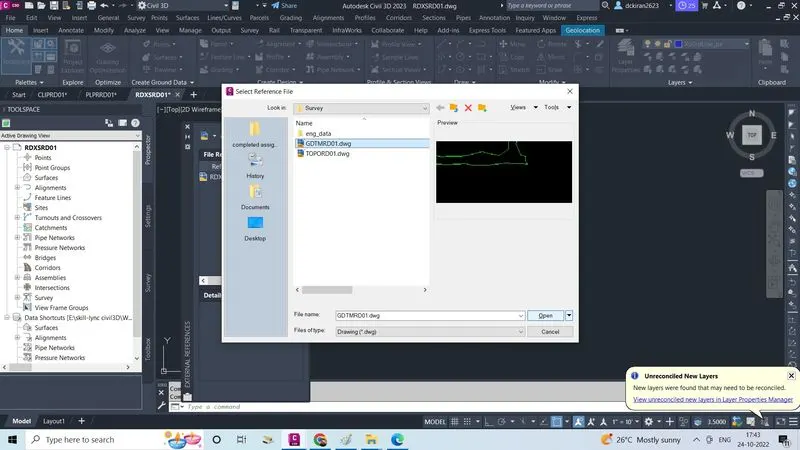

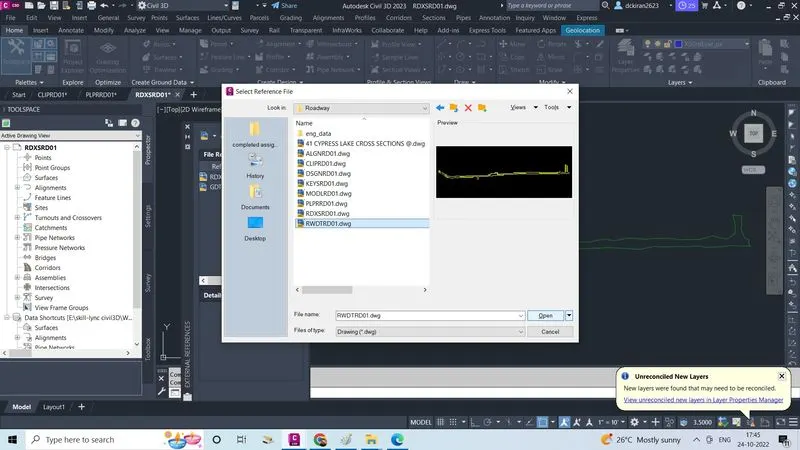

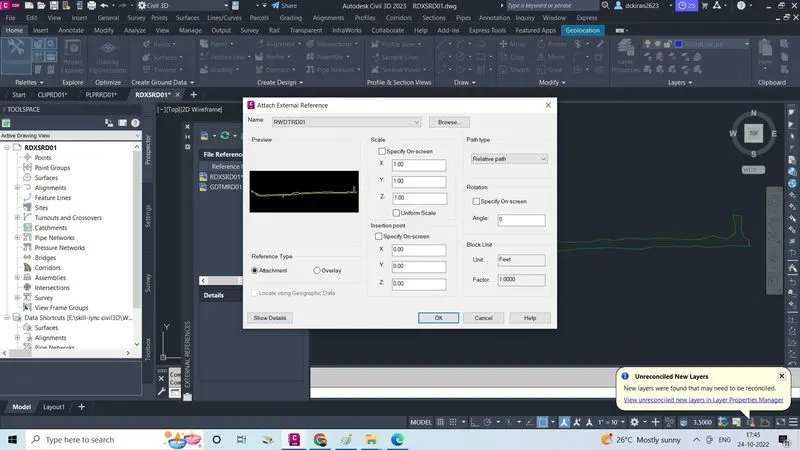

1.Open the existing RDXSRD01 file in the civil3D And again by command "XREF" import the GDTMRD01 file surface file into the RDXSRD01 file Also import RWDTRD01 file into the RDXSRD01 file by the Command "XREF"Also we want alignment so Import the alignment XML file in the RDXSRD01 file

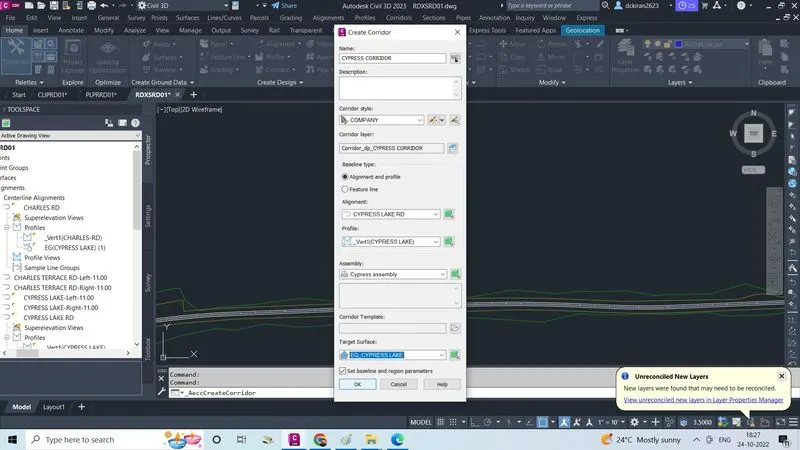

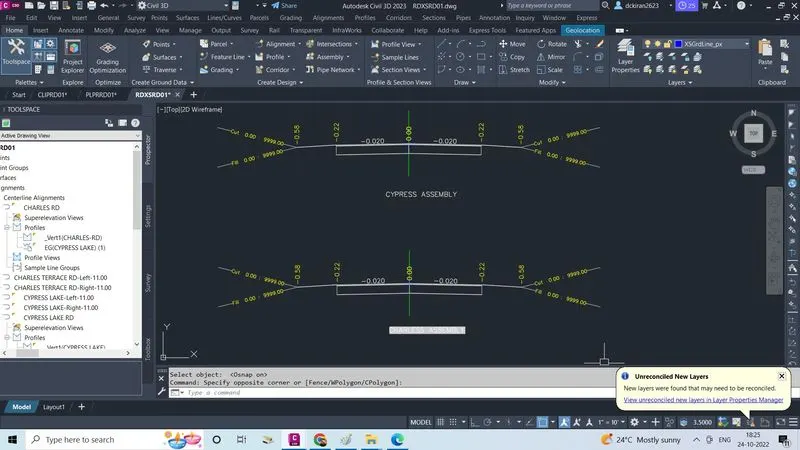

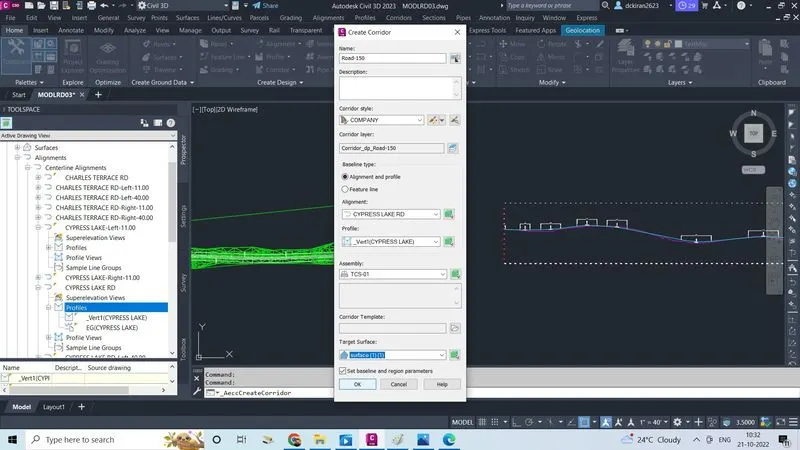

2.To create a cross section sheet first we have to create assembly as well as corridor Create assembly first and next Create corridor

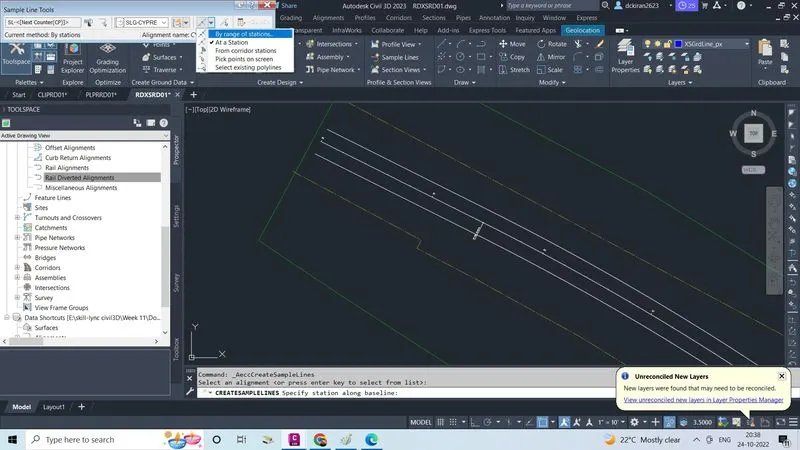

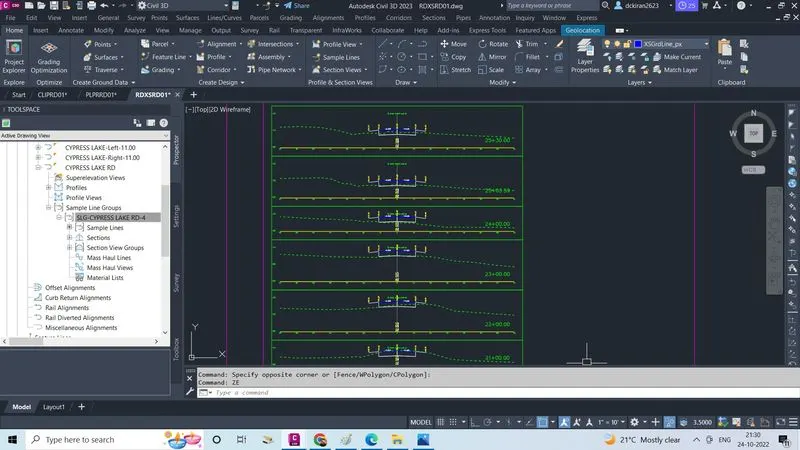

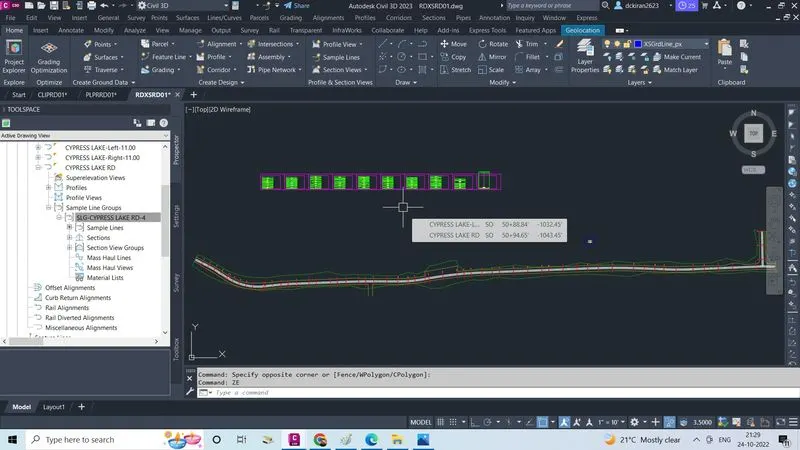

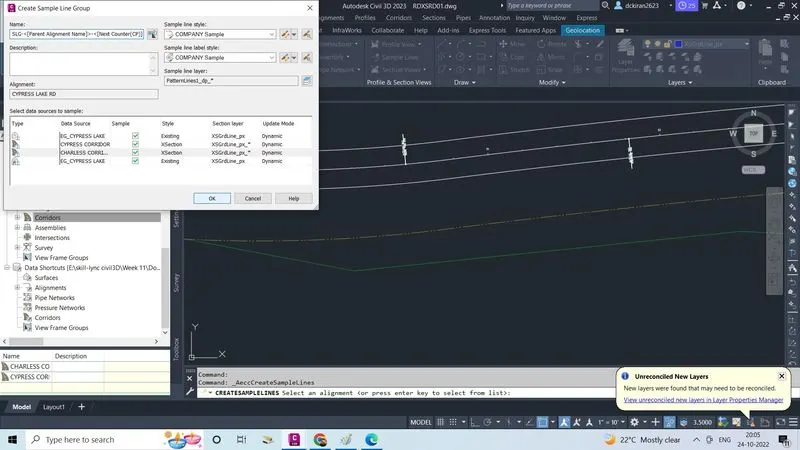

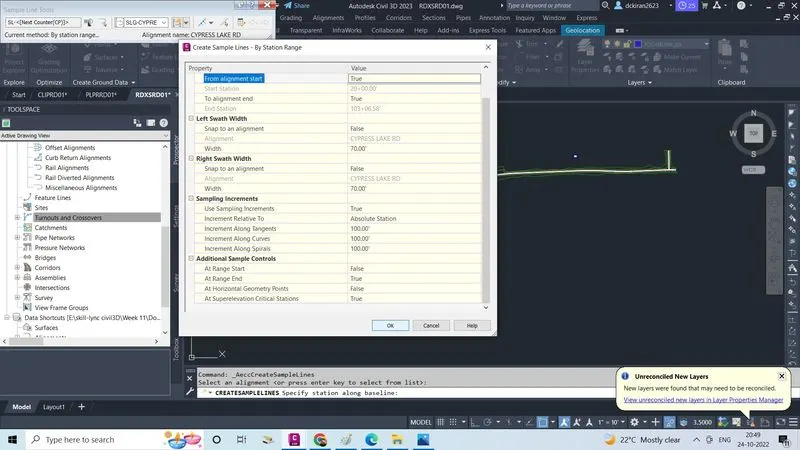

3.Now we have to create a Corrss section sheet Go to home tab ,profile and section view, select sample line and click on the alignment, sample line toolbox Click ok Select 'by range of station' and fill necessary option .

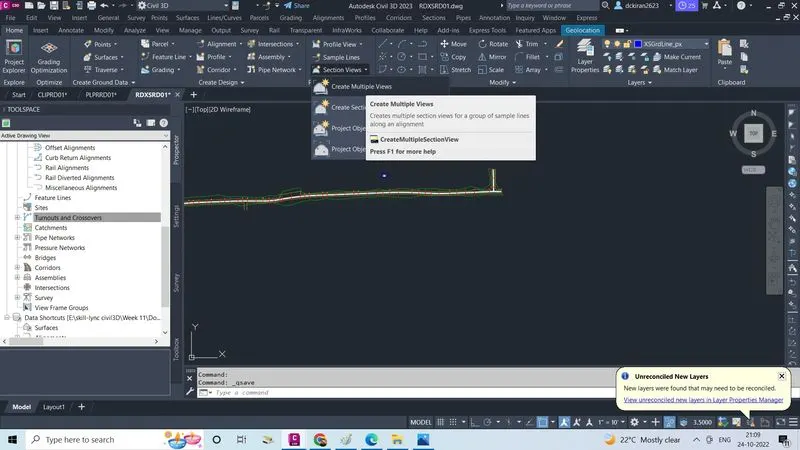

4.Your sample line is created, now we can delete unwanted sample line at a proper place it is very neccessry Now click on section view , click on create multiple views

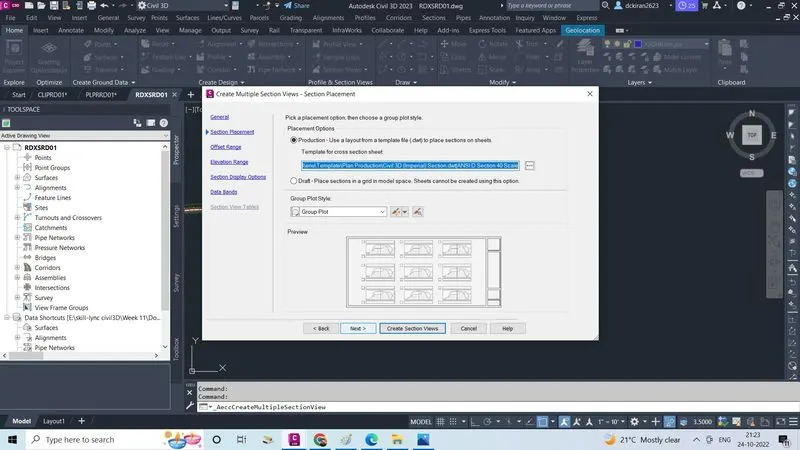

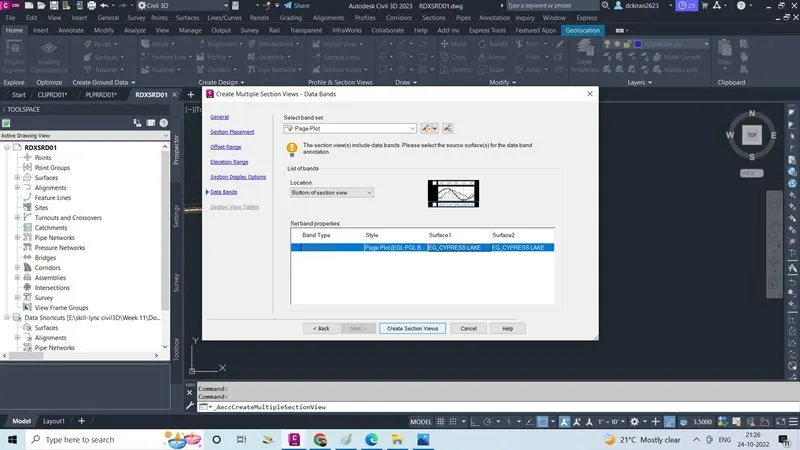

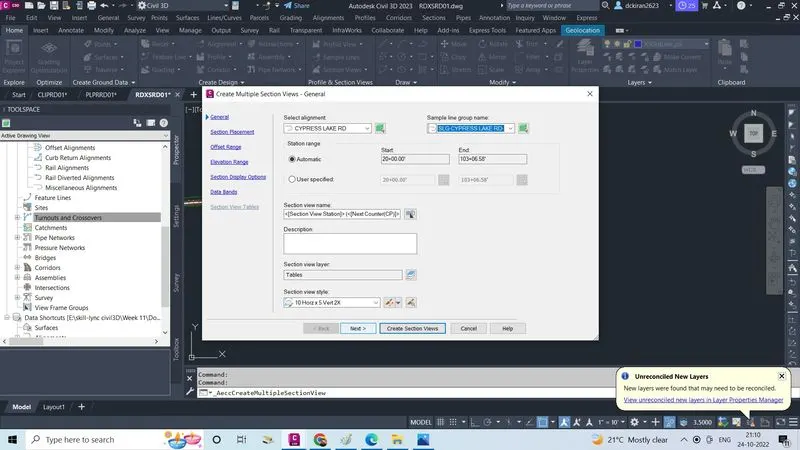

5.Select the alignment, click next Select the template ,plan sheet which is provided by the company, click next

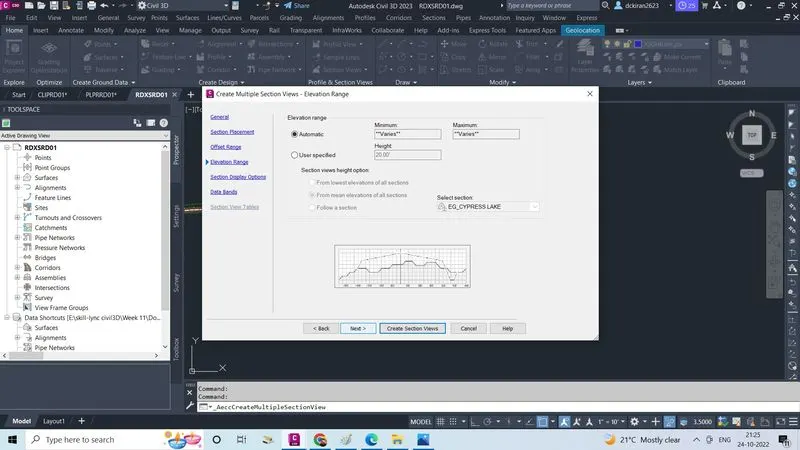

6.Click next Dot mark on the user specified give height of 20' click next Click next, or we can change lable style

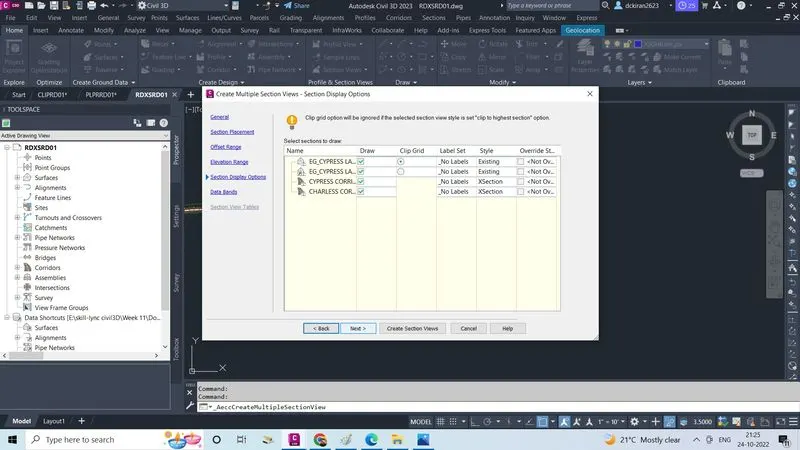

7.Select surface 1 & 2 ,Click next ,Click on create section view

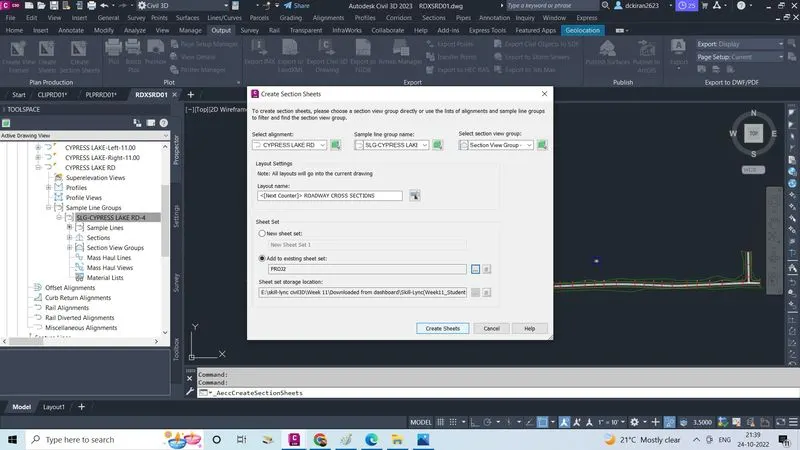

8.Now we have to create section sheets so Go on output, click on create section sheets

9.Do mark on add to existing sheet set select the .dst file which is already exist in the week11/support/template/company xyz.dst (PROJ 2)Click on open ,Click on create sheets , now sheets is created

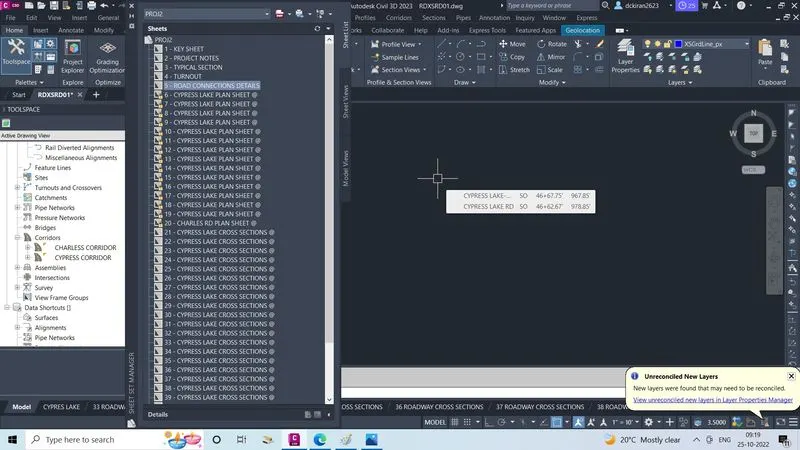

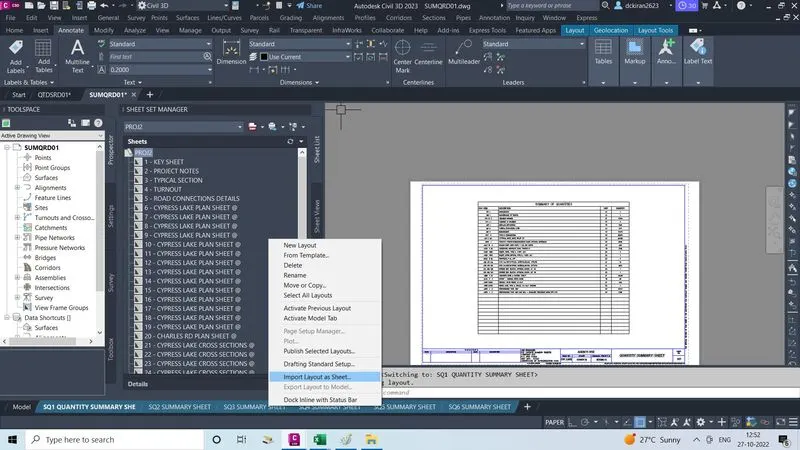

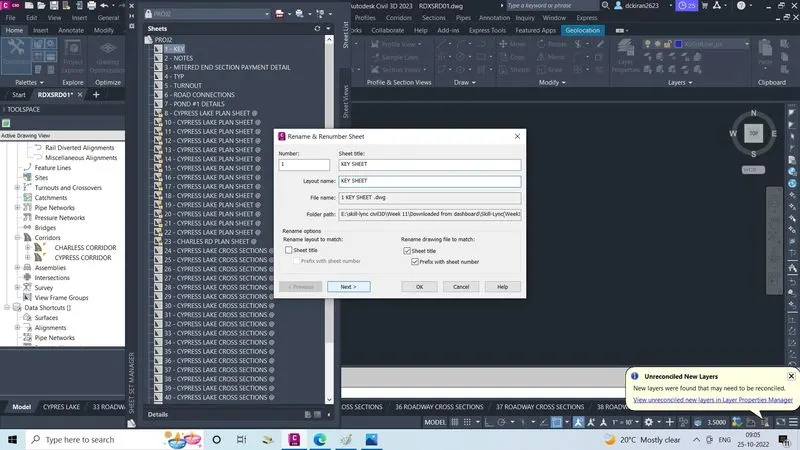

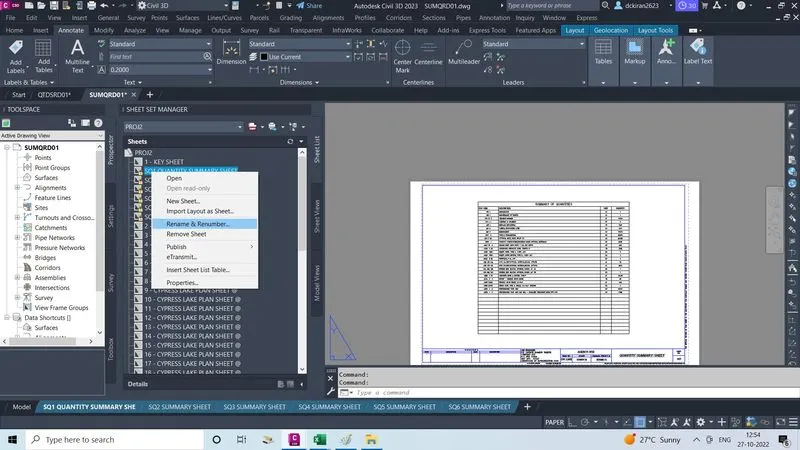

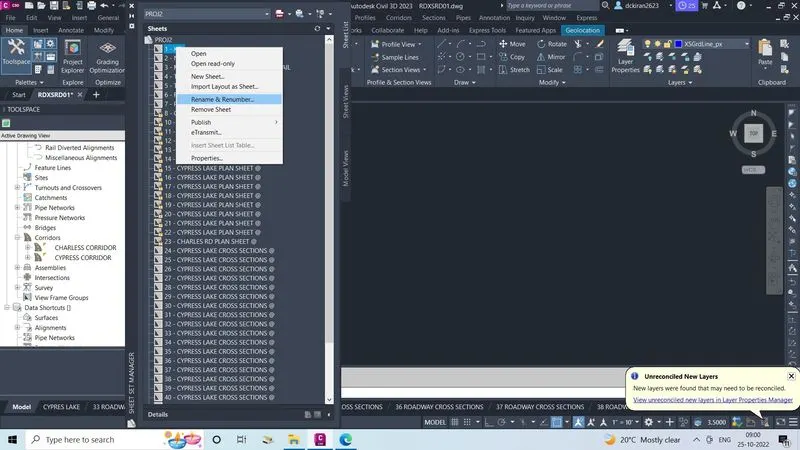

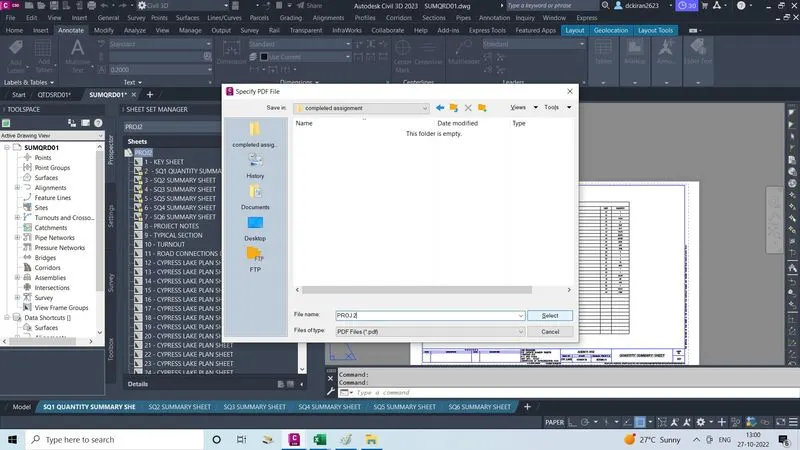

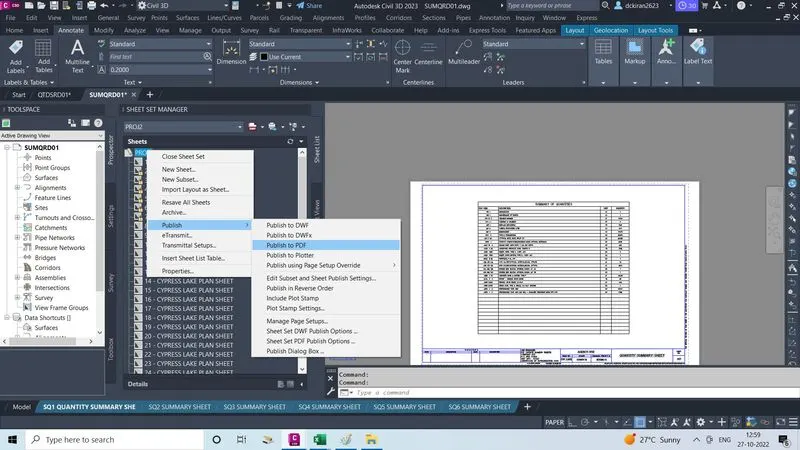

1.Now we have set the sheet in a serial wise and with a proper name so Select and right click

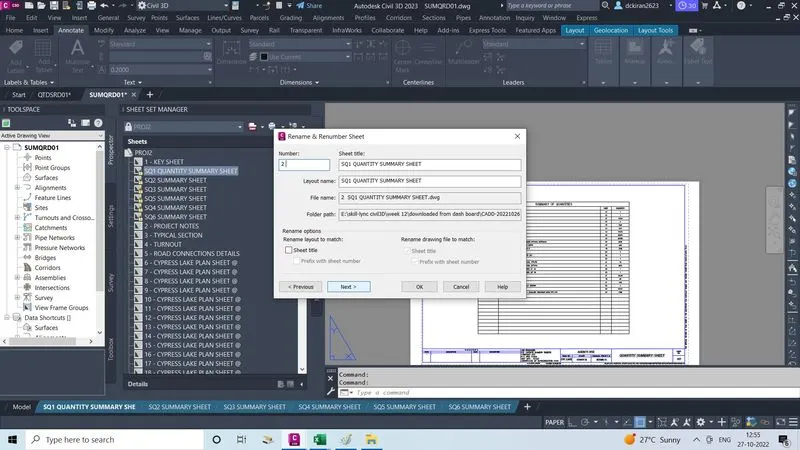

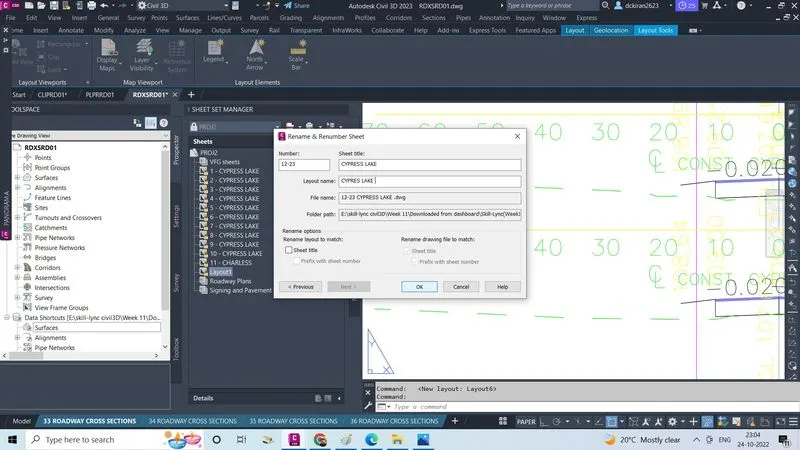

2.Click on the rename na renumber Give the proper number and proper name, click on next, like wise check to all and do the same procedure at last click ok

3.Now all sheets are in renamed and renumber as said by the company

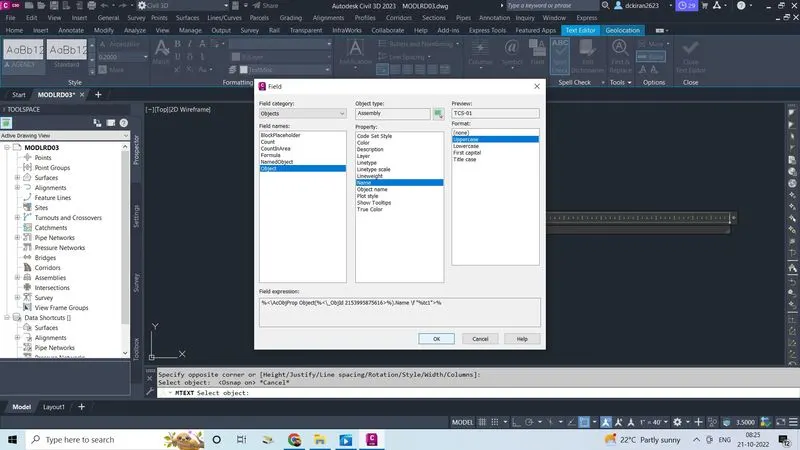

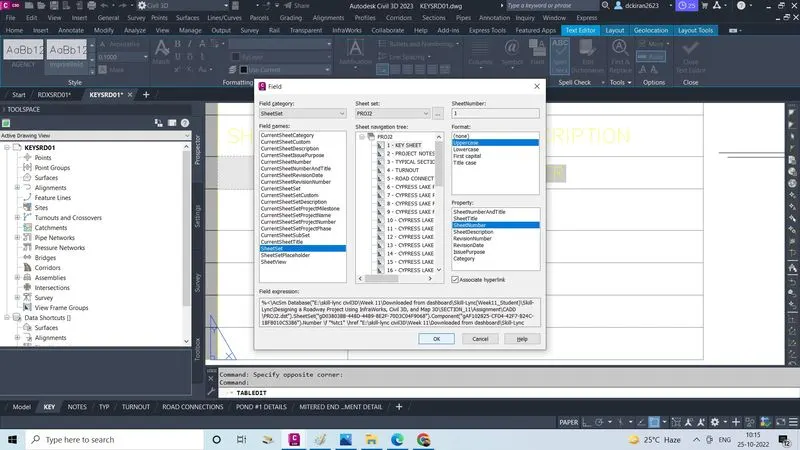

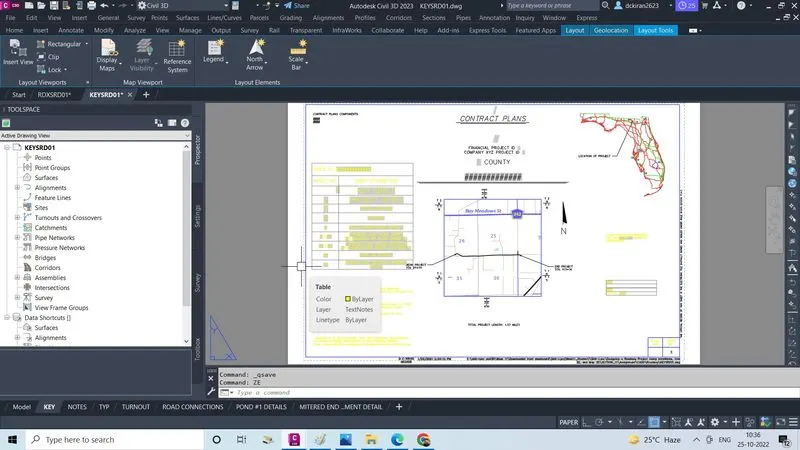

1.Open KEYSRD01 file in civil3D ,Click on the sheet no after click on the field or CTRL+F

2.Select the field catagory sheetset and related sheet are refelected their select the key sheet 1st

3.Select the formate in uppercase, select the property related to that

4.Click on ok Repeat the same procedure for all description

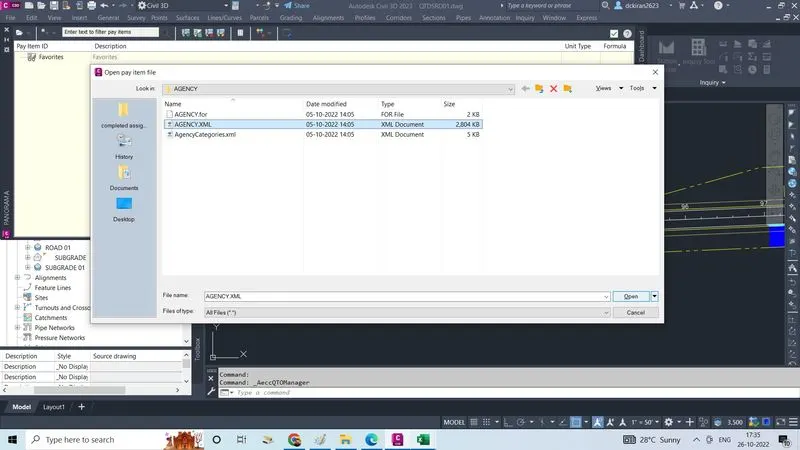

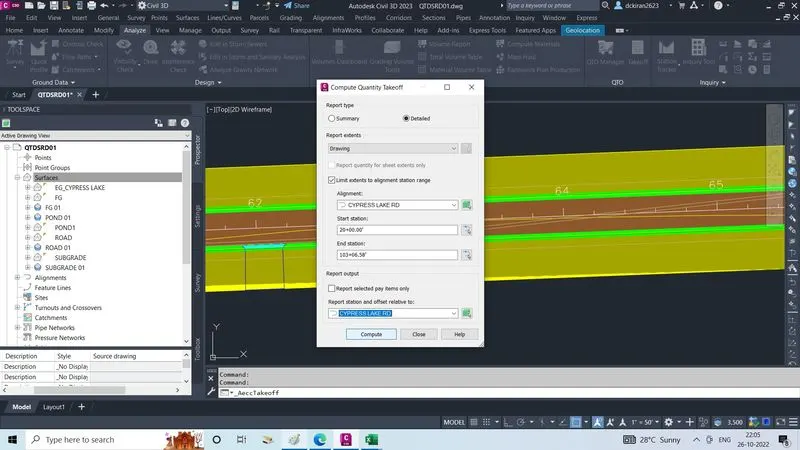

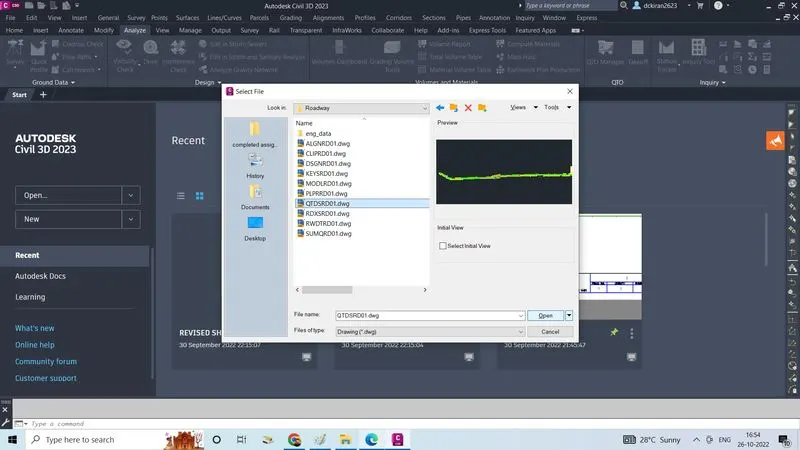

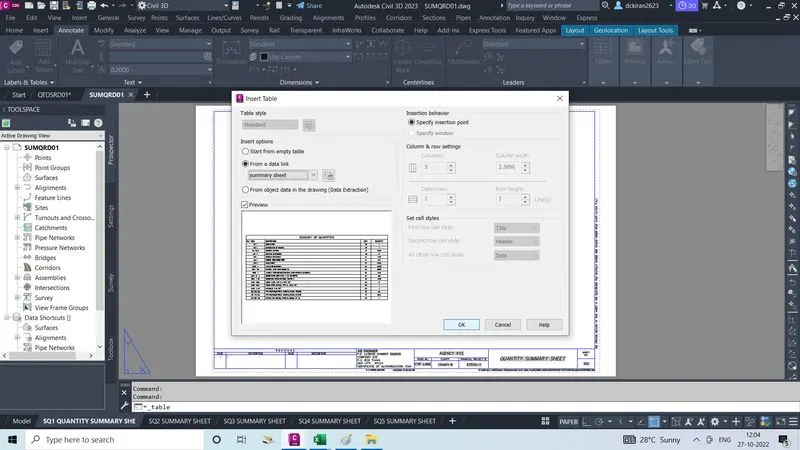

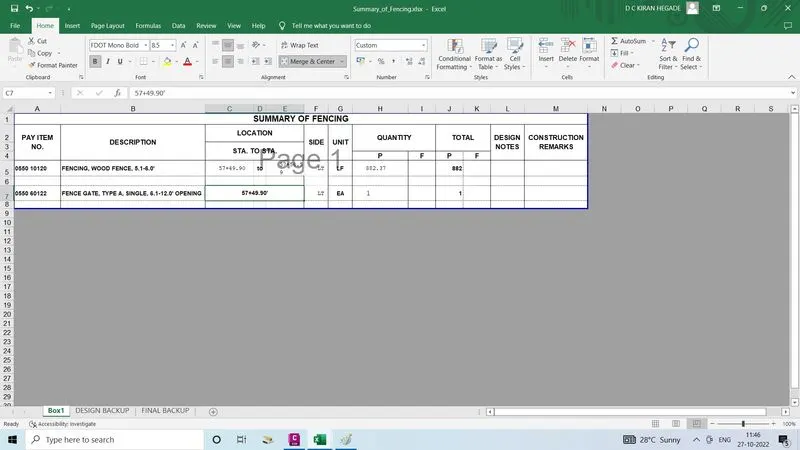

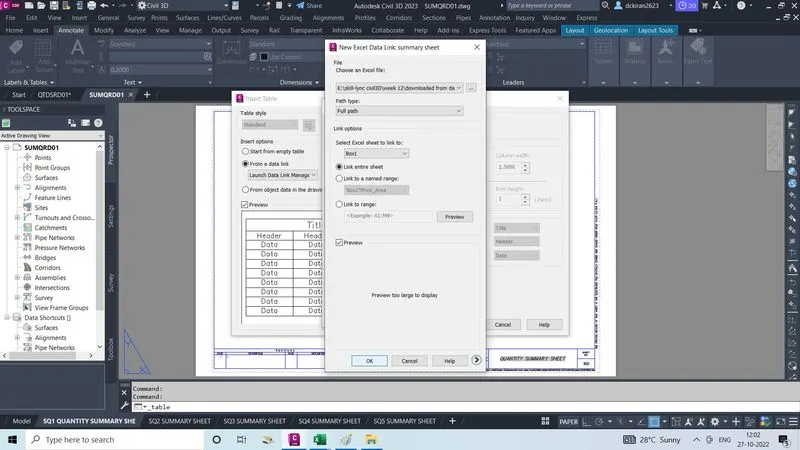

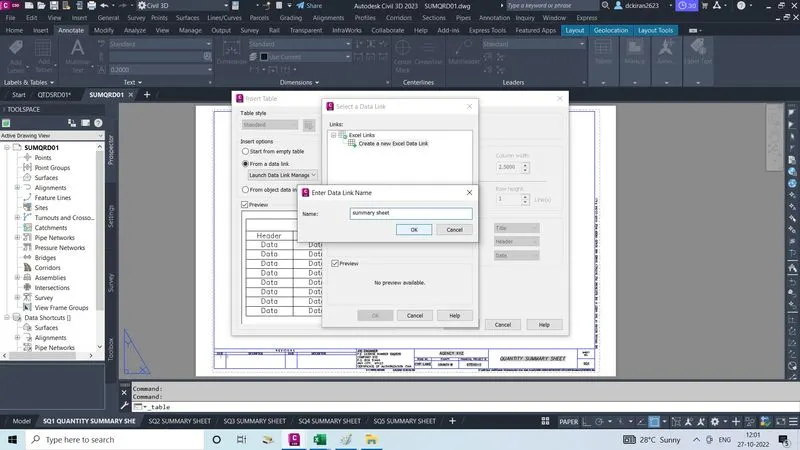

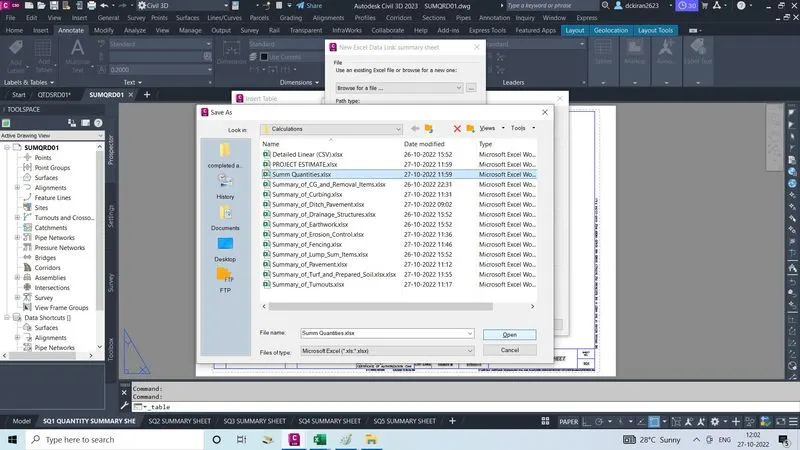

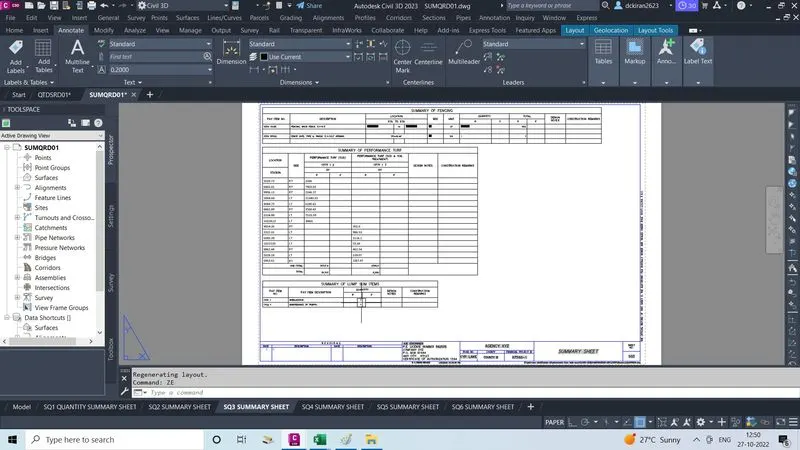

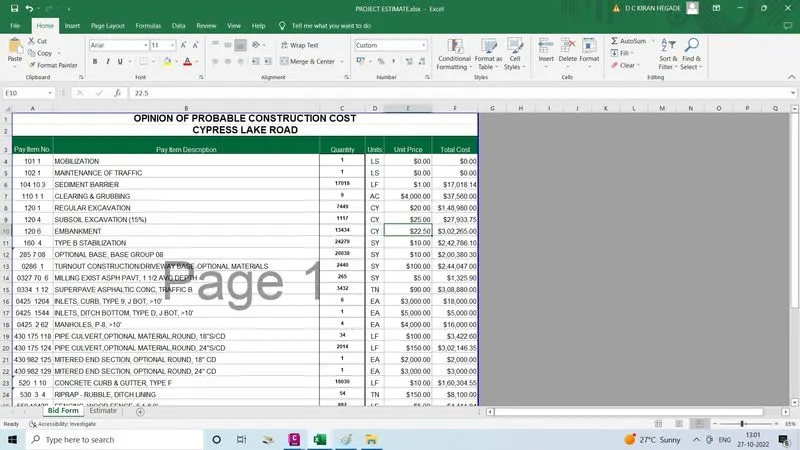

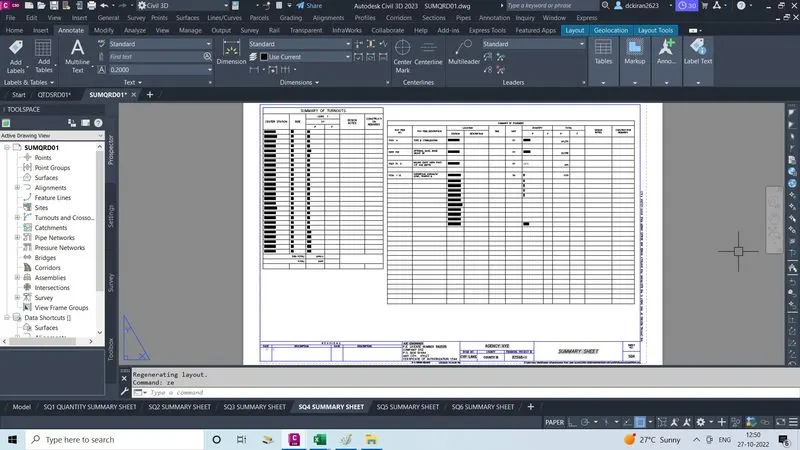

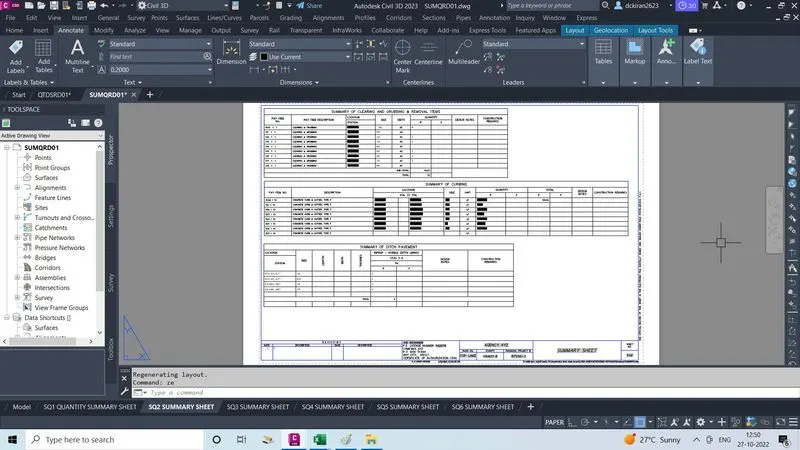

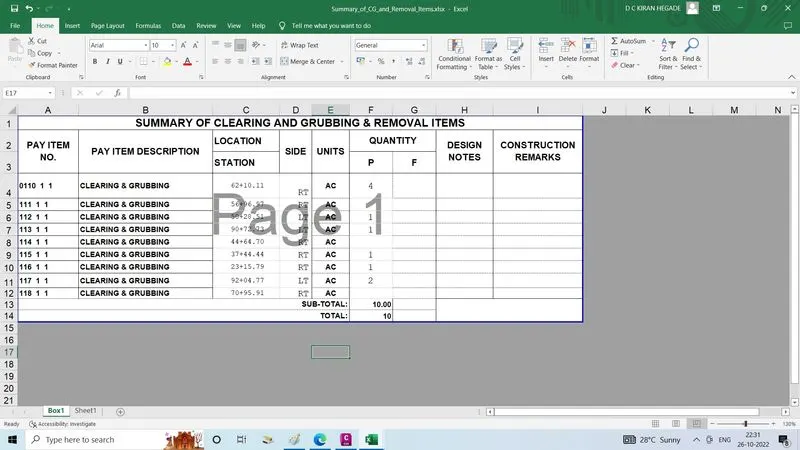

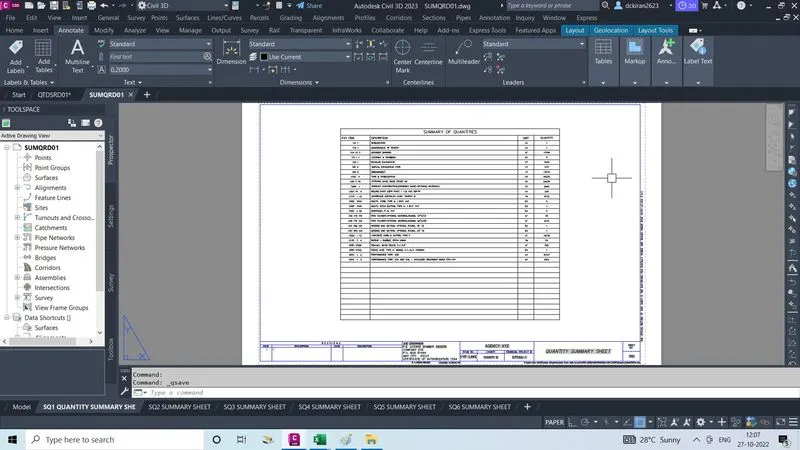

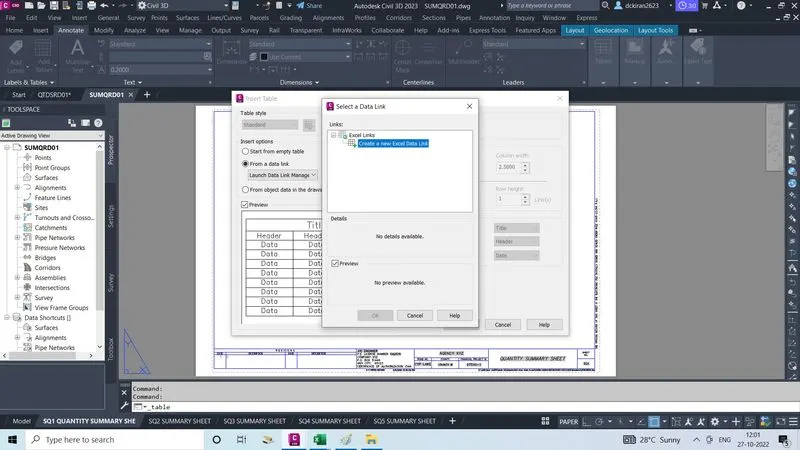

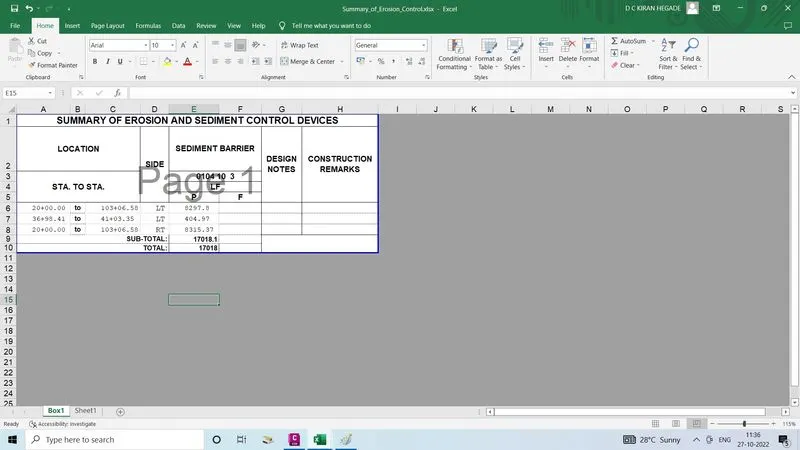

1Open the QTDSRD01 .dwg file in the civil3d ,Go to file ,click on open

2.Select the QTDSRD01 file which is already exit in the skill-lunc/week12/downloaded from dashboard/cadd/roadway/QTDSRd01 file Click on open

3.To calculate volume we want appropriate surface so there is no of surface in QTDSRD01 file which is already exist in othere ,dwg file so we will export that surfaces like,subgrade, pond,road,EG,FG XML file and import it into the QTDSRD01 file or we can add by creating the data shortcut

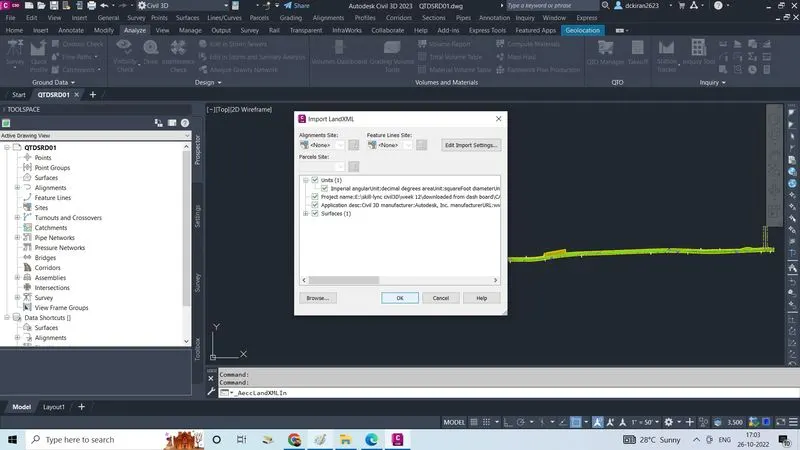

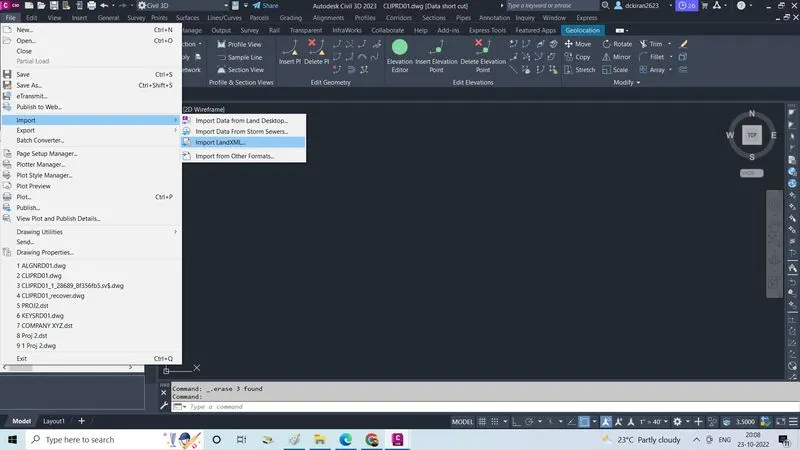

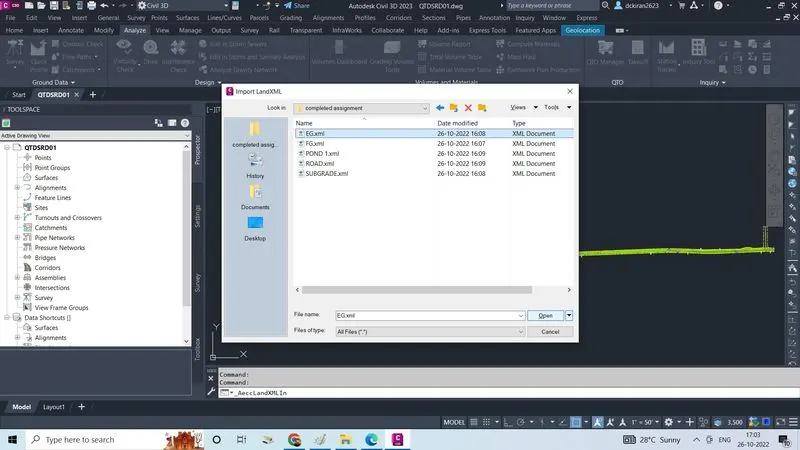

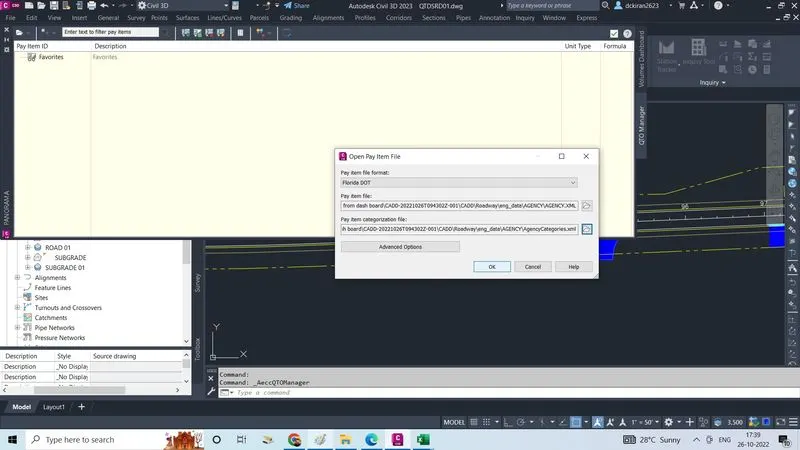

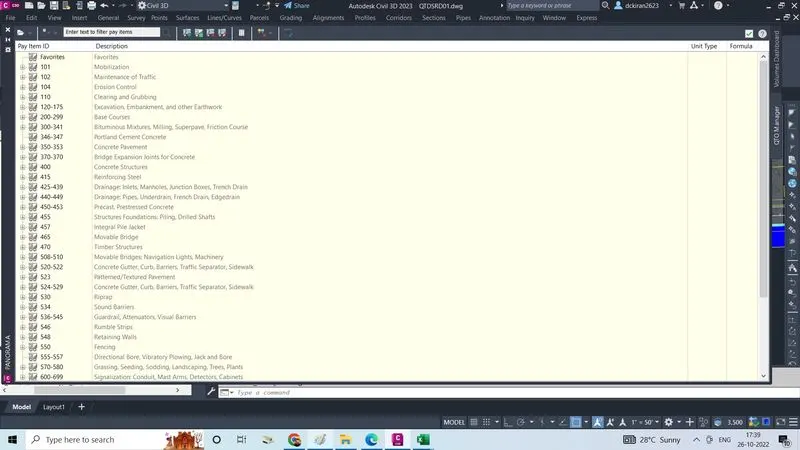

4.Export it into land XML like subgrade ,pond,road,EG,FG,import it into a QTDSRD01 file ,Now go to analyse, click on volume dashboard panaroma dailog will open

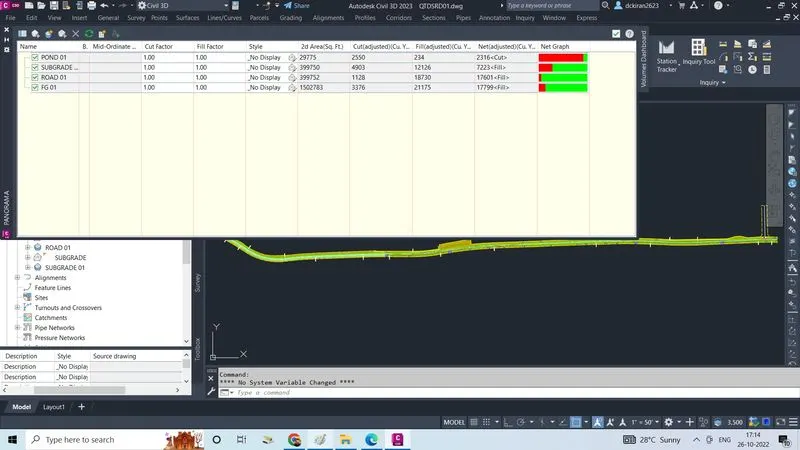

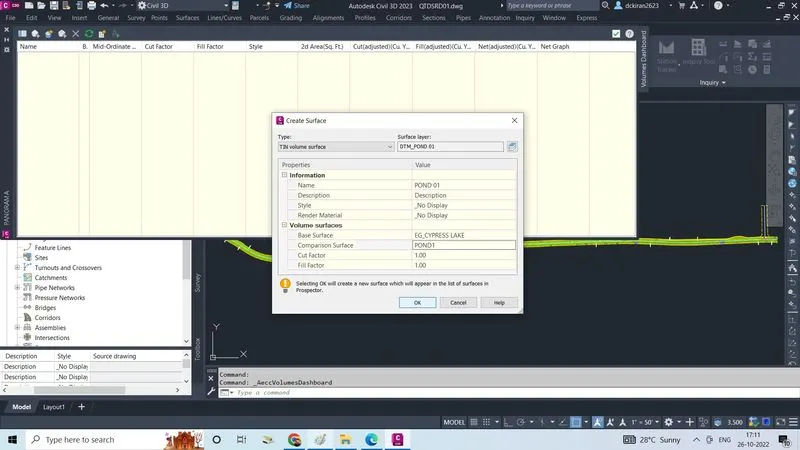

5.Click on create new volume surface We have to calculate Volume of pond, subgrade, road,FG,EG

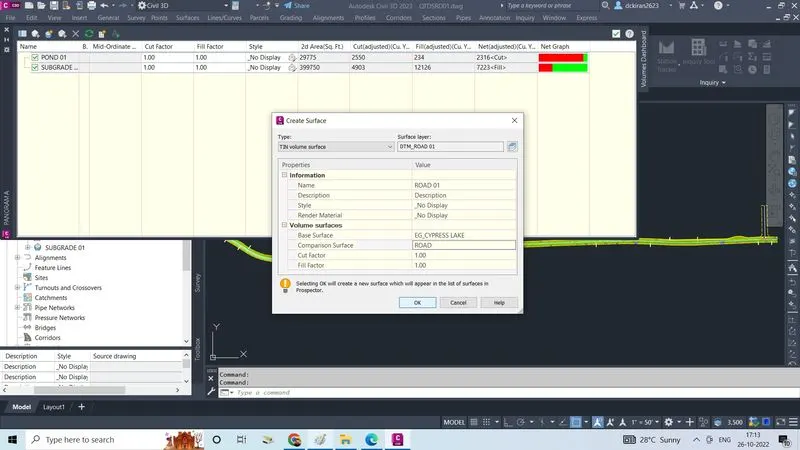

6.So give the name "POND01",In volume surface give the base surface as EG cypress lake

7.Give the comparision surface as POND1 Click on Like wise do the same procedure for all to calculate volume of surface

8.Volume is calculated for those surface

1.Open the pond file (PDPLRD01) file civil 3D In PDPLRD01 /toolspace/select and right click on site

2.Click on new Give the name as pond1, click ok Subdivisions are reflected in a pond1 like, alignment, feature line,grading groups

3.Click on new Give the name as POND1ao, click ok

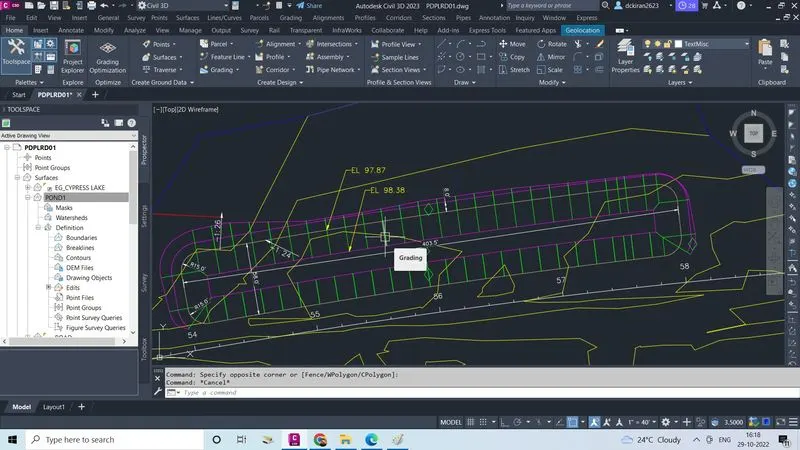

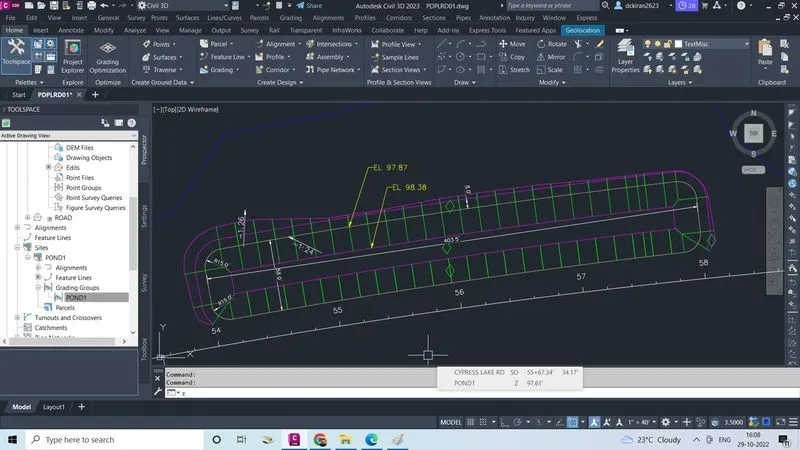

4.Create feature line, home/feature line, click on create feature line Give name as Top(140), we can give the style, click ok

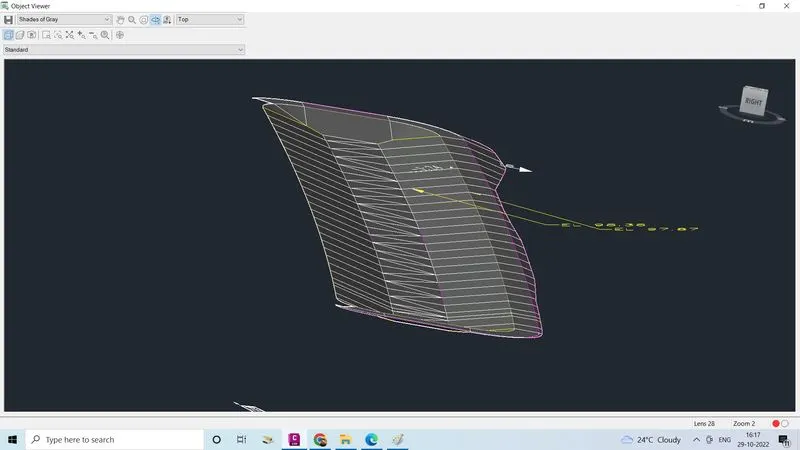

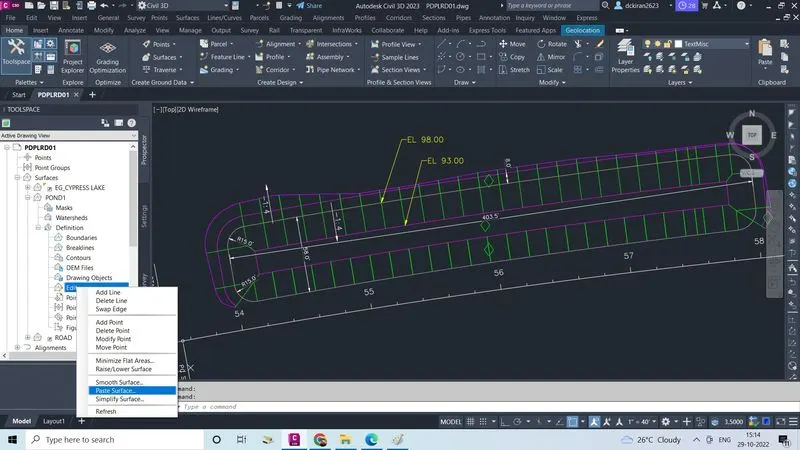

5.Now start the grading of pond Next we have to create a surface

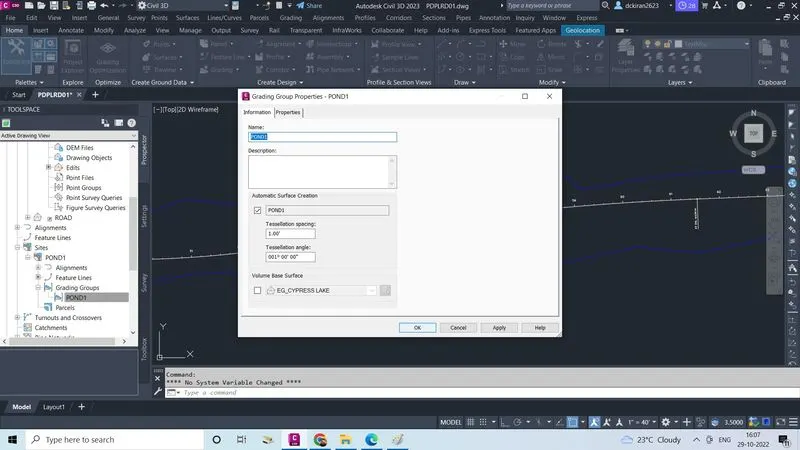

6.Select and right on the POND1 click on properties Check mark on the tessellation spacing click ok

7.Now pond surface is created

1.Open the DRPRD01 file in the civil3D Export MODLRD01 file into a land xml file and import it into the DRPRD01 file or

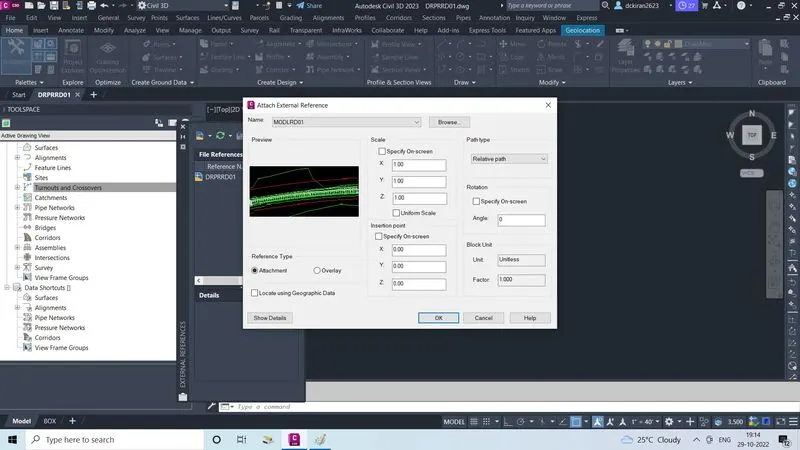

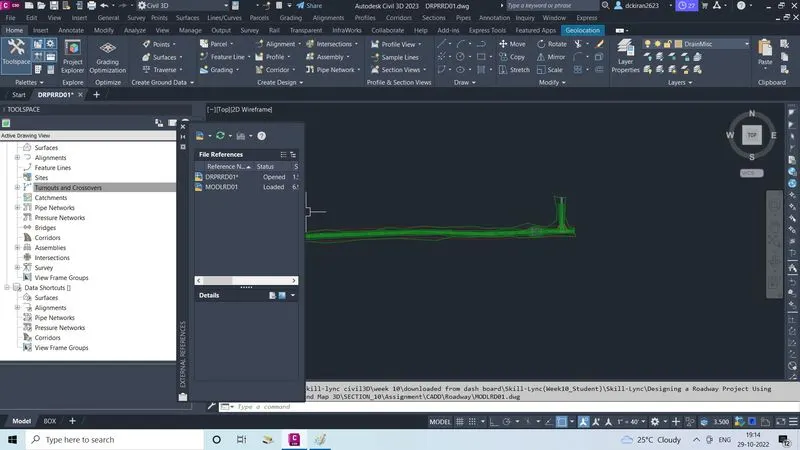

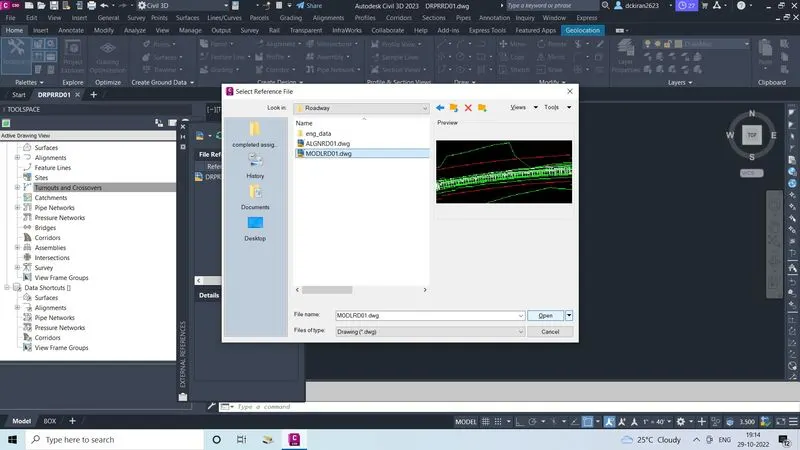

2.Type command XREF import the MODLRD01 file in the DRPRD01 file

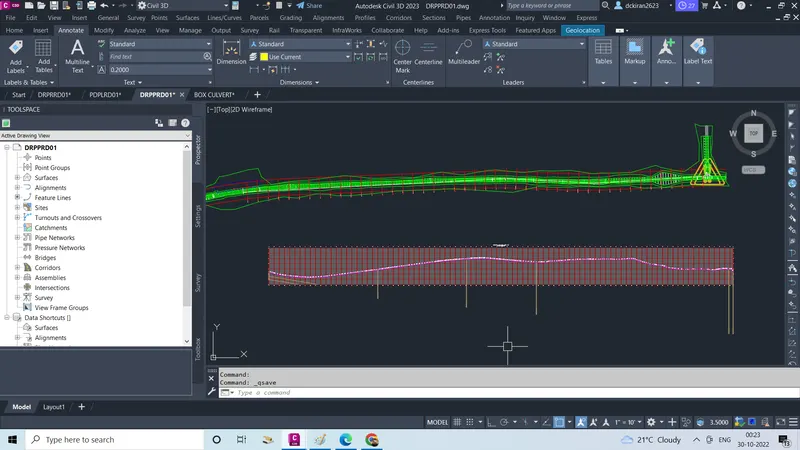

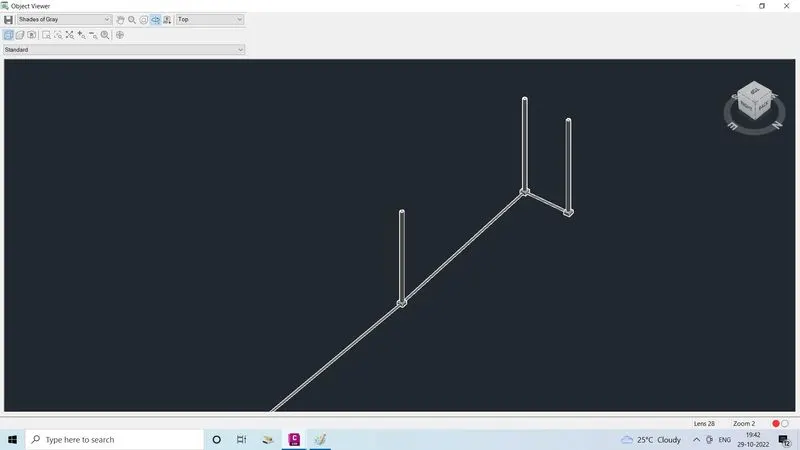

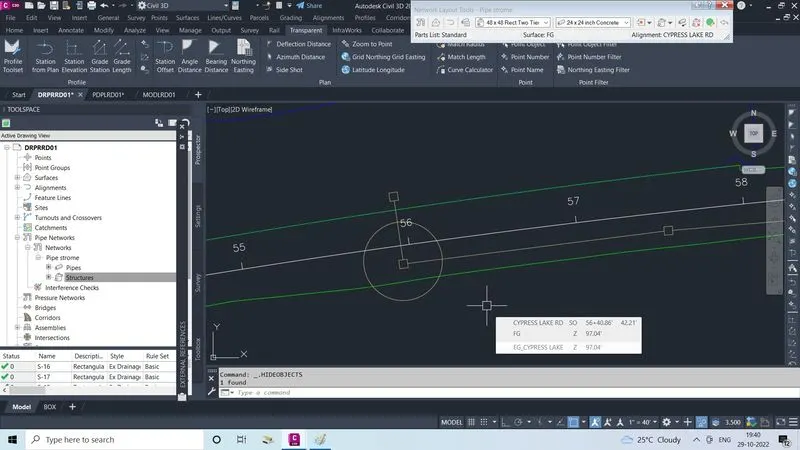

3.Now we have to create a pipe network Go to home tab, click on pipe network ,Click on pipe network creation tools Give the network name as pipestrome(PROJ1)

4.Give network parts list strom sewer Give the surface name FG,Select the alignment name

5.Click ok, network layout tool will open,Select the frame as rectangular structure circular frame 48x48 rect two Select the concrete pipe of any one 24 inch

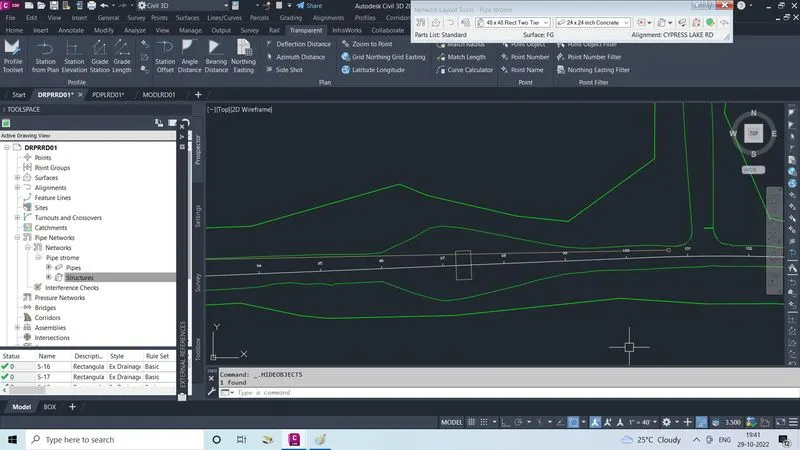

6.In transparent, select the station offset Click on the exact point where we can start to add the pipe network

7.Last Click end of the pipe well select the MES Place on the edge of the road Pipe network is created

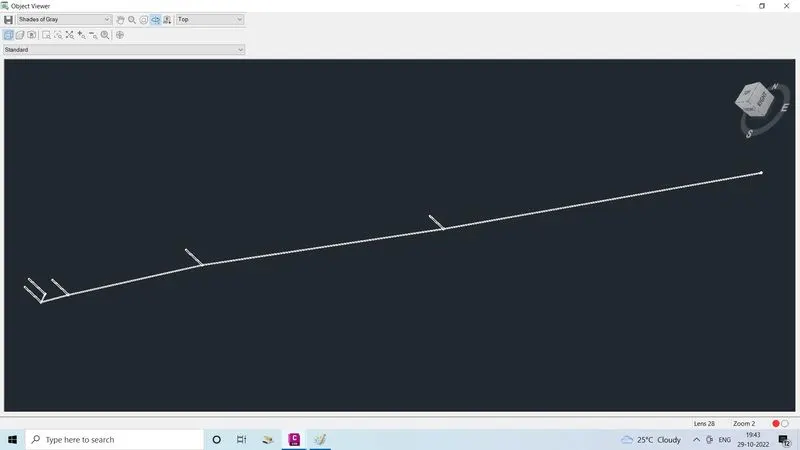

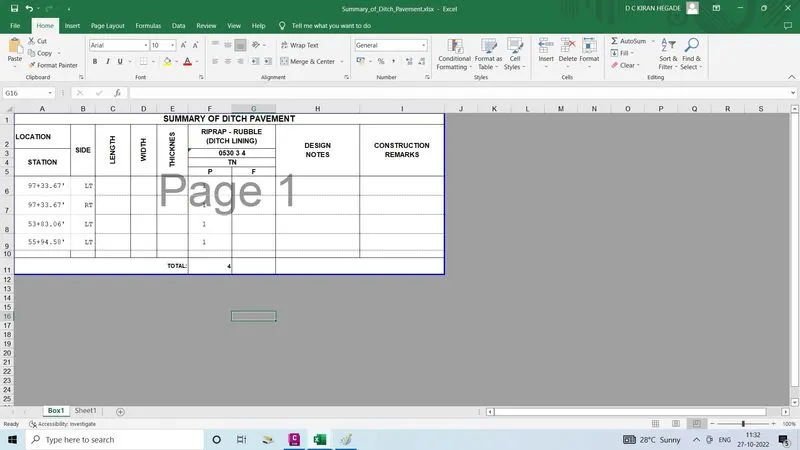

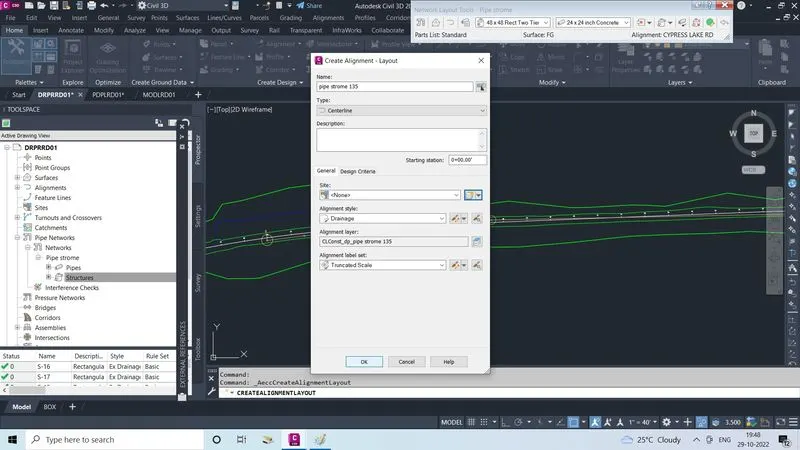

1.Click on alignment, click on create alignment from network parts Give the name as pipe strome 135

2.Start draw an alignment for the pipe Alignment is drawn for the pipe to create profile view for the pipe network Click on profile, click on create multiple profile view

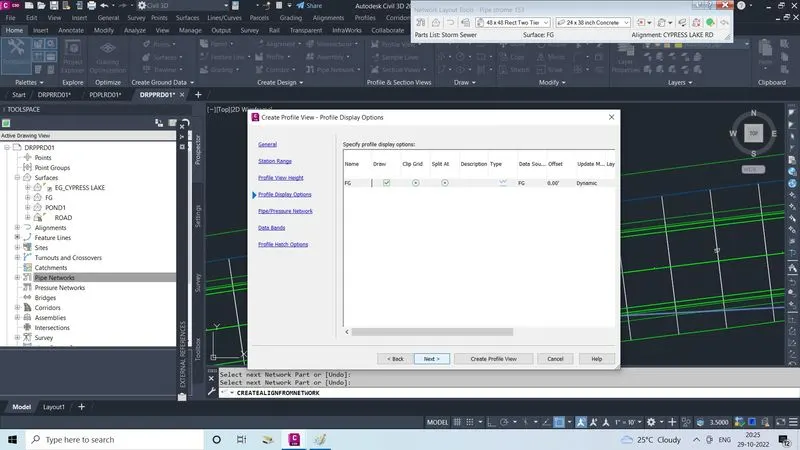

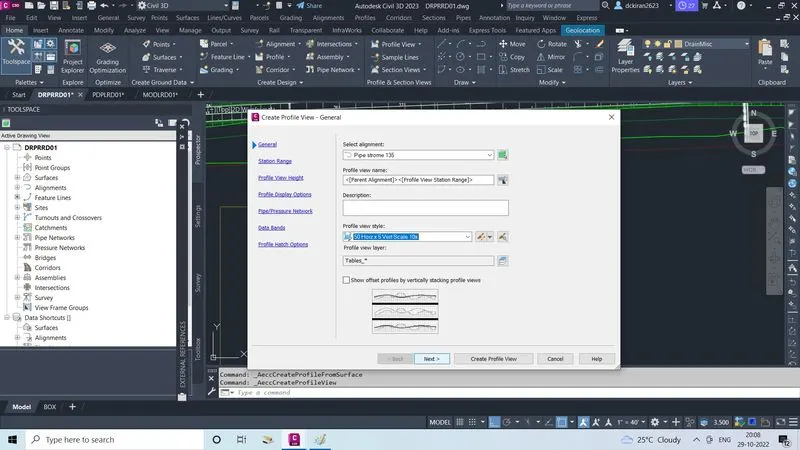

3.Select the alignment as pipe strom135 Dot mark on the user specified give the height Click next and Click on create profile view

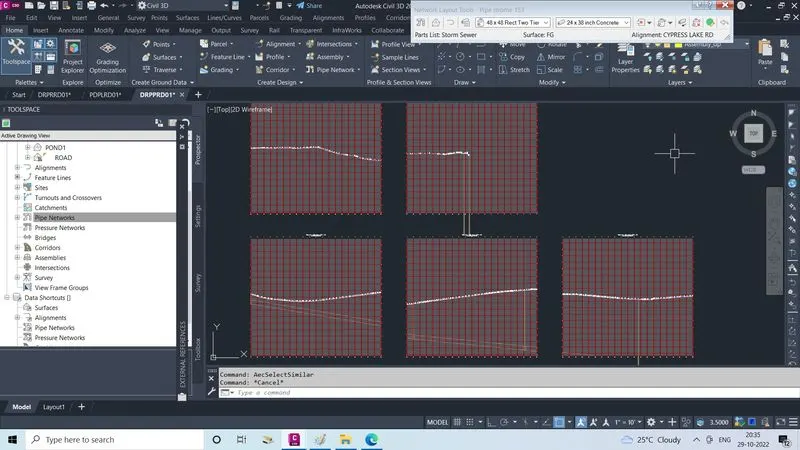

4.Click on some where profile view of the pipe network is created

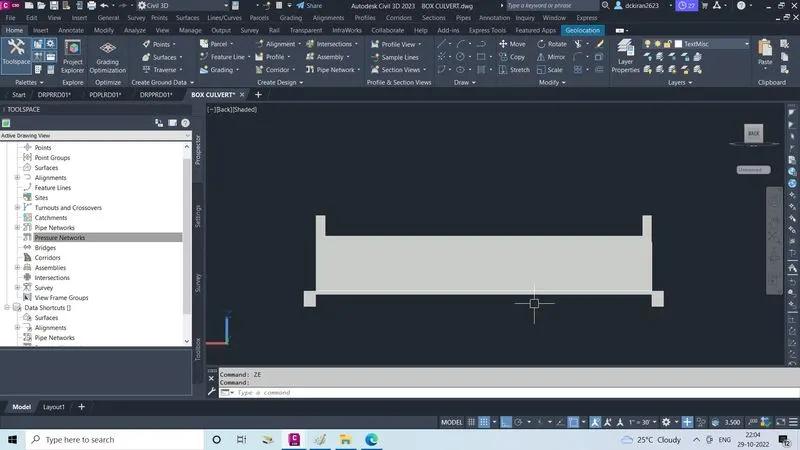

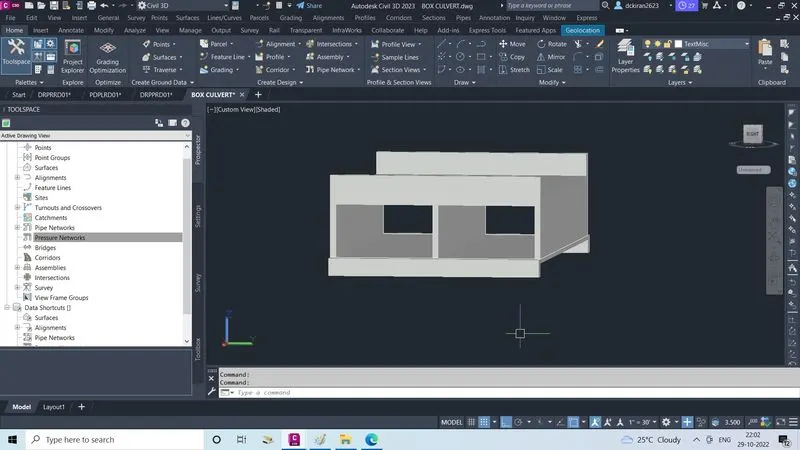

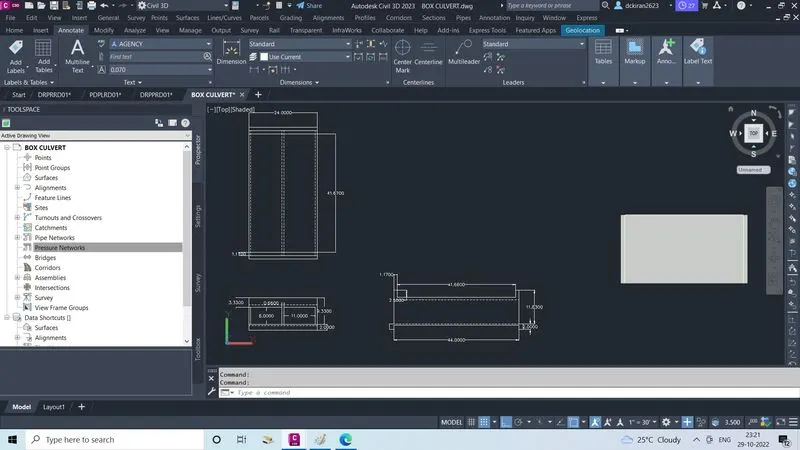

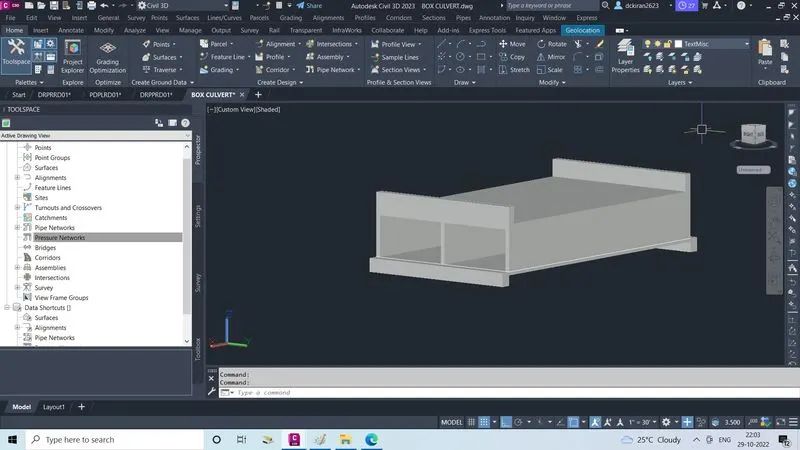

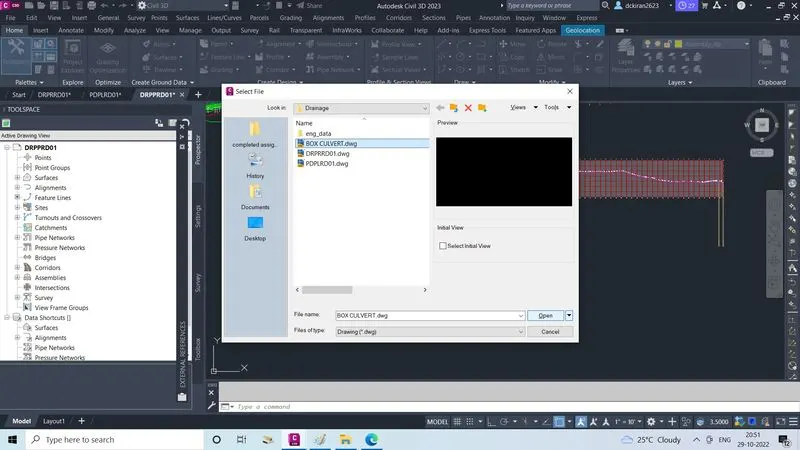

• Open the BOX CULVERT file in the civil3D
• Use regular Autocadd tools to create the Box culvert

After importing all the discription keys
