Project 2

VEHICLE BACKDOOR HARNESS ASSEMBLY

Aim

To route wiring harness for the Backdoor of a car

Objectives

• To Route the wiring harness for the given Backdoor and apply protection coverings based on the need
• To create a flattened view and 2D drawing of the bundle in Catia v5

Steps followed during the creation of wiring harness for the given backdoor

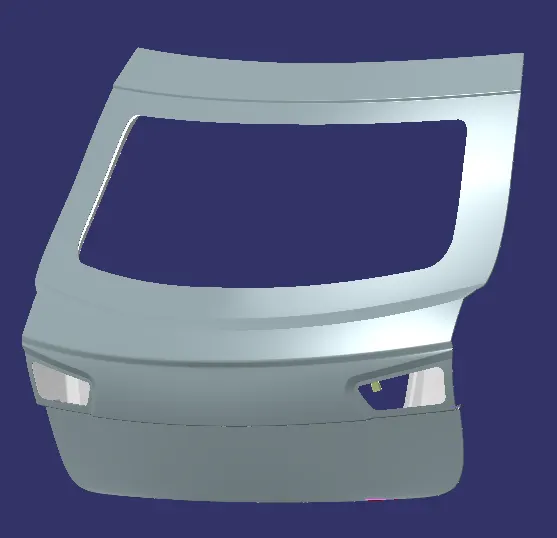

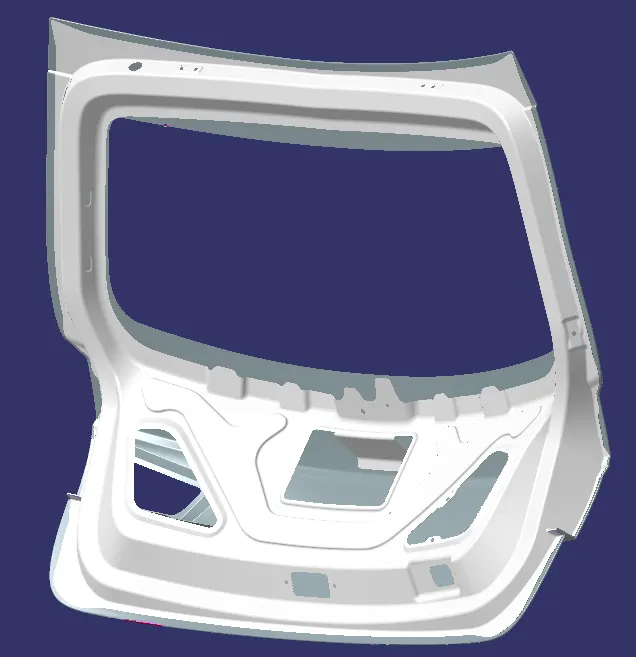

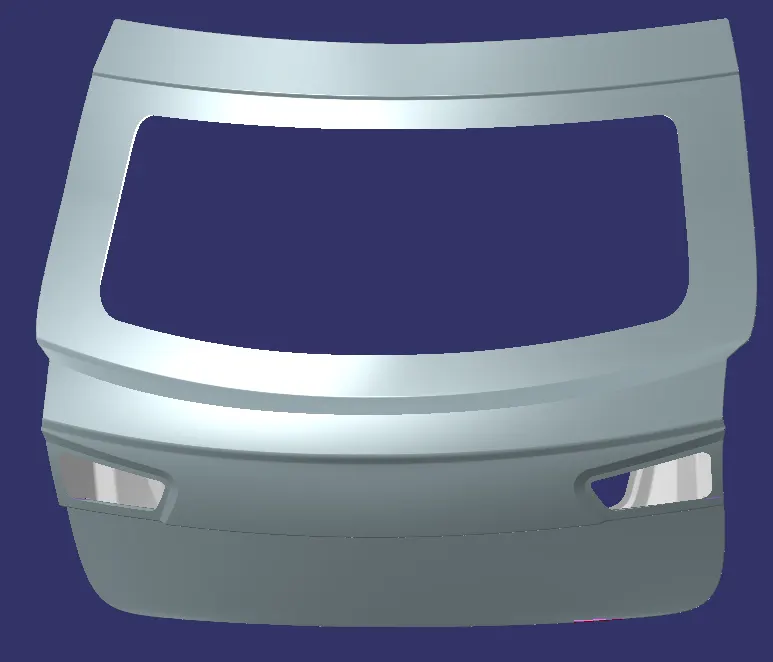

Backdoor that needed to be routed

Downloading required components and electrically defining them

Connector’s, clip, clamps and protection coverings are downloaded and defined electrically

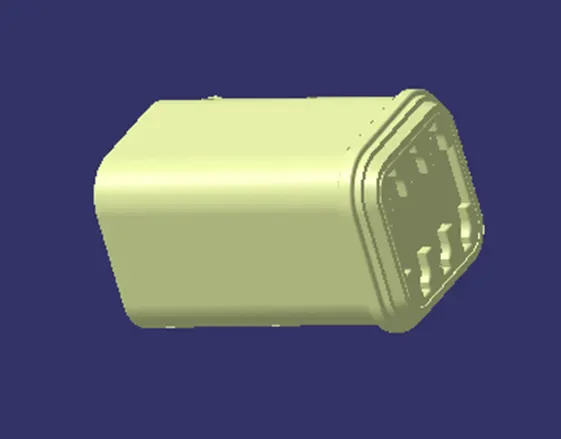

6 pole connector C-DT06-6S

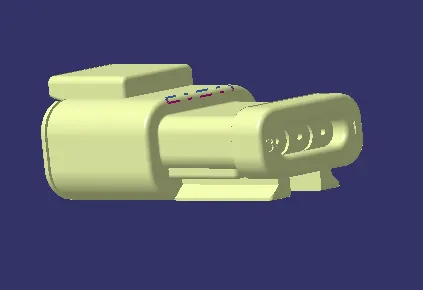

3 pole connector C-DTM04-3P

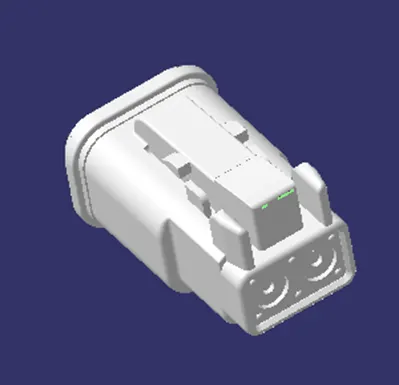

2 pole connector C-DT06-2S

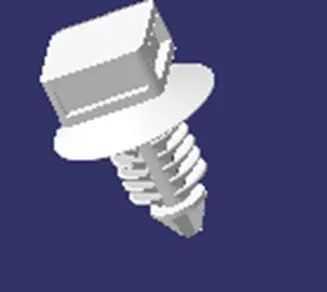

Furr Clip 20mm

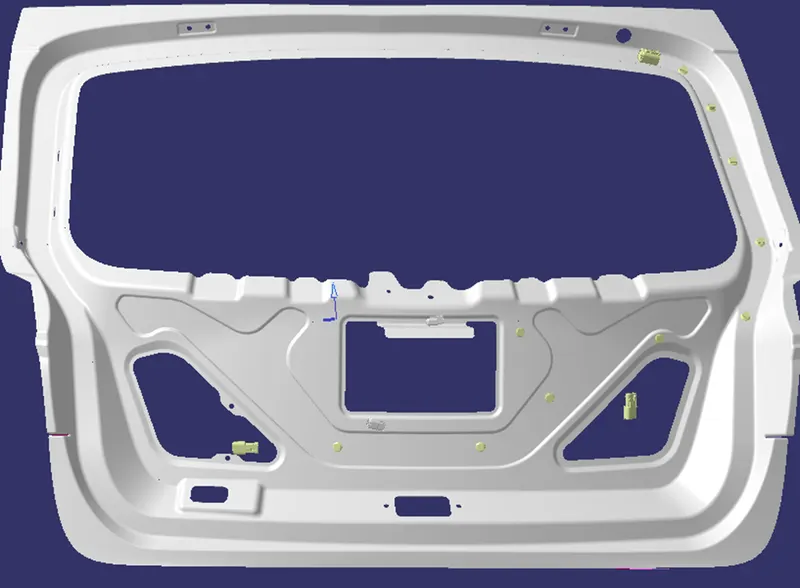

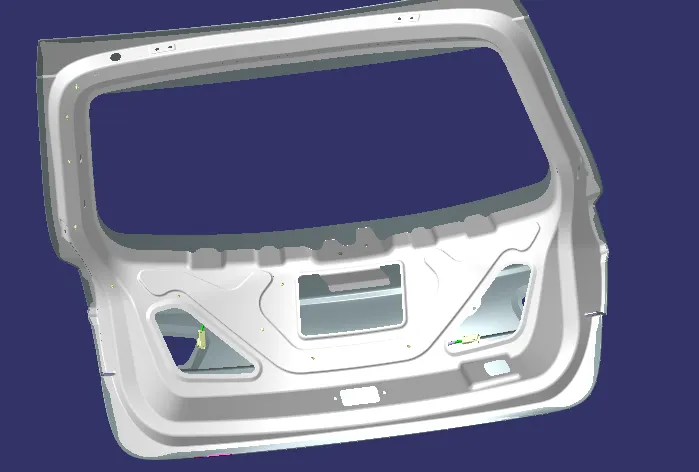

Electrical components are fixed into the required positions on the Backdoor

Wiring harness routing

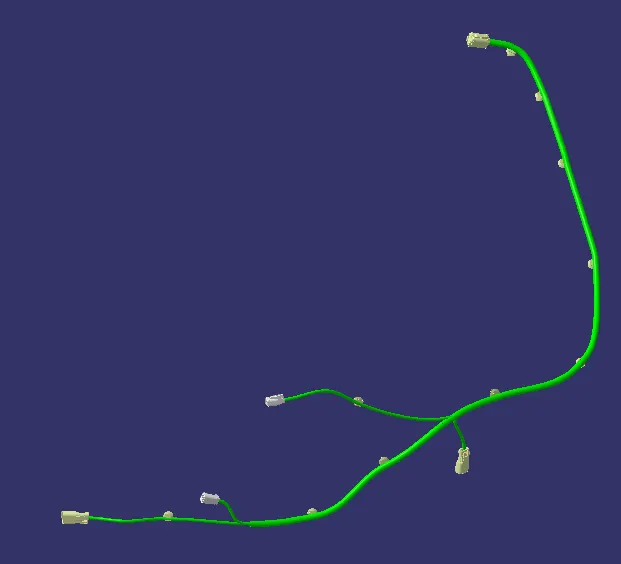

Inter connectors and connectors are connected together by routing bundle. Add branch points are used to create branches on the bundle to connect with individual connectors

Corrugated tubes are provided for protection and required distance are provided between them for taping

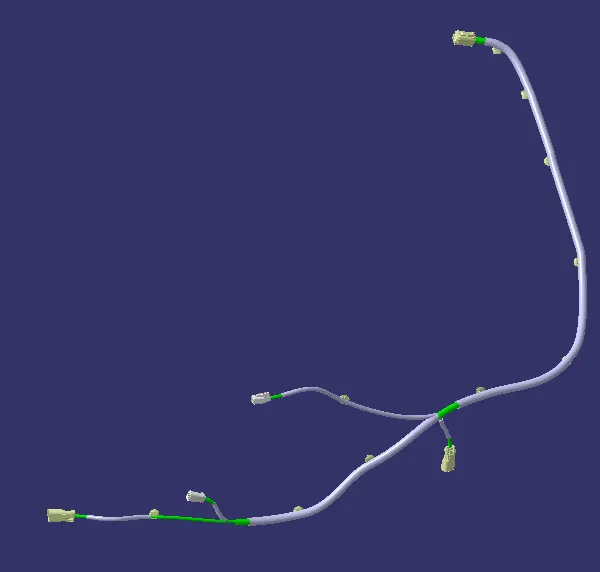

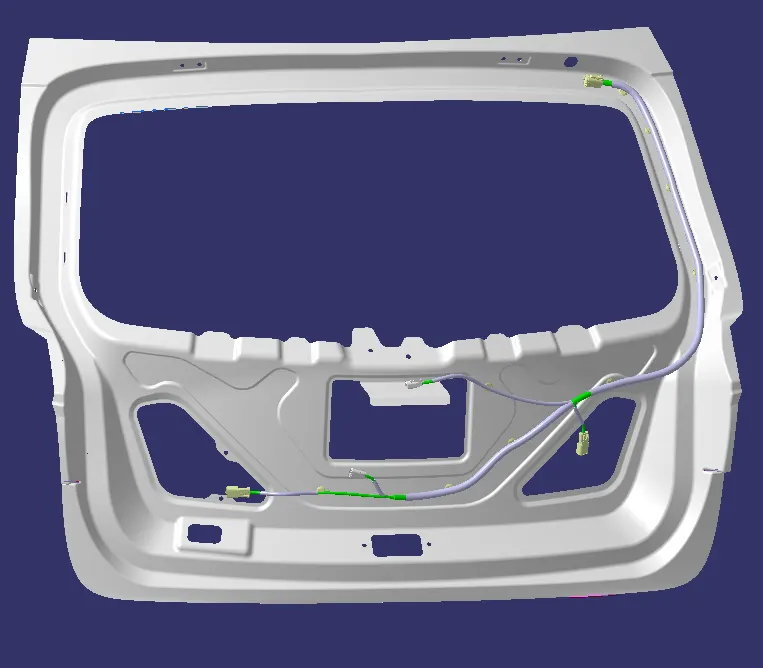

Completed wiring harness assembly of the Backdoor

Electrical continuity check

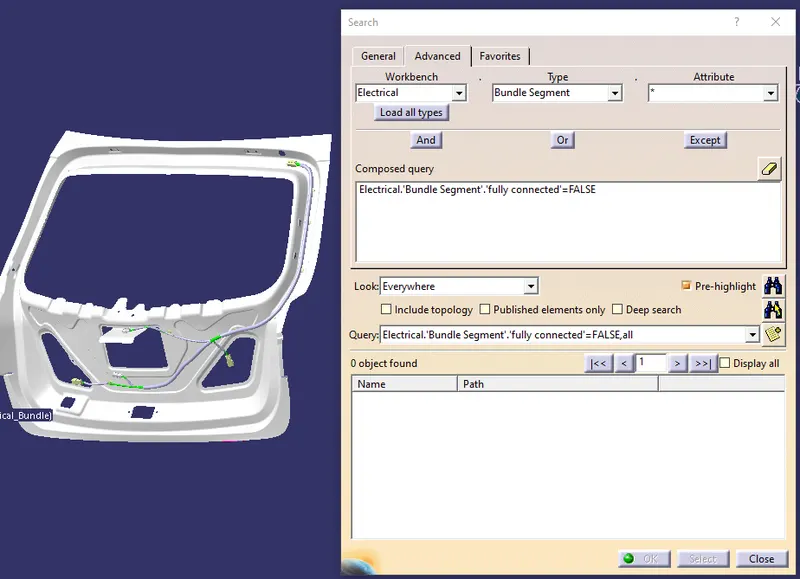

To check continuity, go to edit-search-advanced

Select workbench as electrical, type as bundle segment and attributes as fully connected

The select result should be true or false then search to analyze the continuity of the bundle segment. It the bundles are continuous the result will be as shown below

If it is selected false then no segment should be shown in the result

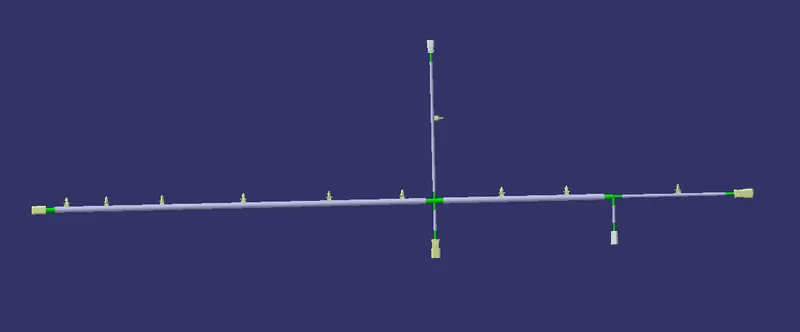

The bundle circuit is flattened using the Electrical Harness Flattening Workbench

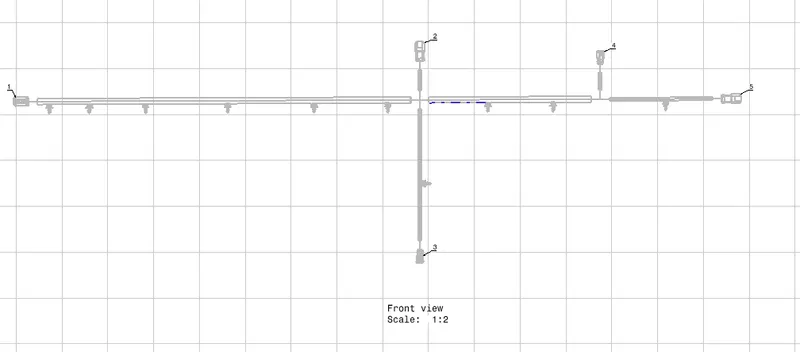

2D drawing of the bundle is created using Drafting Workbench

Conclusion

In this project I have successfully completed the routing for the wiring harness of the given Backdoor, and its flattened view and 2D drawing in Catia V5
