Project 2

Q1)

Interleaving also called multi phasing, is a technique that is useful for reducing the size of filter components. This is equivalent to a parallel combination of two sets of switches, diodes, and inductors connected to a common filter capacitor and load. The switchws are operated 180 degree out of phase.The current entering the capacitor and load resistance is the sum of the inductor currents, which has a smaller peak-to-peak variation and a frequency twice as large as individual inductor currents.

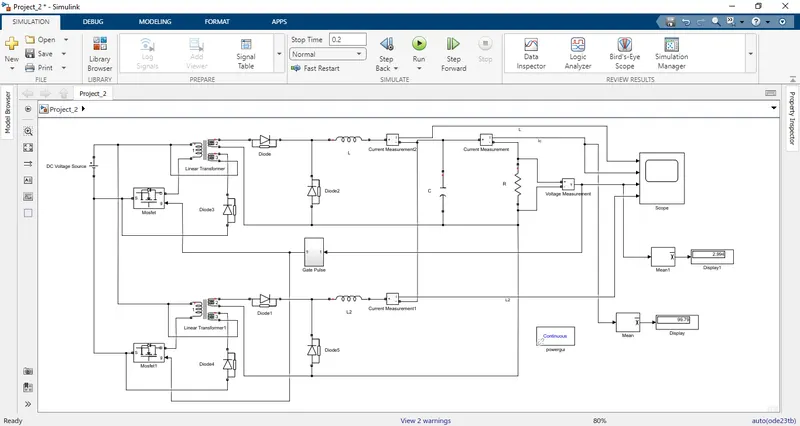

Circuit Diagram:-

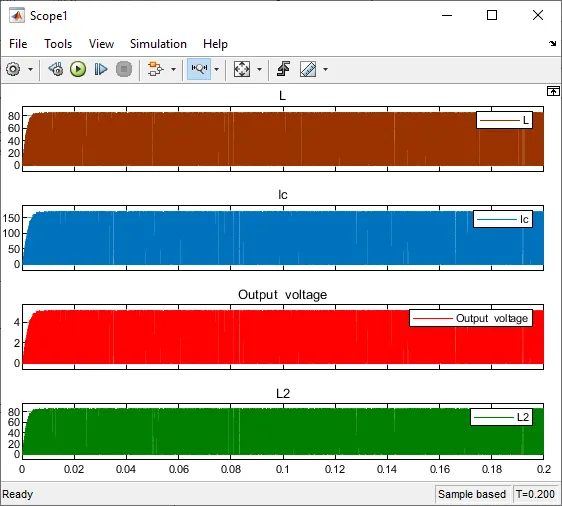

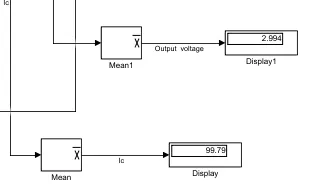

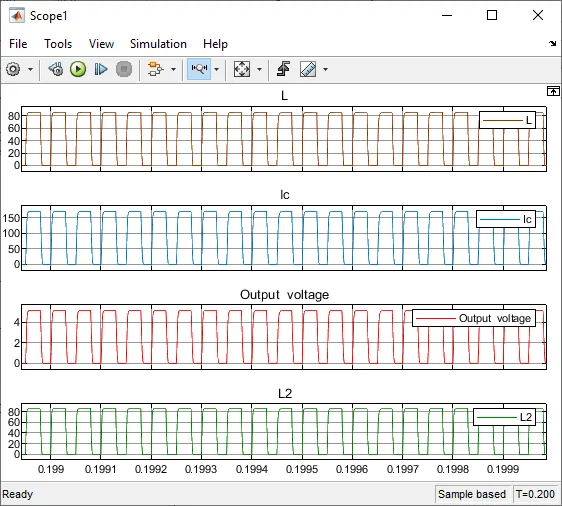

Display:-

Result:- To overcome with lots of losses we use to perform the interleaving DC/DC converter. It contains the better efficiency.
