Project 2

AIM: To Route the wiring harness on given car body and prepare flatten view drawing in CATIA V5.A pplying of all packaging rules, industry best practices studied in this course shall be demonstrated in design.Applying Protection covering to the bundle segement as required.

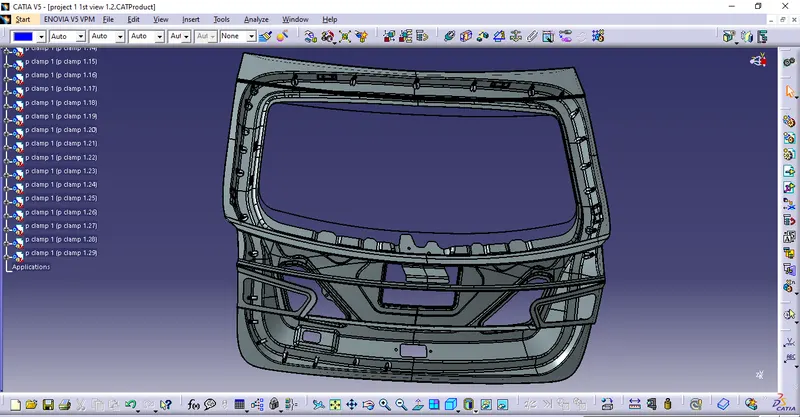

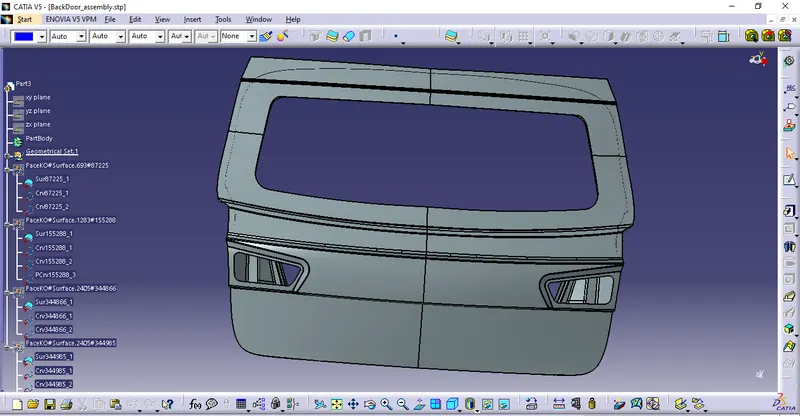

|CAR DOOR BODY IS DESINGED AND TAKEN INTO HARNESS DEISNG MODULE |

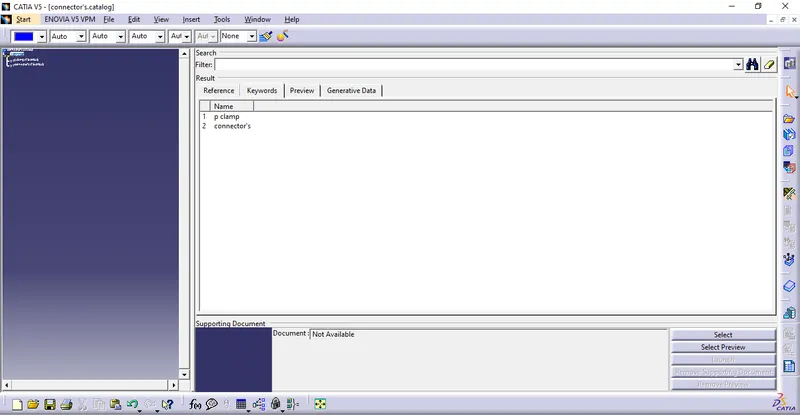

|CATALOG CREATED |

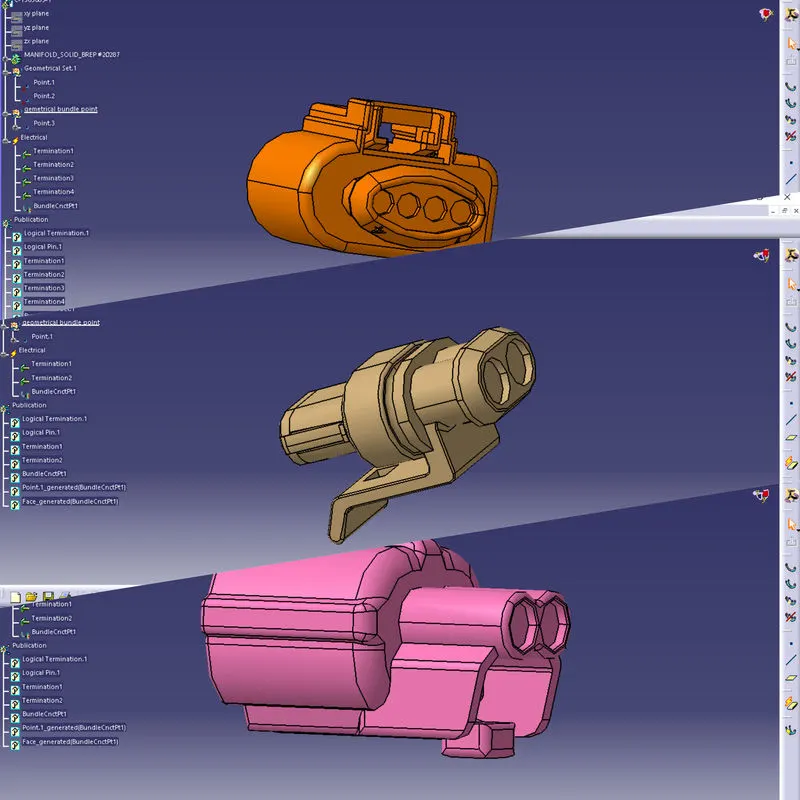

|CONNECTOR'S ARE ELECTRICALLY DEFINED |

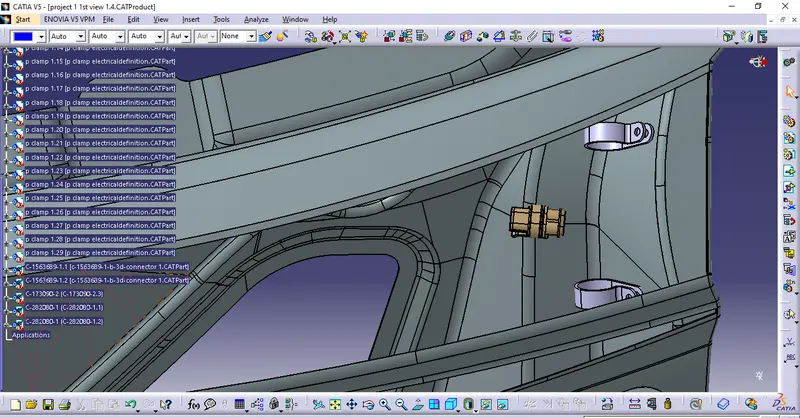

|P-CLAMPS ARE ASSEMBLED|

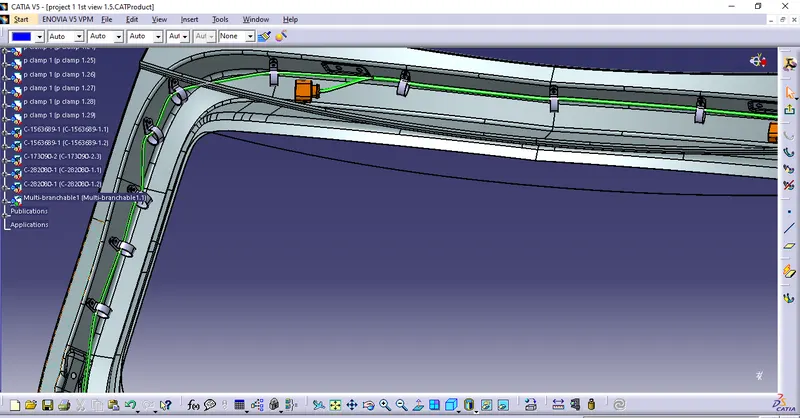

|CONNECTOR'S ARE ADDED|

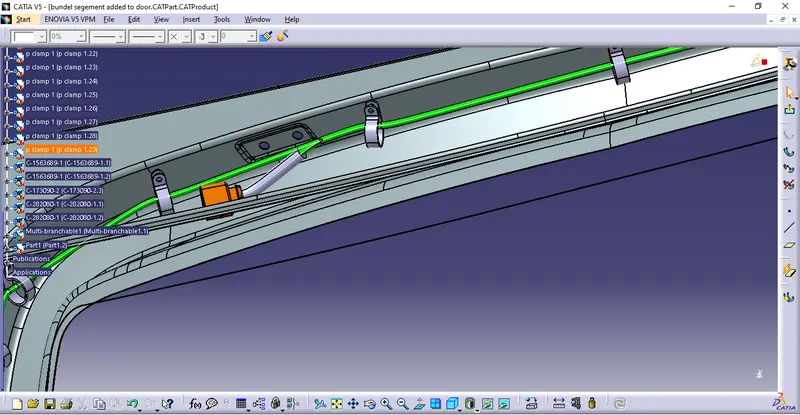

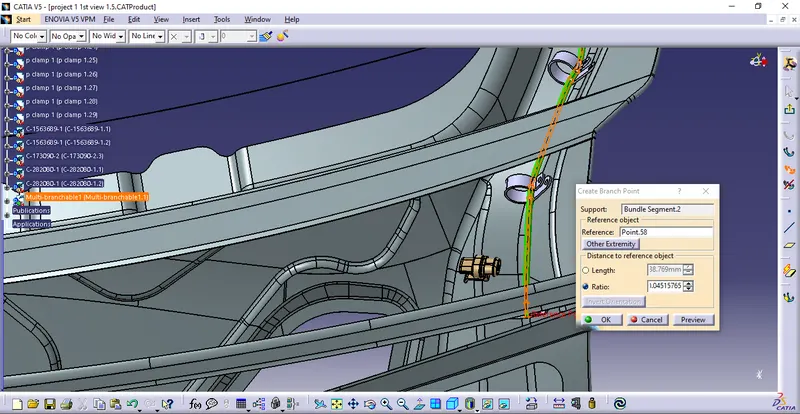

|ALL BUNDLE SEGEMENT ARE ADDED AND BRANCH POINT ARE CREATED|

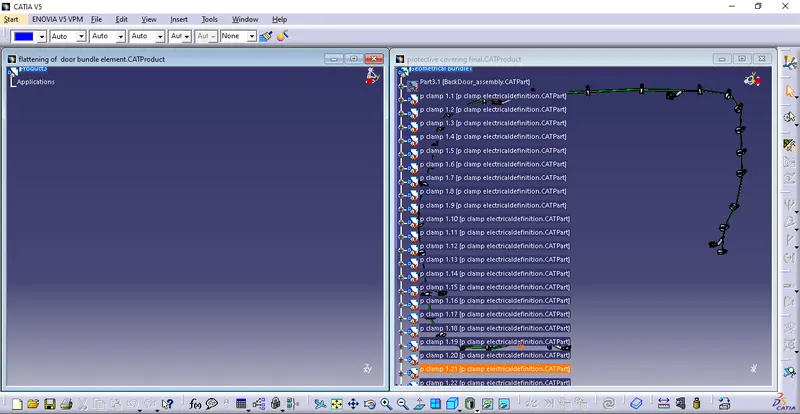

|FINALLY ALL BUNDLE SEGEMENT ADDED AND PROTECTION COVERING ARE CREATED|

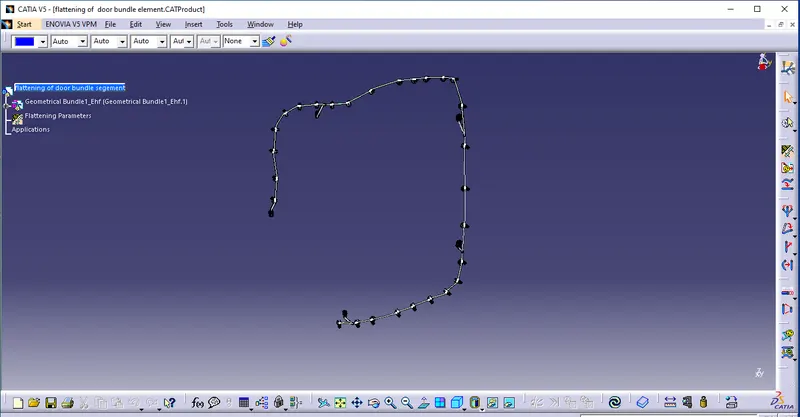

|BUNDLE SEGEMENT ARE ADDED TO FLATTENING MODULE|

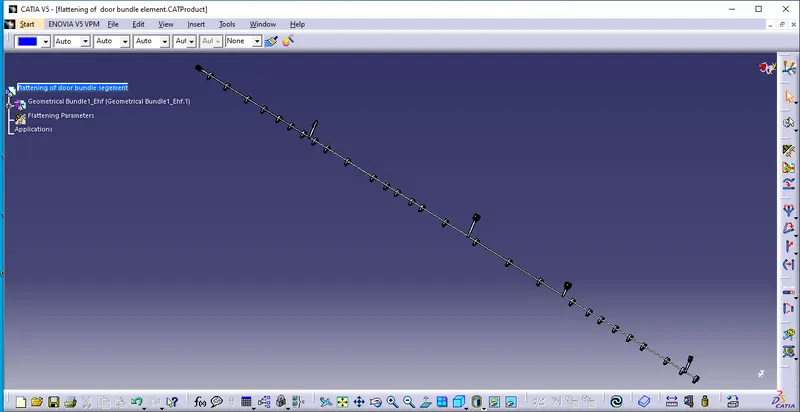

|FLATTENED MODEL CREATED |

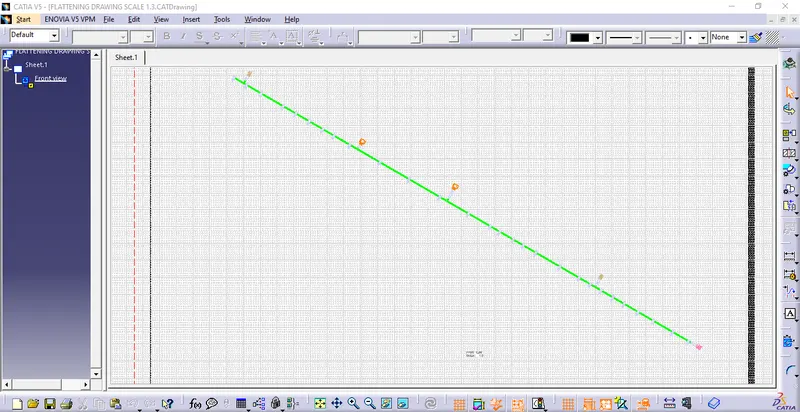

|DRAWING SHEET CREATED|
