Project 2

BACK DOOR WIRING HARNESS ROUTING

AIM:

To route the wiring harness on the Back Door and prepare flatten view drawing in CATIA V5. All types of packaging rules have to be considered while routing the harness. Also, Industry best practices should be demonstrated in design. All the necessary details like clearance, clipping/clamping selection, harness fixing requirements, harness continuity should be provided in order to design wiring harness.

INTRODUCTION:

A wire harness, also commonly referred to as a wiring harness, is an exterior sheath used to cover some types of electronic wires. Generally, wiring harnesses are made of thermoplastic or thermoset materials that can help protect the cables from the environment.

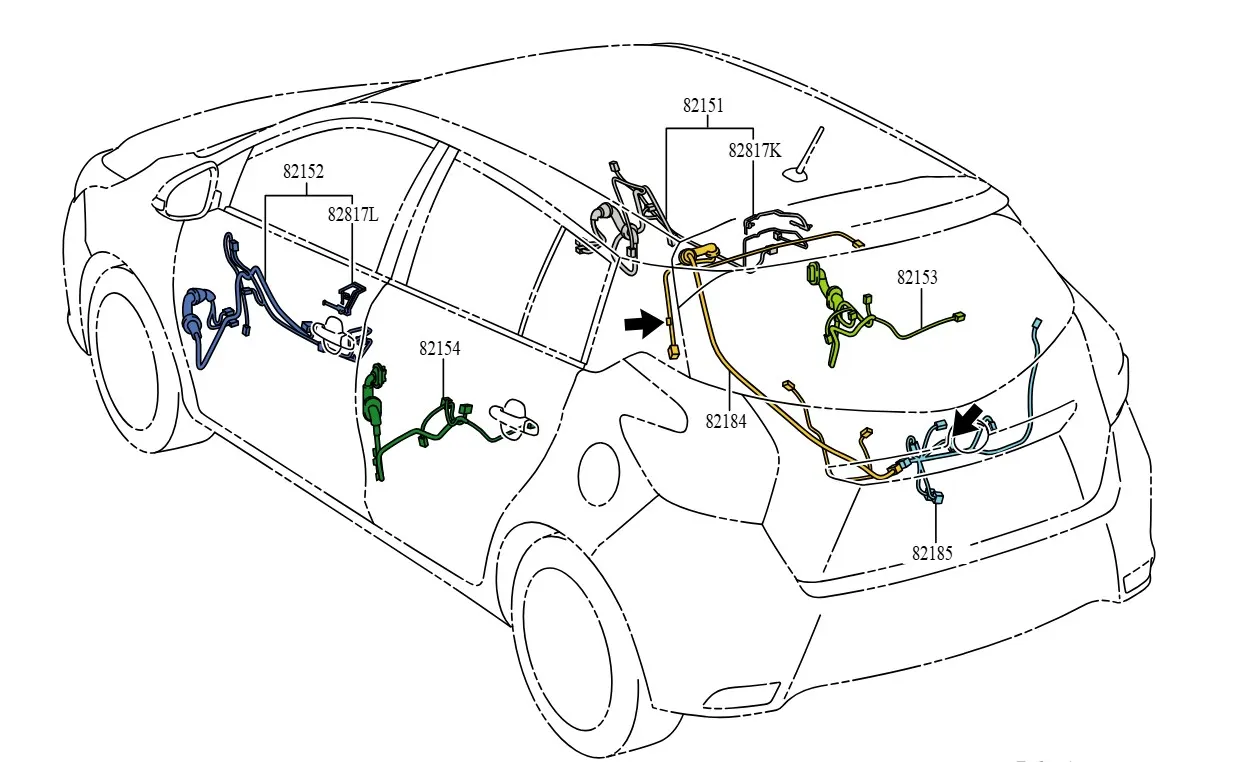

In this project we are going to route wiring harness for a back door.

SOME IMPORTANT PACKAGING RULES TO BE CONSIDERED DURING WIRE HARNESS ROUTING AND PLACING OF THE CLIPS AND CLAMPS:

• P - Clamps, Fir tree clips and other clips can be added to the Geometric bundle as they are electrically defined and are part of the Wire harness routing and should be provided with the Wire bundle package.
• The minimum bundle length should be 50mm.
• Enough slack should be provided so that the wiring harness does not get damaged during back door opening condition.
• The wire harness routing should be done in such a way that it is easy in manufacturing and serviceability.
• The wire routing should be done keeping in mind the cost effectiveness of the bundle package.
• To avoid the harness routing and clipping in blind zones of the operator during the assembly and the service.
• Additional slack should be given according to the surrounding and harness bending requirements.
• To avoid giving excess slack and avoid giving slacks wherever not necessary.
• To provide proper slack at end connectors so that there will be no tension on the wire bundle.
• To avoid sharp edges on the sheet metal parts and if it is not possible then provide protection parts to prevent damage of the wire bundle.
• The minimum distance between two straight connection points should be 200mm.
• The minimum distance between clip and the nearest branching point should be 25mm.
• The minimum distance between two breakout points should be 50mm.
• To limit the number of branches from a single branch point to 4.

1. DESIGN METHODOLOGY:

Step 1:

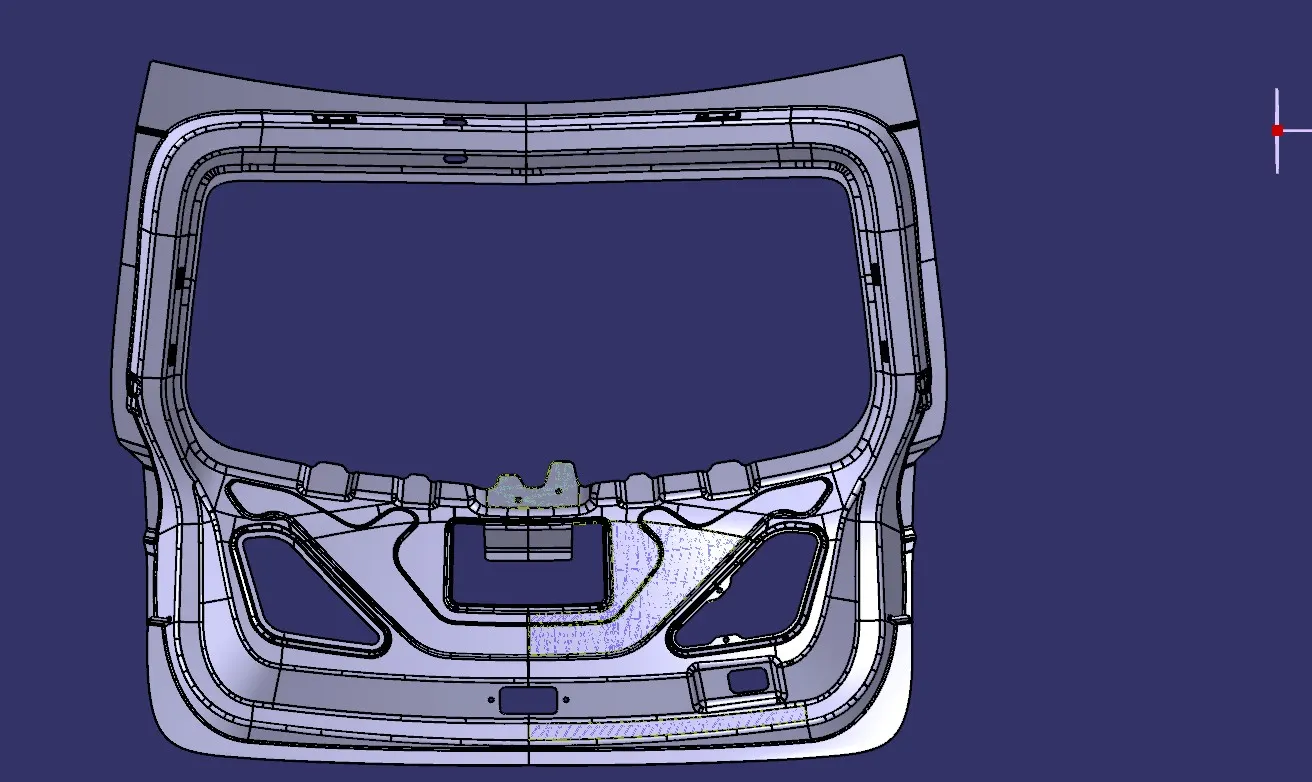

Download the Back door CAD data and required connectors CAD data from the given source.

DEFINING THE CONNECTORS, CLAMPS, CLIPS AND MOUNTING ELEMENTS ELECTRICALLY.

STEP 2: Connector definition:

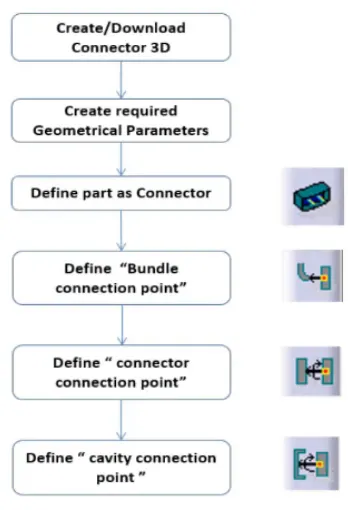

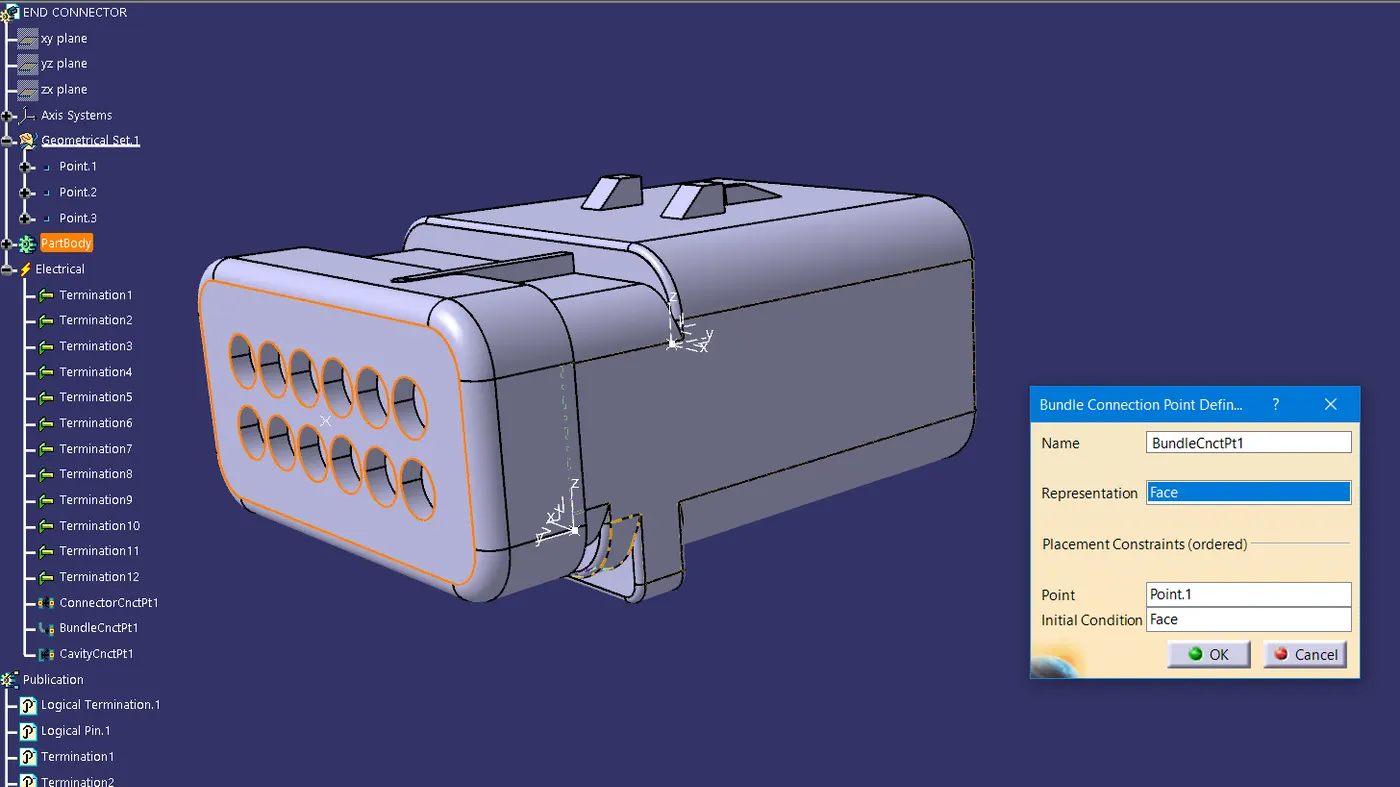

· Following Parameters are required to defined for any connector -

· Geometry Parameters - Points & Co-ordinate system (Axis)

· Connector connection points - This point is used for the connection of one connector to another connector.

· Harness bundle entry point - This point defines where the harness bundle segment point will end when routed to the electrical connector.

· Cavity connection point (Optional) - This point is used to define the connection of a connector to a connector clip. This only applies to connectors which have the mounting feature for a connector clip.

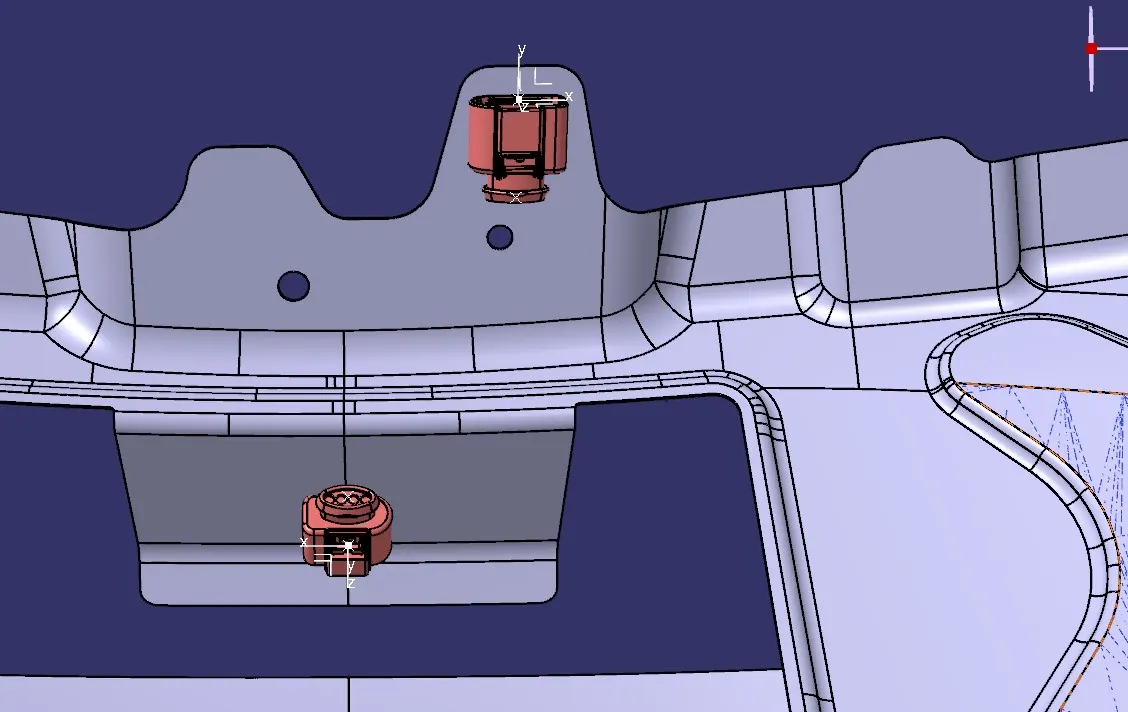

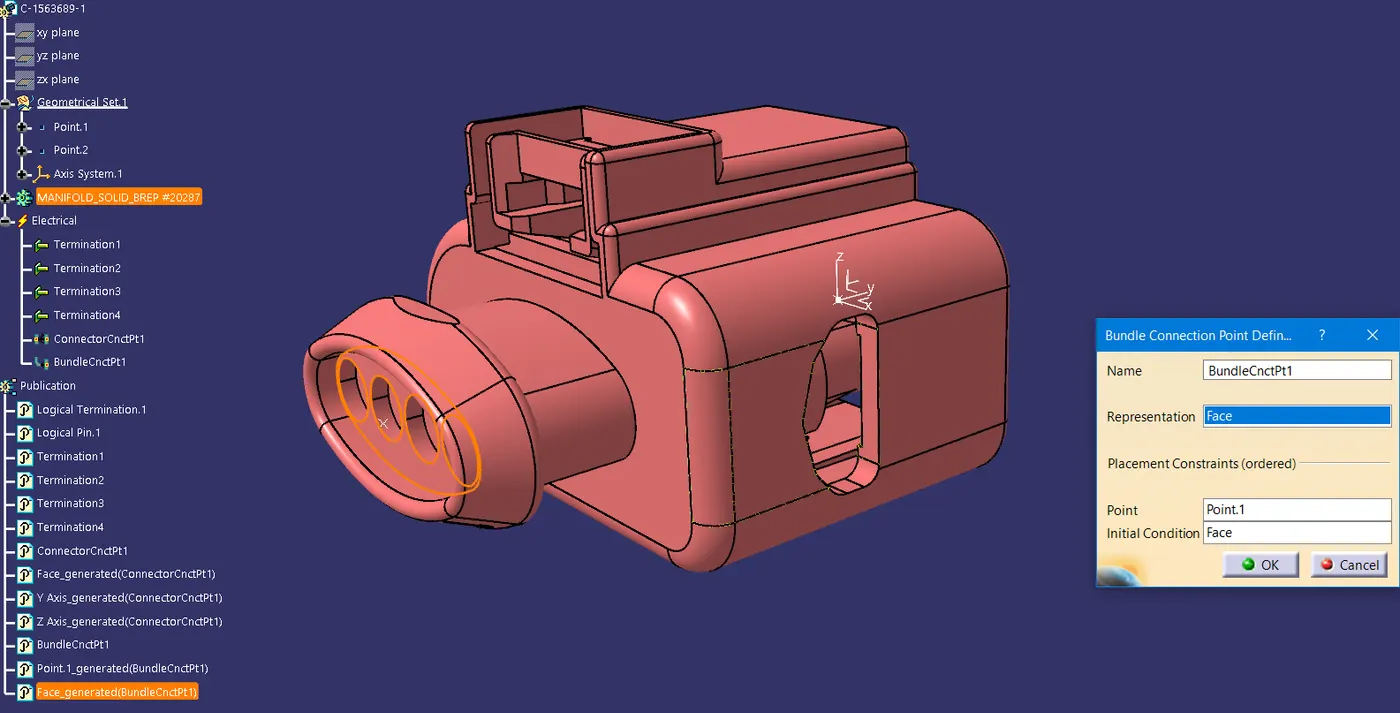

connector1

connector2

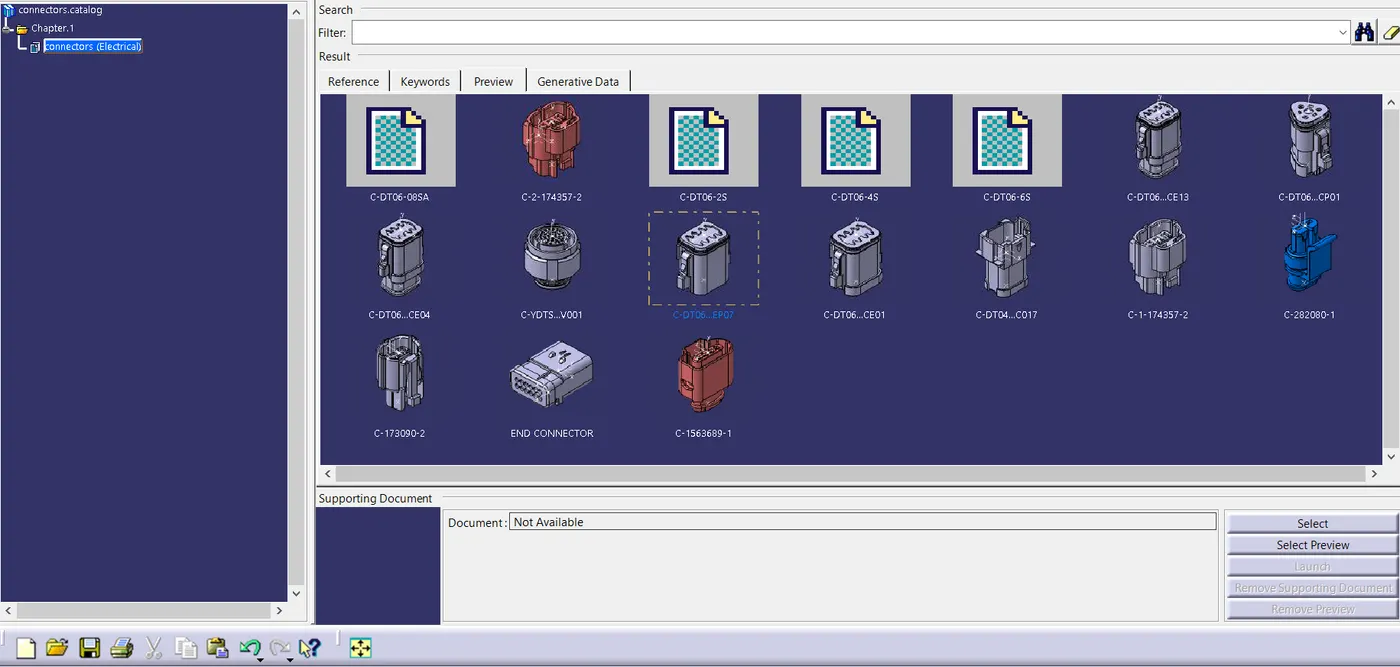

Adding connectors to the catalogue:

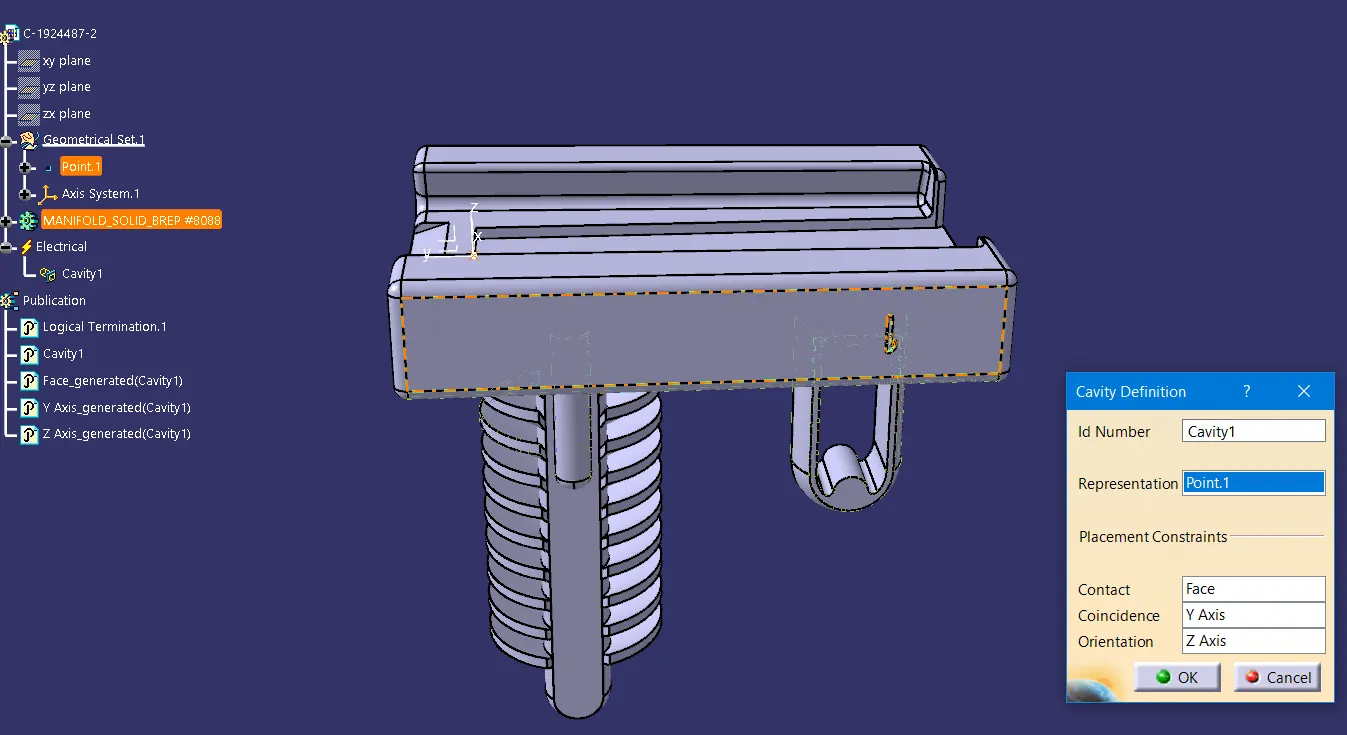

cavity

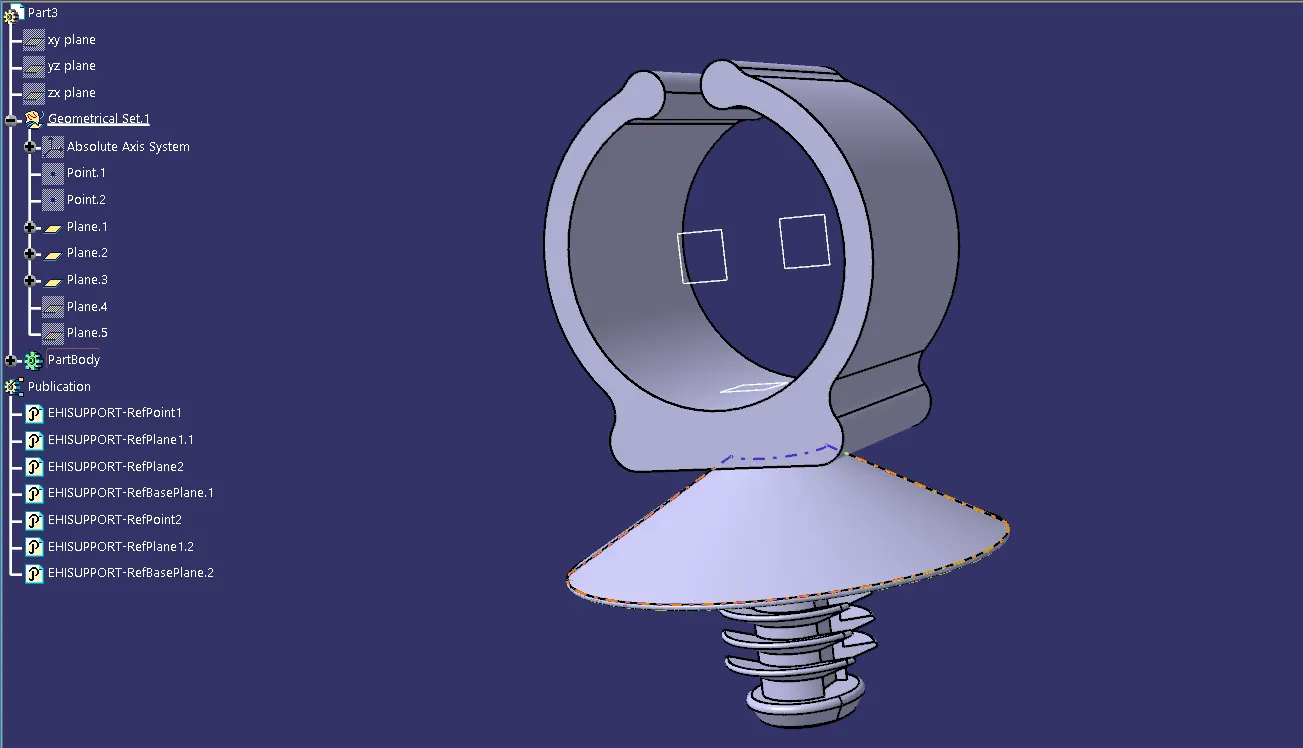

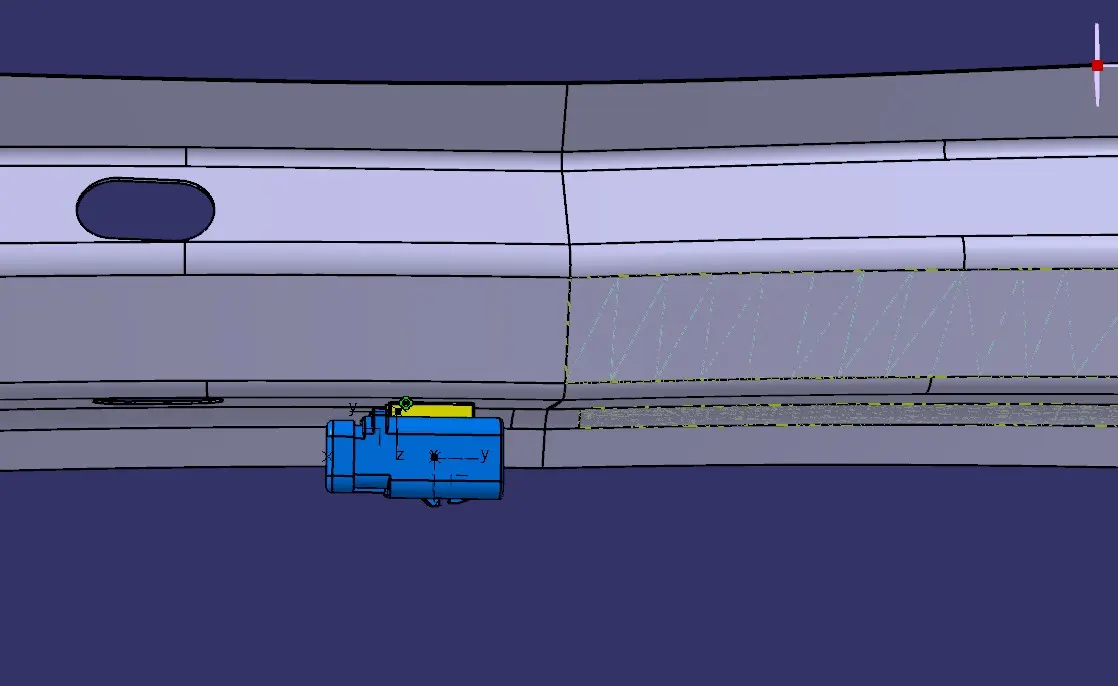

Fir tree clip

2. ASSEMBLY PROCEDURE & PART POSITIONING:

· After given the electrical properties to all the connectors & required parts then start the Preparation of Harness context assembly.

· Create a master product file (WIRING HARNESS BACKDOOR) then import back door file under it and after that create a sub-level product file named (ASSY_GEOMETRY_BUNDLE) and save it.

· Once Geometrical Bundle is created select the "Geometrical Bundle" command and then click on Product (ASSY_GEOMETRY_BUNDLE) Icon in Model tree to convert it in to an Electrical Assembly.

· Insert Harness Connector, clamps, clip and mounting Components into the Geometrical Bundle. Before Inserting the components, ensure that all the required components have been electrically defined.

· Once the required components were defined electrically, then insert them using Catalogue Browser command or using existing component command.

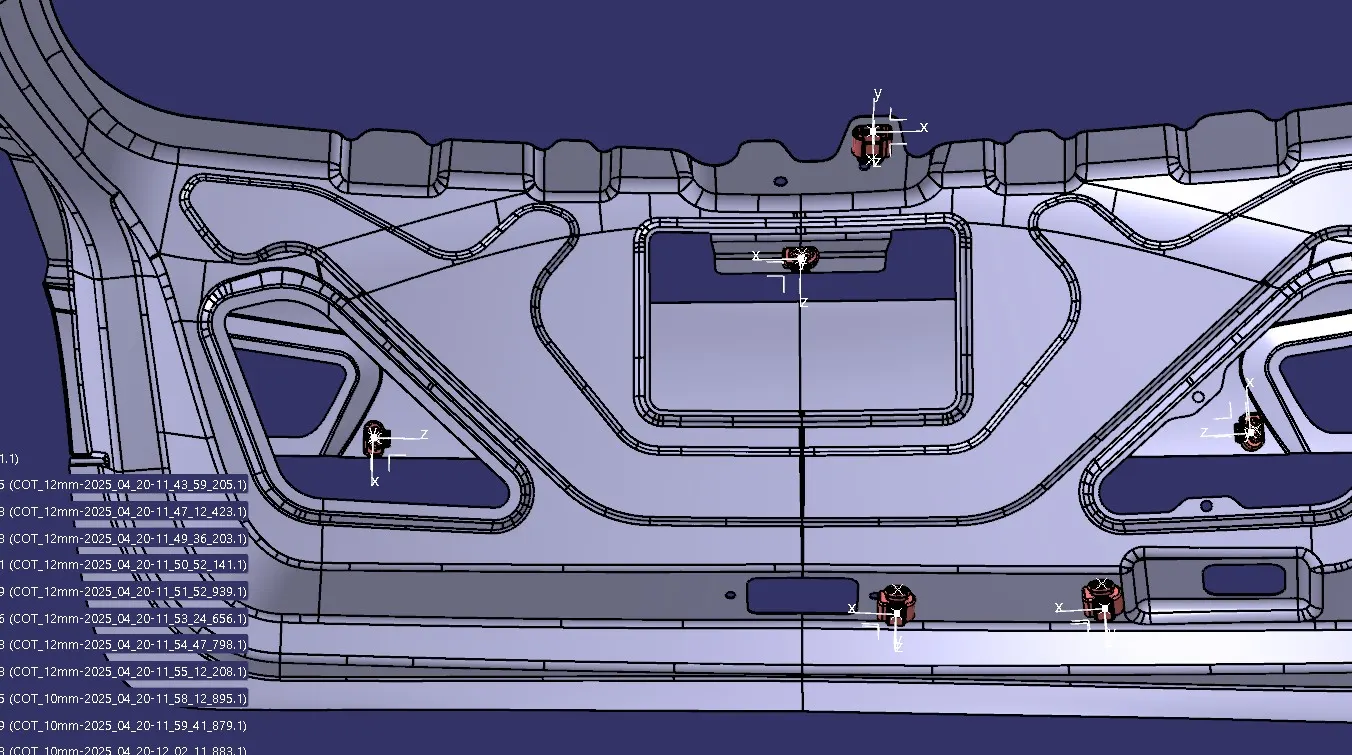

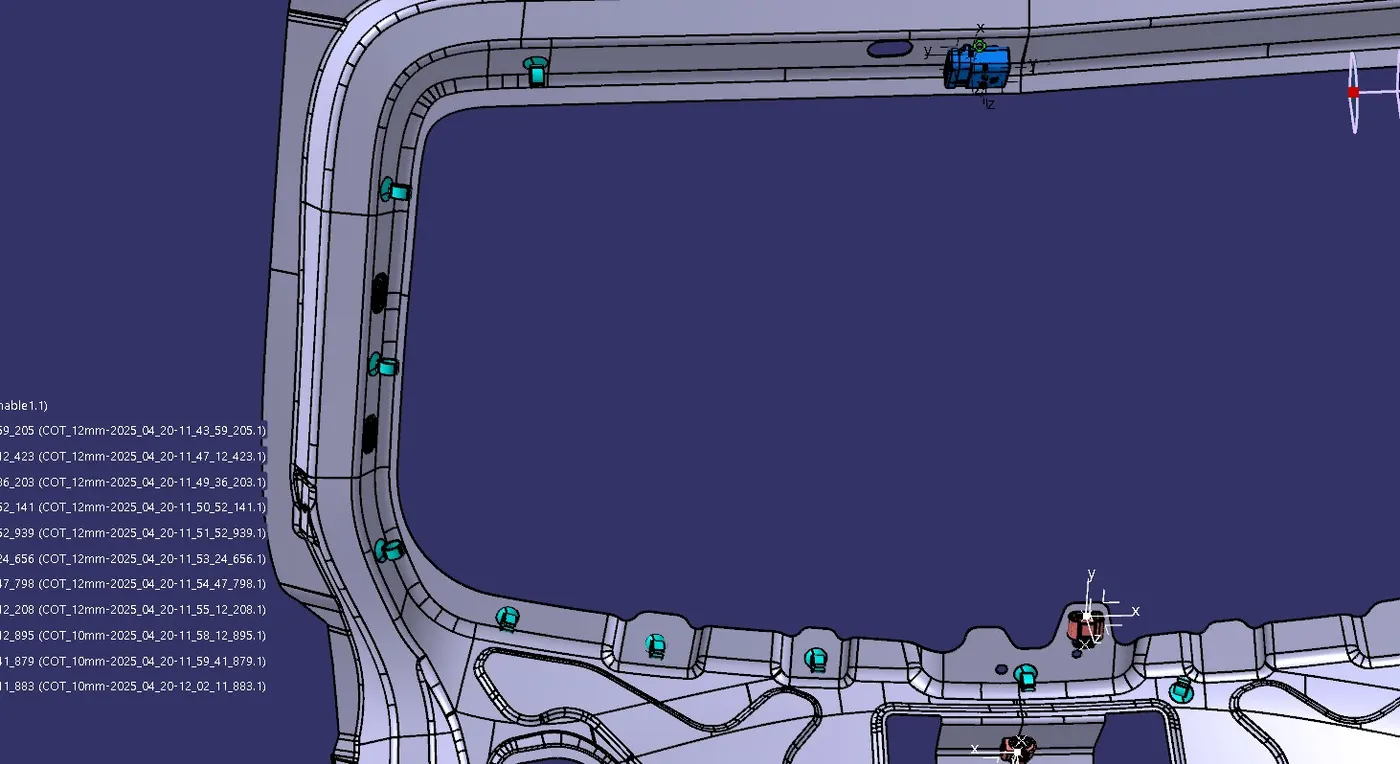

· After inserted all component, position them it according to the backdoor reference. Before start routing, ensure all the components in its desired location according to surrounding data.

· If not then place and position the components by using any of the following commands like Manipulation, Translation or Rotation, Snap, Smart Move, Compass.

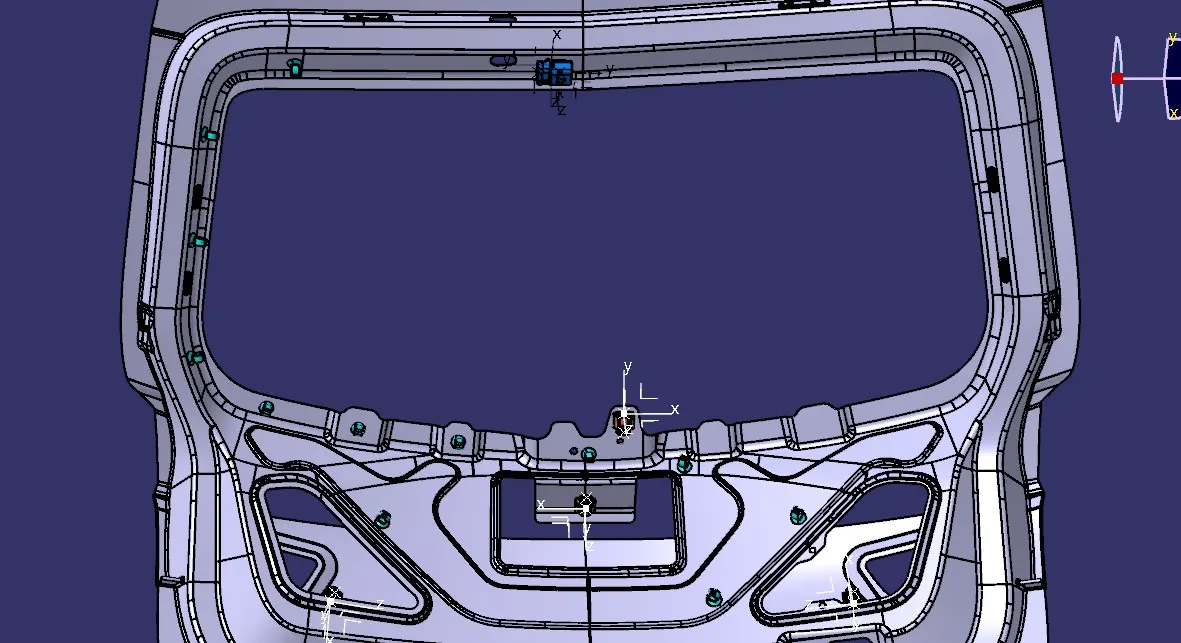

First position the inter-connector to the Hinge area.

Then add all the other connectors on wiper mounting area, back light mounting area.

Adding supporting components like fir-tree clip can help the harness bundle to provide proper routing and also help to prevent the harness bundles fouling from unwanted mechanical components.

· Fir Tree can be placed at required locations to ensure best possible routing for the harness bundles.

· The Fir-tree clips are positioned according to the requirement during the wire harness routing.

· After finalization of the routing, we can request the Back door design team to provide the holes for the Fir tree clips as per their location.

3. BRANCH CREATION:

· Switch to Electrical harness Assembly Workbench.

· Select Multi-Branchable Document Icon.

· In the Branch Definition Box (Ref Below Image), give all the required parameters like Diameter, Bend Radius (>1.4), Build mode (slack, Length, Bend, Straight Bend).

· Click Route Definition and select the two components that you need to route or use external curve for creating bundle.

· Click OK.

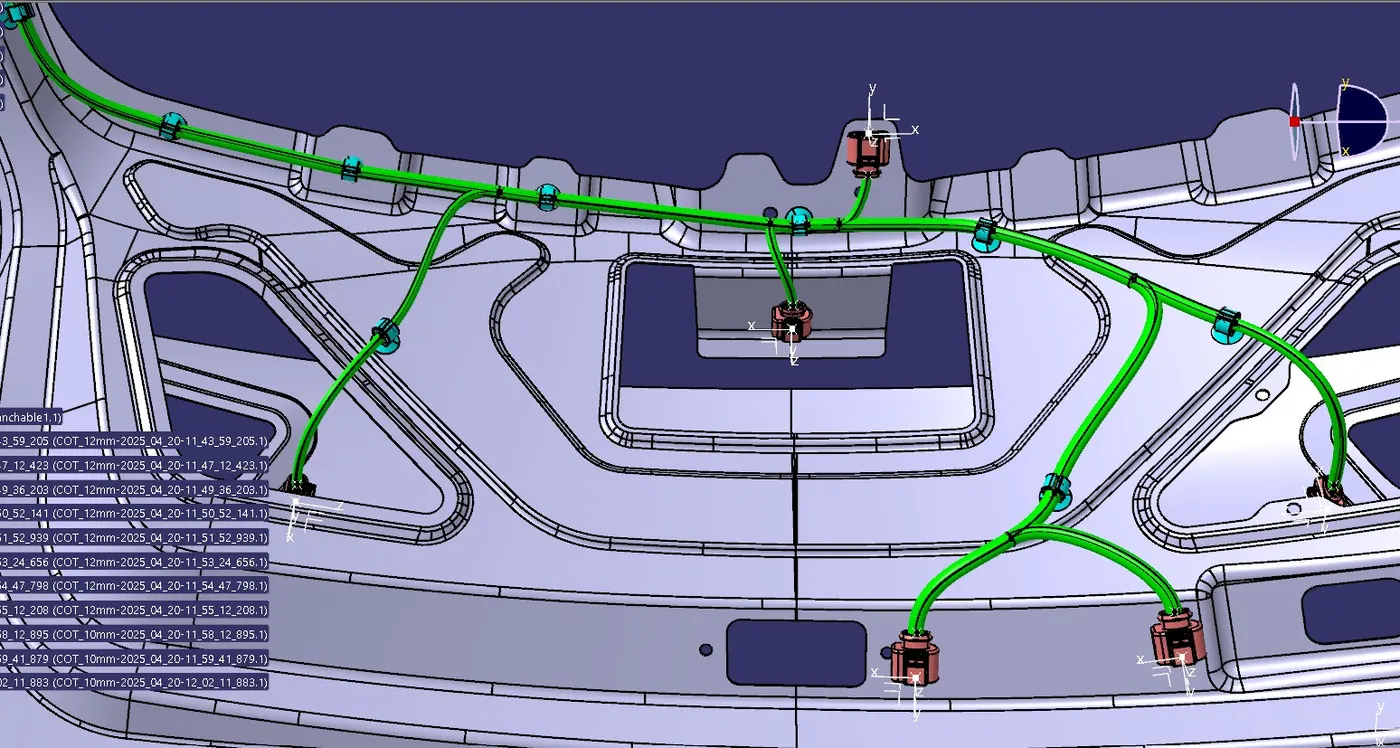

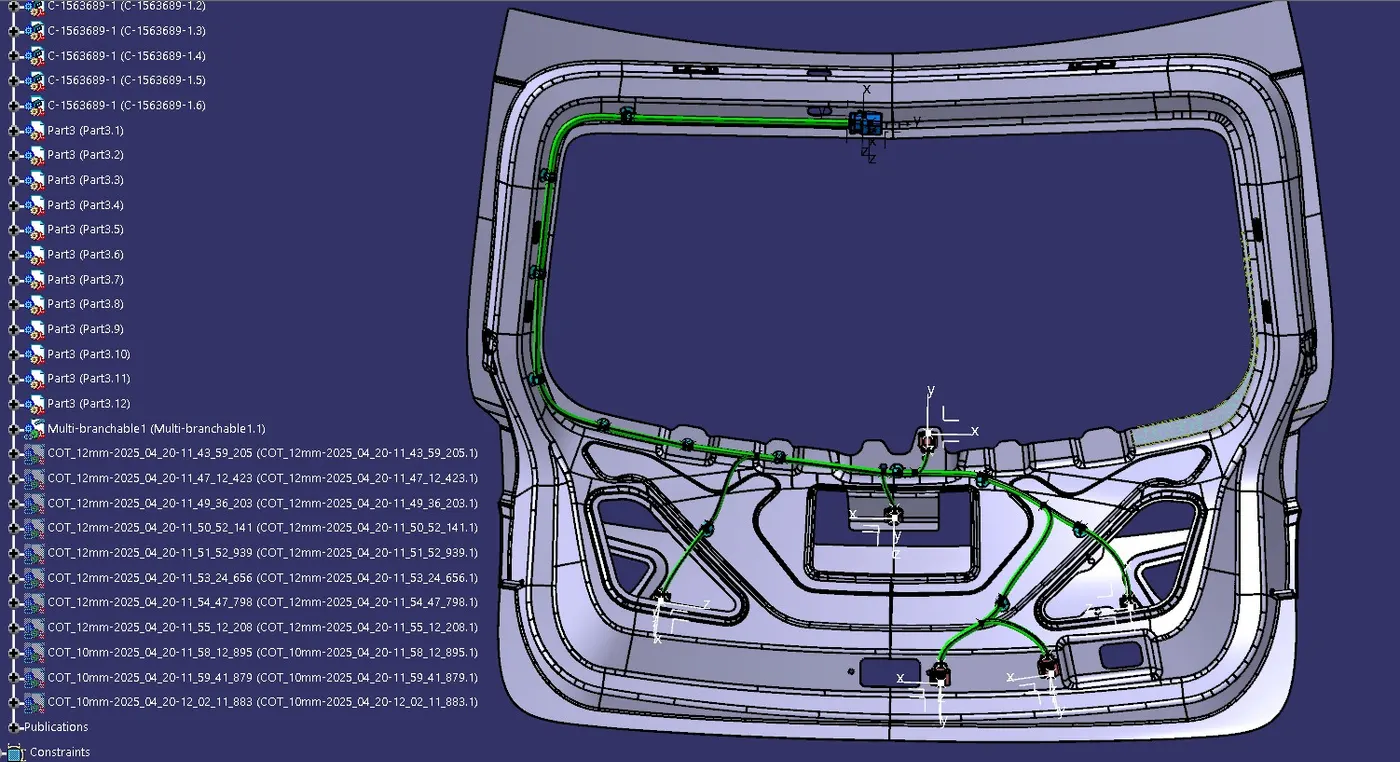

· Once the multi-branchable is created, Click Add branch point command and define the point on the main branch where the Harness Branch needs to be created.

· After creating the point repeat the steps of multi-branchable creation.

4. ADDING PROTECTIVE COVERING:

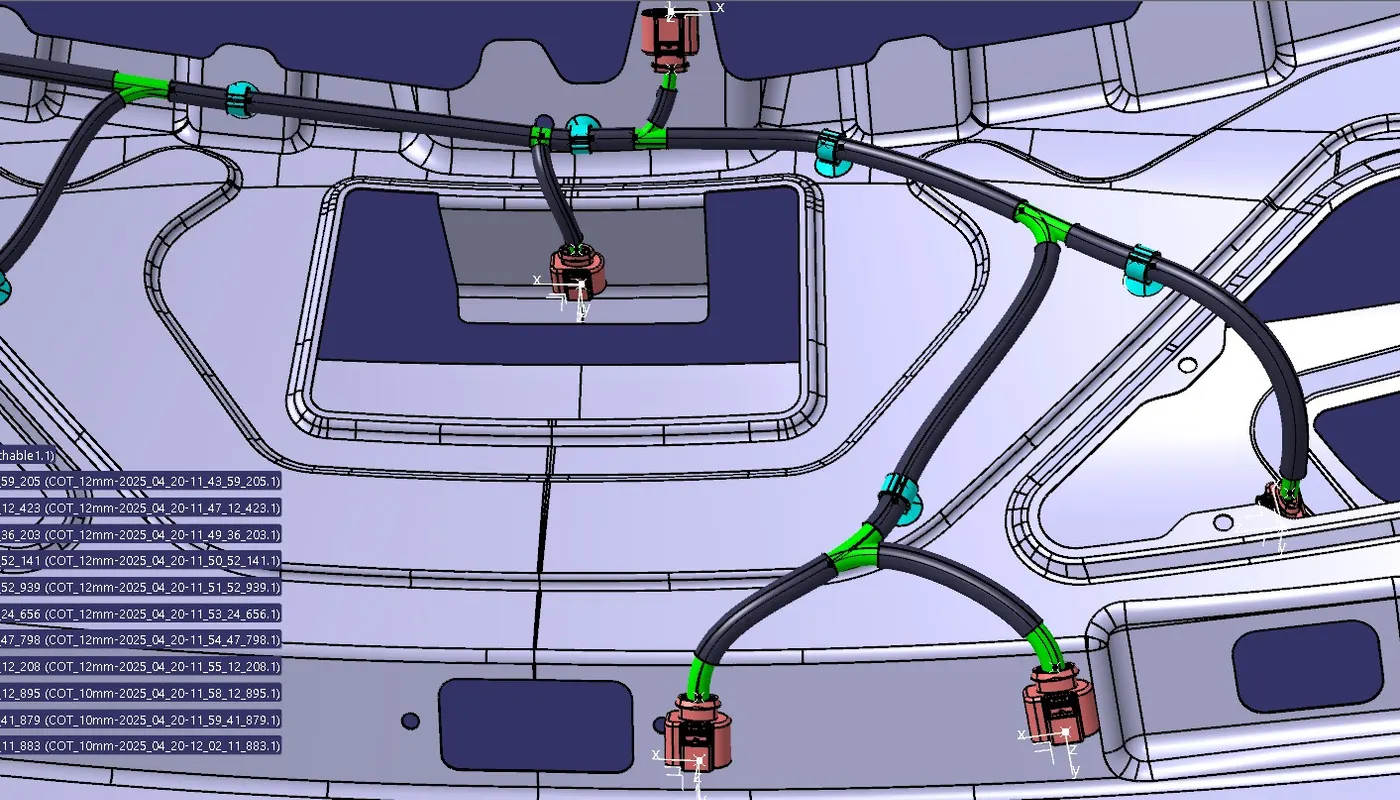

Add protective covering on the required branches by using Protective Covering Command and mention the start and end extremity points.

Switch to Electrical Harness Assembly > Select the Protective Covering > Select the Bundle Segment > Select the size of protective covering > Give its end extremity > Click OK

5. ELECTRICAL CONTINUITY CHECK:

• We need to ensure that the entire bundle is fully connected.
• Go to edit and then click on search command.
• Go to advanced

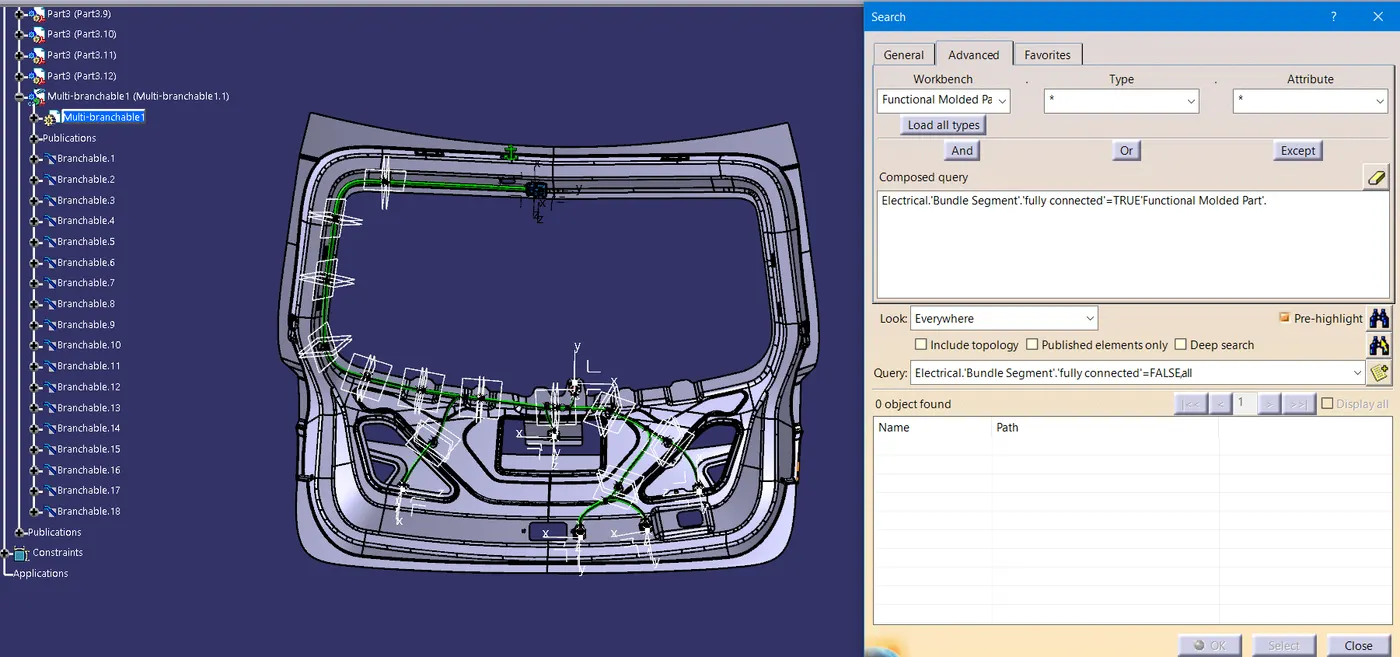

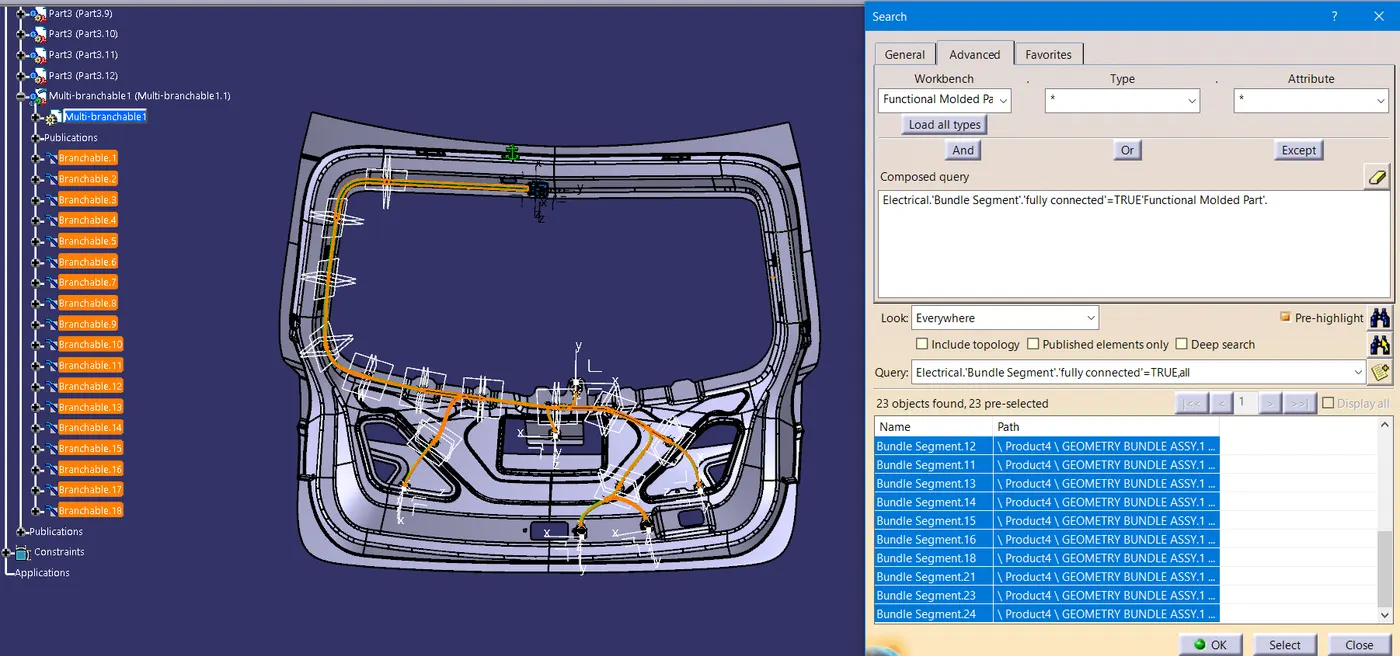

• Select workbench as electrical, type as bundle segment and attribute as Fully connected
• The select result should be as TRUE or FALSE and the click search to see the connectivity analysis result

6. FLATTENING OF HARNESS ASSEMBLY:

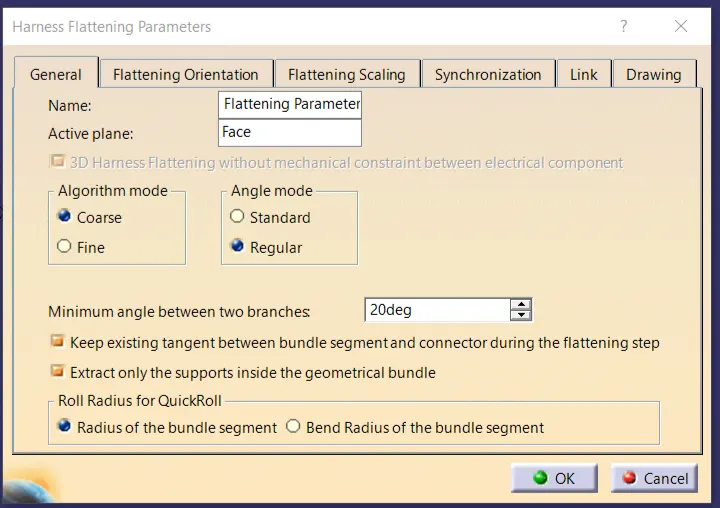

· In order to flatten the Assembly, we have to define the Flattening Parameters in “Electrical Harness Flattening Workbench”

· We have to define the desired plane that we want to work on and Select the desired parameters according to your requirements.

· We have to ensure that the bundle segment, protective covering and devices representation should be different from each other just for recognizing purpose. For that we have to enable parameters like the below image.

· Now, we have to bring Harness Assembly into newly created Flattening Product by using Extract command in 'Electrical Harness Flattening' workbench. Here, we have to tile both the files (Flattening Product file & Harness Assembly source file) vertically.

· Now, we have to flatten the given Harness Assembly and for that we have to choose plane or face of the connector after that select all branches of the Harness Assembly.

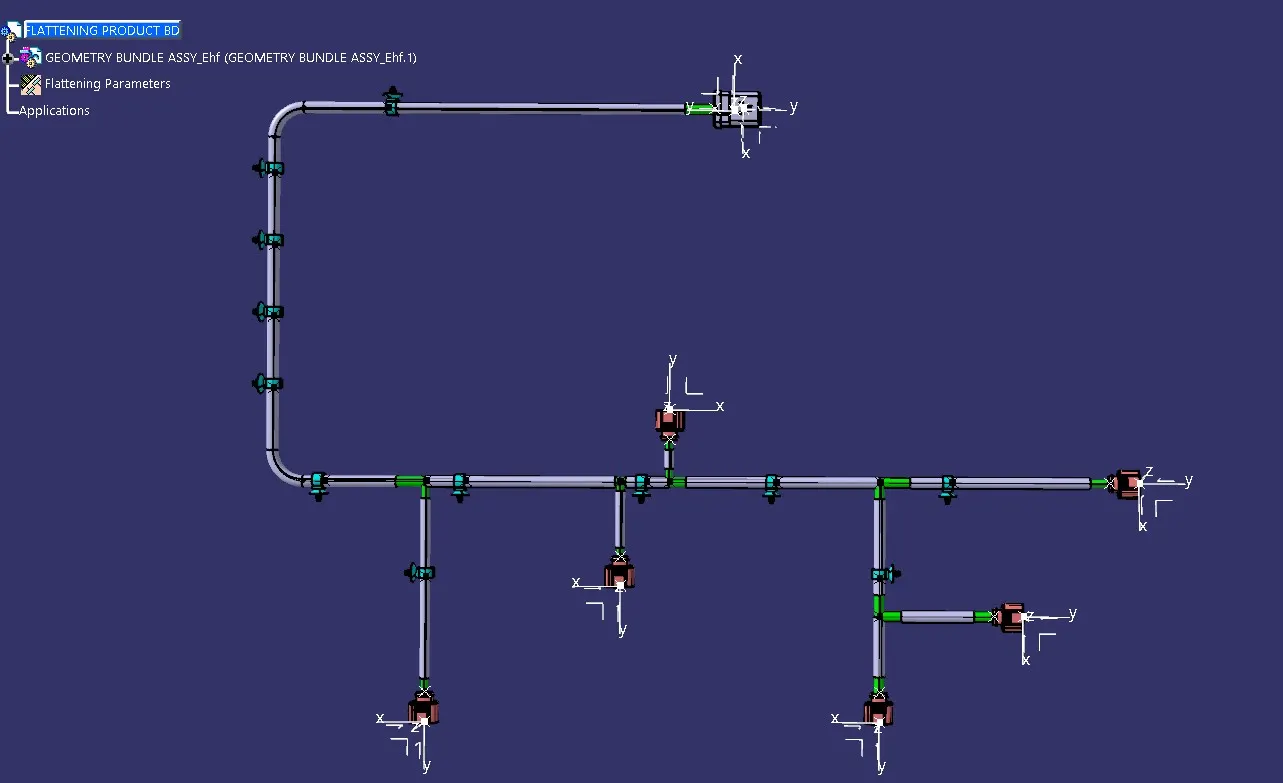

· Now, we have to use rotate, scale, Roll, Bend etc to make it look representable. After that our resultant flatten file will look like below image.

6. PLACE THE FLATTENED VIEW ON DRAWING SHEET:

· Here, we have to create new drawing (File->New->Drawing) and provide the desired sheet parameters.

· Then import the flatten file into drawing file by using 'Front View' command.

· The flattened file has been imported and oriented in our desired manner.

· Now, click anywhere on screen of drawing file.

· Now, we have to provide properties to drawing file. In order to make the connection visible between the connectors like below image.

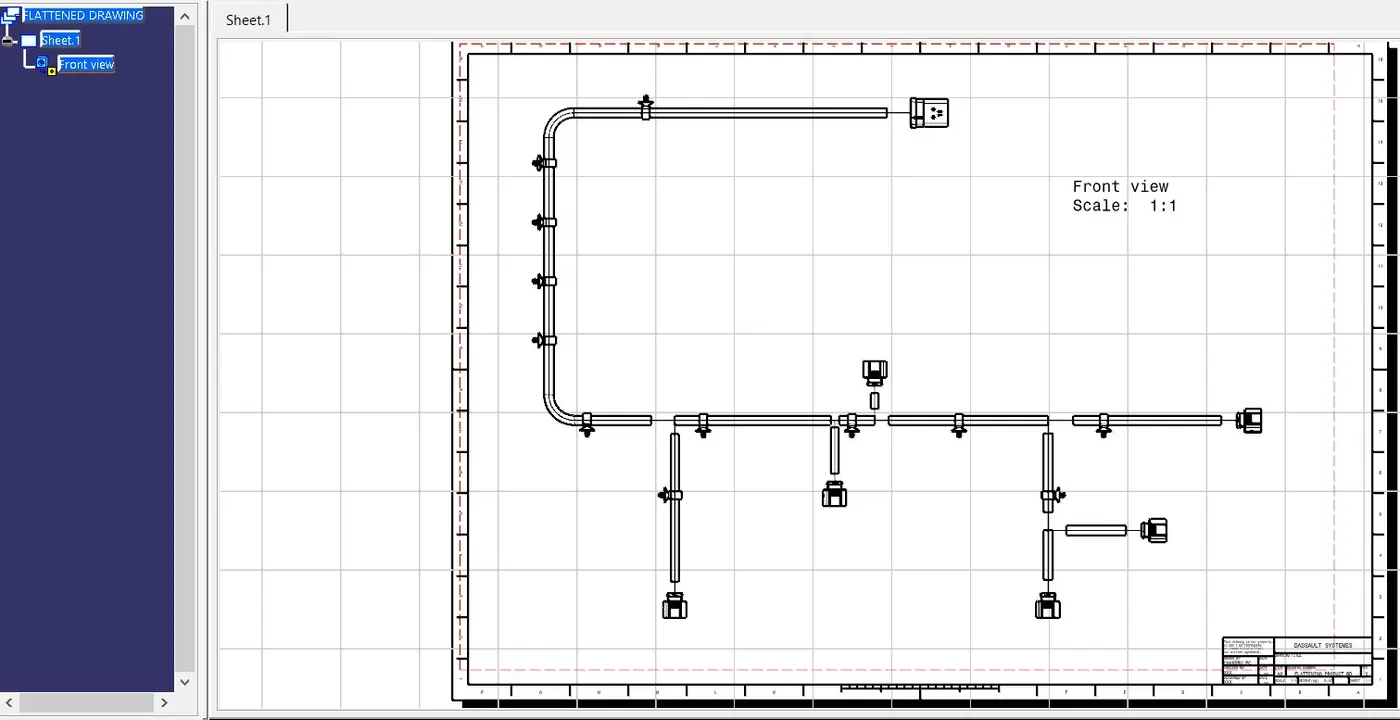

· Now, we have successfully placed the flattened view on drawing sheet.

· To ensure bundles with protective coverings has different visuals on drawing view

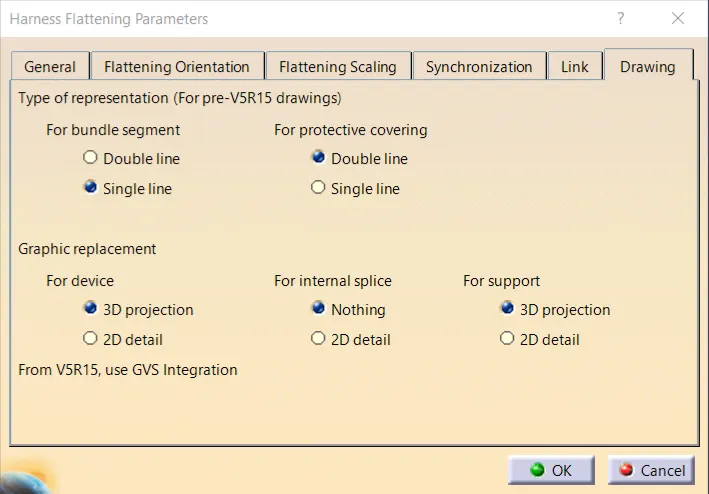

· As you can see above image, the bundle segment is represented in 'Single line' and the protection covering is represented in 'Double line'

· If you want to change the representation then we have to modify the flattening parameters accordingly.

RESULT:

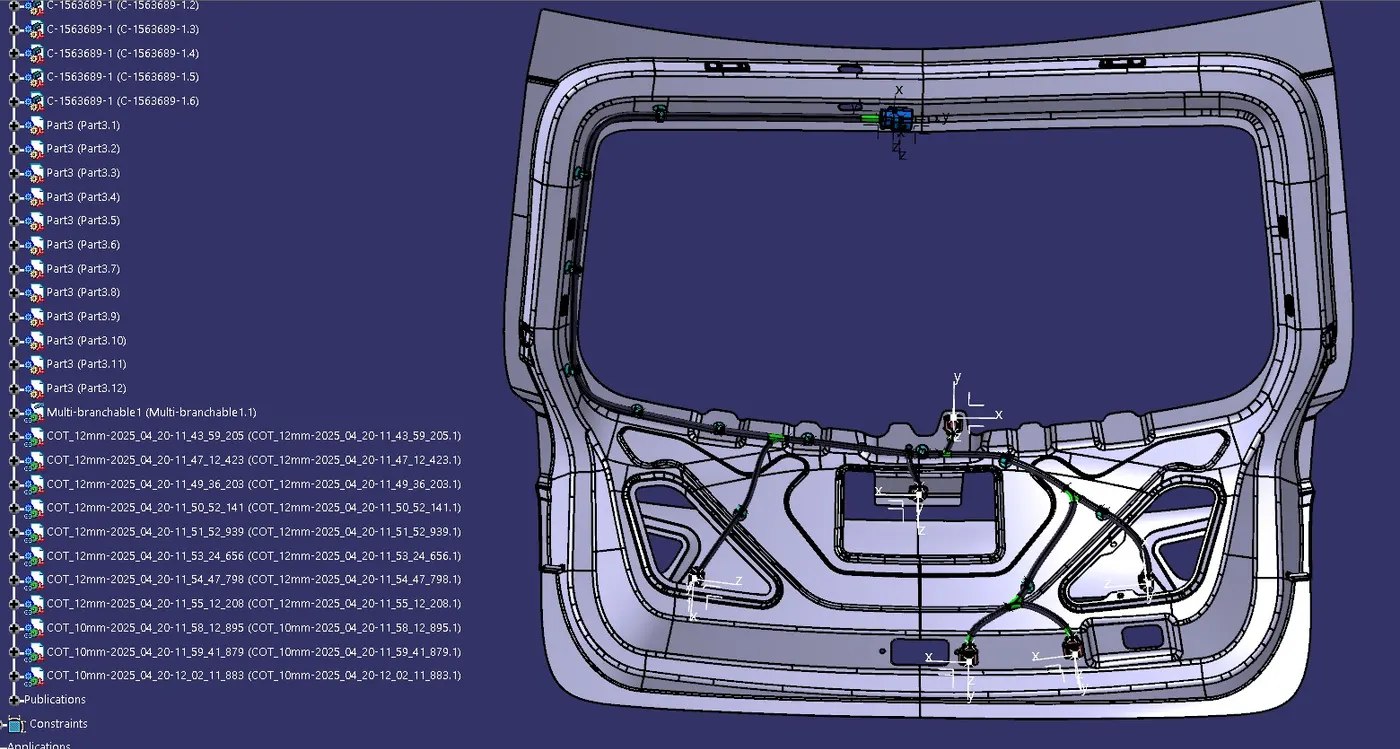

In this project I have successfully routed the wiring harness for the Back door assembly and the flatten-view drawing was prepared in CATIA V5. Various packaging rules and constraints were considered while routing the harness. After finalizing the wire routing, we can request the corresponding Back door design team to provide additional holes for the mounting of Fir tree clips.
