Project 2

OBJECTIVE:

                   The objective of this challenge is to mesh the given component and follow the given quality criteria and mesh flow.

Target Element Length = 5mm

S.N.	Quality Criteria	Value
1	Aspect Ratio	5
2	Skewness	45
3	Warping	15
4	Taper	0.5
5	Min. Length	2mm
6	Max. Length	8mm
7	Min angle Quad	45
8	Max angle Quad	135
9	Min angle Tria	20
10	Max angle Tria	120
11	Tria %	10

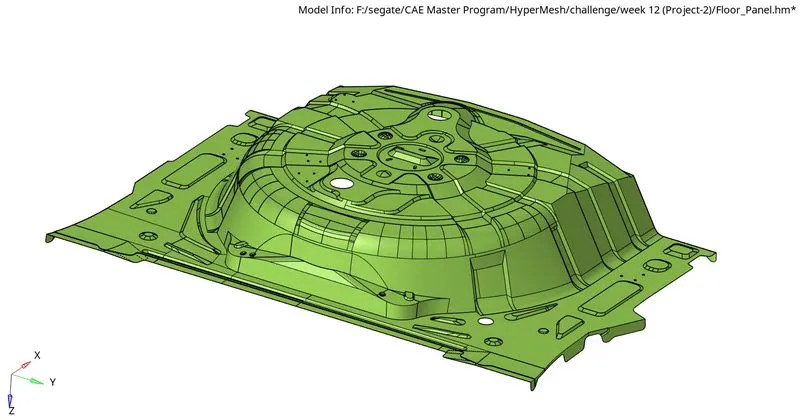

CAD MODEL IMAGE:

PROCEDURE:

Step-1: Importing the Geomentry

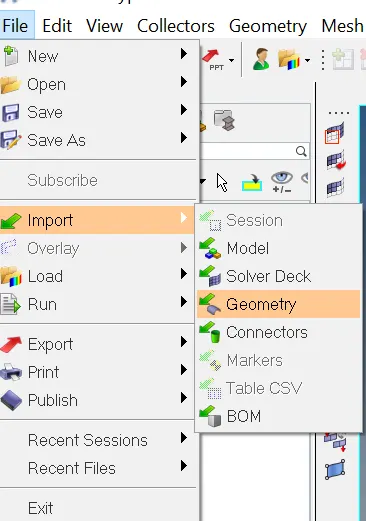

   File->Import->Geomentry.

Step-2: Save the File.

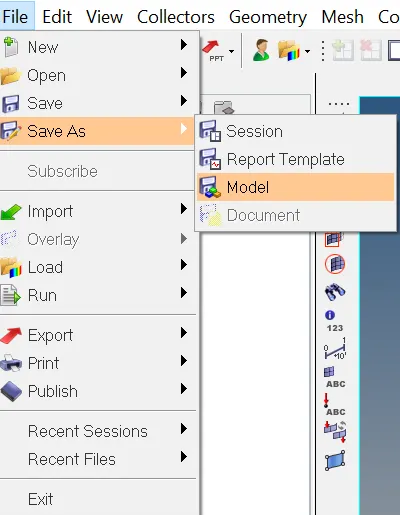

   File->SaveAs->Model.

 Step-3: set up file criteria.

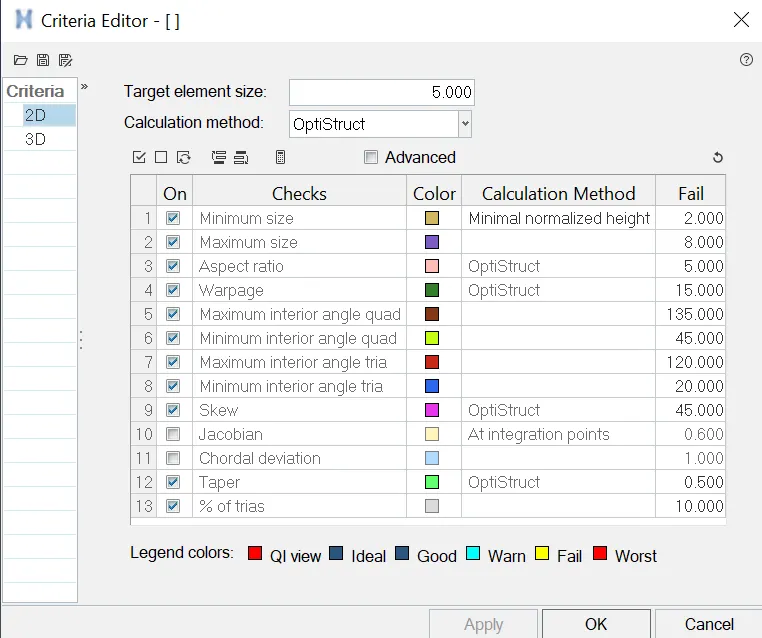

   Preferences->File criteria Settings.

set the target element size to 5mm, minimum as 2mm, maximum as 8mm.



Step-4: Geomentry cleanup.

   i. checking wheather the given geomentry is solid or not, if yes then deleting the solid part.

  ii. Defeaturing the surface fillets with less than 5mm.

 iii. toggling the unwanted lines.

Step-5: Creating midsurface & Cleanup.

   i. As this is a pastic geomentry AutoMidsurface won't be desirable  so taking the midsurface manually.

  ii. splitting the midsurface with the help of feature edit tool to get a good mesh flow.

Step-6: Creating 2D Mesh.

   2D->Automesh->Surf->Selected surf.

set the element size as 5 and element type as Mixed.



Step-7: Creating Property.

   Creating property and assigning the desire thickness based on the parent geomentry.

Step-8: Creating Material.

   Creating the Material and assigning it to the mesh.

Step-9: Quality checks.

 the following Quality checks and Quality criteria are checked

1. Warpage
2. Aspects
3. Skewness
4. Min. & Max. Length
5. Taper
6. Min. & Max. Tria Angle
7. Min. & Max. Quard Angle
8. Edges
9. Normal
10. Dependency
11. Quality Index

 Step-10: Save.

Result:

            By following the given quality criteria the given geomentry is meshed and the mesh flow is maintained as much as possible.

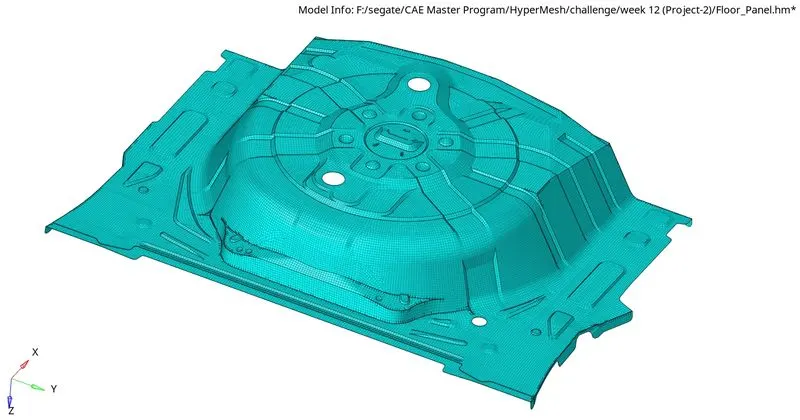

FINAL MODEL IMAGE:

note :

         there are sharpe edges where it is hard to maintain the element quality and some elements had failed.
