Design and Develop a simulink model to understand Energy analysis of EVs on different drivingcycles
A)
Design & Develop of a Simulink Model to Understand energy
analysis of EV'S on different driving cycles
Introduction
In the recent years, many existing automobile manufacturers and new dedicated companies have put a remarkable effort in transforming the conventional vehicle into an Electric Vehicle that provides green and reliable solutions. In terms of market share, EV demand is rising. It has started replacing conventional vehicle In USA, Europe and Asia. With revolutionized perspective and competitive price (Entry range), EV is a smart choice for any end user, however, an extra effort is required to enhance the range of autonomy and vary applications.
This project formulates the Analysis of Understanding the Energy on Different Driving cycles of electric vehicles, by designing the Model of Simulink.
Drive cycle data
For this we have used Drive cycle source block.

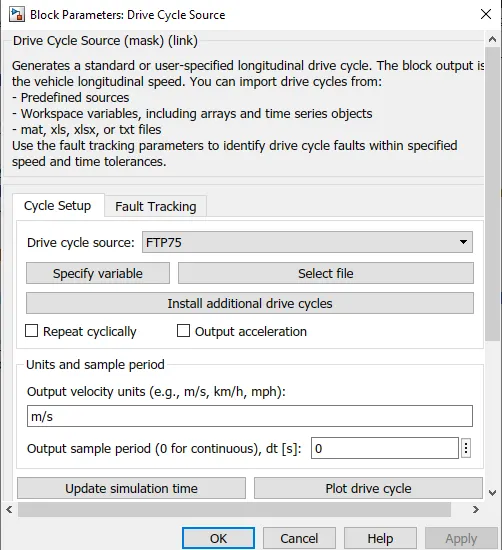

The block parameters for this block is as shown below,
This block will help us in inputting the drive cycle data , whether it is built in or custom made by the user. That is we can use custom made drive cycle data in excel sheet using this block. This block helps in analysing the energy analysis of drive cycles of EV.

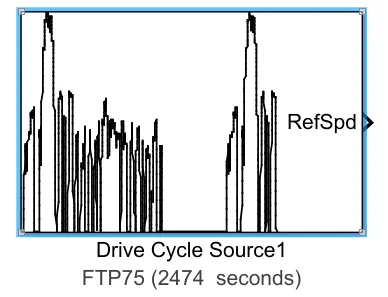

For this model we have used FTP 75 drive cycle , which is built-in in this block.

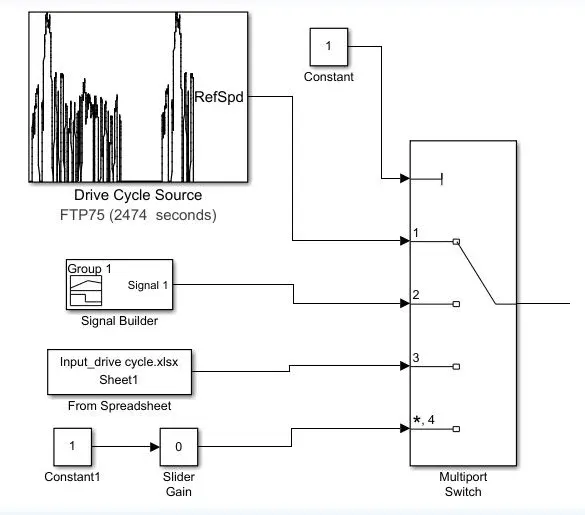

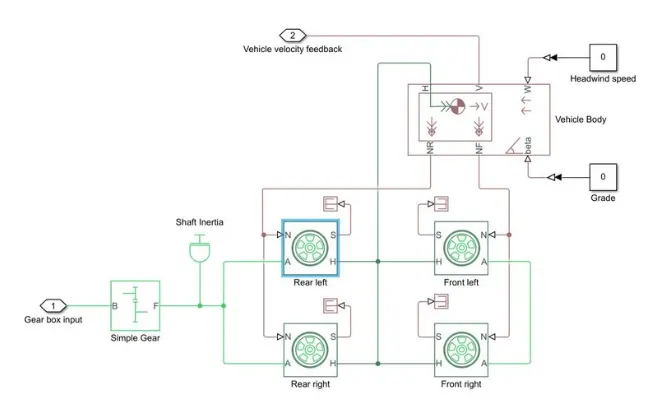

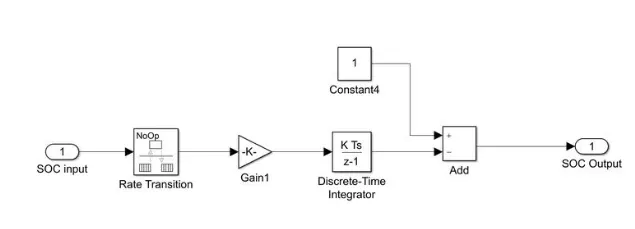

Simulink Model
\

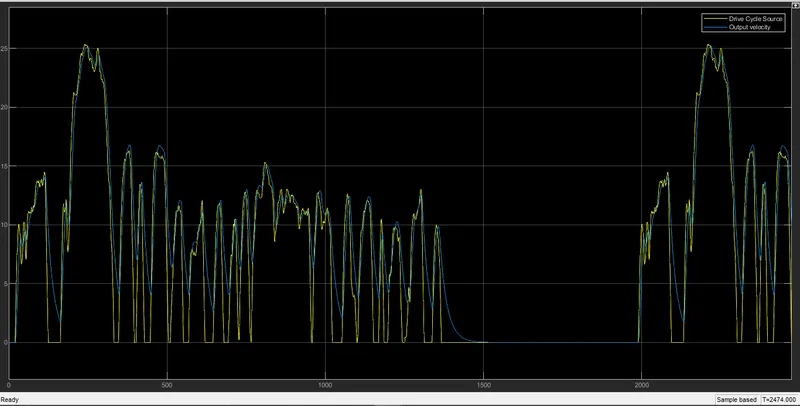

The resulting graph for this scope is shown below ,

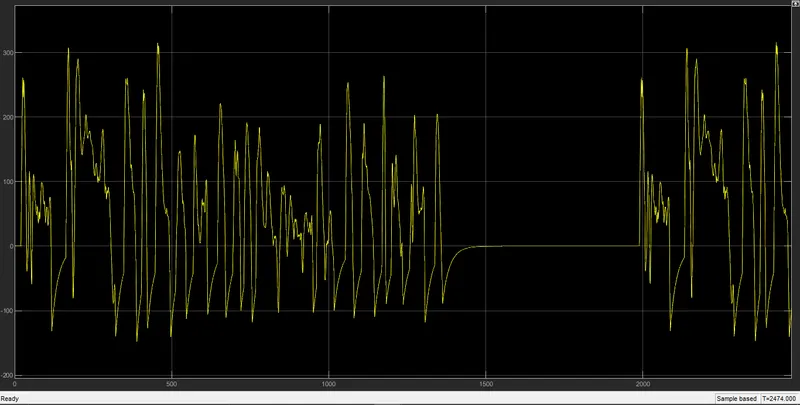

The resulting graph is shown below,

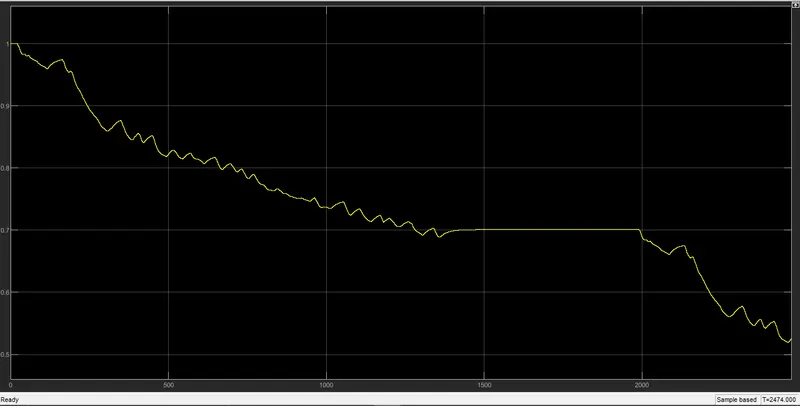

The third scope is used to get the current value with respect to time. Its input is ‘From block’ with tag ‘current’.the resulting graph is shown below,
Conclusion: here based on the parameters like FTP 75 DRIVE CYCLE,Soc we have designed a Simulink model and done the model output.
