Project 2

WIRING HARNESS ROUTING OF BACKDOOR USING CATIA V5

OBJECTIVE: The objectives of this challenge are as given below,

• To Define the mechanical components electrically and prepare a catalogue for the same.
• To Provide proper routing of bundle without any interference and also provide support parts like clips and clamps.
• To Prepare a report with all the required images required for the challenge.
• To Attach all the file required for the challennge.

DESIGN METHODOLOGY

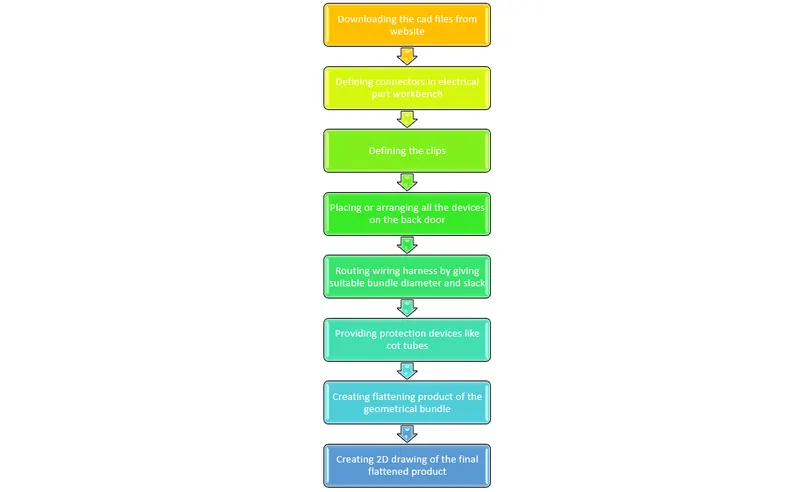

The design methodology or design approach which is used for this challenge is explained or given in the below flow chart,

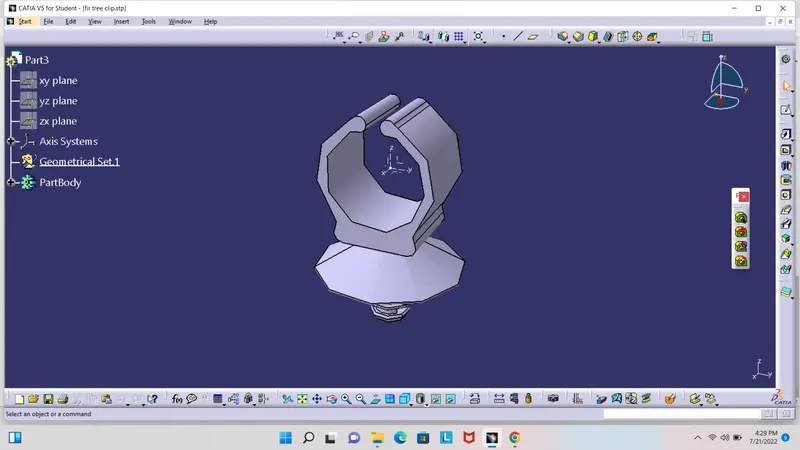

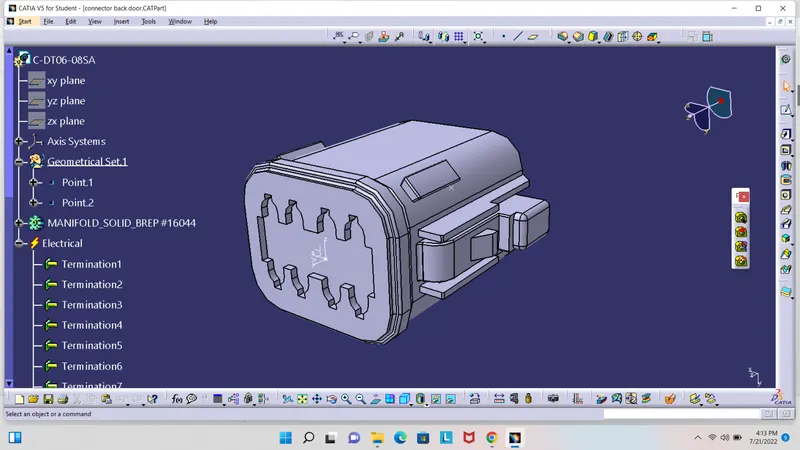

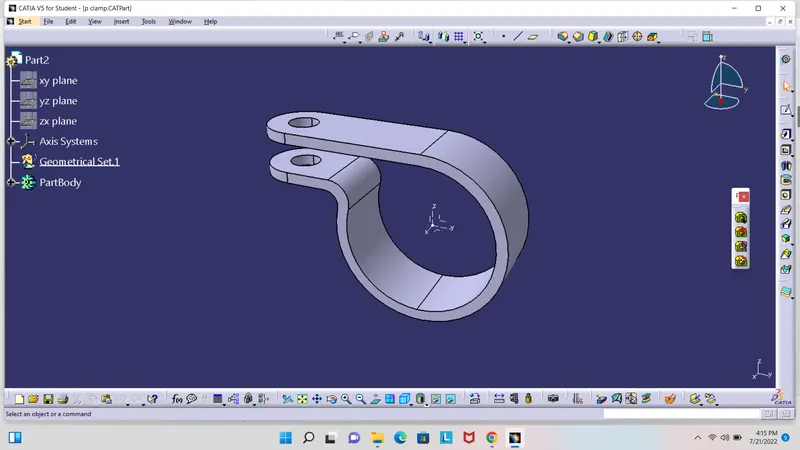

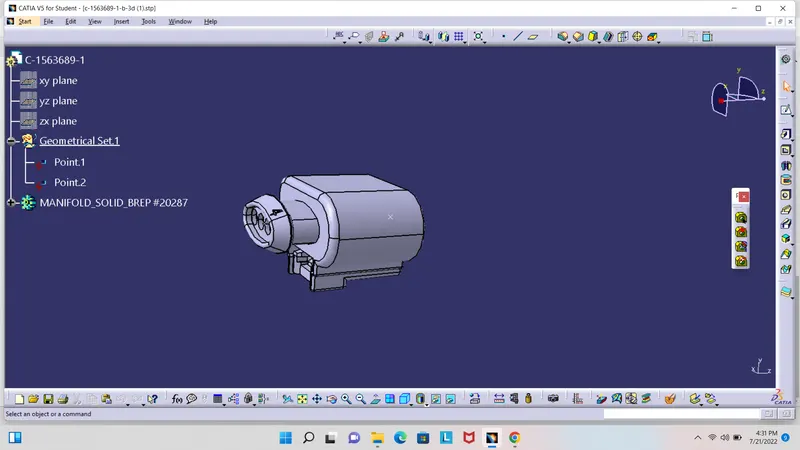

Now let us try to define the connectors and other clips which are used to route the backdoor.

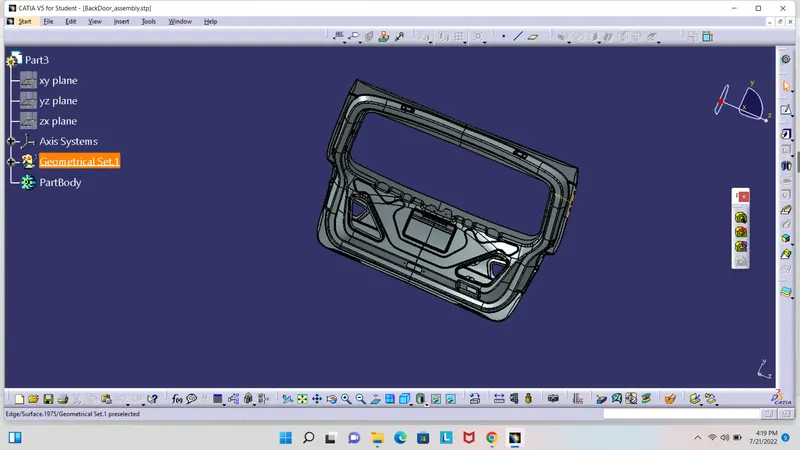

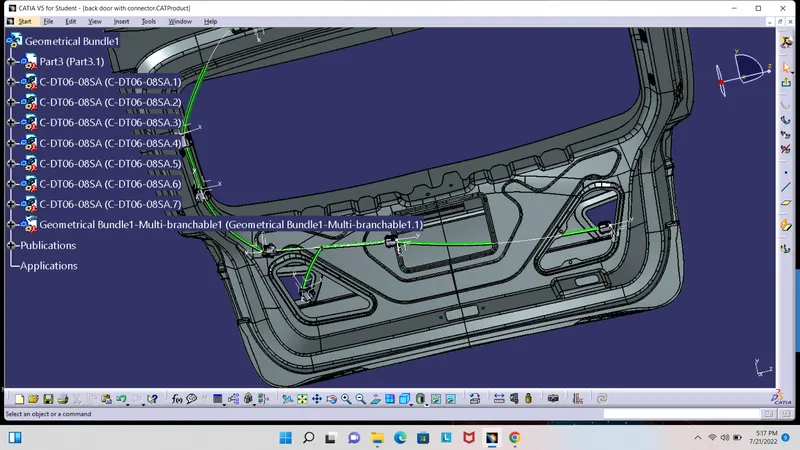

Place the connectors and clips in the required positions and start routing the backdoor. The images of routing are given in the below images,

Thus, the objectives of this challenge are achieved and a detailed report has been prepared. A zipped folder which contains the cad files is attached to the challenge successfully.
