Project 2

Report for project-2

• Here in this project-2 we have to plan for the harness topology like connectors position,supports position in the given part.
• After that we have make electrical definitions for the electrical components in the harness.
• After electrically defining the components put all the components in the catalogue.

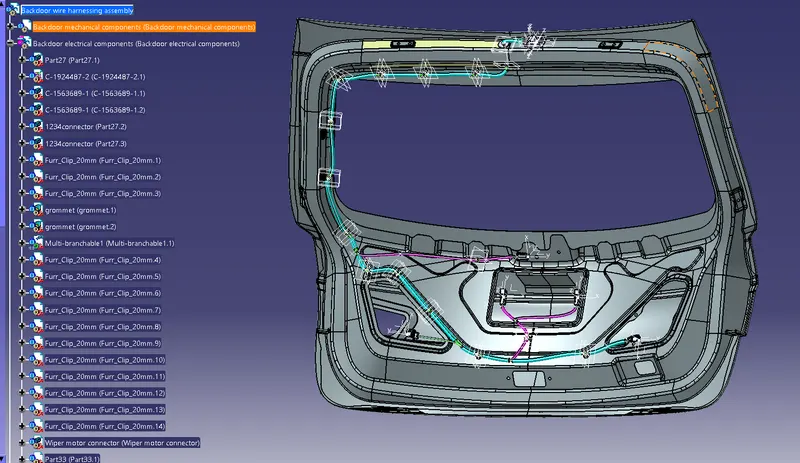

• And place the connectors,clips and clamps in the desired position given by the harness topology.
• After positioning the connectors and clamps,we have to do the harness assembly by defining the product as the geometric bundle.
• And harness is done for connectors and protection cot tubes also give the bundles in required positions.

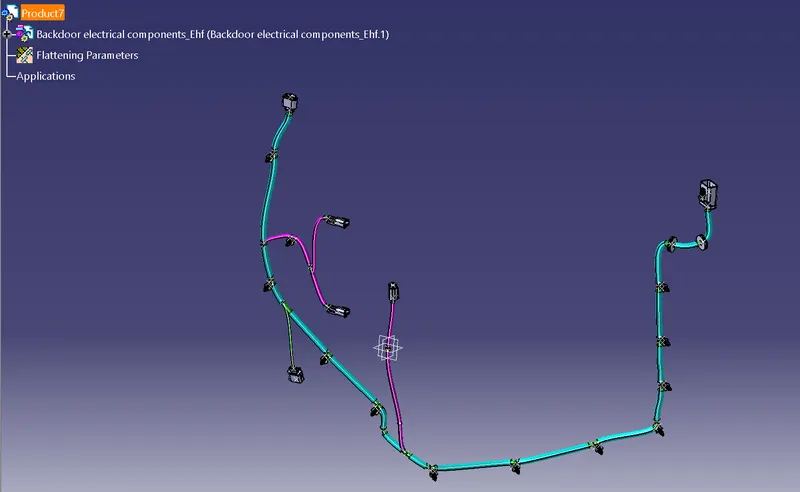

• After that extract the harness for flattening and drawing making.

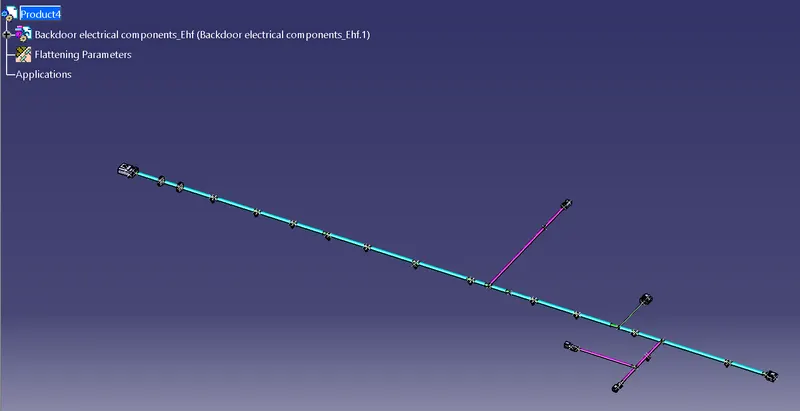

• After extracting flatten the harness for the drawing.

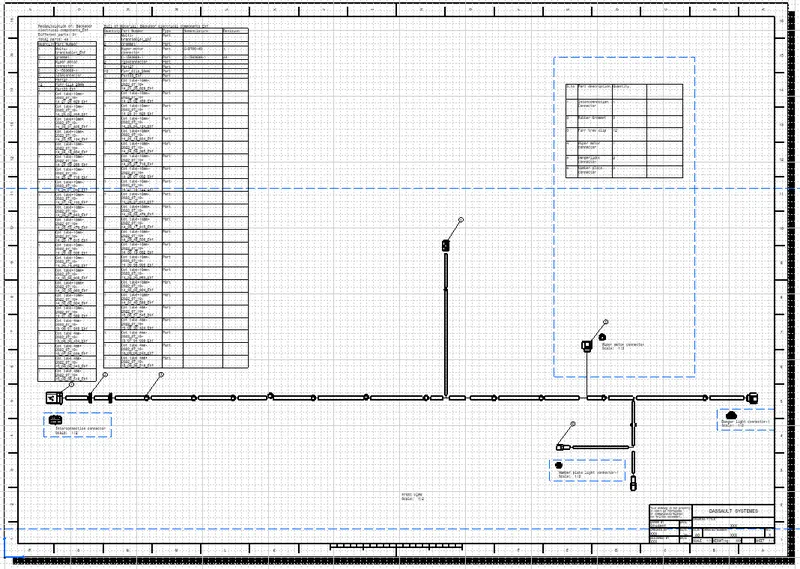

• Drawing is created by the suitable plane and bill of materials is created for the wire harness.
