Project 2 - 2D meshing on the instrumental Panel

tried to mesh the model using manual method of mid surfacing.

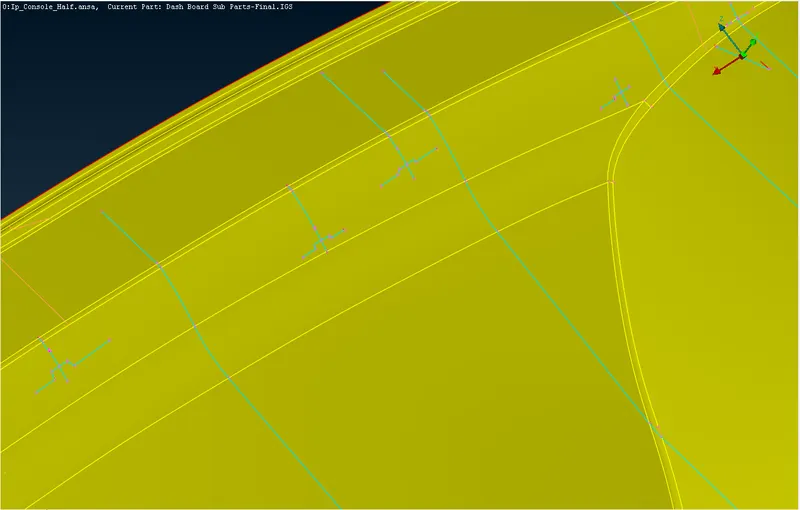

in the beginning used command such as off set to mid surface the maximum surface by using the feature area selection.

In the latter parts used the faces middle to create the mid surface in the rib sections.

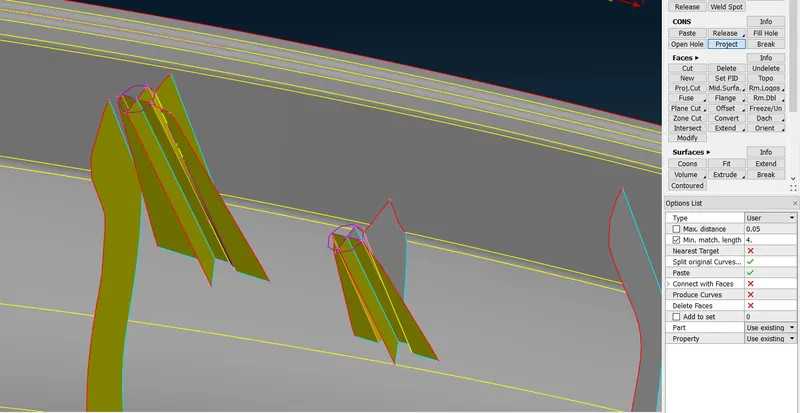

For Dog house created the curves and projected the same on the mid surface by changing the project option to user mode from normal mode so the i can give th e direction of offset and created the srfaces between the lines.

extended all the srfaces to the middle srface to make a triple cons and connect the srfaces to each other.

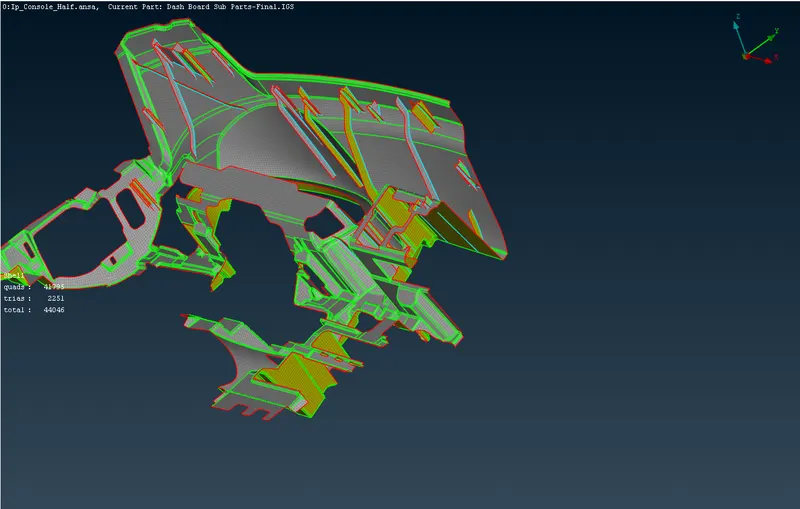

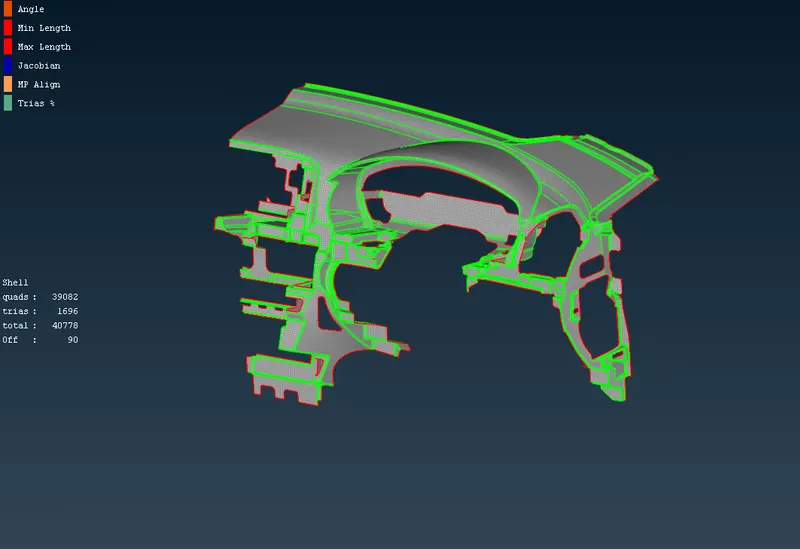

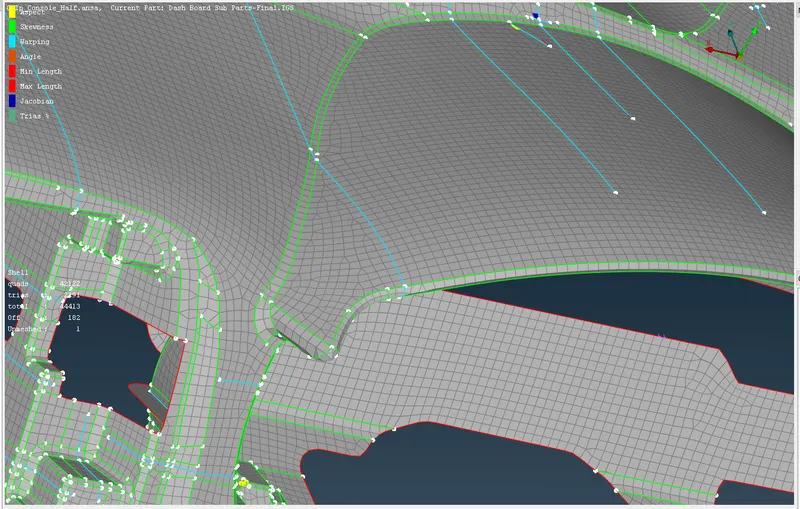

And then by using the batch mesh command meshed the surfaces and solved for the quality criteria

This completes the challenge.
