Project 2 - 2D meshing on the instrumental Panel

AIM:create the meshing for the given component by casting method.

initial model

PROCEDURE:

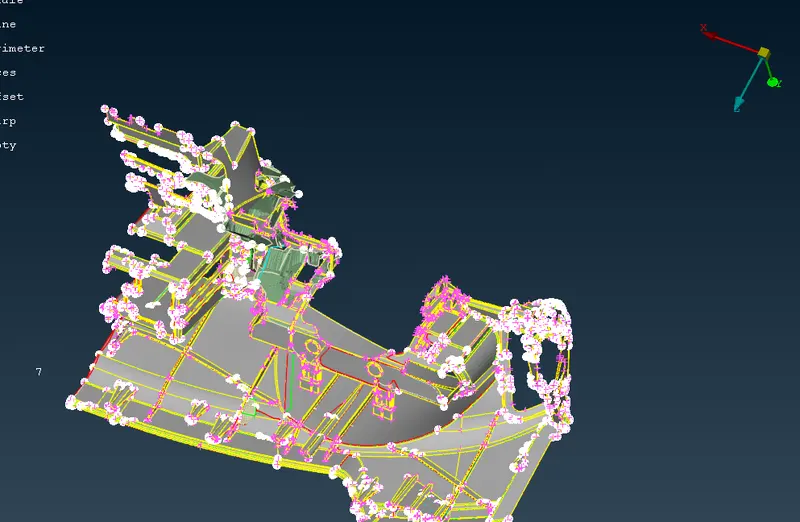

OPEN the given model in ANSA

give a topo to connect the surfaces

keep the length as 4 target element.

select the midsurface and choose casting method for the meshing.

as its a complicated model takes a much to meshing.

if any face is created by the own need to name as the face by creating new.

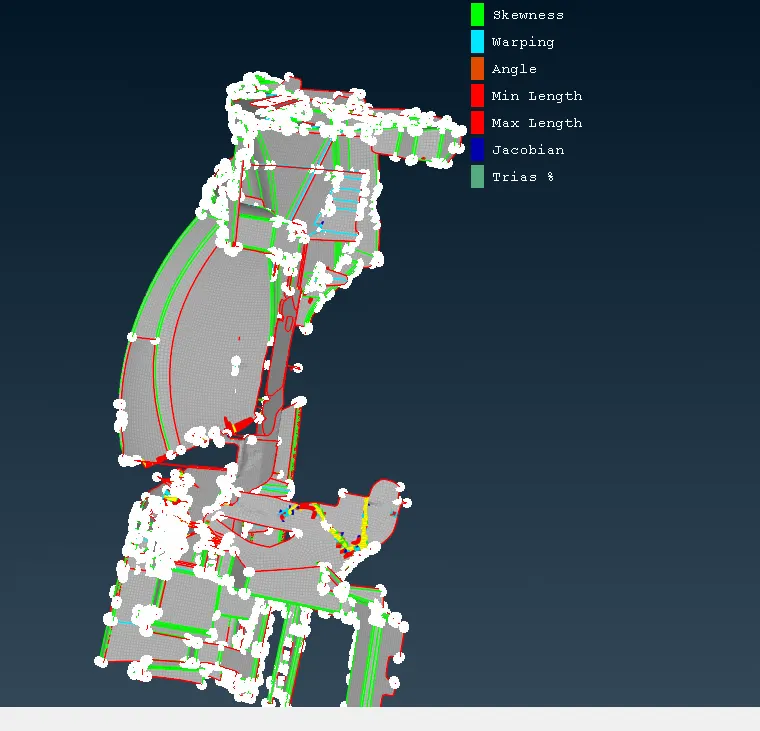

give the quality paramtres as mentioned.

conclusion:for complicated parts need to meshing in casting method so as to mesh the model in one instance but the off elemnts will be in large number. as compared to other methods.
