Project 2

!st Step create context assemblt it contails sourending data and geometric bundles,

Sorunding data contains back door assembly details, Geometric bundles contains conecter and wiring harness required components,

required components we need to analaze and define these are electrical components and store it to catalouge. from there we need to retrive the component to geometric bundle.

once if the required components are copied the by using mechanical assembly work bench position the parts into suitable location.

once position finalized start routing the bundles.

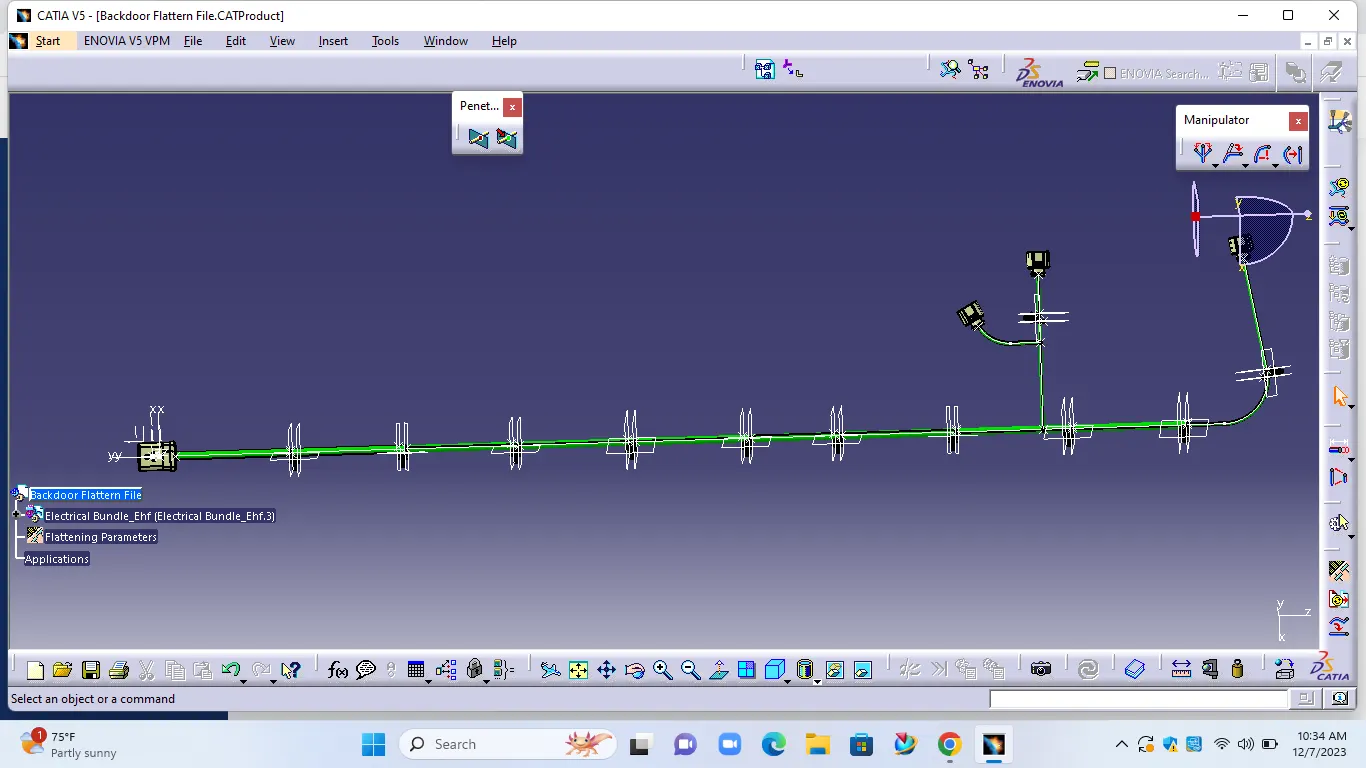

if bundle routing completed we need to check bundle continiuty to avoid flattern file errors.

Then Extract the final Bundle Assembly file into flattern file.

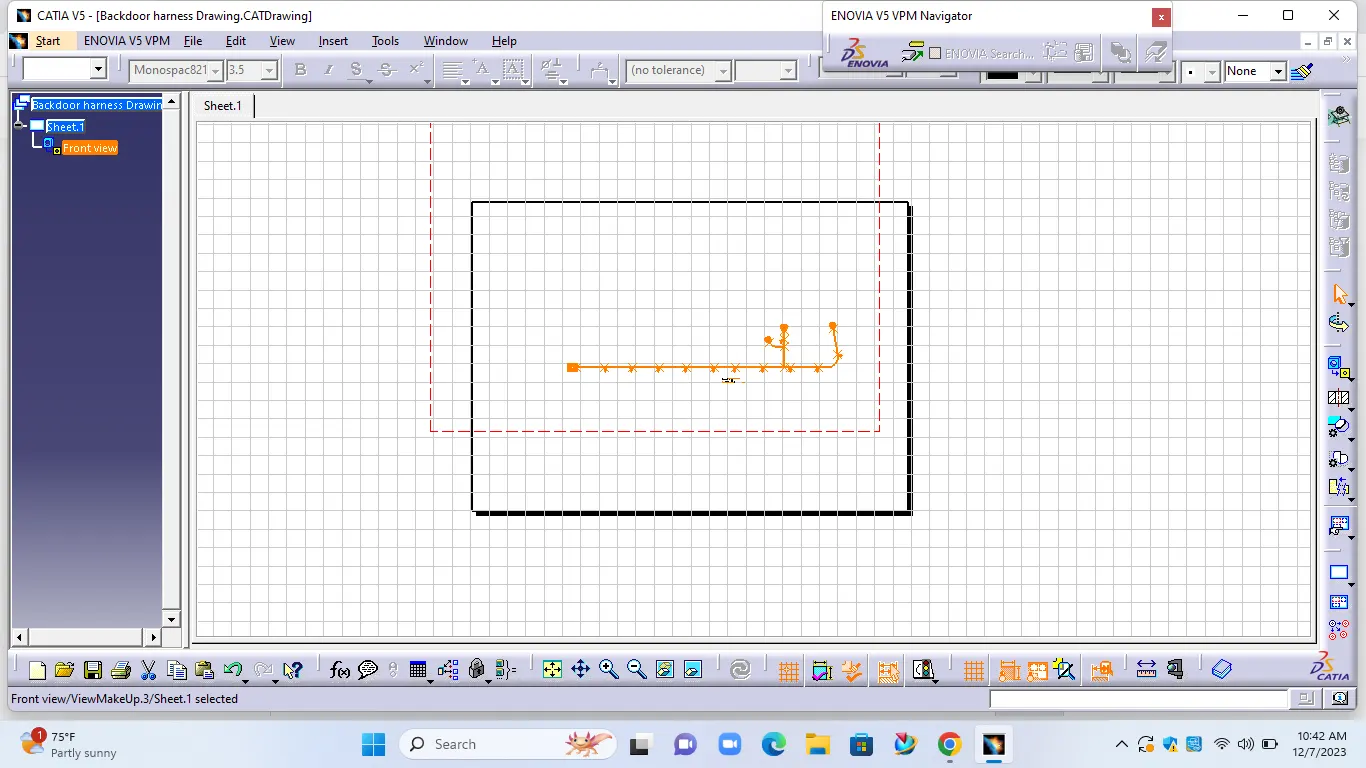

Once Flattern file complete start harness drawing creation.

Now it fitted with 1:2 ration into drawing file.

Project-2 Completed.
