Project 2

Aim: To route the wiring harness on the given tailgate assembly and prepare the flatten view drawing in CATIA V5.

Given:

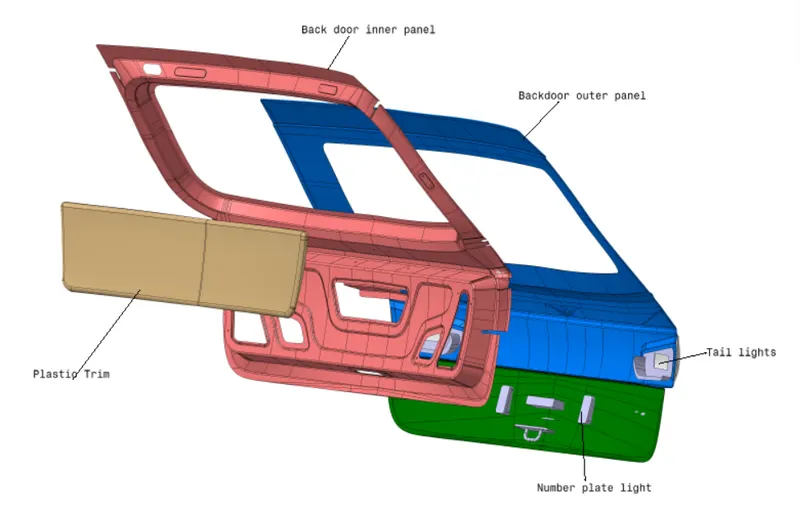

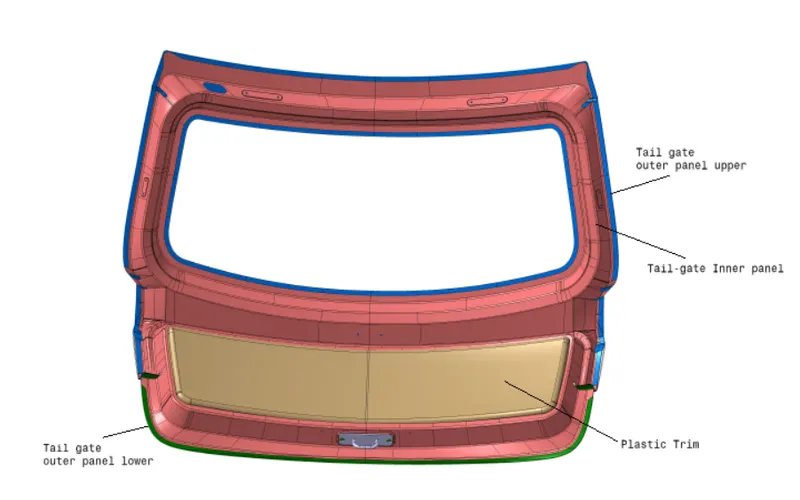

Car Tailgate Assembly

DESIGN CRITERIA AND PACKAGING ASSUMPTIONS:

• Wiring harness routing shall provide ease in manufacturing, accessibility, easy removal, and easy maintenance of attached equipment and wiring harness.
• Routing through small structural holes and openings shall be avoided, minimize chaffing and handling of the wiring harness during installation.
• Avoid the harness routing and clipping in the Blind zone of the Operator during harness assembly or in service.
• Routing shall offer protection against possible damage through common misuses such as being handhold and temporary support for test equipment.
• Provide additional slack to the harness according to the surroundings and harness bending requirements.
• Ensure the routing meets the clearance requirements with different surrounding parts.
• Avoid routing over the bolts, near to the bolted joints. It may damage the harness or puncture the harness. Keep harness away from panel mounting screws.
• Avoid harness routing near sharp edges, if not possible provide protection to the harness.
• The maximum distance between two clips on a straight branch is 200mm.
• Provide Clips and clamps if the harness is going to bend at multiple locations.
• The use of too many sheet-metal brackets should be avoided.
• The branch length should be more than 50 mm.
• Min distance between clip and branching point to be 25 mm.
• Min distance between two branch breakouts should be 50 mm.

select the connectors and other mounting equipment

1. First, we have to consider the components we need for the routing. Here we are considering the taillights, the number plate light,wiper motor.
   Select appropiriate connectors and mounting clips which are electrically defined after that move these connector as per required place.

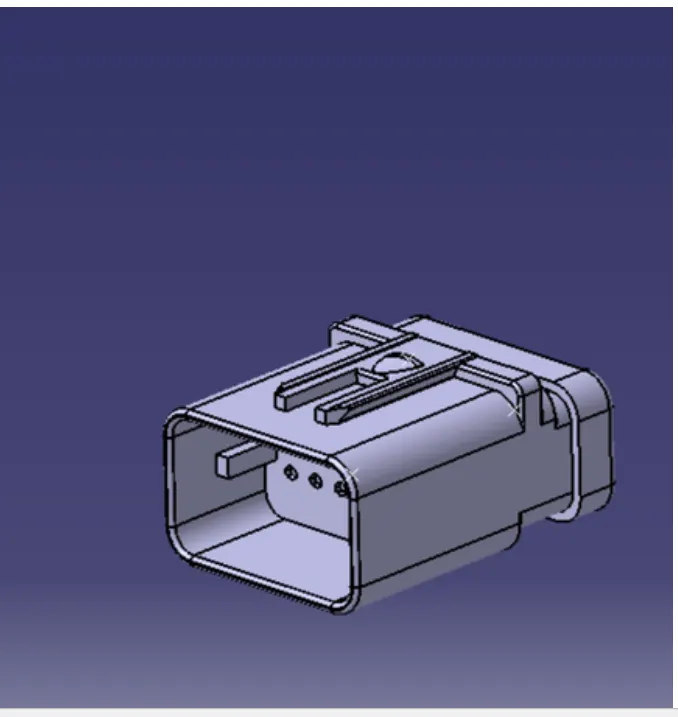

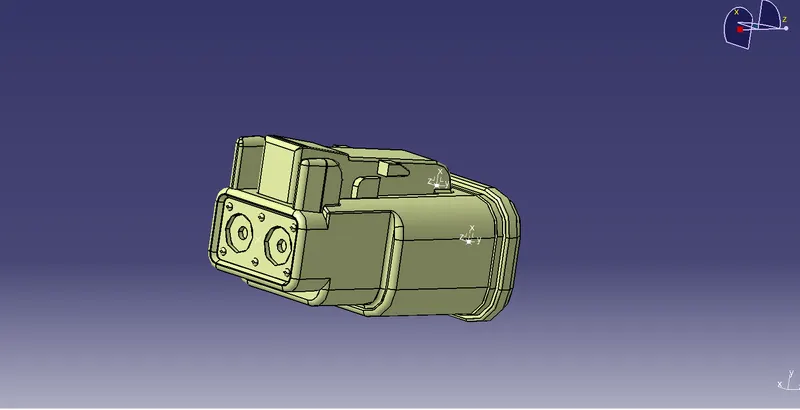

   Interconnection Connector:

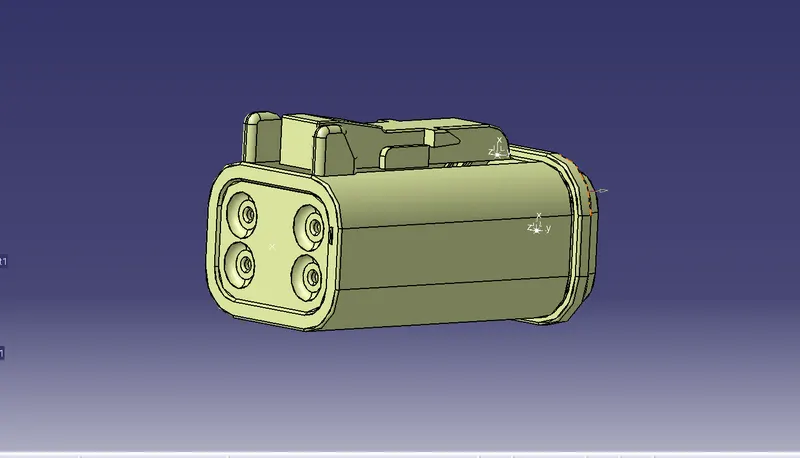

   Light Connector


2.


3. Clips and clamp used for routing the harness

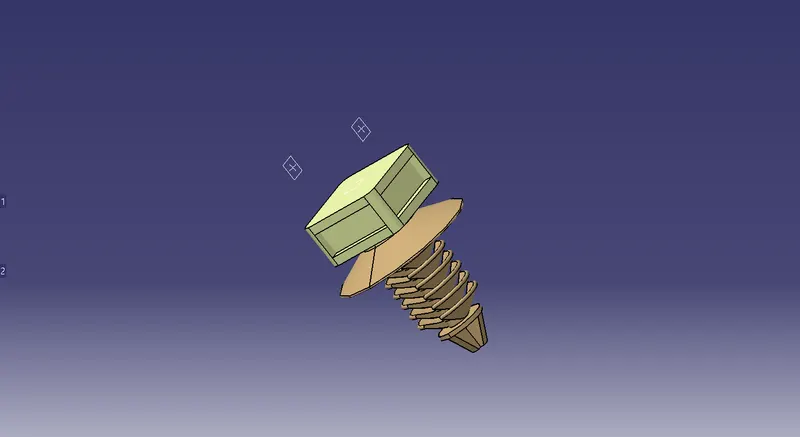

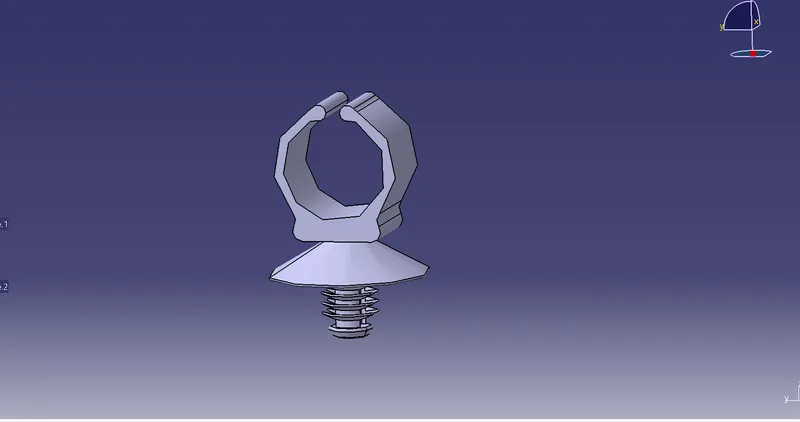

   Fir tree clip 10mm

4. fir tree clip 5mm
5.

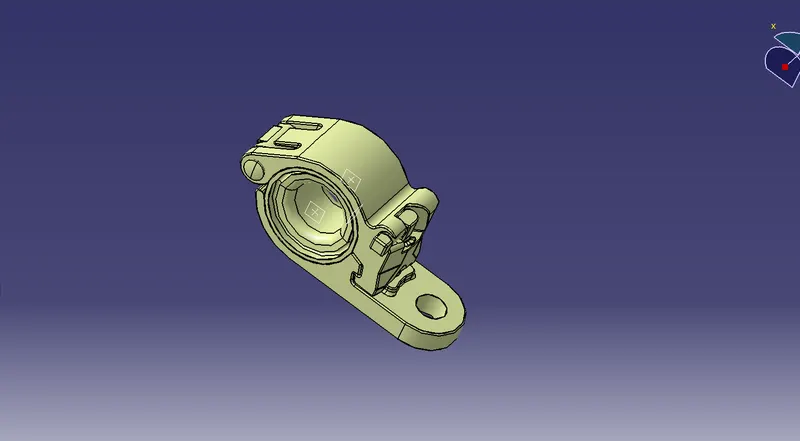

6. P clamp
7.
   Define all the connectors as electrical components and the clips as the supporting equipment.

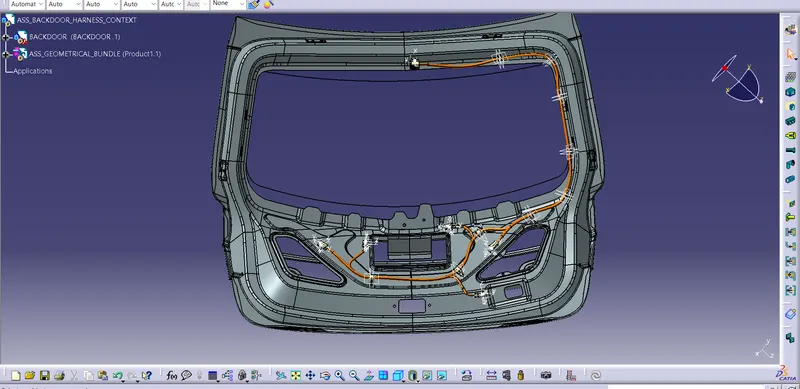

   Routing of the wiring harness

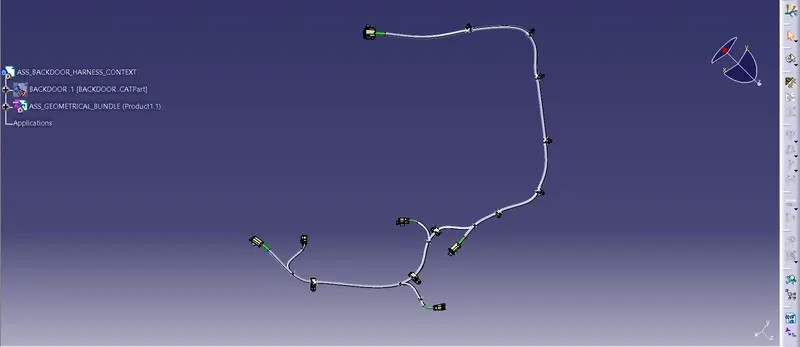

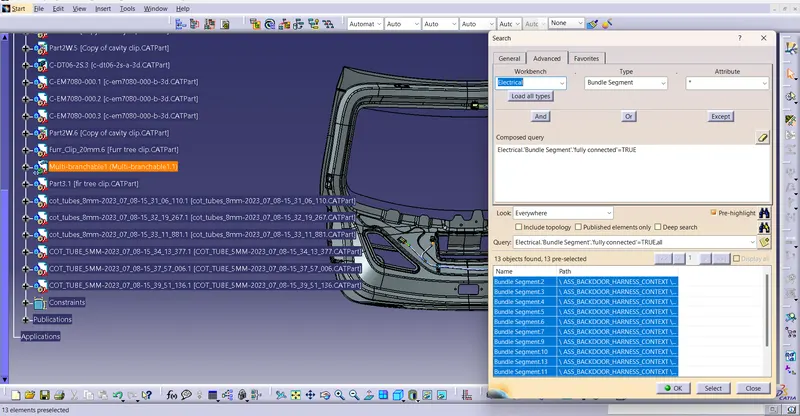

   Bundle Continuity Check




8. Application of protection coverings
9.

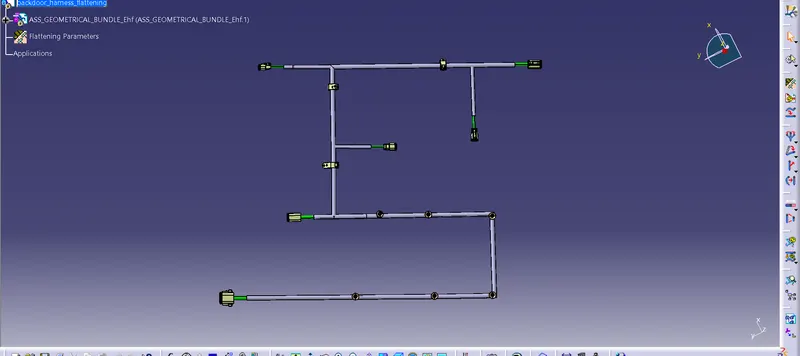

10. Preparing the flattening view of the wiring harness assembly
11.

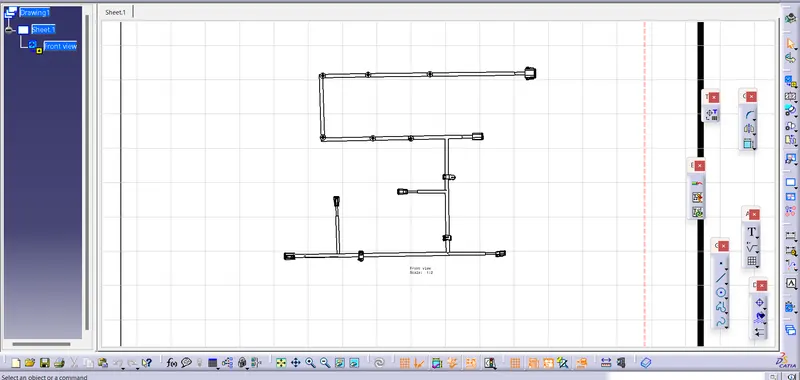

    Drafting of the Wiring Harness :



    CONCLUSION:


    The wiring harness has been designed for the given tailgate assembly and the flattened view is drafted.
