Project 2

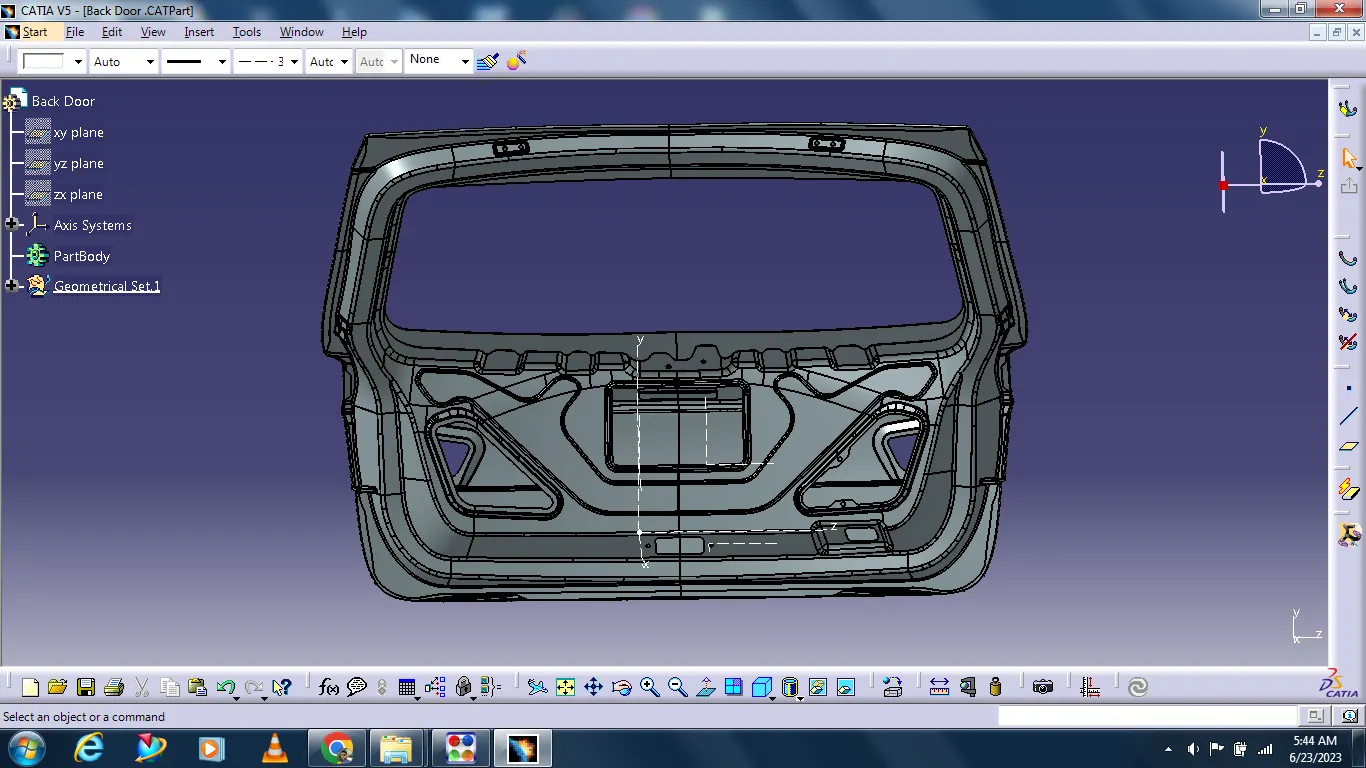

Download the back door cad file.

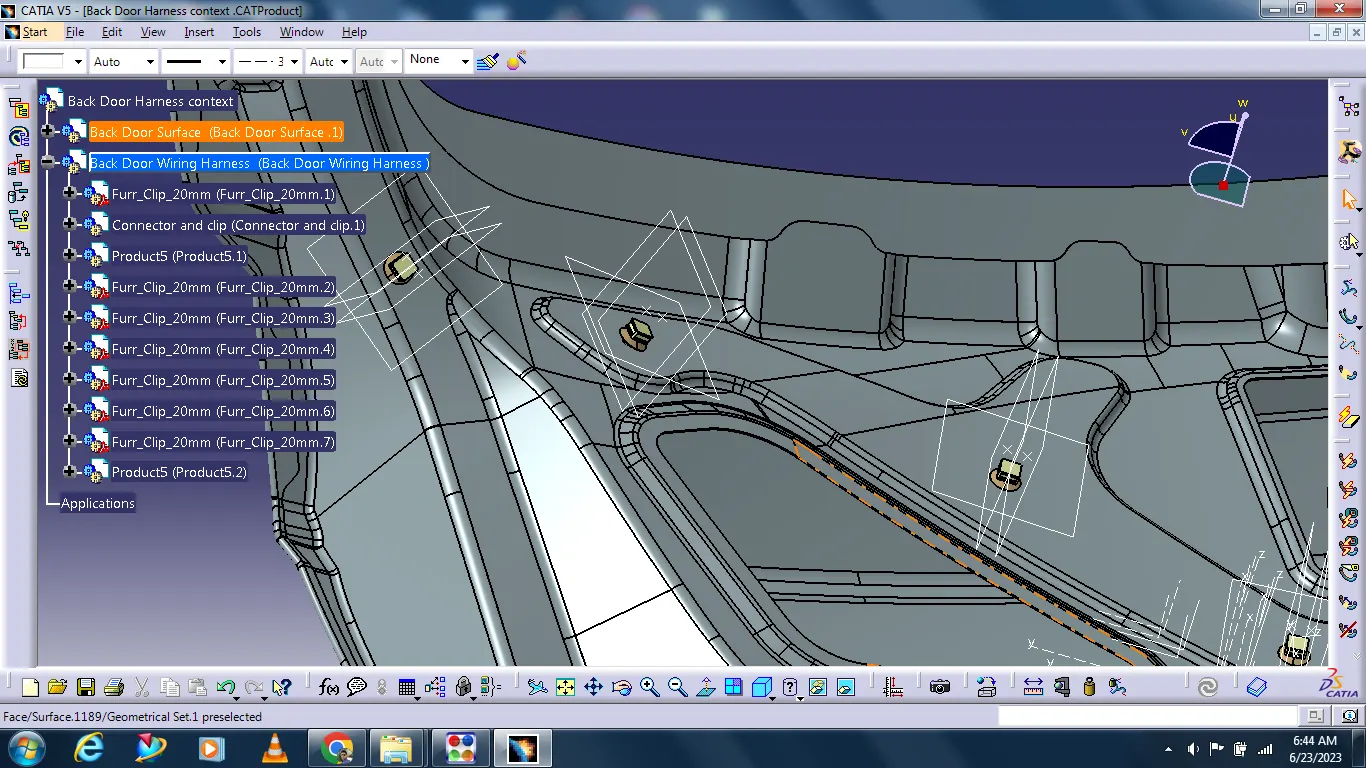

Create the product file and add the Back door surface and back door wiring harness file.

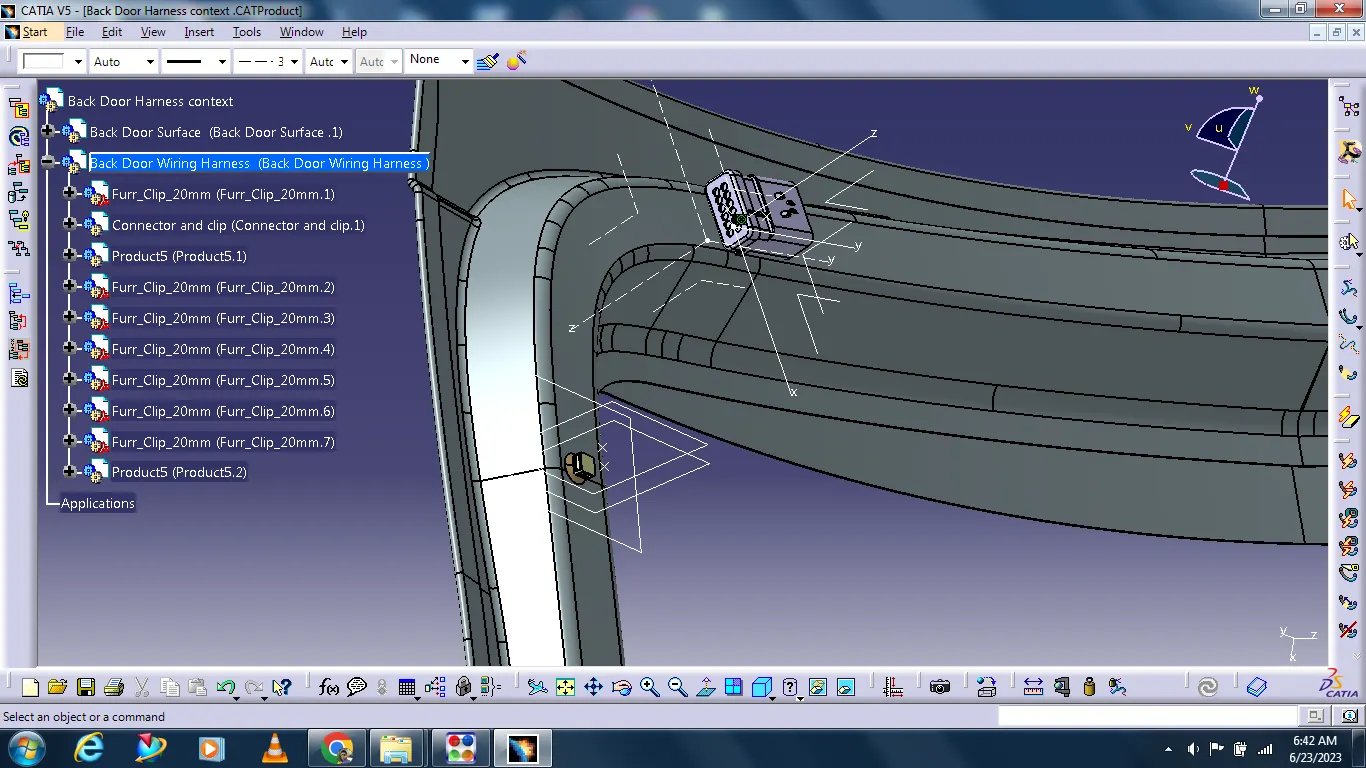

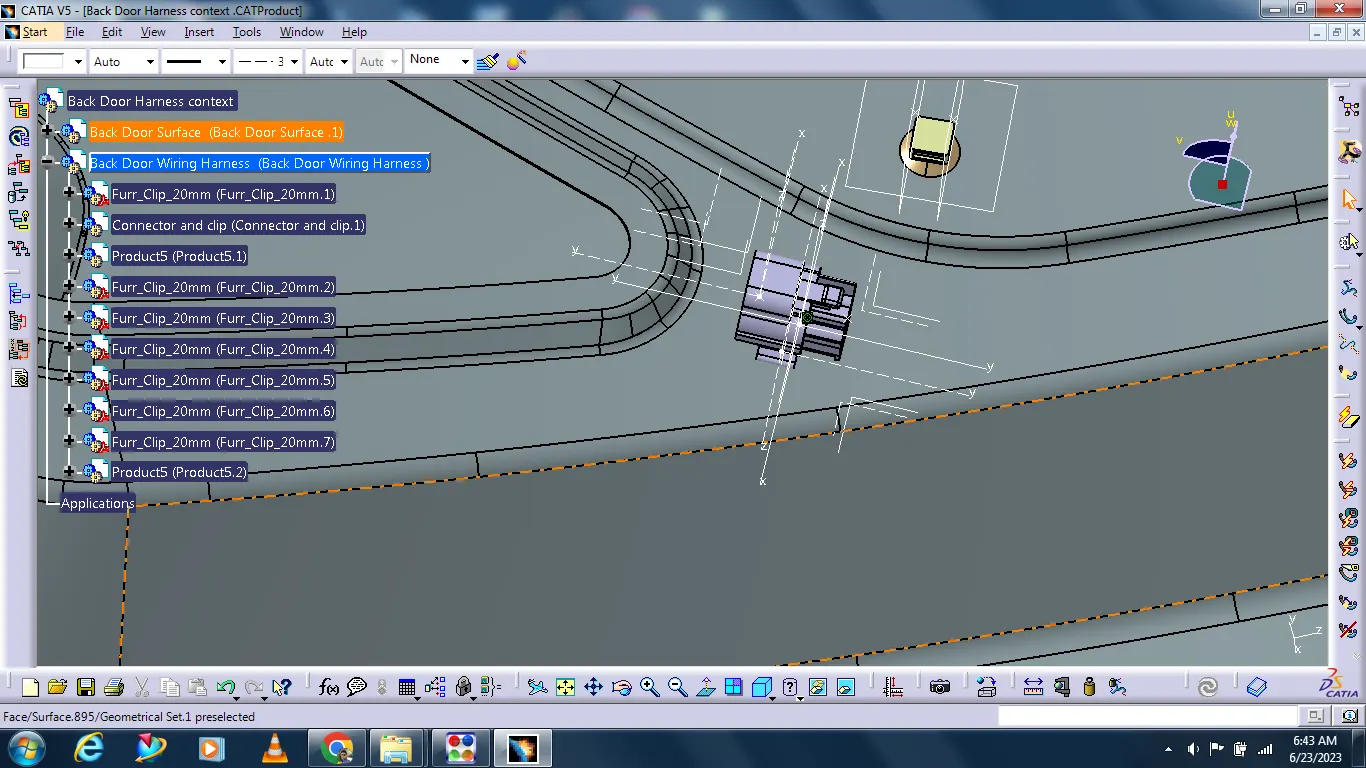

In the Back door wiring harness file adding the connectors and furr clips.

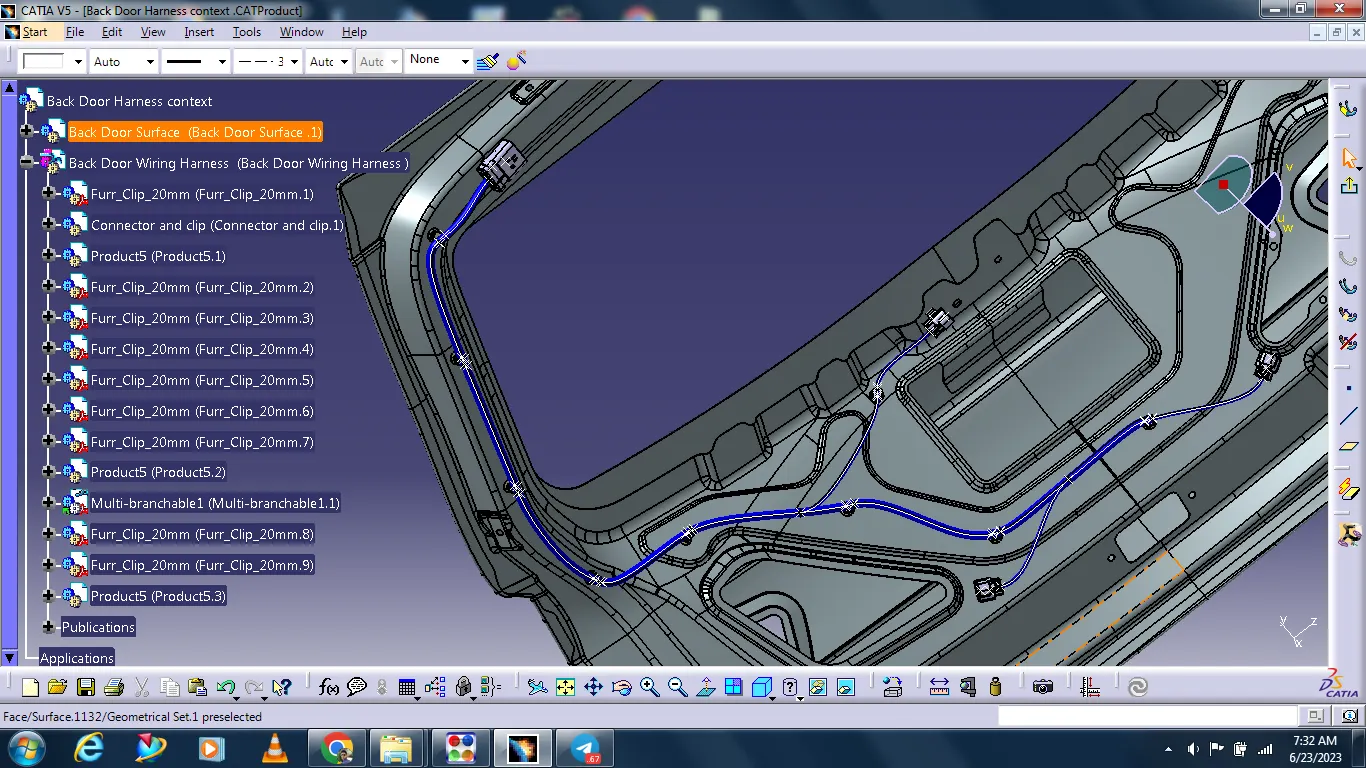

After completing the connector fixing next do bundle segment.

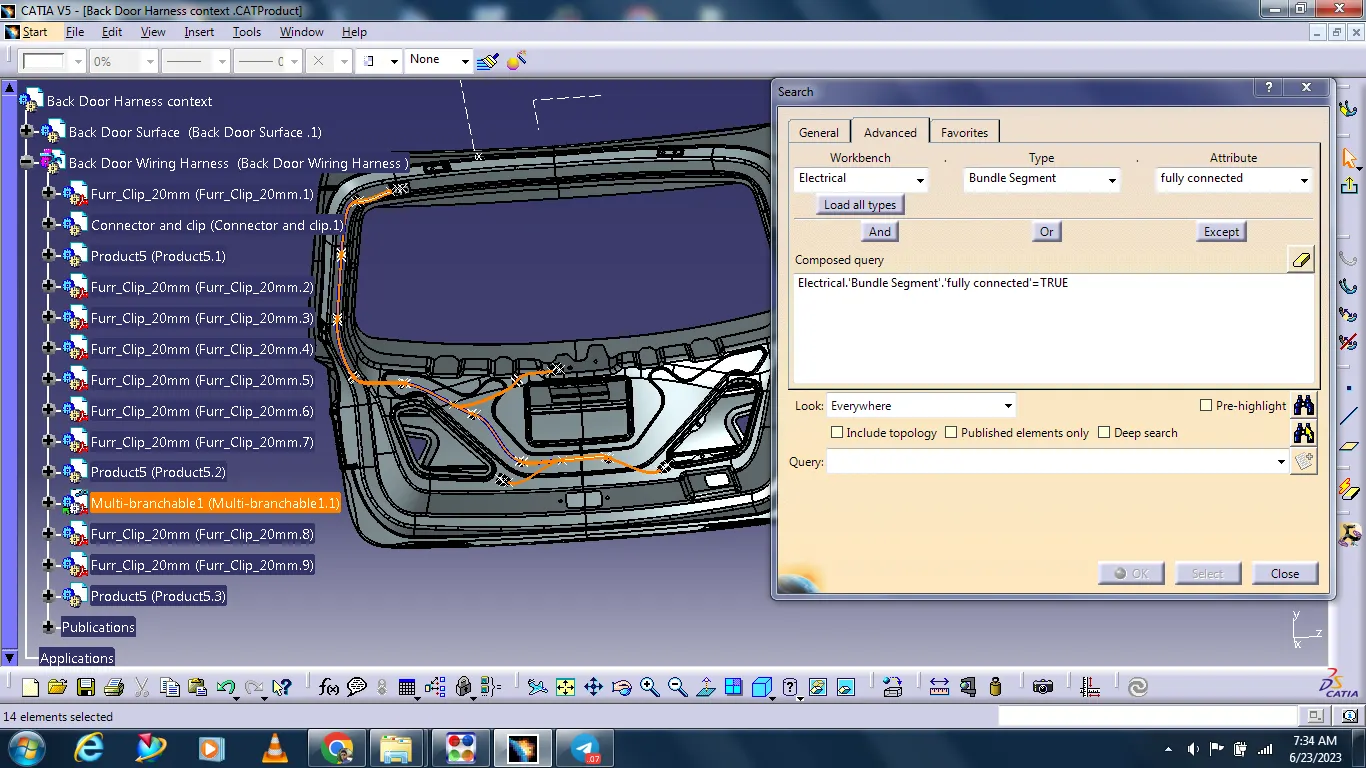

After completing the bundle segment checking the bundle connection is connected or not conforming.

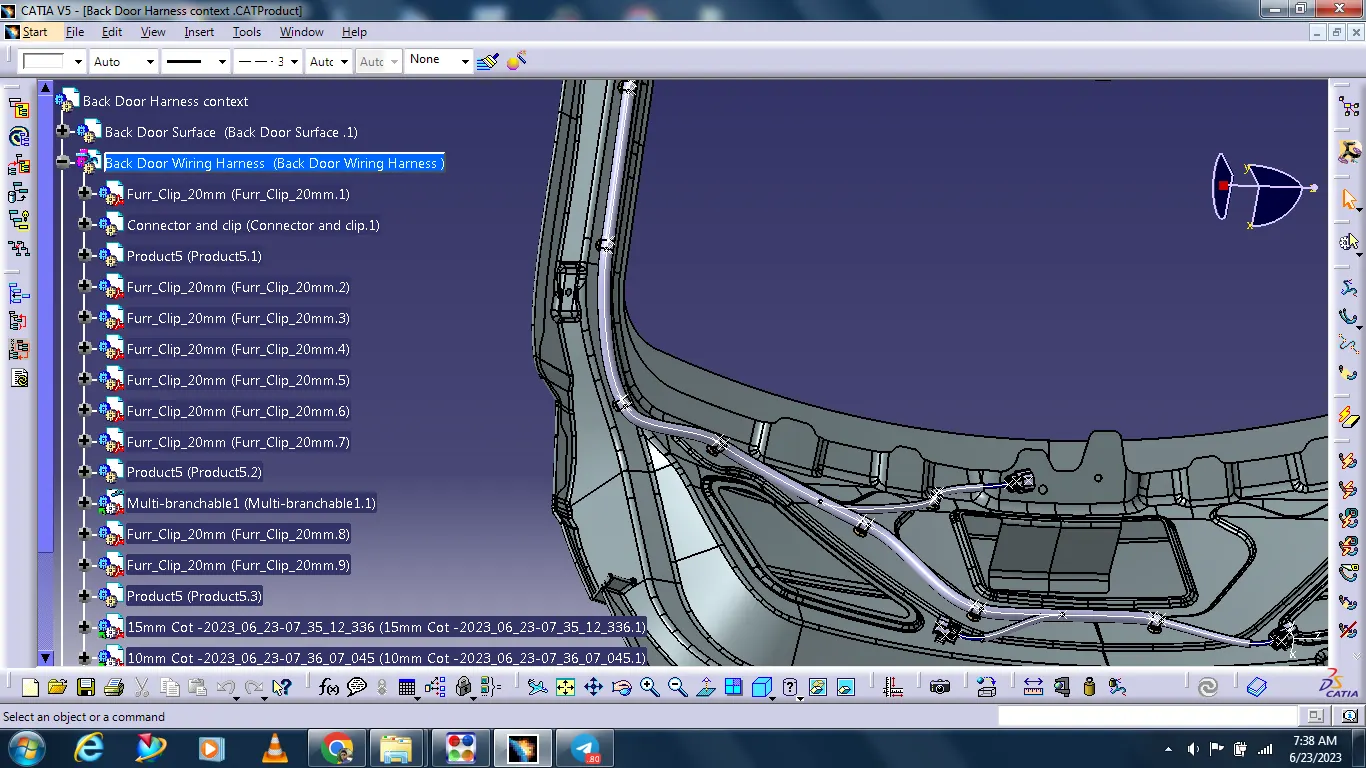

After completing the bundle segment next fix the corrugate tubes.

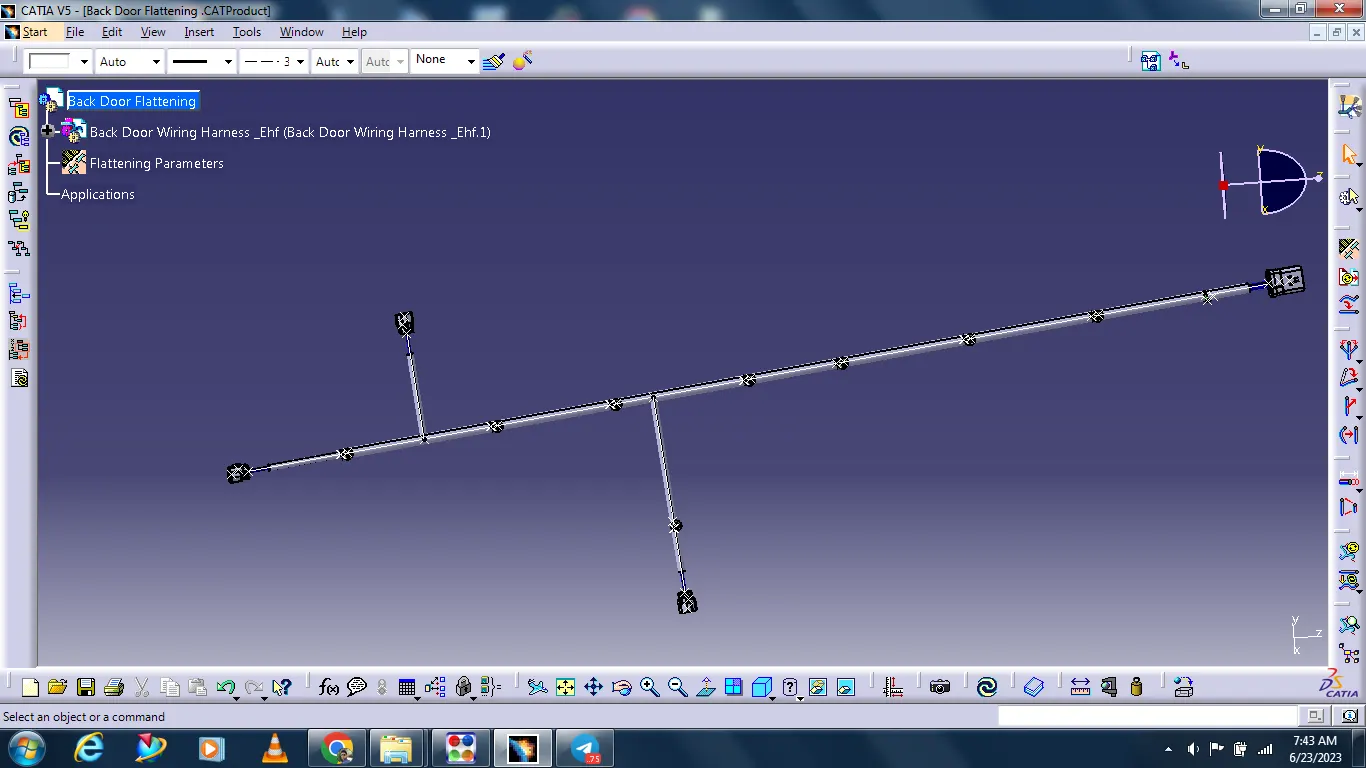

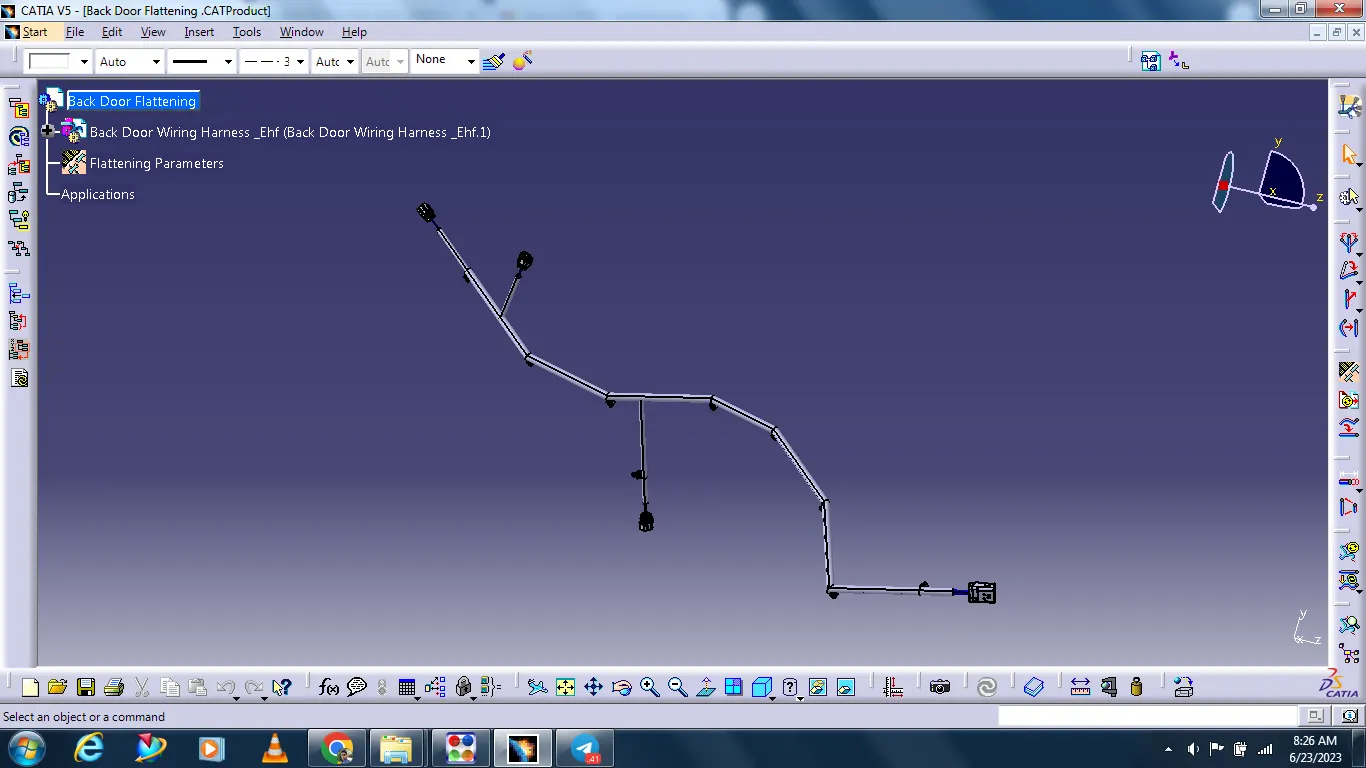

After completing the wiring harness assembly next doing Flattening operation.

First create the flattening parameters.

next extract the wiring file.

next select the Flatten command.

Next adjust the length.

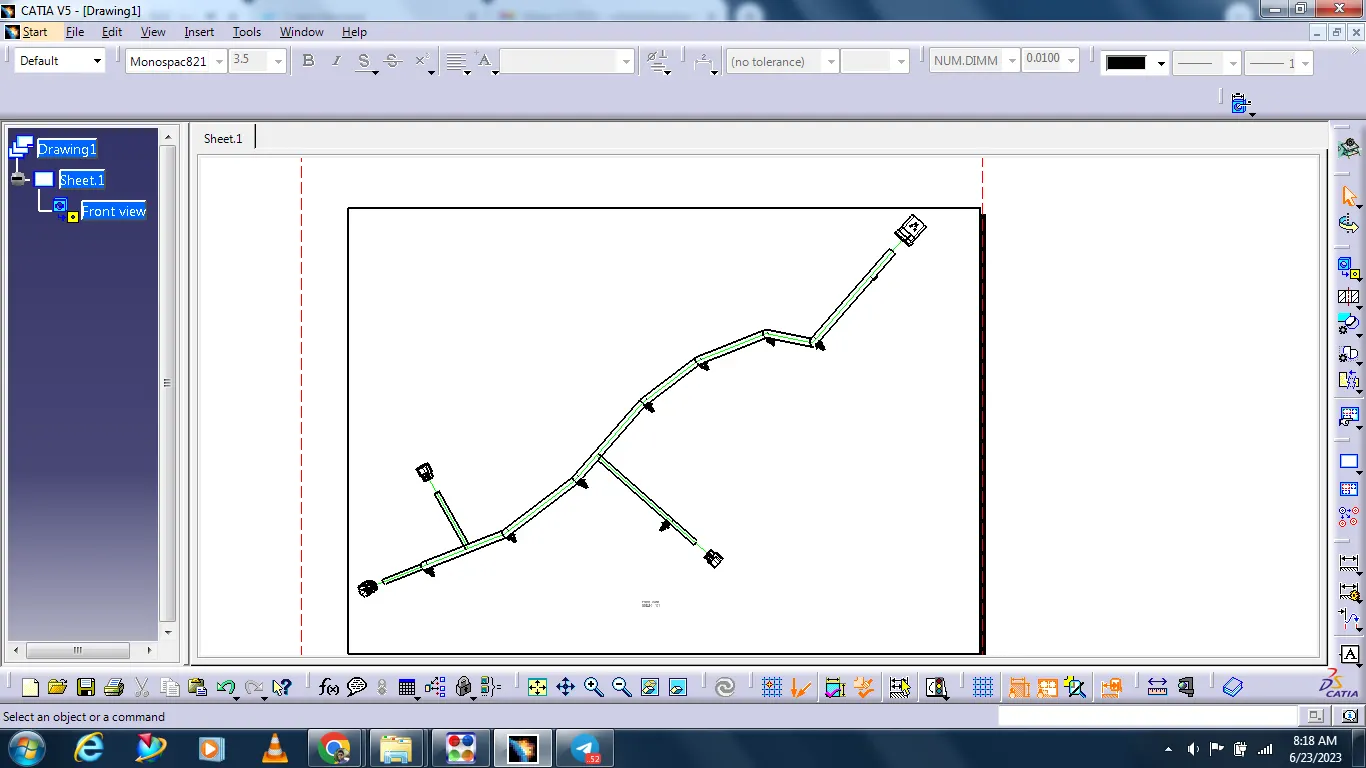

Next create the drawing file and add the wiring harness file.
