Challenge

Project 2

VVenkataramanaiah P17 Feb 2023

Aim : 1.Calculate the water current forces ,centrifugal forces, wave forces, snow loads, temperature loads, Barge Impact load for the bridge structure

Model the bridge structure in Staad Pro and apply all the calculated loads

Introduction:

Horizontal forces due to water currents (As per IRC-6-2017)-210

Any part of a road bridge which may be submerged in running water shall be designed to sustain safely the horizontal pressure due to the force of the current.

Max. Velocity = V = √2 x Vmean

P = 52KV^2

where, P = intensity of pressure due to water current, in kg/m2

V = the velocity of the current at the point where the pressure intensity is being calculated, in metre per second, and

K = a constant having the following values for different shapes of piers illustrated in

Square ended piers (and for the superstructure) 1.50
Circular piers or piers with semi-circular ends 0.66

Piers with triangular cut and ease waters, the angle 0.50 included between the faces being 30° or less

Piers with triangular cut and ease waters, the angle included 0.50 to between the faces being more than 30° but less than 60° 0.70 41 IRC: 6-2017
Piers with triangular cut and ease waters, the angle 0.70 included between the faces being more than 60° but to 0.90 less than 90°
Piers with cut and ease waters of equilateral arcs of 0.45 circles

Piers with arcs of the cut and ease waters intersecting at 90° 0.5

CENTRIFUGAL FORCES (As per IRC-6-2017)-212

Where a road bridge is situated on a curve, all portions of the structure affected by the centrifugal action of moving vehicles are to be proportioned to carry safely the stress induced by this action in addition to all other stress to which they may be subjected.

The centrifugal force shall be determined from the following equation:

C = WV^2/127/R

Where, C = Centrifugal force acting normally to the traffic

(1) At the point of action of the wheel loads or

(2) Uniformly distributed over every meter length on which a uniformly distributed load acts, in tones.

W = Live load (1) in case of wheel loads, each wheel load being considered as acting over the ground contact length specified in Clause 204, in tonnes, and (2) in case of a uniformly distributed live load, in tonnes per linear metre.

V = the design speed of the vehicles using the bridge in km per hour, and

R = the radius of curvature in metres.

212.3 The centrifugal force shall be considered to act at a height of 1.2 m above the level of the carriage way

Wave loads

Zh = Maximum crest elevation(η_max) – Centroid Of Ah Elevation

Zv = Maximum crest elevation(η_max) - Elevation of bottom deck

Vertical load, Fv = Unit weight of water x Zv x Av

Horizontal load, Fh = Unit weight of water x Zh x Ah

Maximum vertical load Fvmax = CvaXFv

Maximum horizontal load, (Fh)max = (1+Cr(N - 1)) Cva x Fh

Snow loads:

Snow load, S° = density x area

Design snow load, S = µ x S°

215 TEMPERATURE:

Stress due to temperature =α *ΔT*E

Max permissible stress =(2/3) X 0.7 X Sqrt(fck)

219 Barge load:

Barge impact is a potential hazard for bridge piers located in navigation waterways. The dynamic impact process is influenced by many factors, including barge mass, impact velocity, oblique impact angle, water elevation, material properties of pier members, soil properties, etc.

Barge collision energy., As per IRC - 6, 2017, Clause 219.5

KE = 500 x Cʜ x W X V² .,

where.,

KE = Barge collision energy in N/m

Cʜ = Hydrodynamic co-efficient

W = Barge dispalcement in T

V = Barge Impact speed in m/s

aʙ(Barge damage depth) = 3100 x ( [ 1 + 1.3 x 10⁻⁷ KE ]⁰·⁵ - 1 )

The barge collision impact force shall be determined based on the following equations:

For aB<100 mm, PB = 6.0 x 10^4 x (aB), in N

For aB ≥ 100 mm, PB = 6.0 x 10^6 + 1600 x (aB), in N

Given that:

Maximum crest elevation = 3 m.

No Of I-Girders =4

I Girder height = 1.6 m

top and bottom flange width = 2m

top and bottom flange and Web thickness =0.3 m

Pier Size =1.2m

Carriage way width =9 m

Deck Slab width =10.5 m

Deck slab thickness = 1.5 m

Deck of bridge is flat =B <30 degree.

The depth of accumulation of snow = 1250 mm.

Span of the bridge =10m

constant r = 5

cva =3

Storm elevation =8.5m

Cr = 0.4

maximum crest elevation ,ηmax =3m

High flood level =4 m above the Bottom of foundation levelMean velocity of the river = 2.5 m/s.

Live load =70R (Tracked vehicle)

Radius =2m

Design Speed =50Km/hr

The Dead weight tonnage of Panamax vessel is 25000 DWT.

Calculations:

Water Current Forces:

Max. Velocity = √2*Vmean(Mean velocity=2.5m/s)

= √2*2.5

= 3.535534 m/s

Water Current,P=52*K*V²

According to IS Code 78-2000 Section VII table No 4 Page No 21 is value of K

i) Square ended piers (and for the superstructure) k=1.50

Therefore Water Current, P =52*1.5* 3.535534²

=975 Kg/m² or 9.56Kn/m2(1 kN≈100 kg)

Centrifugal Forces:

As per Irc -6 ,

Centrifugal Force, C=WV² /127R

W=70T(700 Kn)

V=50km/hr

R=2m

C=(70 X 50 X50/127/2)= 688.9764 tonnes or 6756.102 KN

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Wave loads:

Zh = Maximum crest elevation(η_max) – Centroid Of Ah Elevation

Ah height =I-girder height + Slab thickness + Parapet wall height

=1.6+1.5+1.5=4.6 m

Centroid of Ah Elevation=4.6/2=2.3

Zh=3-2.3=.7m

Zv = Maximum crest elevation(η_max) - Elevation of bottom deck

Elevation of bottom deck =1.5m

Maximum crest elevation(η_max) =3m

Zv=3-1.5=1.5m

Vertical load, Fv = Unit weight of water x Zv x Av

Unit weight of water=10

Zv =1.5

Span width =10.5m

Girder to Parapet height =3m

Av=10.5*3=31.5

Fv=10*1.5*31.5=472.5

Horizontal load, Fh = Unit weight of water x Zh x Ah

Unit weight of water=10

Zh =0.7m

Span width =10.5m

Girder to Parapet height =3m

Av=10.5*3=31.5

Fh=10*.7*31.5=220.5

Maximum vertical load Fvmax = CvaXFv

Cva=3

Fv=472.5

Fvmax=3*472.5= 1417.5 kN

Maximum horizontal load, (Fh)max = (1+Cr(N - 1)) Cva x Fh

Cr=.4

Cva=3

N=4

Fh=220.5

Fhmax = (1+Cr(N - 1)) Cva x Fh

=(1+.4*(4-1))*3*220.5

=1455.3 Kn

SNOW loads:

Span =40m

The snow = settled snow(Load=200-300 kg/m³,so max value adopted=300 kg/m³)

The deck of bridge =flat with B <30 degree(Shape co-efficient , µ = 0.8

The depth of accumulation of snow = 1500 mm.

Snow load, S° = density x area

=3*1.5(Depth)*40(Span)

=37.5 Kn/m

Design snow load, S = µ x S°

= 0.8 x 37.5

Design snow load, S = 180 KN/m

Temparature Loads:

Max. Temperature in Bapatla as per Irc l Isotherm =47.4 degrees

Min . Temperature in Bapatla as per Irc l Isotherm =11.1 degrees

Effective temperature Difference=(47.5-(11.1))/2+[10]=58.5/2+10=39.25 Degrees

Stress due to temperature=α *ΔT*E

=11.27 X 10^-6X 39.25 X 5000(40)^1/2

=12.4736 kN /m²

Max permissible stress =(2/3) X 0.7 X Sqrt(fck)

=.666 X 0.7 Xsqrt(40)

=2.948508

Hence, the stresses are restricted to 3kN/m²

Max. Temperature=47.4 degrees

Min . Temperature =11.1 degrees

Positive Temperature Difference

Temperature at top =47.4

Temperature at bottom =(2.1/17.8)*47.4

= 5.592135Degrees

Barge Impact Loads

Barge collision energy., As per IRC - 6, 2017, Clause 219.5

KE = 500 x Cʜ x W X V²

Where.,

KE = Barge collision energy in N/m

Cʜ = Hydrodynamic co-efficient (Assumed 1.25)

W = Barge displacement in T

V = Barge Impact speed in m/s

To convert the km/hr to m/s

= 50 x 1000 / 3600

= 13.88889 m/s

KE = 500 x Cʜ x W X V²

=500 x 1.25 x 25000 x 13.88889²

=2.17 X 10⁸N/m

Barge damage depth

aʙ = 3100 x ( [ 1 + 1.3 x 10⁻⁷ KE ]⁰·⁵ - 1 )

=3100 X ([1+(1.3 X 10^-7 KE)]^0.5-1)

=3100 X([1+1.3 X 10^-7X 2.17 X 10⁸]^0.5-1)

=13654.86351 mm

As per Irc-6-2017,219.7 Barge Collision Impact Force, ‘PB’

The barge collision impact force shall be determined based on the following equations:

For aB<100 mm, PB = 6.0 x 10^4 x (aB), in N

For aB ≥ 100 mm, PB = 6.0 x 10^6 + 1600 x (aB), in N

Since aB>100mm, PB=6.0 x 10^6 + 1600 x (13654.86351), in N

=27847781.6 N or 27847.7816 KN

Staad Pro Modelling:

1.Creation of Geometry:

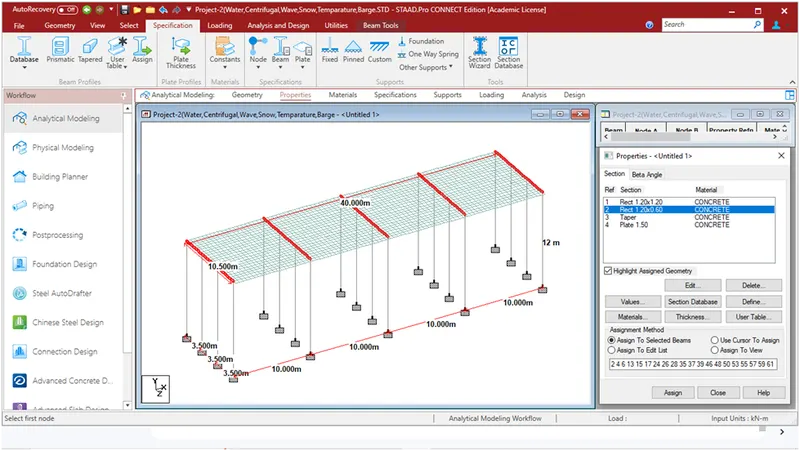

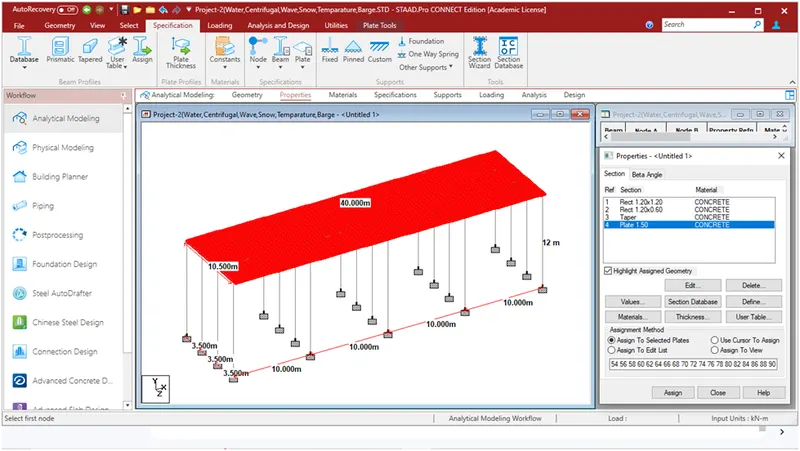

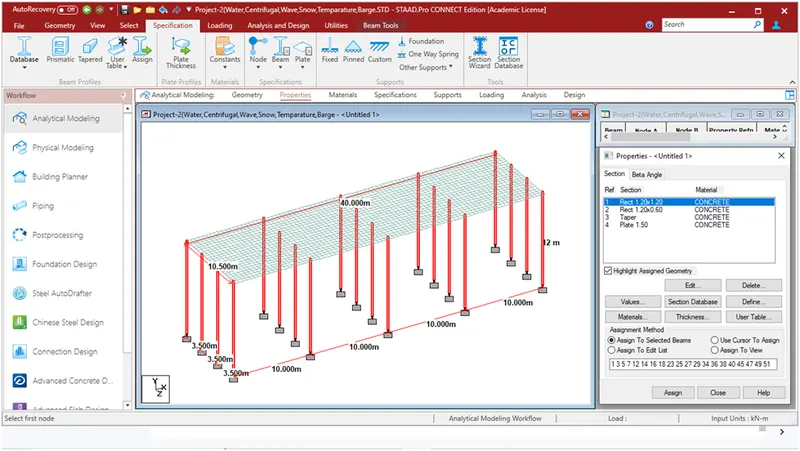

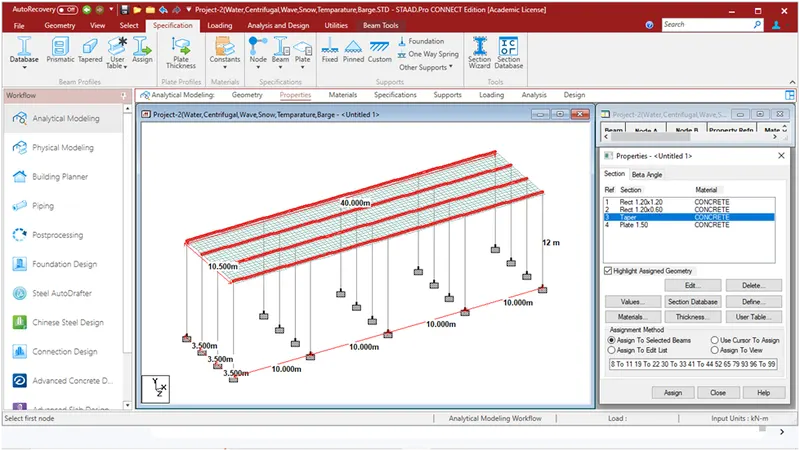

2.Assigning Properties:

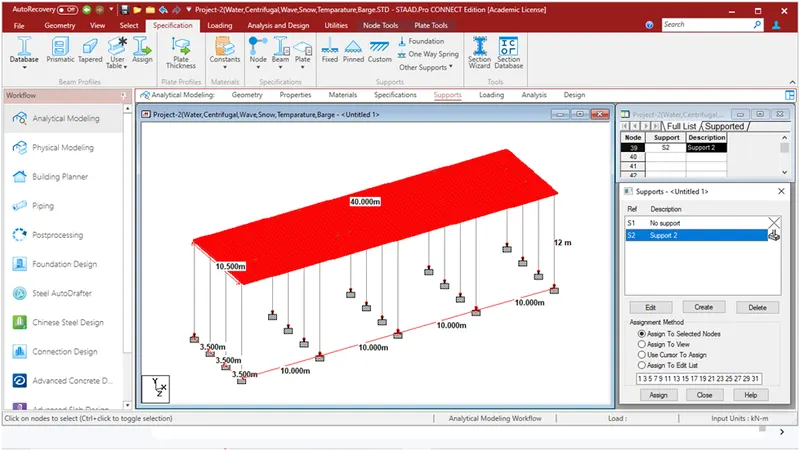

Assigning Supports:

Defining Loads:

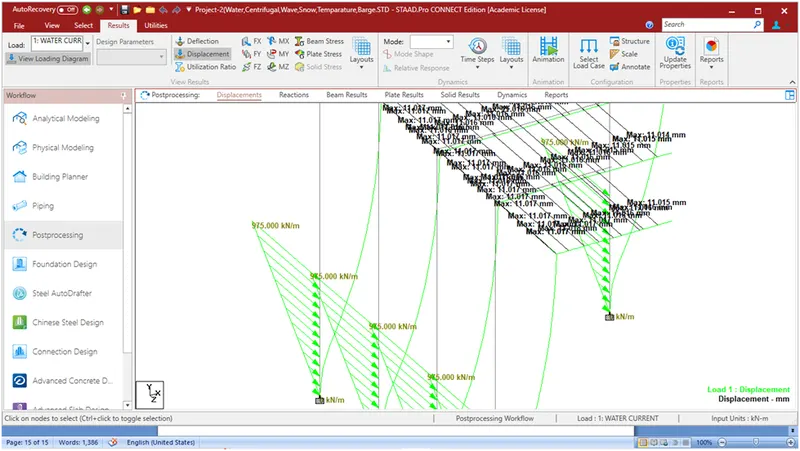

Displacement due to Water current forces

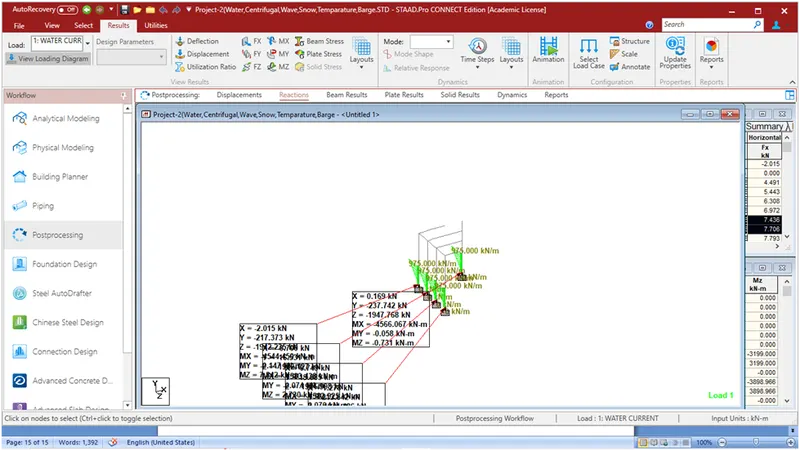

Reactions due to Water current forces

Piers Bending moment-y Due to water curren loads:

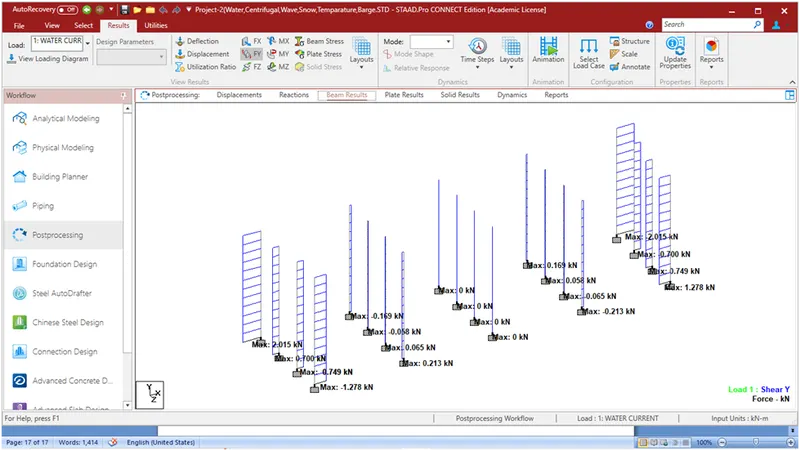

Piers shear force-y Due to water curren loads:

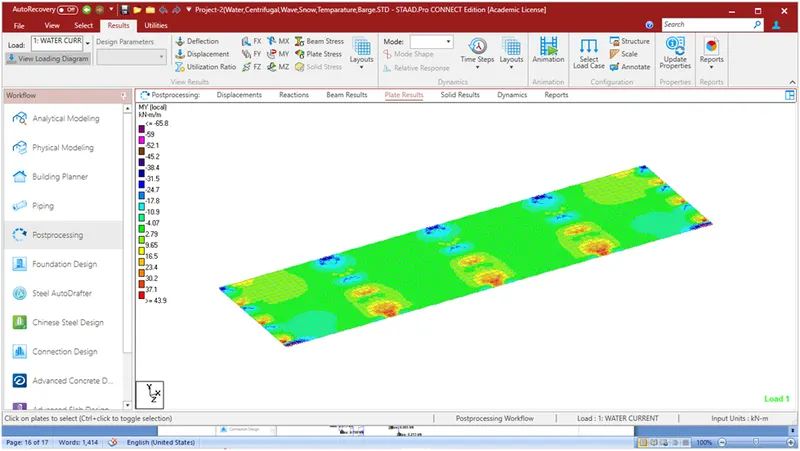

plate stresses my Due to water curren loads:

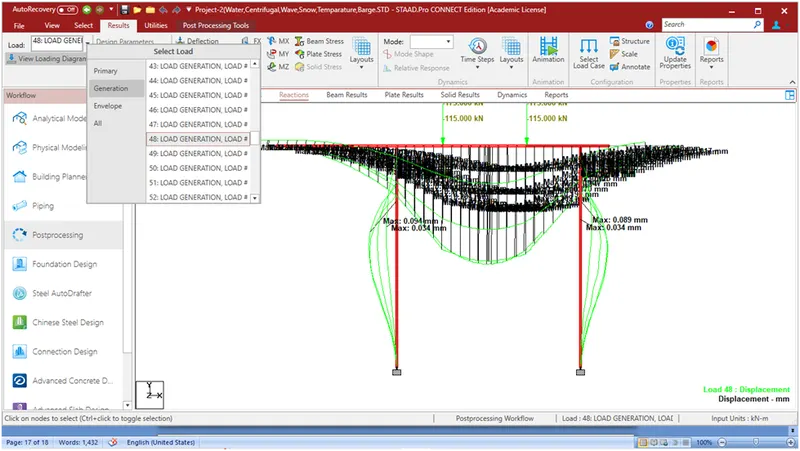

Max Displacement due to centrifugal force under 48 load generation:

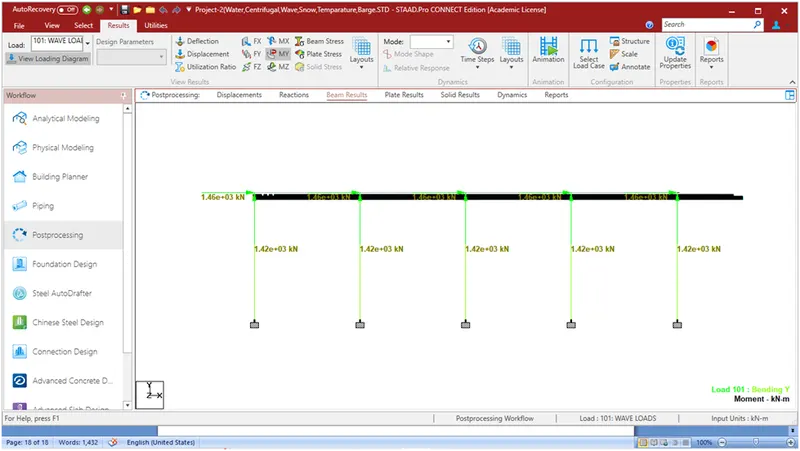

Max Bending moment –y under wave loads

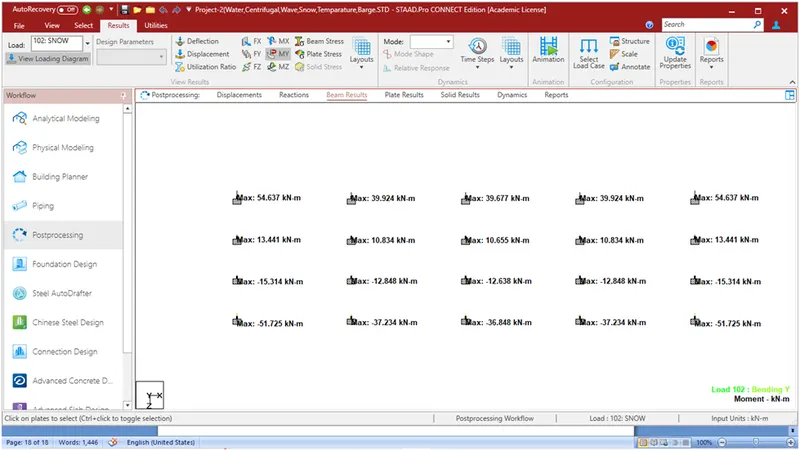

Max Bending moment –y under snowloads

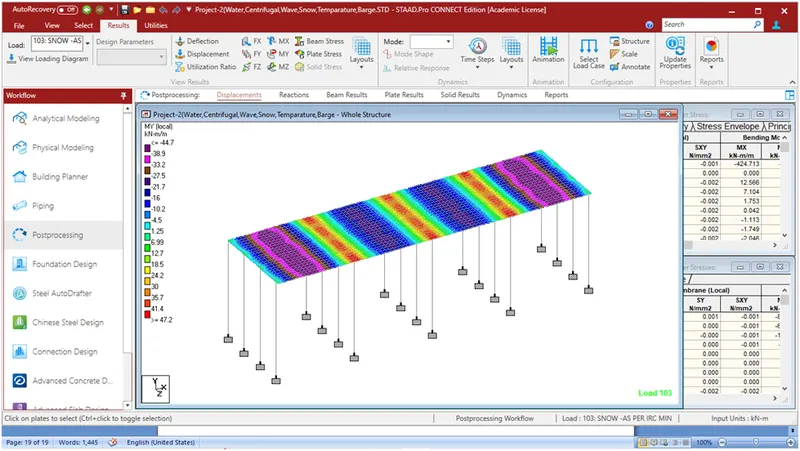

plate stresse under snow loads as per irc min:

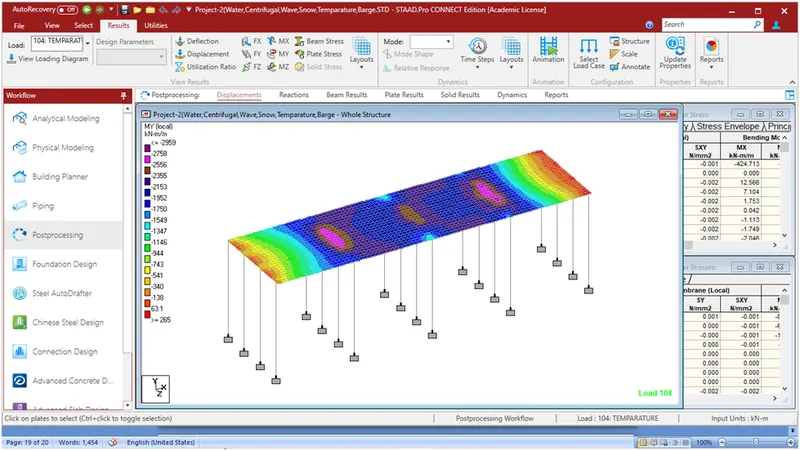

plate stresses under temparature loads:

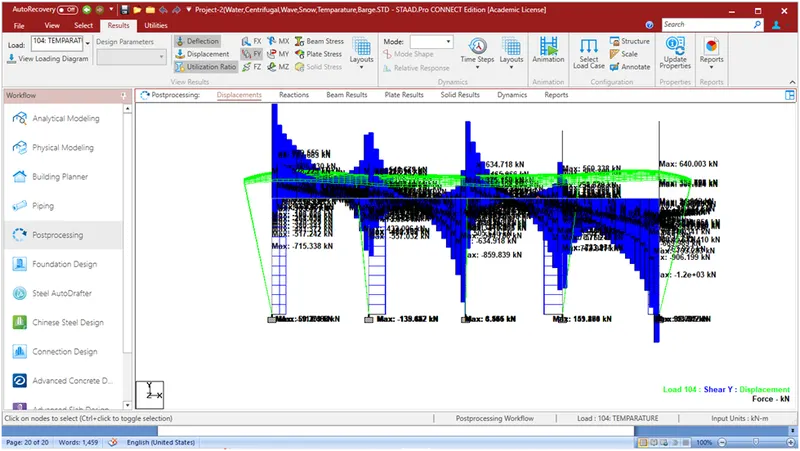

Max shear –y under temparature loads:

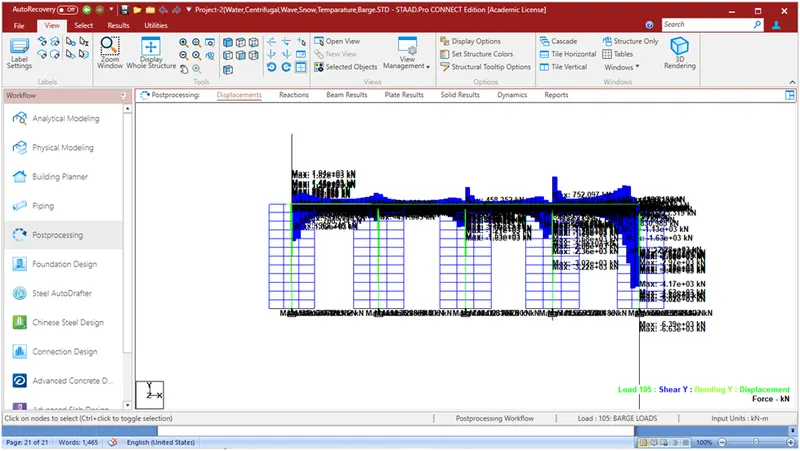

Max shear-y under barge loads

Command File editor:

STAAD SPACE

START JOB INFORMATION

ENGINEER DATE 17-Feb-23

END JOB INFORMATION

INPUT WIDTH 79

UNIT METER KN

JOINT COORDINATES

1 0 0 0; 2 0 12 0; 3 0 0 3.5; 4 0 12 3.5; 5 0 0 7; 6 0 12 7; 7 0 0 10.5;

8 0 12 10.5; 9 10 0 0; 10 10 12 0; 11 10 0 3.5; 12 10 12 3.5; 13 10 0 7;

14 10 12 7; 15 10 0 10.5; 16 10 12 10.5; 17 20 0 0; 18 20 12 0; 19 20 0 3.5;

20 20 12 3.5; 21 20 0 7; 22 20 12 7; 23 20 0 10.5; 24 20 12 10.5; 25 30 0 0;

26 30 12 0; 27 30 0 3.5; 28 30 12 3.5; 29 30 0 7; 30 30 12 7; 31 30 0 10.5;

32 30 12 10.5; 33 40 0 0; 34 40 12 0; 35 40 0 3.5; 36 40 12 3.5; 37 40 0 7;

38 40 12 7; 39 40 0 10.5; 40 40 12 10.5; 41 0.5 12 0; 42 0 12 0.5;

43 0.5 12 0.5; 44 0 12 1; 45 0.5 12 1; 46 0 12 1.5; 47 0.5 12 1.5; 48 0 12 2;

49 0.5 12 2; 50 0 12 2.5; 51 0.5 12 2.5; 52 0 12 3; 53 0.5 12 3; 54 0.5 12 3.5;

55 0 12 4; 56 0.5 12 4; 57 0 12 4.5; 58 0.5 12 4.5; 59 0 12 5; 60 0.5 12 5;

61 0 12 5.5; 62 0.5 12 5.5; 63 0 12 6; 64 0.5 12 6; 65 0 12 6.5; 66 0.5 12 6.5;

67 0.5 12 7; 68 0 12 7.5; 69 0.5 12 7.5; 70 0 12 8; 71 0.5 12 8; 72 0 12 8.5;

73 0.5 12 8.5; 74 0 12 9; 75 0.5 12 9; 76 0 12 9.5; 77 0.5 12 9.5; 78 0 12 10;

79 0.5 12 10; 80 0.5 12 10.5; 81 0 12 11; 82 0.5 12 11; 83 1 12 0; 84 1 12 0.5;

85 1 12 1; 86 1 12 1.5; 87 1 12 2; 88 1 12 2.5; 89 1 12 3; 90 1 12 3.5;

91 1 12 4; 92 1 12 4.5; 93 1 12 5; 94 1 12 5.5; 95 1 12 6; 96 1 12 6.5;

97 1 12 7; 98 1 12 7.5; 99 1 12 8; 100 1 12 8.5; 101 1 12 9; 102 1 12 9.5;

103 1 12 10; 104 1 12 10.5; 105 1 12 11; 106 1.5 12 0; 107 1.5 12 0.5;

108 1.5 12 1; 109 1.5 12 1.5; 110 1.5 12 2; 111 1.5 12 2.5; 112 1.5 12 3;

113 1.5 12 3.5; 114 1.5 12 4; 115 1.5 12 4.5; 116 1.5 12 5; 117 1.5 12 5.5;

118 1.5 12 6; 119 1.5 12 6.5; 120 1.5 12 7; 121 1.5 12 7.5; 122 1.5 12 8;

123 1.5 12 8.5; 124 1.5 12 9; 125 1.5 12 9.5; 126 1.5 12 10; 127 1.5 12 10.5;

128 1.5 12 11; 129 2 12 0; 130 2 12 0.5; 131 2 12 1; 132 2 12 1.5; 133 2 12 2;

134 2 12 2.5; 135 2 12 3; 136 2 12 3.5; 137 2 12 4; 138 2 12 4.5; 139 2 12 5;

140 2 12 5.5; 141 2 12 6; 142 2 12 6.5; 143 2 12 7; 144 2 12 7.5; 145 2 12 8;

146 2 12 8.5; 147 2 12 9; 148 2 12 9.5; 149 2 12 10; 150 2 12 10.5;

151 2 12 11; 152 2.5 12 0; 153 2.5 12 0.5; 154 2.5 12 1; 155 2.5 12 1.5;

156 2.5 12 2; 157 2.5 12 2.5; 158 2.5 12 3; 159 2.5 12 3.5; 160 2.5 12 4;

161 2.5 12 4.5; 162 2.5 12 5; 163 2.5 12 5.5; 164 2.5 12 6; 165 2.5 12 6.5;

166 2.5 12 7; 167 2.5 12 7.5; 168 2.5 12 8; 169 2.5 12 8.5; 170 2.5 12 9;

171 2.5 12 9.5; 172 2.5 12 10; 173 2.5 12 10.5; 174 2.5 12 11; 175 3 12 0;

176 3 12 0.5; 177 3 12 1; 178 3 12 1.5; 179 3 12 2; 180 3 12 2.5; 181 3 12 3;

182 3 12 3.5; 183 3 12 4; 184 3 12 4.5; 185 3 12 5; 186 3 12 5.5; 187 3 12 6;

188 3 12 6.5; 189 3 12 7; 190 3 12 7.5; 191 3 12 8; 192 3 12 8.5; 193 3 12 9;

194 3 12 9.5; 195 3 12 10; 196 3 12 10.5; 197 3 12 11; 198 3.5 12 0;

199 3.5 12 0.5; 200 3.5 12 1; 201 3.5 12 1.5; 202 3.5 12 2; 203 3.5 12 2.5;

204 3.5 12 3; 205 3.5 12 3.5; 206 3.5 12 4; 207 3.5 12 4.5; 208 3.5 12 5;

209 3.5 12 5.5; 210 3.5 12 6; 211 3.5 12 6.5; 212 3.5 12 7; 213 3.5 12 7.5;

214 3.5 12 8; 215 3.5 12 8.5; 216 3.5 12 9; 217 3.5 12 9.5; 218 3.5 12 10;

219 3.5 12 10.5; 220 3.5 12 11; 221 4 12 0; 222 4 12 0.5; 223 4 12 1;

224 4 12 1.5; 225 4 12 2; 226 4 12 2.5; 227 4 12 3; 228 4 12 3.5; 229 4 12 4;

230 4 12 4.5; 231 4 12 5; 232 4 12 5.5; 233 4 12 6; 234 4 12 6.5; 235 4 12 7;

236 4 12 7.5; 237 4 12 8; 238 4 12 8.5; 239 4 12 9; 240 4 12 9.5; 241 4 12 10;

242 4 12 10.5; 243 4 12 11; 244 4.5 12 0; 245 4.5 12 0.5; 246 4.5 12 1;

247 4.5 12 1.5; 248 4.5 12 2; 249 4.5 12 2.5; 250 4.5 12 3; 251 4.5 12 3.5;

252 4.5 12 4; 253 4.5 12 4.5; 254 4.5 12 5; 255 4.5 12 5.5; 256 4.5 12 6;

257 4.5 12 6.5; 258 4.5 12 7; 259 4.5 12 7.5; 260 4.5 12 8; 261 4.5 12 8.5;

262 4.5 12 9; 263 4.5 12 9.5; 264 4.5 12 10; 265 4.5 12 10.5; 266 4.5 12 11;

267 5 12 0; 268 5 12 0.5; 269 5 12 1; 270 5 12 1.5; 271 5 12 2; 272 5 12 2.5;

273 5 12 3; 274 5 12 3.5; 275 5 12 4; 276 5 12 4.5; 277 5 12 5; 278 5 12 5.5;

279 5 12 6; 280 5 12 6.5; 281 5 12 7; 282 5 12 7.5; 283 5 12 8; 284 5 12 8.5;

285 5 12 9; 286 5 12 9.5; 287 5 12 10; 288 5 12 10.5; 289 5 12 11;

290 5.5 12 0; 291 5.5 12 0.5; 292 5.5 12 1; 293 5.5 12 1.5; 294 5.5 12 2;

295 5.5 12 2.5; 296 5.5 12 3; 297 5.5 12 3.5; 298 5.5 12 4; 299 5.5 12 4.5;

300 5.5 12 5; 301 5.5 12 5.5; 302 5.5 12 6; 303 5.5 12 6.5; 304 5.5 12 7;

305 5.5 12 7.5; 306 5.5 12 8; 307 5.5 12 8.5; 308 5.5 12 9; 309 5.5 12 9.5;

310 5.5 12 10; 311 5.5 12 10.5; 312 5.5 12 11; 313 6 12 0; 314 6 12 0.5;

315 6 12 1; 316 6 12 1.5; 317 6 12 2; 318 6 12 2.5; 319 6 12 3; 320 6 12 3.5;

321 6 12 4; 322 6 12 4.5; 323 6 12 5; 324 6 12 5.5; 325 6 12 6; 326 6 12 6.5;

327 6 12 7; 328 6 12 7.5; 329 6 12 8; 330 6 12 8.5; 331 6 12 9; 332 6 12 9.5;

333 6 12 10; 334 6 12 10.5; 335 6 12 11; 336 6.5 12 0; 337 6.5 12 0.5;

338 6.5 12 1; 339 6.5 12 1.5; 340 6.5 12 2; 341 6.5 12 2.5; 342 6.5 12 3;

343 6.5 12 3.5; 344 6.5 12 4; 345 6.5 12 4.5; 346 6.5 12 5; 347 6.5 12 5.5;

348 6.5 12 6; 349 6.5 12 6.5; 350 6.5 12 7; 351 6.5 12 7.5; 352 6.5 12 8;

353 6.5 12 8.5; 354 6.5 12 9; 355 6.5 12 9.5; 356 6.5 12 10; 357 6.5 12 10.5;

358 6.5 12 11; 359 7 12 0; 360 7 12 0.5; 361 7 12 1; 362 7 12 1.5; 363 7 12 2;

364 7 12 2.5; 365 7 12 3; 366 7 12 3.5; 367 7 12 4; 368 7 12 4.5; 369 7 12 5;

370 7 12 5.5; 371 7 12 6; 372 7 12 6.5; 373 7 12 7; 374 7 12 7.5; 375 7 12 8;

376 7 12 8.5; 377 7 12 9; 378 7 12 9.5; 379 7 12 10; 380 7 12 10.5;

381 7 12 11; 382 7.5 12 0; 383 7.5 12 0.5; 384 7.5 12 1; 385 7.5 12 1.5;

386 7.5 12 2; 387 7.5 12 2.5; 388 7.5 12 3; 389 7.5 12 3.5; 390 7.5 12 4;

391 7.5 12 4.5; 392 7.5 12 5; 393 7.5 12 5.5; 394 7.5 12 6; 395 7.5 12 6.5;

396 7.5 12 7; 397 7.5 12 7.5; 398 7.5 12 8; 399 7.5 12 8.5; 400 7.5 12 9;

401 7.5 12 9.5; 402 7.5 12 10; 403 7.5 12 10.5; 404 7.5 12 11; 405 8 12 0;

406 8 12 0.5; 407 8 12 1; 408 8 12 1.5; 409 8 12 2; 410 8 12 2.5; 411 8 12 3;

412 8 12 3.5; 413 8 12 4; 414 8 12 4.5; 415 8 12 5; 416 8 12 5.5; 417 8 12 6;

418 8 12 6.5; 419 8 12 7; 420 8 12 7.5; 421 8 12 8; 422 8 12 8.5; 423 8 12 9;

424 8 12 9.5; 425 8 12 10; 426 8 12 10.5; 427 8 12 11; 428 8.5 12 0;

429 8.5 12 0.5; 430 8.5 12 1; 431 8.5 12 1.5; 432 8.5 12 2; 433 8.5 12 2.5;

434 8.5 12 3; 435 8.5 12 3.5; 436 8.5 12 4; 437 8.5 12 4.5; 438 8.5 12 5;

439 8.5 12 5.5; 440 8.5 12 6; 441 8.5 12 6.5; 442 8.5 12 7; 443 8.5 12 7.5;

444 8.5 12 8; 445 8.5 12 8.5; 446 8.5 12 9; 447 8.5 12 9.5; 448 8.5 12 10;

449 8.5 12 10.5; 450 8.5 12 11; 451 9 12 0; 452 9 12 0.5; 453 9 12 1;

454 9 12 1.5; 455 9 12 2; 456 9 12 2.5; 457 9 12 3; 458 9 12 3.5; 459 9 12 4;

460 9 12 4.5; 461 9 12 5; 462 9 12 5.5; 463 9 12 6; 464 9 12 6.5; 465 9 12 7;

466 9 12 7.5; 467 9 12 8; 468 9 12 8.5; 469 9 12 9; 470 9 12 9.5; 471 9 12 10;

472 9 12 10.5; 473 9 12 11; 474 9.5 12 0; 475 9.5 12 0.5; 476 9.5 12 1;

477 9.5 12 1.5; 478 9.5 12 2; 479 9.5 12 2.5; 480 9.5 12 3; 481 9.5 12 3.5;

482 9.5 12 4; 483 9.5 12 4.5; 484 9.5 12 5; 485 9.5 12 5.5; 486 9.5 12 6;

487 9.5 12 6.5; 488 9.5 12 7; 489 9.5 12 7.5; 490 9.5 12 8; 491 9.5 12 8.5;

492 9.5 12 9; 493 9.5 12 9.5; 494 9.5 12 10; 495 9.5 12 10.5; 496 9.5 12 11;

497 10 12 0.5; 498 10 12 1; 499 10 12 1.5; 500 10 12 2; 501 10 12 2.5;

502 10 12 3; 503 10 12 4; 504 10 12 4.5; 505 10 12 5; 506 10 12 5.5;

507 10 12 6; 508 10 12 6.5; 509 10 12 7.5; 510 10 12 8; 511 10 12 8.5;

512 10 12 9; 513 10 12 9.5; 514 10 12 10; 515 10 12 11; 516 10.5 12 0.5;

517 10.5 12 0; 518 10.5 12 1; 519 10.5 12 1.5; 520 10.5 12 2; 521 10.5 12 2.5;

522 10.5 12 3; 523 10.5 12 3.5; 524 10.5 12 4; 525 10.5 12 4.5; 526 10.5 12 5;

527 10.5 12 5.5; 528 10.5 12 6; 529 10.5 12 6.5; 530 10.5 12 7;

531 10.5 12 7.5; 532 10.5 12 8; 533 10.5 12 8.5; 534 10.5 12 9;

535 10.5 12 9.5; 536 10.5 12 10; 537 10.5 12 10.5; 538 10.5 12 11;

539 11 12 0.5; 540 11 12 0; 541 11 12 1; 542 11 12 1.5; 543 11 12 2;

544 11 12 2.5; 545 11 12 3; 546 11 12 3.5; 547 11 12 4; 548 11 12 4.5;

549 11 12 5; 550 11 12 5.5; 551 11 12 6; 552 11 12 6.5; 553 11 12 7;

554 11 12 7.5; 555 11 12 8; 556 11 12 8.5; 557 11 12 9; 558 11 12 9.5;

559 11 12 10; 560 11 12 10.5; 561 11 12 11; 562 11.5 12 0.5; 563 11.5 12 0;

564 11.5 12 1; 565 11.5 12 1.5; 566 11.5 12 2; 567 11.5 12 2.5; 568 11.5 12 3;

569 11.5 12 3.5; 570 11.5 12 4; 571 11.5 12 4.5; 572 11.5 12 5;

573 11.5 12 5.5; 574 11.5 12 6; 575 11.5 12 6.5; 576 11.5 12 7;

577 11.5 12 7.5; 578 11.5 12 8; 579 11.5 12 8.5; 580 11.5 12 9;

581 11.5 12 9.5; 582 11.5 12 10; 583 11.5 12 10.5; 584 11.5 12 11;

585 12 12 0.5; 586 12 12 0; 587 12 12 1; 588 12 12 1.5; 589 12 12 2;

590 12 12 2.5; 591 12 12 3; 592 12 12 3.5; 593 12 12 4; 594 12 12 4.5;

595 12 12 5; 596 12 12 5.5; 597 12 12 6; 598 12 12 6.5; 599 12 12 7;

600 12 12 7.5; 601 12 12 8; 602 12 12 8.5; 603 12 12 9; 604 12 12 9.5;

605 12 12 10; 606 12 12 10.5; 607 12 12 11; 608 12.5 12 0.5; 609 12.5 12 0;

610 12.5 12 1; 611 12.5 12 1.5; 612 12.5 12 2; 613 12.5 12 2.5; 614 12.5 12 3;

615 12.5 12 3.5; 616 12.5 12 4; 617 12.5 12 4.5; 618 12.5 12 5;

619 12.5 12 5.5; 620 12.5 12 6; 621 12.5 12 6.5; 622 12.5 12 7;

623 12.5 12 7.5; 624 12.5 12 8; 625 12.5 12 8.5; 626 12.5 12 9;

627 12.5 12 9.5; 628 12.5 12 10; 629 12.5 12 10.5; 630 12.5 12 11;

631 13 12 0.5; 632 13 12 0; 633 13 12 1; 634 13 12 1.5; 635 13 12 2;

636 13 12 2.5; 637 13 12 3; 638 13 12 3.5; 639 13 12 4; 640 13 12 4.5;

641 13 12 5; 642 13 12 5.5; 643 13 12 6; 644 13 12 6.5; 645 13 12 7;

646 13 12 7.5; 647 13 12 8; 648 13 12 8.5; 649 13 12 9; 650 13 12 9.5;

651 13 12 10; 652 13 12 10.5; 653 13 12 11; 654 13.5 12 0.5; 655 13.5 12 0;

656 13.5 12 1; 657 13.5 12 1.5; 658 13.5 12 2; 659 13.5 12 2.5; 660 13.5 12 3;

661 13.5 12 3.5; 662 13.5 12 4; 663 13.5 12 4.5; 664 13.5 12 5;

665 13.5 12 5.5; 666 13.5 12 6; 667 13.5 12 6.5; 668 13.5 12 7;

669 13.5 12 7.5; 670 13.5 12 8; 671 13.5 12 8.5; 672 13.5 12 9;

673 13.5 12 9.5; 674 13.5 12 10; 675 13.5 12 10.5; 676 13.5 12 11;

677 14 12 0.5; 678 14 12 0; 679 14 12 1; 680 14 12 1.5; 681 14 12 2;

682 14 12 2.5; 683 14 12 3; 684 14 12 3.5; 685 14 12 4; 686 14 12 4.5;

687 14 12 5; 688 14 12 5.5; 689 14 12 6; 690 14 12 6.5; 691 14 12 7;

692 14 12 7.5; 693 14 12 8; 694 14 12 8.5; 695 14 12 9; 696 14 12 9.5;

697 14 12 10; 698 14 12 10.5; 699 14 12 11; 700 14.5 12 0.5; 701 14.5 12 0;

702 14.5 12 1; 703 14.5 12 1.5; 704 14.5 12 2; 705 14.5 12 2.5; 706 14.5 12 3;

707 14.5 12 3.5; 708 14.5 12 4; 709 14.5 12 4.5; 710 14.5 12 5;

711 14.5 12 5.5; 712 14.5 12 6; 713 14.5 12 6.5; 714 14.5 12 7;

715 14.5 12 7.5; 716 14.5 12 8; 717 14.5 12 8.5; 718 14.5 12 9;

719 14.5 12 9.5; 720 14.5 12 10; 721 14.5 12 10.5; 722 14.5 12 11;

723 15 12 0.5; 724 15 12 0; 725 15 12 1; 726 15 12 1.5; 727 15 12 2;

728 15 12 2.5; 729 15 12 3; 730 15 12 3.5; 731 15 12 4; 732 15 12 4.5;

733 15 12 5; 734 15 12 5.5; 735 15 12 6; 736 15 12 6.5; 737 15 12 7;

738 15 12 7.5; 739 15 12 8; 740 15 12 8.5; 741 15 12 9; 742 15 12 9.5;

743 15 12 10; 744 15 12 10.5; 745 15 12 11; 746 15.5 12 0.5; 747 15.5 12 0;

748 15.5 12 1; 749 15.5 12 1.5; 750 15.5 12 2; 751 15.5 12 2.5; 752 15.5 12 3;

753 15.5 12 3.5; 754 15.5 12 4; 755 15.5 12 4.5; 756 15.5 12 5;

757 15.5 12 5.5; 758 15.5 12 6; 759 15.5 12 6.5; 760 15.5 12 7;

761 15.5 12 7.5; 762 15.5 12 8; 763 15.5 12 8.5; 764 15.5 12 9;

765 15.5 12 9.5; 766 15.5 12 10; 767 15.5 12 10.5; 768 15.5 12 11;

769 16 12 0.5; 770 16 12 0; 771 16 12 1; 772 16 12 1.5; 773 16 12 2;

774 16 12 2.5; 775 16 12 3; 776 16 12 3.5; 777 16 12 4; 778 16 12 4.5;

779 16 12 5; 780 16 12 5.5; 781 16 12 6; 782 16 12 6.5; 783 16 12 7;

784 16 12 7.5; 785 16 12 8; 786 16 12 8.5; 787 16 12 9; 788 16 12 9.5;

789 16 12 10; 790 16 12 10.5; 791 16 12 11; 792 16.5 12 0.5; 793 16.5 12 0;

794 16.5 12 1; 795 16.5 12 1.5; 796 16.5 12 2; 797 16.5 12 2.5; 798 16.5 12 3;

799 16.5 12 3.5; 800 16.5 12 4; 801 16.5 12 4.5; 802 16.5 12 5;

803 16.5 12 5.5; 804 16.5 12 6; 805 16.5 12 6.5; 806 16.5 12 7;

807 16.5 12 7.5; 808 16.5 12 8; 809 16.5 12 8.5; 810 16.5 12 9;

811 16.5 12 9.5; 812 16.5 12 10; 813 16.5 12 10.5; 814 16.5 12 11;

815 17 12 0.5; 816 17 12 0; 817 17 12 1; 818 17 12 1.5; 819 17 12 2;

820 17 12 2.5; 821 17 12 3; 822 17 12 3.5; 823 17 12 4; 824 17 12 4.5;

825 17 12 5; 826 17 12 5.5; 827 17 12 6; 828 17 12 6.5; 829 17 12 7;

830 17 12 7.5; 831 17 12 8; 832 17 12 8.5; 833 17 12 9; 834 17 12 9.5;

835 17 12 10; 836 17 12 10.5; 837 17 12 11; 838 17.5 12 0.5; 839 17.5 12 0;

840 17.5 12 1; 841 17.5 12 1.5; 842 17.5 12 2; 843 17.5 12 2.5; 844 17.5 12 3;

845 17.5 12 3.5; 846 17.5 12 4; 847 17.5 12 4.5; 848 17.5 12 5;

849 17.5 12 5.5; 850 17.5 12 6; 851 17.5 12 6.5; 852 17.5 12 7;

853 17.5 12 7.5; 854 17.5 12 8; 855 17.5 12 8.5; 856 17.5 12 9;

857 17.5 12 9.5; 858 17.5 12 10; 859 17.5 12 10.5; 860 17.5 12 11;

861 18 12 0.5; 862 18 12 0; 863 18 12 1; 864 18 12 1.5; 865 18 12 2;

866 18 12 2.5; 867 18 12 3; 868 18 12 3.5; 869 18 12 4; 870 18 12 4.5;

871 18 12 5; 872 18 12 5.5; 873 18 12 6; 874 18 12 6.5; 875 18 12 7;

876 18 12 7.5; 877 18 12 8; 878 18 12 8.5; 879 18 12 9; 880 18 12 9.5;

881 18 12 10; 882 18 12 10.5; 883 18 12 11; 884 18.5 12 0.5; 885 18.5 12 0;

886 18.5 12 1; 887 18.5 12 1.5; 888 18.5 12 2; 889 18.5 12 2.5; 890 18.5 12 3;

891 18.5 12 3.5; 892 18.5 12 4; 893 18.5 12 4.5; 894 18.5 12 5;

895 18.5 12 5.5; 896 18.5 12 6; 897 18.5 12 6.5; 898 18.5 12 7;

899 18.5 12 7.5; 900 18.5 12 8; 901 18.5 12 8.5; 902 18.5 12 9;

903 18.5 12 9.5; 904 18.5 12 10; 905 18.5 12 10.5; 906 18.5 12 11;

907 19 12 0.5; 908 19 12 0; 909 19 12 1; 910 19 12 1.5; 911 19 12 2;

912 19 12 2.5; 913 19 12 3; 914 19 12 3.5; 915 19 12 4; 916 19 12 4.5;

917 19 12 5; 918 19 12 5.5; 919 19 12 6; 920 19 12 6.5; 921 19 12 7;

922 19 12 7.5; 923 19 12 8; 924 19 12 8.5; 925 19 12 9; 926 19 12 9.5;

927 19 12 10; 928 19 12 10.5; 929 19 12 11; 930 19.5 12 0.5; 931 19.5 12 0;

932 19.5 12 1; 933 19.5 12 1.5; 934 19.5 12 2; 935 19.5 12 2.5; 936 19.5 12 3;

937 19.5 12 3.5; 938 19.5 12 4; 939 19.5 12 4.5; 940 19.5 12 5;

941 19.5 12 5.5; 942 19.5 12 6; 943 19.5 12 6.5; 944 19.5 12 7;

945 19.5 12 7.5; 946 19.5 12 8; 947 19.5 12 8.5; 948 19.5 12 9;

949 19.5 12 9.5; 950 19.5 12 10; 951 19.5 12 10.5; 952 19.5 12 11;

953 20 12 0.5; 954 20 12 1; 955 20 12 1.5; 956 20 12 2; 957 20 12 2.5;

958 20 12 3; 959 20 12 4; 960 20 12 4.5; 961 20 12 5; 962 20 12 5.5;

963 20 12 6; 964 20 12 6.5; 965 20 12 7.5; 966 20 12 8; 967 20 12 8.5;

968 20 12 9; 969 20 12 9.5; 970 20 12 10; 971 20 12 11; 972 20.5 12 0.5;

973 20.5 12 0; 974 20.5 12 1; 975 20.5 12 1.5; 976 20.5 12 2; 977 20.5 12 2.5;

978 20.5 12 3; 979 20.5 12 3.5; 980 20.5 12 4; 981 20.5 12 4.5; 982 20.5 12 5;

983 20.5 12 5.5; 984 20.5 12 6; 985 20.5 12 6.5; 986 20.5 12 7;

987 20.5 12 7.5; 988 20.5 12 8; 989 20.5 12 8.5; 990 20.5 12 9;

991 20.5 12 9.5; 992 20.5 12 10; 993 20.5 12 10.5; 994 20.5 12 11;

995 21 12 0.5; 996 21 12 0; 997 21 12 1; 998 21 12 1.5; 999 21 12 2;

1000 21 12 2.5; 1001 21 12 3; 1002 21 12 3.5; 1003 21 12 4; 1004 21 12 4.5;

1005 21 12 5; 1006 21 12 5.5; 1007 21 12 6; 1008 21 12 6.5; 1009 21 12 7;

1010 21 12 7.5; 1011 21 12 8; 1012 21 12 8.5; 1013 21 12 9; 1014 21 12 9.5;

1015 21 12 10; 1016 21 12 10.5; 1017 21 12 11; 1018 21.5 12 0.5;

1019 21.5 12 0; 1020 21.5 12 1; 1021 21.5 12 1.5; 1022 21.5 12 2;

1023 21.5 12 2.5; 1024 21.5 12 3; 1025 21.5 12 3.5; 1026 21.5 12 4;

1027 21.5 12 4.5; 1028 21.5 12 5; 1029 21.5 12 5.5; 1030 21.5 12 6;

1031 21.5 12 6.5; 1032 21.5 12 7; 1033 21.5 12 7.5; 1034 21.5 12 8;

1035 21.5 12 8.5; 1036 21.5 12 9; 1037 21.5 12 9.5; 1038 21.5 12 10;

1039 21.5 12 10.5; 1040 21.5 12 11; 1041 22 12 0.5; 1042 22 12 0; 1043 22 12 1;

1044 22 12 1.5; 1045 22 12 2; 1046 22 12 2.5; 1047 22 12 3; 1048 22 12 3.5;

1049 22 12 4; 1050 22 12 4.5; 1051 22 12 5; 1052 22 12 5.5; 1053 22 12 6;

1054 22 12 6.5; 1055 22 12 7; 1056 22 12 7.5; 1057 22 12 8; 1058 22 12 8.5;

1059 22 12 9; 1060 22 12 9.5; 1061 22 12 10; 1062 22 12 10.5; 1063 22 12 11;

1064 22.5 12 0.5; 1065 22.5 12 0; 1066 22.5 12 1; 1067 22.5 12 1.5;

1068 22.5 12 2; 1069 22.5 12 2.5; 1070 22.5 12 3; 1071 22.5 12 3.5;

1072 22.5 12 4; 1073 22.5 12 4.5; 1074 22.5 12 5; 1075 22.5 12 5.5;

1076 22.5 12 6; 1077 22.5 12 6.5; 1078 22.5 12 7; 1079 22.5 12 7.5;

1080 22.5 12 8; 1081 22.5 12 8.5; 1082 22.5 12 9; 1083 22.5 12 9.5;

1084 22.5 12 10; 1085 22.5 12 10.5; 1086 22.5 12 11; 1087 23 12 0.5;

1088 23 12 0; 1089 23 12 1; 1090 23 12 1.5; 1091 23 12 2; 1092 23 12 2.5;

1093 23 12 3; 1094 23 12 3.5; 1095 23 12 4; 1096 23 12 4.5; 1097 23 12 5;

1098 23 12 5.5; 1099 23 12 6; 1100 23 12 6.5; 1101 23 12 7; 1102 23 12 7.5;

1103 23 12 8; 1104 23 12 8.5; 1105 23 12 9; 1106 23 12 9.5; 1107 23 12 10;

1108 23 12 10.5; 1109 23 12 11; 1110 23.5 12 0.5; 1111 23.5 12 0;

1112 23.5 12 1; 1113 23.5 12 1.5; 1114 23.5 12 2; 1115 23.5 12 2.5;

1116 23.5 12 3; 1117 23.5 12 3.5; 1118 23.5 12 4; 1119 23.5 12 4.5;

1120 23.5 12 5; 1121 23.5 12 5.5; 1122 23.5 12 6; 1123 23.5 12 6.5;

1124 23.5 12 7; 1125 23.5 12 7.5; 1126 23.5 12 8; 1127 23.5 12 8.5;

1128 23.5 12 9; 1129 23.5 12 9.5; 1130 23.5 12 10; 1131 23.5 12 10.5;

1132 23.5 12 11; 1133 24 12 0.5; 1134 24 12 0; 1135 24 12 1; 1136 24 12 1.5;

1137 24 12 2; 1138 24 12 2.5; 1139 24 12 3; 1140 24 12 3.5; 1141 24 12 4;

1142 24 12 4.5; 1143 24 12 5; 1144 24 12 5.5; 1145 24 12 6; 1146 24 12 6.5;

1147 24 12 7; 1148 24 12 7.5; 1149 24 12 8; 1150 24 12 8.5; 1151 24 12 9;

1152 24 12 9.5; 1153 24 12 10; 1154 24 12 10.5; 1155 24 12 11;

1156 24.5 12 0.5; 1157 24.5 12 0; 1158 24.5 12 1; 1159 24.5 12 1.5;

1160 24.5 12 2; 1161 24.5 12 2.5; 1162 24.5 12 3; 1163 24.5 12 3.5;

1164 24.5 12 4; 1165 24.5 12 4.5; 1166 24.5 12 5; 1167 24.5 12 5.5;

1168 24.5 12 6; 1169 24.5 12 6.5; 1170 24.5 12 7; 1171 24.5 12 7.5;

1172 24.5 12 8; 1173 24.5 12 8.5; 1174 24.5 12 9; 1175 24.5 12 9.5;

1176 24.5 12 10; 1177 24.5 12 10.5; 1178 24.5 12 11; 1179 25 12 0.5;

1180 25 12 0; 1181 25 12 1; 1182 25 12 1.5; 1183 25 12 2; 1184 25 12 2.5;

1185 25 12 3; 1186 25 12 3.5; 1187 25 12 4; 1188 25 12 4.5; 1189 25 12 5;

1190 25 12 5.5; 1191 25 12 6; 1192 25 12 6.5; 1193 25 12 7; 1194 25 12 7.5;

1195 25 12 8; 1196 25 12 8.5; 1197 25 12 9; 1198 25 12 9.5; 1199 25 12 10;

1200 25 12 10.5; 1201 25 12 11; 1202 25.5 12 0.5; 1203 25.5 12 0;

1204 25.5 12 1; 1205 25.5 12 1.5; 1206 25.5 12 2; 1207 25.5 12 2.5;

1208 25.5 12 3; 1209 25.5 12 3.5; 1210 25.5 12 4; 1211 25.5 12 4.5;

1212 25.5 12 5; 1213 25.5 12 5.5; 1214 25.5 12 6; 1215 25.5 12 6.5;

1216 25.5 12 7; 1217 25.5 12 7.5; 1218 25.5 12 8; 1219 25.5 12 8.5;

1220 25.5 12 9; 1221 25.5 12 9.5; 1222 25.5 12 10; 1223 25.5 12 10.5;

1224 25.5 12 11; 1225 26 12 0.5; 1226 26 12 0; 1227 26 12 1; 1228 26 12 1.5;

1229 26 12 2; 1230 26 12 2.5; 1231 26 12 3; 1232 26 12 3.5; 1233 26 12 4;

1234 26 12 4.5; 1235 26 12 5; 1236 26 12 5.5; 1237 26 12 6; 1238 26 12 6.5;

1239 26 12 7; 1240 26 12 7.5; 1241 26 12 8; 1242 26 12 8.5; 1243 26 12 9;

1244 26 12 9.5; 1245 26 12 10; 1246 26 12 10.5; 1247 26 12 11;

1248 26.5 12 0.5; 1249 26.5 12 0; 1250 26.5 12 1; 1251 26.5 12 1.5;

1252 26.5 12 2; 1253 26.5 12 2.5; 1254 26.5 12 3; 1255 26.5 12 3.5;

1256 26.5 12 4; 1257 26.5 12 4.5; 1258 26.5 12 5; 1259 26.5 12 5.5;

1260 26.5 12 6; 1261 26.5 12 6.5; 1262 26.5 12 7; 1263 26.5 12 7.5;

1264 26.5 12 8; 1265 26.5 12 8.5; 1266 26.5 12 9; 1267 26.5 12 9.5;

1268 26.5 12 10; 1269 26.5 12 10.5; 1270 26.5 12 11; 1271 27 12 0.5;

1272 27 12 0; 1273 27 12 1; 1274 27 12 1.5; 1275 27 12 2; 1276 27 12 2.5;

1277 27 12 3; 1278 27 12 3.5; 1279 27 12 4; 1280 27 12 4.5; 1281 27 12 5;

1282 27 12 5.5; 1283 27 12 6; 1284 27 12 6.5; 1285 27 12 7; 1286 27 12 7.5;

1287 27 12 8; 1288 27 12 8.5; 1289 27 12 9; 1290 27 12 9.5; 1291 27 12 10;

1292 27 12 10.5; 1293 27 12 11; 1294 27.5 12 0.5; 1295 27.5 12 0;

1296 27.5 12 1; 1297 27.5 12 1.5; 1298 27.5 12 2; 1299 27.5 12 2.5;

1300 27.5 12 3; 1301 27.5 12 3.5; 1302 27.5 12 4; 1303 27.5 12 4.5;

1304 27.5 12 5; 1305 27.5 12 5.5; 1306 27.5 12 6; 1307 27.5 12 6.5;

1308 27.5 12 7; 1309 27.5 12 7.5; 1310 27.5 12 8; 1311 27.5 12 8.5;

1312 27.5 12 9; 1313 27.5 12 9.5; 1314 27.5 12 10; 1315 27.5 12 10.5;

1316 27.5 12 11; 1317 28 12 0.5; 1318 28 12 0; 1319 28 12 1; 1320 28 12 1.5;

1321 28 12 2; 1322 28 12 2.5; 1323 28 12 3; 1324 28 12 3.5; 1325 28 12 4;

1326 28 12 4.5; 1327 28 12 5; 1328 28 12 5.5; 1329 28 12 6; 1330 28 12 6.5;

1331 28 12 7; 1332 28 12 7.5; 1333 28 12 8; 1334 28 12 8.5; 1335 28 12 9;

1336 28 12 9.5; 1337 28 12 10; 1338 28 12 10.5; 1339 28 12 11;

1340 28.5 12 0.5; 1341 28.5 12 0; 1342 28.5 12 1; 1343 28.5 12 1.5;

1344 28.5 12 2; 1345 28.5 12 2.5; 1346 28.5 12 3; 1347 28.5 12 3.5;

1348 28.5 12 4; 1349 28.5 12 4.5; 1350 28.5 12 5; 1351 28.5 12 5.5;

1352 28.5 12 6; 1353 28.5 12 6.5; 1354 28.5 12 7; 1355 28.5 12 7.5;

1356 28.5 12 8; 1357 28.5 12 8.5; 1358 28.5 12 9; 1359 28.5 12 9.5;

1360 28.5 12 10; 1361 28.5 12 10.5; 1362 28.5 12 11; 1363 29 12 0.5;

1364 29 12 0; 1365 29 12 1; 1366 29 12 1.5; 1367 29 12 2; 1368 29 12 2.5;

1369 29 12 3; 1370 29 12 3.5; 1371 29 12 4; 1372 29 12 4.5; 1373 29 12 5;

1374 29 12 5.5; 1375 29 12 6; 1376 29 12 6.5; 1377 29 12 7; 1378 29 12 7.5;

1379 29 12 8; 1380 29 12 8.5; 1381 29 12 9; 1382 29 12 9.5; 1383 29 12 10;

1384 29 12 10.5; 1385 29 12 11; 1386 29.5 12 0.5; 1387 29.5 12 0;

1388 29.5 12 1; 1389 29.5 12 1.5; 1390 29.5 12 2; 1391 29.5 12 2.5;

1392 29.5 12 3; 1393 29.5 12 3.5; 1394 29.5 12 4; 1395 29.5 12 4.5;

1396 29.5 12 5; 1397 29.5 12 5.5; 1398 29.5 12 6; 1399 29.5 12 6.5;

1400 29.5 12 7; 1401 29.5 12 7.5; 1402 29.5 12 8; 1403 29.5 12 8.5;

1404 29.5 12 9; 1405 29.5 12 9.5; 1406 29.5 12 10; 1407 29.5 12 10.5;

1408 29.5 12 11; 1409 30 12 0.5; 1410 30 12 1; 1411 30 12 1.5; 1412 30 12 2;

1413 30 12 2.5; 1414 30 12 3; 1415 30 12 4; 1416 30 12 4.5; 1417 30 12 5;

1418 30 12 5.5; 1419 30 12 6; 1420 30 12 6.5; 1421 30 12 7.5; 1422 30 12 8;

1423 30 12 8.5; 1424 30 12 9; 1425 30 12 9.5; 1426 30 12 10; 1427 30 12 11;

1428 30.5 12 0.5; 1429 30.5 12 0; 1430 30.5 12 1; 1431 30.5 12 1.5;

1432 30.5 12 2; 1433 30.5 12 2.5; 1434 30.5 12 3; 1435 30.5 12 3.5;

1436 30.5 12 4; 1437 30.5 12 4.5; 1438 30.5 12 5; 1439 30.5 12 5.5;

1440 30.5 12 6; 1441 30.5 12 6.5; 1442 30.5 12 7; 1443 30.5 12 7.5;

1444 30.5 12 8; 1445 30.5 12 8.5; 1446 30.5 12 9; 1447 30.5 12 9.5;

1448 30.5 12 10; 1449 30.5 12 10.5; 1450 30.5 12 11; 1451 31 12 0.5;

1452 31 12 0; 1453 31 12 1; 1454 31 12 1.5; 1455 31 12 2; 1456 31 12 2.5;

1457 31 12 3; 1458 31 12 3.5; 1459 31 12 4; 1460 31 12 4.5; 1461 31 12 5;

1462 31 12 5.5; 1463 31 12 6; 1464 31 12 6.5; 1465 31 12 7; 1466 31 12 7.5;

1467 31 12 8; 1468 31 12 8.5; 1469 31 12 9; 1470 31 12 9.5; 1471 31 12 10;

1472 31 12 10.5; 1473 31 12 11; 1474 31.5 12 0.5; 1475 31.5 12 0;

1476 31.5 12 1; 1477 31.5 12 1.5; 1478 31.5 12 2; 1479 31.5 12 2.5;

1480 31.5 12 3; 1481 31.5 12 3.5; 1482 31.5 12 4; 1483 31.5 12 4.5;

1484 31.5 12 5; 1485 31.5 12 5.5; 1486 31.5 12 6; 1487 31.5 12 6.5;

1488 31.5 12 7; 1489 31.5 12 7.5; 1490 31.5 12 8; 1491 31.5 12 8.5;

1492 31.5 12 9; 1493 31.5 12 9.5; 1494 31.5 12 10; 1495 31.5 12 10.5;

1496 31.5 12 11; 1497 32 12 0.5; 1498 32 12 0; 1499 32 12 1; 1500 32 12 1.5;

1501 32 12 2; 1502 32 12 2.5; 1503 32 12 3; 1504 32 12 3.5; 1505 32 12 4;

1506 32 12 4.5; 1507 32 12 5; 1508 32 12 5.5; 1509 32 12 6; 1510 32 12 6.5;

1511 32 12 7; 1512 32 12 7.5; 1513 32 12 8; 1514 32 12 8.5; 1515 32 12 9;

1516 32 12 9.5; 1517 32 12 10; 1518 32 12 10.5; 1519 32 12 11;

1520 32.5 12 0.5; 1521 32.5 12 0; 1522 32.5 12 1; 1523 32.5 12 1.5;

1524 32.5 12 2; 1525 32.5 12 2.5; 1526 32.5 12 3; 1527 32.5 12 3.5;

1528 32.5 12 4; 1529 32.5 12 4.5; 1530 32.5 12 5; 1531 32.5 12 5.5;

1532 32.5 12 6; 1533 32.5 12 6.5; 1534 32.5 12 7; 1535 32.5 12 7.5;

1536 32.5 12 8; 1537 32.5 12 8.5; 1538 32.5 12 9; 1539 32.5 12 9.5;

1540 32.5 12 10; 1541 32.5 12 10.5; 1542 32.5 12 11; 1543 33 12 0.5;

1544 33 12 0; 1545 33 12 1; 1546 33 12 1.5; 1547 33 12 2; 1548 33 12 2.5;

1549 33 12 3; 1550 33 12 3.5; 1551 33 12 4; 1552 33 12 4.5; 1553 33 12 5;

1554 33 12 5.5; 1555 33 12 6; 1556 33 12 6.5; 1557 33 12 7; 1558 33 12 7.5;

1559 33 12 8; 1560 33 12 8.5; 1561 33 12 9; 1562 33 12 9.5; 1563 33 12 10;

1564 33 12 10.5; 1565 33 12 11; 1566 33.5 12 0.5; 1567 33.5 12 0;

1568 33.5 12 1; 1569 33.5 12 1.5; 1570 33.5 12 2; 1571 33.5 12 2.5;

1572 33.5 12 3; 1573 33.5 12 3.5; 1574 33.5 12 4; 1575 33.5 12 4.5;

1576 33.5 12 5; 1577 33.5 12 5.5; 1578 33.5 12 6; 1579 33.5 12 6.5;

1580 33.5 12 7; 1581 33.5 12 7.5; 1582 33.5 12 8; 1583 33.5 12 8.5;

1584 33.5 12 9; 1585 33.5 12 9.5; 1586 33.5 12 10; 1587 33.5 12 10.5;

1588 33.5 12 11; 1589 34 12 0.5; 1590 34 12 0; 1591 34 12 1; 1592 34 12 1.5;

1593 34 12 2; 1594 34 12 2.5; 1595 34 12 3; 1596 34 12 3.5; 1597 34 12 4;

1598 34 12 4.5; 1599 34 12 5; 1600 34 12 5.5; 1601 34 12 6; 1602 34 12 6.5;

1603 34 12 7; 1604 34 12 7.5; 1605 34 12 8; 1606 34 12 8.5; 1607 34 12 9;

1608 34 12 9.5; 1609 34 12 10; 1610 34 12 10.5; 1611 34 12 11;

1612 34.5 12 0.5; 1613 34.5 12 0; 1614 34.5 12 1; 1615 34.5 12 1.5;

1616 34.5 12 2; 1617 34.5 12 2.5; 1618 34.5 12 3; 1619 34.5 12 3.5;

1620 34.5 12 4; 1621 34.5 12 4.5; 1622 34.5 12 5; 1623 34.5 12 5.5;

1624 34.5 12 6; 1625 34.5 12 6.5; 1626 34.5 12 7; 1627 34.5 12 7.5;

1628 34.5 12 8; 1629 34.5 12 8.5; 1630 34.5 12 9; 1631 34.5 12 9.5;

1632 34.5 12 10; 1633 34.5 12 10.5; 1634 34.5 12 11; 1635 35 12 0.5;

1636 35 12 0; 1637 35 12 1; 1638 35 12 1.5; 1639 35 12 2; 1640 35 12 2.5;

1641 35 12 3; 1642 35 12 3.5; 1643 35 12 4; 1644 35 12 4.5; 1645 35 12 5;

1646 35 12 5.5; 1647 35 12 6; 1648 35 12 6.5; 1649 35 12 7; 1650 35 12 7.5;

1651 35 12 8; 1652 35 12 8.5; 1653 35 12 9; 1654 35 12 9.5; 1655 35 12 10;

1656 35 12 10.5; 1657 35 12 11; 1658 35.5 12 0.5; 1659 35.5 12 0;

1660 35.5 12 1; 1661 35.5 12 1.5; 1662 35.5 12 2; 1663 35.5 12 2.5;

1664 35.5 12 3; 1665 35.5 12 3.5; 1666 35.5 12 4; 1667 35.5 12 4.5;

1668 35.5 12 5; 1669 35.5 12 5.5; 1670 35.5 12 6; 1671 35.5 12 6.5;

1672 35.5 12 7; 1673 35.5 12 7.5; 1674 35.5 12 8; 1675 35.5 12 8.5;

1676 35.5 12 9; 1677 35.5 12 9.5; 1678 35.5 12 10; 1679 35.5 12 10.5;

1680 35.5 12 11; 1681 36 12 0.5; 1682 36 12 0; 1683 36 12 1; 1684 36 12 1.5;

1685 36 12 2; 1686 36 12 2.5; 1687 36 12 3; 1688 36 12 3.5; 1689 36 12 4;

1690 36 12 4.5; 1691 36 12 5; 1692 36 12 5.5; 1693 36 12 6; 1694 36 12 6.5;

1695 36 12 7; 1696 36 12 7.5; 1697 36 12 8; 1698 36 12 8.5; 1699 36 12 9;

1700 36 12 9.5; 1701 36 12 10; 1702 36 12 10.5; 1703 36 12 11;

1704 36.5 12 0.5; 1705 36.5 12 0; 1706 36.5 12 1; 1707 36.5 12 1.5;

1708 36.5 12 2; 1709 36.5 12 2.5; 1710 36.5 12 3; 1711 36.5 12 3.5;

1712 36.5 12 4; 1713 36.5 12 4.5; 1714 36.5 12 5; 1715 36.5 12 5.5;

1716 36.5 12 6; 1717 36.5 12 6.5; 1718 36.5 12 7; 1719 36.5 12 7.5;

1720 36.5 12 8; 1721 36.5 12 8.5; 1722 36.5 12 9; 1723 36.5 12 9.5;

1724 36.5 12 10; 1725 36.5 12 10.5; 1726 36.5 12 11; 1727 37 12 0.5;

1728 37 12 0; 1729 37 12 1; 1730 37 12 1.5; 1731 37 12 2; 1732 37 12 2.5;

1733 37 12 3; 1734 37 12 3.5; 1735 37 12 4; 1736 37 12 4.5; 1737 37 12 5;

1738 37 12 5.5; 1739 37 12 6; 1740 37 12 6.5; 1741 37 12 7; 1742 37 12 7.5;

1743 37 12 8; 1744 37 12 8.5; 1745 37 12 9; 1746 37 12 9.5; 1747 37 12 10;

1748 37 12 10.5; 1749 37 12 11; 1750 37.5 12 0.5; 1751 37.5 12 0;

1752 37.5 12 1; 1753 37.5 12 1.5; 1754 37.5 12 2; 1755 37.5 12 2.5;

1756 37.5 12 3; 1757 37.5 12 3.5; 1758 37.5 12 4; 1759 37.5 12 4.5;

1760 37.5 12 5; 1761 37.5 12 5.5; 1762 37.5 12 6; 1763 37.5 12 6.5;

1764 37.5 12 7; 1765 37.5 12 7.5; 1766 37.5 12 8; 1767 37.5 12 8.5;

1768 37.5 12 9; 1769 37.5 12 9.5; 1770 37.5 12 10; 1771 37.5 12 10.5;

1772 37.5 12 11; 1773 38 12 0.5; 1774 38 12 0; 1775 38 12 1; 1776 38 12 1.5;

1777 38 12 2; 1778 38 12 2.5; 1779 38 12 3; 1780 38 12 3.5; 1781 38 12 4;

1782 38 12 4.5; 1783 38 12 5; 1784 38 12 5.5; 1785 38 12 6; 1786 38 12 6.5;

1787 38 12 7; 1788 38 12 7.5; 1789 38 12 8; 1790 38 12 8.5; 1791 38 12 9;

1792 38 12 9.5; 1793 38 12 10; 1794 38 12 10.5; 1795 38 12 11;

1796 38.5 12 0.5; 1797 38.5 12 0; 1798 38.5 12 1; 1799 38.5 12 1.5;

1800 38.5 12 2; 1801 38.5 12 2.5; 1802 38.5 12 3; 1803 38.5 12 3.5;

1804 38.5 12 4; 1805 38.5 12 4.5; 1806 38.5 12 5; 1807 38.5 12 5.5;

1808 38.5 12 6; 1809 38.5 12 6.5; 1810 38.5 12 7; 1811 38.5 12 7.5;

1812 38.5 12 8; 1813 38.5 12 8.5; 1814 38.5 12 9; 1815 38.5 12 9.5;

1816 38.5 12 10; 1817 38.5 12 10.5; 1818 38.5 12 11; 1819 39 12 0.5;

1820 39 12 0; 1821 39 12 1; 1822 39 12 1.5; 1823 39 12 2; 1824 39 12 2.5;

1825 39 12 3; 1826 39 12 3.5; 1827 39 12 4; 1828 39 12 4.5; 1829 39 12 5;

1830 39 12 5.5; 1831 39 12 6; 1832 39 12 6.5; 1833 39 12 7; 1834 39 12 7.5;

1835 39 12 8; 1836 39 12 8.5; 1837 39 12 9; 1838 39 12 9.5; 1839 39 12 10;

1840 39 12 10.5; 1841 39 12 11; 1842 39.5 12 0.5; 1843 39.5 12 0;

1844 39.5 12 1; 1845 39.5 12 1.5; 1846 39.5 12 2; 1847 39.5 12 2.5;

1848 39.5 12 3; 1849 39.5 12 3.5; 1850 39.5 12 4; 1851 39.5 12 4.5;

1852 39.5 12 5; 1853 39.5 12 5.5; 1854 39.5 12 6; 1855 39.5 12 6.5;

1856 39.5 12 7; 1857 39.5 12 7.5; 1858 39.5 12 8; 1859 39.5 12 8.5;

1860 39.5 12 9; 1861 39.5 12 9.5; 1862 39.5 12 10; 1863 39.5 12 10.5;

1864 39.5 12 11; 1865 40 12 0.5; 1866 40 12 1; 1867 40 12 1.5; 1868 40 12 2;

1869 40 12 2.5; 1870 40 12 3; 1871 40 12 4; 1872 40 12 4.5; 1873 40 12 5;

1874 40 12 5.5; 1875 40 12 6; 1876 40 12 6.5; 1877 40 12 7.5; 1878 40 12 8;

1879 40 12 8.5; 1880 40 12 9; 1881 40 12 9.5; 1882 40 12 10; 1883 40 12 11;

MEMBER INCIDENCES

1 1 2; 2 2 42; 3 3 4; 4 4 55; 5 5 6; 6 6 68; 7 7 8; 8 2 41; 9 4 54; 10 6 67;

11 8 80; 12 9 10; 13 10 497; 14 11 12; 15 12 503; 16 13 14; 17 14 509;

18 15 16; 19 10 517; 20 12 523; 21 14 530; 22 16 537; 23 17 18; 24 18 953;

25 19 20; 26 20 959; 27 21 22; 28 22 965; 29 23 24; 30 18 973; 31 20 979;

32 22 986; 33 24 993; 34 25 26; 35 26 1409; 36 27 28; 37 28 1415; 38 29 30;

39 30 1421; 40 31 32; 41 26 1429; 42 28 1435; 43 30 1442; 44 32 1449; 45 33 34;

46 34 1865; 47 35 36; 48 36 1871; 49 37 38; 50 38 1877; 51 39 40; 52 41 83;

53 42 44; 55 44 46; 57 46 48; 59 48 50; 61 50 52; 63 52 4; 65 54 90; 67 55 57;

69 57 59; 71 59 61; 73 61 63; 75 63 65; 77 65 6; 79 67 97; 81 68 70; 83 70 72;

85 72 74; 87 74 76; 89 76 78; 91 78 8; 93 80 104; 96 83 106; 97 90 113;

98 97 120; 99 104 127; 122 106 129; 123 113 136; 124 120 143; 125 127 150;

148 129 152; 149 136 159; 150 143 166; 151 150 173; 174 152 175; 175 159 182;

176 166 189; 177 173 196; 200 175 198; 201 182 205; 202 189 212; 203 196 219;

226 198 221; 227 205 228; 228 212 235; 229 219 242; 252 221 244; 253 228 251;

254 235 258; 255 242 265; 278 244 267; 279 251 274; 280 258 281; 281 265 288;

304 267 290; 305 274 297; 306 281 304; 307 288 311; 330 290 313; 331 297 320;

332 304 327; 333 311 334; 356 313 336; 357 320 343; 358 327 350; 359 334 357;

382 336 359; 383 343 366; 384 350 373; 385 357 380; 408 359 382; 409 366 389;

410 373 396; 411 380 403; 434 382 405; 435 389 412; 436 396 419; 437 403 426;

460 405 428; 461 412 435; 462 419 442; 463 426 449; 486 428 451; 487 435 458;

488 442 465; 489 449 472; 512 451 474; 513 458 481; 514 465 488; 515 472 495;

538 474 10; 539 481 12; 540 488 14; 541 495 16; 564 497 498; 565 498 499;

566 499 500; 567 500 501; 568 501 502; 569 502 12; 570 503 504; 571 504 505;

572 505 506; 573 506 507; 574 507 508; 575 508 14; 576 509 510; 577 510 511;

578 511 512; 579 512 513; 580 513 514; 581 514 16; 604 517 540; 611 523 546;

619 530 553; 627 537 560; 630 540 563; 637 546 569; 645 553 576; 653 560 583;

656 563 586; 663 569 592; 671 576 599; 679 583 606; 682 586 609; 689 592 615;

697 599 622; 705 606 629; 708 609 632; 715 615 638; 723 622 645; 731 629 652;

734 632 655; 741 638 661; 749 645 668; 757 652 675; 760 655 678; 767 661 684;

775 668 691; 783 675 698; 786 678 701; 793 684 707; 801 691 714; 809 698 721;

812 701 724; 819 707 730; 827 714 737; 835 721 744; 838 724 747; 845 730 753;

853 737 760; 861 744 767; 864 747 770; 871 753 776; 879 760 783; 887 767 790;

890 770 793; 897 776 799; 905 783 806; 913 790 813; 916 793 816; 923 799 822;

931 806 829; 939 813 836; 942 816 839; 949 822 845; 957 829 852; 965 836 859;

968 839 862; 975 845 868; 983 852 875; 991 859 882; 994 862 885; 1001 868 891;

1009 875 898; 1017 882 905; 1020 885 908; 1027 891 914; 1035 898 921;

1043 905 928; 1046 908 931; 1053 914 937; 1061 921 944; 1069 928 951;

1072 931 18; 1079 937 20; 1087 944 22; 1095 951 24; 1098 953 954; 1100 954 955;

1102 955 956; 1104 956 957; 1106 957 958; 1108 958 20; 1111 959 960;

1113 960 961; 1115 961 962; 1117 962 963; 1119 963 964; 1121 964 22;

1124 965 966; 1126 966 967; 1128 967 968; 1130 968 969; 1132 969 970;

1134 970 24; 1138 973 996; 1145 979 1002; 1153 986 1009; 1161 993 1016;

1164 996 1019; 1171 1002 1025; 1179 1009 1032; 1187 1016 1039; 1190 1019 1042;

1197 1025 1048; 1205 1032 1055; 1213 1039 1062; 1216 1042 1065; 1223 1048 1071;

1231 1055 1078; 1239 1062 1085; 1242 1065 1088; 1249 1071 1094; 1257 1078 1101;

1265 1085 1108; 1268 1088 1111; 1275 1094 1117; 1283 1101 1124; 1291 1108 1131;

1294 1111 1134; 1301 1117 1140; 1309 1124 1147; 1317 1131 1154; 1320 1134 1157;

1327 1140 1163; 1335 1147 1170; 1343 1154 1177; 1346 1157 1180; 1353 1163 1186;

1361 1170 1193; 1369 1177 1200; 1372 1180 1203; 1379 1186 1209; 1387 1193 1216;

1395 1200 1223; 1398 1203 1226; 1405 1209 1232; 1413 1216 1239; 1421 1223 1246;

1424 1226 1249; 1431 1232 1255; 1439 1239 1262; 1447 1246 1269; 1450 1249 1272;

1457 1255 1278; 1465 1262 1285; 1473 1269 1292; 1476 1272 1295; 1483 1278 1301;

1491 1285 1308; 1499 1292 1315; 1502 1295 1318; 1509 1301 1324; 1517 1308 1331;

1525 1315 1338; 1528 1318 1341; 1535 1324 1347; 1543 1331 1354; 1551 1338 1361;

1554 1341 1364; 1561 1347 1370; 1569 1354 1377; 1577 1361 1384; 1580 1364 1387;

1587 1370 1393; 1595 1377 1400; 1603 1384 1407; 1606 1387 26; 1613 1393 28;

1621 1400 30; 1629 1407 32; 1632 1409 1410; 1634 1410 1411; 1636 1411 1412;

1638 1412 1413; 1640 1413 1414; 1642 1414 28; 1645 1415 1416; 1647 1416 1417;

1649 1417 1418; 1651 1418 1419; 1653 1419 1420; 1655 1420 30; 1658 1421 1422;

1660 1422 1423; 1662 1423 1424; 1664 1424 1425; 1666 1425 1426; 1668 1426 32;

1672 1429 1452; 1679 1435 1458; 1687 1442 1465; 1695 1449 1472; 1698 1452 1475;

1705 1458 1481; 1713 1465 1488; 1721 1472 1495; 1724 1475 1498; 1731 1481 1504;

1739 1488 1511; 1747 1495 1518; 1750 1498 1521; 1757 1504 1527; 1765 1511 1534;

1773 1518 1541; 1776 1521 1544; 1783 1527 1550; 1791 1534 1557; 1799 1541 1564;

1802 1544 1567; 1809 1550 1573; 1817 1557 1580; 1825 1564 1587; 1828 1567 1590;

1835 1573 1596; 1843 1580 1603; 1851 1587 1610; 1854 1590 1613; 1861 1596 1619;

1869 1603 1626; 1877 1610 1633; 1880 1613 1636; 1887 1619 1642; 1895 1626 1649;

1903 1633 1656; 1906 1636 1659; 1913 1642 1665; 1921 1649 1672; 1929 1656 1679;

1932 1659 1682; 1939 1665 1688; 1947 1672 1695; 1955 1679 1702; 1958 1682 1705;

1965 1688 1711; 1973 1695 1718; 1981 1702 1725; 1984 1705 1728; 1991 1711 1734;

1999 1718 1741; 2007 1725 1748; 2010 1728 1751; 2017 1734 1757; 2025 1741 1764;

2033 1748 1771; 2036 1751 1774; 2043 1757 1780; 2051 1764 1787; 2059 1771 1794;

2062 1774 1797; 2069 1780 1803; 2077 1787 1810; 2085 1794 1817; 2088 1797 1820;

2095 1803 1826; 2103 1810 1833; 2111 1817 1840; 2114 1820 1843; 2121 1826 1849;

2129 1833 1856; 2137 1840 1863; 2140 1843 34; 2147 1849 36; 2155 1856 38;

2163 1863 40; 2166 1865 1866; 2168 1866 1867; 2170 1867 1868; 2172 1868 1869;

2174 1869 1870; 2176 1870 36; 2179 1871 1872; 2181 1872 1873; 2183 1873 1874;

2185 1874 1875; 2187 1875 1876; 2189 1876 38; 2192 1877 1878; 2194 1878 1879;

2196 1879 1880; 2198 1880 1881; 2200 1881 1882; 2202 1882 40;

ELEMENT INCIDENCES SHELL

54 2 42 43 41; 56 42 44 45 43; 58 44 46 47 45; 60 46 48 49 47; 62 48 50 51 49;

64 50 52 53 51; 66 52 4 54 53; 68 4 55 56 54; 70 55 57 58 56; 72 57 59 60 58;

74 59 61 62 60; 76 61 63 64 62; 78 63 65 66 64; 80 65 6 67 66; 82 6 68 69 67;

84 68 70 71 69; 86 70 72 73 71; 88 72 74 75 73; 90 74 76 77 75; 92 76 78 79 77;

94 78 8 80 79; 95 8 81 82 80; 100 41 43 84 83; 101 43 45 85 84;

102 45 47 86 85; 103 47 49 87 86; 104 49 51 88 87; 105 51 53 89 88;

106 53 54 90 89; 107 54 56 91 90; 108 56 58 92 91; 109 58 60 93 92;

110 60 62 94 93; 111 62 64 95 94; 112 64 66 96 95; 113 66 67 97 96;

114 67 69 98 97; 115 69 71 99 98; 116 71 73 100 99; 117 73 75 101 100;

118 75 77 102 101; 119 77 79 103 102; 120 79 80 104 103; 121 80 82 105 104;

126 83 84 107 106; 127 84 85 108 107; 128 85 86 109 108; 129 86 87 110 109;

130 87 88 111 110; 131 88 89 112 111; 132 89 90 113 112; 133 90 91 114 113;

134 91 92 115 114; 135 92 93 116 115; 136 93 94 117 116; 137 94 95 118 117;

138 95 96 119 118; 139 96 97 120 119; 140 97 98 121 120; 141 98 99 122 121;

142 99 100 123 122; 143 100 101 124 123; 144 101 102 125 124;

145 102 103 126 125; 146 103 104 127 126; 147 104 105 128 127;

152 106 107 130 129; 153 107 108 131 130; 154 108 109 132 131;

155 109 110 133 132; 156 110 111 134 133; 157 111 112 135 134;

158 112 113 136 135; 159 113 114 137 136; 160 114 115 138 137;

161 115 116 139 138; 162 116 117 140 139; 163 117 118 141 140;

164 118 119 142 141; 165 119 120 143 142; 166 120 121 144 143;

167 121 122 145 144; 168 122 123 146 145; 169 123 124 147 146;

170 124 125 148 147; 171 125 126 149 148; 172 126 127 150 149;

173 127 128 151 150; 178 129 130 153 152; 179 130 131 154 153;

180 131 132 155 154; 181 132 133 156 155; 182 133 134 157 156;

183 134 135 158 157; 184 135 136 159 158; 185 136 137 160 159;

186 137 138 161 160; 187 138 139 162 161; 188 139 140 163 162;

189 140 141 164 163; 190 141 142 165 164; 191 142 143 166 165;

192 143 144 167 166; 193 144 145 168 167; 194 145 146 169 168;

195 146 147 170 169; 196 147 148 171 170; 197 148 149 172 171;

198 149 150 173 172; 199 150 151 174 173; 204 152 153 176 175;

205 153 154 177 176; 206 154 155 178 177; 207 155 156 179 178;

208 156 157 180 179; 209 157 158 181 180; 210 158 159 182 181;

211 159 160 183 182; 212 160 161 184 183; 213 161 162 185 184;

214 162 163 186 185; 215 163 164 187 186; 216 164 165 188 187;

217 165 166 189 188; 218 166 167 190 189; 219 167 168 191 190;

220 168 169 192 191; 221 169 170 193 192; 222 170 171 194 193;

223 171 172 195 194; 224 172 173 196 195; 225 173 174 197 196;

230 175 176 199 198; 231 176 177 200 199; 232 177 178 201 200;

233 178 179 202 201; 234 179 180 203 202; 235 180 181 204 203;

236 181 182 205 204; 237 182 183 206 205; 238 183 184 207 206;

239 184 185 208 207; 240 185 186 209 208; 241 186 187 210 209;

242 187 188 211 210; 243 188 189 212 211; 244 189 190 213 212;

245 190 191 214 213; 246 191 192 215 214; 247 192 193 216 215;

248 193 194 217 216; 249 194 195 218 217; 250 195 196 219 218;

251 196 197 220 219; 256 198 199 222 221; 257 199 200 223 222;

258 200 201 224 223; 259 201 202 225 224; 260 202 203 226 225;

261 203 204 227 226; 262 204 205 228 227; 263 205 206 229 228;

264 206 207 230 229; 265 207 208 231 230; 266 208 209 232 231;

267 209 210 233 232; 268 210 211 234 233; 269 211 212 235 234;

270 212 213 236 235; 271 213 214 237 236; 272 214 215 238 237;

273 215 216 239 238; 274 216 217 240 239; 275 217 218 241 240;

276 218 219 242 241; 277 219 220 243 242; 282 221 222 245 244;

283 222 223 246 245; 284 223 224 247 246; 285 224 225 248 247;

286 225 226 249 248; 287 226 227 250 249; 288 227 228 251 250;

289 228 229 252 251; 290 229 230 253 252; 291 230 231 254 253;

292 231 232 255 254; 293 232 233 256 255; 294 233 234 257 256;

295 234 235 258 257; 296 235 236 259 258; 297 236 237 260 259;

298 237 238 261 260; 299 238 239 262 261; 300 239 240 263 262;

301 240 241 264 263; 302 241 242 265 264; 303 242 243 266 265;

308 244 245 268 267; 309 245 246 269 268; 310 246 247 270 269;

311 247 248 271 270; 312 248 249 272 271; 313 249 250 273 272;

314 250 251 274 273; 315 251 252 275 274; 316 252 253 276 275;

317 253 254 277 276; 318 254 255 278 277; 319 255 256 279 278;

320 256 257 280 279; 321 257 258 281 280; 322 258 259 282 281;

323 259 260 283 282; 324 260 261 284 283; 325 261 262 285 284;

326 262 263 286 285; 327 263 264 287 286; 328 264 265 288 287;

329 265 266 289 288; 334 267 268 291 290; 335 268 269 292 291;

336 269 270 293 292; 337 270 271 294 293; 338 271 272 295 294;

339 272 273 296 295; 340 273 274 297 296; 341 274 275 298 297;

342 275 276 299 298; 343 276 277 300 299; 344 277 278 301 300;

345 278 279 302 301; 346 279 280 303 302; 347 280 281 304 303;

348 281 282 305 304; 349 282 283 306 305; 350 283 284 307 306;

351 284 285 308 307; 352 285 286 309 308; 353 286 287 310 309;

354 287 288 311 310; 355 288 289 312 311; 360 290 291 314 313;

361 291 292 315 314; 362 292 293 316 315; 363 293 294 317 316;

364 294 295 318 317; 365 295 296 319 318; 366 296 297 320 319;

367 297 298 321 320; 368 298 299 322 321; 369 299 300 323 322;

370 300 301 324 323; 371 301 302 325 324; 372 302 303 326 325;

373 303 304 327 326; 374 304 305 328 327; 375 305 306 329 328;

376 306 307 330 329; 377 307 308 331 330; 378 308 309 332 331;

379 309 310 333 332; 380 310 311 334 333; 381 311 312 335 334;

386 313 314 337 336; 387 314 315 338 337; 388 315 316 339 338;

389 316 317 340 339; 390 317 318 341 340; 391 318 319 342 341;

392 319 320 343 342; 393 320 321 344 343; 394 321 322 345 344;

395 322 323 346 345; 396 323 324 347 346; 397 324 325 348 347;

398 325 326 349 348; 399 326 327 350 349; 400 327 328 351 350;

401 328 329 352 351; 402 329 330 353 352; 403 330 331 354 353;

404 331 332 355 354; 405 332 333 356 355; 406 333 334 357 356;

407 334 335 358 357; 412 336 337 360 359; 413 337 338 361 360;

414 338 339 362 361; 415 339 340 363 362; 416 340 341 364 363;

417 341 342 365 364; 418 342 343 366 365; 419 343 344 367 366;

420 344 345 368 367; 421 345 346 369 368; 422 346 347 370 369;

423 347 348 371 370; 424 348 349 372 371; 425 349 350 373 372;

426 350 351 374 373; 427 351 352 375 374; 428 352 353 376 375;

429 353 354 377 376; 430 354 355 378 377; 431 355 356 379 378;

432 356 357 380 379; 433 357 358 381 380; 438 359 360 383 382;

439 360 361 384 383; 440 361 362 385 384; 441 362 363 386 385;

442 363 364 387 386; 443 364 365 388 387; 444 365 366 389 388;

445 366 367 390 389; 446 367 368 391 390; 447 368 369 392 391;

448 369 370 393 392; 449 370 371 394 393; 450 371 372 395 394;

451 372 373 396 395; 452 373 374 397 396; 453 374 375 398 397;

454 375 376 399 398; 455 376 377 400 399; 456 377 378 401 400;

457 378 379 402 401; 458 379 380 403 402; 459 380 381 404 403;

464 382 383 406 405; 465 383 384 407 406; 466 384 385 408 407;

467 385 386 409 408; 468 386 387 410 409; 469 387 388 411 410;

470 388 389 412 411; 471 389 390 413 412; 472 390 391 414 413;

473 391 392 415 414; 474 392 393 416 415; 475 393 394 417 416;

476 394 395 418 417; 477 395 396 419 418; 478 396 397 420 419;

479 397 398 421 420; 480 398 399 422 421; 481 399 400 423 422;

482 400 401 424 423; 483 401 402 425 424; 484 402 403 426 425;

485 403 404 427 426; 490 405 406 429 428; 491 406 407 430 429;

492 407 408 431 430; 493 408 409 432 431; 494 409 410 433 432;

495 410 411 434 433; 496 411 412 435 434; 497 412 413 436 435;

498 413 414 437 436; 499 414 415 438 437; 500 415 416 439 438;

501 416 417 440 439; 502 417 418 441 440; 503 418 419 442 441;

504 419 420 443 442; 505 420 421 444 443; 506 421 422 445 444;

507 422 423 446 445; 508 423 424 447 446; 509 424 425 448 447;

510 425 426 449 448; 511 426 427 450 449; 516 428 429 452 451;

517 429 430 453 452; 518 430 431 454 453; 519 431 432 455 454;

520 432 433 456 455; 521 433 434 457 456; 522 434 435 458 457;

523 435 436 459 458; 524 436 437 460 459; 525 437 438 461 460;

526 438 439 462 461; 527 439 440 463 462; 528 440 441 464 463;

529 441 442 465 464; 530 442 443 466 465; 531 443 444 467 466;

532 444 445 468 467; 533 445 446 469 468; 534 446 447 470 469;

535 447 448 471 470; 536 448 449 472 471; 537 449 450 473 472;

542 451 452 475 474; 543 452 453 476 475; 544 453 454 477 476;

545 454 455 478 477; 546 455 456 479 478; 547 456 457 480 479;

548 457 458 481 480; 549 458 459 482 481; 550 459 460 483 482;

551 460 461 484 483; 552 461 462 485 484; 553 462 463 486 485;

554 463 464 487 486; 555 464 465 488 487; 556 465 466 489 488;

557 466 467 490 489; 558 467 468 491 490; 559 468 469 492 491;

560 469 470 493 492; 561 470 471 494 493; 562 471 472 495 494;

563 472 473 496 495; 582 474 475 497 10; 583 475 476 498 497;

584 476 477 499 498; 585 477 478 500 499; 586 478 479 501 500;

587 479 480 502 501; 588 480 481 12 502; 589 481 482 503 12;

590 482 483 504 503; 591 483 484 505 504; 592 484 485 506 505;

593 485 486 507 506; 594 486 487 508 507; 595 487 488 14 508;

596 488 489 509 14; 597 489 490 510 509; 598 490 491 511 510;

599 491 492 512 511; 600 492 493 513 512; 601 493 494 514 513;

602 494 495 16 514; 603 495 496 515 16; 605 10 497 516 517;

606 497 498 518 516; 607 498 499 519 518; 608 499 500 520 519;

609 500 501 521 520; 610 501 502 522 521; 612 502 12 523 522;

613 12 503 524 523; 614 503 504 525 524; 615 504 505 526 525;

616 505 506 527 526; 617 506 507 528 527; 618 507 508 529 528;

620 508 14 530 529; 621 14 509 531 530; 622 509 510 532 531;

623 510 511 533 532; 624 511 512 534 533; 625 512 513 535 534;

626 513 514 536 535; 628 514 16 537 536; 629 16 515 538 537;

631 517 516 539 540; 632 516 518 541 539; 633 518 519 542 541;

634 519 520 543 542; 635 520 521 544 543; 636 521 522 545 544;

638 522 523 546 545; 639 523 524 547 546; 640 524 525 548 547;

641 525 526 549 548; 642 526 527 550 549; 643 527 528 551 550;

644 528 529 552 551; 646 529 530 553 552; 647 530 531 554 553;

648 531 532 555 554; 649 532 533 556 555; 650 533 534 557 556;

651 534 535 558 557; 652 535 536 559 558; 654 536 537 560 559;

655 537 538 561 560; 657 540 539 562 563; 658 539 541 564 562;

659 541 542 565 564; 660 542 543 566 565; 661 543 544 567 566;

662 544 545 568 567; 664 545 546 569 568; 665 546 547 570 569;

666 547 548 571 570; 667 548 549 572 571; 668 549 550 573 572;

669 550 551 574 573; 670 551 552 575 574; 672 552 553 576 575;

673 553 554 577 576; 674 554 555 578 577; 675 555 556 579 578;

676 556 557 580 579; 677 557 558 581 580; 678 558 559 582 581;

680 559 560 583 582; 681 560 561 584 583; 683 563 562 585 586;

684 562 564 587 585; 685 564 565 588 587; 686 565 566 589 588;

687 566 567 590 589; 688 567 568 591 590; 690 568 569 592 591;

691 569 570 593 592; 692 570 571 594 593; 693 571 572 595 594;

694 572 573 596 595; 695 573 574 597 596; 696 574 575 598 597;

698 575 576 599 598; 699 576 577 600 599; 700 577 578 601 600;

701 578 579 602 601; 702 579 580 603 602; 703 580 581 604 603;

704 581 582 605 604; 706 582 583 606 605; 707 583 584 607 606;

709 586 585 608 609; 710 585 587 610 608; 711 587 588 611 610;

712 588 589 612 611; 713 589 590 613 612; 714 590 591 614 613;

716 591 592 615 614; 717 592 593 616 615; 718 593 594 617 616;

719 594 595 618 617; 720 595 596 619 618; 721 596 597 620 619;

722 597 598 621 620; 724 598 599 622 621; 725 599 600 623 622;

726 600 601 624 623; 727 601 602 625 624; 728 602 603 626 625;

729 603 604 627 626; 730 604 605 628 627; 732 605 606 629 628;

733 606 607 630 629; 735 609 608 631 632; 736 608 610 633 631;

737 610 611 634 633; 738 611 612 635 634; 739 612 613 636 635;

740 613 614 637 636; 742 614 615 638 637; 743 615 616 639 638;

744 616 617 640 639; 745 617 618 641 640; 746 618 619 642 641;

747 619 620 643 642; 748 620 621 644 643; 750 621 622 645 644;

751 622 623 646 645; 752 623 624 647 646; 753 624 625 648 647;

754 625 626 649 648; 755 626 627 650 649; 756 627 628 651 650;

758 628 629 652 651; 759 629 630 653 652; 761 632 631 654 655;

762 631 633 656 654; 763 633 634 657 656; 764 634 635 658 657;

765 635 636 659 658; 766 636 637 660 659; 768 637 638 661 660;

769 638 639 662 661; 770 639 640 663 662; 771 640 641 664 663;

772 641 642 665 664; 773 642 643 666 665; 774 643 644 667 666;

776 644 645 668 667; 777 645 646 669 668; 778 646 647 670 669;

779 647 648 671 670; 780 648 649 672 671; 781 649 650 673 672;

782 650 651 674 673; 784 651 652 675 674; 785 652 653 676 675;

787 655 654 677 678; 788 654 656 679 677; 789 656 657 680 679;

790 657 658 681 680; 791 658 659 682 681; 792 659 660 683 682;

794 660 661 684 683; 795 661 662 685 684; 796 662 663 686 685;

797 663 664 687 686; 798 664 665 688 687; 799 665 666 689 688;

800 666 667 690 689; 802 667 668 691 690; 803 668 669 692 691;

804 669 670 693 692; 805 670 671 694 693; 806 671 672 695 694;

807 672 673 696 695; 808 673 674 697 696; 810 674 675 698 697;

811 675 676 699 698; 813 678 677 700 701; 814 677 679 702 700;

815 679 680 703 702; 816 680 681 704 703; 817 681 682 705 704;

818 682 683 706 705; 820 683 684 707 706; 821 684 685 708 707;

822 685 686 709 708; 823 686 687 710 709; 824 687 688 711 710;

825 688 689 712 711; 826 689 690 713 712; 828 690 691 714 713;

829 691 692 715 714; 830 692 693 716 715; 831 693 694 717 716;

832 694 695 718 717; 833 695 696 719 718; 834 696 697 720 719;

836 697 698 721 720; 837 698 699 722 721; 839 701 700 723 724;

840 700 702 725 723; 841 702 703 726 725; 842 703 704 727 726;

843 704 705 728 727; 844 705 706 729 728; 846 706 707 730 729;

847 707 708 731 730; 848 708 709 732 731; 849 709 710 733 732;

850 710 711 734 733; 851 711 712 735 734; 852 712 713 736 735;

854 713 714 737 736; 855 714 715 738 737; 856 715 716 739 738;

857 716 717 740 739; 858 717 718 741 740; 859 718 719 742 741;

860 719 720 743 742; 862 720 721 744 743; 863 721 722 745 744;

865 724 723 746 747; 866 723 725 748 746; 867 725 726 749 748;

868 726 727 750 749; 869 727 728 751 750; 870 728 729 752 751;

872 729 730 753 752; 873 730 731 754 753; 874 731 732 755 754;

875 732 733 756 755; 876 733 734 757 756; 877 734 735 758 757;

878 735 736 759 758; 880 736 737 760 759; 881 737 738 761 760;

882 738 739 762 761; 883 739 740 763 762; 884 740 741 764 763;

885 741 742 765 764; 886 742 743 766 765; 888 743 744 767 766;

889 744 745 768 767; 891 747 746 769 770; 892 746 748 771 769;

893 748 749 772 771; 894 749 750 773 772; 895 750 751 774 773;

896 751 752 775 774; 898 752 753 776 775; 899 753 754 777 776;

900 754 755 778 777; 901 755 756 779 778; 902 756 757 780 779;

903 757 758 781 780; 904 758 759 782 781; 906 759 760 783 782;

907 760 761 784 783; 908 761 762 785 784; 909 762 763 786 785;

910 763 764 787 786; 911 764 765 788 787; 912 765 766 789 788;

914 766 767 790 789; 915 767 768 791 790; 917 770 769 792 793;

918 769 771 794 792; 919 771 772 795 794; 920 772 773 796 795;

921 773 774 797 796; 922 774 775 798 797; 924 775 776 799 798;

925 776 777 800 799; 926 777 778 801 800; 927 778 779 802 801;

928 779 780 803 802; 929 780 781 804 803; 930 781 782 805 804;

932 782 783 806 805; 933 783 784 807 806; 934 784 785 808 807;

935 785 786 809 808; 936 786 787 810 809; 937 787 788 811 810;

938 788 789 812 811; 940 789 790 813 812; 941 790 791 814 813;

943 793 792 815 816; 944 792 794 817 815; 945 794 795 818 817;

946 795 796 819 818; 947 796 797 820 819; 948 797 798 821 820;

950 798 799 822 821; 951 799 800 823 822; 952 800 801 824 823;

953 801 802 825 824; 954 802 803 826 825; 955 803 804 827 826;

956 804 805 828 827; 958 805 806 829 828; 959 806 807 830 829;

960 807 808 831 830; 961 808 809 832 831; 962 809 810 833 832;

963 810 811 834 833; 964 811 812 835 834; 966 812 813 836 835;

967 813 814 837 836; 969 816 815 838 839; 970 815 817 840 838;

971 817 818 841 840; 972 818 819 842 841; 973 819 820 843 842;

974 820 821 844 843; 976 821 822 845 844; 977 822 823 846 845;

978 823 824 847 846; 979 824 825 848 847; 980 825 826 849 848;

981 826 827 850 849; 982 827 828 851 850; 984 828 829 852 851;

985 829 830 853 852; 986 830 831 854 853; 987 831 832 855 854;

988 832 833 856 855; 989 833 834 857 856; 990 834 835 858 857;

992 835 836 859 858; 993 836 837 860 859; 995 839 838 861 862;

996 838 840 863 861; 997 840 841 864 863; 998 841 842 865 864;

999 842 843 866 865; 1000 843 844 867 866; 1002 844 845 868 867;

1003 845 846 869 868; 1004 846 847 870 869; 1005 847 848 871 870;

1006 848 849 872 871; 1007 849 850 873 872; 1008 850 851 874 873;

1010 851 852 875 874; 1011 852 853 876 875; 1012 853 854 877 876;

1013 854 855 878 877; 1014 855 856 879 878; 1015 856 857 880 879;

1016 857 858 881 880; 1018 858 859 882 881; 1019 859 860 883 882;

1021 862 861 884 885; 1022 861 863 886 884; 1023 863 864 887 886;

1024 864 865 888 887; 1025 865 866 889 888; 1026 866 867 890 889;

1028 867 868 891 890; 1029 868 869 892 891; 1030 869 870 893 892;

1031 870 871 894 893; 1032 871 872 895 894; 1033 872 873 896 895;

1034 873 874 897 896; 1036 874 875 898 897; 1037 875 876 899 898;

1038 876 877 900 899; 1039 877 878 901 900; 1040 878 879 902 901;

1041 879 880 903 902; 1042 880 881 904 903; 1044 881 882 905 904;

1045 882 883 906 905; 1047 885 884 907 908; 1048 884 886 909 907;

1049 886 887 910 909; 1050 887 888 911 910; 1051 888 889 912 911;

1052 889 890 913 912; 1054 890 891 914 913; 1055 891 892 915 914;

1056 892 893 916 915; 1057 893 894 917 916; 1058 894 895 918 917;

1059 895 896 919 918; 1060 896 897 920 919; 1062 897 898 921 920;

1063 898 899 922 921; 1064 899 900 923 922; 1065 900 901 924 923;

1066 901 902 925 924; 1067 902 903 926 925; 1068 903 904 927 926;

1070 904 905 928 927; 1071 905 906 929 928; 1073 908 907 930 931;

1074 907 909 932 930; 1075 909 910 933 932; 1076 910 911 934 933;

1077 911 912 935 934; 1078 912 913 936 935; 1080 913 914 937 936;

1081 914 915 938 937; 1082 915 916 939 938; 1083 916 917 940 939;

1084 917 918 941 940; 1085 918 919 942 941; 1086 919 920 943 942;

1088 920 921 944 943; 1089 921 922 945 944; 1090 922 923 946 945;

1091 923 924 947 946; 1092 924 925 948 947; 1093 925 926 949 948;

1094 926 927 950 949; 1096 927 928 951 950; 1097 928 929 952 951;

1099 931 930 953 18; 1101 930 932 954 953; 1103 932 933 955 954;

1105 933 934 956 955; 1107 934 935 957 956; 1109 935 936 958 957;

1110 936 937 20 958; 1112 937 938 959 20; 1114 938 939 960 959;

1116 939 940 961 960; 1118 940 941 962 961; 1120 941 942 963 962;

1122 942 943 964 963; 1123 943 944 22 964; 1125 944 945 965 22;

1127 945 946 966 965; 1129 946 947 967 966; 1131 947 948 968 967;

1133 948 949 969 968; 1135 949 950 970 969; 1136 950 951 24 970;

1137 951 952 971 24; 1139 18 953 972 973; 1140 953 954 974 972;

1141 954 955 975 974; 1142 955 956 976 975; 1143 956 957 977 976;

1144 957 958 978 977; 1146 958 20 979 978; 1147 20 959 980 979;

1148 959 960 981 980; 1149 960 961 982 981; 1150 961 962 983 982;

1151 962 963 984 983; 1152 963 964 985 984; 1154 964 22 986 985;

1155 22 965 987 986; 1156 965 966 988 987; 1157 966 967 989 988;

1158 967 968 990 989; 1159 968 969 991 990; 1160 969 970 992 991;

1162 970 24 993 992; 1163 24 971 994 993; 1165 973 972 995 996;

1166 972 974 997 995; 1167 974 975 998 997; 1168 975 976 999 998;

1169 976 977 1000 999; 1170 977 978 1001 1000; 1172 978 979 1002 1001;

1173 979 980 1003 1002; 1174 980 981 1004 1003; 1175 981 982 1005 1004;

1176 982 983 1006 1005; 1177 983 984 1007 1006; 1178 984 985 1008 1007;

1180 985 986 1009 1008; 1181 986 987 1010 1009; 1182 987 988 1011 1010;

1183 988 989 1012 1011; 1184 989 990 1013 1012; 1185 990 991 1014 1013;

1186 991 992 1015 1014; 1188 992 993 1016 1015; 1189 993 994 1017 1016;

1191 996 995 1018 1019; 1192 995 997 1020 1018; 1193 997 998 1021 1020;

1194 998 999 1022 1021; 1195 999 1000 1023 1022; 1196 1000 1001 1024 1023;

1198 1001 1002 1025 1024; 1199 1002 1003 1026 1025; 1200 1003 1004 1027 1026;

1201 1004 1005 1028 1027; 1202 1005 1006 1029 1028; 1203 1006 1007 1030 1029;

1204 1007 1008 1031 1030; 1206 1008 1009 1032 1031; 1207 1009 1010 1033 1032;

1208 1010 1011 1034 1033; 1209 1011 1012 1035 1034; 1210 1012 1013 1036 1035;

1211 1013 1014 1037 1036; 1212 1014 1015 1038 1037; 1214 1015 1016 1039 1038;

1215 1016 1017 1040 1039; 1217 1019 1018 1041 1042; 1218 1018 1020 1043 1041;

1219 1020 1021 1044 1043; 1220 1021 1022 1045 1044; 1221 1022 1023 1046 1045;

1222 1023 1024 1047 1046; 1224 1024 1025 1048 1047; 1225 1025 1026 1049 1048;

1226 1026 1027 1050 1049; 1227 1027 1028 1051 1050; 1228 1028 1029 1052 1051;

1229 1029 1030 1053 1052; 1230 1030 1031 1054 1053; 1232 1031 1032 1055 1054;

1233 1032 1033 1056 1055; 1234 1033 1034 1057 1056; 1235 1034 1035 1058 1057;

1236 1035 1036 1059 1058; 1237 1036 1037 1060 1059; 1238 1037 1038 1061 1060;

1240 1038 1039 1062 1061; 1241 1039 1040 1063 1062; 1243 1042 1041 1064 1065;

1244 1041 1043 1066 1064; 1245 1043 1044 1067 1066; 1246 1044 1045 1068 1067;

1247 1045 1046 1069 1068; 1248 1046 1047 1070 1069; 1250 1047 1048 1071 1070;

1251 1048 1049 1072 1071; 1252 1049 1050 1073 1072; 1253 1050 1051 1074 1073;

1254 1051 1052 1075 1074; 1255 1052 1053 1076 1075; 1256 1053 1054 1077 1076;

1258 1054 1055 1078 1077; 1259 1055 1056 1079 1078; 1260 1056 1057 1080 1079;

1261 1057 1058 1081 1080; 1262 1058 1059 1082 1081; 1263 1059 1060 1083 1082;

1264 1060 1061 1084 1083; 1266 1061 1062 1085 1084; 1267 1062 1063 1086 1085;

1269 1065 1064 1087 1088; 1270 1064 1066 1089 1087; 1271 1066 1067 1090 1089;

1272 1067 1068 1091 1090; 1273 1068 1069 1092 1091; 1274 1069 1070 1093 1092;

1276 1070 1071 1094 1093; 1277 1071 1072 1095 1094; 1278 1072 1073 1096 1095;

1279 1073 1074 1097 1096; 1280 1074 1075 1098 1097; 1281 1075 1076 1099 1098;

1282 1076 1077 1100 1099; 1284 1077 1078 1101 1100; 1285 1078 1079 1102 1101;

1286 1079 1080 1103 1102; 1287 1080 1081 1104 1103; 1288 1081 1082 1105 1104;

1289 1082 1083 1106 1105; 1290 1083 1084 1107 1106; 1292 1084 1085 1108 1107;

1293 1085 1086 1109 1108; 1295 1088 1087 1110 1111; 1296 1087 1089 1112 1110;

1297 1089 1090 1113 1112; 1298 1090 1091 1114 1113; 1299 1091 1092 1115 1114;

1300 1092 1093 1116 1115; 1302 1093 1094 1117 1116; 1303 1094 1095 1118 1117;

1304 1095 1096 1119 1118; 1305 1096 1097 1120 1119; 1306 1097 1098 1121 1120;

1307 1098 1099 1122 1121; 1308 1099 1100 1123 1122; 1310 1100 1101 1124 1123;

1311 1101 1102 1125 1124; 1312 1102 1103 1126 1125; 1313 1103 1104 1127 1126;

1314 1104 1105 1128 1127; 1315 1105 1106 1129 1128; 1316 1106 1107 1130 1129;

1318 1107 1108 1131 1130; 1319 1108 1109 1132 1131; 1321 1111 1110 1133 1134;

1322 1110 1112 1135 1133; 1323 1112 1113 1136 1135; 1324 1113 1114 1137 1136;

1325 1114 1115 1138 1137; 1326 1115 1116 1139 1138; 1328 1116 1117 1140 1139;

1329 1117 1118 1141 1140; 1330 1118 1119 1142 1141; 1331 1119 1120 1143 1142;

1332 1120 1121 1144 1143; 1333 1121 1122 1145 1144; 1334 1122 1123 1146 1145;

1336 1123 1124 1147 1146; 1337 1124 1125 1148 1147; 1338 1125 1126 1149 1148;

1339 1126 1127 1150 1149; 1340 1127 1128 1151 1150; 1341 1128 1129 1152 1151;

1342 1129 1130 1153 1152; 1344 1130 1131 1154 1153; 1345 1131 1132 1155 1154;

1347 1134 1133 1156 1157; 1348 1133 1135 1158 1156; 1349 1135 1136 1159 1158;

1350 1136 1137 1160 1159; 1351 1137 1138 1161 1160; 1352 1138 1139 1162 1161;

1354 1139 1140 1163 1162; 1355 1140 1141 1164 1163; 1356 1141 1142 1165 1164;

1357 1142 1143 1166 1165; 1358 1143 1144 1167 1166; 1359 1144 1145 1168 1167;

1360 1145 1146 1169 1168; 1362 1146 1147 1170 1169; 1363 1147 1148 1171 1170;

1364 1148 1149 1172 1171; 1365 1149 1150 1173 1172; 1366 1150 1151 1174 1173;

1367 1151 1152 1175 1174; 1368 1152 1153 1176 1175; 1370 1153 1154 1177 1176;

1371 1154 1155 1178 1177; 1373 1157 1156 1179 1180; 1374 1156 1158 1181 1179;

1375 1158 1159 1182 1181; 1376 1159 1160 1183 1182; 1377 1160 1161 1184 1183;

1378 1161 1162 1185 1184; 1380 1162 1163 1186 1185; 1381 1163 1164 1187 1186;

1382 1164 1165 1188 1187; 1383 1165 1166 1189 1188; 1384 1166 1167 1190 1189;

1385 1167 1168 1191 1190; 1386 1168 1169 1192 1191; 1388 1169 1170 1193 1192;

1389 1170 1171 1194 1193; 1390 1171 1172 1195 1194; 1391 1172 1173 1196 1195;

1392 1173 1174 1197 1196; 1393 1174 1175 1198 1197; 1394 1175 1176 1199 1198;

1396 1176 1177 1200 1199; 1397 1177 1178 1201 1200; 1399 1180 1179 1202 1203;

1400 1179 1181 1204 1202; 1401 1181 1182 1205 1204; 1402 1182 1183 1206 1205;

1403 1183 1184 1207 1206; 1404 1184 1185 1208 1207; 1406 1185 1186 1209 1208;

1407 1186 1187 1210 1209; 1408 1187 1188 1211 1210; 1409 1188 1189 1212 1211;

1410 1189 1190 1213 1212; 1411 1190 1191 1214 1213; 1412 1191 1192 1215 1214;

1414 1192 1193 1216 1215; 1415 1193 1194 1217 1216; 1416 1194 1195 1218 1217;

1417 1195 1196 1219 1218; 1418 1196 1197 1220 1219; 1419 1197 1198 1221 1220;

1420 1198 1199 1222 1221; 1422 1199 1200 1223 1222; 1423 1200 1201 1224 1223;

1425 1203 1202 1225 1226; 1426 1202 1204 1227 1225; 1427 1204 1205 1228 1227;

1428 1205 1206 1229 1228; 1429 1206 1207 1230 1229; 1430 1207 1208 1231 1230;

1432 1208 1209 1232 1231; 1433 1209 1210 1233 1232; 1434 1210 1211 1234 1233;

1435 1211 1212 1235 1234; 1436 1212 1213 1236 1235; 1437 1213 1214 1237 1236;

1438 1214 1215 1238 1237; 1440 1215 1216 1239 1238; 1441 1216 1217 1240 1239;

1442 1217 1218 1241 1240; 1443 1218 1219 1242 1241; 1444 1219 1220 1243 1242;

1445 1220 1221 1244 1243; 1446 1221 1222 1245 1244; 1448 1222 1223 1246 1245;

1449 1223 1224 1247 1246; 1451 1226 1225 1248 1249; 1452 1225 1227 1250 1248;

1453 1227 1228 1251 1250; 1454 1228 1229 1252 1251; 1455 1229 1230 1253 1252;

1456 1230 1231 1254 1253; 1458 1231 1232 1255 1254; 1459 1232 1233 1256 1255;

1460 1233 1234 1257 1256; 1461 1234 1235 1258 1257; 1462 1235 1236 1259 1258;

1463 1236 1237 1260 1259; 1464 1237 1238 1261 1260; 1466 1238 1239 1262 1261;

1467 1239 1240 1263 1262; 1468 1240 1241 1264 1263; 1469 1241 1242 1265 1264;

1470 1242 1243 1266 1265; 1471 1243 1244 1267 1266; 1472 1244 1245 1268 1267;

1474 1245 1246 1269 1268; 1475 1246 1247 1270 1269; 1477 1249 1248 1271 1272;

1478 1248 1250 1273 1271; 1479 1250 1251 1274 1273; 1480 1251 1252 1275 1274;

1481 1252 1253 1276 1275; 1482 1253 1254 1277 1276; 1484 1254 1255 1278 1277;

1485 1255 1256 1279 1278; 1486 1256 1257 1280 1279; 1487 1257 1258 1281 1280;

1488 1258 1259 1282 1281; 1489 1259 1260 1283 1282; 1490 1260 1261 1284 1283;

1492 1261 1262 1285 1284; 1493 1262 1263 1286 1285; 1494 1263 1264 1287 1286;

1495 1264 1265 1288 1287; 1496 1265 1266 1289 1288; 1497 1266 1267 1290 1289;

1498 1267 1268 1291 1290; 1500 1268 1269 1292 1291; 1501 1269 1270 1293 1292;

1503 1272 1271 1294 1295; 1504 1271 1273 1296 1294; 1505 1273 1274 1297 1296;

1506 1274 1275 1298 1297; 1507 1275 1276 1299 1298; 1508 1276 1277 1300 1299;

1510 1277 1278 1301 1300; 1511 1278 1279 1302 1301; 1512 1279 1280 1303 1302;

1513 1280 1281 1304 1303; 1514 1281 1282 1305 1304; 1515 1282 1283 1306 1305;

1516 1283 1284 1307 1306; 1518 1284 1285 1308 1307; 1519 1285 1286 1309 1308;

1520 1286 1287 1310 1309; 1521 1287 1288 1311 1310; 1522 1288 1289 1312 1311;

1523 1289 1290 1313 1312; 1524 1290 1291 1314 1313; 1526 1291 1292 1315 1314;

1527 1292 1293 1316 1315; 1529 1295 1294 1317 1318; 1530 1294 1296 1319 1317;

1531 1296 1297 1320 1319; 1532 1297 1298 1321 1320; 1533 1298 1299 1322 1321;

1534 1299 1300 1323 1322; 1536 1300 1301 1324 1323; 1537 1301 1302 1325 1324;

1538 1302 1303 1326 1325; 1539 1303 1304 1327 1326; 1540 1304 1305 1328 1327;

1541 1305 1306 1329 1328; 1542 1306 1307 1330 1329; 1544 1307 1308 1331 1330;

1545 1308 1309 1332 1331; 1546 1309 1310 1333 1332; 1547 1310 1311 1334 1333;

1548 1311 1312 1335 1334; 1549 1312 1313 1336 1335; 1550 1313 1314 1337 1336;

1552 1314 1315 1338 1337; 1553 1315 1316 1339 1338; 1555 1318 1317 1340 1341;

1556 1317 1319 1342 1340; 1557 1319 1320 1343 1342; 1558 1320 1321 1344 1343;

1559 1321 1322 1345 1344; 1560 1322 1323 1346 1345; 1562 1323 1324 1347 1346;

1563 1324 1325 1348 1347; 1564 1325 1326 1349 1348; 1565 1326 1327 1350 1349;

1566 1327 1328 1351 1350; 1567 1328 1329 1352 1351; 1568 1329 1330 1353 1352;

1570 1330 1331 1354 1353; 1571 1331 1332 1355 1354; 1572 1332 1333 1356 1355;

1573 1333 1334 1357 1356; 1574 1334 1335 1358 1357; 1575 1335 1336 1359 1358;

1576 1336 1337 1360 1359; 1578 1337 1338 1361 1360; 1579 1338 1339 1362 1361;

1581 1341 1340 1363 1364; 1582 1340 1342 1365 1363; 1583 1342 1343 1366 1365;

1584 1343 1344 1367 1366; 1585 1344 1345 1368 1367; 1586 1345 1346 1369 1368;

1588 1346 1347 1370 1369; 1589 1347 1348 1371 1370; 1590 1348 1349 1372 1371;

1591 1349 1350 1373 1372; 1592 1350 1351 1374 1373; 1593 1351 1352 1375 1374;

1594 1352 1353 1376 1375; 1596 1353 1354 1377 1376; 1597 1354 1355 1378 1377;

1598 1355 1356 1379 1378; 1599 1356 1357 1380 1379; 1600 1357 1358 1381 1380;

1601 1358 1359 1382 1381; 1602 1359 1360 1383 1382; 1604 1360 1361 1384 1383;

1605 1361 1362 1385 1384; 1607 1364 1363 1386 1387; 1608 1363 1365 1388 1386;

1609 1365 1366 1389 1388; 1610 1366 1367 1390 1389; 1611 1367 1368 1391 1390;

1612 1368 1369 1392 1391; 1614 1369 1370 1393 1392; 1615 1370 1371 1394 1393;

1616 1371 1372 1395 1394; 1617 1372 1373 1396 1395; 1618 1373 1374 1397 1396;

1619 1374 1375 1398 1397; 1620 1375 1376 1399 1398; 1622 1376 1377 1400 1399;

1623 1377 1378 1401 1400; 1624 1378 1379 1402 1401; 1625 1379 1380 1403 1402;

1626 1380 1381 1404 1403; 1627 1381 1382 1405 1404; 1628 1382 1383 1406 1405;

1630 1383 1384 1407 1406; 1631 1384 1385 1408 1407; 1633 1387 1386 1409 26;

1635 1386 1388 1410 1409; 1637 1388 1389 1411 1410; 1639 1389 1390 1412 1411;

1641 1390 1391 1413 1412; 1643 1391 1392 1414 1413; 1644 1392 1393 28 1414;

1646 1393 1394 1415 28; 1648 1394 1395 1416 1415; 1650 1395 1396 1417 1416;

1652 1396 1397 1418 1417; 1654 1397 1398 1419 1418; 1656 1398 1399 1420 1419;

1657 1399 1400 30 1420; 1659 1400 1401 1421 30; 1661 1401 1402 1422 1421;

1663 1402 1403 1423 1422; 1665 1403 1404 1424 1423; 1667 1404 1405 1425 1424;

1669 1405 1406 1426 1425; 1670 1406 1407 32 1426; 1671 1407 1408 1427 32;

1673 26 1409 1428 1429; 1674 1409 1410 1430 1428; 1675 1410 1411 1431 1430;

1676 1411 1412 1432 1431; 1677 1412 1413 1433 1432; 1678 1413 1414 1434 1433;

1680 1414 28 1435 1434; 1681 28 1415 1436 1435; 1682 1415 1416 1437 1436;

1683 1416 1417 1438 1437; 1684 1417 1418 1439 1438; 1685 1418 1419 1440 1439;

1686 1419 1420 1441 1440; 1688 1420 30 1442 1441; 1689 30 1421 1443 1442;

1690 1421 1422 1444 1443; 1691 1422 1423 1445 1444; 1692 1423 1424 1446 1445;

1693 1424 1425 1447 1446; 1694 1425 1426 1448 1447; 1696 1426 32 1449 1448;

1697 32 1427 1450 1449; 1699 1429 1428 1451 1452; 1700 1428 1430 1453 1451;

1701 1430 1431 1454 1453; 1702 1431 1432 1455 1454; 1703 1432 1433 1456 1455;

1704 1433 1434 1457 1456; 1706 1434 1435 1458 1457; 1707 1435 1436 1459 1458;

1708 1436 1437 1460 1459; 1709 1437 1438 1461 1460; 1710 1438 1439 1462 1461;

1711 1439 1440 1463 1462; 1712 1440 1441 1464 1463; 1714 1441 1442 1465 1464;

1715 1442 1443 1466 1465; 1716 1443 1444 1467 1466; 1717 1444 1445 1468 1467;

1718 1445 1446 1469 1468; 1719 1446 1447 1470 1469; 1720 1447 1448 1471 1470;

1722 1448 1449 1472 1471; 1723 1449 1450 1473 1472; 1725 1452 1451 1474 1475;

1726 1451 1453 1476 1474; 1727 1453 1454 1477 1476; 1728 1454 1455 1478 1477;

1729 1455 1456 1479 1478; 1730 1456 1457 1480 1479; 1732 1457 1458 1481 1480;

1733 1458 1459 1482 1481; 1734 1459 1460 1483 1482; 1735 1460 1461 1484 1483;

1736 1461 1462 1485 1484; 1737 1462 1463 1486 1485; 1738 1463 1464 1487 1486;

1740 1464 1465 1488 1487; 1741 1465 1466 1489 1488; 1742 1466 1467 1490 1489;

1743 1467 1468 1491 1490; 1744 1468 1469 1492 1491; 1745 1469 1470 1493 1492;

1746 1470 1471 1494 1493; 1748 1471 1472 1495 1494; 1749 1472 1473 1496 1495;

1751 1475 1474 1497 1498; 1752 1474 1476 1499 1497; 1753 1476 1477 1500 1499;

1754 1477 1478 1501 1500; 1755 1478 1479 1502 1501; 1756 1479 1480 1503 1502;

1758 1480 1481 1504 1503; 1759 1481 1482 1505 1504; 1760 1482 1483 1506 1505;

1761 1483 1484 1507 1506; 1762 1484 1485 1508 1507; 1763 1485 1486 1509 1508;

1764 1486 1487 1510 1509; 1766 1487 1488 1511 1510; 1767 1488 1489 1512 1511;

1768 1489 1490 1513 1512; 1769 1490 1491 1514 1513; 1770 1491 1492 1515 1514;

1771 1492 1493 1516 1515; 1772 1493 1494 1517 1516; 1774 1494 1495 1518 1517;

1775 1495 1496 1519 1518; 1777 1498 1497 1520 1521; 1778 1497 1499 1522 1520;

1779 1499 1500 1523 1522; 1780 1500 1501 1524 1523; 1781 1501 1502 1525 1524;

1782 1502 1503 1526 1525; 1784 1503 1504 1527 1526; 1785 1504 1505 1528 1527;

1786 1505 1506 1529 1528; 1787 1506 1507 1530 1529; 1788 1507 1508 1531 1530;

1789 1508 1509 1532 1531; 1790 1509 1510 1533 1532; 1792 1510 1511 1534 1533;

1793 1511 1512 1535 1534; 1794 1512 1513 1536 1535; 1795 1513 1514 1537 1536;

1796 1514 1515 1538 1537; 1797 1515 1516 1539 1538; 1798 1516 1517 1540 1539;

1800 1517 1518 1541 1540; 1801 1518 1519 1542 1541; 1803 1521 1520 1543 1544;

1804 1520 1522 1545 1543; 1805 1522 1523 1546 1545; 1806 1523 1524 1547 1546;

1807 1524 1525 1548 1547; 1808 1525 1526 1549 1548; 1810 1526 1527 1550 1549;

1811 1527 1528 1551 1550; 1812 1528 1529 1552 1551; 1813 1529 1530 1553 1552;

1814 1530 1531 1554 1553; 1815 1531 1532 1555 1554; 1816 1532 1533 1556 1555;

1818 1533 1534 1557 1556; 1819 1534 1535 1558 1557; 1820 1535 1536 1559 1558;

1821 1536 1537 1560 1559; 1822 1537 1538 1561 1560; 1823 1538 1539 1562 1561;

1824 1539 1540 1563 1562; 1826 1540 1541 1564 1563; 1827 1541 1542 1565 1564;

1829 1544 1543 1566 1567; 1830 1543 1545 1568 1566; 1831 1545 1546 1569 1568;

1832 1546 1547 1570 1569; 1833 1547 1548 1571 1570; 1834 1548 1549 1572 1571;

1836 1549 1550 1573 1572; 1837 1550 1551 1574 1573; 1838 1551 1552 1575 1574;

1839 1552 1553 1576 1575; 1840 1553 1554 1577 1576; 1841 1554 1555 1578 1577;

1842 1555 1556 1579 1578; 1844 1556 1557 1580 1579; 1845 1557 1558 1581 1580;

1846 1558 1559 1582 1581; 1847 1559 1560 1583 1582; 1848 1560 1561 1584 1583;

1849 1561 1562 1585 1584; 1850 1562 1563 1586 1585; 1852 1563 1564 1587 1586;

1853 1564 1565 1588 1587; 1855 1567 1566 1589 1590; 1856 1566 1568 1591 1589;

1857 1568 1569 1592 1591; 1858 1569 1570 1593 1592; 1859 1570 1571 1594 1593;

1860 1571 1572 1595 1594; 1862 1572 1573 1596 1595; 1863 1573 1574 1597 1596;

1864 1574 1575 1598 1597; 1865 1575 1576 1599 1598; 1866 1576 1577 1600 1599;

1867 1577 1578 1601 1600; 1868 1578 1579 1602 1601; 1870 1579 1580 1603 1602;

1871 1580 1581 1604 1603; 1872 1581 1582 1605 1604; 1873 1582 1583 1606 1605;

1874 1583 1584 1607 1606; 1875 1584 1585 1608 1607; 1876 1585 1586 1609 1608;

1878 1586 1587 1610 1609; 1879 1587 1588 1611 1610; 1881 1590 1589 1612 1613;

1882 1589 1591 1614 1612; 1883 1591 1592 1615 1614; 1884 1592 1593 1616 1615;

1885 1593 1594 1617 1616; 1886 1594 1595 1618 1617; 1888 1595 1596 1619 1618;

1889 1596 1597 1620 1619; 1890 1597 1598 1621 1620; 1891 1598 1599 1622 1621;

1892 1599 1600 1623 1622; 1893 1600 1601 1624 1623; 1894 1601 1602 1625 1624;

1896 1602 1603 1626 1625; 1897 1603 1604 1627 1626; 1898 1604 1605 1628 1627;

1899 1605 1606 1629 1628; 1900 1606 1607 1630 1629; 1901 1607 1608 1631 1630;

1902 1608 1609 1632 1631; 1904 1609 1610 1633 1632; 1905 1610 1611 1634 1633;

1907 1613 1612 1635 1636; 1908 1612 1614 1637 1635; 1909 1614 1615 1638 1637;

1910 1615 1616 1639 1638; 1911 1616 1617 1640 1639; 1912 1617 1618 1641 1640;

1914 1618 1619 1642 1641; 1915 1619 1620 1643 1642; 1916 1620 1621 1644 1643;

1917 1621 1622 1645 1644; 1918 1622 1623 1646 1645; 1919 1623 1624 1647 1646;

1920 1624 1625 1648 1647; 1922 1625 1626 1649 1648; 1923 1626 1627 1650 1649;

1924 1627 1628 1651 1650; 1925 1628 1629 1652 1651; 1926 1629 1630 1653 1652;

1927 1630 1631 1654 1653; 1928 1631 1632 1655 1654; 1930 1632 1633 1656 1655;

1931 1633 1634 1657 1656; 1933 1636 1635 1658 1659; 1934 1635 1637 1660 1658;

1935 1637 1638 1661 1660; 1936 1638 1639 1662 1661; 1937 1639 1640 1663 1662;

1938 1640 1641 1664 1663; 1940 1641 1642 1665 1664; 1941 1642 1643 1666 1665;

1942 1643 1644 1667 1666; 1943 1644 1645 1668 1667; 1944 1645 1646 1669 1668;

1945 1646 1647 1670 1669; 1946 1647 1648 1671 1670; 1948 1648 1649 1672 1671;

1949 1649 1650 1673 1672; 1950 1650 1651 1674 1673; 1951 1651 1652 1675 1674;

1952 1652 1653 1676 1675; 1953 1653 1654 1677 1676; 1954 1654 1655 1678 1677;

1956 1655 1656 1679 1678; 1957 1656 1657 1680 1679; 1959 1659 1658 1681 1682;

1960 1658 1660 1683 1681; 1961 1660 1661 1684 1683; 1962 1661 1662 1685 1684;

1963 1662 1663 1686 1685; 1964 1663 1664 1687 1686; 1966 1664 1665 1688 1687;

1967 1665 1666 1689 1688; 1968 1666 1667 1690 1689; 1969 1667 1668 1691 1690;

1970 1668 1669 1692 1691; 1971 1669 1670 1693 1692; 1972 1670 1671 1694 1693;

1974 1671 1672 1695 1694; 1975 1672 1673 1696 1695; 1976 1673 1674 1697 1696;

1977 1674 1675 1698 1697; 1978 1675 1676 1699 1698; 1979 1676 1677 1700 1699;

1980 1677 1678 1701 1700; 1982 1678 1679 1702 1701; 1983 1679 1680 1703 1702;

1985 1682 1681 1704 1705; 1986 1681 1683 1706 1704; 1987 1683 1684 1707 1706;

1988 1684 1685 1708 1707; 1989 1685 1686 1709 1708; 1990 1686 1687 1710 1709;

1992 1687 1688 1711 1710; 1993 1688 1689 1712 1711; 1994 1689 1690 1713 1712;

1995 1690 1691 1714 1713; 1996 1691 1692 1715 1714; 1997 1692 1693 1716 1715;

1998 1693 1694 1717 1716; 2000 1694 1695 1718 1717; 2001 1695 1696 1719 1718;

2002 1696 1697 1720 1719; 2003 1697 1698 1721 1720; 2004 1698 1699 1722 1721;

2005 1699 1700 1723 1722; 2006 1700 1701 1724 1723; 2008 1701 1702 1725 1724;

2009 1702 1703 1726 1725; 2011 1705 1704 1727 1728; 2012 1704 1706 1729 1727;

2013 1706 1707 1730 1729; 2014 1707 1708 1731 1730; 2015 1708 1709 1732 1731;

2016 1709 1710 1733 1732; 2018 1710 1711 1734 1733; 2019 1711 1712 1735 1734;

2020 1712 1713 1736 1735; 2021 1713 1714 1737 1736; 2022 1714 1715 1738 1737;

2023 1715 1716 1739 1738; 2024 1716 1717 1740 1739; 2026 1717 1718 1741 1740;

2027 1718 1719 1742 1741; 2028 1719 1720 1743 1742; 2029 1720 1721 1744 1743;

2030 1721 1722 1745 1744; 2031 1722 1723 1746 1745; 2032 1723 1724 1747 1746;

2034 1724 1725 1748 1747; 2035 1725 1726 1749 1748; 2037 1728 1727 1750 1751;

2038 1727 1729 1752 1750; 2039 1729 1730 1753 1752; 2040 1730 1731 1754 1753;

2041 1731 1732 1755 1754; 2042 1732 1733 1756 1755; 2044 1733 1734 1757 1756;

2045 1734 1735 1758 1757; 2046 1735 1736 1759 1758; 2047 1736 1737 1760 1759;

2048 1737 1738 1761 1760; 2049 1738 1739 1762 1761; 2050 1739 1740 1763 1762;

2052 1740 1741 1764 1763; 2053 1741 1742 1765 1764; 2054 1742 1743 1766 1765;

2055 1743 1744 1767 1766; 2056 1744 1745 1768 1767; 2057 1745 1746 1769 1768;

2058 1746 1747 1770 1769; 2060 1747 1748 1771 1770; 2061 1748 1749 1772 1771;

2063 1751 1750 1773 1774; 2064 1750 1752 1775 1773; 2065 1752 1753 1776 1775;

2066 1753 1754 1777 1776; 2067 1754 1755 1778 1777; 2068 1755 1756 1779 1778;

2070 1756 1757 1780 1779; 2071 1757 1758 1781 1780; 2072 1758 1759 1782 1781;

2073 1759 1760 1783 1782; 2074 1760 1761 1784 1783; 2075 1761 1762 1785 1784;

2076 1762 1763 1786 1785; 2078 1763 1764 1787 1786; 2079 1764 1765 1788 1787;

2080 1765 1766 1789 1788; 2081 1766 1767 1790 1789; 2082 1767 1768 1791 1790;

2083 1768 1769 1792 1791; 2084 1769 1770 1793 1792; 2086 1770 1771 1794 1793;

2087 1771 1772 1795 1794; 2089 1774 1773 1796 1797; 2090 1773 1775 1798 1796;

2091 1775 1776 1799 1798; 2092 1776 1777 1800 1799; 2093 1777 1778 1801 1800;

2094 1778 1779 1802 1801; 2096 1779 1780 1803 1802; 2097 1780 1781 1804 1803;

2098 1781 1782 1805 1804; 2099 1782 1783 1806 1805; 2100 1783 1784 1807 1806;

2101 1784 1785 1808 1807; 2102 1785 1786 1809 1808; 2104 1786 1787 1810 1809;

2105 1787 1788 1811 1810; 2106 1788 1789 1812 1811; 2107 1789 1790 1813 1812;

2108 1790 1791 1814 1813; 2109 1791 1792 1815 1814; 2110 1792 1793 1816 1815;

2112 1793 1794 1817 1816; 2113 1794 1795 1818 1817; 2115 1797 1796 1819 1820;

2116 1796 1798 1821 1819; 2117 1798 1799 1822 1821; 2118 1799 1800 1823 1822;

2119 1800 1801 1824 1823; 2120 1801 1802 1825 1824; 2122 1802 1803 1826 1825;

2123 1803 1804 1827 1826; 2124 1804 1805 1828 1827; 2125 1805 1806 1829 1828;

2126 1806 1807 1830 1829; 2127 1807 1808 1831 1830; 2128 1808 1809 1832 1831;

2130 1809 1810 1833 1832; 2131 1810 1811 1834 1833; 2132 1811 1812 1835 1834;

2133 1812 1813 1836 1835; 2134 1813 1814 1837 1836; 2135 1814 1815 1838 1837;

2136 1815 1816 1839 1838; 2138 1816 1817 1840 1839; 2139 1817 1818 1841 1840;

2141 1820 1819 1842 1843; 2142 1819 1821 1844 1842; 2143 1821 1822 1845 1844;

2144 1822 1823 1846 1845; 2145 1823 1824 1847 1846; 2146 1824 1825 1848 1847;

2148 1825 1826 1849 1848; 2149 1826 1827 1850 1849; 2150 1827 1828 1851 1850;

2151 1828 1829 1852 1851; 2152 1829 1830 1853 1852; 2153 1830 1831 1854 1853;

2154 1831 1832 1855 1854; 2156 1832 1833 1856 1855; 2157 1833 1834 1857 1856;

2158 1834 1835 1858 1857; 2159 1835 1836 1859 1858; 2160 1836 1837 1860 1859;

2161 1837 1838 1861 1860; 2162 1838 1839 1862 1861; 2164 1839 1840 1863 1862;

2165 1840 1841 1864 1863; 2167 1843 1842 1865 34; 2169 1842 1844 1866 1865;

2171 1844 1845 1867 1866; 2173 1845 1846 1868 1867; 2175 1846 1847 1869 1868;

2177 1847 1848 1870 1869; 2178 1848 1849 36 1870; 2180 1849 1850 1871 36;

2182 1850 1851 1872 1871; 2184 1851 1852 1873 1872; 2186 1852 1853 1874 1873;

2188 1853 1854 1875 1874; 2190 1854 1855 1876 1875; 2191 1855 1856 38 1876;

2193 1856 1857 1877 38; 2195 1857 1858 1878 1877; 2197 1858 1859 1879 1878;

2199 1859 1860 1880 1879; 2201 1860 1861 1881 1880; 2203 1861 1862 1882 1881;

2204 1862 1863 40 1882; 2205 1863 1864 1883 40;

START GROUP DEFINITION

MEMBER

_MAINGIRDERS 8 TO 11 19 TO 22 30 TO 33 41 TO 44 52 65 79 93 96 TO 99 -

122 TO 125 148 TO 151 174 TO 177 200 TO 203 226 TO 229 252 TO 255 -

278 TO 281 304 TO 307 330 TO 333 356 TO 359 382 TO 385 408 TO 411 -

434 TO 437 460 TO 463 486 TO 489 512 TO 515 538 TO 541 604 611 619 627 630 -

637 645 653 656 663 671 679 682 689 697 705 708 715 723 731 734 741 749 757 -

760 767 775 783 786 793 801 809 812 819 827 835 838 845 853 861 864 871 879 -

887 890 897 905 913 916 923 931 939 942 949 957 965 968 975 983 991 994 -

1001 1009 1017 1020 1027 1035 1043 1046 1053 1061 1069 1072 1079 1087 1095 -

1138 1145 1153 1161 1164 1171 1179 1187 1190 1197 1205 1213 1216 1223 1231 -

1239 1242 1249 1257 1265 1268 1275 1283 1291 1294 1301 1309 1317 1320 1327 -

1335 1343 1346 1353 1361 1369 1372 1379 1387 1395 1398 1405 1413 1421 1424 -

1431 1439 1447 1450 1457 1465 1473 1476 1483 1491 1499 1502 1509 1517 1525 -

1528 1535 1543 1551 1554 1561 1569 1577 1580 1587 1595 1603 1606 1613 1621 -

1629 1672 1679 1687 1695 1698 1705 1713 1721 1724 1731 1739 1747 1750 1757 -

1765 1773 1776 1783 1791 1799 1802 1809 1817 1825 1828 1835 1843 1851 1854 -

1861 1869 1877 1880 1887 1895 1903 1906 1913 1921 1929 1932 1939 1947 1955 -

1958 1965 1973 1981 1984 1991 1999 2007 2010 2017 2025 2033 2036 2043

_MAINGIRDERS 2051 2059 2062 2069 2077 2085 2088 2095 2103 2111 2114 2121 -

2129 2137 2140 2147 2155 2163

_CROSGIRDERS 2 4 6 13 15 17 24 26 28 35 37 39 46 48 50 53 55 57 59 61 63 67 -

69 71 73 75 77 81 83 85 87 89 91 564 TO 581 1098 1100 1102 1104 1106 1108 -

1111 1113 1115 1117 1119 1121 1124 1126 1128 1130 1132 1134 1632 1634 1636 -

1638 1640 1642 1645 1647 1649 1651 1653 1655 1658 1660 1662 1664 1666 1668 -

2166 2168 2170 2172 2174 2176 2179 2181 2183 2185 2187 2189 2192 2194 2196 -

2198 2200 2202

_PIERS 1 3 5 7 12 14 16 18 23 25 27 29 34 36 38 40 45 47 49 51

ELEMENT

_SLAB 54 56 58 60 62 64 66 68 70 72 74 76 78 80 82 84 86 88 90 92 94 95 100 -

101 TO 121 126 TO 147 152 TO 173 178 TO 199 204 TO 225 230 TO 251 256 TO 277 -

282 TO 303 308 TO 329 334 TO 355 360 TO 381 386 TO 407 412 TO 433 -

438 TO 459 464 TO 485 490 TO 511 516 TO 537 542 TO 563 582 TO 603 -

605 TO 610 612 TO 618 620 TO 626 628 629 631 TO 636 638 TO 644 646 TO 652 -

654 655 657 TO 662 664 TO 670 672 TO 678 680 681 683 TO 688 690 TO 696 698 -

699 TO 704 706 707 709 TO 714 716 TO 722 724 TO 730 732 733 735 TO 740 742 -

743 TO 748 750 TO 756 758 759 761 TO 766 768 TO 774 776 TO 782 784 785 787 -

788 TO 792 794 TO 800 802 TO 808 810 811 813 TO 818 820 TO 826 828 TO 834 -

836 837 839 TO 844 846 TO 852 854 TO 860 862 863 865 TO 870 872 TO 878 880 -

881 TO 886 888 889 891 TO 896 898 TO 904 906 TO 912 914 915 917 TO 922 924 -

925 TO 930 932 TO 938 940 941 943 TO 948 950 TO 956 958 TO 964 966 967 969 -

970 TO 974 976 TO 982 984 TO 990 992 993 995 TO 1000 1002 TO 1008 -

1010 TO 1016 1018 1019 1021 TO 1026 1028 TO 1034 1036 TO 1042 1044 1045 -

1047 TO 1052 1054 TO 1060 1062 TO 1068 1070 1071 1073 TO 1078

_SLAB 1080 TO 1086 1088 TO 1094 1096 1097 1099 1101 1103 1105 1107 1109 1110 -

1112 1114 1116 1118 1120 1122 1123 1125 1127 1129 1131 1133 1135 TO 1137 -

1139 TO 1144 1146 TO 1152 1154 TO 1160 1162 1163 1165 TO 1170 1172 TO 1178 -

1180 TO 1186 1188 1189 1191 TO 1196 1198 TO 1204 1206 TO 1212 1214 1215 -

1217 TO 1222 1224 TO 1230 1232 TO 1238 1240 1241 1243 TO 1248 1250 TO 1256 -

1258 TO 1264 1266 1267 1269 TO 1274 1276 TO 1282 1284 TO 1290 1292 1293 -

1295 TO 1300 1302 TO 1308 1310 TO 1316 1318 1319 1321 TO 1326 1328 TO 1334 -

1336 TO 1342 1344 1345 1347 TO 1352 1354 TO 1360 1362 TO 1368 1370 1371 -

1373 TO 1378 1380 TO 1386 1388 TO 1394 1396 1397 1399 TO 1404 1406 TO 1412 -

1414 TO 1420 1422 1423 1425 TO 1430 1432 TO 1438 1440 TO 1446 1448 1449 -

1451 TO 1456 1458 TO 1464 1466 TO 1472 1474 1475 1477 TO 1482 1484 TO 1490 -

1492 TO 1498 1500 1501 1503 TO 1508 1510 TO 1516 1518 TO 1524 1526 1527 -

1529 TO 1534 1536 TO 1542 1544 TO 1550 1552 1553 1555 TO 1560 1562 TO 1568 -

1570 TO 1576 1578 1579 1581 TO 1586 1588 TO 1594 1596 TO 1602 1604 1605 -

1607 TO 1612 1614 TO 1620 1622 TO 1628 1630 1631 1633 1635 1637 1639 1641 -

1643 1644 1646 1648 1650 1652 1654 1656 1657 1659 1661 1663 1665 1667 1669 -

1670 TO 1671 1673 TO 1678 1680 TO 1686 1688 TO 1694 1696 1697 1699 TO 1704 -

1706 TO 1712 1714

_SLAB 1715 TO 1720 1722 1723 1725 TO 1730 1732 TO 1738 1740 TO 1746 1748 1749 -

1751 TO 1756 1758 TO 1764 1766 TO 1772 1774 1775 1777 TO 1782 1784 TO 1790 -

1792 TO 1798 1800 1801 1803 TO 1808 1810 TO 1816 1818 TO 1824 1826 1827 -

1829 TO 1834 1836 TO 1842 1844 TO 1850 1852 1853 1855 TO 1860 1862 TO 1868 -

1870 TO 1876 1878 1879 1881 TO 1886 1888 TO 1894 1896 TO 1902 1904 1905 -

1907 TO 1912 1914 TO 1920 1922 TO 1928 1930 1931 1933 TO 1938 1940 TO 1946 -

1948 TO 1954 1956 1957 1959 TO 1964 1966 TO 1972 1974 TO 1980 1982 1983 -

1985 TO 1990 1992 TO 1998 2000 TO 2006 2008 2009 2011 TO 2016 2018 TO 2024 -

2026 TO 2032 2034 2035 2037 TO 2042 2044 TO 2050 2052 TO 2058 2060 2061 -

2063 TO 2068 2070 TO 2076 2078 TO 2084 2086 2087 2089 TO 2094 2096 TO 2102 -

2104 TO 2110 2112 2113 2115 TO 2120 2122 TO 2128 2130 TO 2136 2138 2139 -

2141 TO 2146 2148 TO 2154 2156 TO 2162 2164 2165 2167 2169 2171 2173 2175 -

2177 2178 2180 2182 2184 2186 2188 2190 2191 2193 2195 2197 2199 2201 2203 -

2204 TO 2205

END GROUP DEFINITION

ELEMENT PROPERTY

54 56 58 60 62 64 66 68 70 72 74 76 78 80 82 84 86 88 90 92 94 95 100 TO 121 -

126 TO 147 152 TO 173 178 TO 199 204 TO 225 230 TO 251 256 TO 277 -
