Project 2

1. ANS:

AIM :

• Design a Warehouse Building located in Chennai using STAAD Pro Connect Edition. The specification are,

• Width	30m
  Length	50m
  Eave Height	9m
  Bay spacing	6m
  Soil type	Medium
  Safe Bearing Capacity	200 kN/m2
  Roof slope	1 in 12

  Assume suitable sections for structural elements. Follow IS800:2007, IS1893 and IS 875

INTRODUCTION :

• To Create the model Start the Staad pro and create new .
• Once New file is created then start doing the model with the given data ,

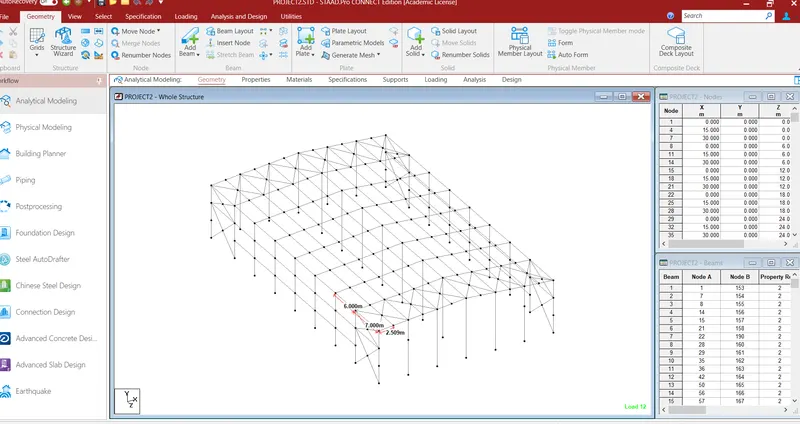

• Draw the model using nodel coordinates.
•

PROCEDURE :

• Once the model is created then we have to assing the Properties.
• For the column We can assign ISMB 400
• For rafter we can assing ISMB 250
• For tension member we can assing the angles with size 50 *50 *50 .
• Once all are assigned the move on the support.
• For steel structure we have to go on with Pinned support.

• Once the support and property is assing the move on to SPECIFICATION where we have to add the secondary beam we have to release the moment at top and bottom.
• And assign it.

LOADING :

• Once the above process is done then we have to move on the loading point where we have to add the loads like,

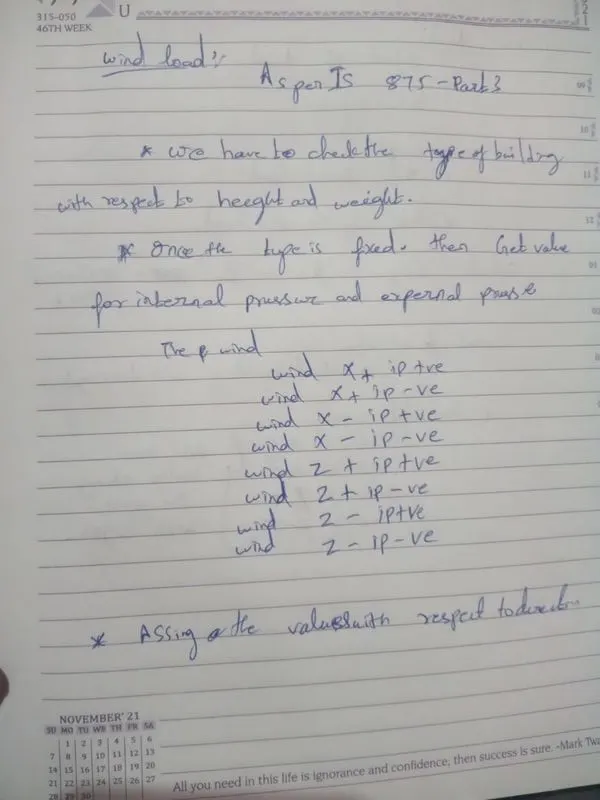

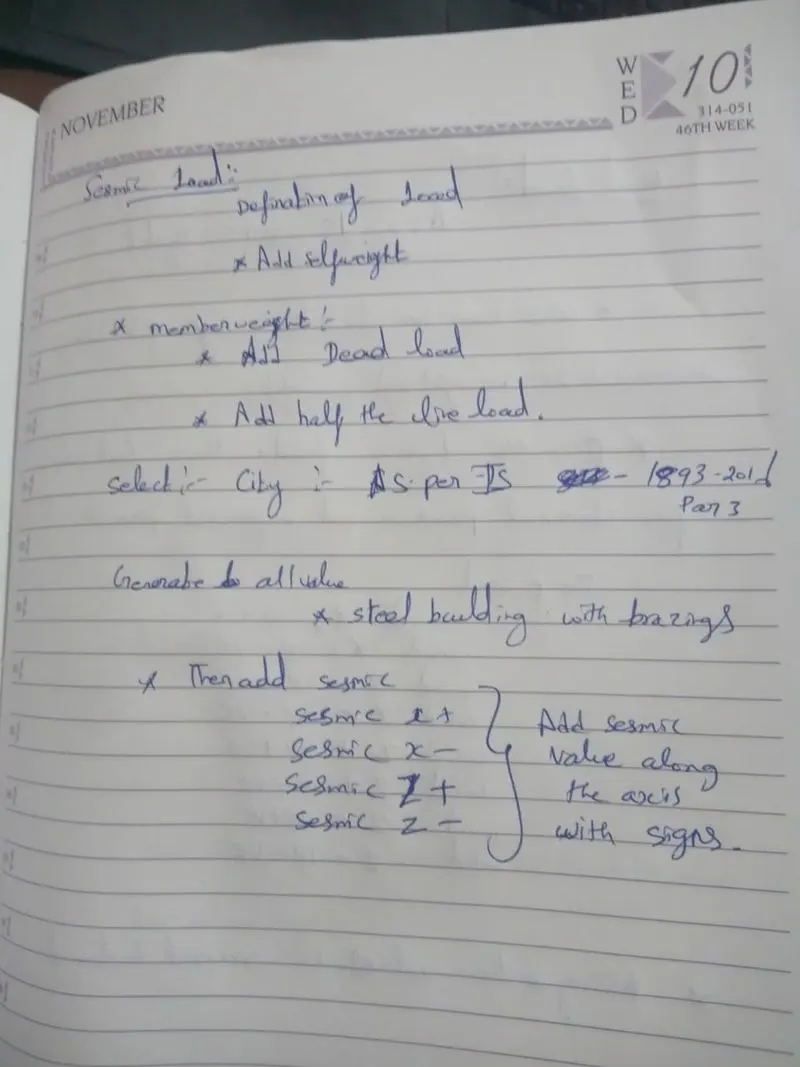

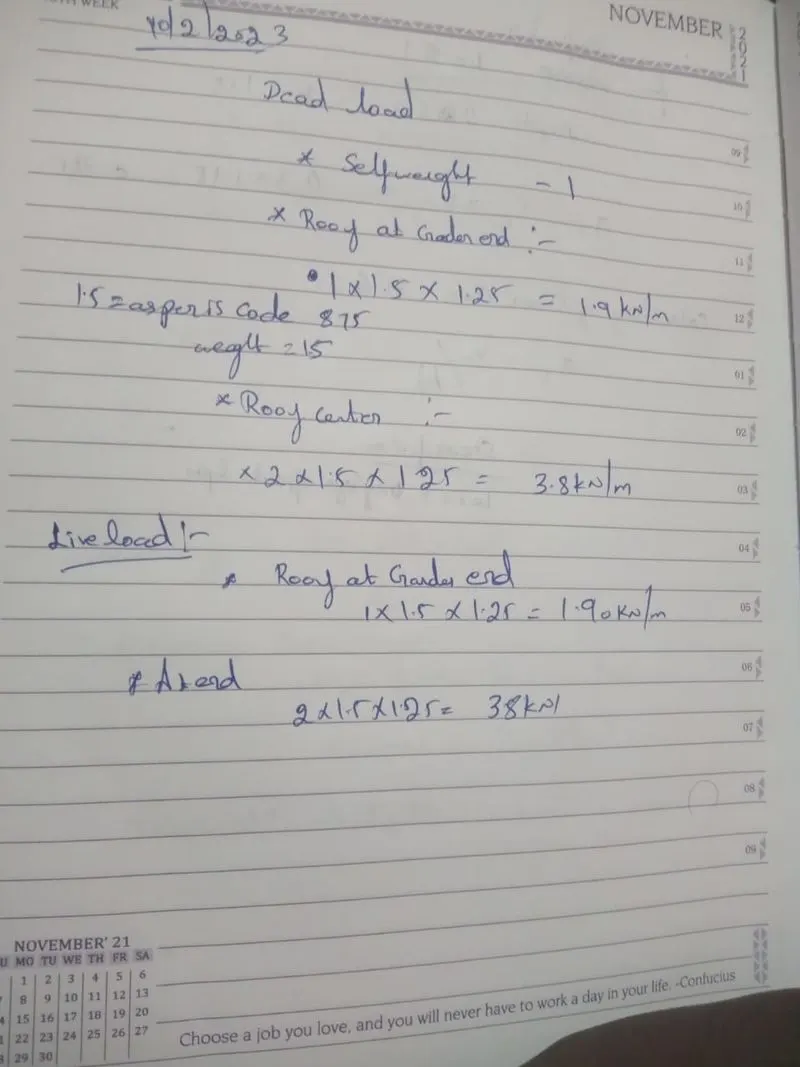

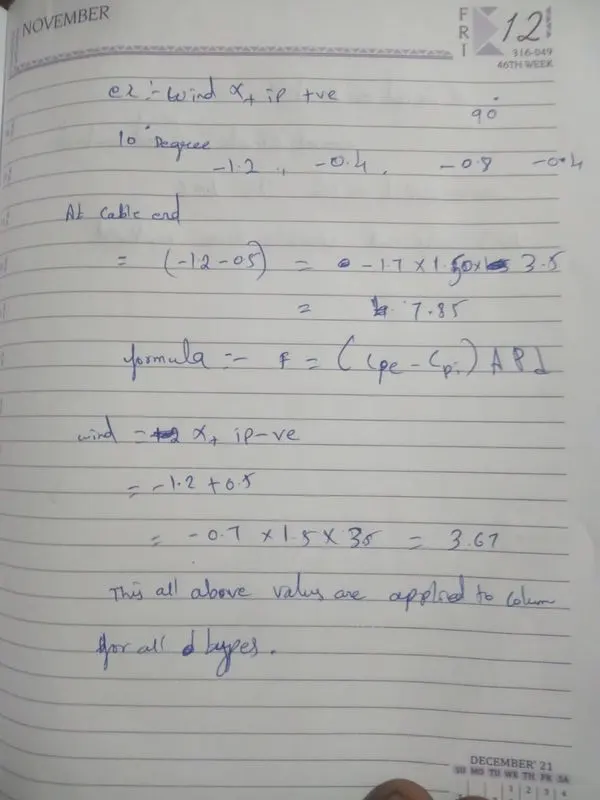

• Dead Load , Live load , Sesmic Load and Wind load etc...

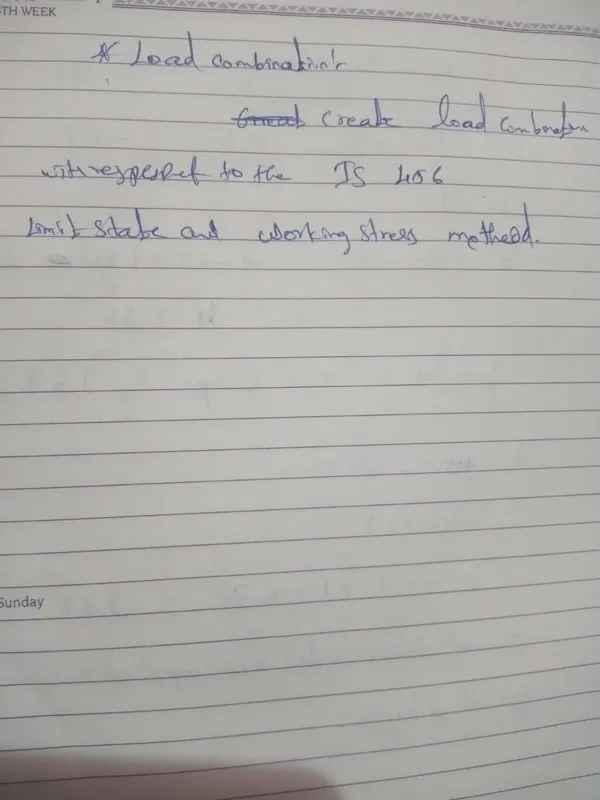

• The procedure are,
•

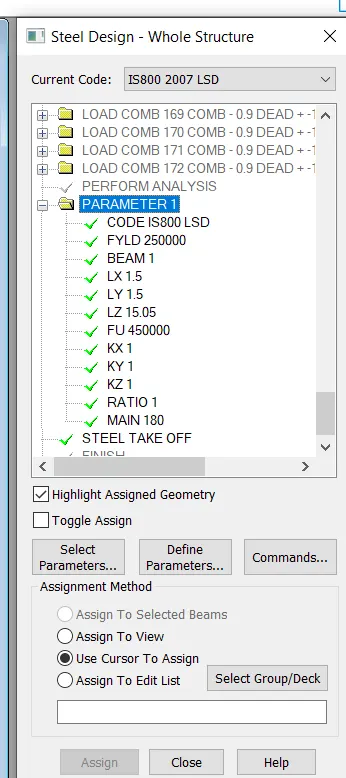

• Once all Load are designed and applied then we have to assing Desing parameters like,
•

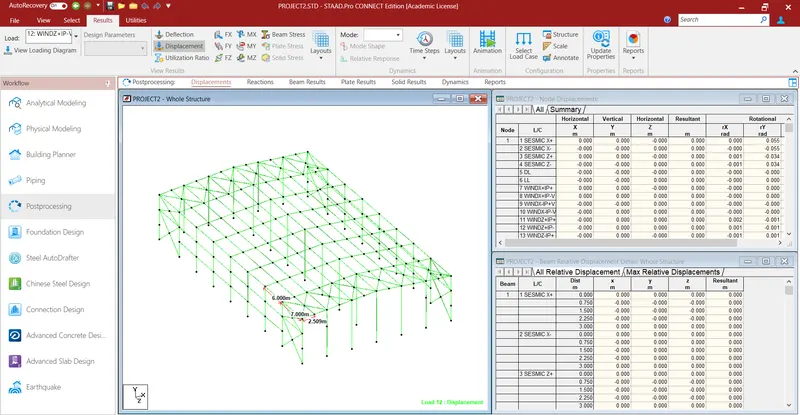

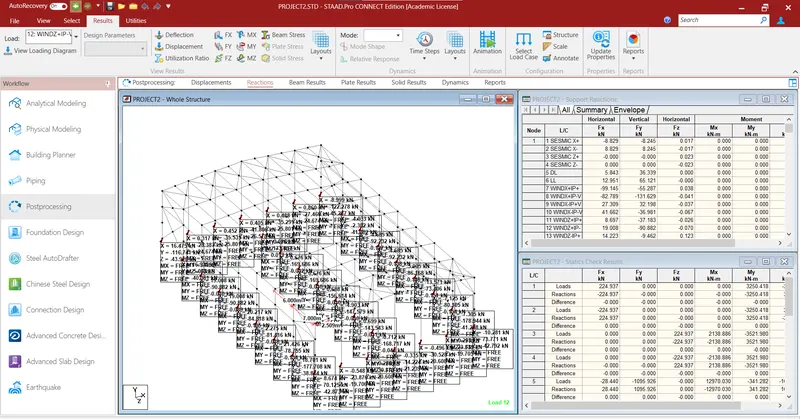

• Once all are desing and run the analysis the results are given below,

• From the above result the model is safe,

RESULT :

• From the above procedure we have seen all the result and the model is safe. Hence the model is completed with staad pro, hence proved.
• The Design of Gantry Grider is designed and the Excel file is attache below.
• Hence Model is successfully runned.
